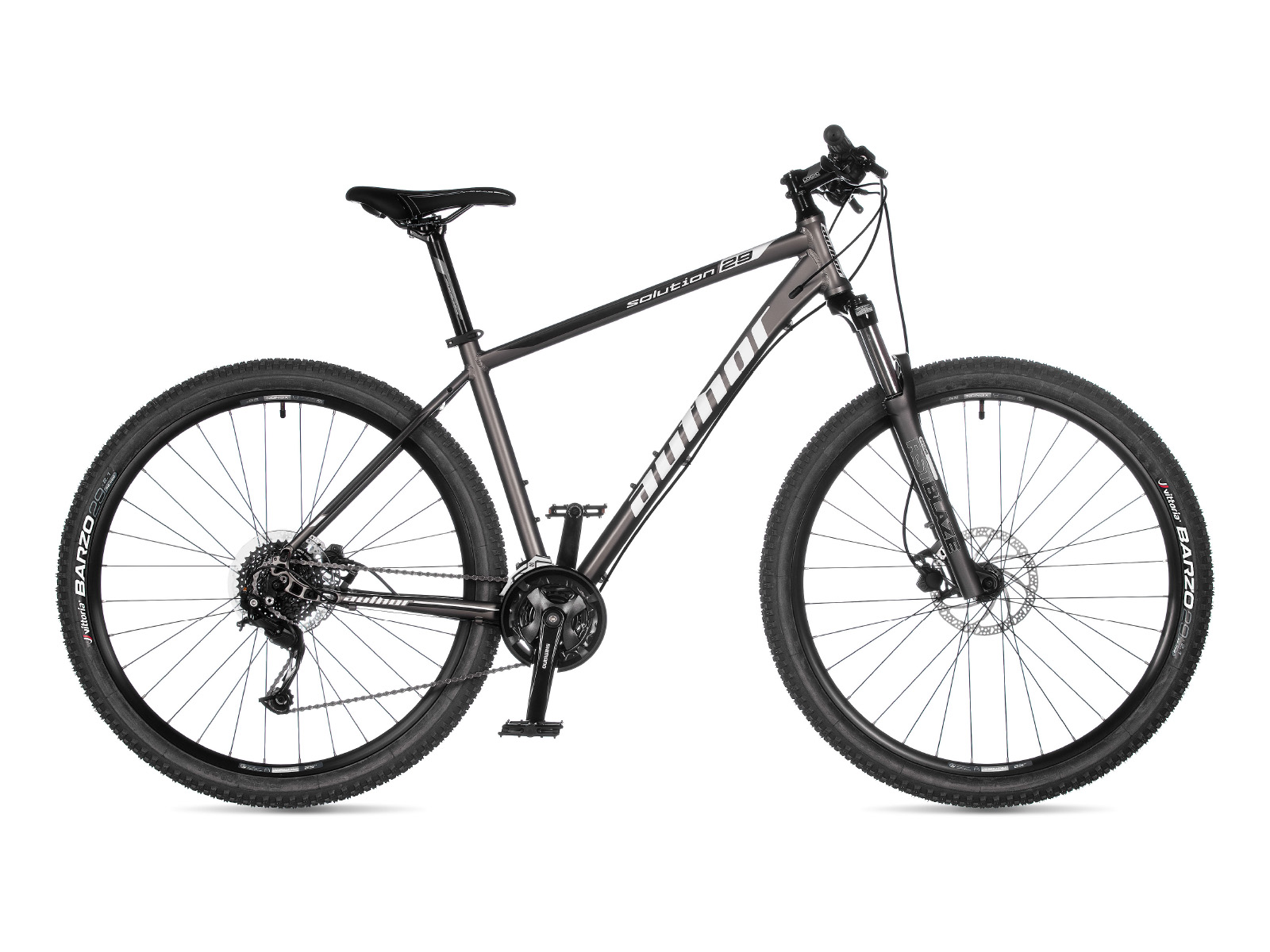

Solution 29 2023-24

Solution 29 2023-24Archivní model 2025

~~Colour variants~~

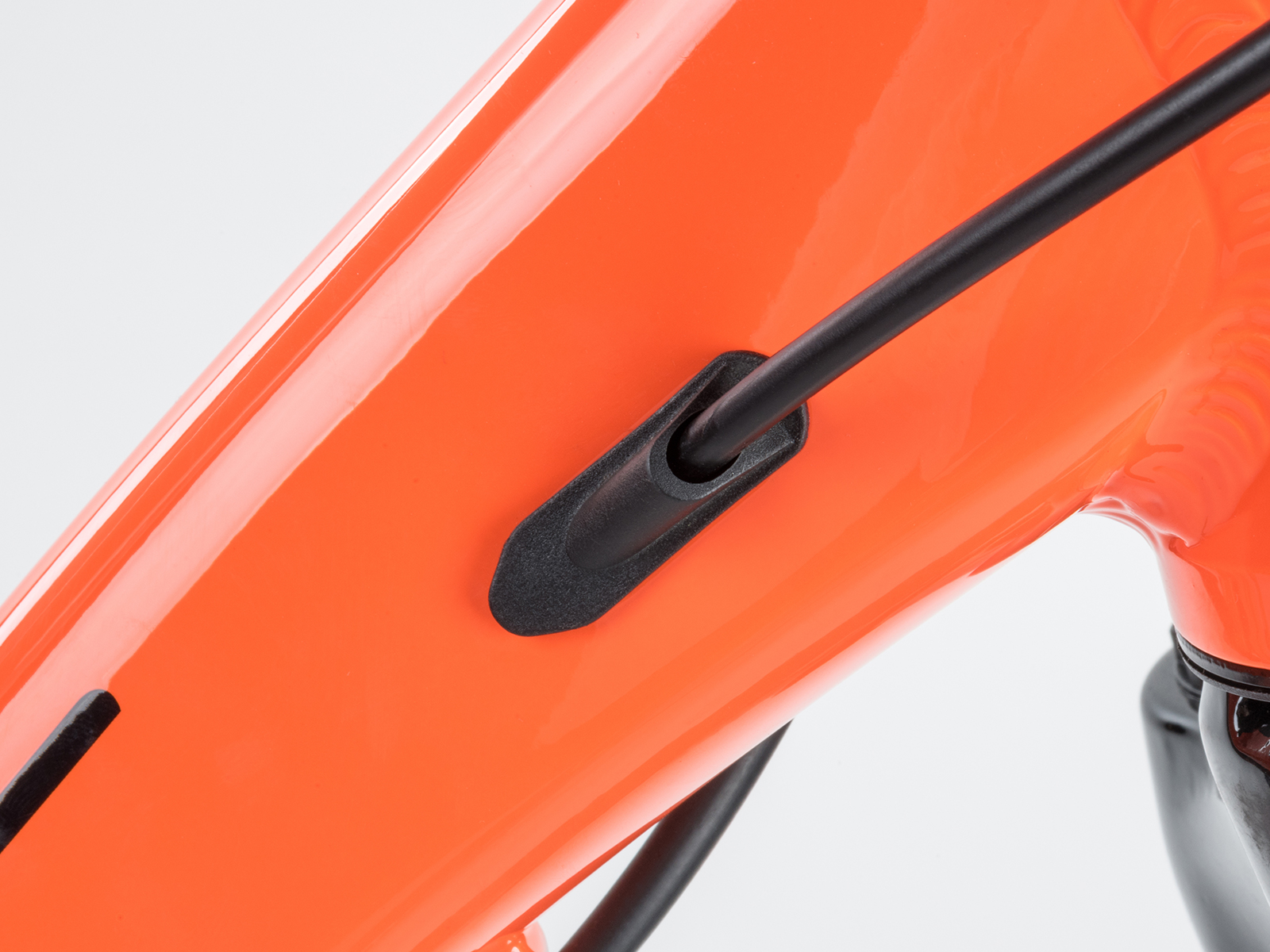

Wheel size 29"Alloy ASL frame with internal cable routingNew SHIMANO components ALIVIO, 27 speedSuspension fork RST Blaze 29 with lockQuality tire VITTORIA Barzo 29" × 2.10"TEKTRO disc hydraulic brakeComfort saddle AUTHOR Courier

~~Buy now~~special price 12 990 Kč

original price ~~19 290 Kč~~

Technical specification

Size	17", 19", 21"

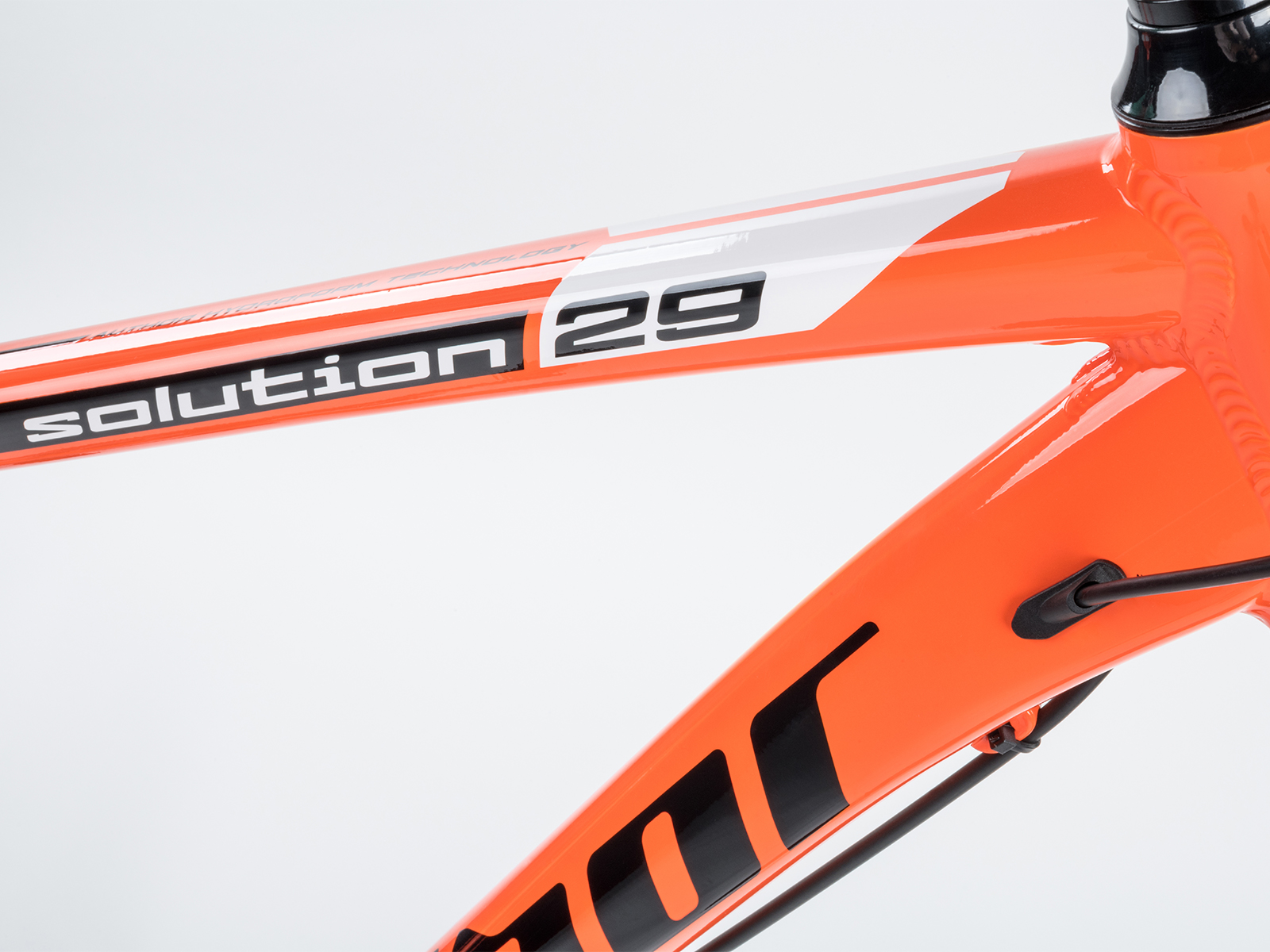

Frame	alloy 6061 29"
Front fork	RST Blaze 29 ML, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"

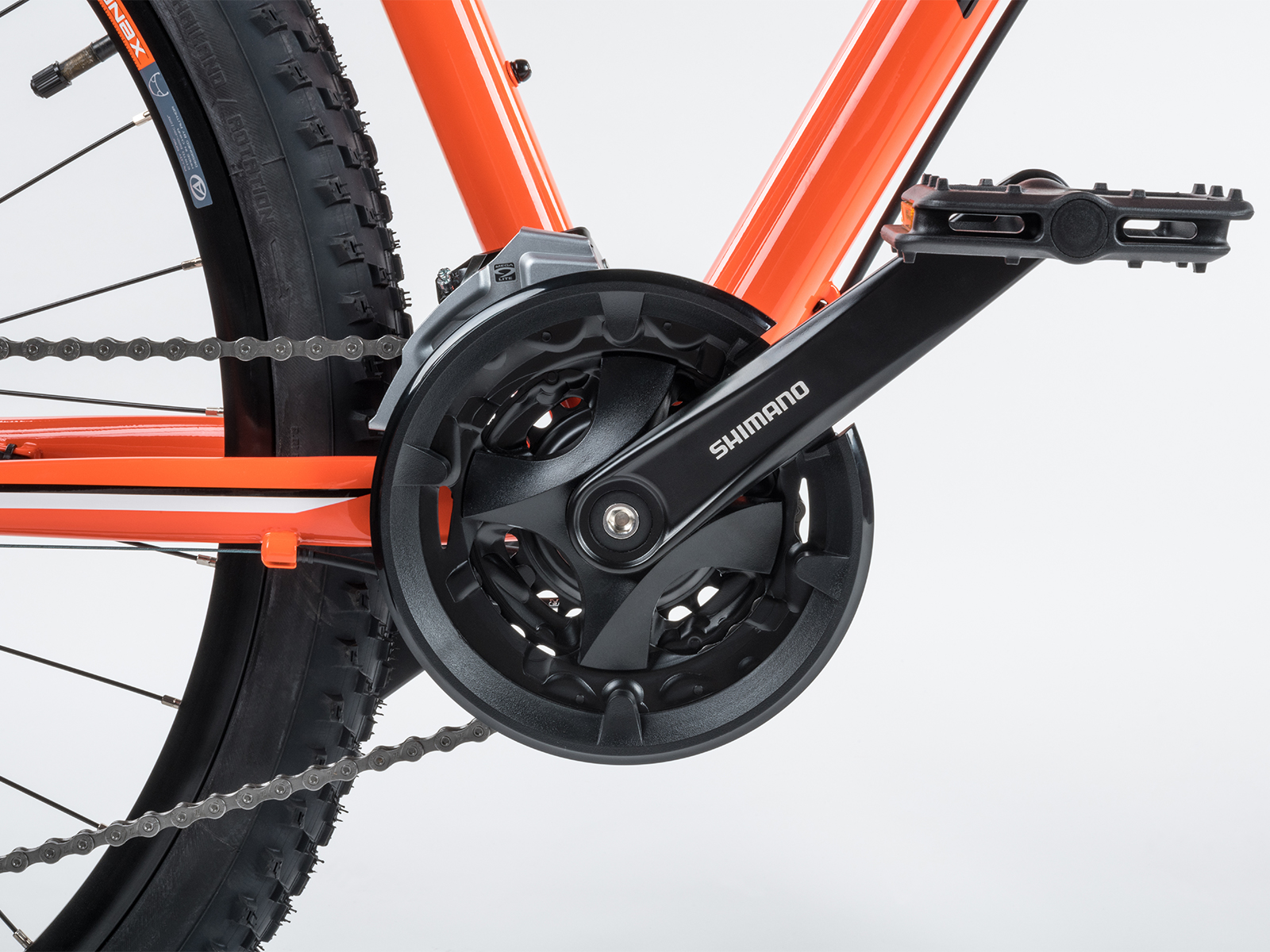

Chain Wheel	SHIMANO MT101, 40-30-22 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-UN101, cartridge

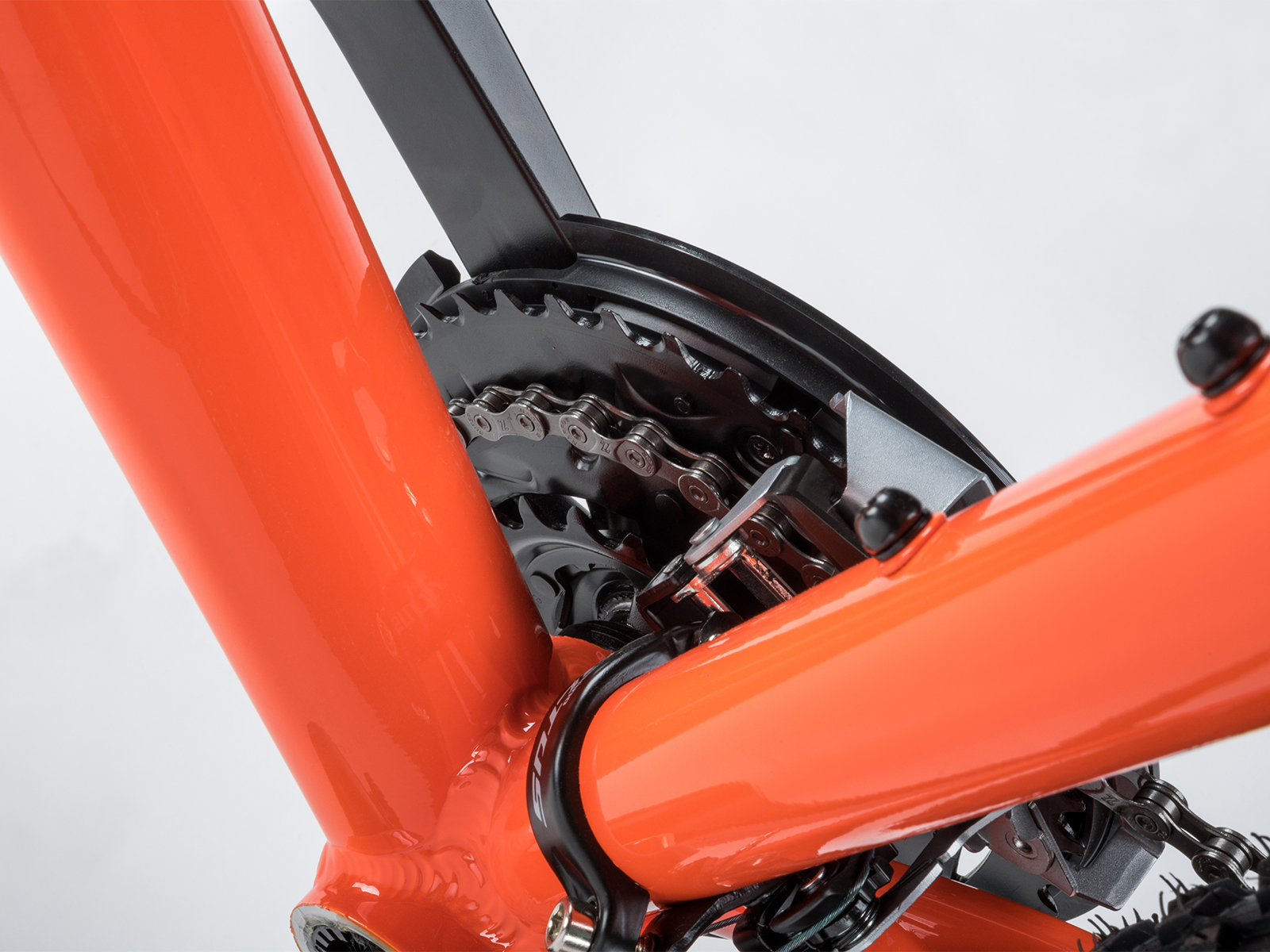

Front derailleur	SHIMANO Altus (34.9)

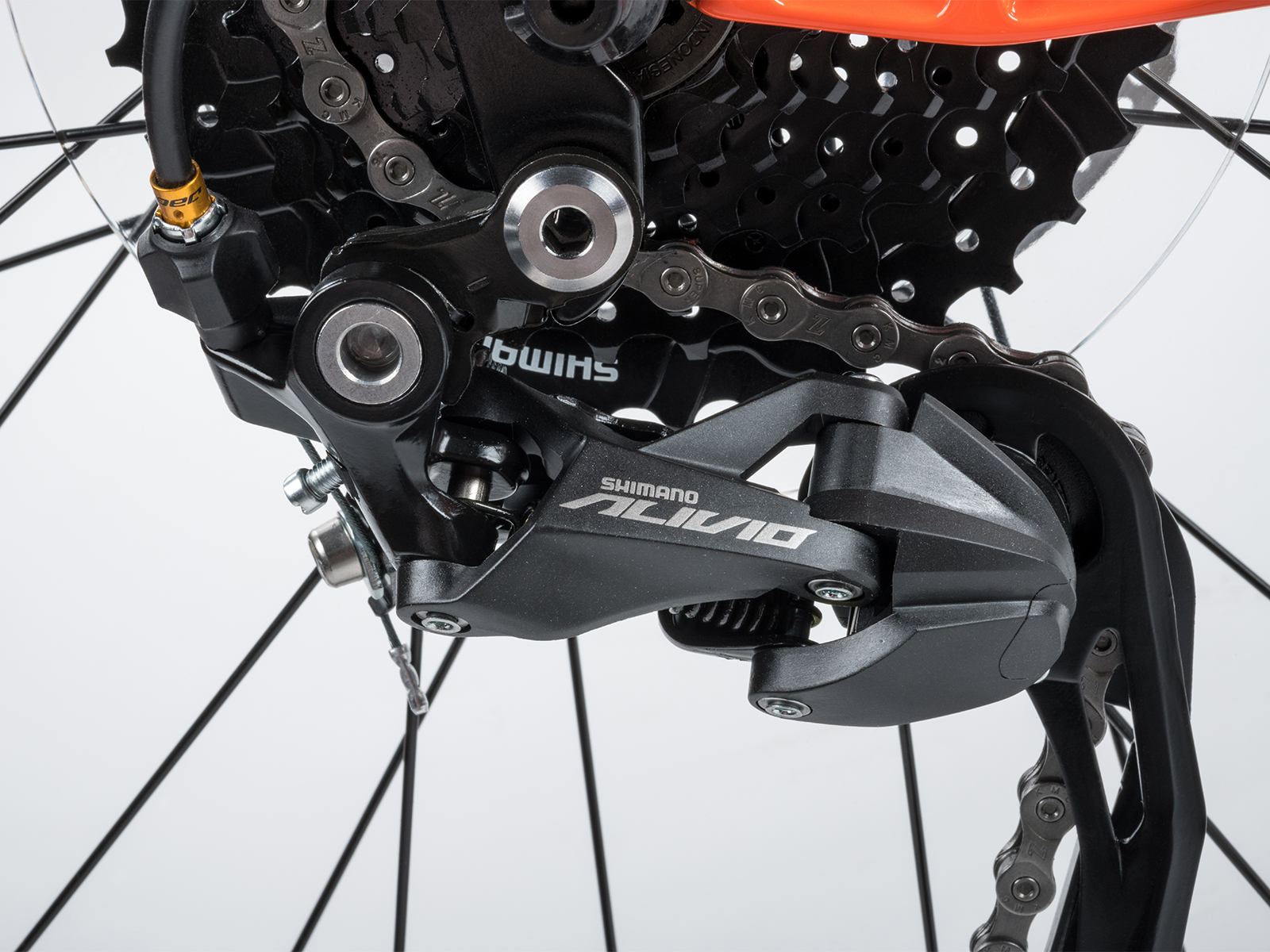

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (27)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

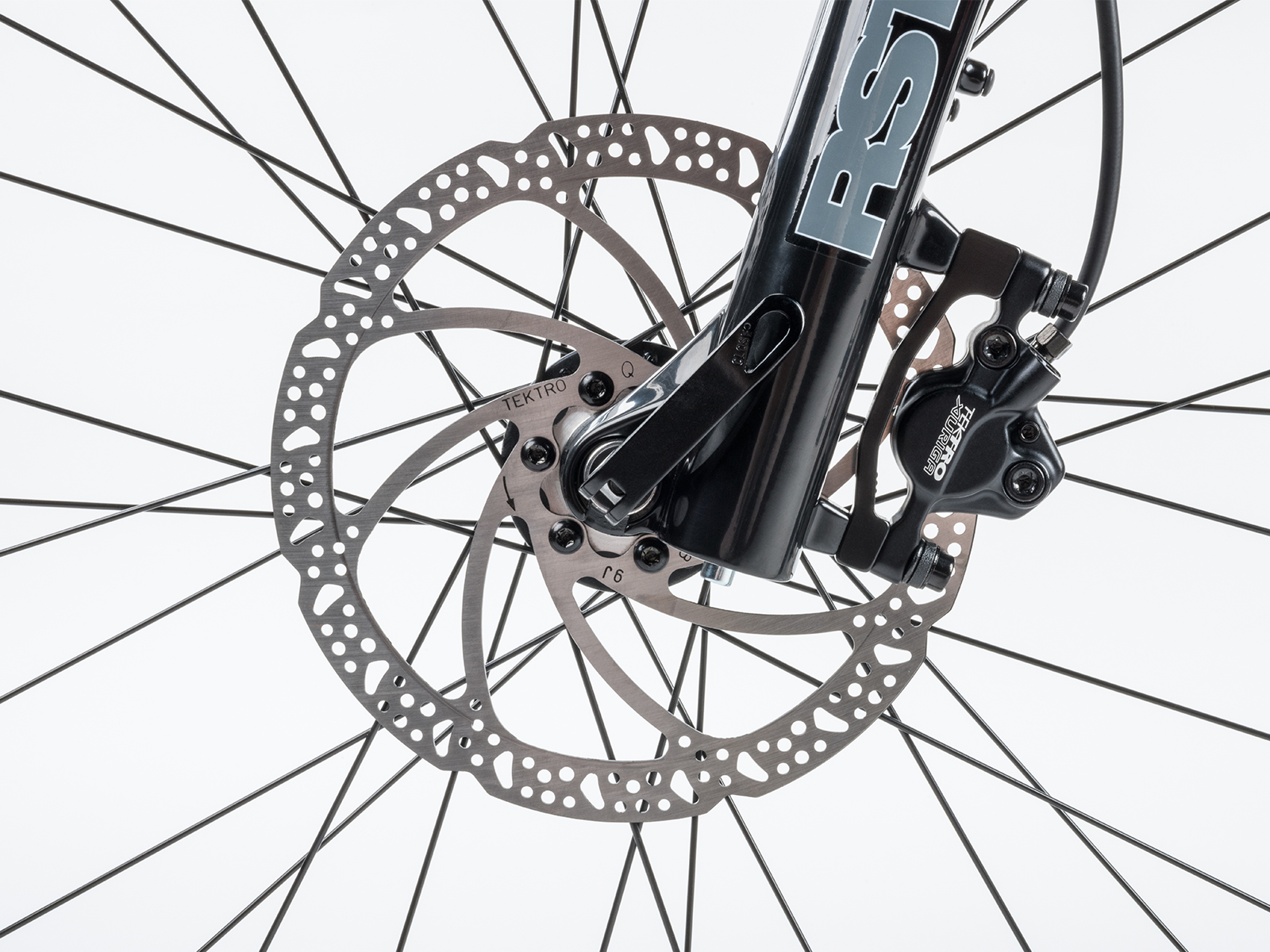

Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M280

Rims	AUTHOR Xenon 29, 32 holes
Spokes	black steel

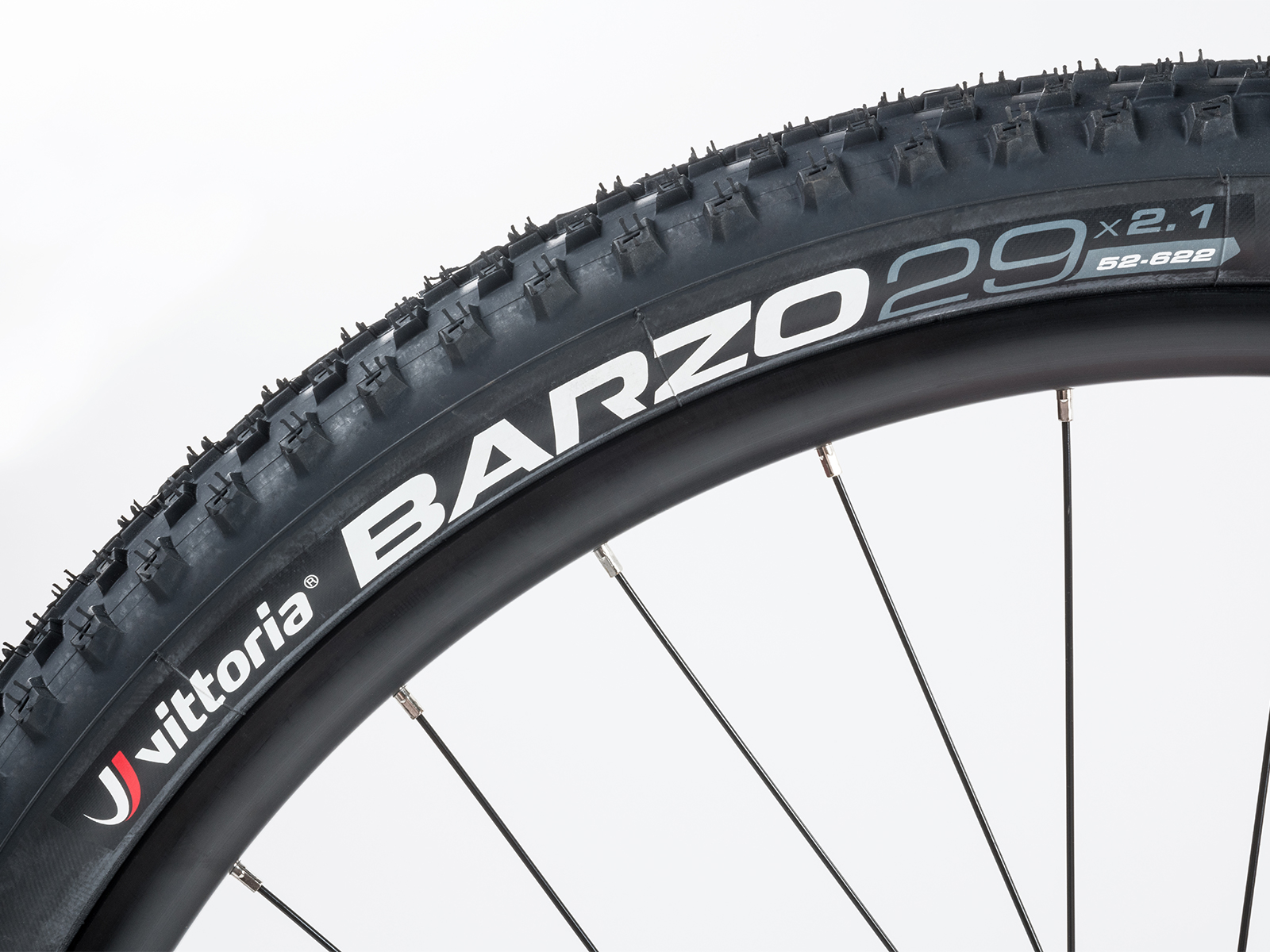

Tires	VITTORIA Barzo 29" × 2.10"
Pedals	plastic
Handlebar	AUTHOR Flatbar, 9°, 700 mm
Grips	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

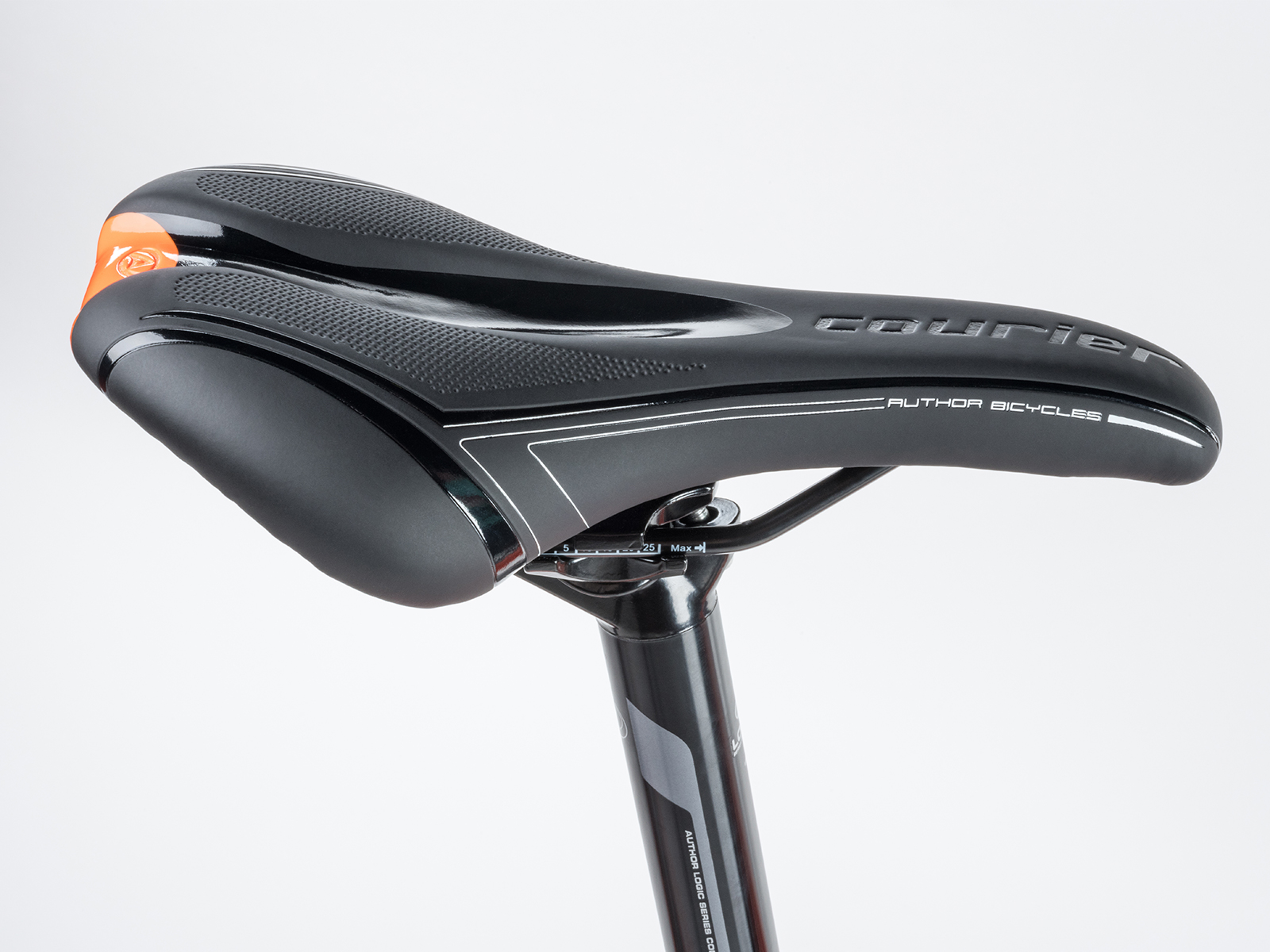

Saddle	AUTHOR Courier
Speed	27
Weight	14,9 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	581	596	614
H/T ~~[mm]~~	115	130	140
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1125	1147	1167
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	63	63	63
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	407	423	440
Stack ~~[mm]~~	632	646	655
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
