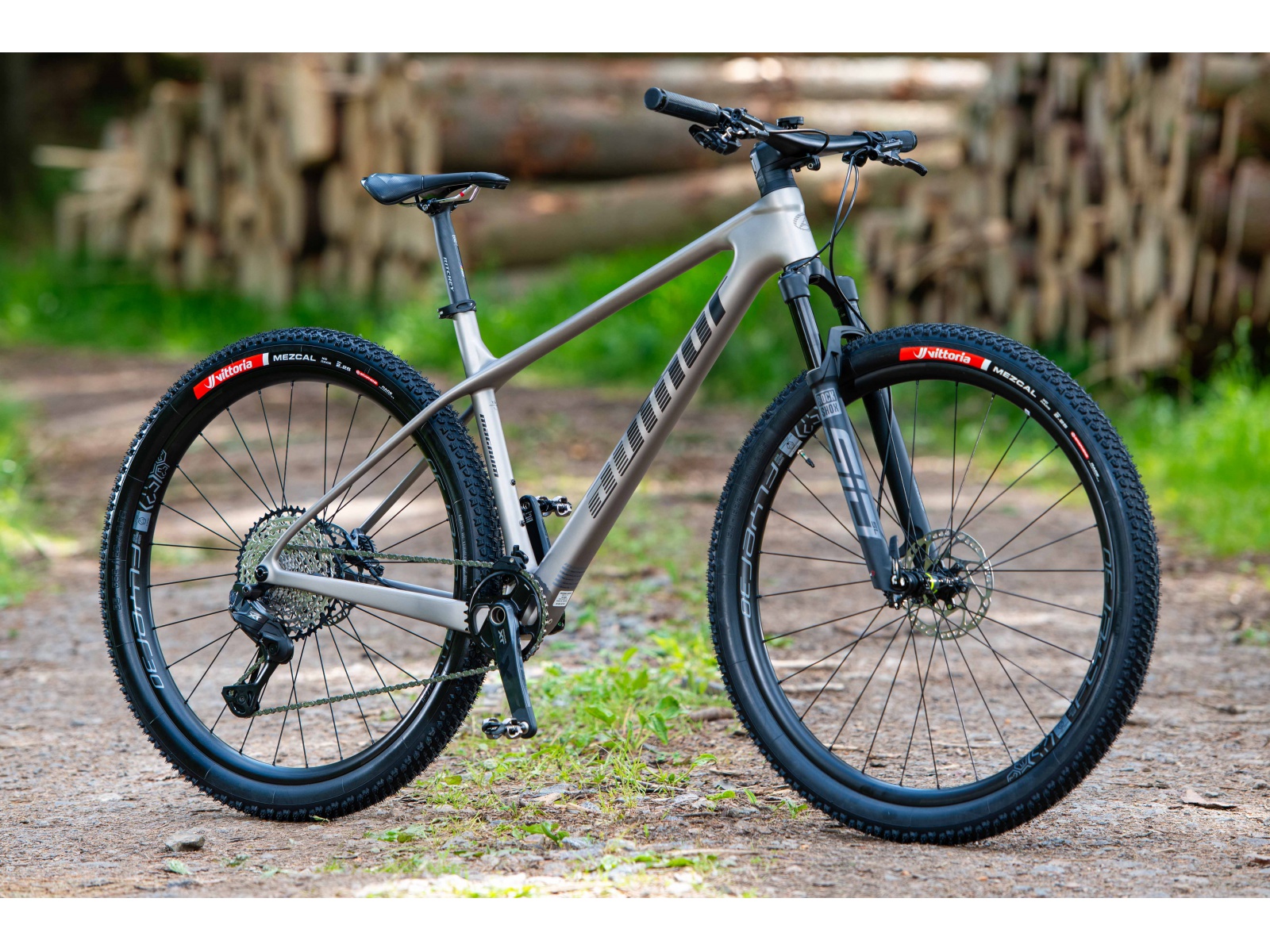

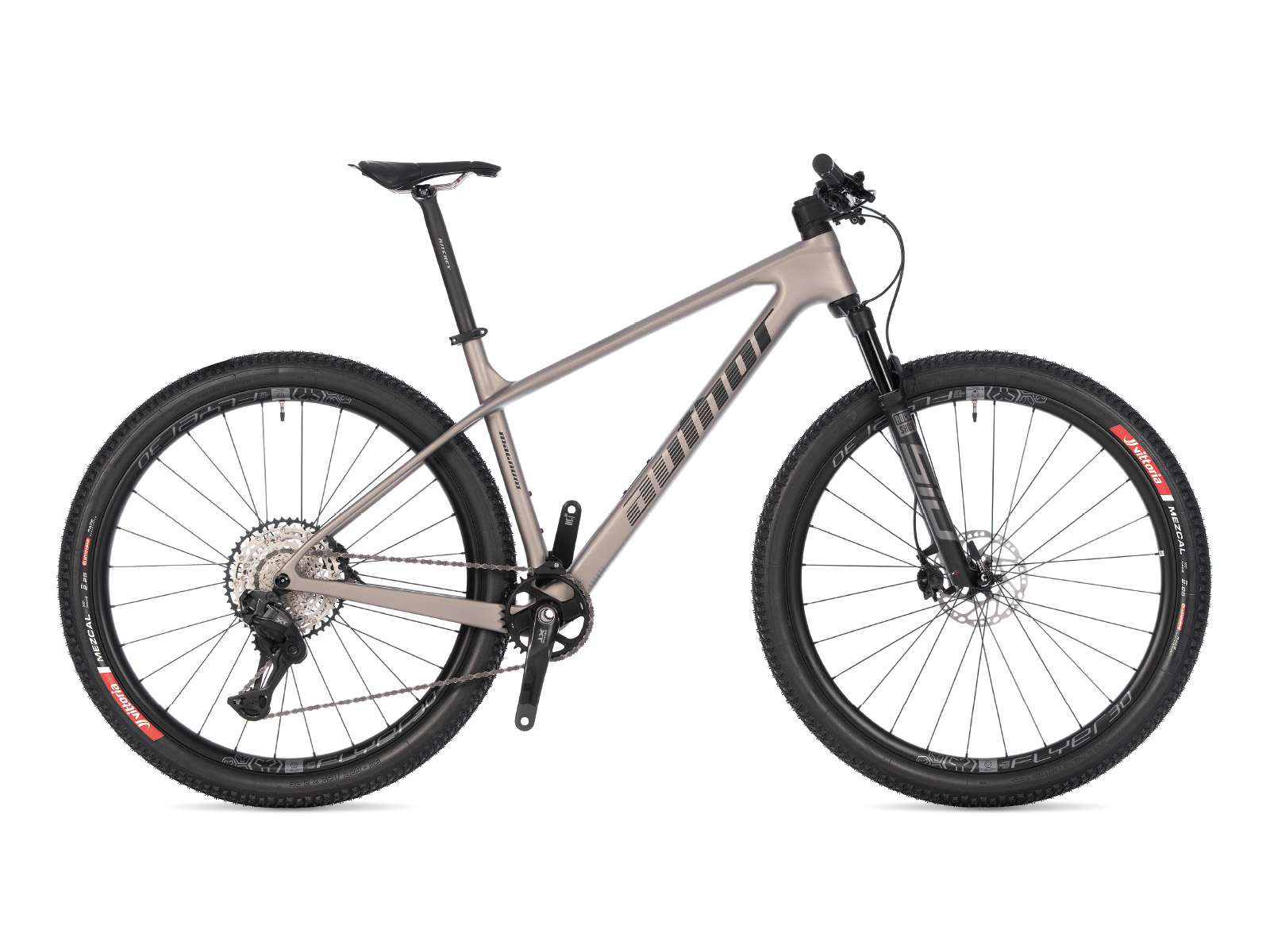

Magnum 2026

~~Colour variants~~

AUTHOR lightweight carbon frame High Modulus Toray T800 monocoqueRock Shox SID SEL+ Remote 29 AIR, remote lock outAUTHOR Flyer Carbon 30 wheel setSHIMANO Deore XT Di2 drive train, 12 speedAUTHOR carbon combo handlebar and stemSHIMANO Deore XT hydraulic disc brakesJak vybrat kolo

price 129 990 Kč

other models

Interested in other model`s year?

2014 2015 2016 2017 2018 2019 2020 2021-22 2023-24 2026

Technical specification

Size	29" – 17.5", 19", 20.5"
Frame	AUTHOR carbon Toray T800 monocoque 29"
Front fork	ROCK SHOX SID SEL+ Remote 29, air, remote lock out, 15 mm thru axle Boost, 1.5" tapered steerer (100 mm)
Head parts	ACROS 320.52.557 1,5"
Chain Wheel	SHIMANO XT, 36 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-MT800
Rear derailleur	SHIMANO XT Di2
Shifters	SHIMANO XT Di2 (12)
Free wheel	SHIMANO CS-M7100, 10-51 teeth (12)
Chain	SHIMANO M7100
Hubs	AUTHOR Flyer Carbon 30, wheel set, 28 holes, 15 x 110 mm thru front axle, 12 x 148 mm thru rear axle
Brakes	SHIMANO XT, disc hydraulic (6" rotors)

Brakes levers	SHIMANO XT
Rims	AUTHOR Flyer Carbon 30, wheel set, 28 holes
Spokes	SAPIM
Tires	VITTORIA Mezcal XC Race, foldable, tubeless, 29" x 2.25"
Handlebar	combo carbon, 720 / 740 / 760 mm
Stem	combo carbon 720 / 740 / 760 mm
Seat post	RITCHEY WCS Carbon 1B (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	PROLOGO Scratch M5 Space AGX Tirox
Speed	12

Geometry and sizes

Size	29"/17,5"	29"/19"	29"/20,5"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	440	480	520
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	0	0	0
H/T ~~[mm]~~	100	110	125
C/S ~~[mm]~~	430	430	430
W/B ~~[mm]~~	1118	1139	1160
S/T ang. ~~[°]~~	73	73	74
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	58	58	58
B/B width ~~[mm]~~	92	92	92
Reach ~~[mm]~~	425	443	458
Stack ~~[mm]~~	609	619	633
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

titan-matt / black

17" = UA#42968702 19" = UA#42968703 20,5" = UA#42968704
