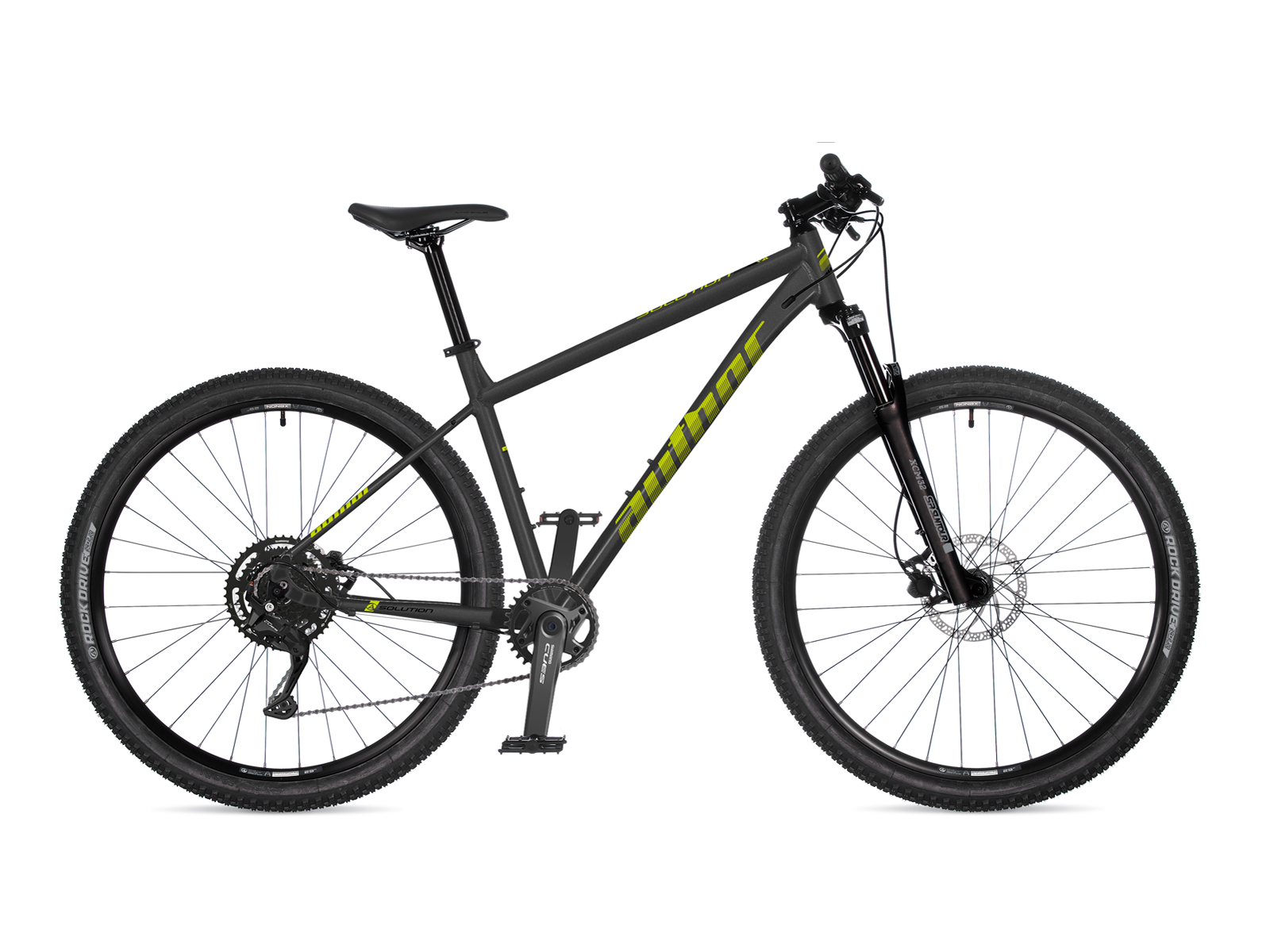

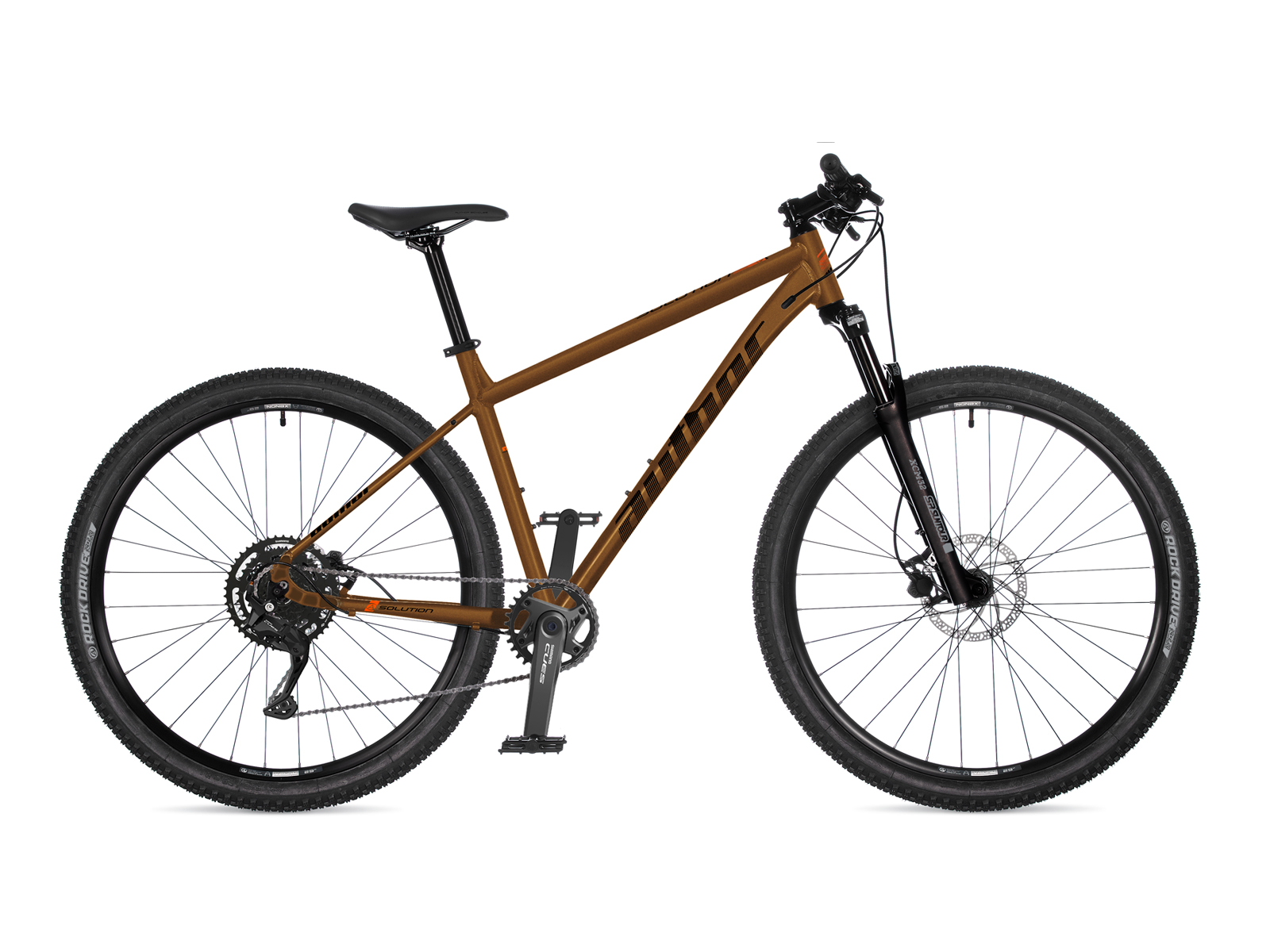

Solution 2026

Technical specification

Size	29" – 17", 19", 21"
Frame	alloy 29"

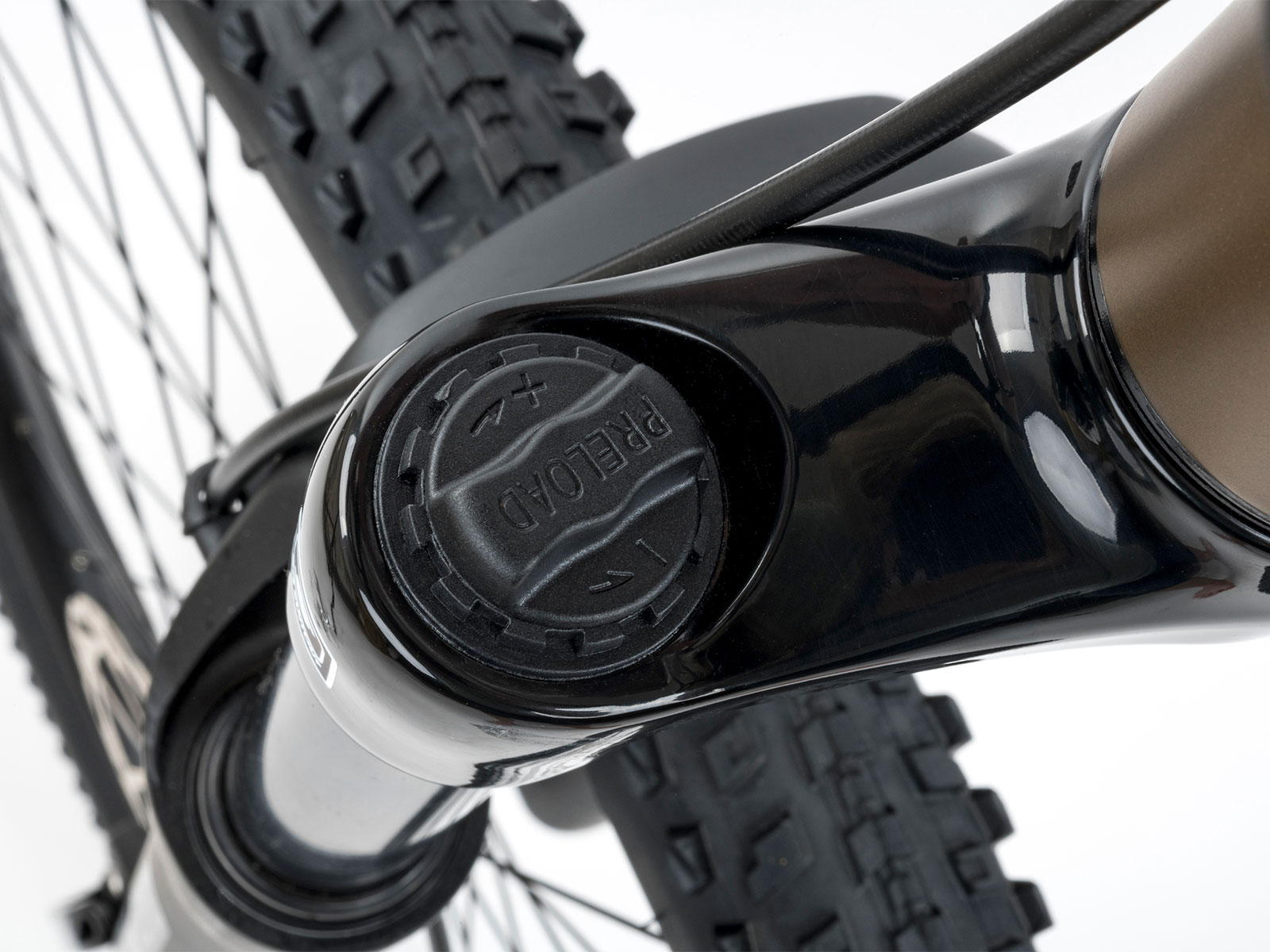

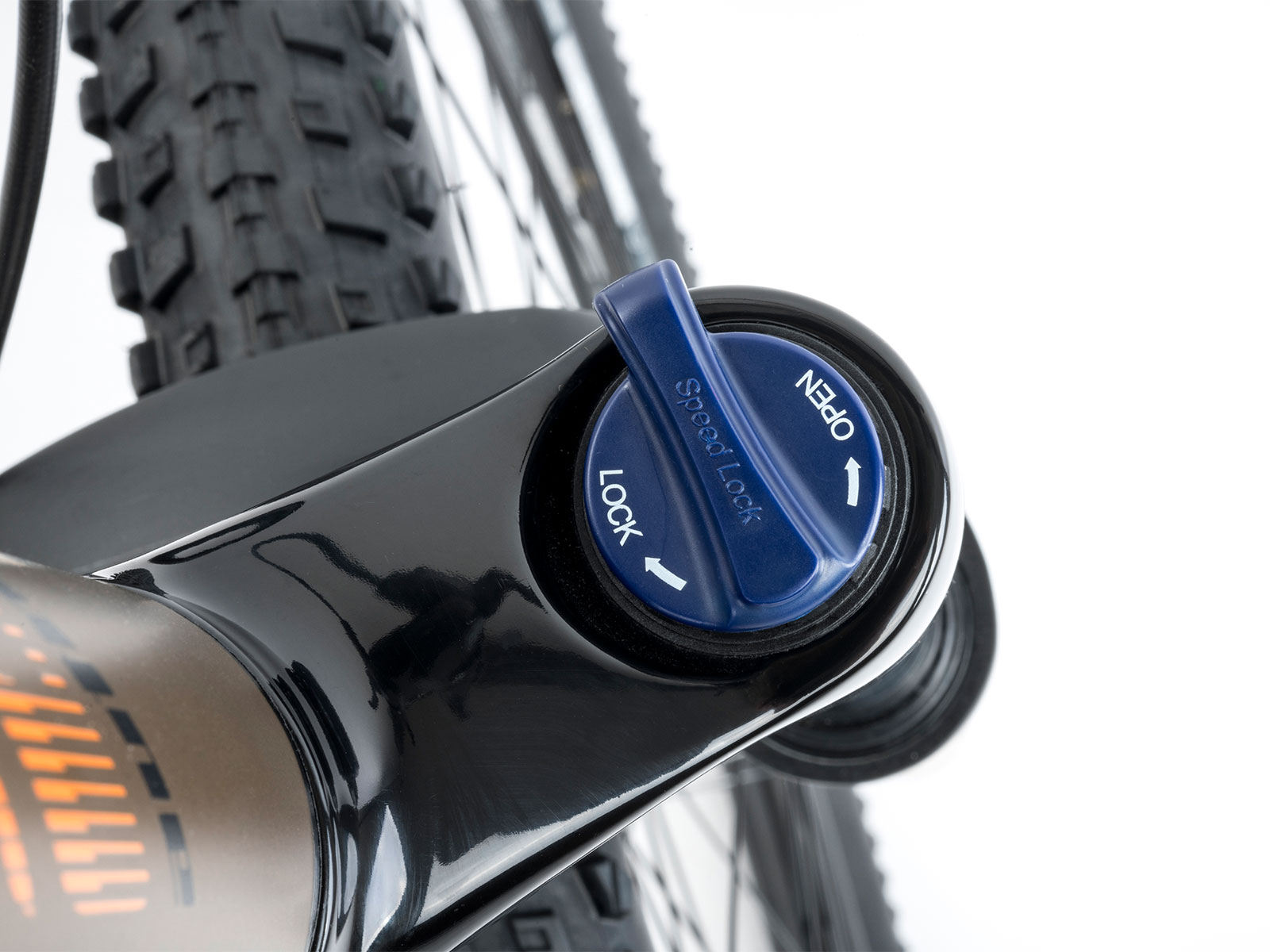

Front fork	SUNTOUR XCM32 LO 29, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"

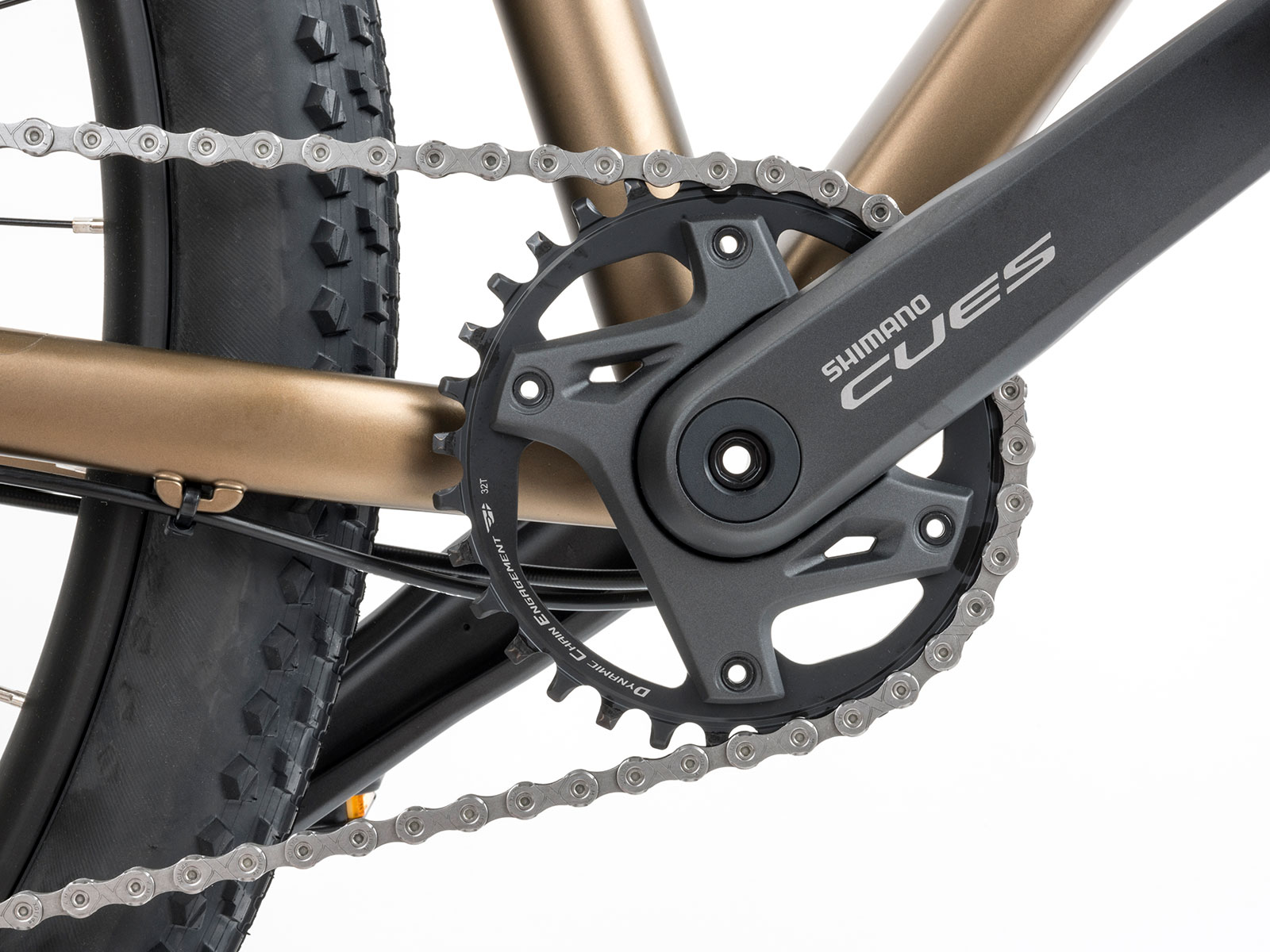

Chain Wheel	SHIMANO Cues 6000-1, 32 teeth, 170/175 mm cranks
BBParts	SHIMANO BB-MT501, BB unit

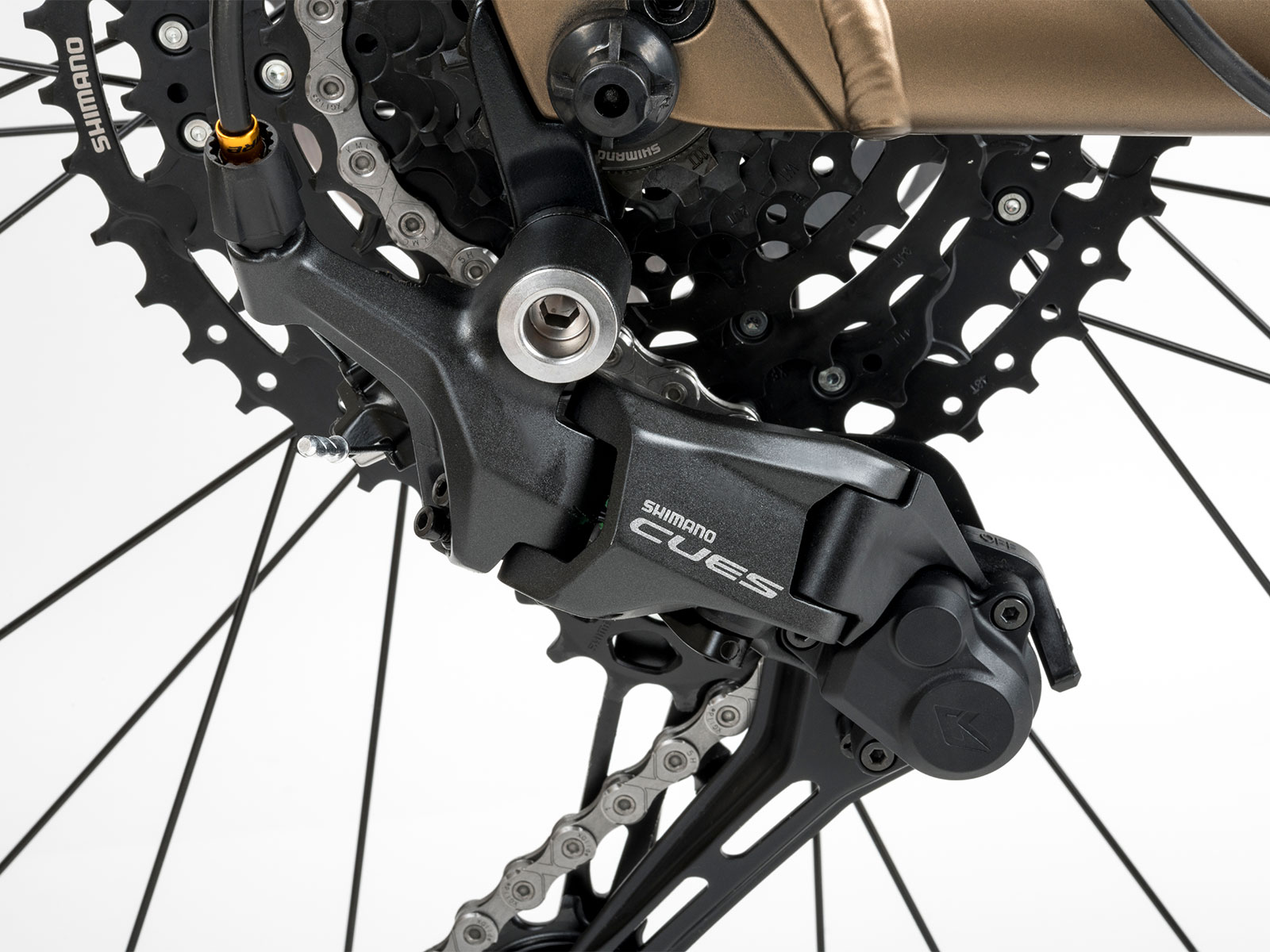

Rear derailleur	SHIMANO Cues 6000

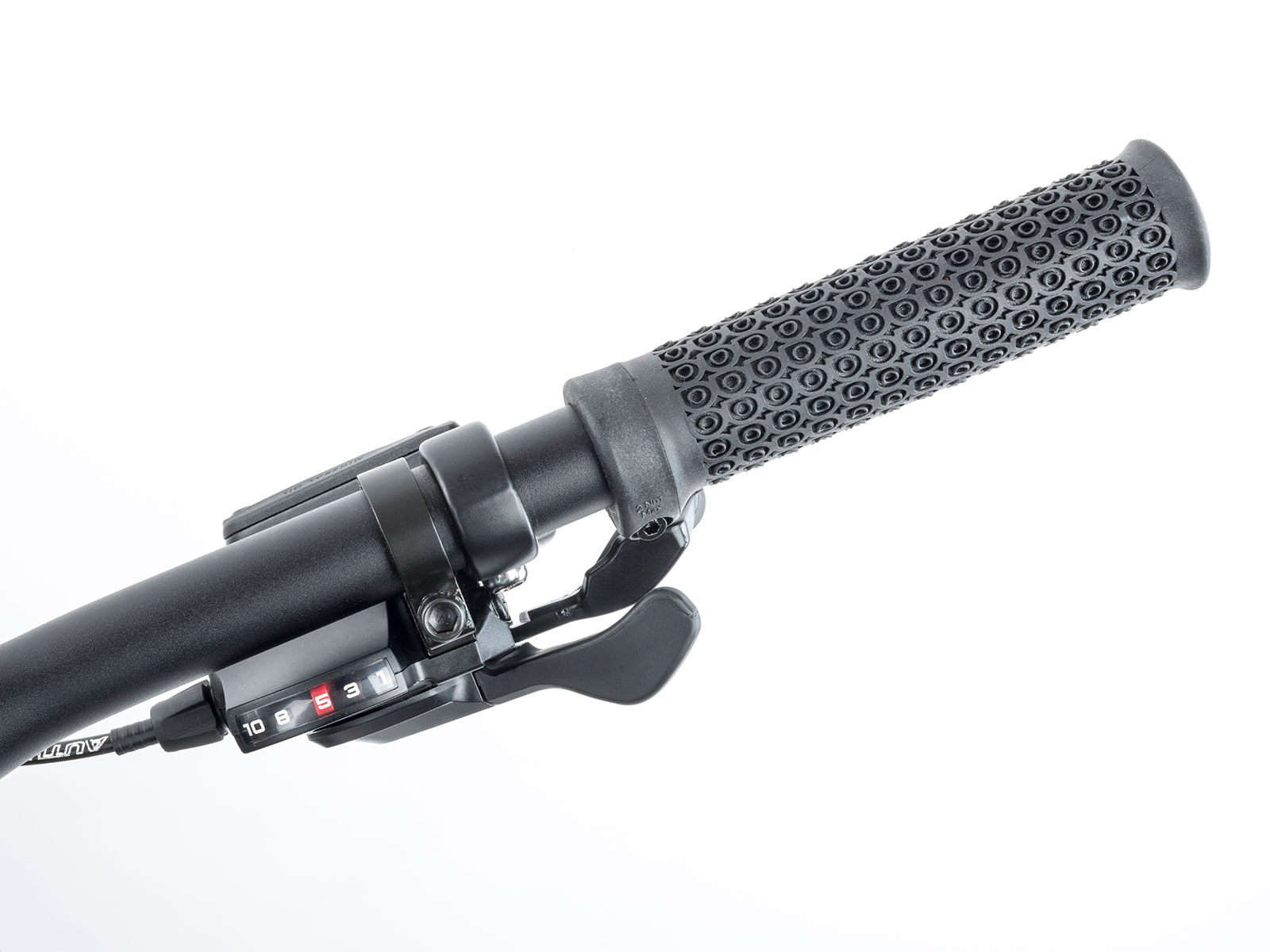

Shifters	SHIMANO Cues 6000 (10)
Free wheel	SHIMANO CS-LG300-10, 11-48 teeth (10)
Chain	KMC XGlide
Hubs	QUANDO Disc, 32 holes

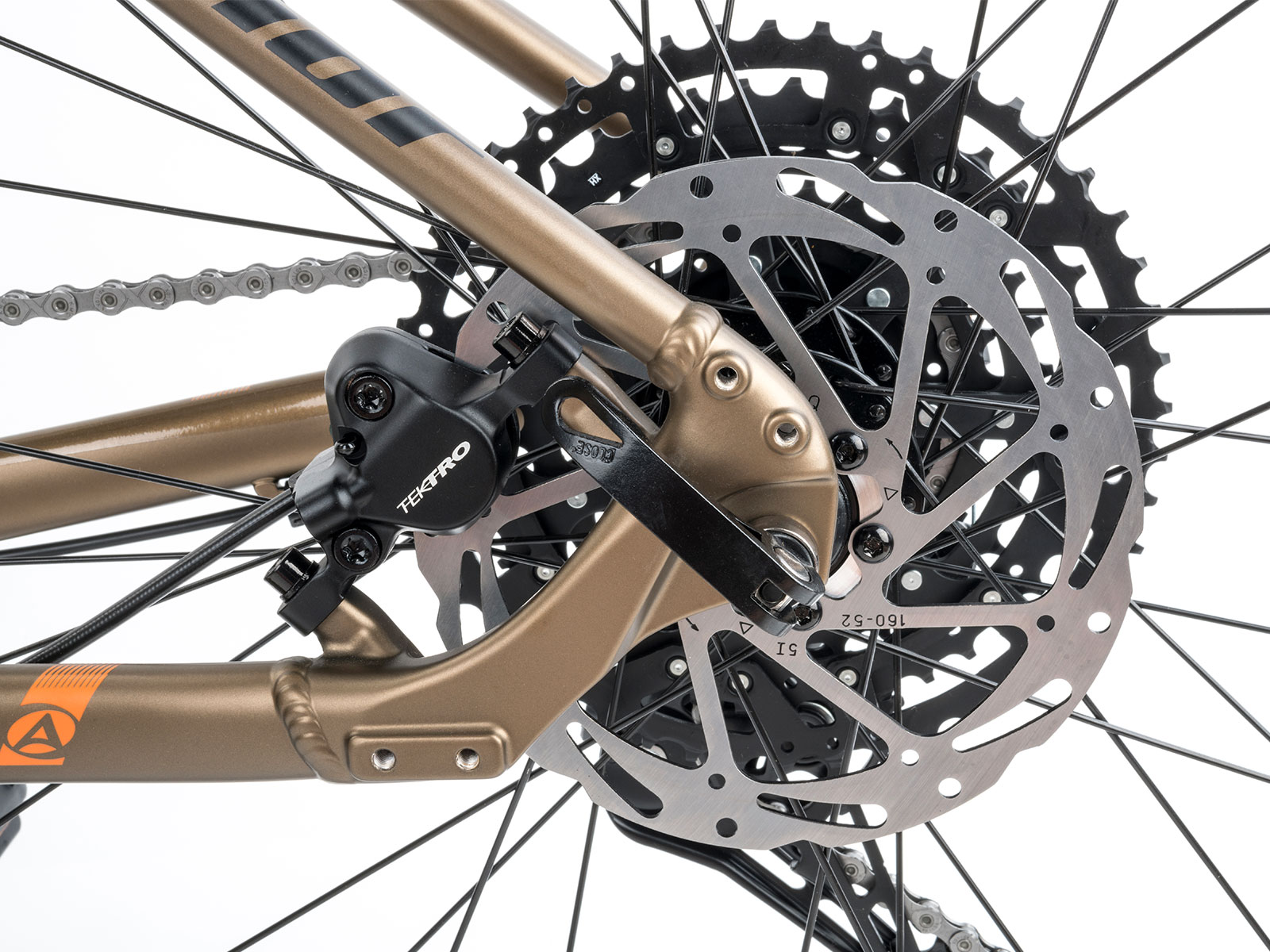

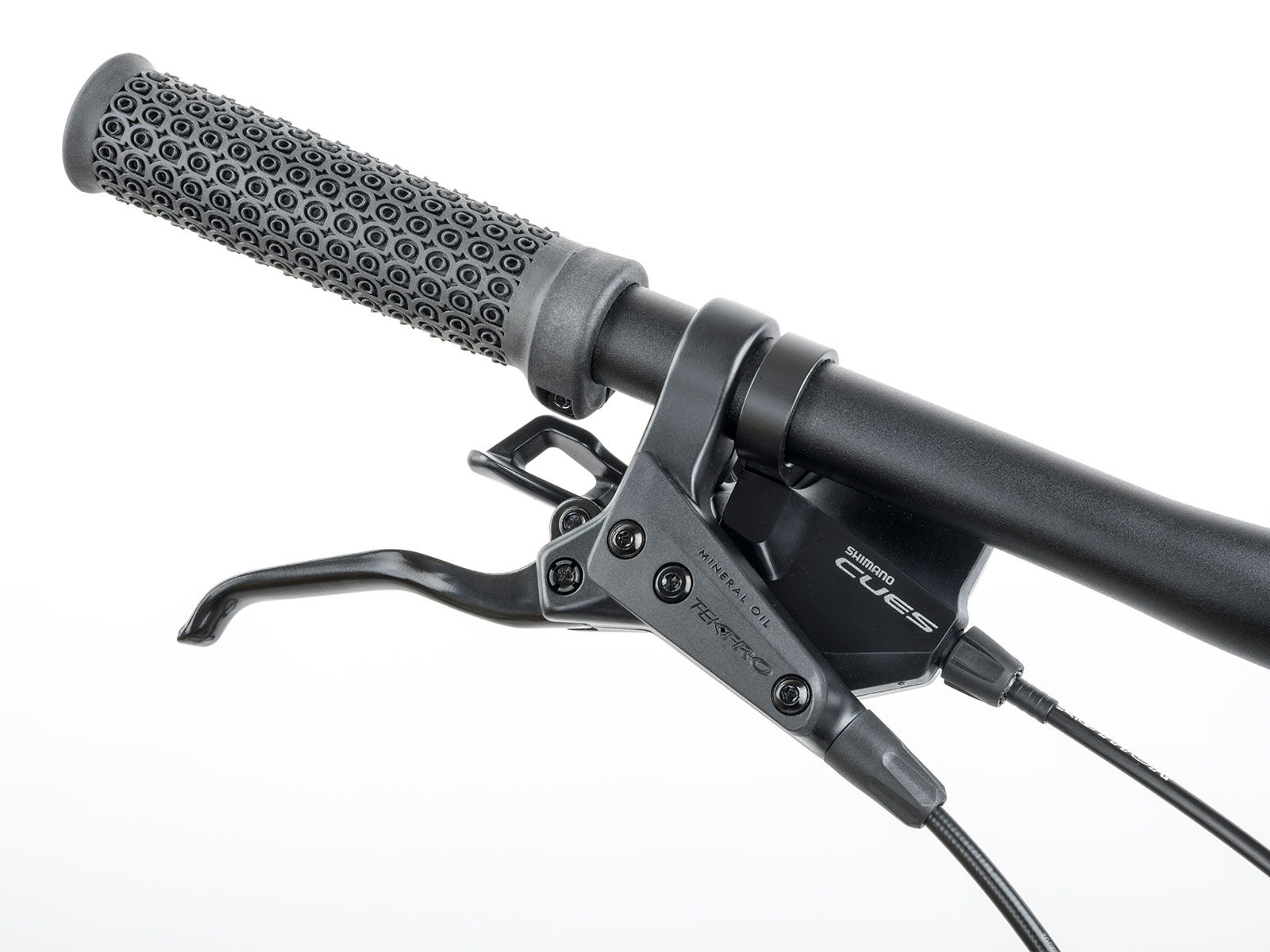

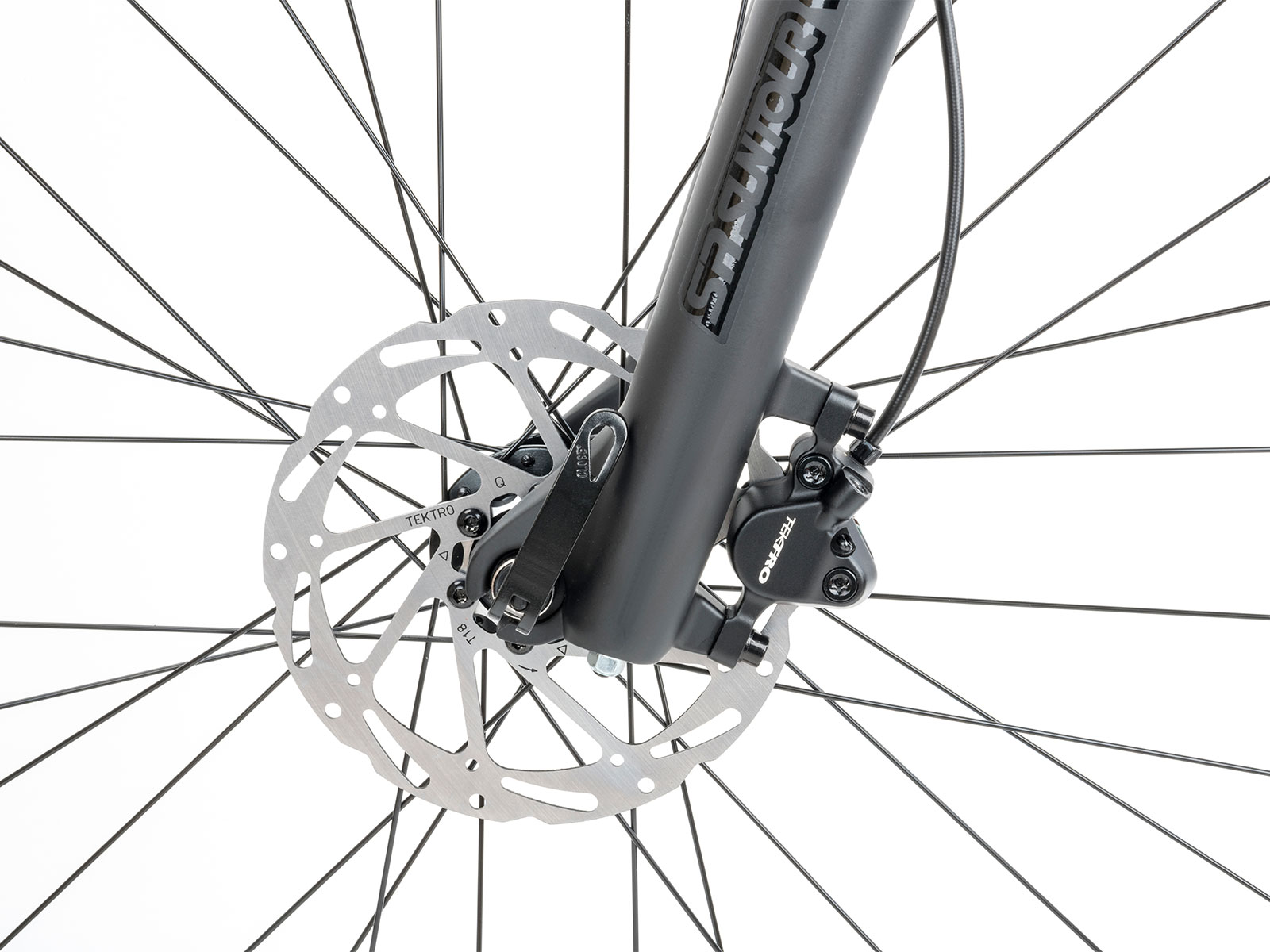

Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M280

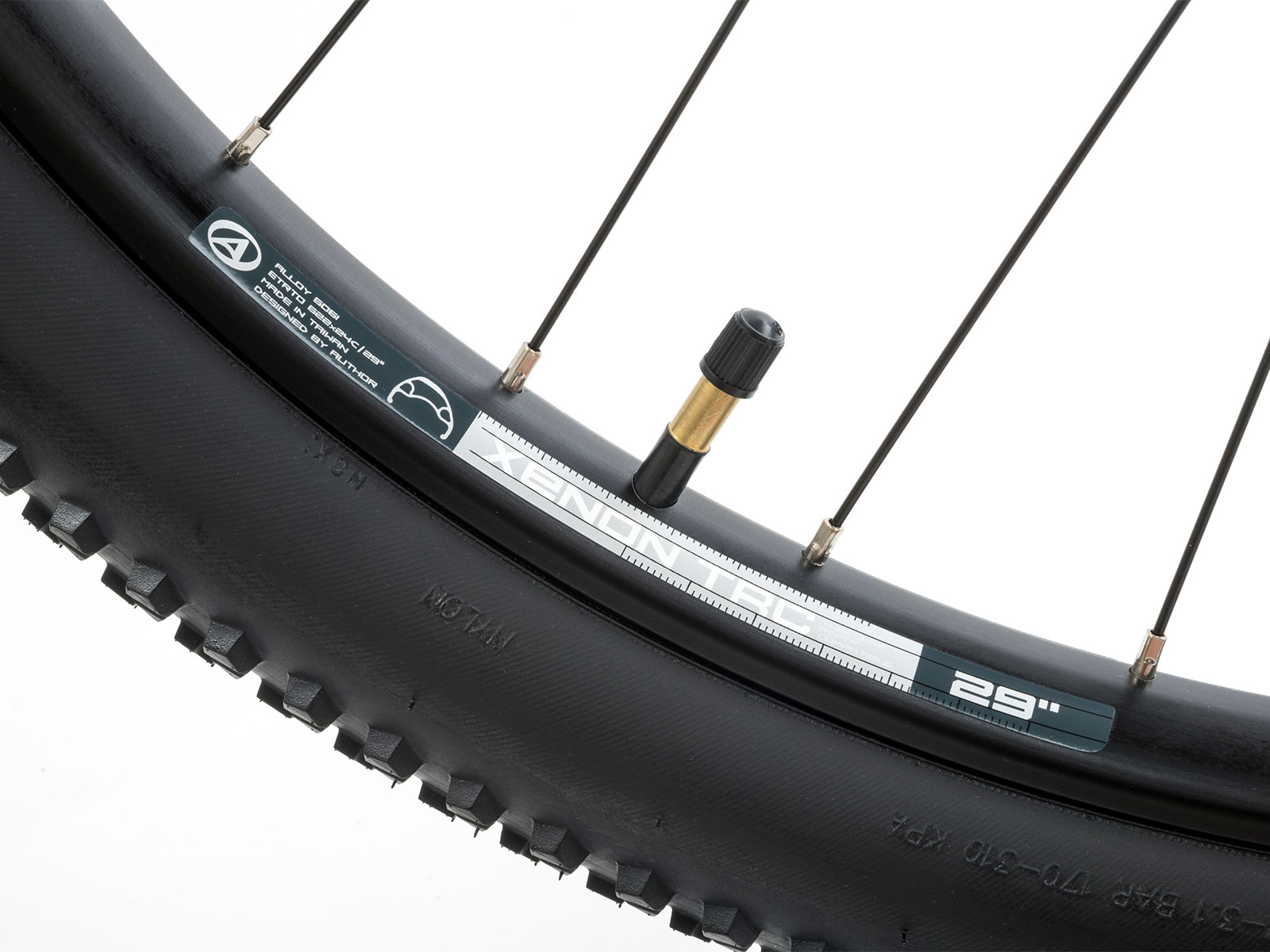

Rims	AUTHOR Xenon 29 TRC, 32 holes
Spokes	black stainless steel 1.8 mm

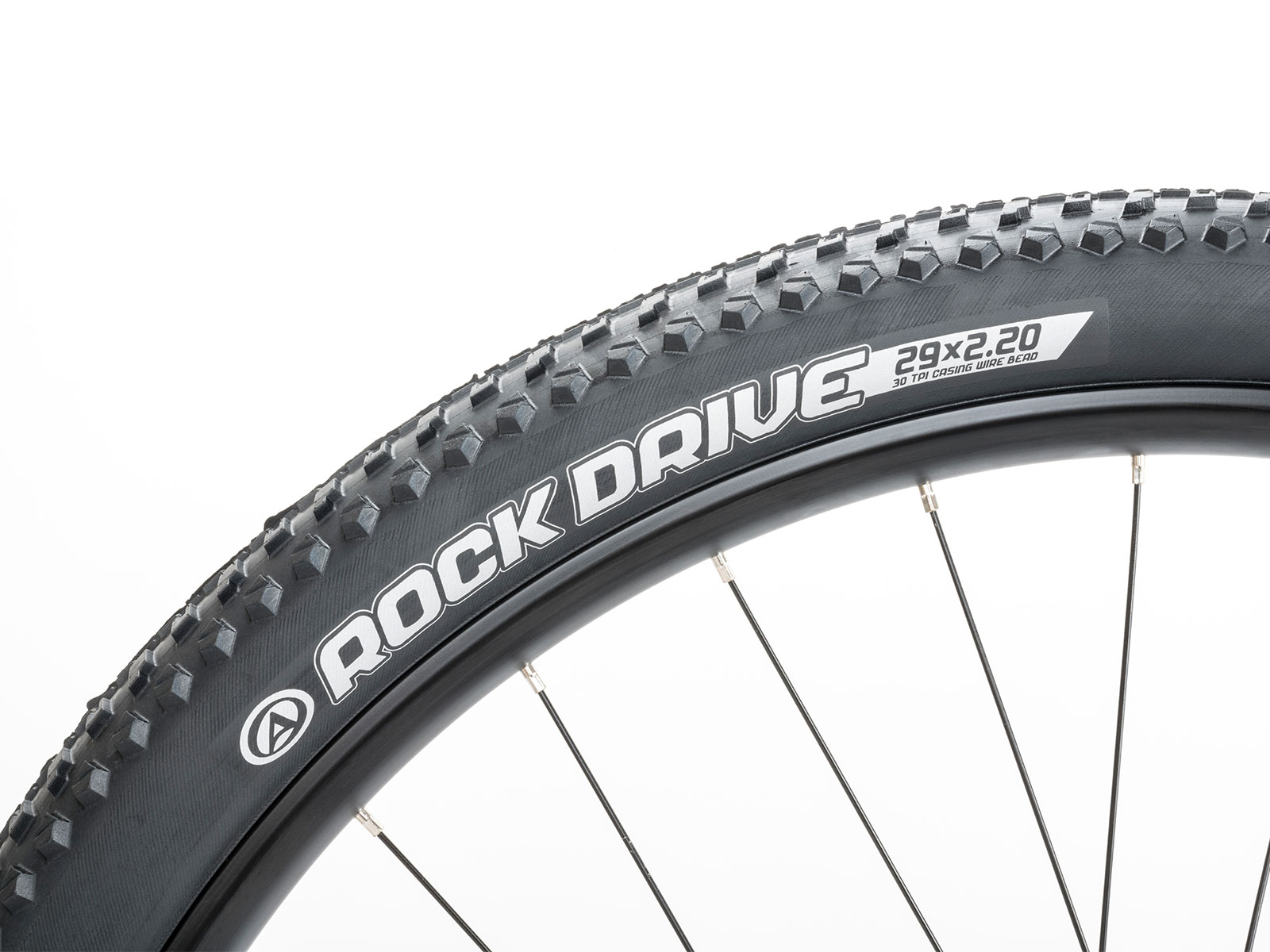

Tires	AUTHOR Rock Drive, 29" x 2.20"

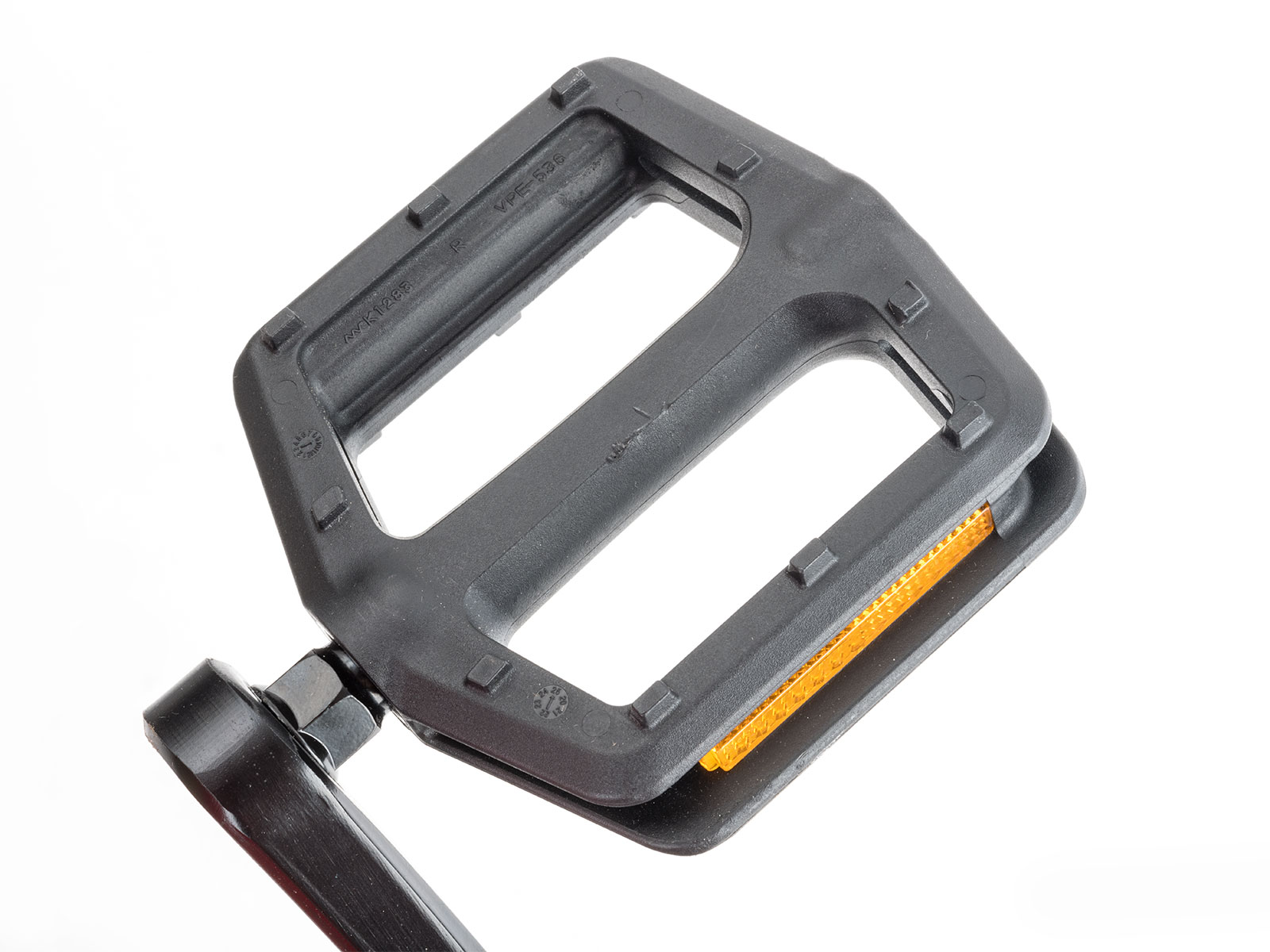

Pedals	plastic

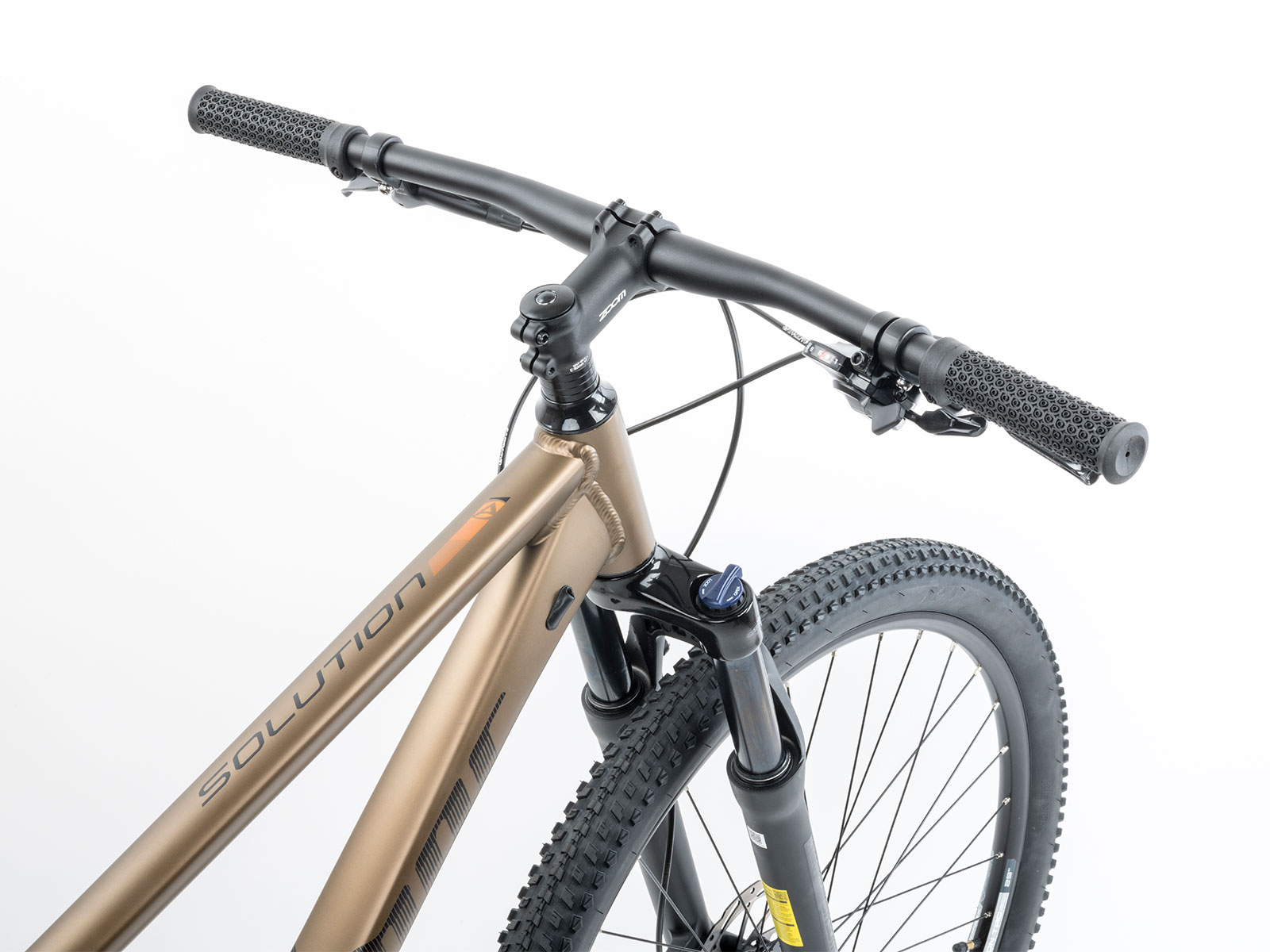

Handlebar	AUTHOR Flatbar hliník, rise 0 mm, 680/700 mm
Grips/Bar tapes	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

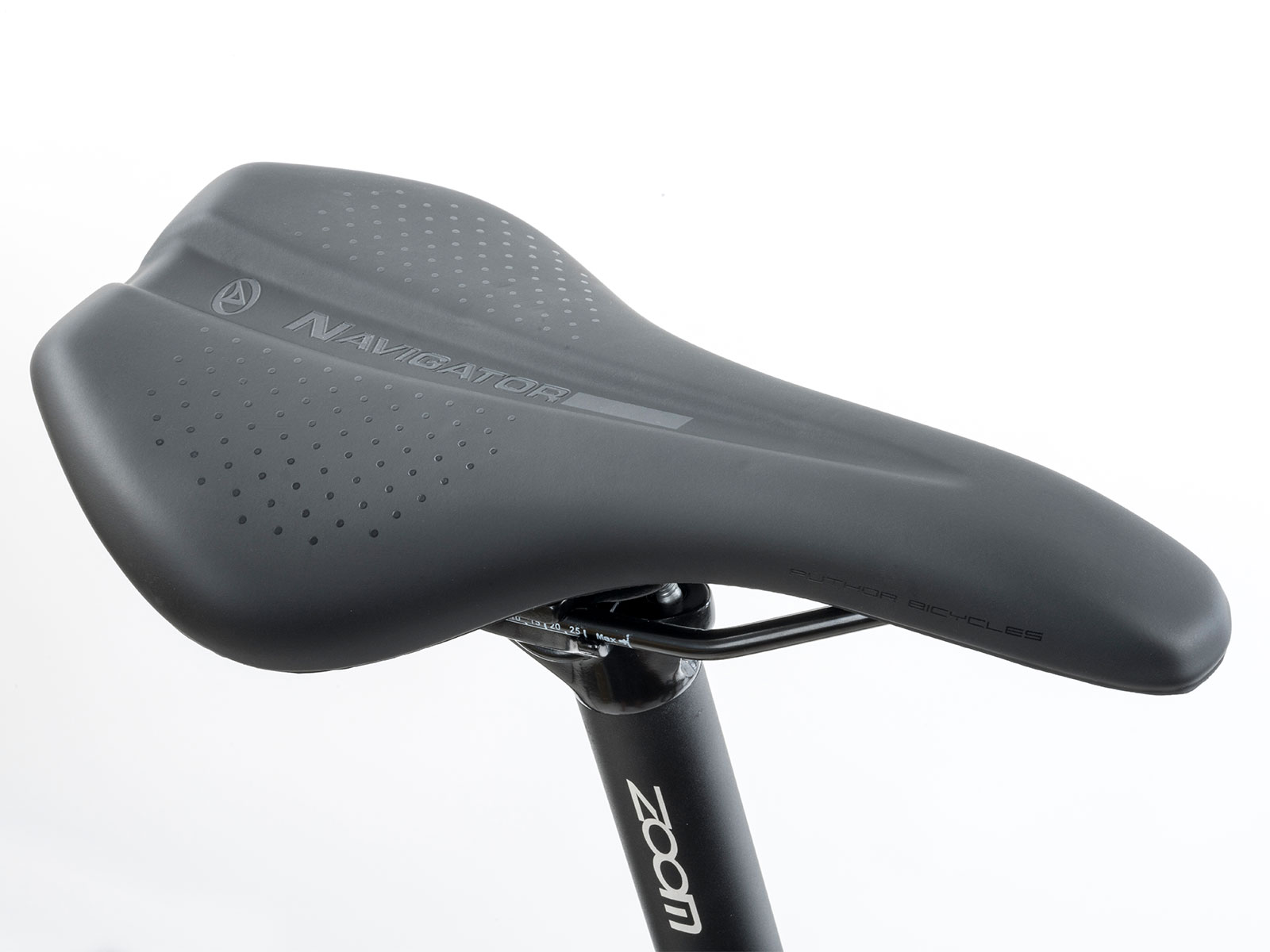

Saddle	AUTHOR Navigator
Speed	10

Geometry and sizes

Size	29"/17"	29"/19"	29"/21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	625	645
T/T a ~~[mm]~~	0	0	0
H/T ~~[mm]~~	100	115	130
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1135	1161	1183
S/T ang. ~~[°]~~	74	74	74
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	422	443	459
Stack ~~[mm]~~	620	651	648
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	4 stores				42966402
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	⟲ In other stores		in 2 days				dealers
		19"	3 stores				42966403
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
		21"	2 stores				42966404
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	⟲ In other stores		in 2 days				dealers
		17"	6 stores				42966412
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Cyklo sport Stratílek		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	7 stores				42966413
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ Cyklo sport Stratílek		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
		21"	3 stores				42966414
	▪ Cyklo sport Stratílek		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.
