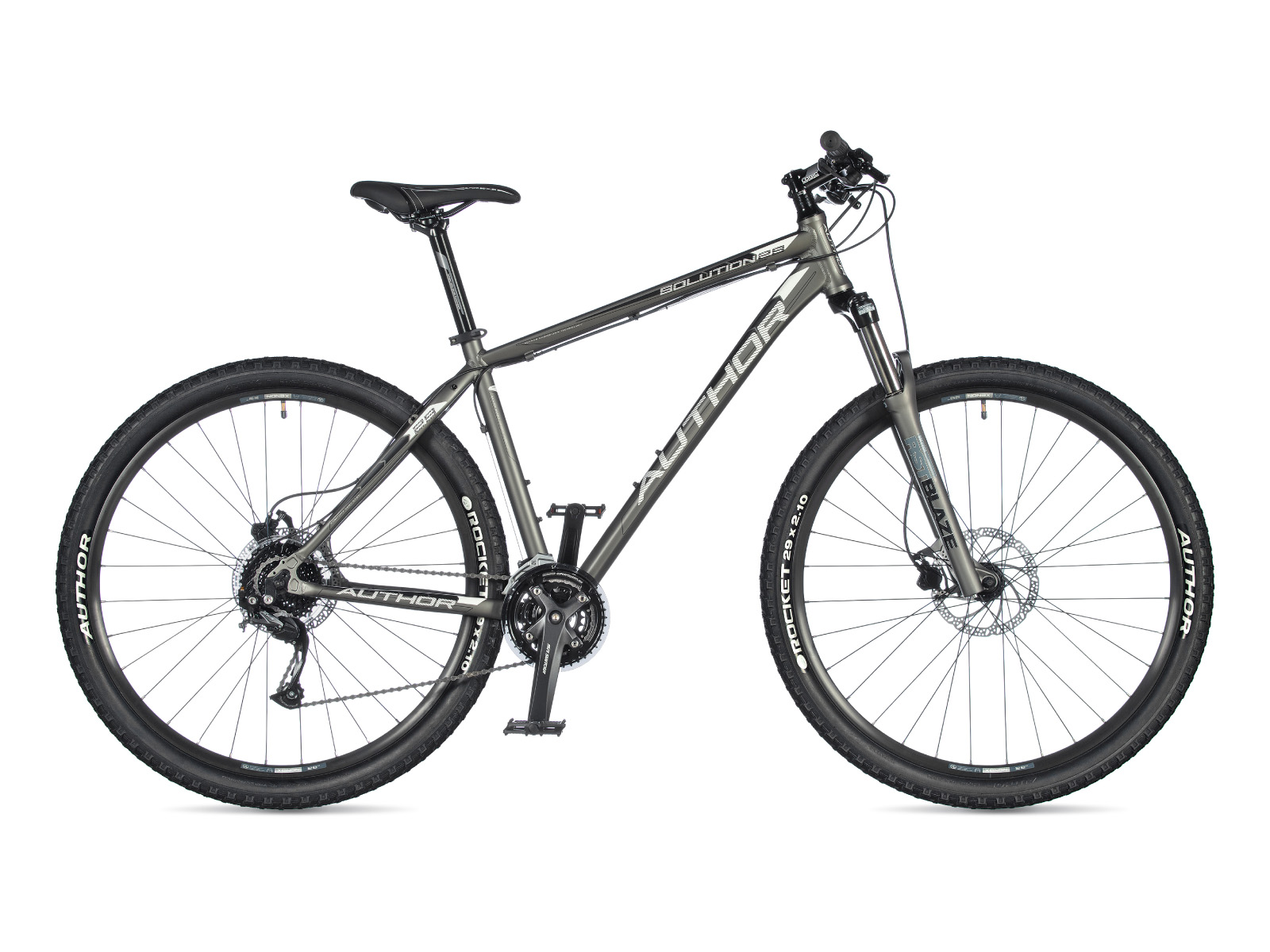

AUTHOR Solution 29 2020

Technical specification

Size	17", 19", 21"

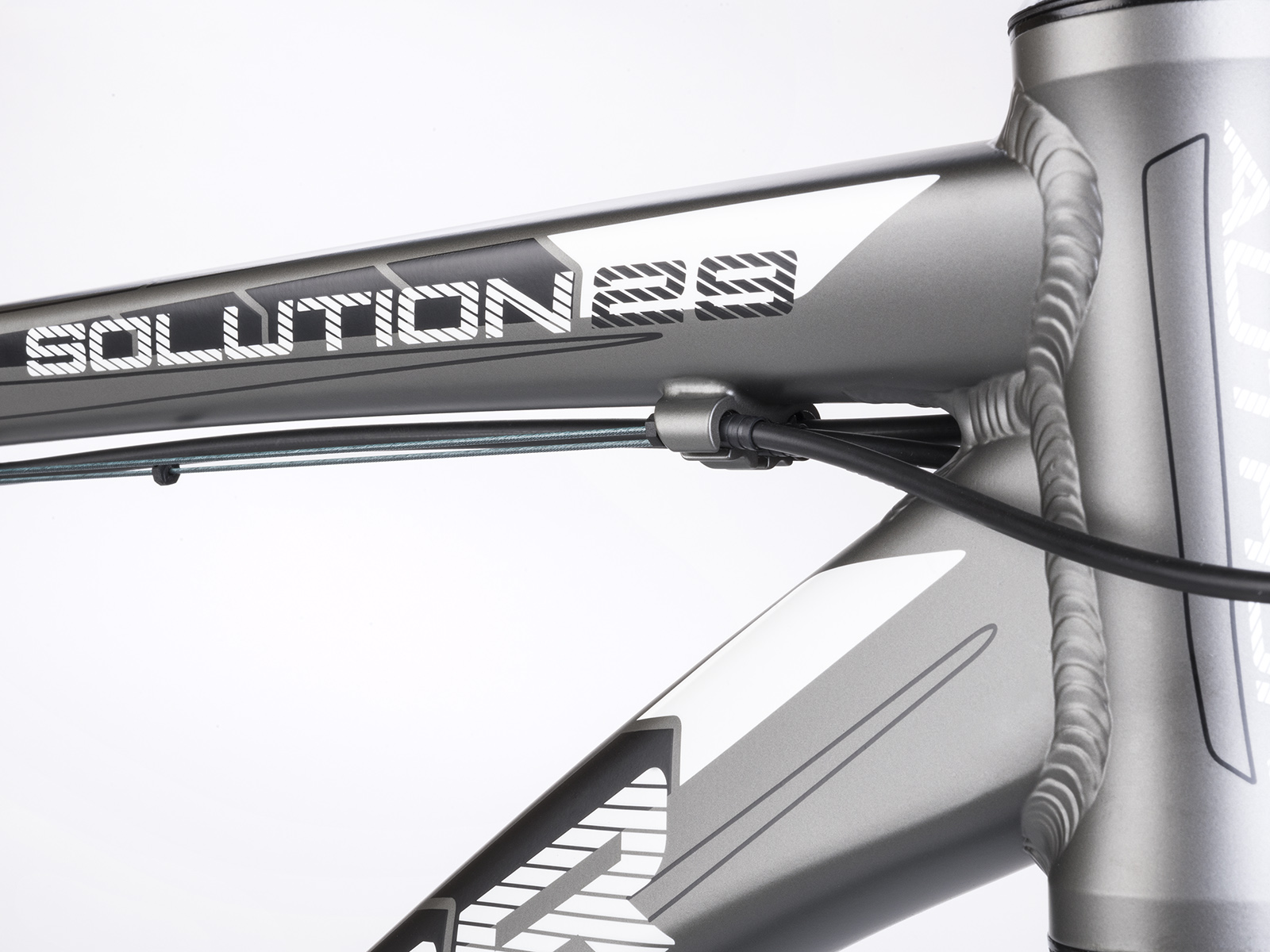

Frame	alloy 6061 29"
Front fork	RST Blaze 29 ML oil, lock out (100 mm)
Head parts	AUTHOR Integrated 1-1/8"
Chain Wheel	SUNTOUR XCM 40-30-22 teeth 170 / 175 mm cranks
BBParts	SUNTOUR XCT cartridge
Front derailleur	SHIMANO Altus (34.9)
Rear derailleur	SHIMANO Altus
Shifters	SHIMANO Altus (27)
Free wheel	SHIMANO HG200-9 11-34 (9)
Chain	KMC Z9
Hubs	QUANDO Disc 32 holes

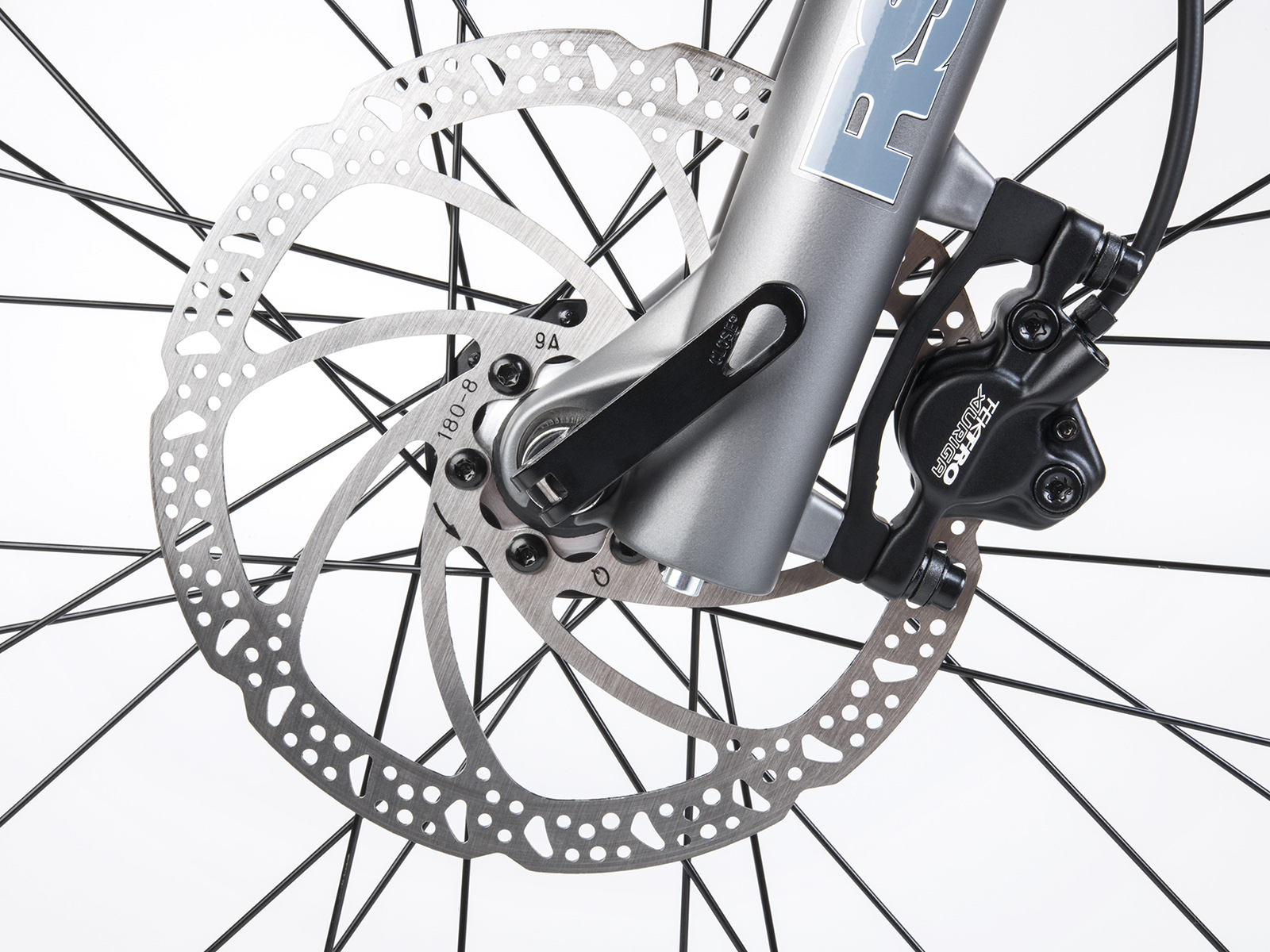

Brakes	TEKTRO Auriga disc hydraulic (7" rotors)
Brakes levers	TEKTRO Auriga

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
