  » Bicycles » mountain bike » mtb 29

AUTHOR Solution 29 2016Archivní model 2016

Colour variants
Lock out fork RST Blaze 29Component set by SHIMANO, 24 speedDisc hydraulic TEKTRO brakes
special price 12 290 Kč
original price  15 590 Kč SOLD OUT

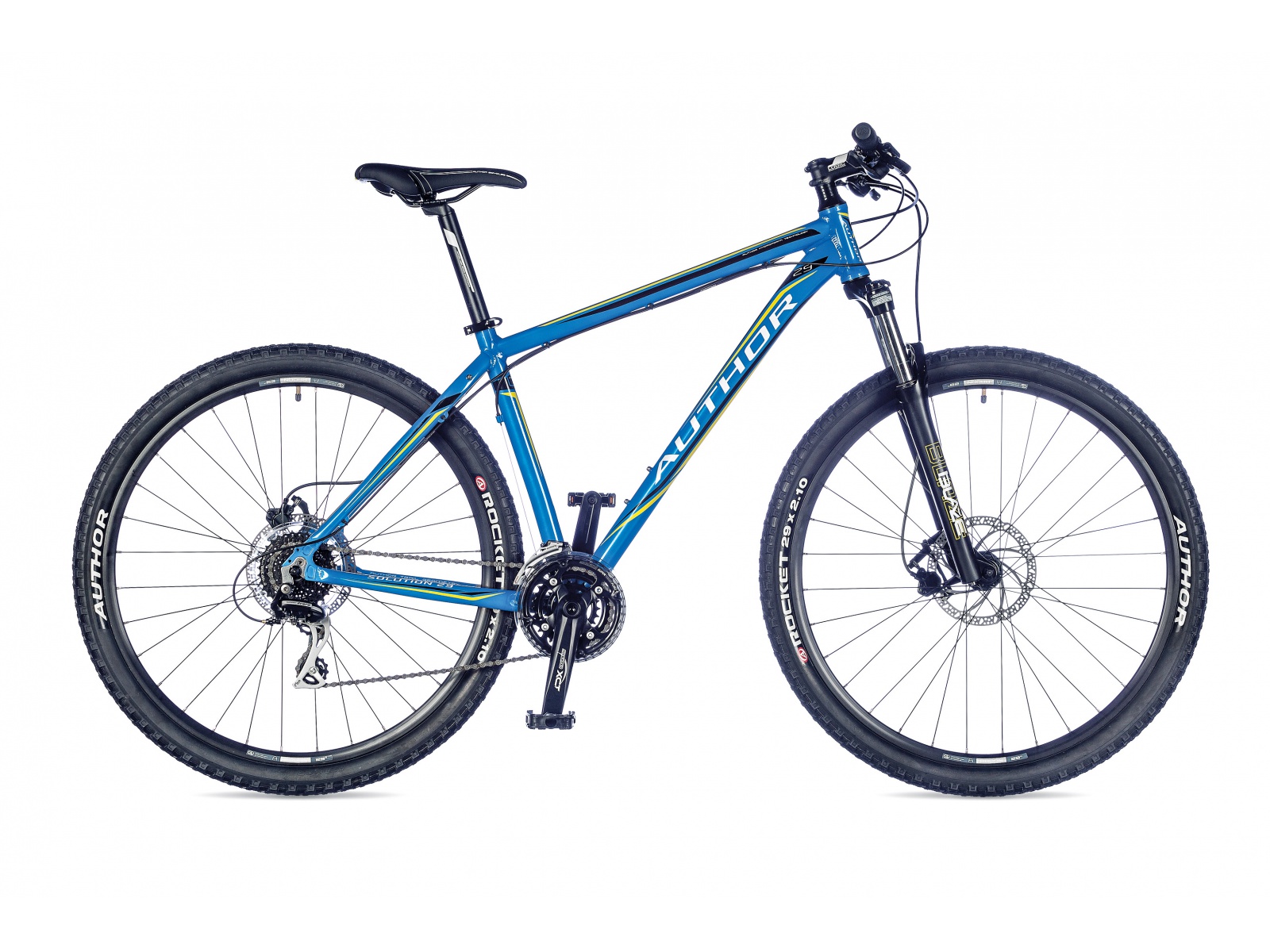

Mountain bike Author Solution 29 is built on a solid alloy frame, lockout fork RST Blaze ML 29 (100 mm). Due to the size of wheels, bike tends to "smooth out" the terrain and flatten out all unevenness. In combination with disc brakes Author Solution offers a comfortable and safe riding not only in off-road conditions. Further advantages are 24-speed, Shimano Acera component set, new high density foam grips and very comfortable saddle Author Courier - small details, but they significantly affect the joy of our ride. The model is available in two colour combinations, and whether you choose relax or sport ride, this machine will surely not disappoint you.
other models

Technical specification

Size17", 19", 21"

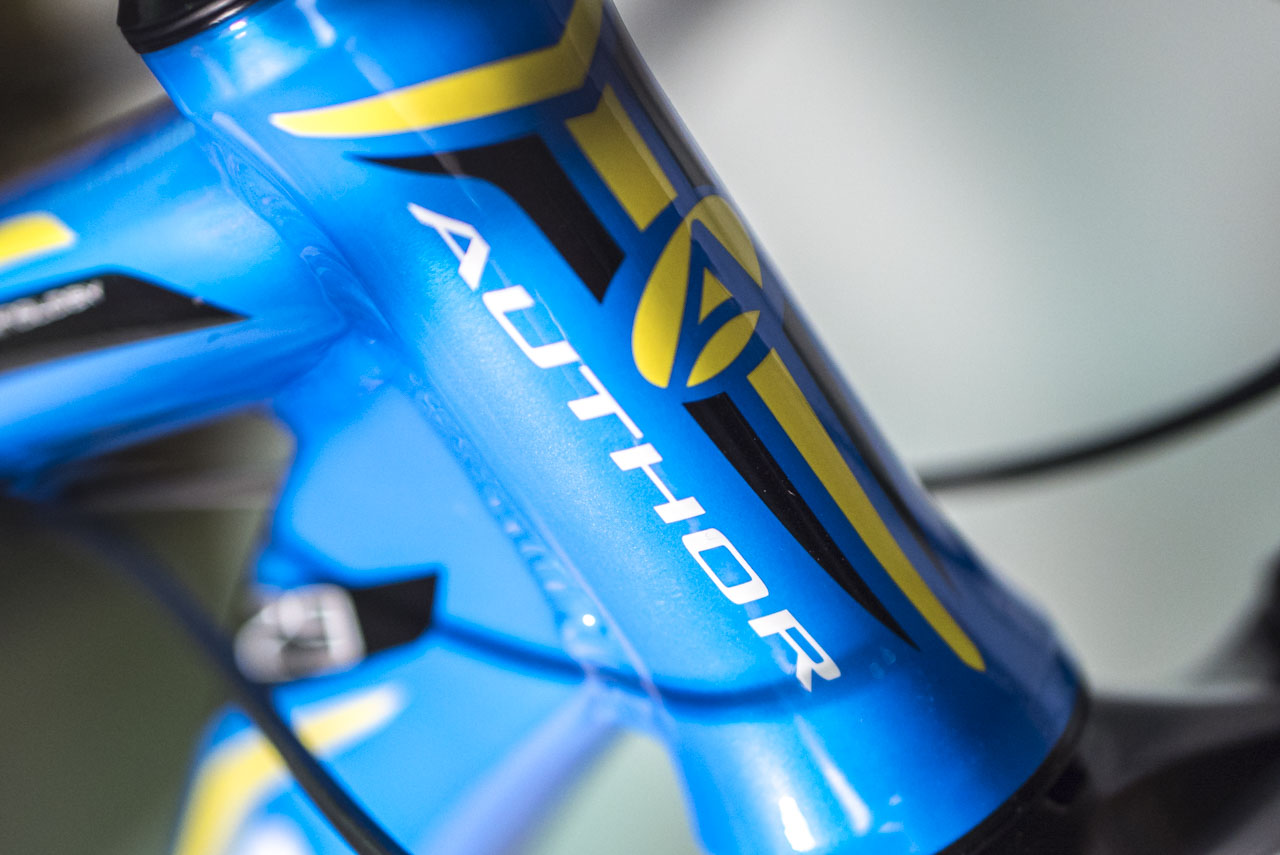

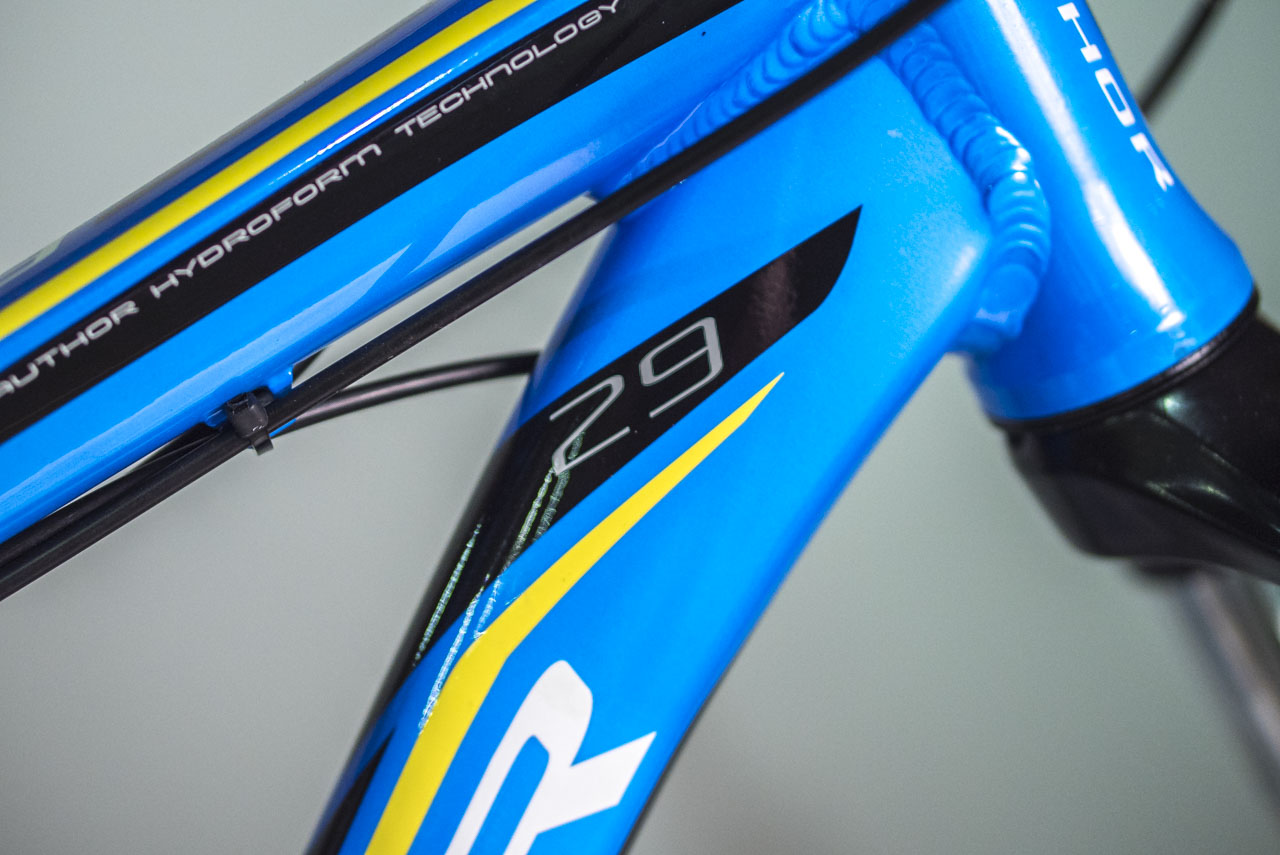

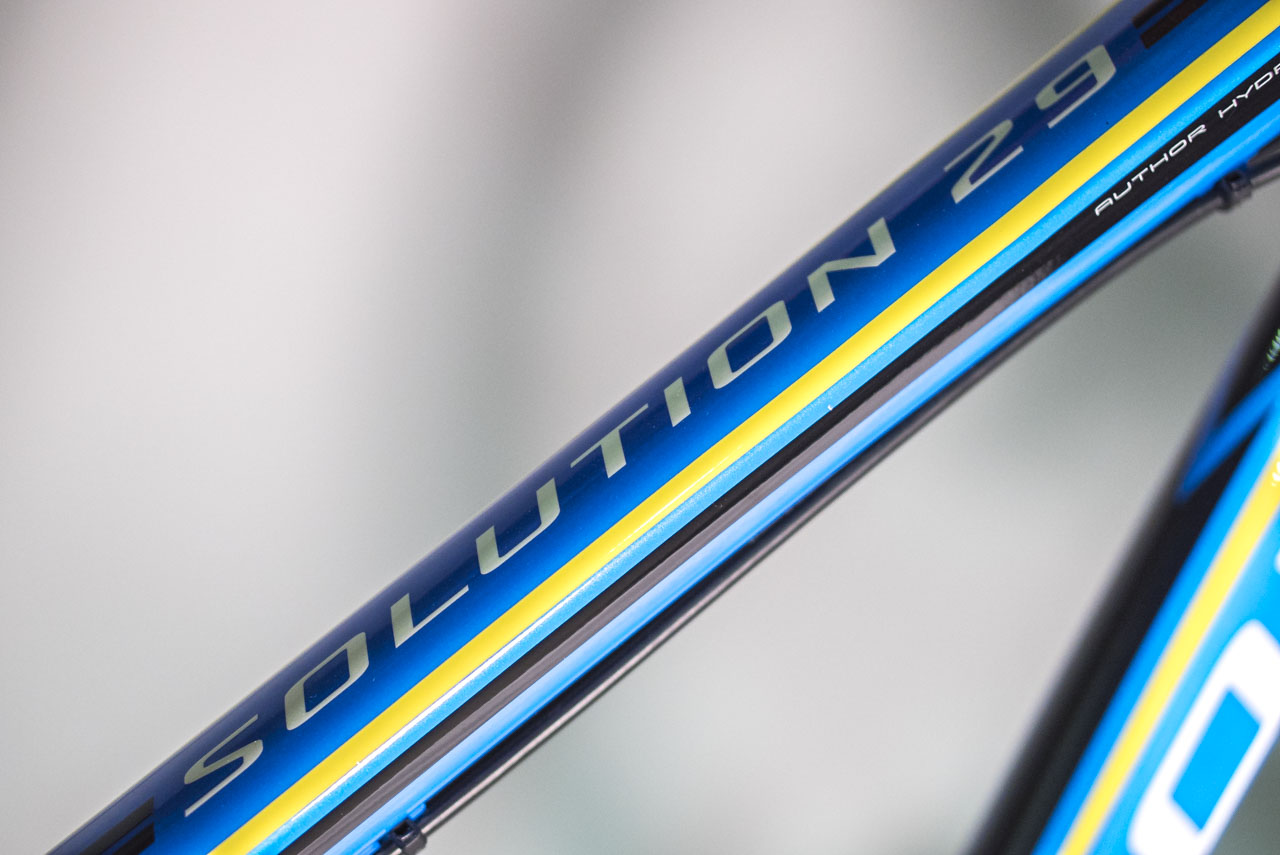

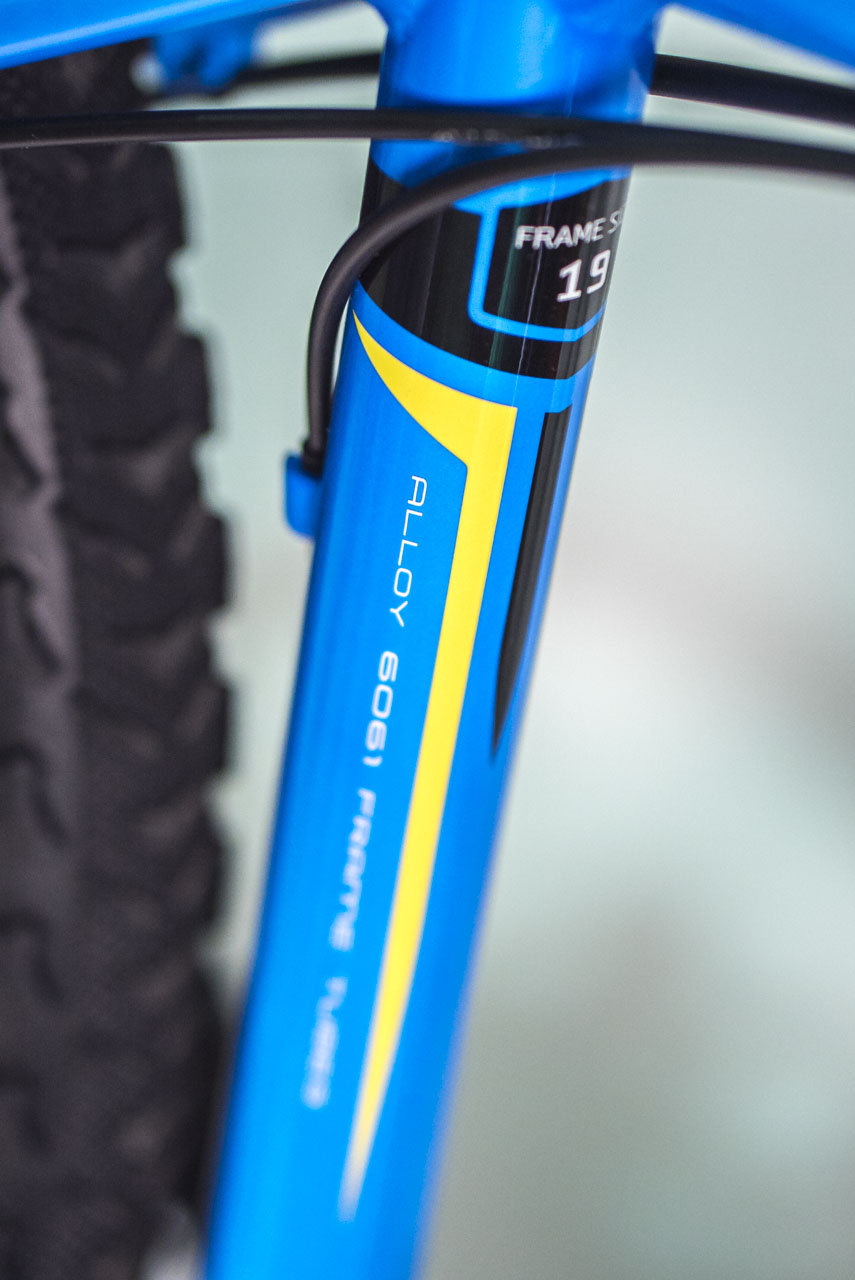

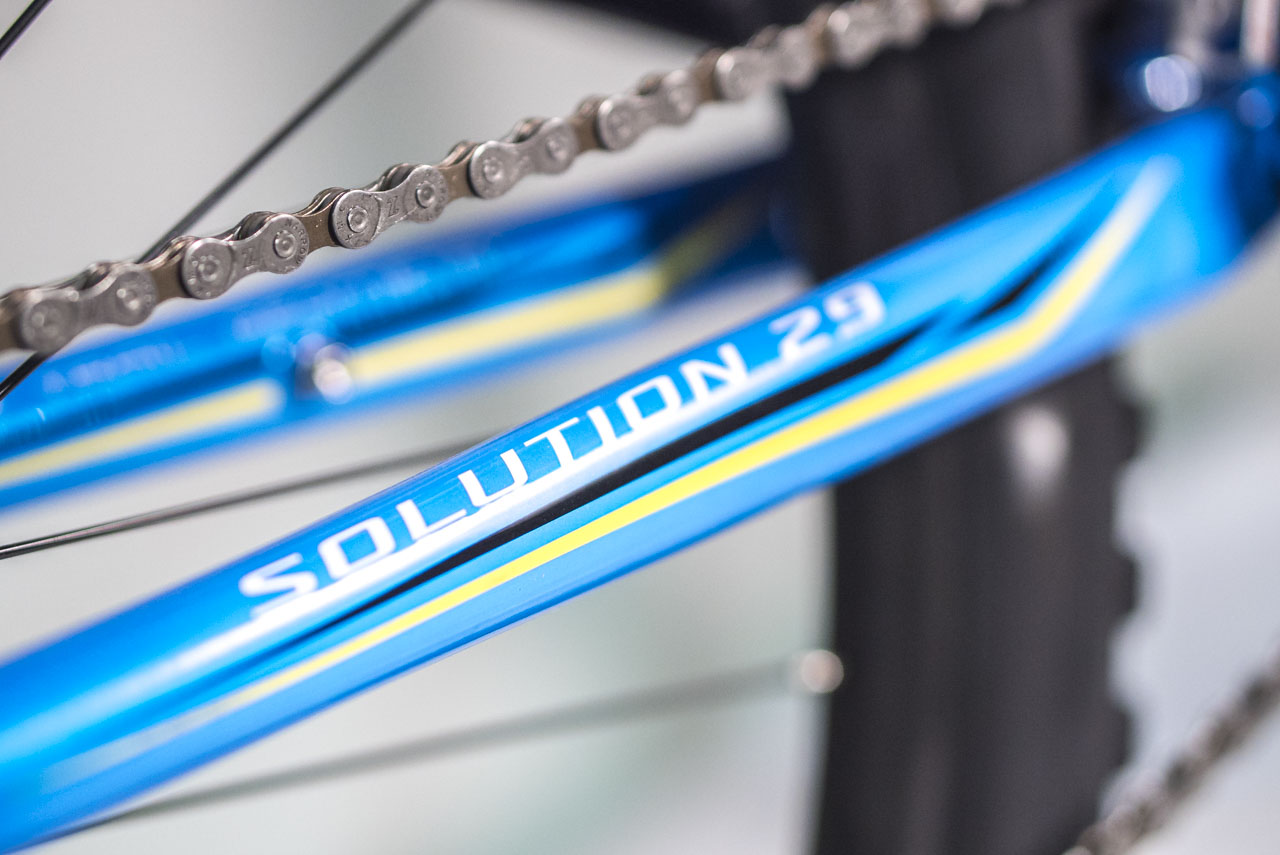

Framealloy 6061 29"

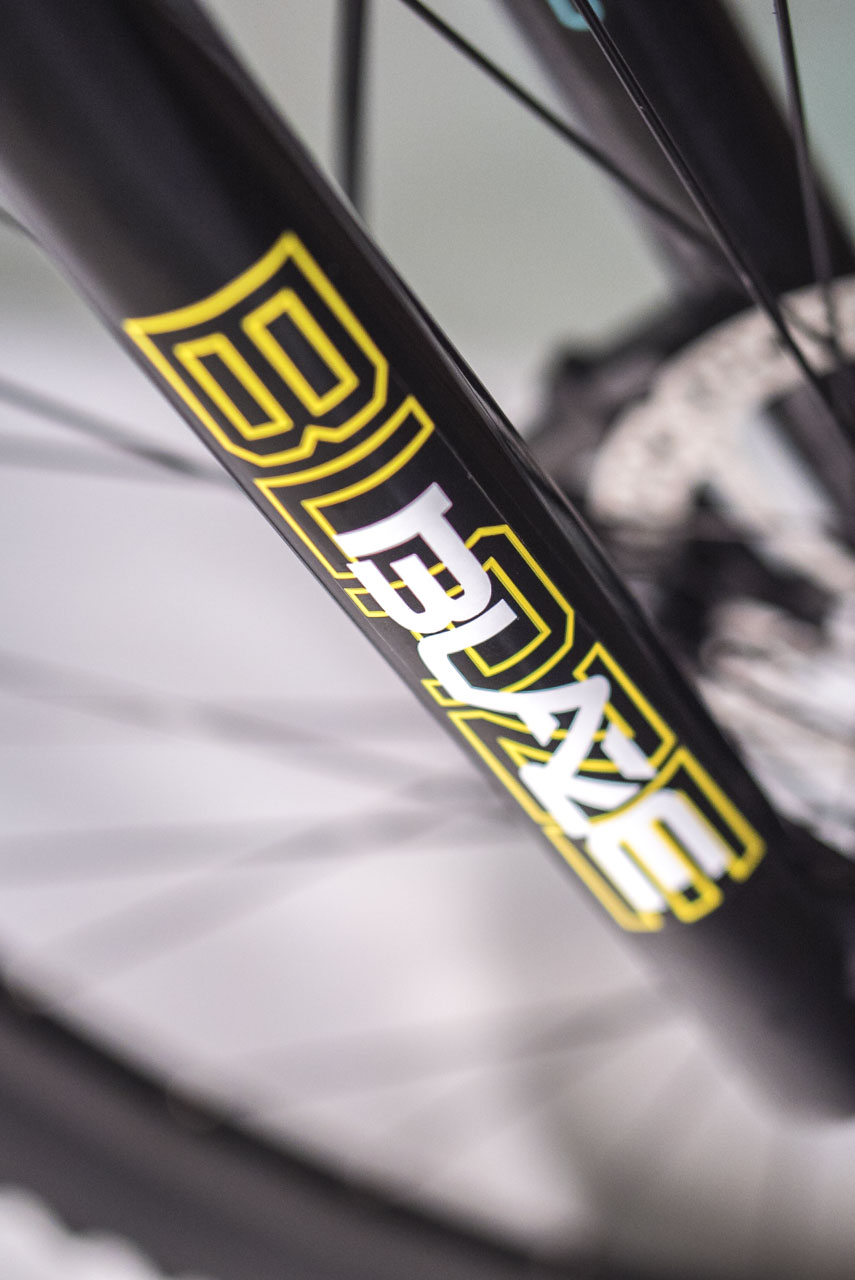

Front forkRST Blaze 29 ML lock out (100 mm)
Head partsAUTHOR Integrated 1-1/8"

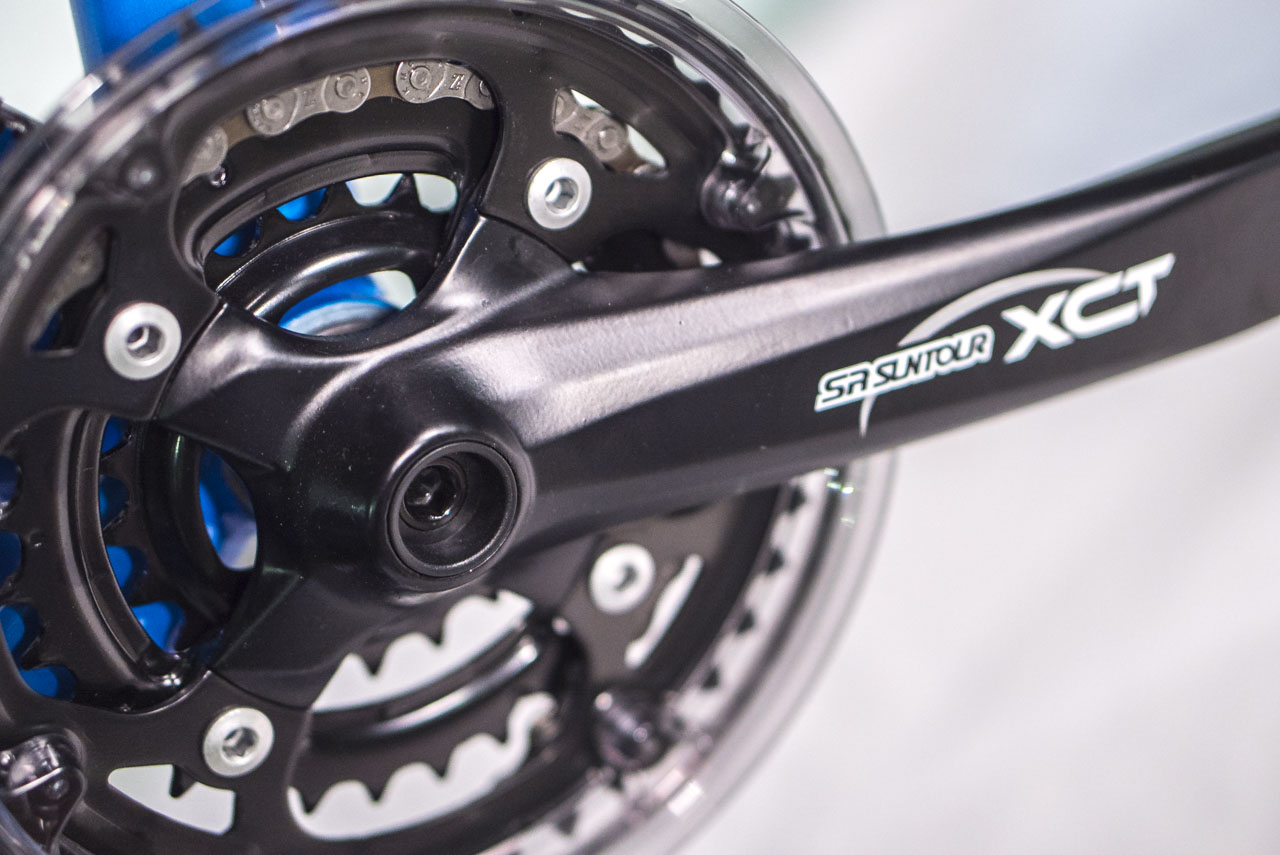

Chain WheelSUNTOUR XCT 42-32-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCT cartridge

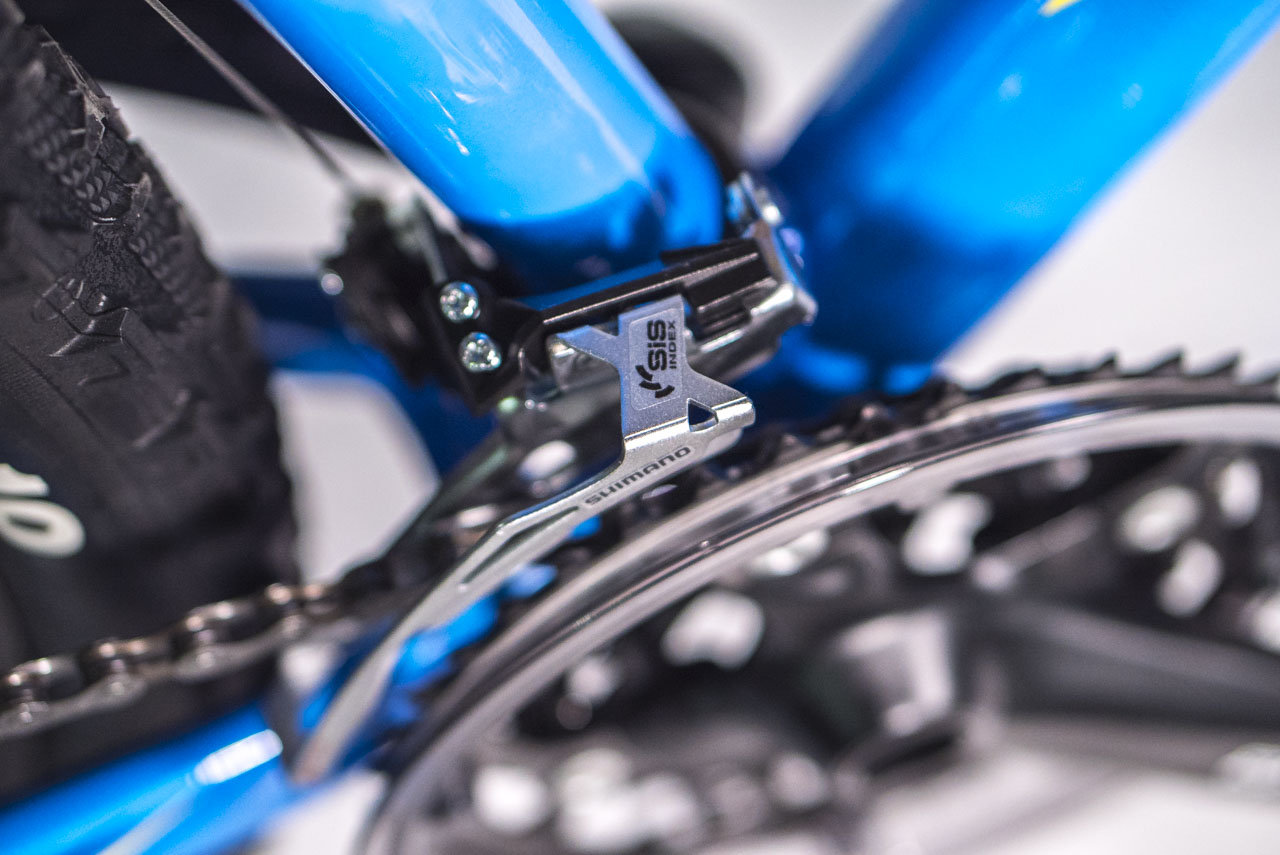

Front derailleurSHIMANO M190 (34.9)

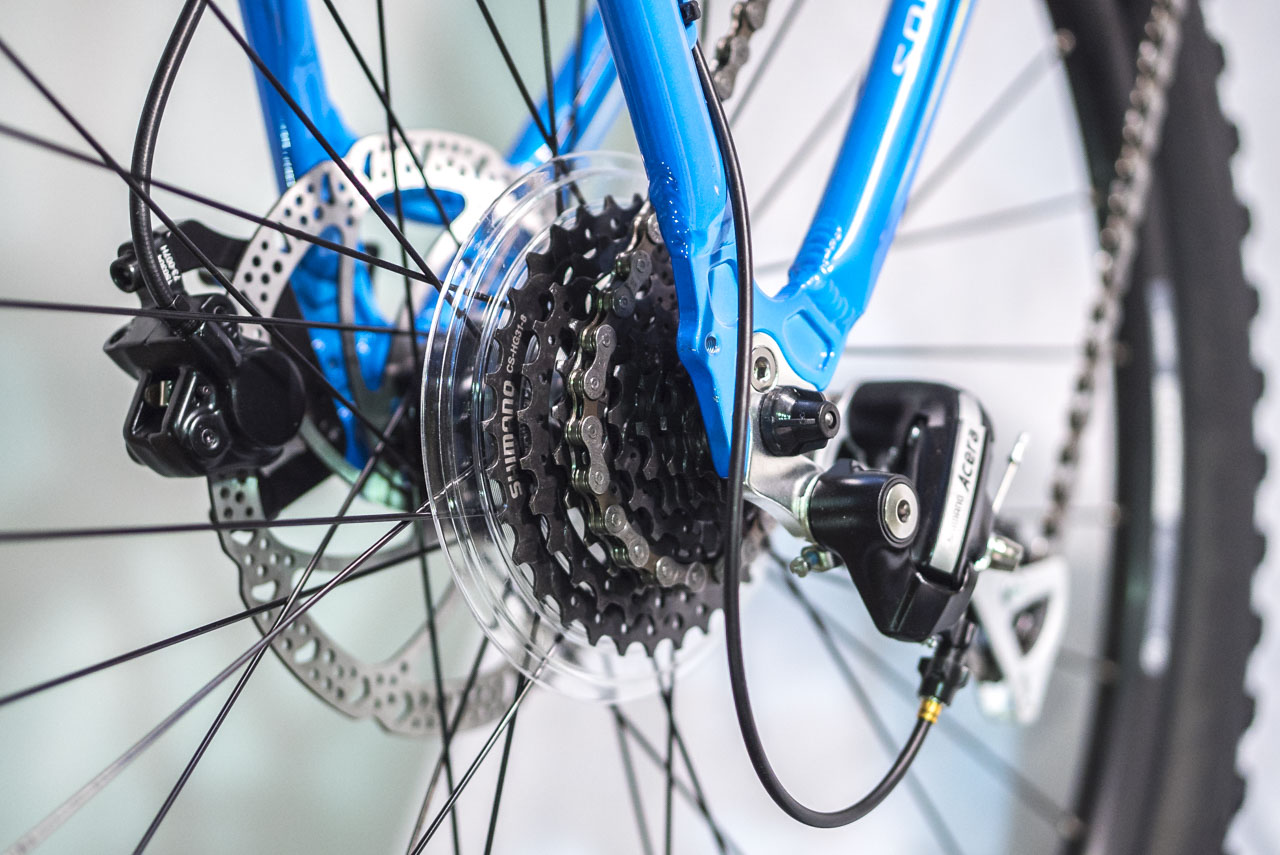

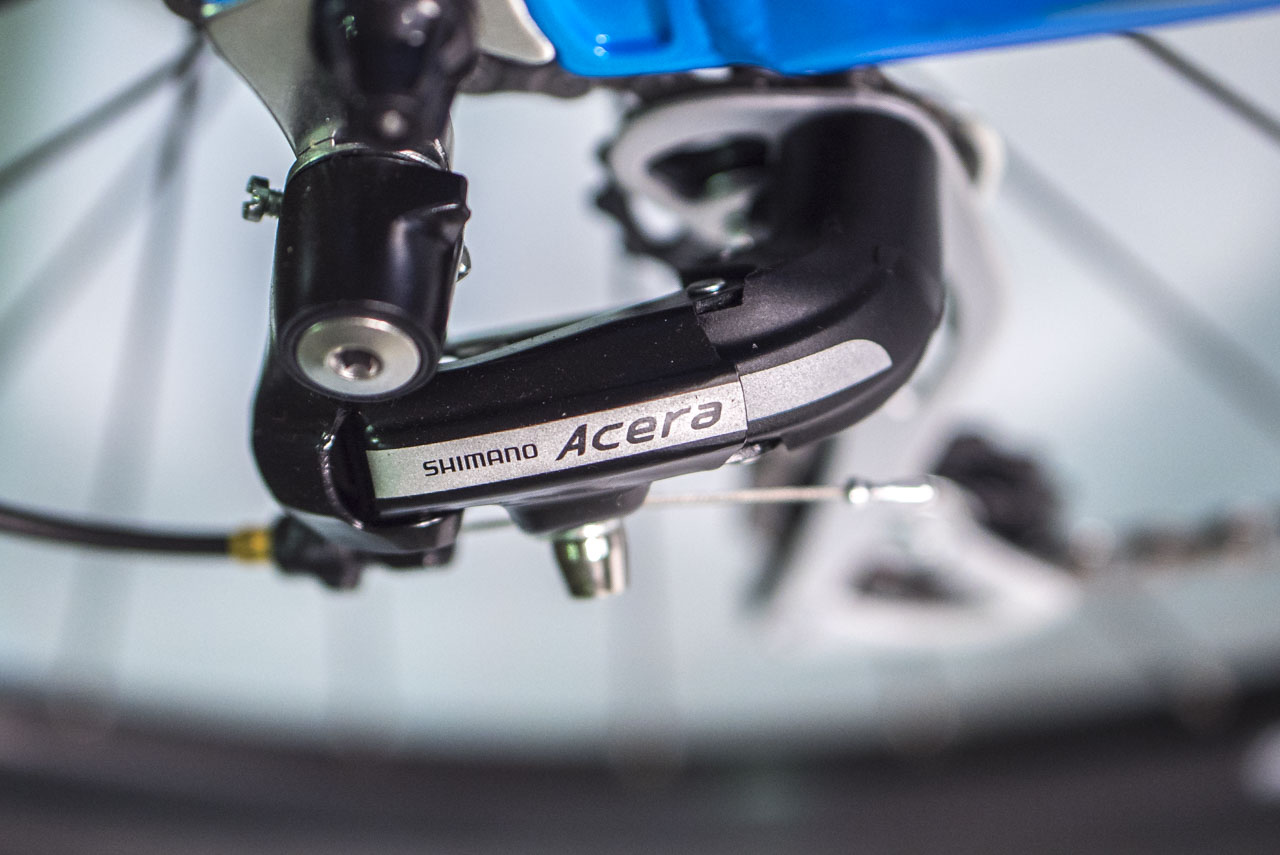

Rear derailleurSHIMANO Acera
ShiftersSHIMANO Acera (24)
Free wheelSHIMANO HG31-8 11-32 (8)
ChainKMC Z72
HubsQUANDO Disc 32 holes

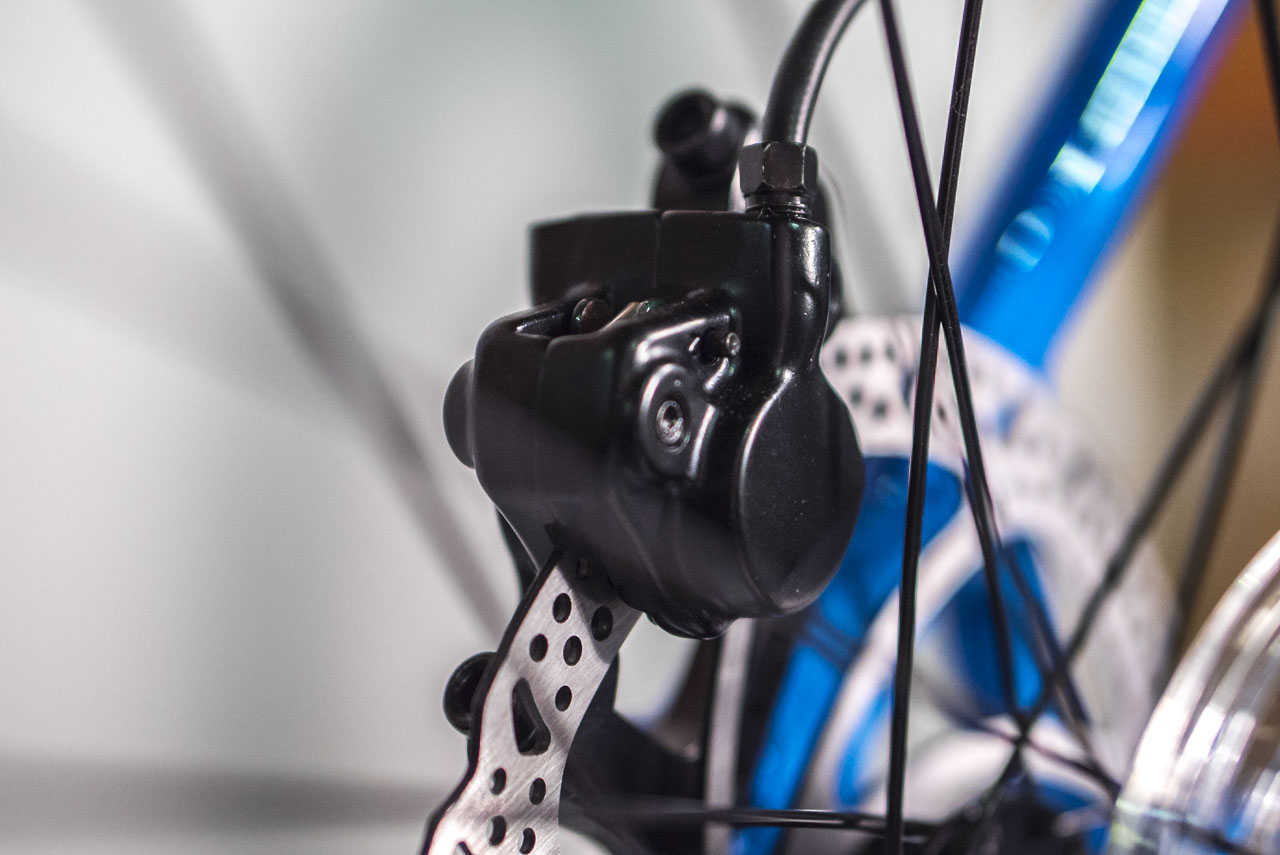

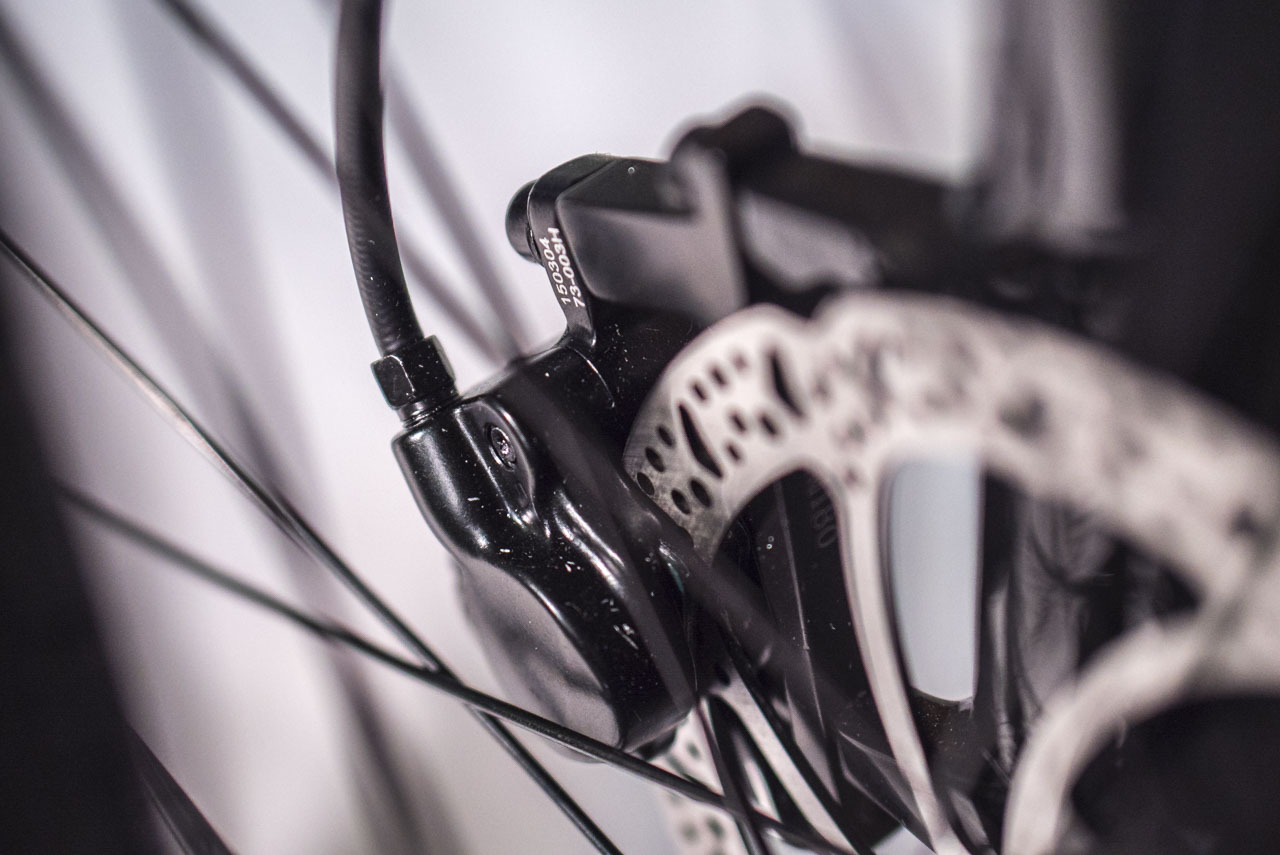

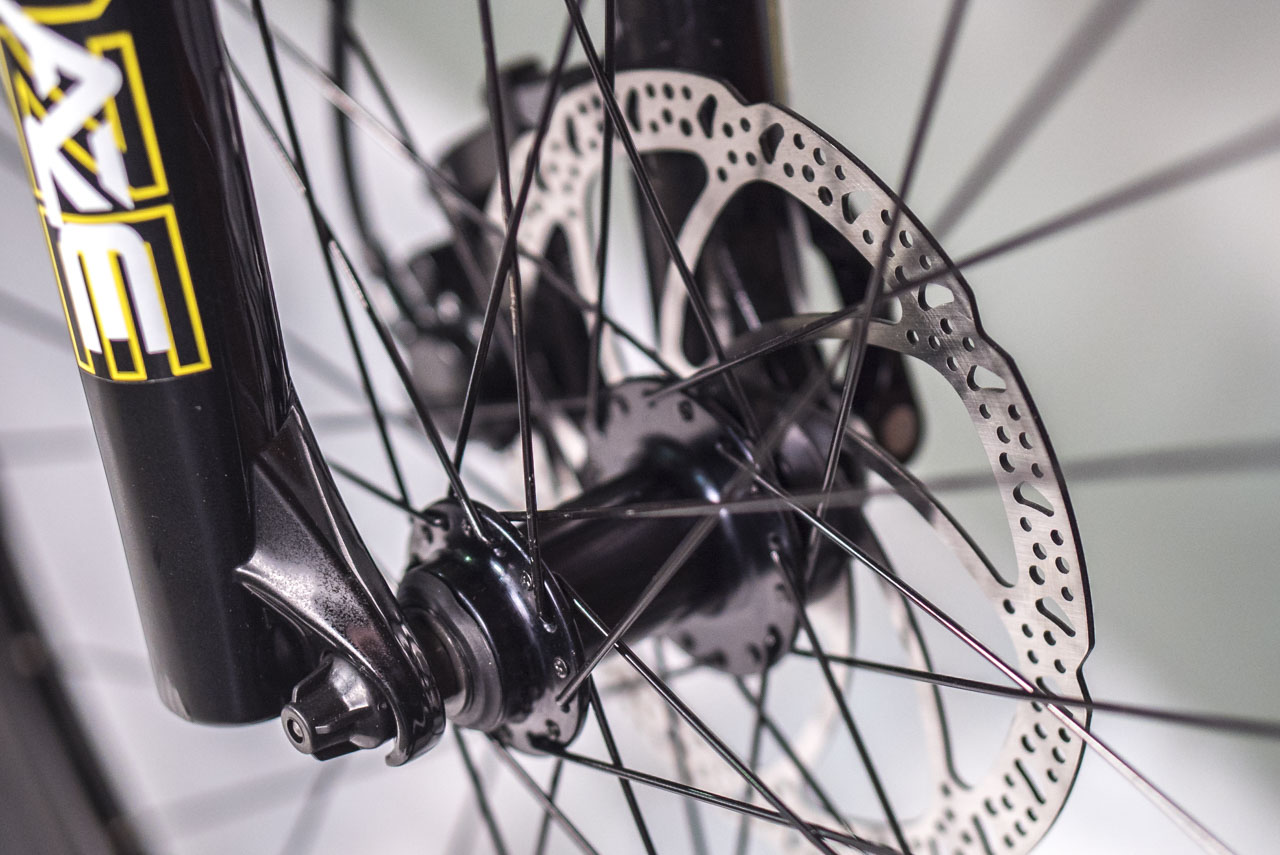

BrakesTEKTRO Auriga disc hydraulic (7" rotors)

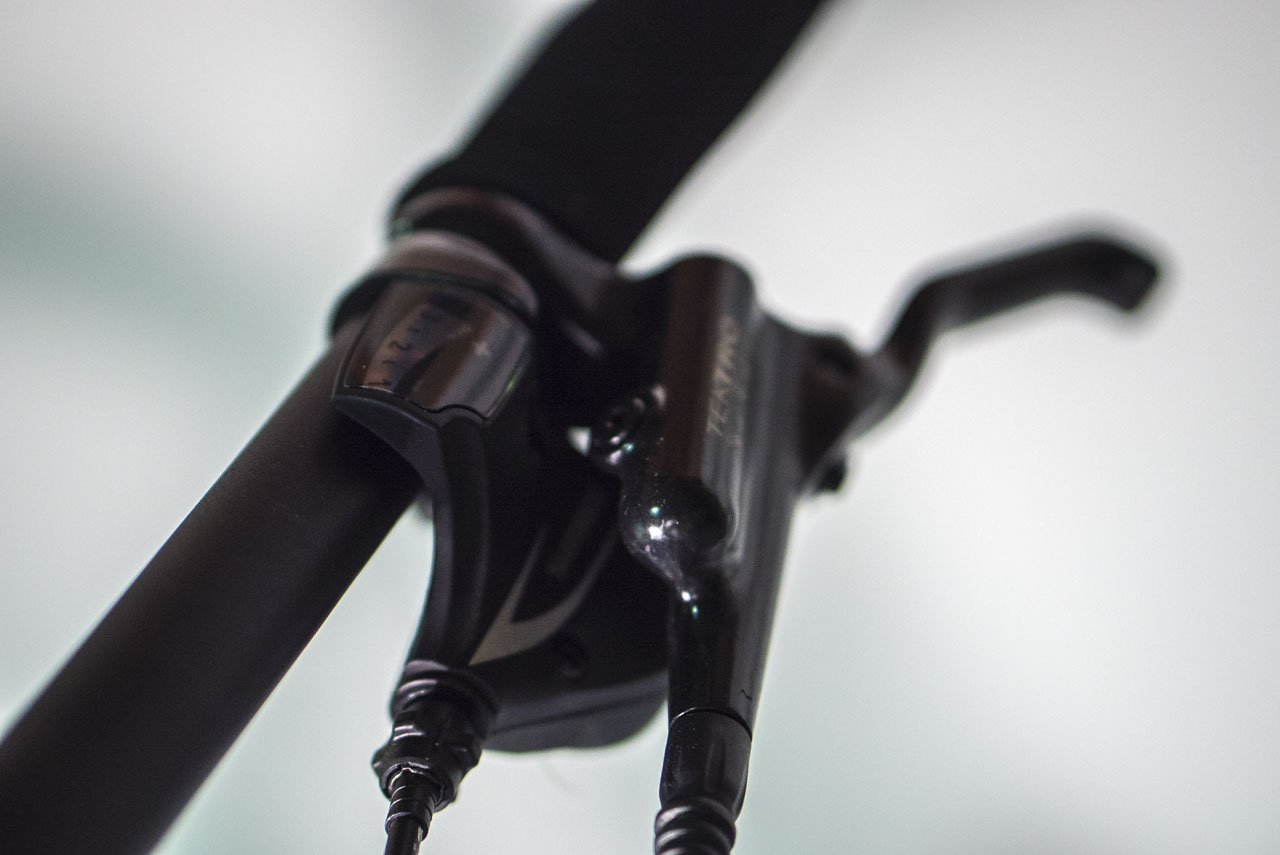

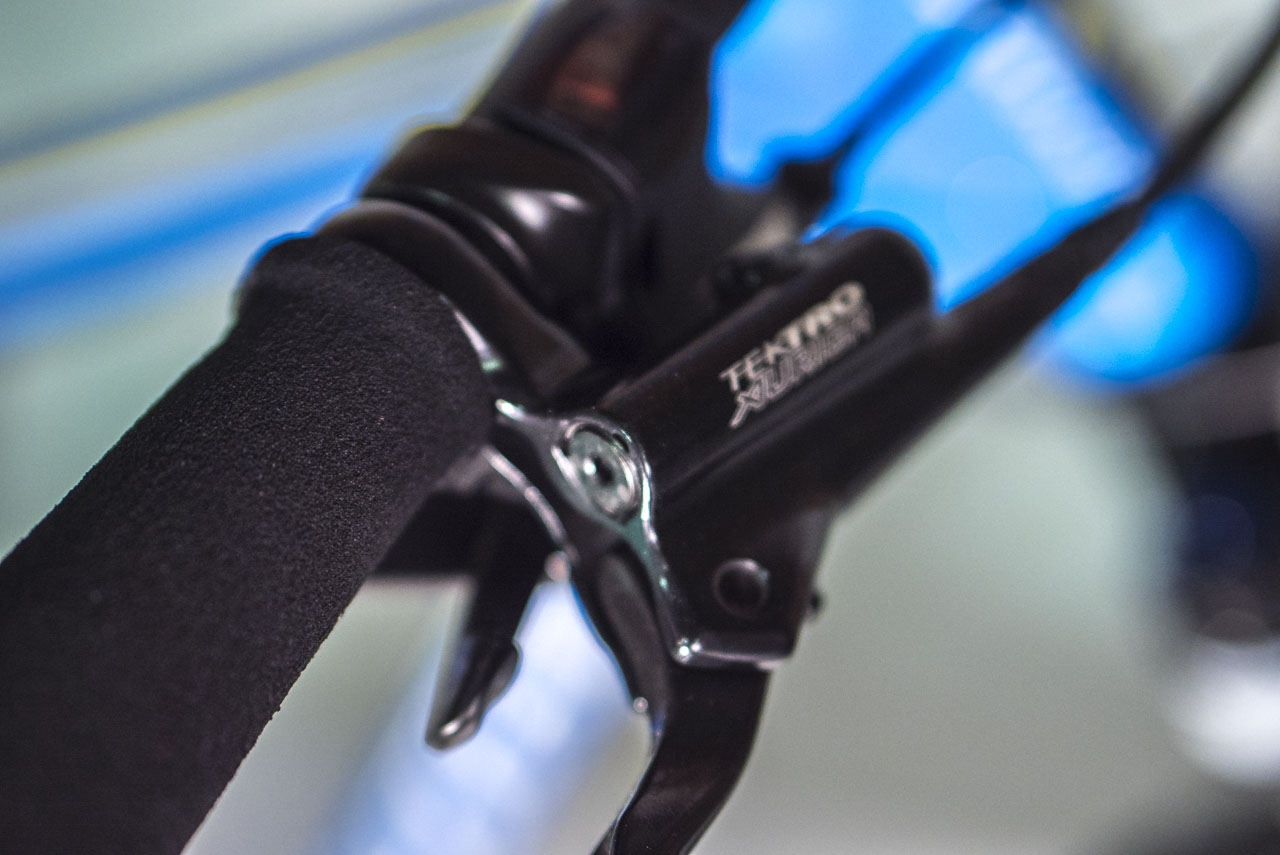

Brakes leversTEKTRO Auriga
RimsAUTHOR Radon 29 32 holes
Spokesblack steel
TiresAUTHOR Rocket 29" x 2.10"
PedalsAUTHOR alloy / resin
HandlebarAUTHOR Flatbar 0 mm 700 mm
GripsAUTHOR high density foam

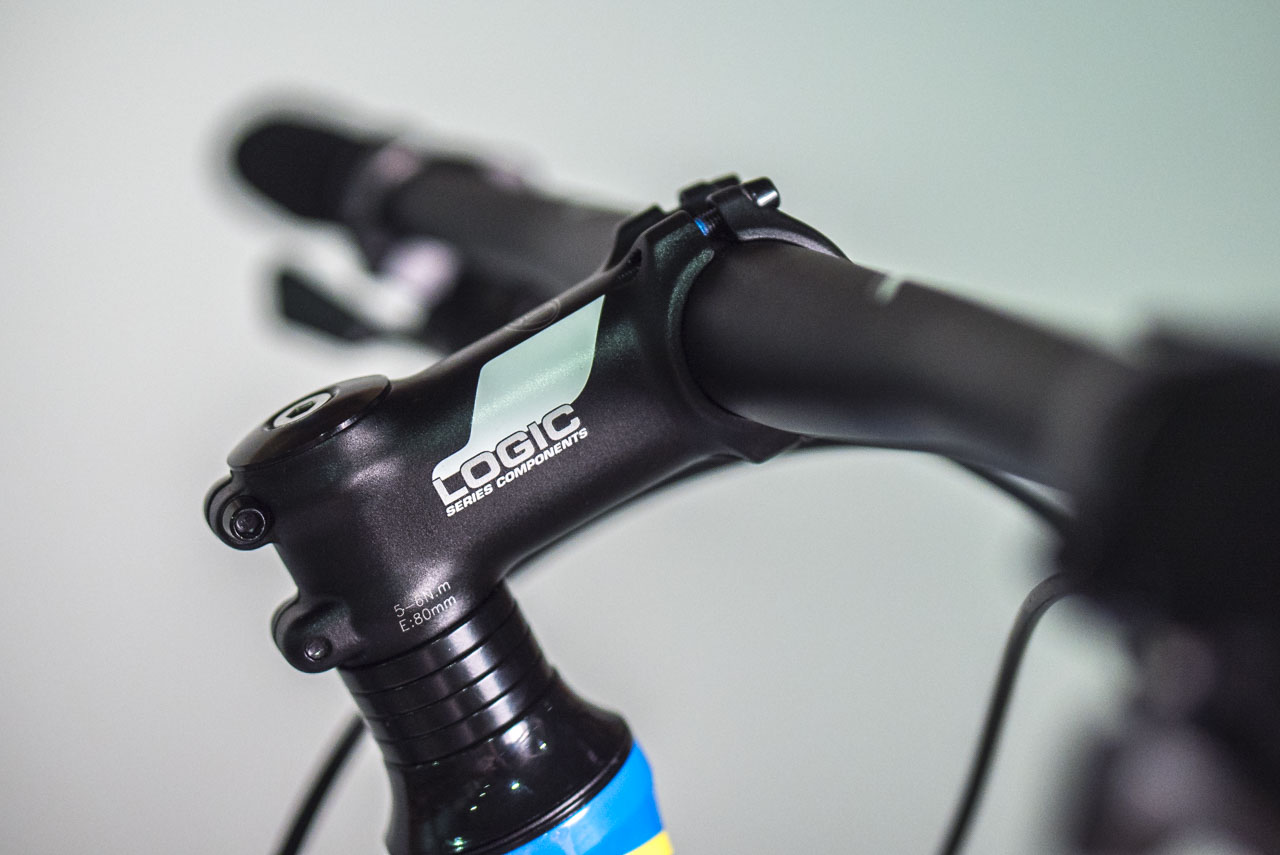

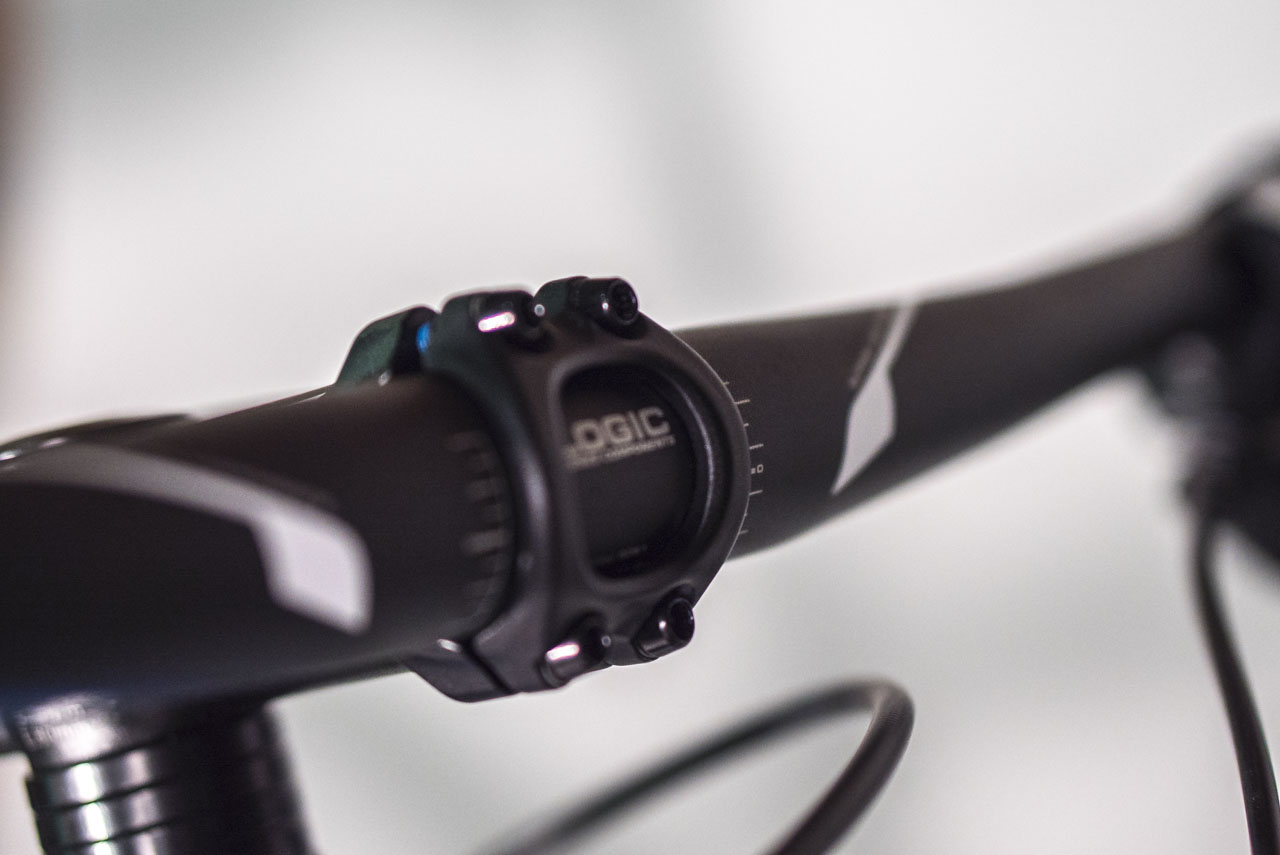

StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Courier
Speed24
Weight14.7 kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 165 180 195
Max. figure [cm] 180 195 205
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 606 630 651
T/T a [mm] 580 600 618
H/T [mm] 110 120 120
C/S [mm] 445 445 445
W/B [mm] 1099 1123 1138
S/T ang. [°] 71.7 71.7 71
H/T ang. [°] 71 71 71
F/L [mm] 510 510 510
B/B drop [mm] 61 61 61
B/B width [mm] 68 68 68
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Solution 29 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

white-matt / red / black17" = UA#42863102   19" = UA#42863103   21" = UA#42863104
blue / yellow / black17" = UA#42863112   19" = UA#42863113   21" = UA#42863114
