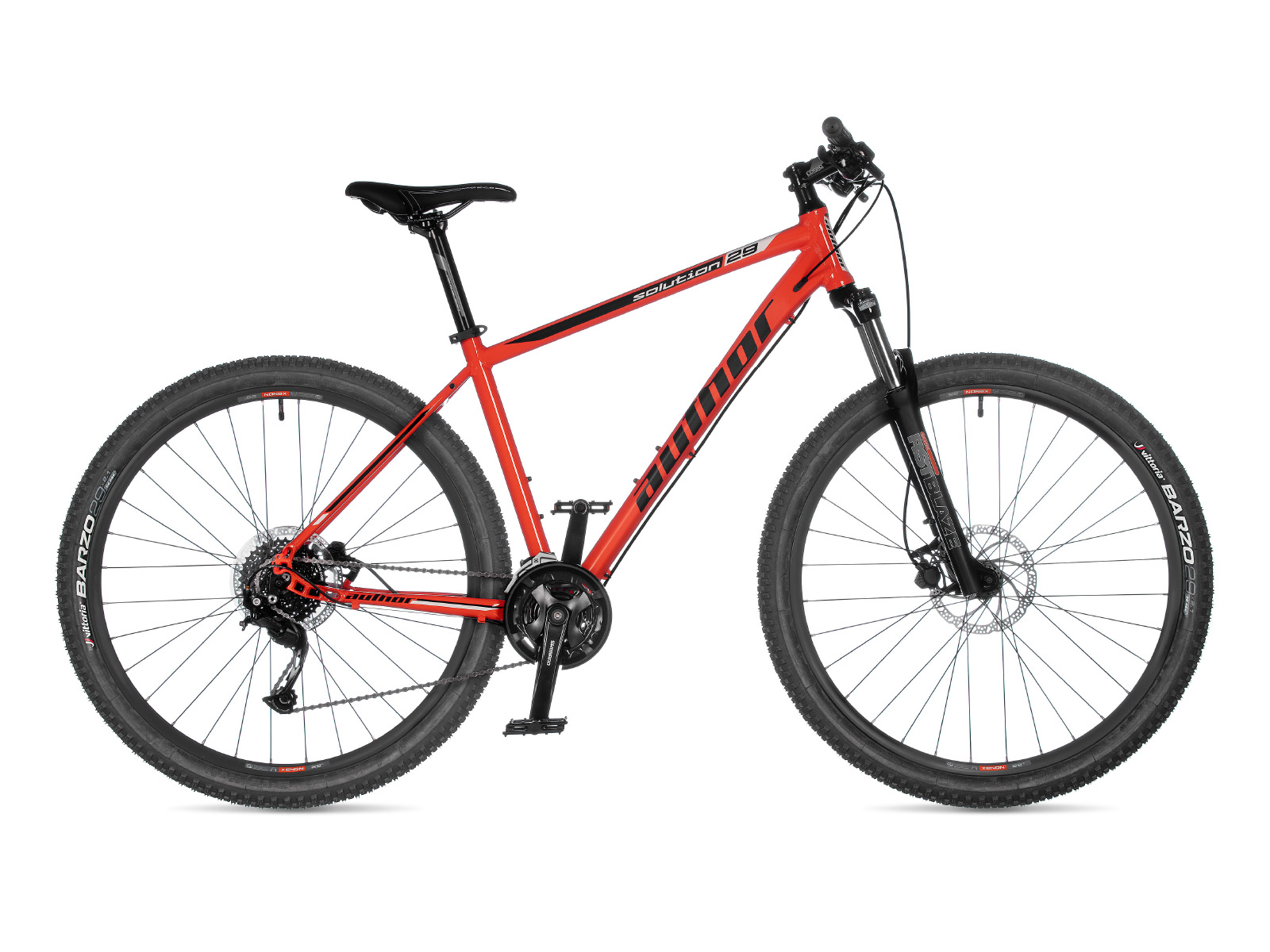

AUTHOR Solution 29 2021-22

Technical specification

Size	17", 19", 21"

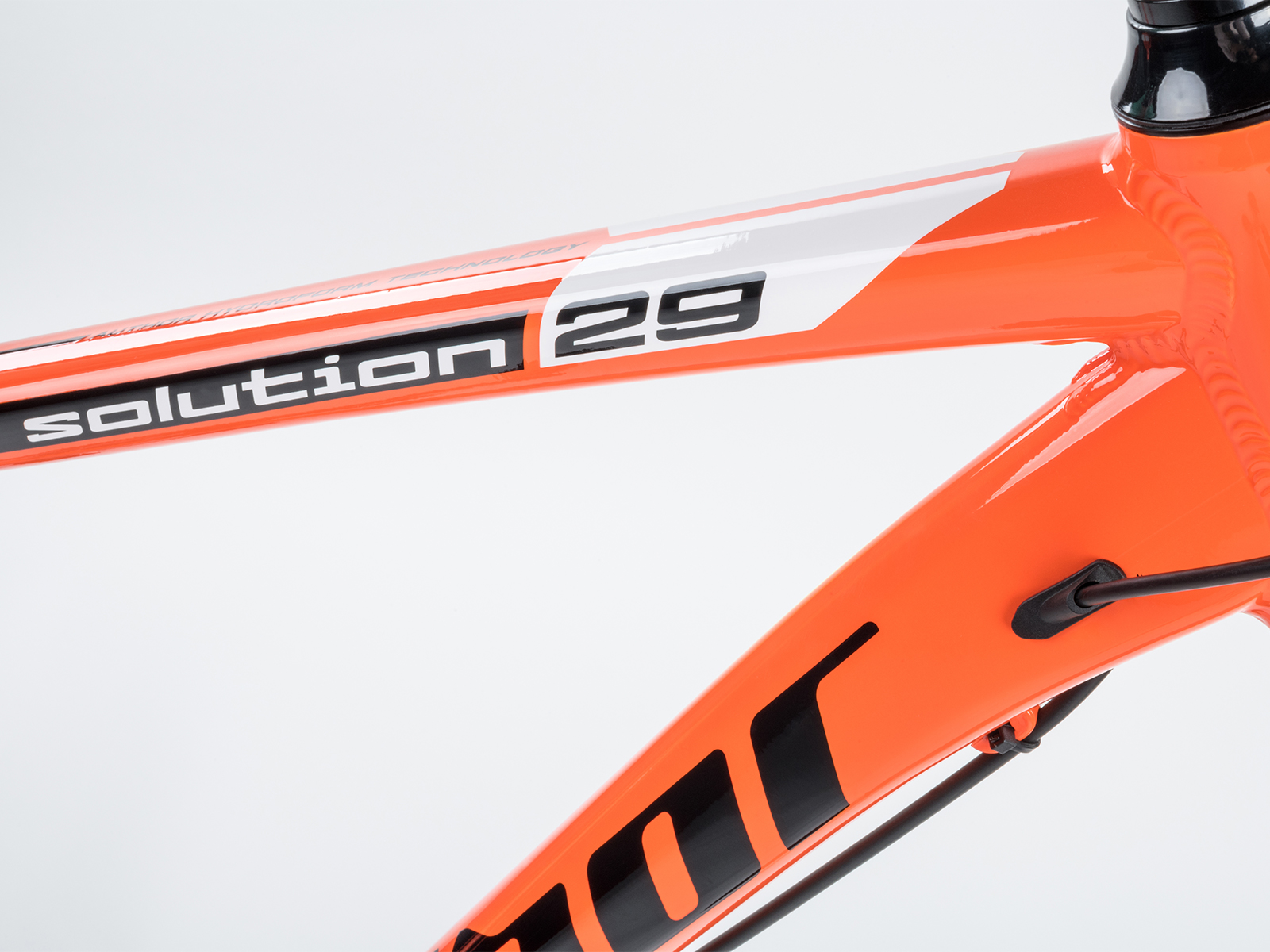

Frame	alloy 6061 29"
Front fork	RST Blaze 29 ML, lock out (100 mm)
Head parts	AUTHOR Integrated 1-1/8"

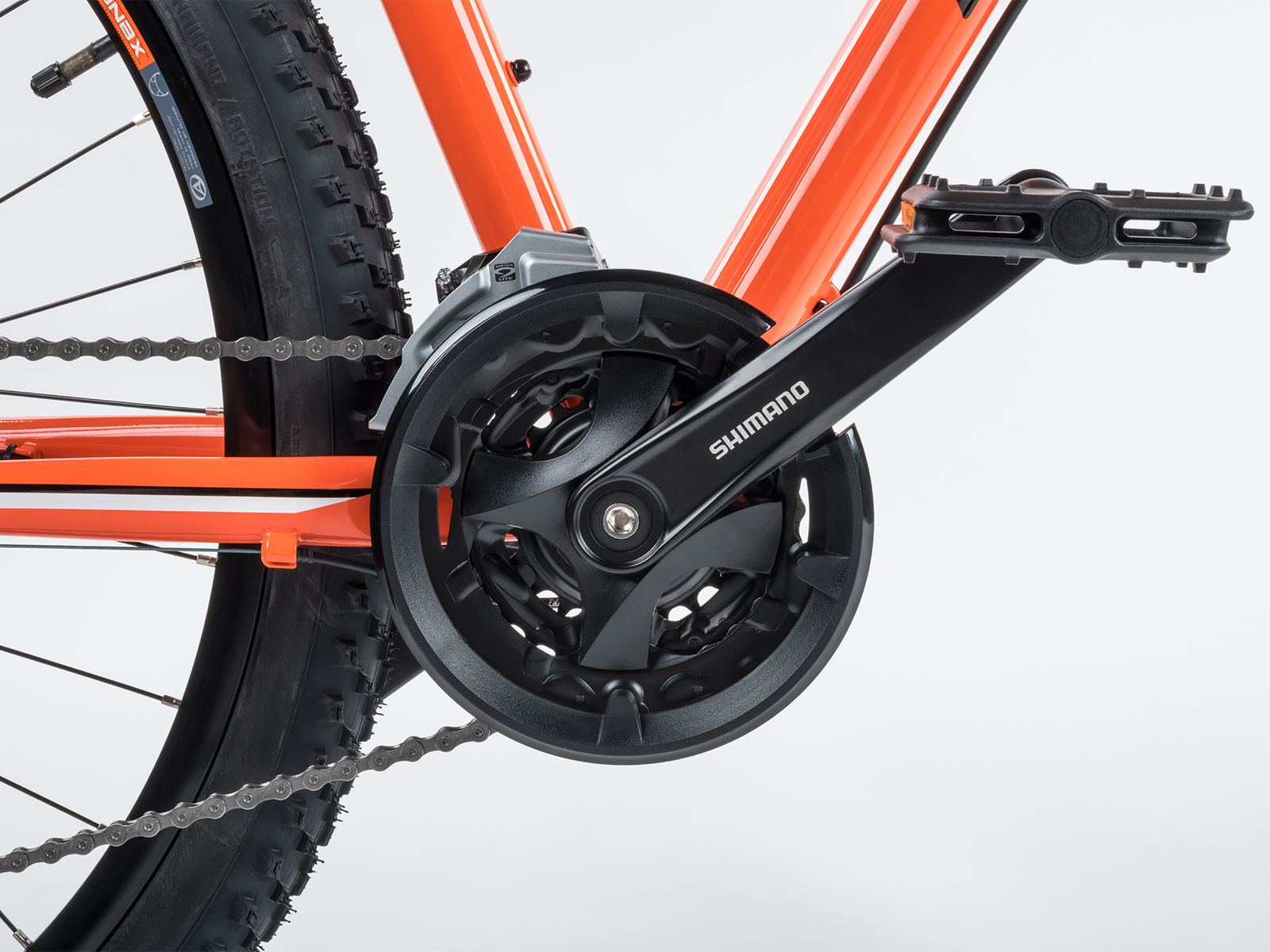

Chain Wheel	SHIMANO MT101 40-30-22 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-UN101 cartridge
Front derailleur	SHIMANO Altus (34.9)
Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (27)
Free wheel	SHIMANO HG200-9 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc 32 holes

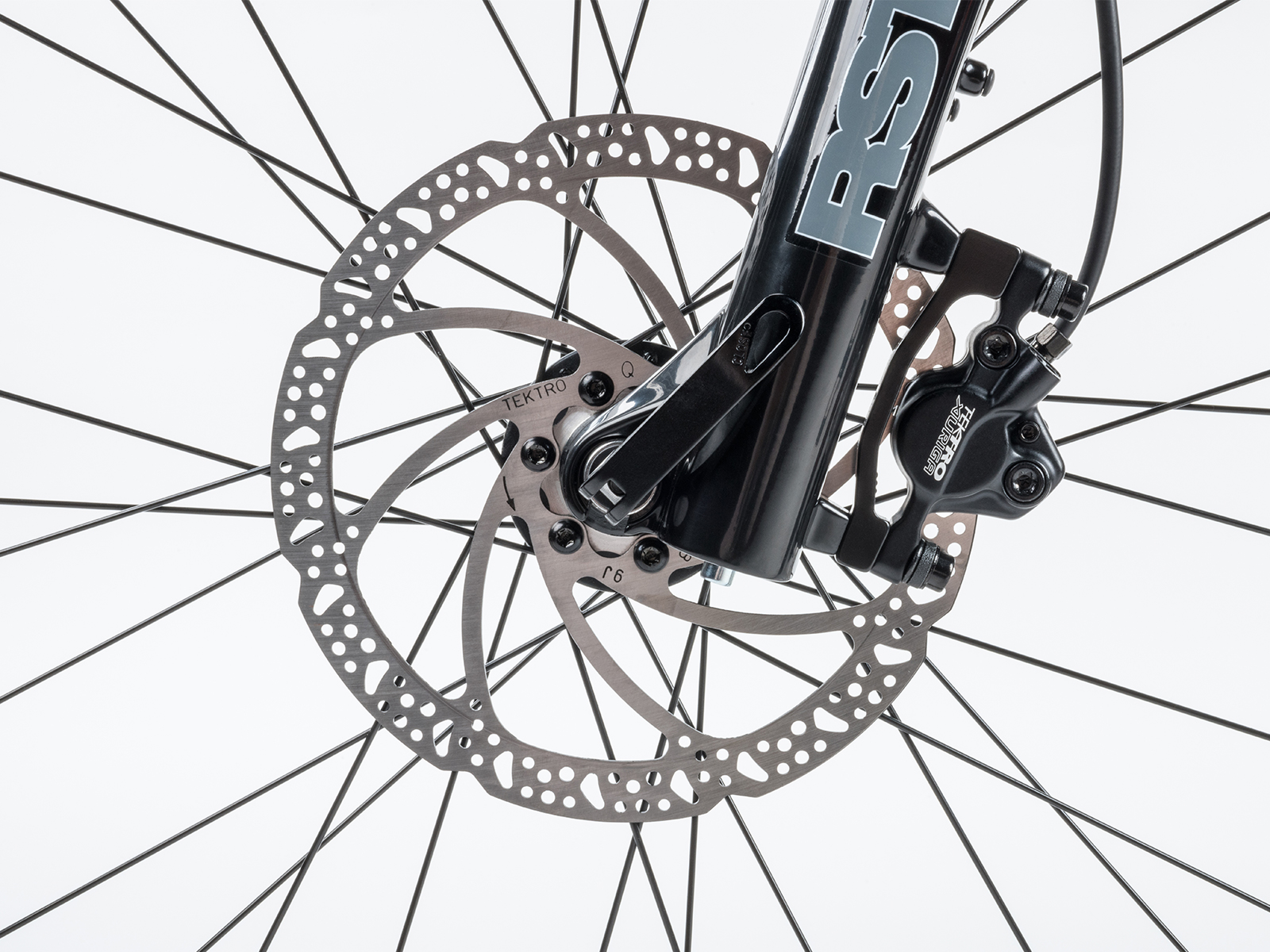

Brakes	TEKTRO Auriga disc hydraulic (7" rotors)
Brakes levers	TEKTRO Auriga

Rims	AUTHOR Xenon 29 32 holes
Spokes	black steel

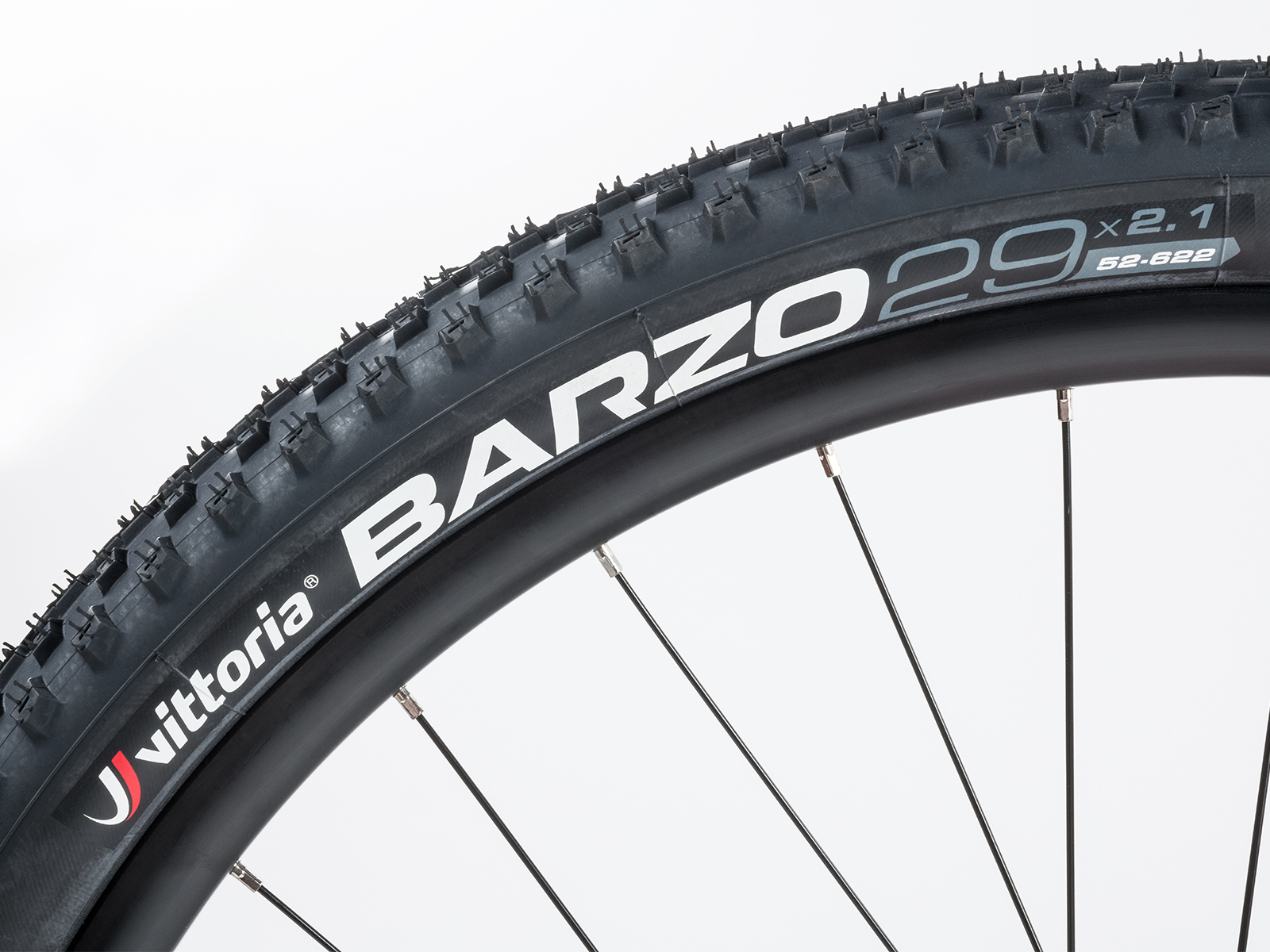

Tires	VITTORIA Barzo 29" × 2.10"
Pedals	resin
Handlebar	AUTHOR Flatbar 10° 700 mm
Grips	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

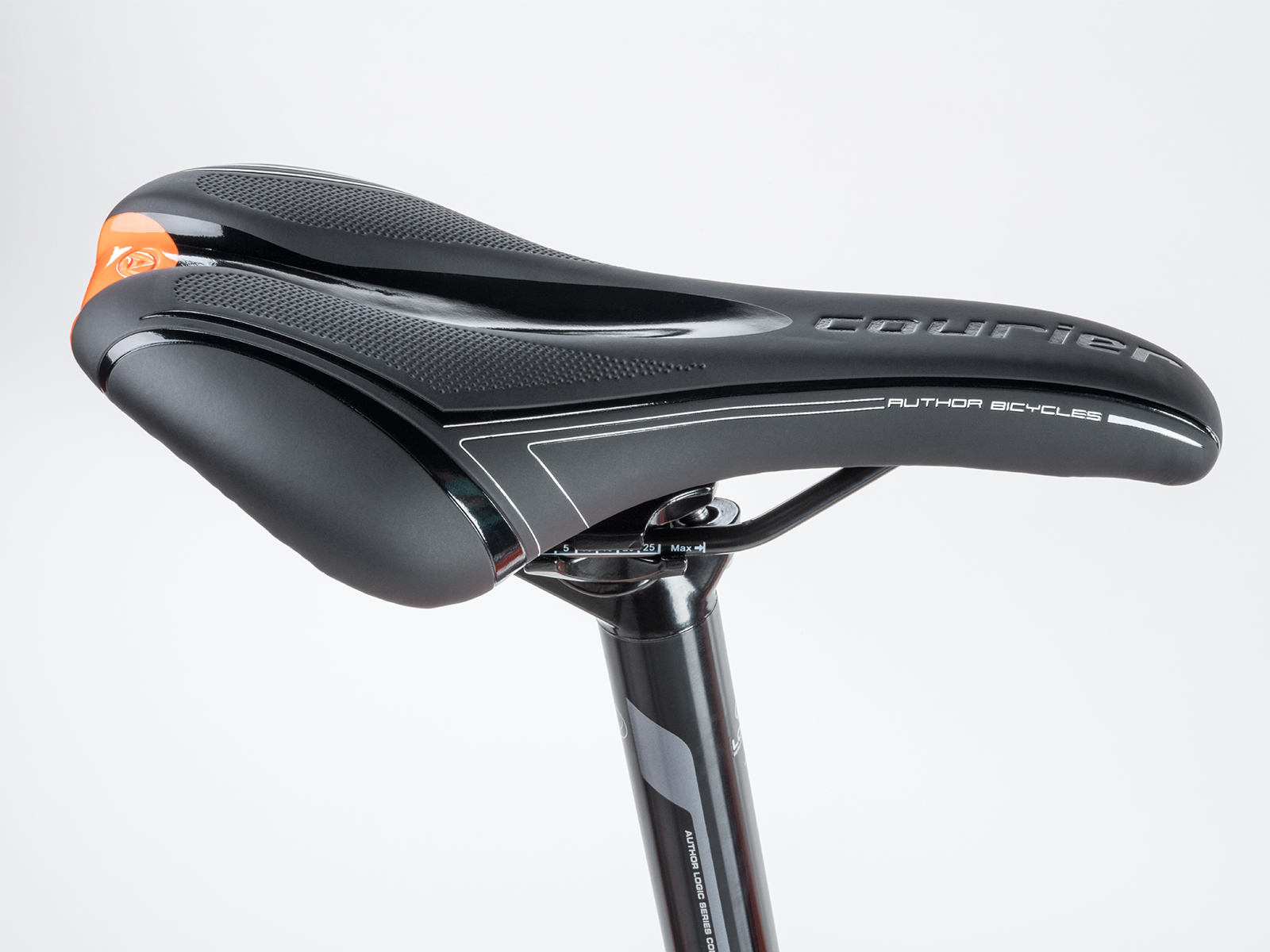

Saddle	AUTHOR Courier
Speed	27
Weight	14,9 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	581	596	614
H/T ~~[mm]~~	115	130	140
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1125	1147	1167
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	63	63	63
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	407	423	440
Stack ~~[mm]~~	632	646	655
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	2 stores				42934402
	▪ VISO BIKE		in stock	buy now	Kostelec nad Orlicí	736 767 810, info@visobike.cz	map
	▪ Velo Fiala		in stock	buy now	Praha 6	725 729 111, tomas@velofiala.cz	map
		19"	1 shop				42934403
	▪ Velo Fiala		in stock	buy now	Praha 6	725 729 111, tomas@velofiala.cz	map
		17"	1 shop				42934412
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
		19"	1 shop				42934413
	▪ Velo Fiala		in stock	buy now	Praha 6	725 729 111, tomas@velofiala.cz	map
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.
