Avion 2023-24

Colour variants
Carbon frame and forkSHIMANO GRX 600 chainwheel, 46-30 t.Hydraulic disc brakes SHIMANO DeoreSHIMANO GRX / Tiagra components, 20 speedPANARACER Gravel King SK SPORT 700 × 43c foldable tiresAUTHOR Microtech ErgoGrip comfortable gripsAUTHOR Navigator comfortable saddle
Buy nowprice 57 990 Kč
other models

Technical specification

Size16", 18", 20", 22"

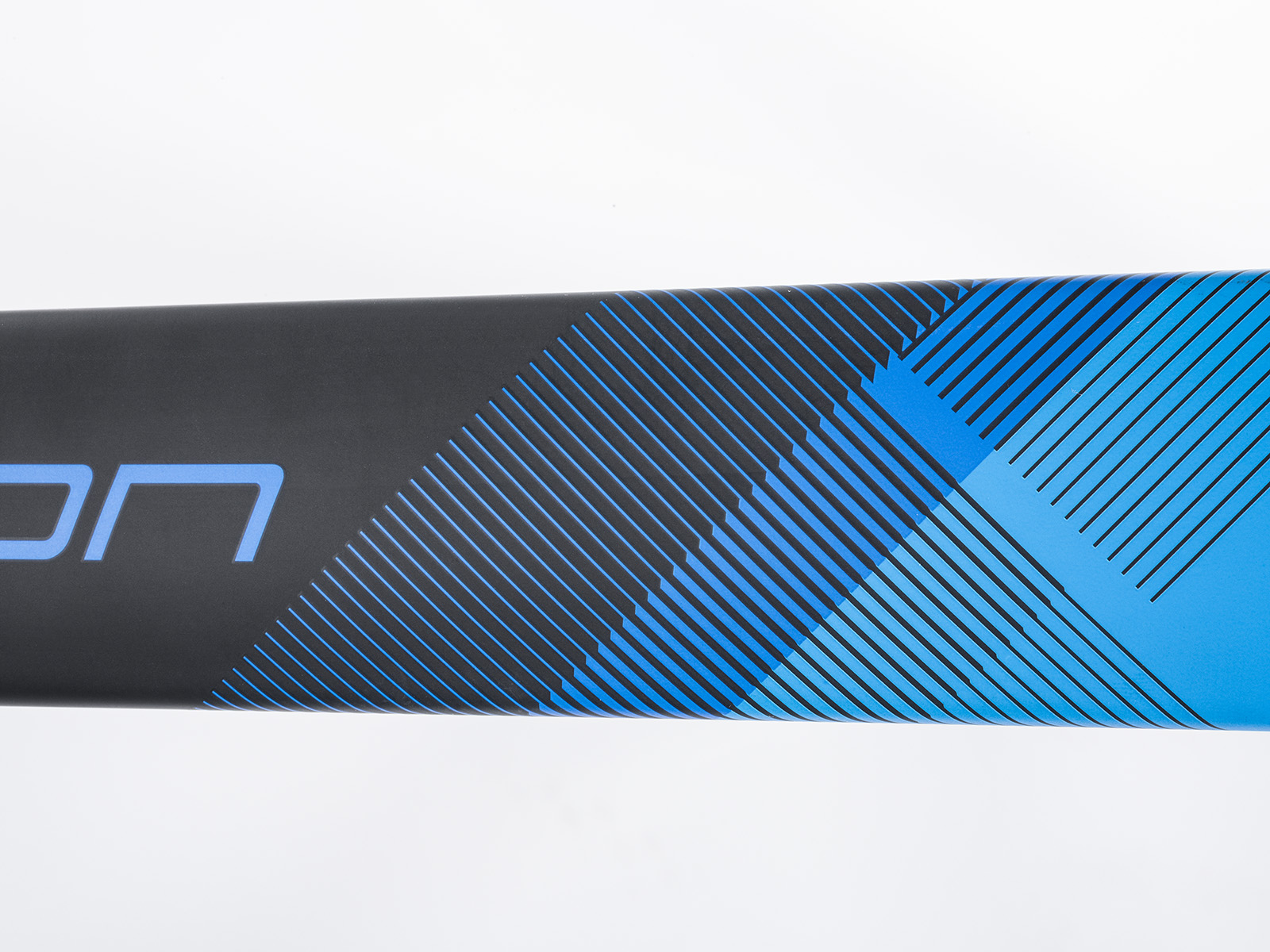

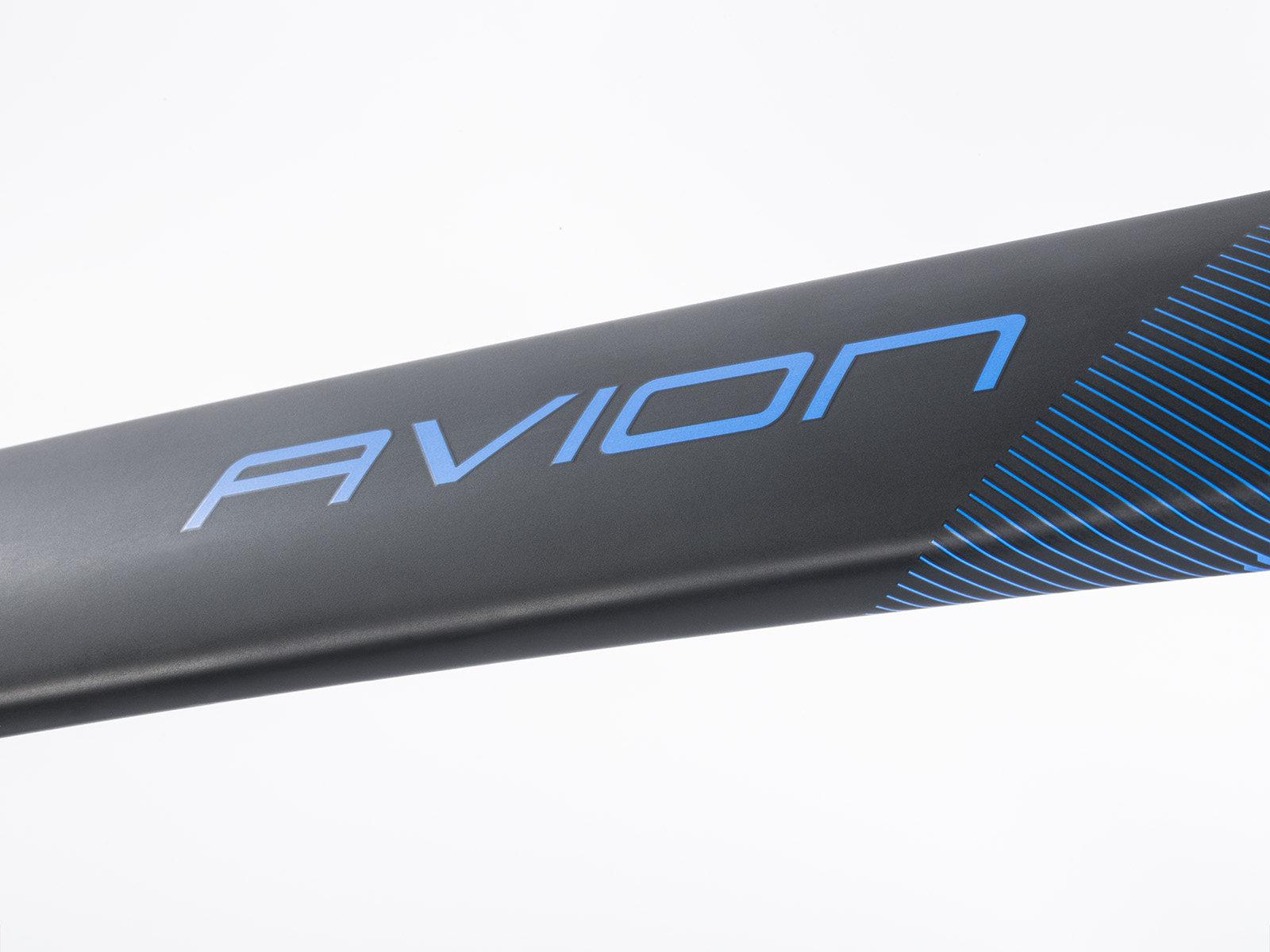

FrameAUTHOR carbon Toray T700/800 monocoque 29"

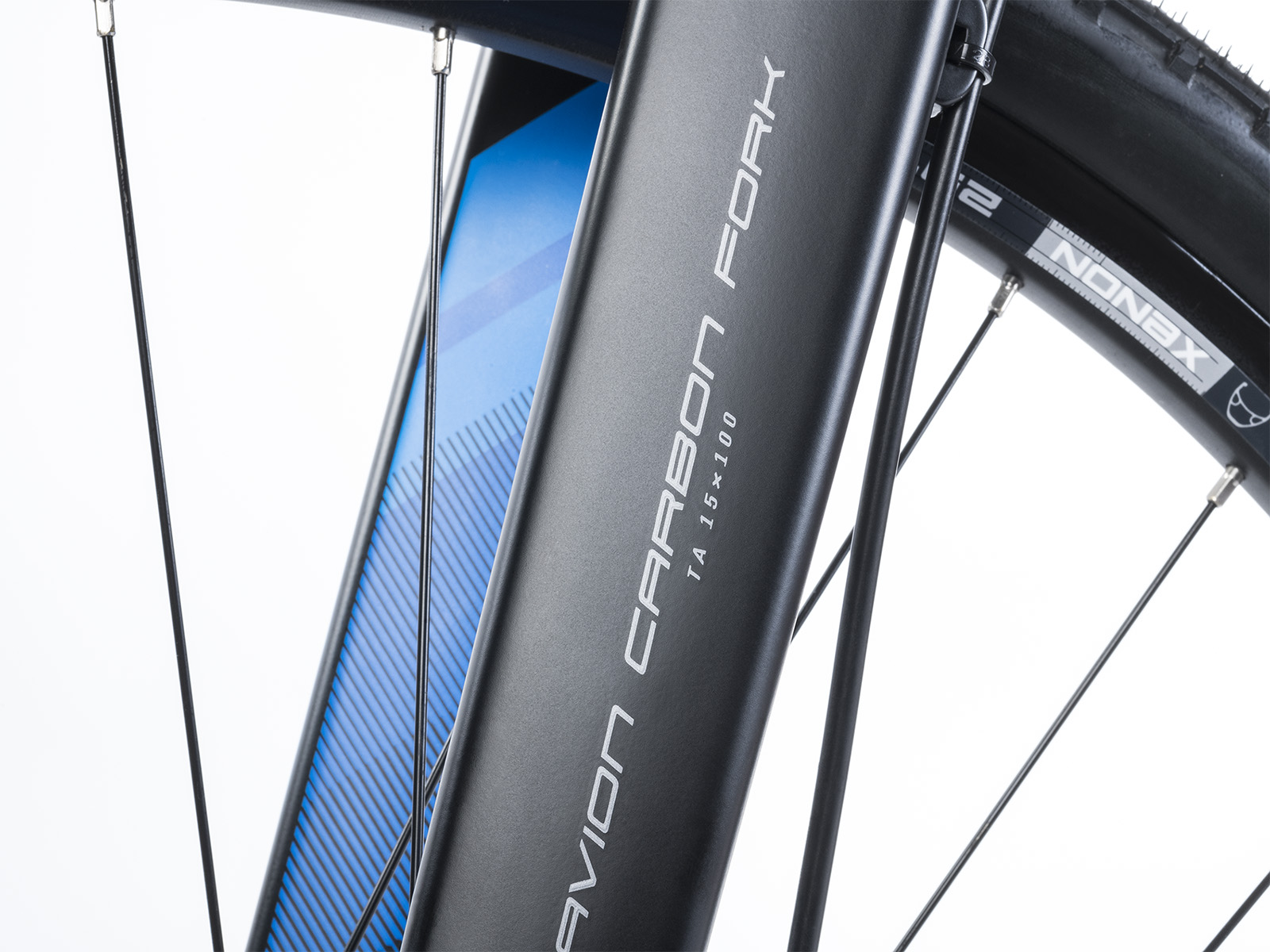

Front forkAUTHOR carbon 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered

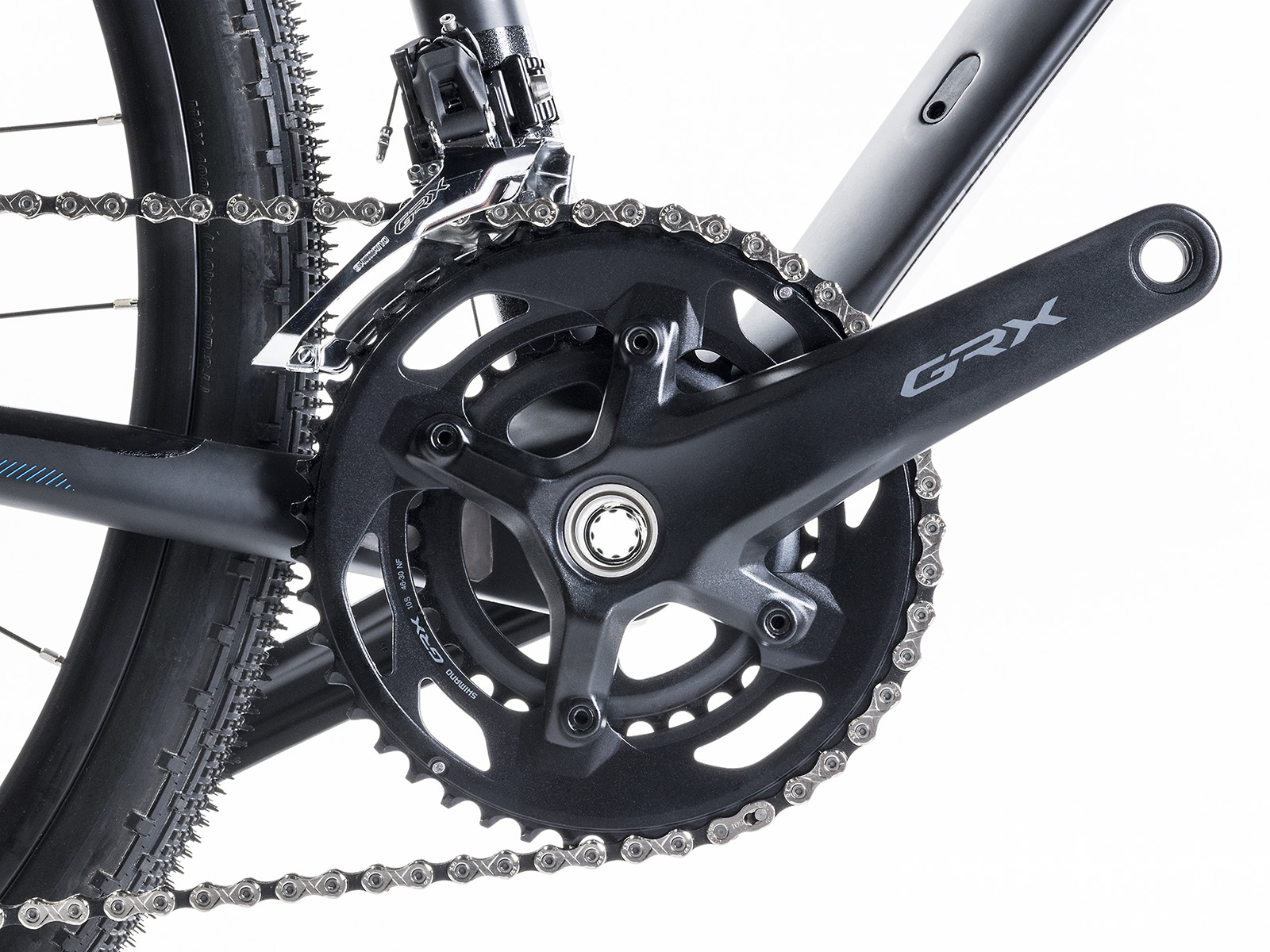

Chain WheelSHIMANO GRX 600, 46-30 teeth, 170 / 175 mm cranks
BBPartsSHIMANO BB-RS500, BB unit
Front derailleurSHIMANO GRX 400 (34.9)

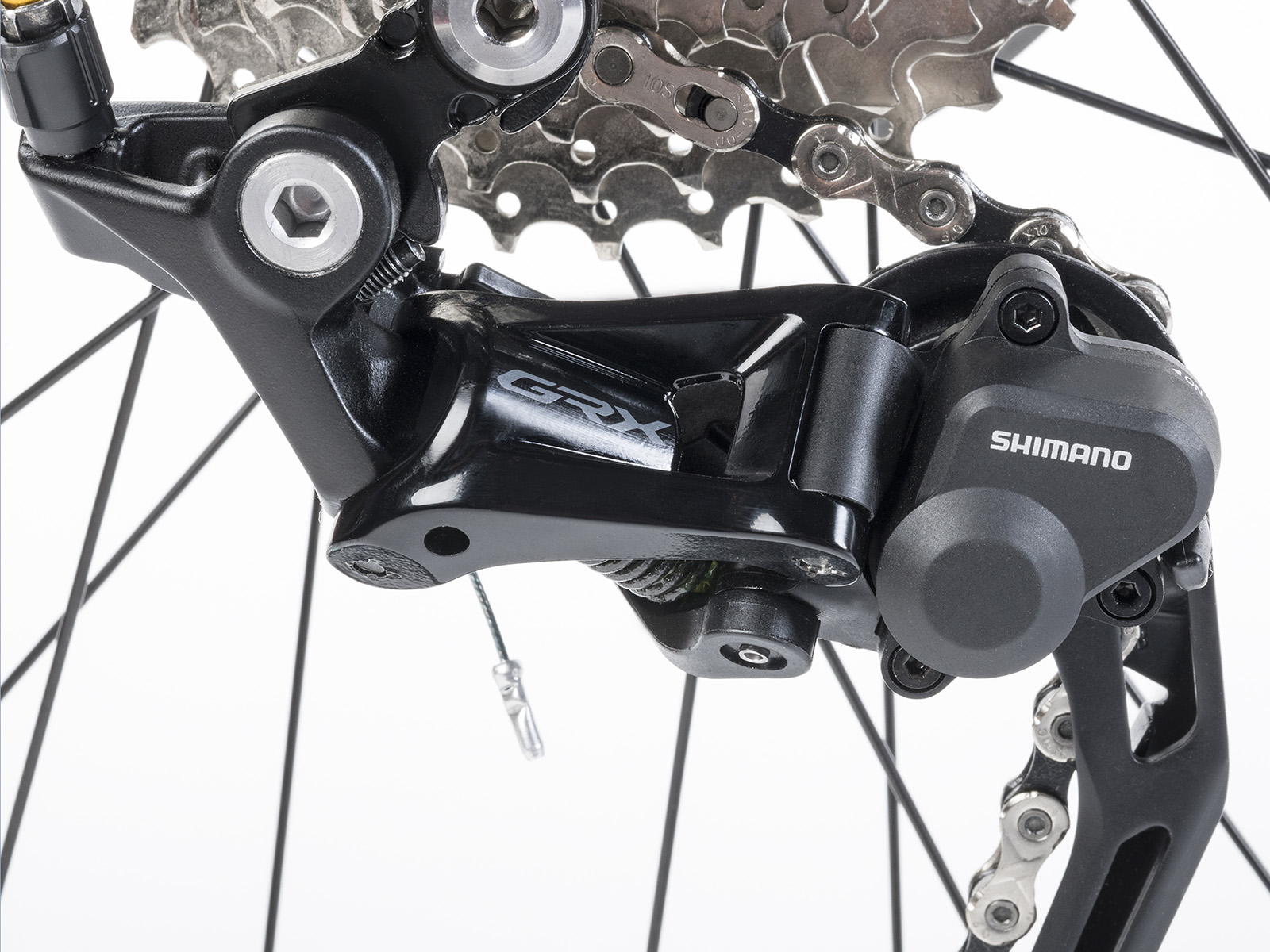

Rear derailleurSHIMANO GRX 400

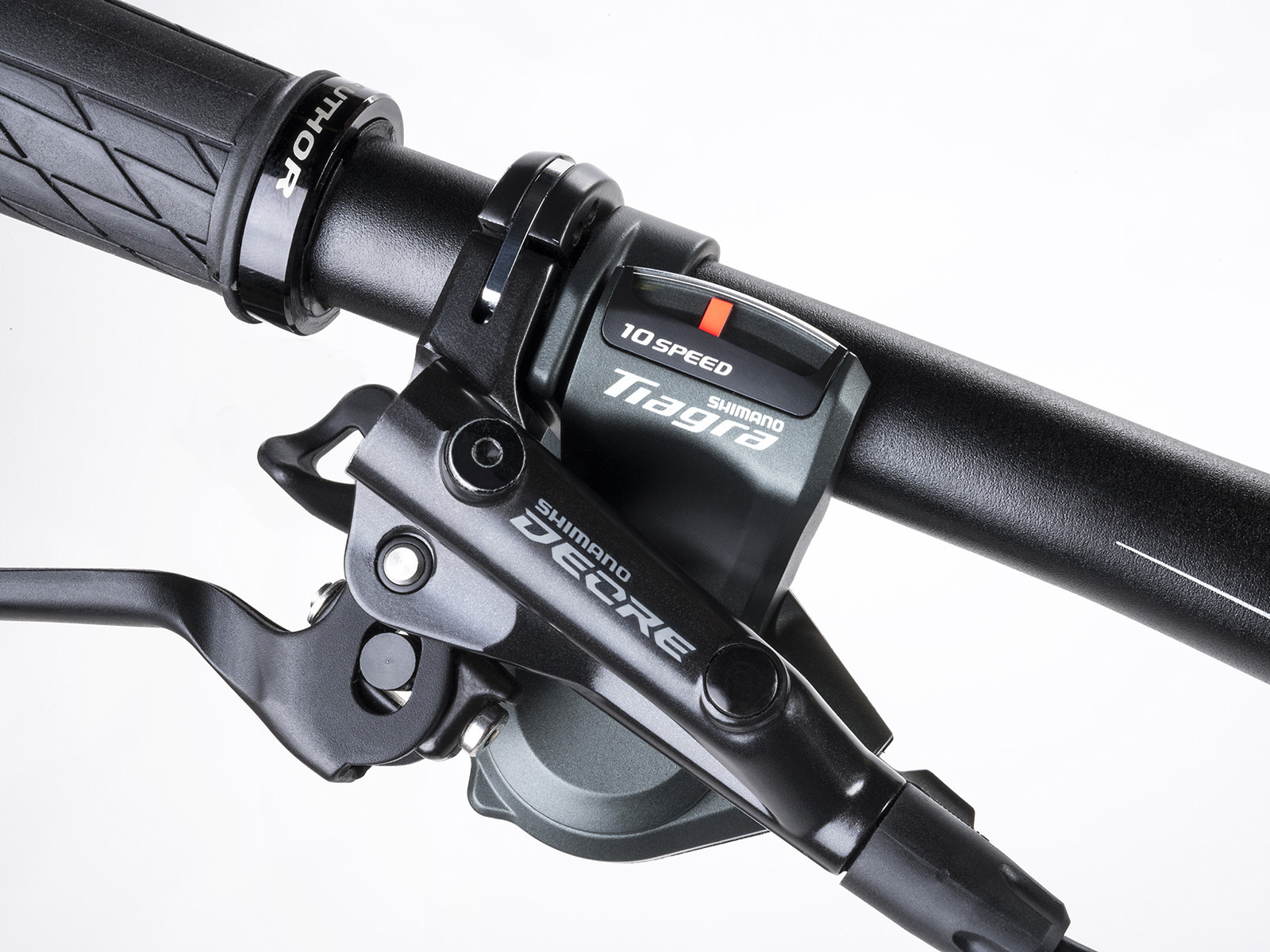

ShiftersSHIMANO Tiagra (20)
Free wheelSHIMANO HG500-10, 11-34 (10)
ChainKMC X10
HubsAUTHOR Helium / Xenon, 15 × 100 mm thru front axle, 12 × 142 mm thru rear axle, 32 holes
BrakesSHIMANO Deore, disc hydraulic (6" rotors)
Brakes leversSHIMANO Deore
RimsAUTHOR Xenon 29, 32 holes
Spokesblack stainless steel 2.0 mm

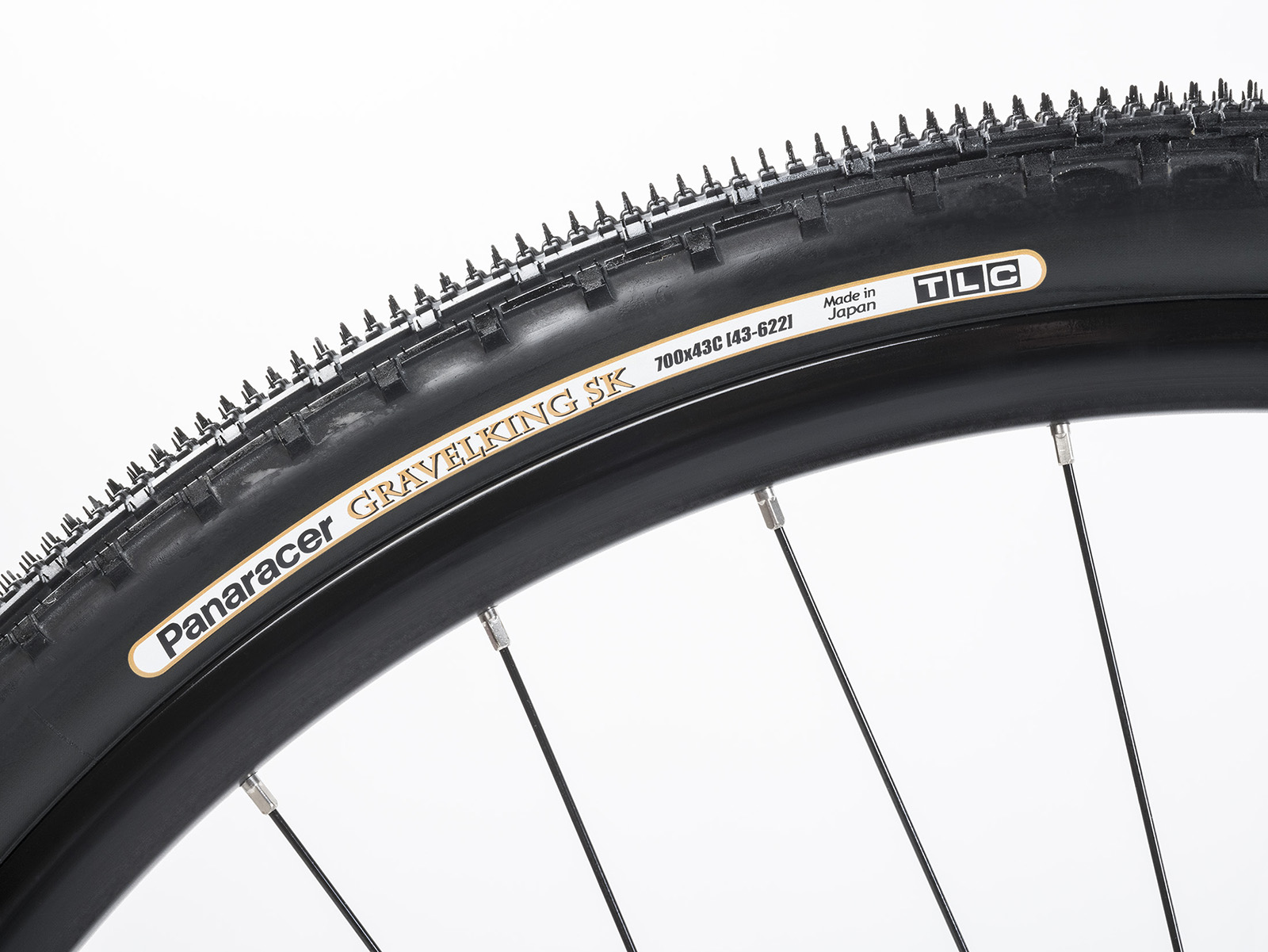

TiresPANARACER Gravel King SK aramid 700 × 43c
HandlebarAUTHOR 15 mm, 660 / 680 mm
GripsAUTHOR Microtech ErgoGrip
StemAUTHOR alloy
Seat postAUTHOR alloy (27.2)
Seat clampAUTHOR (31.8)

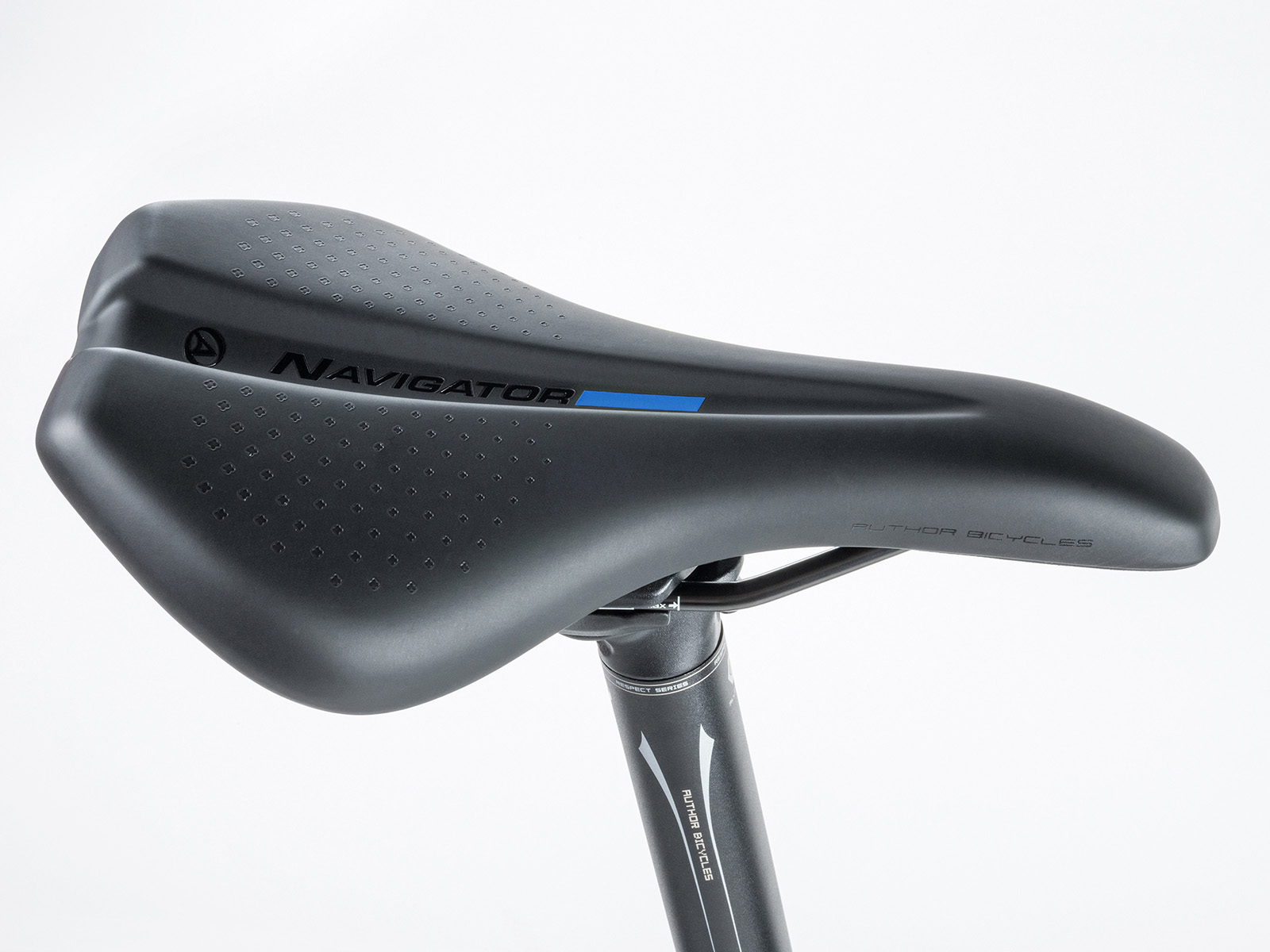

SaddleAUTHOR Navigator CR
Speed20
Weight10,0 kg / 20"

Geometry and sizes

Size 16" 18" 20" 22"
Min. figure [cm] 150 164 174 184
Max. figure [cm] 166 176 186 200
S/T c-t [mm] 406 457 508 559
S/T c-c [mm] 0 0 0 0
T/T h [mm] 560 580 600 620
T/T a [mm] 540 556 574 595
H/T [mm] 110 130 150 160
C/S [mm] 450 450 450 450
W/B [mm] 1055 1076 1097 1117
S/T ang. [°] 73 73 73 73
H/T ang. [°] 71 71 71 71
F/L [mm] 490 490 490 490
B/B drop [mm] 60 60 60 60
B/B width [mm] 68 68 68 68
Reach [mm] 372 386 401 418
Stack [mm] 614 633 652 661
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Avion 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
