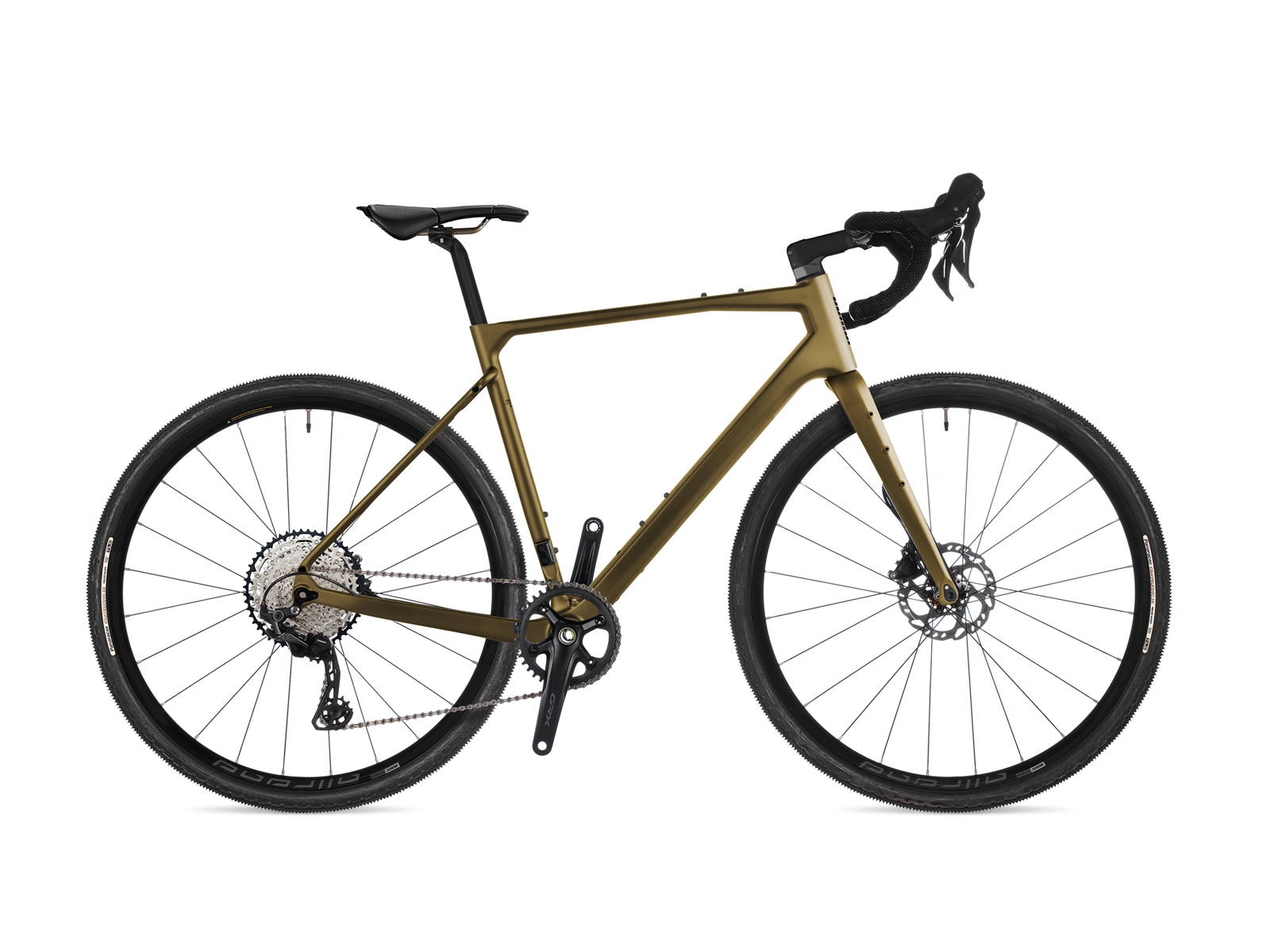

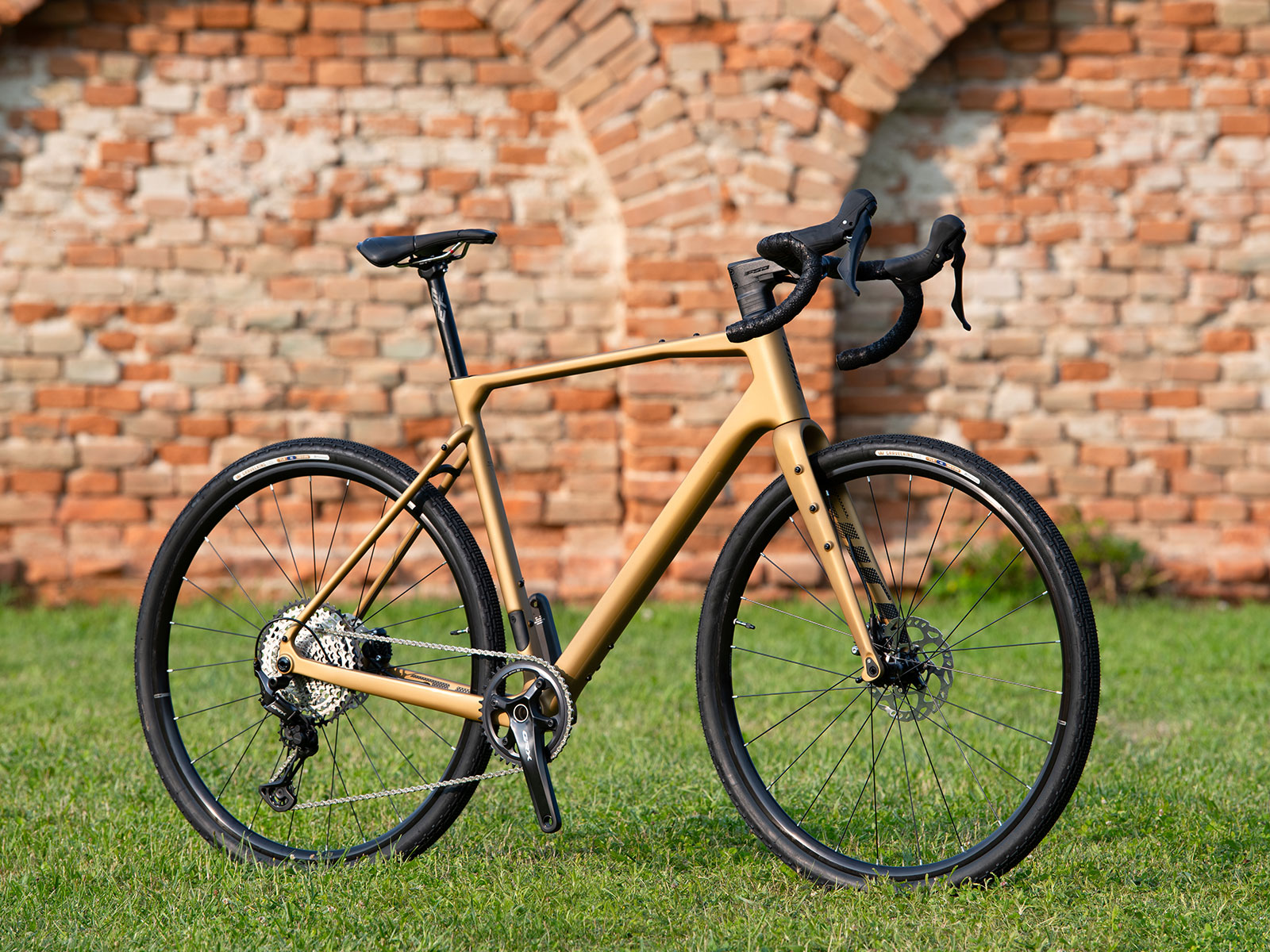

Guru 2.0 2025

~~Colour variants~~

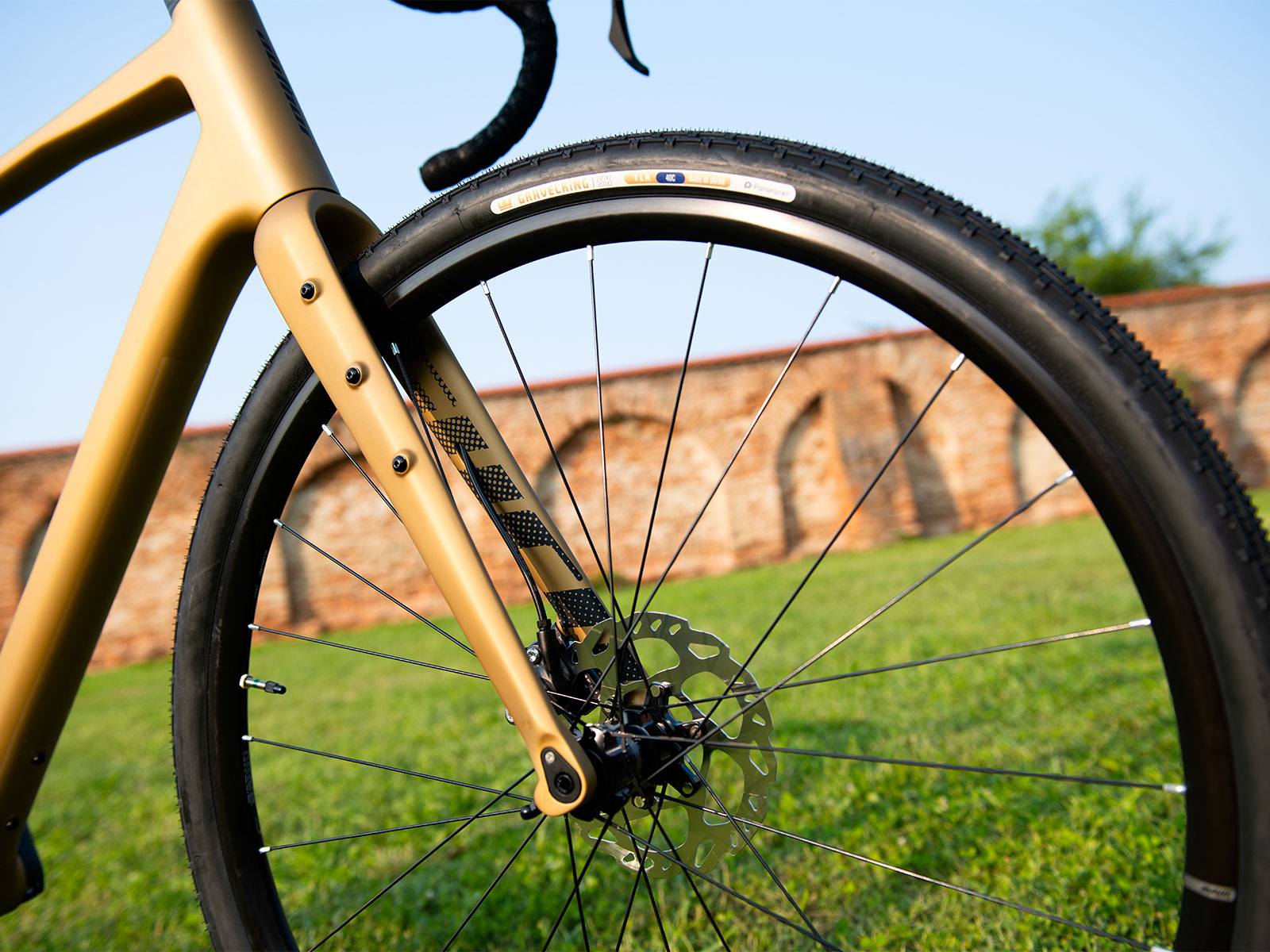

New carbon frame with full integ. cable routingCarbon fork, 12mm axle, holes for carrier CARGO ACR-F05-ALUComponents SHIMANO GRX 610/822, 1 × 12 speedWheel set MAVIC Allroad UST Disc CL, 24 holesLegendary tires PANARACER Gravel King SK 700 × 40CHolders for carrier and top frame bagSpecial gravel saddle PROLOGO Scratch M5 AGX Tirox

price 75 990 Kč

# 48 # 51 # 54 # 57 # black # gold

other models

Technical specification

Size	48 cm (S), 51 cm (M), 54 cm (L), 57 cm (XL)

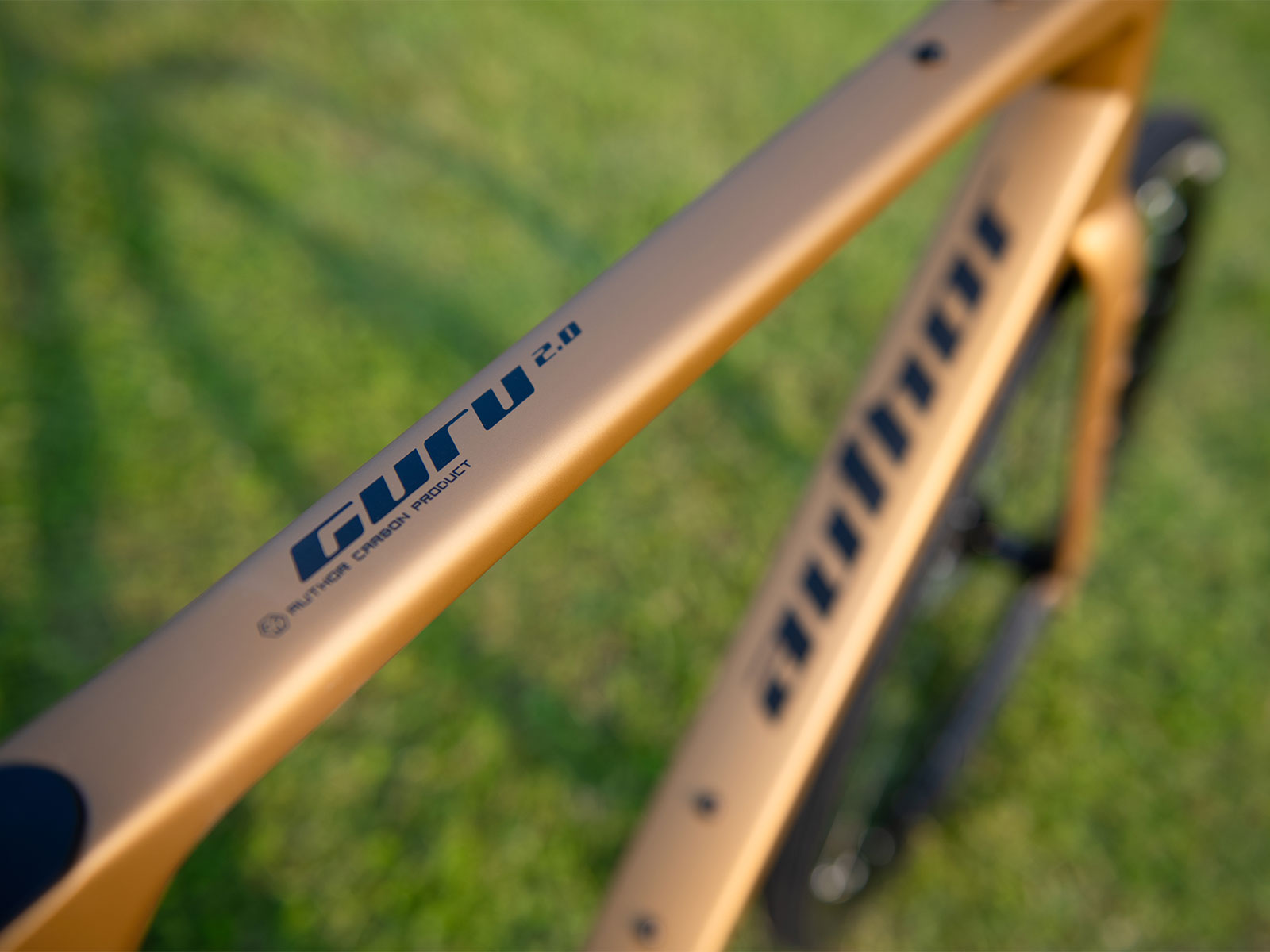

Frame	AUTHOR karbon Toray T700/M40 monocoque gravel
Front fork	AUTHOR karbon Toray T700 monocoque gravel, 1.5" tapered
Head parts	FSA Orbit C-40, 1.5" tapered

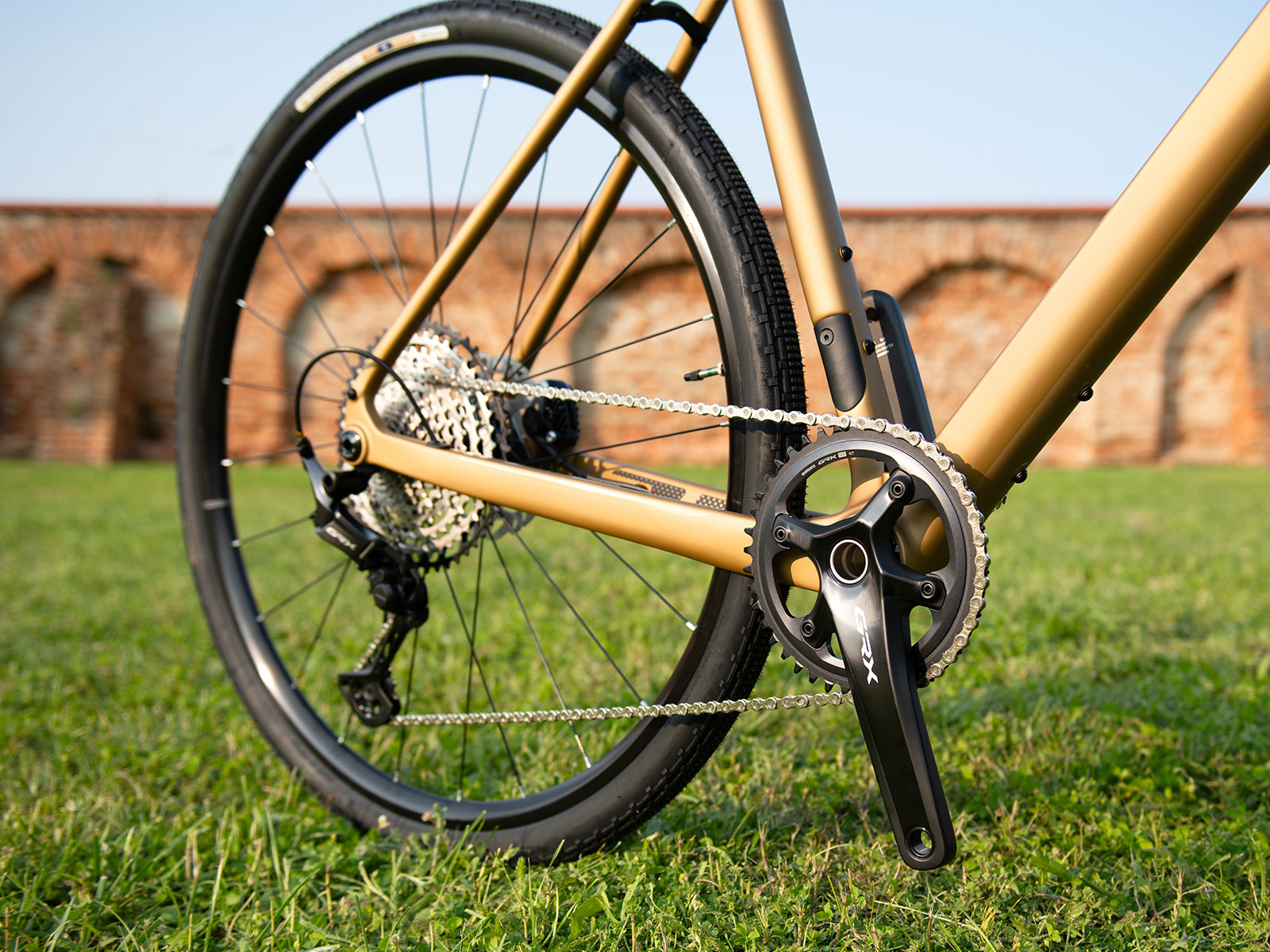

Chain Wheel	SHIMANO GRX 820-1, 42 teeth, 172,5 / 175 mm cranks
BBParts	SHIMANO BB-R60 BB, unit

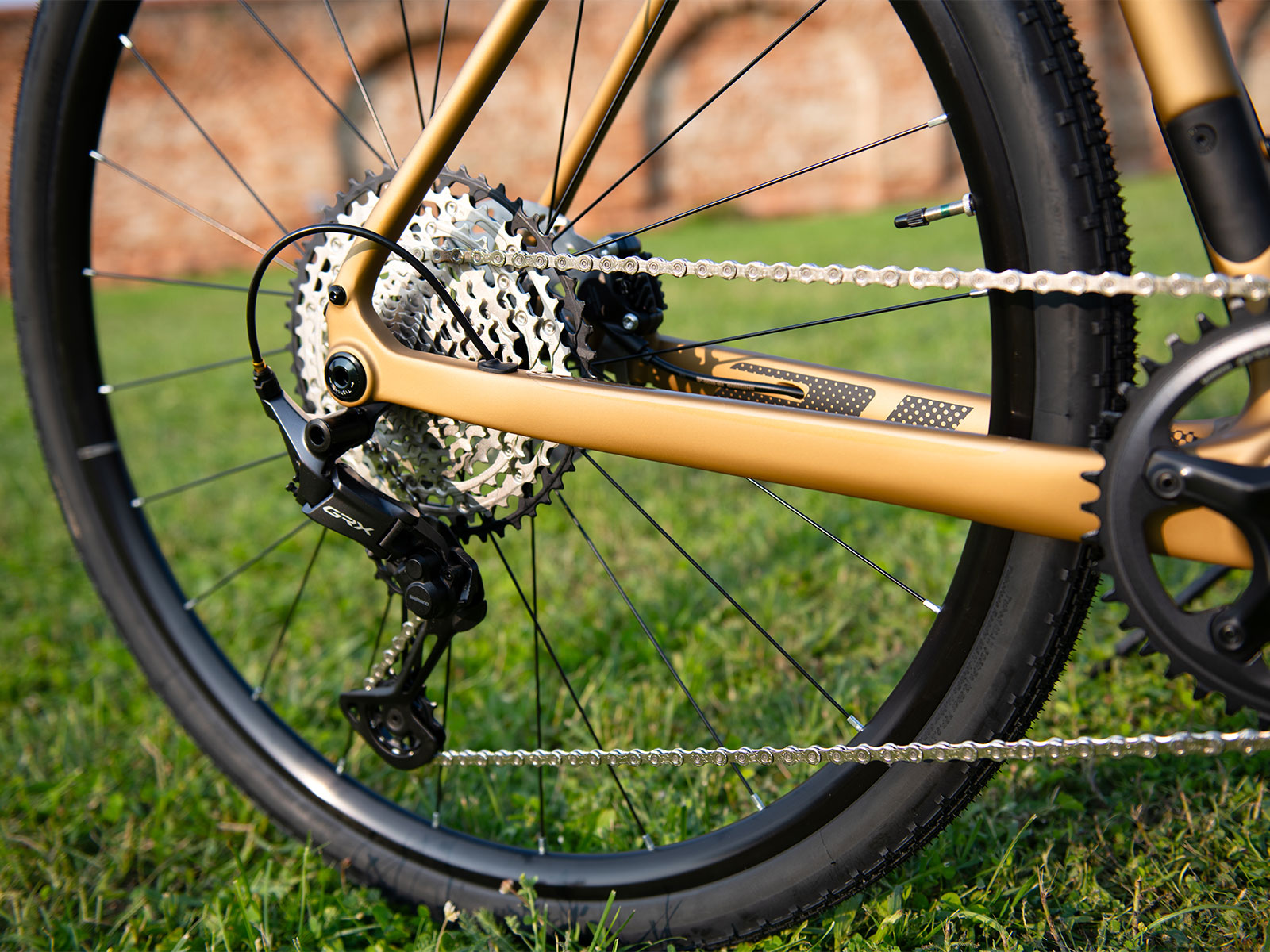

Rear derailleur	SHIMANO GRX 822

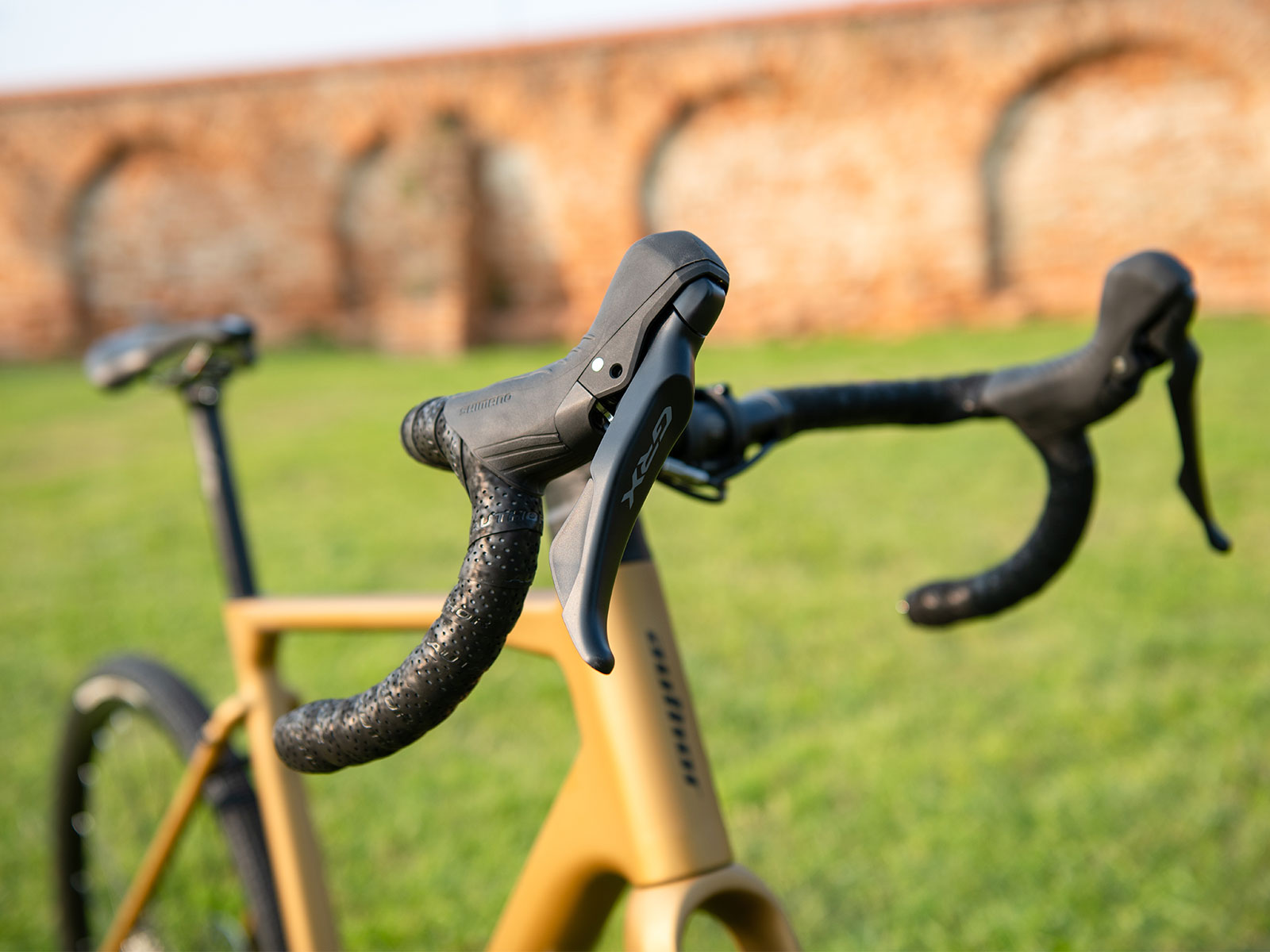

Shifters	SHIMANO GRX 610 (12)
Free wheel	SHIMANO CS-M7100-12, 10-51 (12)
Hubs	MAVIC Allroad CL 700, wheel set 20 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
Brakes	SHIMANO GRX 400, disc hydraulic (160 mm rotors)
Brakes levers	SHIMANO GRX 600

Rims	MAVIC Allroad CL 700, wheel set 20 holes
Spokes	MAVIC
Tires	PANARACER Gravel King SK, aramid, 700 × 40C

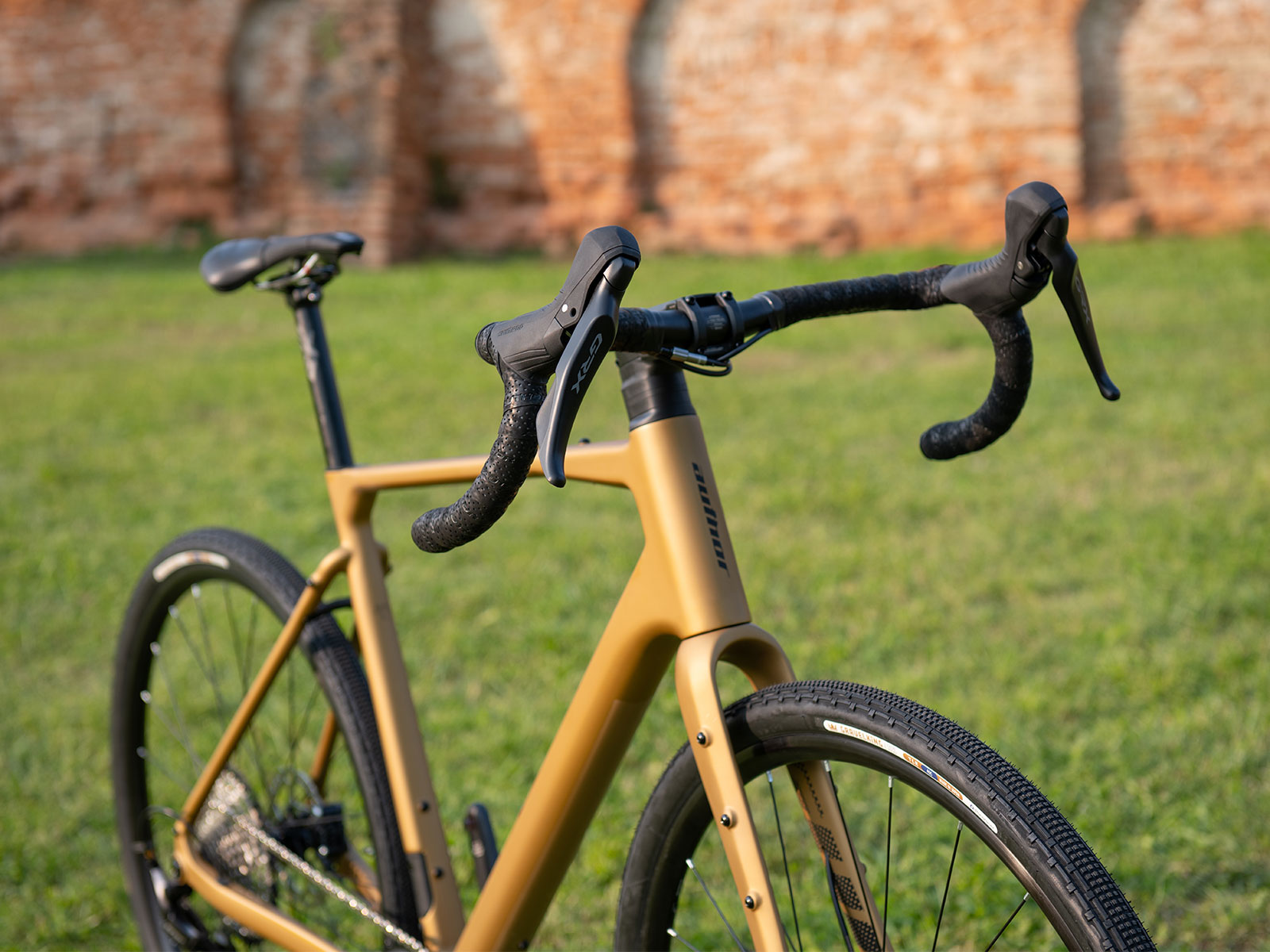

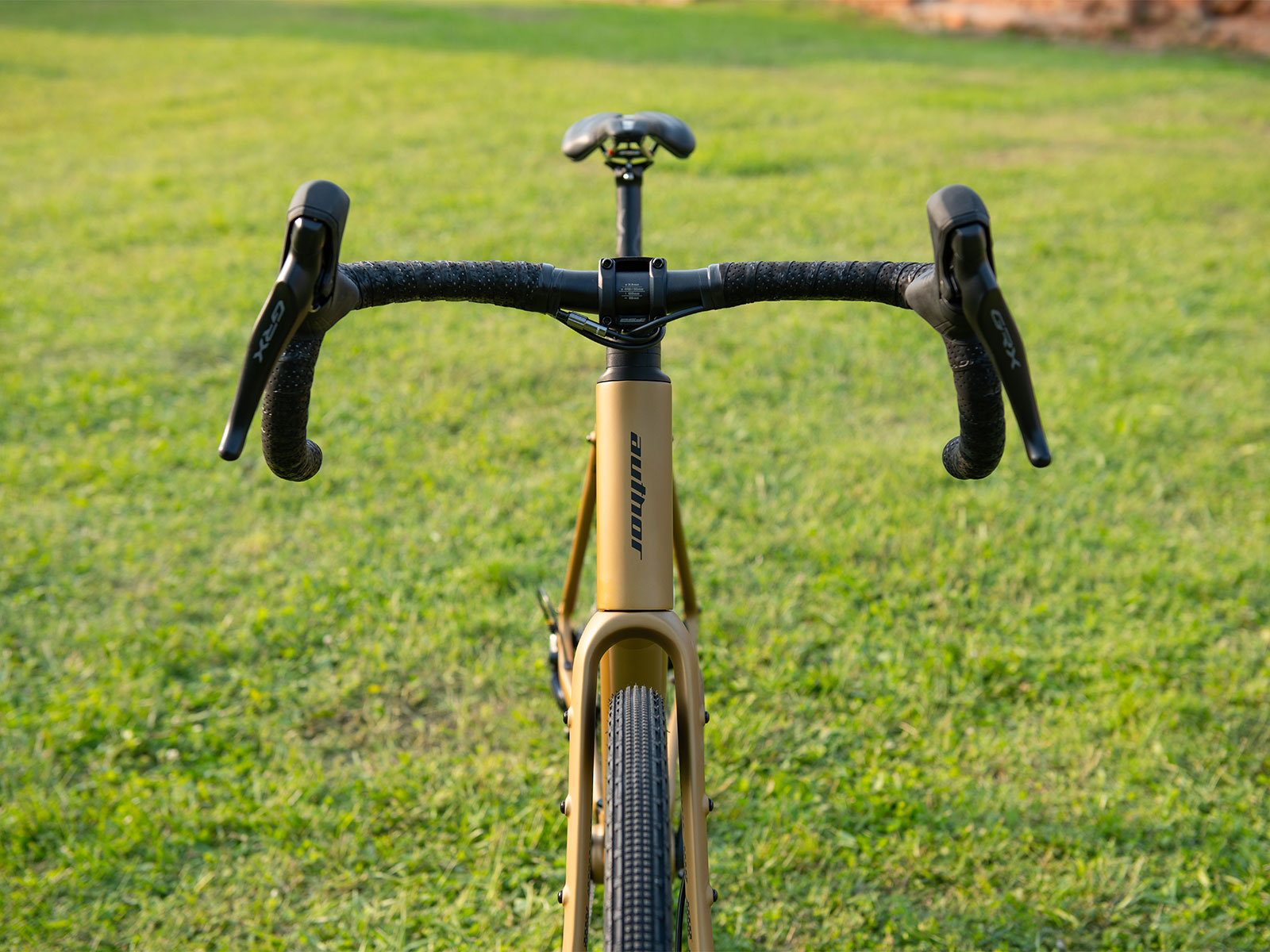

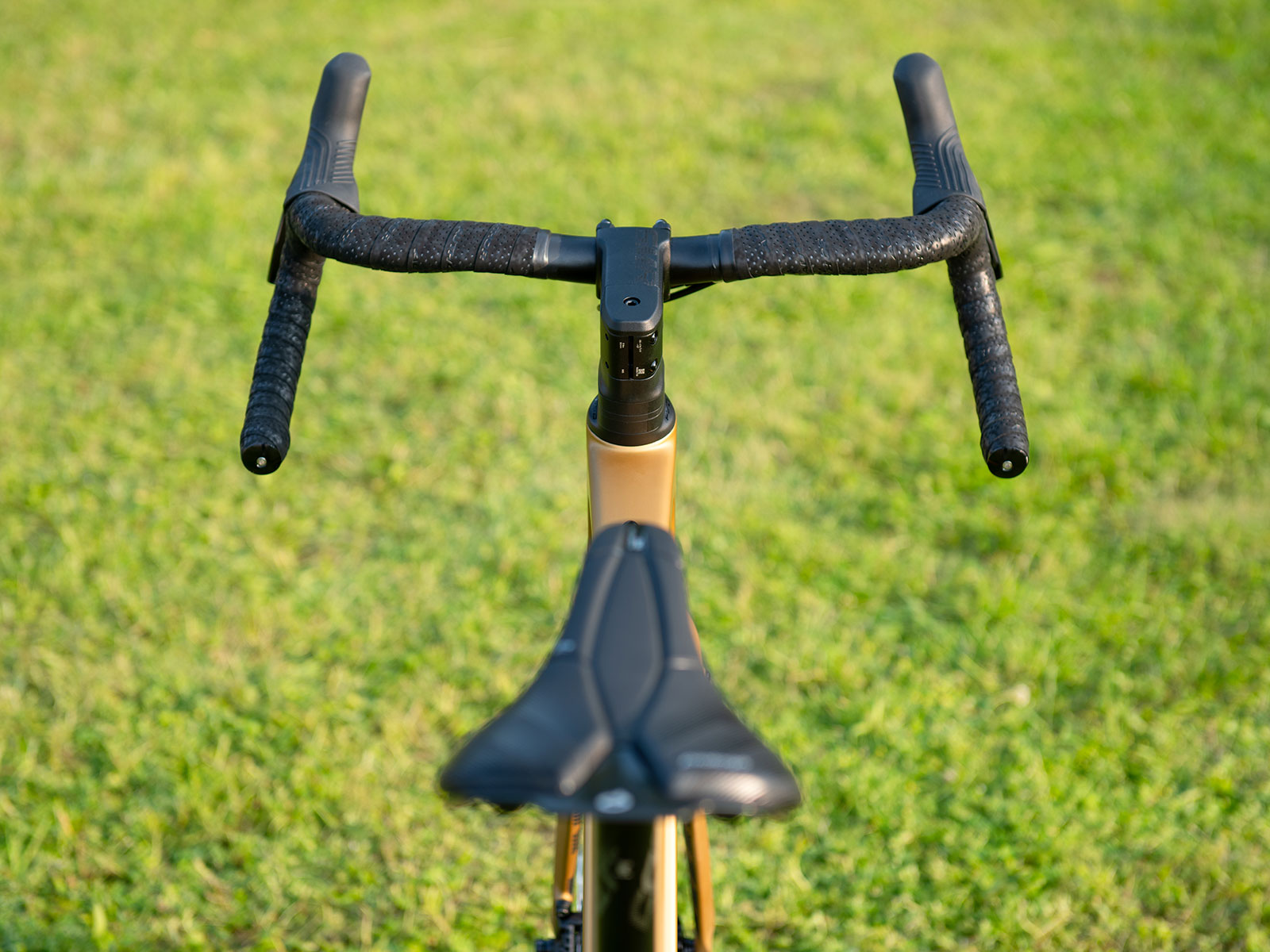

Handlebar	FSA Wing AGX, 420 / 440 mm
Tapes	AUTHOR microfiber / gel

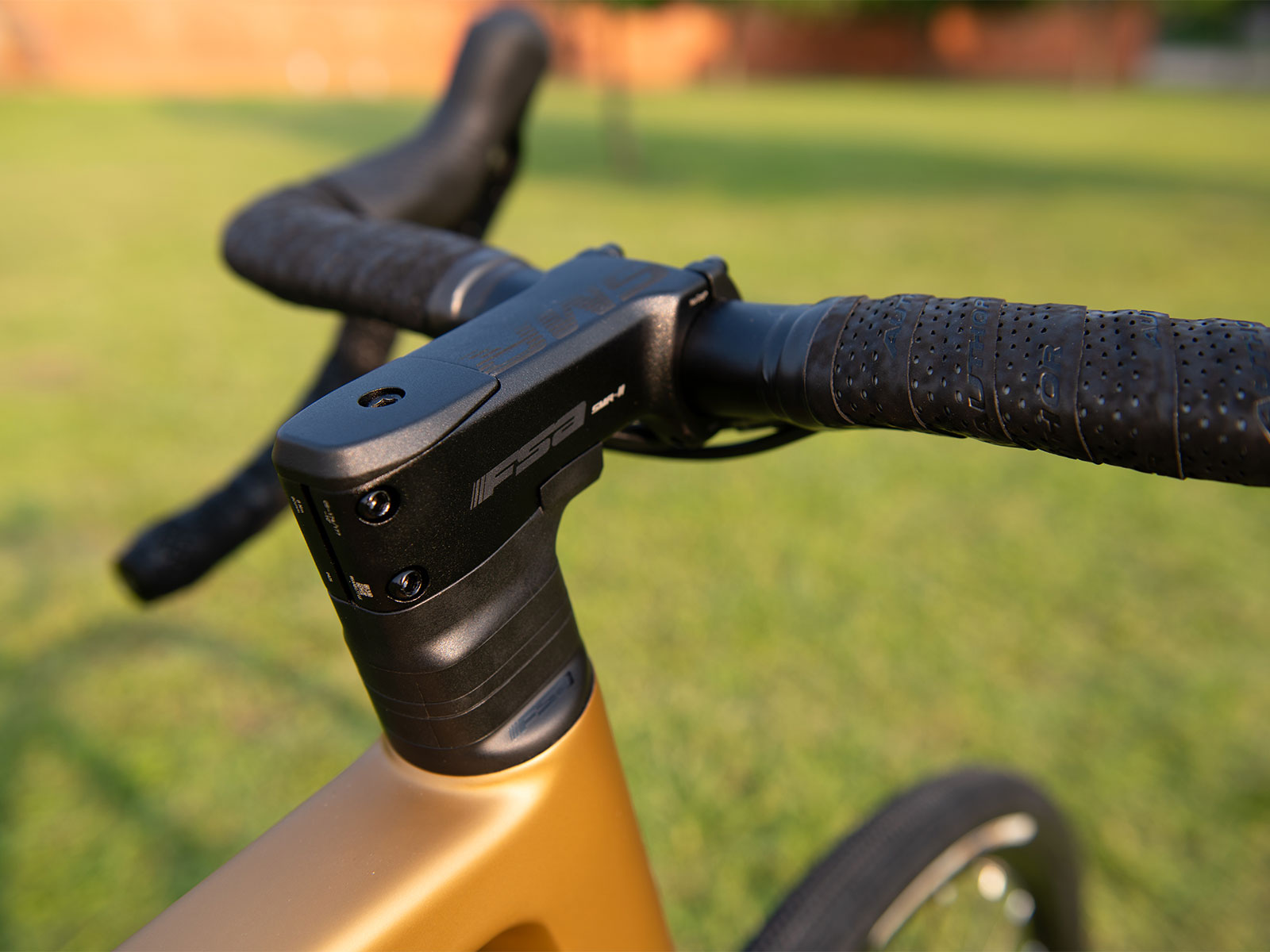

Stem	FSA NS SMR-II
Seat post	FSA Comet SBO alloy (27.2)
Seat clamp	AUTHOR (31.8)

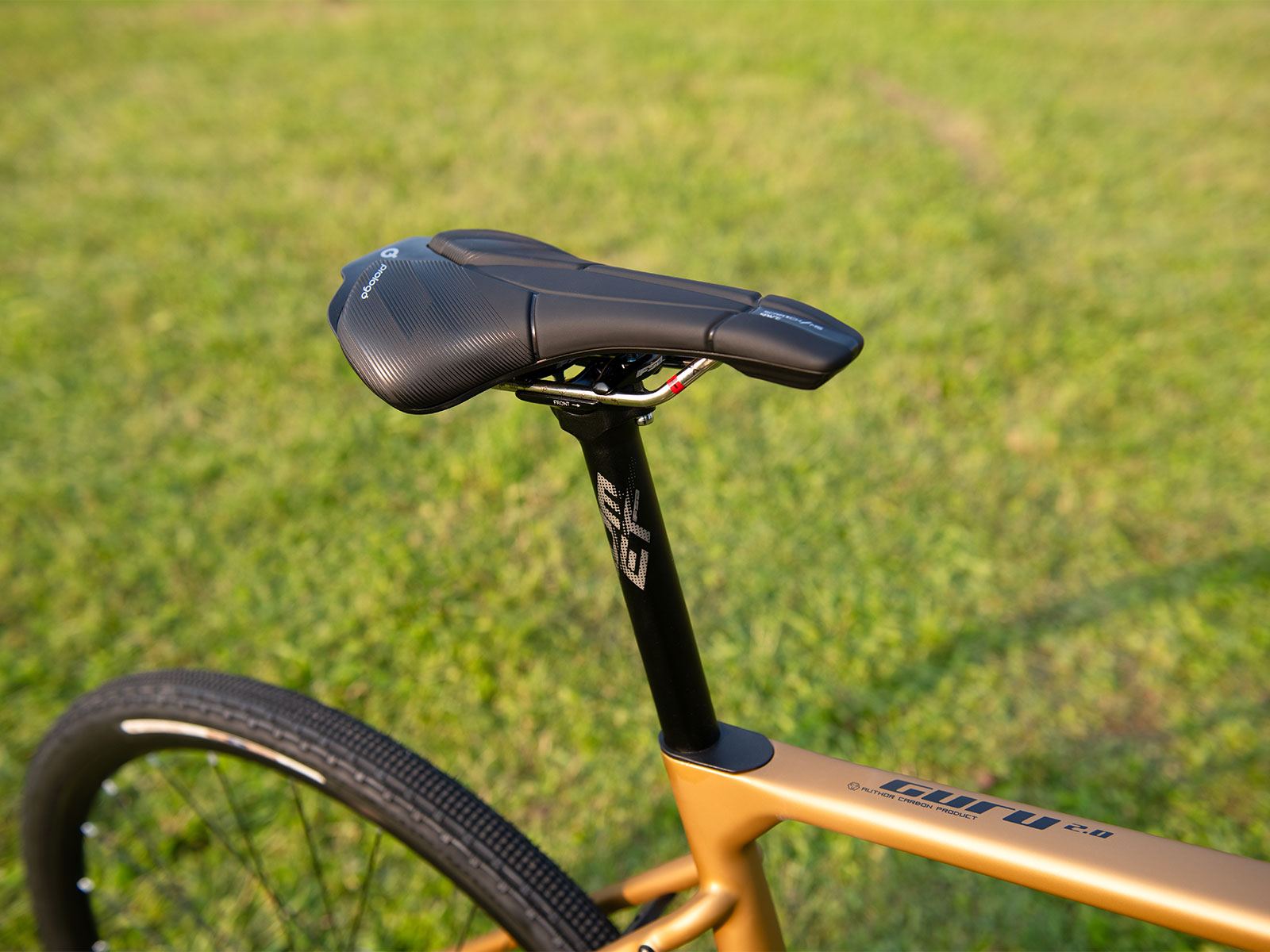

Saddle	PROLOGO Scratch M5 Space AGX Tirox
Speed	12

Geometry and sizes

Size	48 cm (S)	51 cm (M)	54 cm (L)	57 cm (XL)
Min. figure ~~[cm]~~	160	170	177	184
Max. figure ~~[cm]~~	170	180	187	194
S/T c-t ~~[mm]~~	480	510	540	570
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	549	567	585	602
T/T a ~~[mm]~~	0	0	0	0
H/T ~~[mm]~~	130	150	170	190
C/S ~~[mm]~~	435	435	435	435
W/B ~~[mm]~~	1035	1049	1069	1086
S/T ang. ~~[°]~~	73.5	73.5	73.5	73.5
H/T ang. ~~[°]~~	70.5	71	71	71
F/L ~~[mm]~~	408	408	408	408
B/B drop ~~[mm]~~	74	74	74	74
B/B width ~~[mm]~~	73	73	73	73
Reach ~~[mm]~~	381	394	406	417
Stack ~~[mm]~~	567	586	603	624
F/R ~~[mm]~~	47	47	47	47
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

gold-matt / black

48 = UA#42962612 51 = UA#42962613 54 = UA#42962614 57 = UA#42962615
