Size | 500, 520, 540, 560, 580 mm |
---|---|
Frame | triple butted alloy 6061 |
Front fork | AUTHOR carbon, 1.5" tapered |
Head parts | PRESTINE Integrated, 1.5" tapered |
Chain Wheel | SHIMANO GRX 600, 46-30 teeth, 172,5 / 175 mm cranks |
BBParts | SHIMANO BB-RS501, BB unit |
Front derailleur | SHIMANO GRX 810 |
Rear derailleur | SHIMANO GRX 810 |
Shifters | SHIMANO GRX 600 (22) |
Free wheel | SHIMANO CS-HG701-11, 11-34 (11) |
Chain | KMC X11 |
Hubs | QUANDO Road Disc, 12 × 100 mm thru front axle, 12 × 142 mm rear axle 32 holes |
Brakes | SHIMANO GRX 400, disc hydraulic (160 mm rotors) |
Brakes levers | SHIMANO GRX 400 |
---|---|
Rims | JALCO SRD 21, 32 holes |
Spokes | black stainless steel 2.0 mm |
Tires | PANARACER Gravel King SK Sport, aramid, 700 × 38C (40-622) |
Handlebar | PROMAX, 420 / 440 / 460 mm |
Tapes | AUTHOR suede / gel |
Stem | AUTHOR alloy |
Seat post | AUTHOR alloy (27.2) |
Seat clamp | AUTHOR (31.8) |
Saddle | AUTHOR Guru CR |
Speed | 22 |

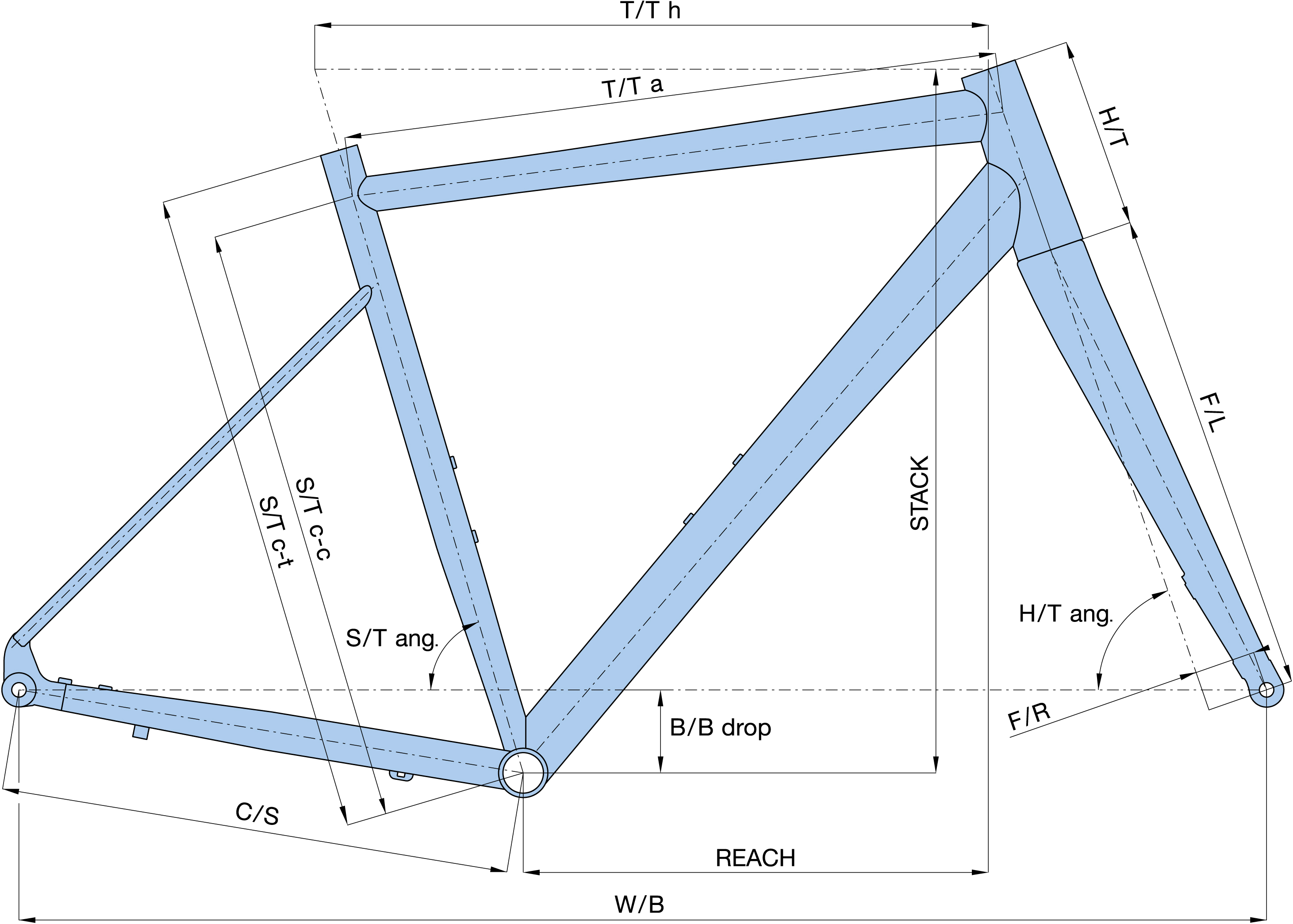

Size | 480 | 500 | 520 | 540 | 560 | 580 |
---|---|---|---|---|---|---|
Min. figure | 153 | 160 | 168 | 176 | 183 | 190 |
Max. figure | 162 | 170 | 178 | 185 | 193 | 205 |
S/T c-t | 480 | 500 | 520 | 540 | 560 | 580 |
S/T c-c | 440 | 460 | 480 | 500 | 520 | 540 |
T/T h | 520 | 530 | 550 | 570 | 590 | 610 |
T/T a | 505 | 515 | 534 | 553 | 572 | 589 |
H/T | 125 | 135 | 150 | 165 | 180 | 200 |
C/S | 435 | 435 | 435 | 435 | 435 | 435 |
W/B | 1020 | 1026 | 1037 | 1052 | 1062 | 1071 |
S/T ang. | 74.5 | 74.5 | 74 | 73.5 | 73 | 72.5 |
H/T ang. | 70 | 70.5 | 71 | 71 | 71.5 | 72 |
F/L | 408 | 408 | 408 | 408 | 408 | 408 |
B/B drop | 71 | 70 | 70 | 69 | 68 | 68 |
B/B width | 68 | 68 | 68 | 68 | 68 | 68 |
Reach | 364 | 371 | 381 | 392 | 402 | 409 |
Stack | 562 | 572 | 588 | 601 | 617 | 638 |
F/R | 45 | 45 | 45 | 45 | 45 | 45 |
Handlebars | 0 | 0 | 0 | 0 | 0 | 0 |
Stem | 0 | 0 | 0 | 0 | 0 | 0 |
Cranks | 0 | 0 | 0 | 0 | 0 | 0 |
The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.
grey / lime | 50 = UA#42962202 52 = UA#42962203 54 = UA#42962204 56 = UA#42962205 58 = UA#42962206 |
