AUTHOR Ronin SL 2025
  » Bicycles » gravel » bike models

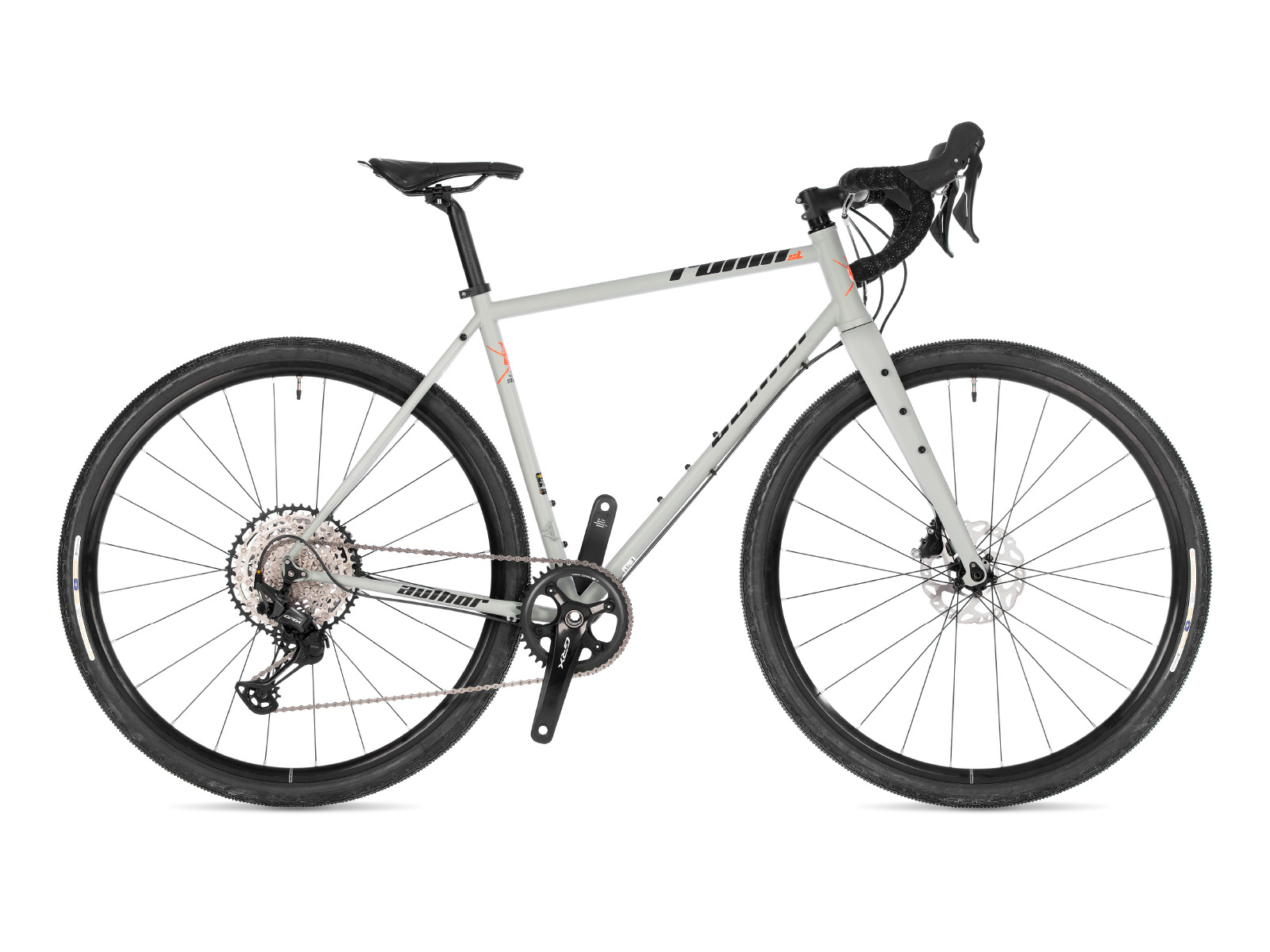

Ronin SL 2025

Colour variants
Triple butted cromoly frame REYNOLDS 725Carbon fork, 12 mm axle, holders for carrier CARGO ACR-F05-ALUSHIMANO GRX 610/822, 1 × 12, 22 speedWheel set MAVIC Allroad UST Disc CL, 24 holesLegendary tires PANARACER Gravel King SK 700 × 40CHandlebar RITCHEY Road ErgoMaxSpecial gravel saddle PROLOGO Scratch M5 AGX
price 63 990 Kč
other models
Interested in other model`s year?

Technical specification

Size500, 520, 540, 560, 580 mm
Frametriple butted cromoly REYNOLDS
Front forkAUTHOR carbon, 1.5" tapered
Head partsPRESTINE Integrated, 1.5" tapered
Chain WheelSHIMANO GRX 820-1, 42 teeth, 172,5 / 175 mm cranks
BBPartsSHIMANO BB-R60, BB unit
Rear derailleurSHIMANO GRX 822
ShiftersSHIMANO GRX 610 (12)
Free wheelSHIMANO CS-M7100-12, 10-51 (12)
ChainKMC X12
HubsMAVIC Allroad CL 700, wheel set, 20 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
BrakesSHIMANO GRX 400, disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 600
RimsMAVIC Allroad CL 700, wheel set, 20 holes
SpokesMAVIC
TiresPANARACER Gravel King SK, aramid, 700 × 40C
HandlebarRITCHEY Road ErgoMax, 420 / 440 / 460 mm
TapesAUTHOR microfiber / gel
StemRITCHEY Comp 4-Axis
Seat postRITCHEY Comp (27.2)
Seat clampAUTHOR (29.8)
SaddlePROLOGO Scratch M5 Space AGX T2.0
Speed12

Geometry and sizes

Size 500 520 540 560 580
Min. figure [cm] 160 168 176 186 193
Max. figure [cm] 170 178 188 195 205
S/T c-t [mm] 500 520 540 560 580
S/T c-c [mm] 460 480 500 520 540
T/T h [mm] 530 545 560 580 595
T/T a [mm] 517 530 544 562 575
H/T [mm] 120 140 160 180 200
C/S [mm] 425 425 425 425 425
W/B [mm] 1020 1026 1037 1047 1051
S/T ang. [°] 74.5 74 73.5 73 72.5
H/T ang. [°] 70.5 71 71 71.5 72
F/L [mm] 404 404 404 404 404
B/B drop [mm] 70 70 69 68 68
B/B width [mm] 68 68 68 68 68
Reach [mm] 378 382 386 395 397
Stack [mm] 548 569 587 607 628
F/R [mm] 50 50 50 50 50
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Ronin SL 2025

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

grey-matt / orange50 = UA#42962502   52 = UA#42962503   54 = UA#42962504   56 = UA#42962505   58 = UA#42962506
