Size | 48 cm (S), 51 cm (M), 54 cm (L), 57 cm (XL) |
---|---|

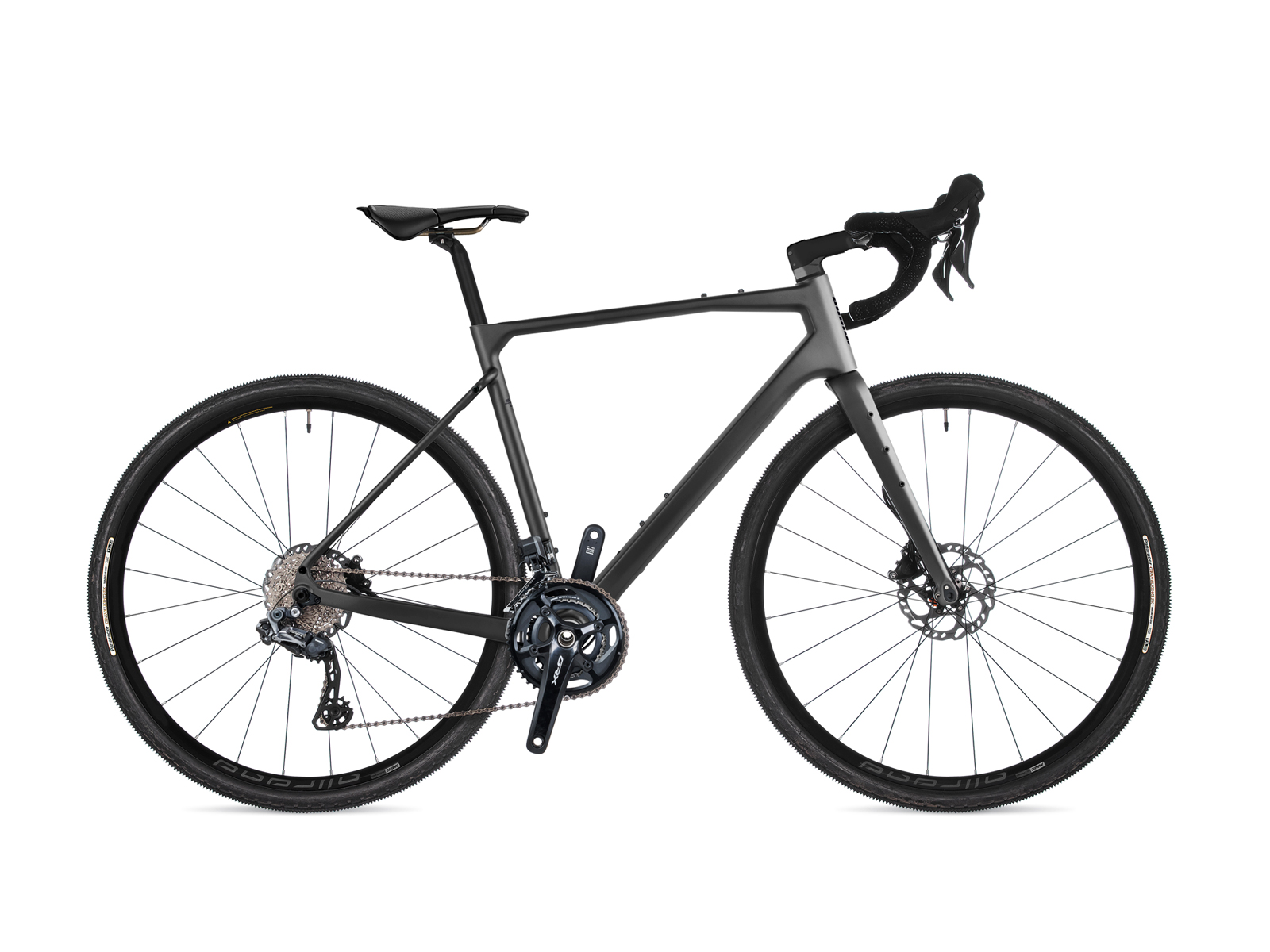

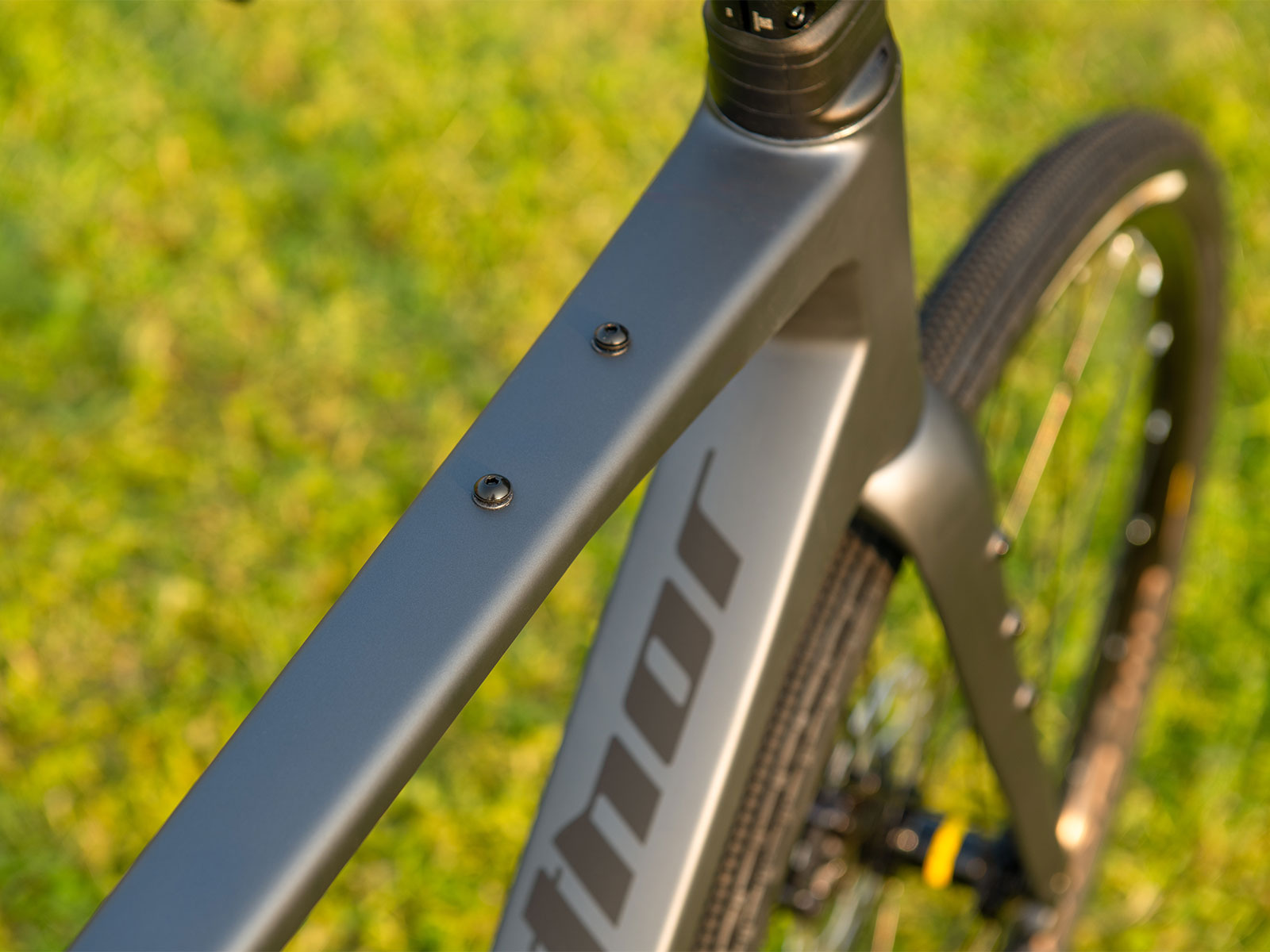

Frame | AUTHOR carbon Toray T700/M40 monocoque gravel |

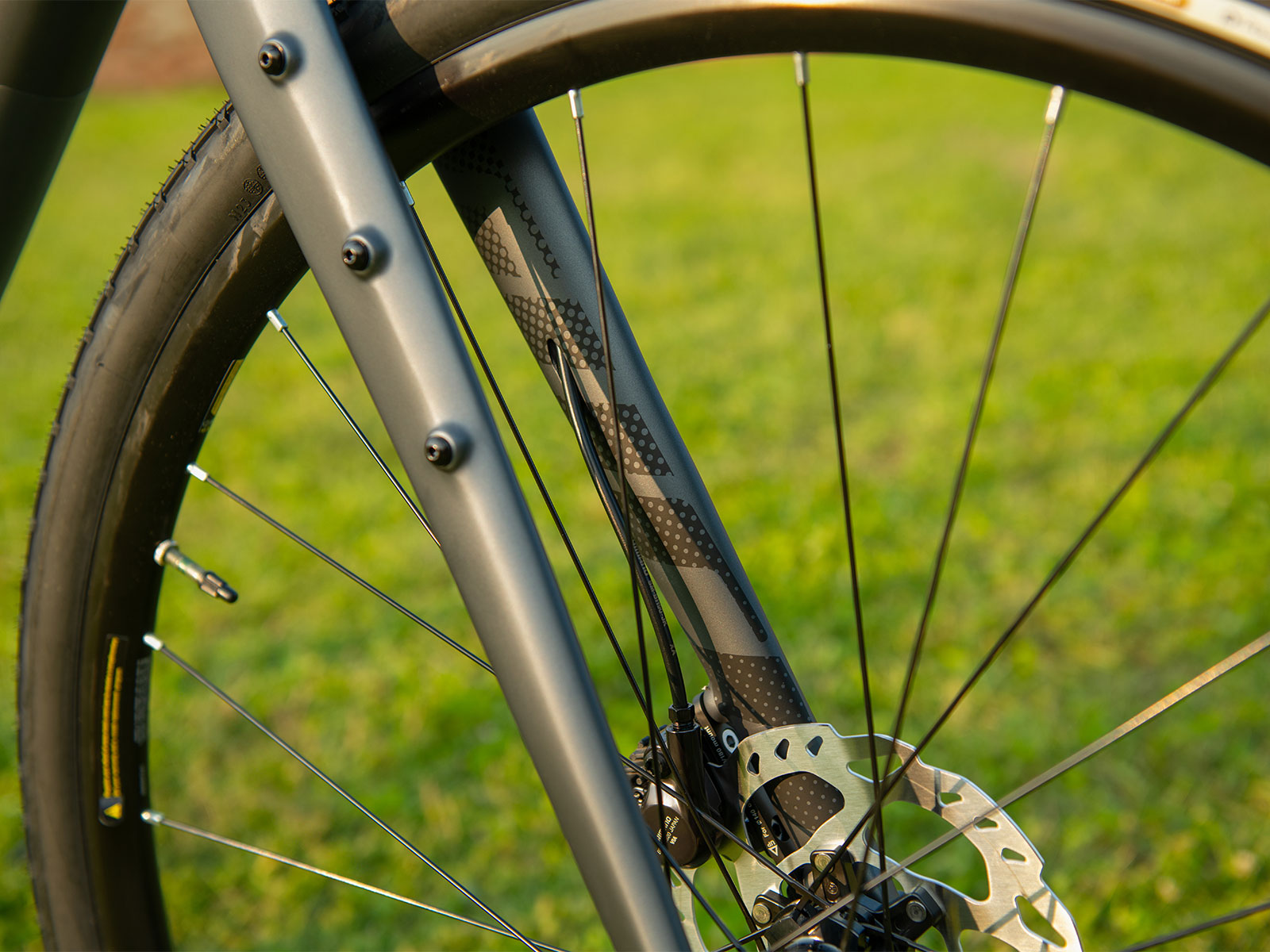

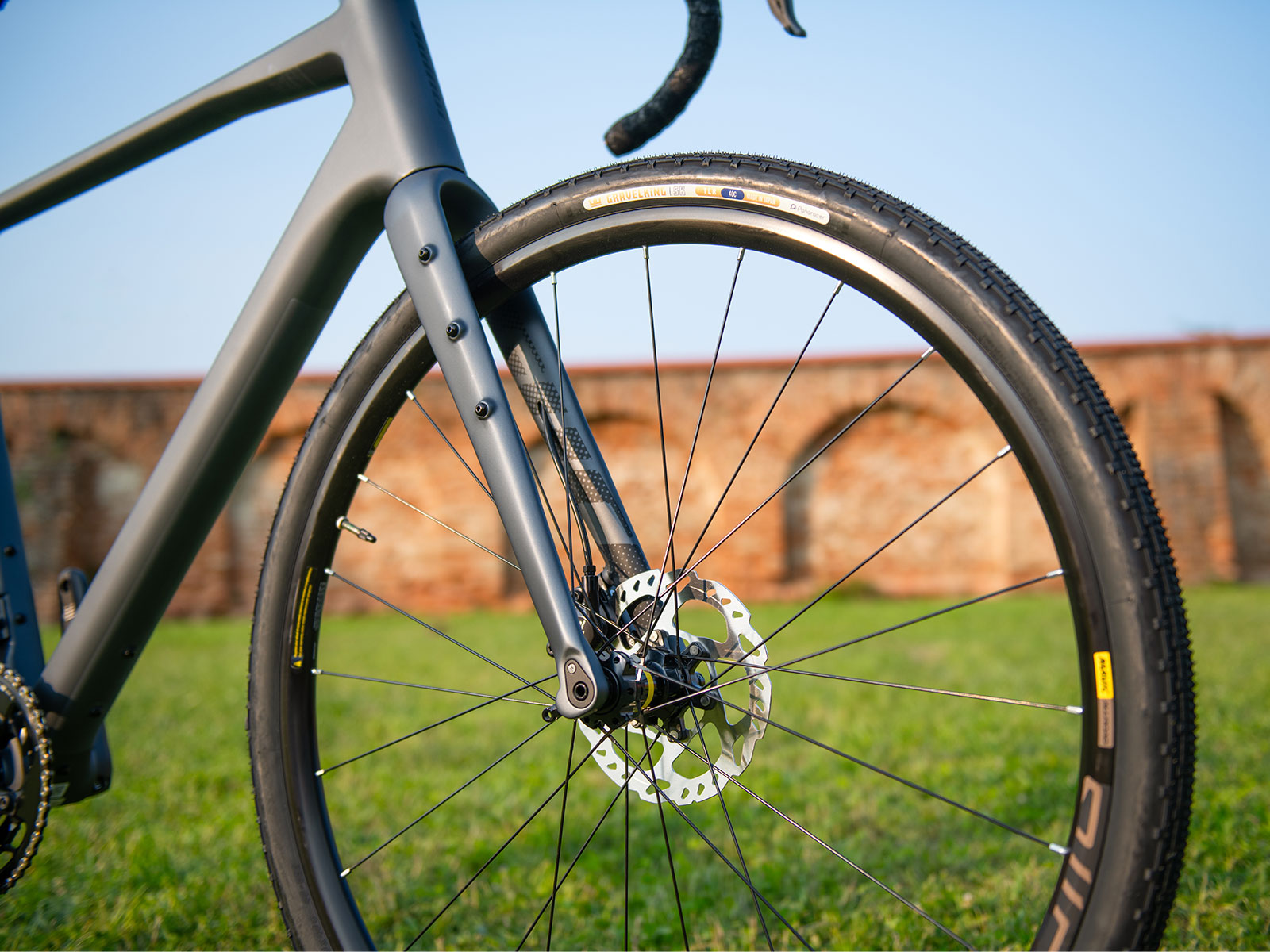

Front fork | AUTHOR carbon Toray T700 monocoque gravel, 1.5" tapered |
Head parts | FSA Orbit C-40, 1.5" tapered |

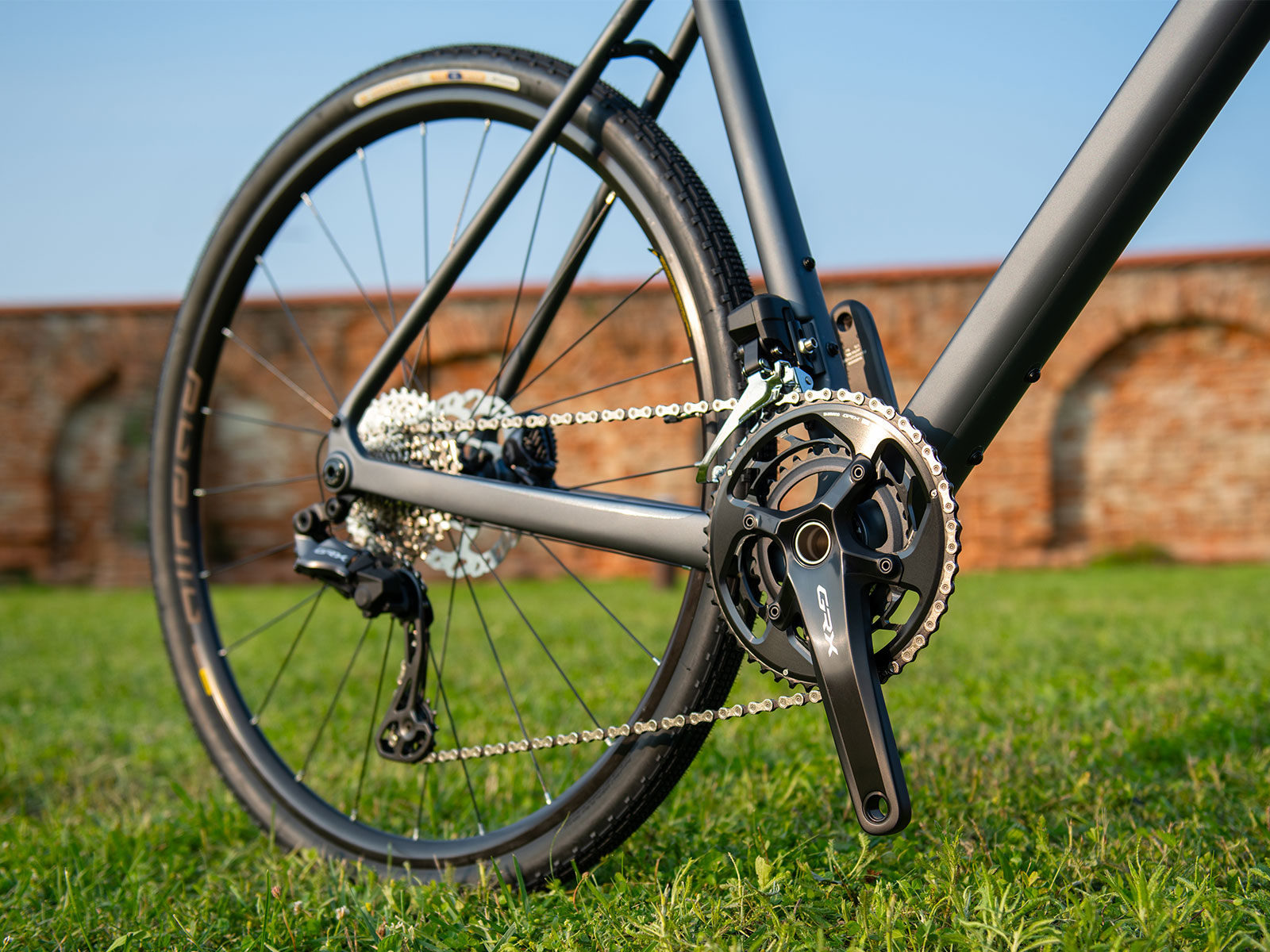

Chain Wheel | SHIMANO GRX 820-2, 48-31 teeth, 172.5 / 175 mm cranks |
BBParts | SHIMANO BB-RS501, BB unit |
Front derailleur | SHIMANO GRX 825 Di2 |
Rear derailleur | SHIMANO GRX 825 Di2 |
Shifters | SHIMANO GRX 825 Di2 (24) |
Free wheel | SHIMANO CS-HG710-12, 11-36 (12) |
Chain | KMC X12 |
Hubs | MAVIC Allroad UST Disc CL, wheel set 20 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle |
Brakes | SHIMANO GRX 820, disc hydraulic (160 mm rotors) |
Brakes levers | SHIMANO GRX 825 Di2 |
---|---|
Rims | MAVIC Allroad UST Disc CL, wheel set, 20 holes |
Spokes | MAVIC |
Tires | PANARACER Gravel King SK, aramid, 700 × 40C |

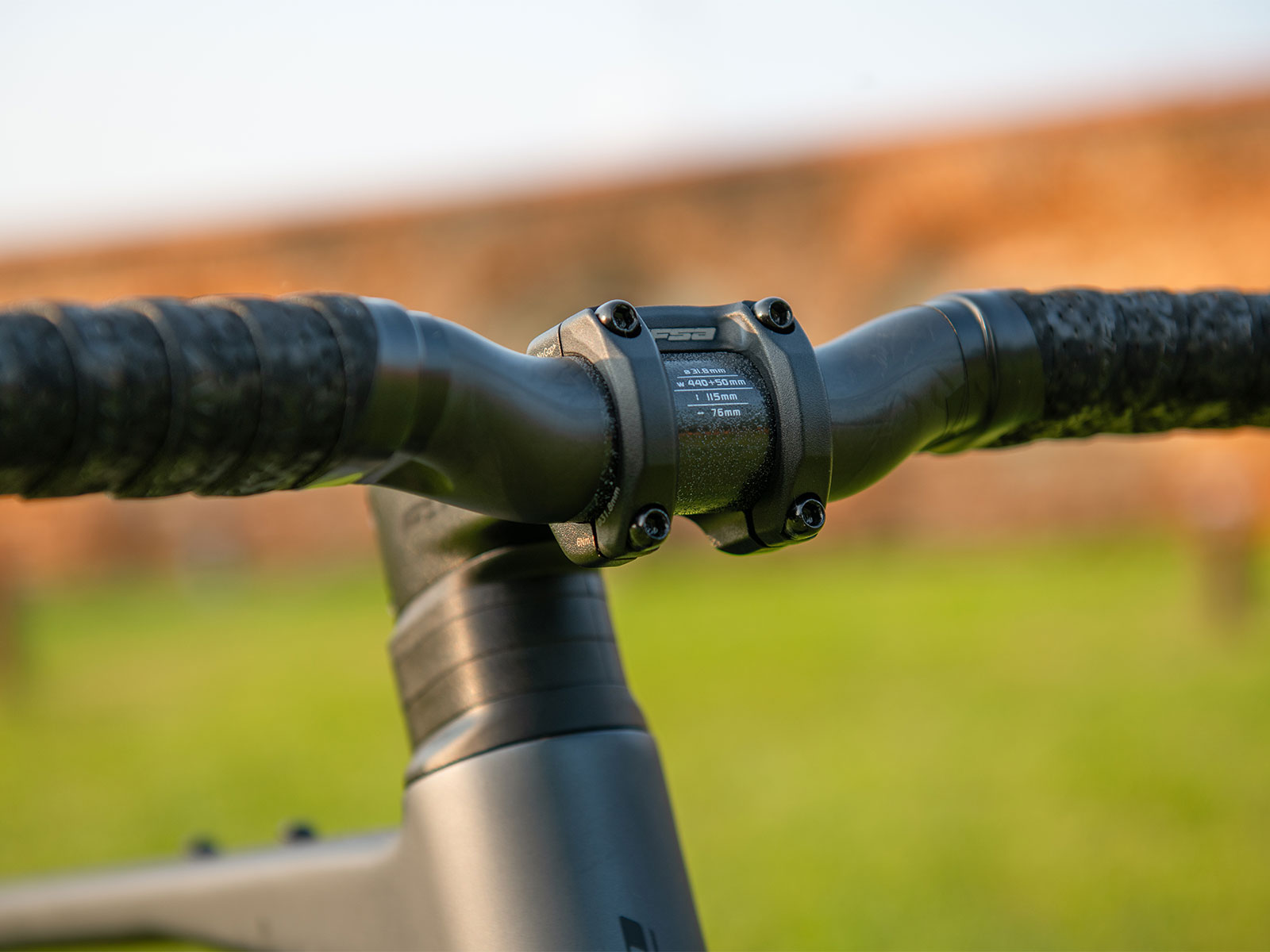

Handlebar | FSA Wing AGX, 420 / 440 mm |
Tapes | AUTHOR microfiber / gel |

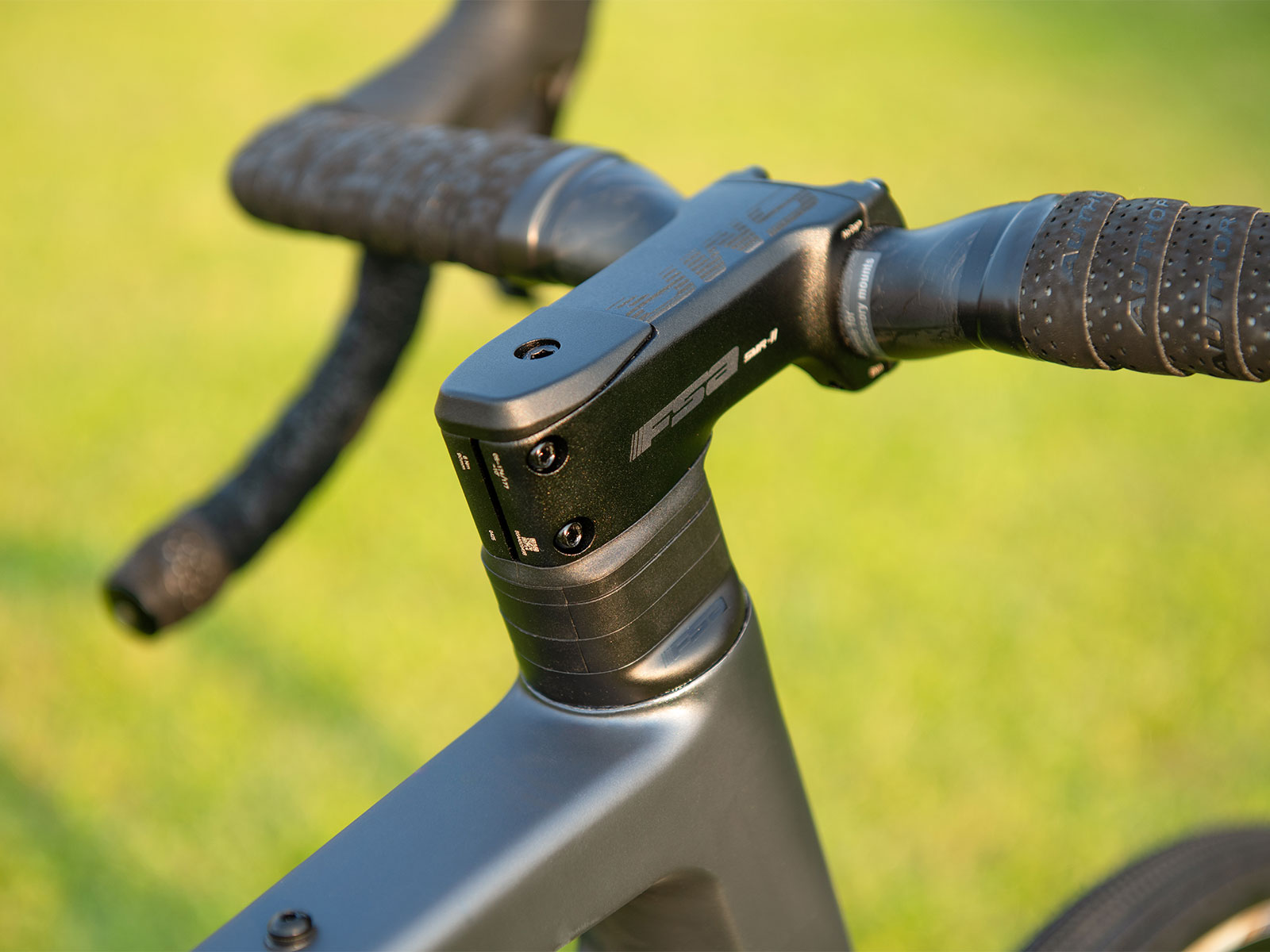

Stem | FSA NS SMR-II |
Seat post | FSA K-Force SBO carbon (27.2) |
Seat clamp | AUTHOR (31.8) |

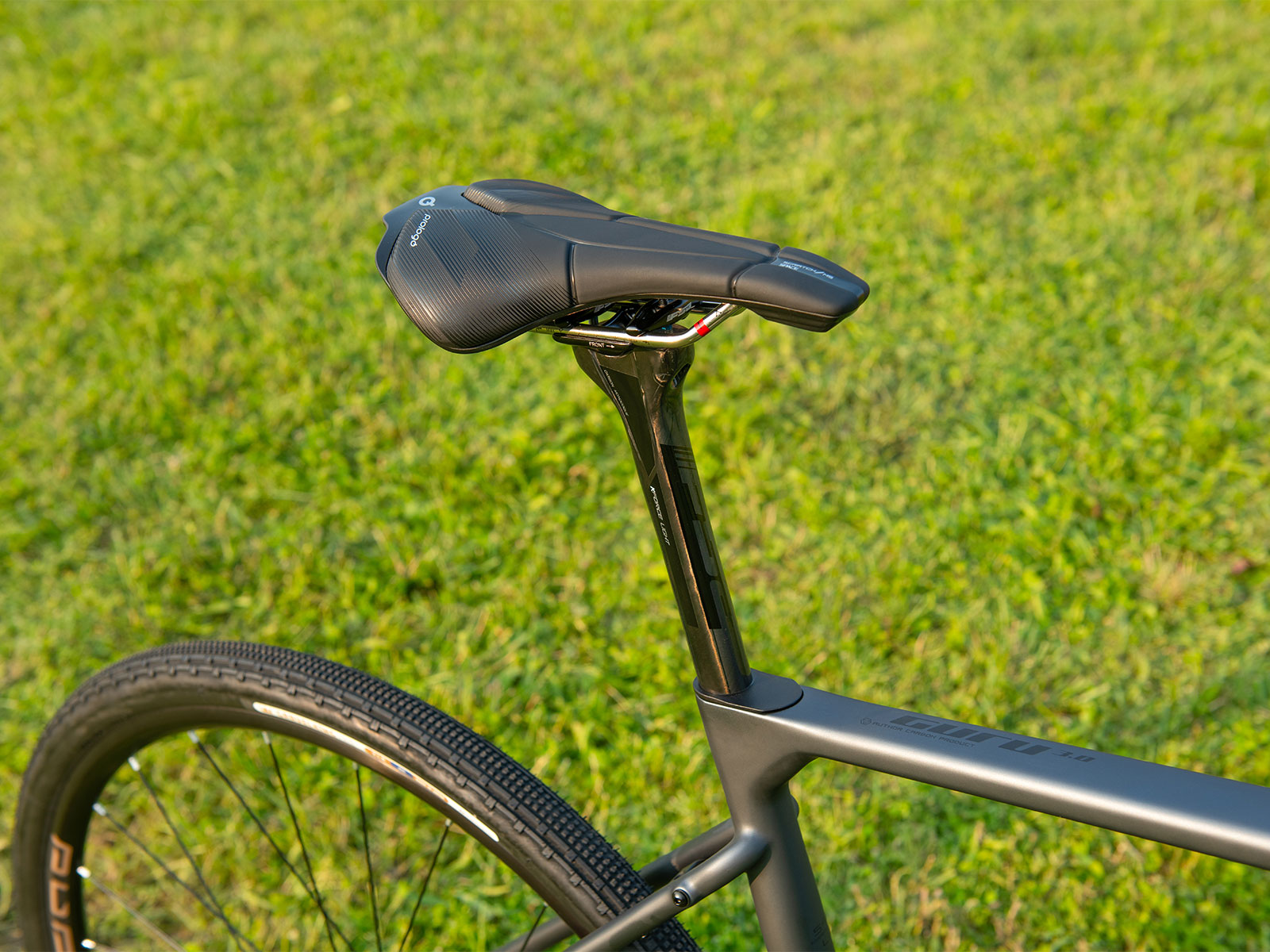

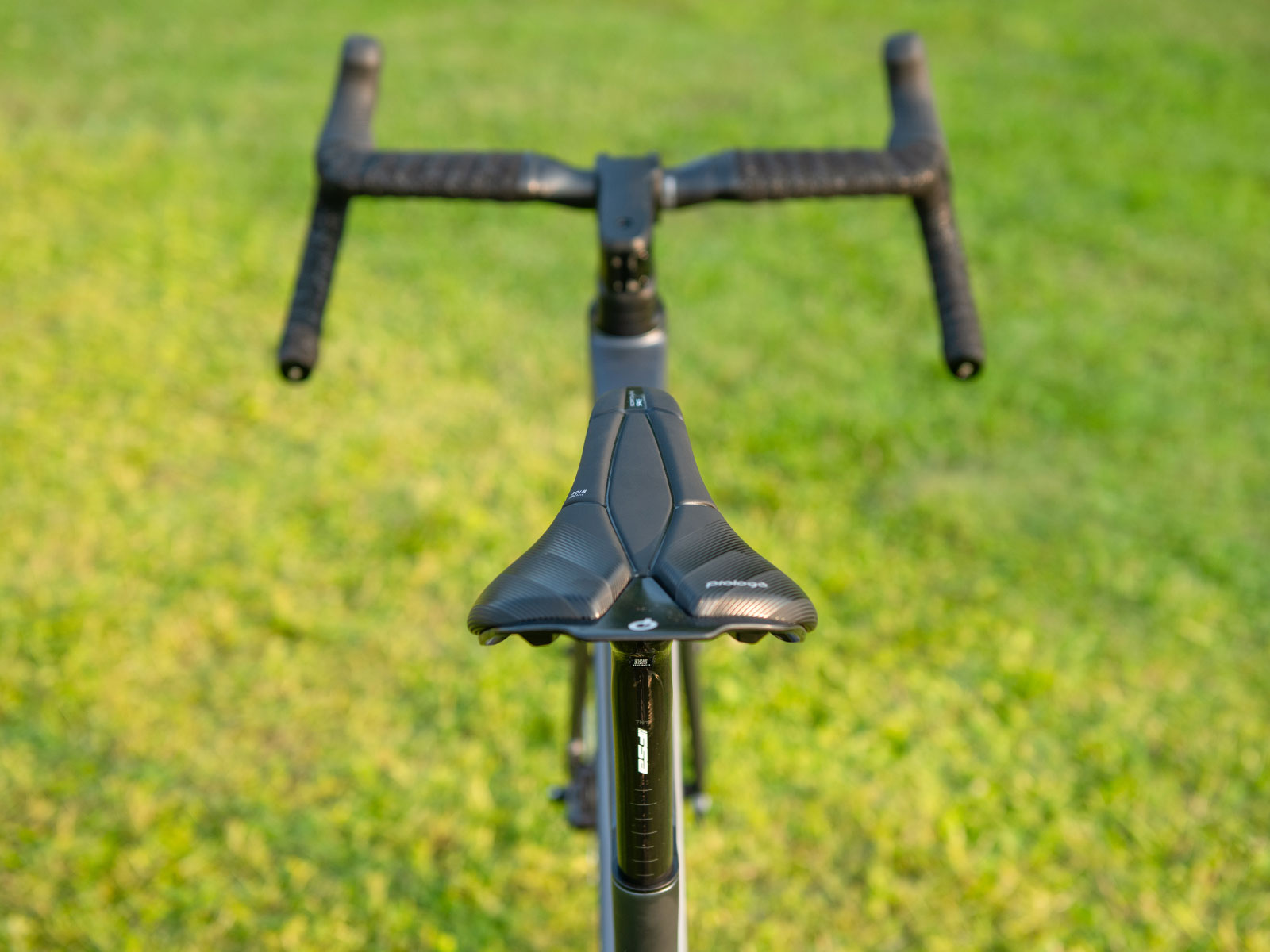

Saddle | PROLOGO Scratch M5 Space AGX Tirox |
Speed | 24 |
Size | 48 cm (S) | 51 cm (M) | 54 cm (L) | 57 cm (XL) |
---|---|---|---|---|
Min. figure | 160 | 170 | 177 | 184 |
Max. figure | 170 | 180 | 187 | 194 |
S/T c-t | 480 | 510 | 540 | 570 |
S/T c-c | 0 | 0 | 0 | 0 |
T/T h | 549 | 567 | 585 | 602 |
T/T a | 0 | 0 | 0 | 0 |
H/T | 130 | 150 | 170 | 190 |
C/S | 435 | 435 | 435 | 435 |
W/B | 1035 | 1049 | 1069 | 1086 |
S/T ang. | 73.5 | 73.5 | 73.5 | 73.5 |
H/T ang. | 70.5 | 71 | 71 | 71 |
F/L | 408 | 408 | 408 | 408 |
B/B drop | 74 | 74 | 74 | 74 |
B/B width | 73 | 73 | 73 | 73 |
Reach | 381 | 394 | 406 | 417 |
Stack | 567 | 586 | 603 | 624 |
F/R | 47 | 47 | 47 | 47 |
Handlebars | 0 | 0 | 0 | 0 |
Stem | 0 | 0 | 0 | 0 |
Cranks | 0 | 0 | 0 | 0 |
The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.
grey-matt / black | 48 = UA#42962622 51 = UA#42962623 54 = UA#42962624 57 = UA#42962625 |
