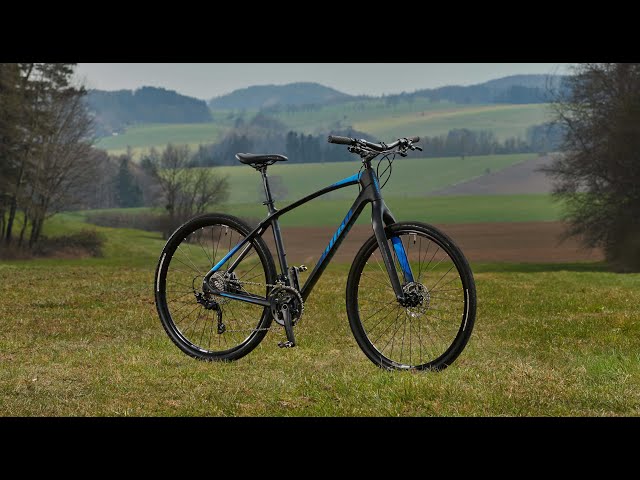

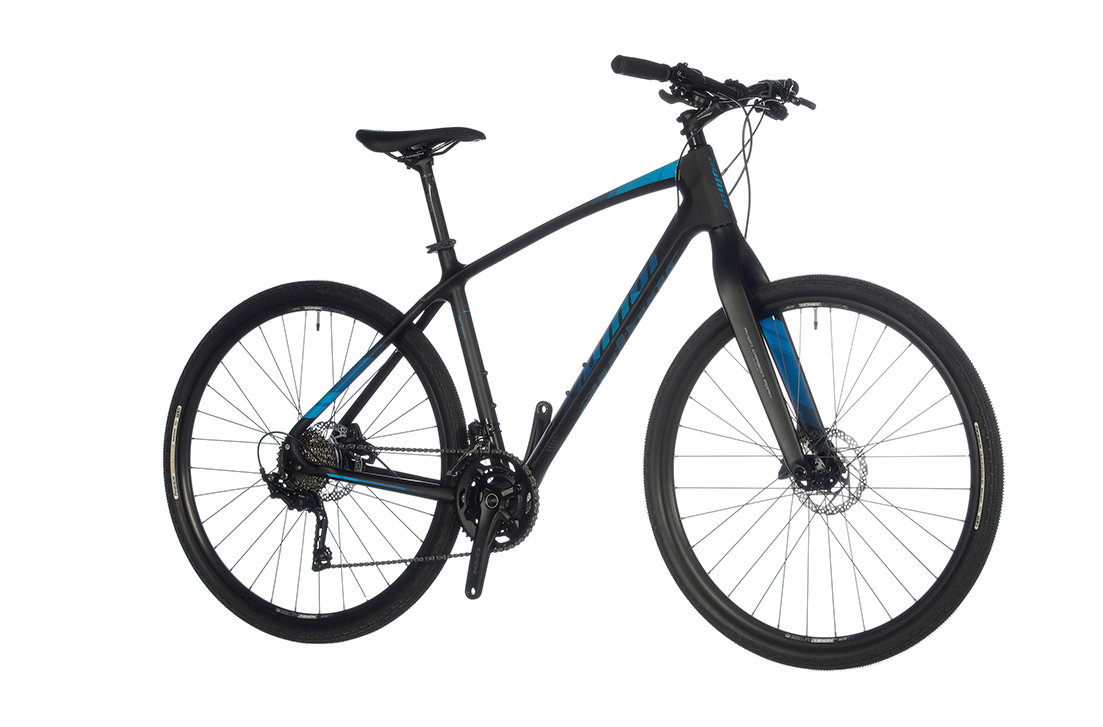

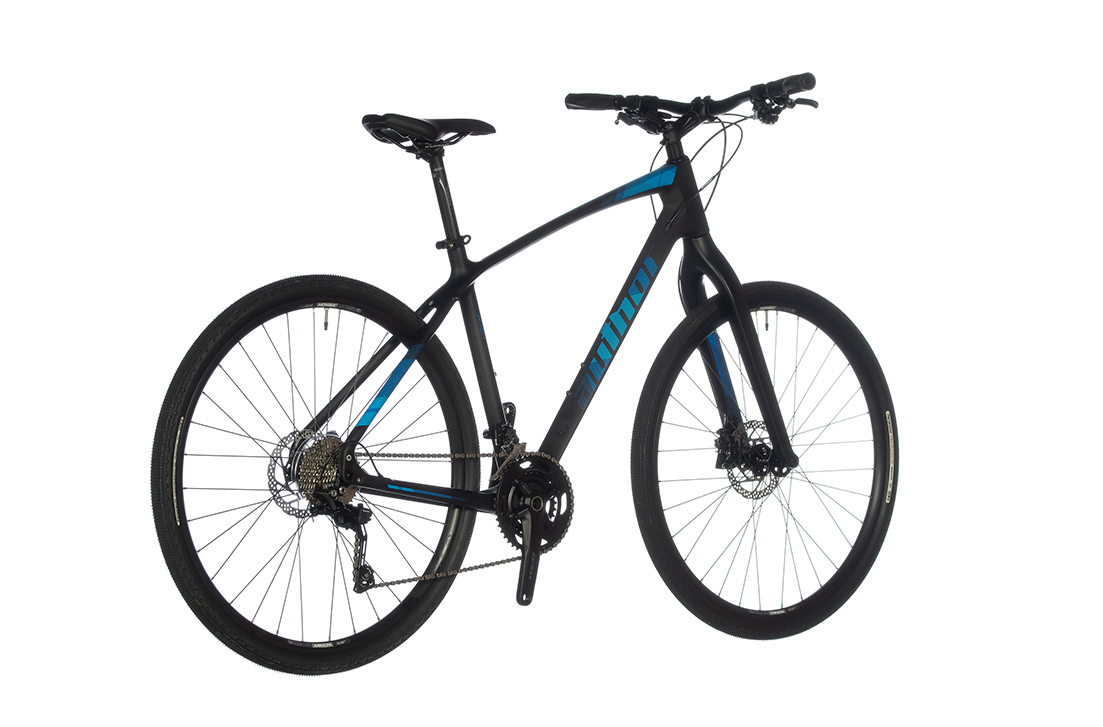

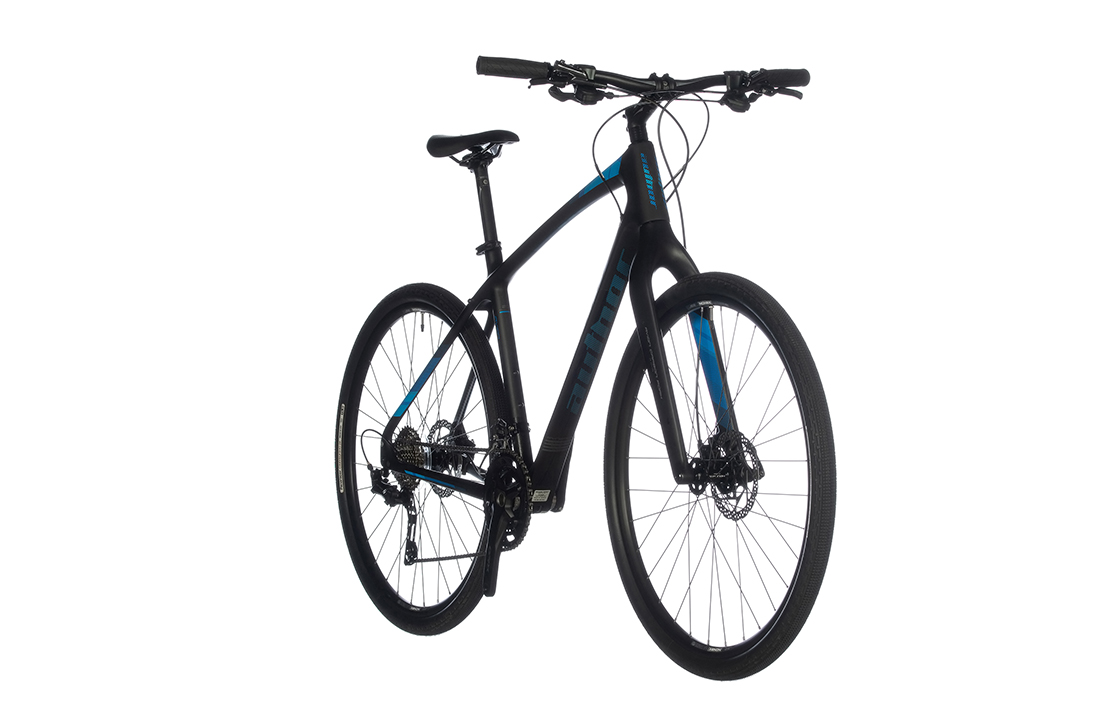

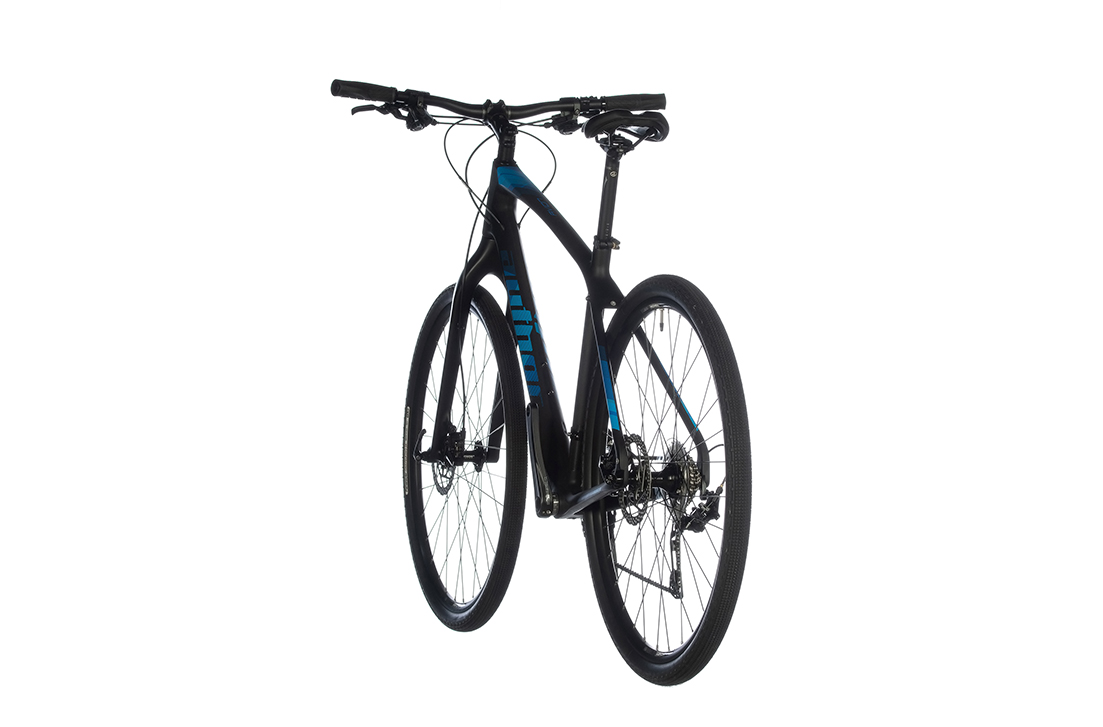

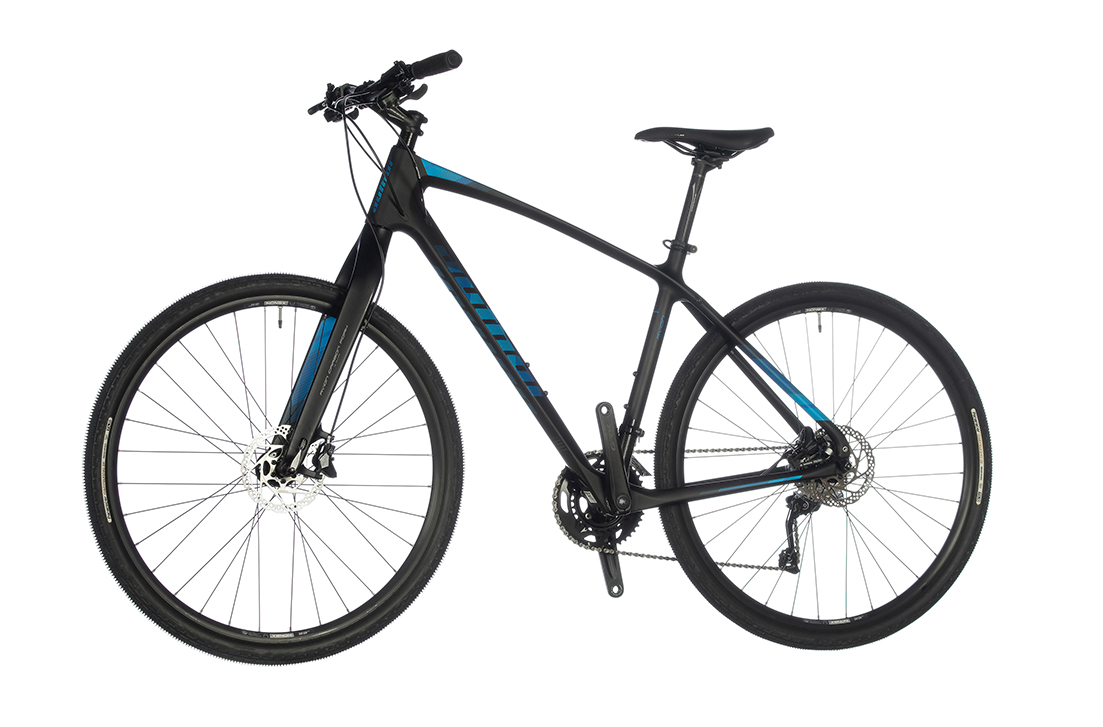

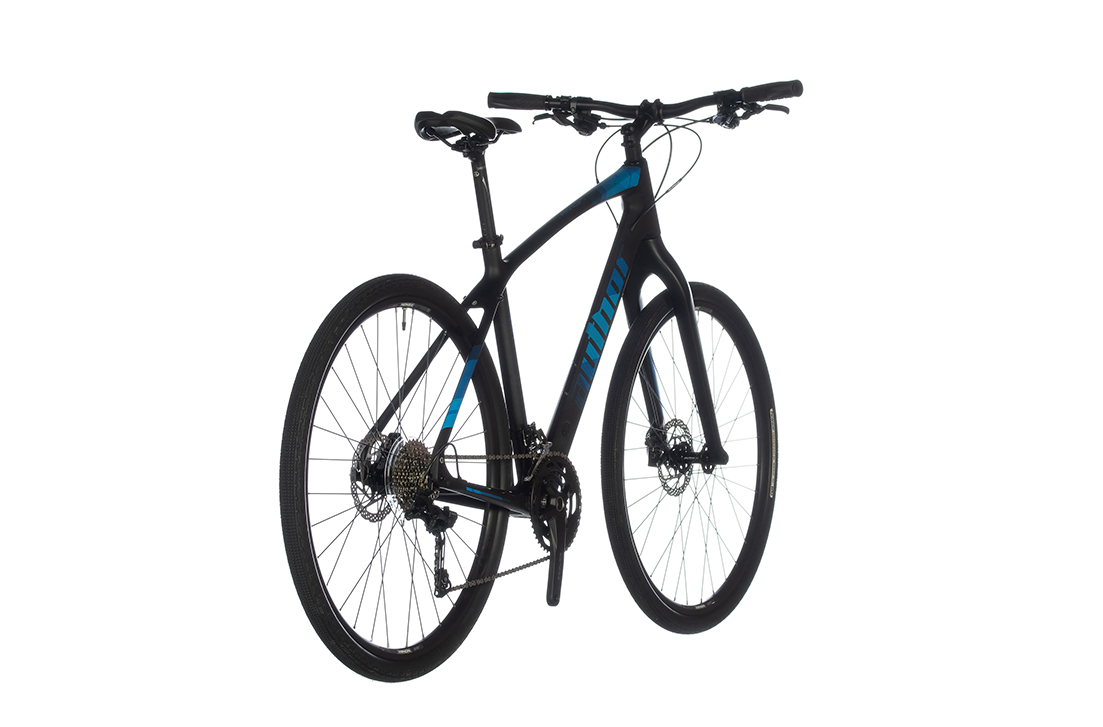

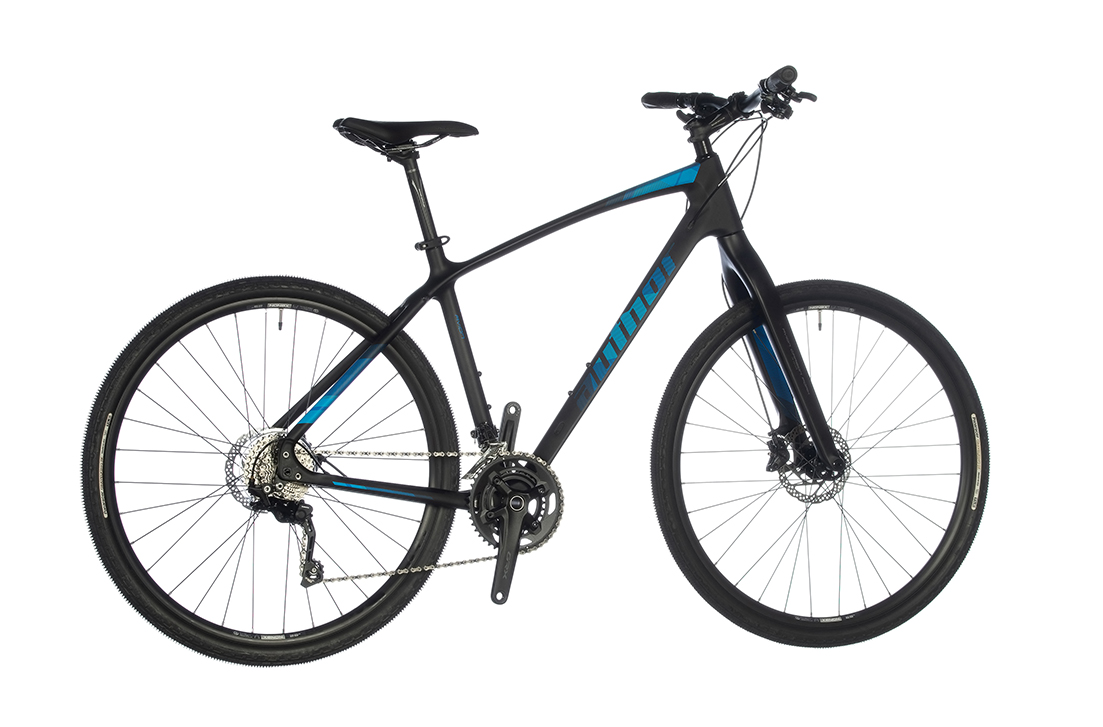

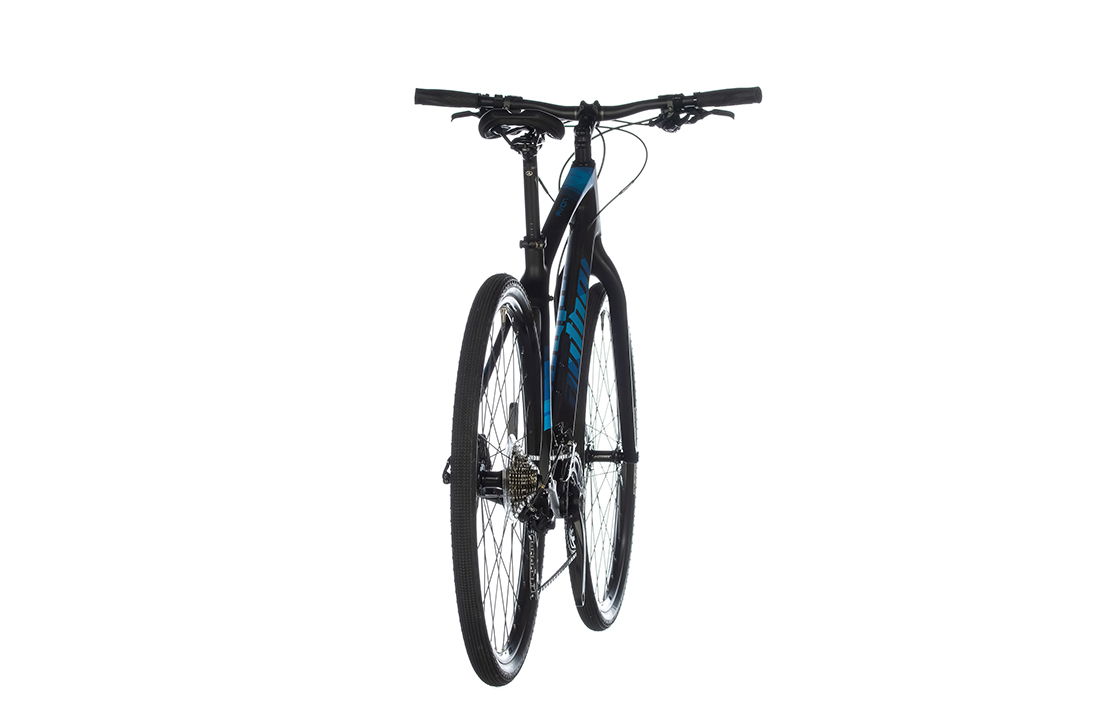

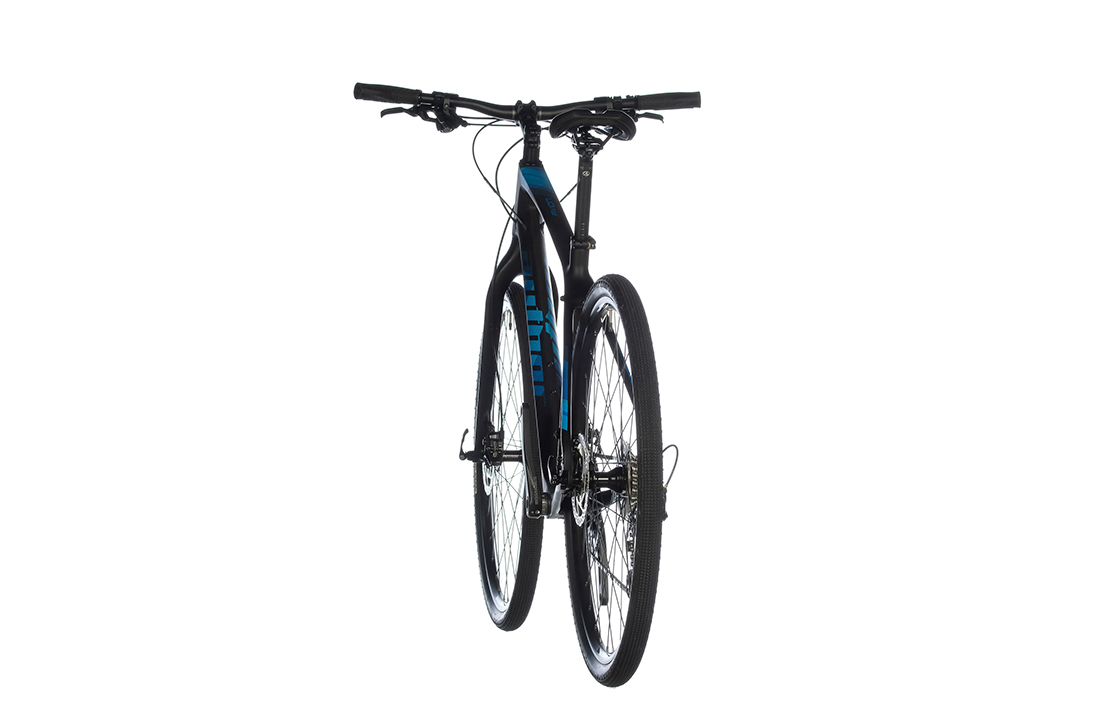

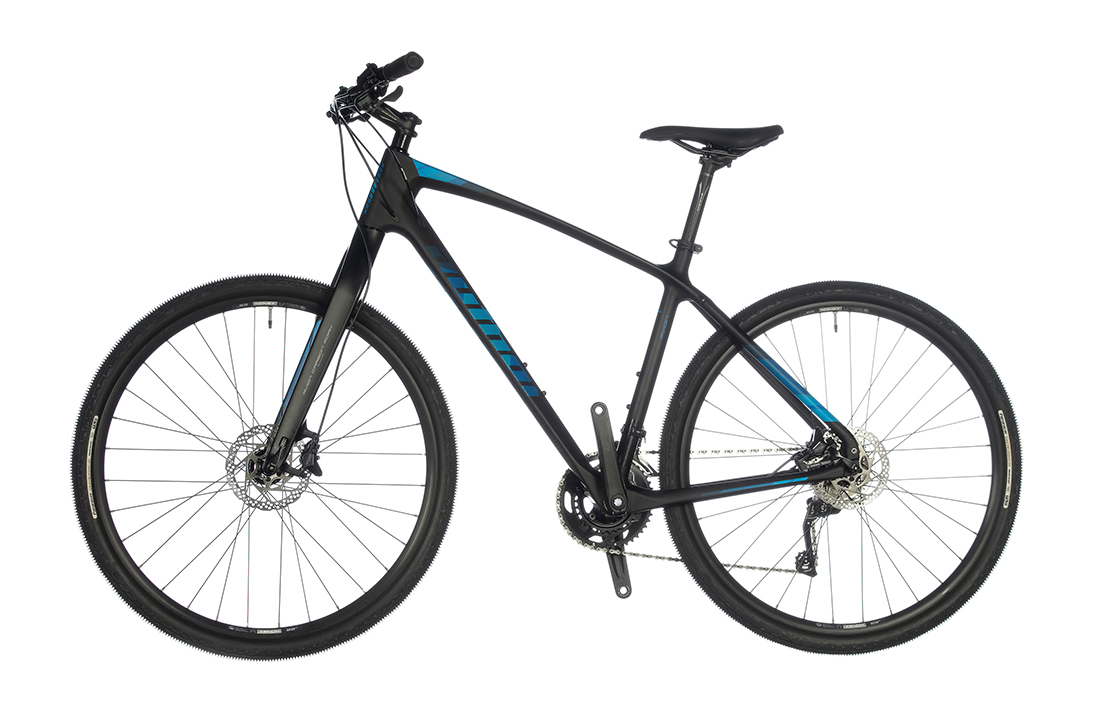

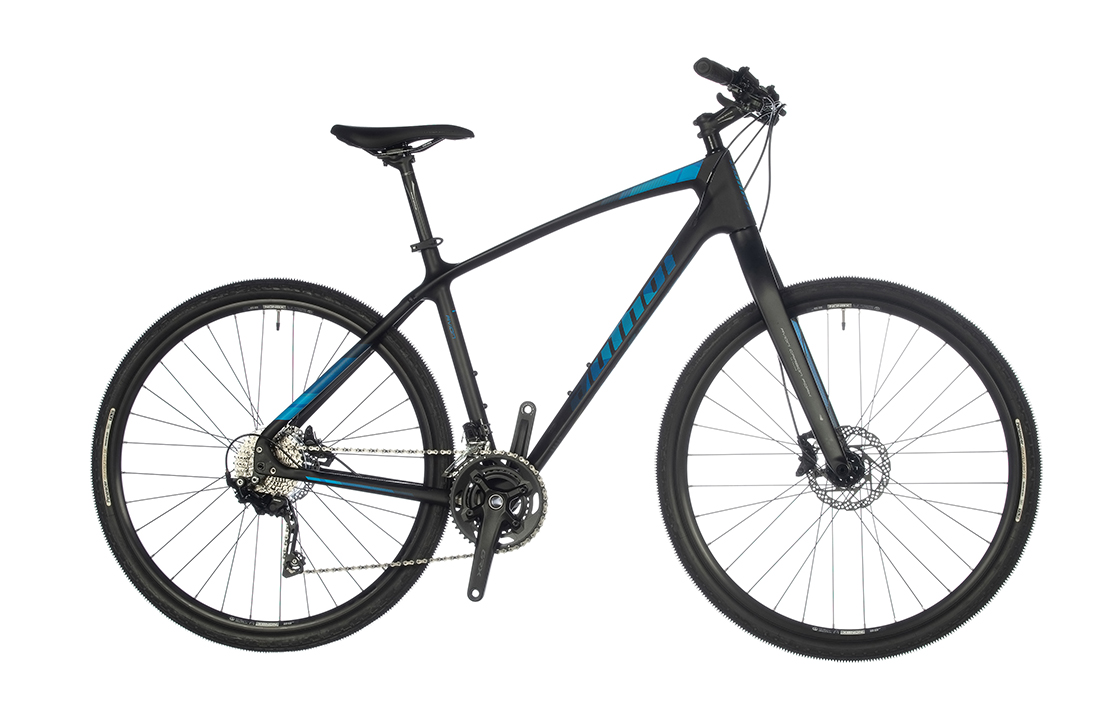

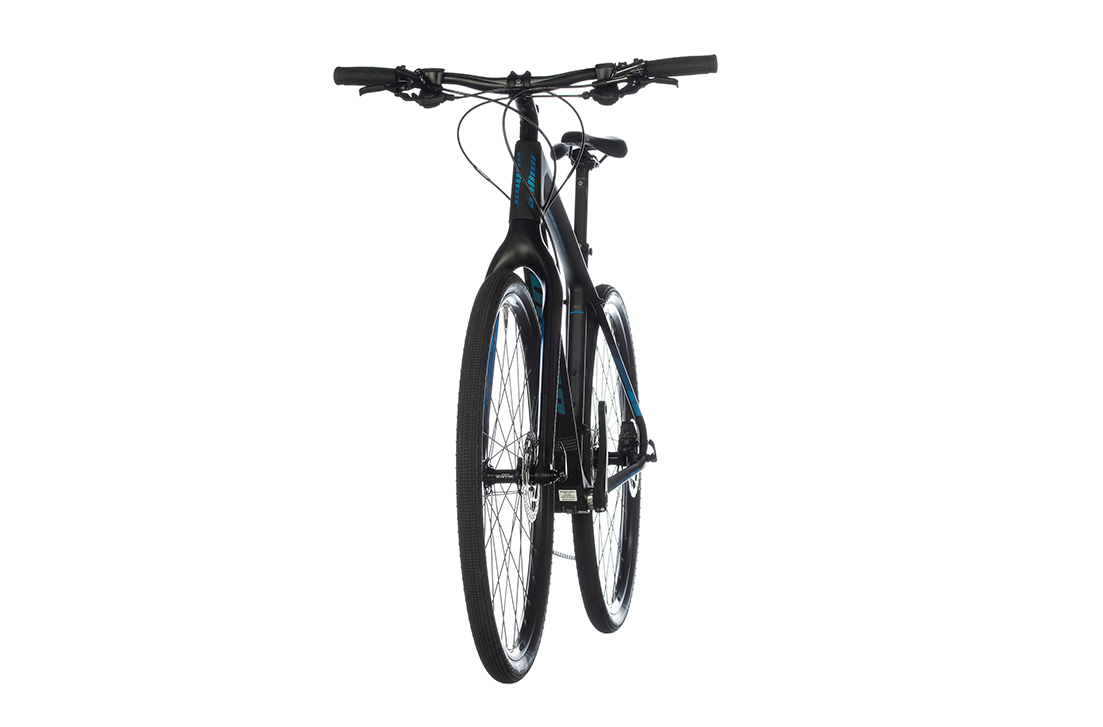

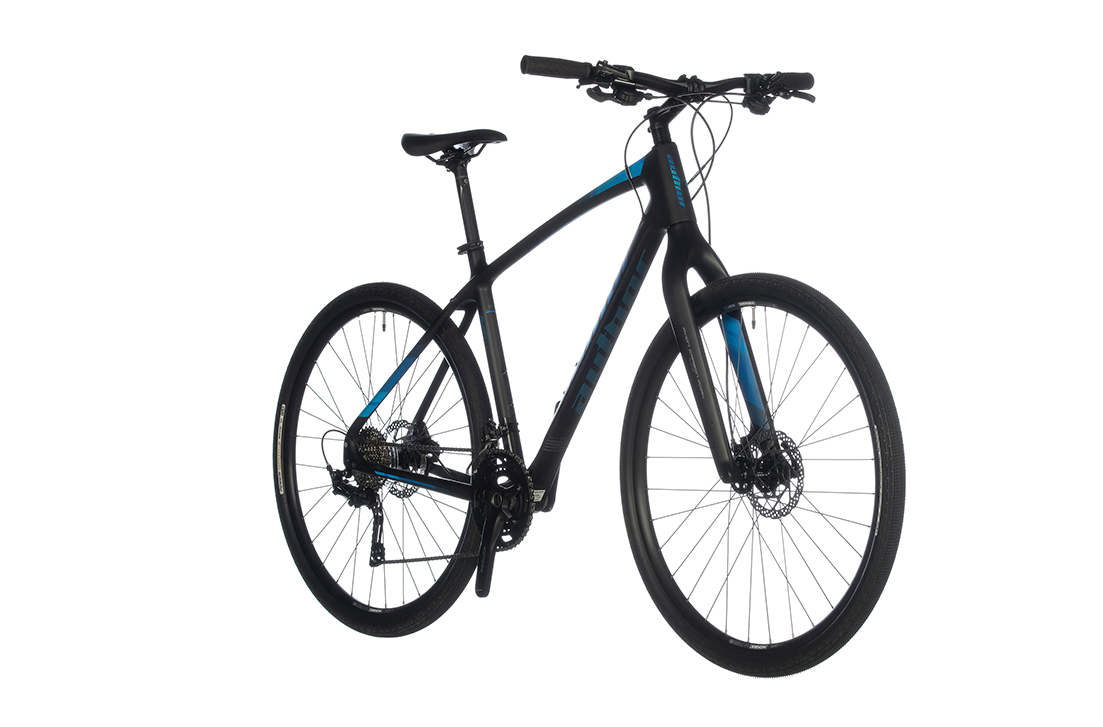

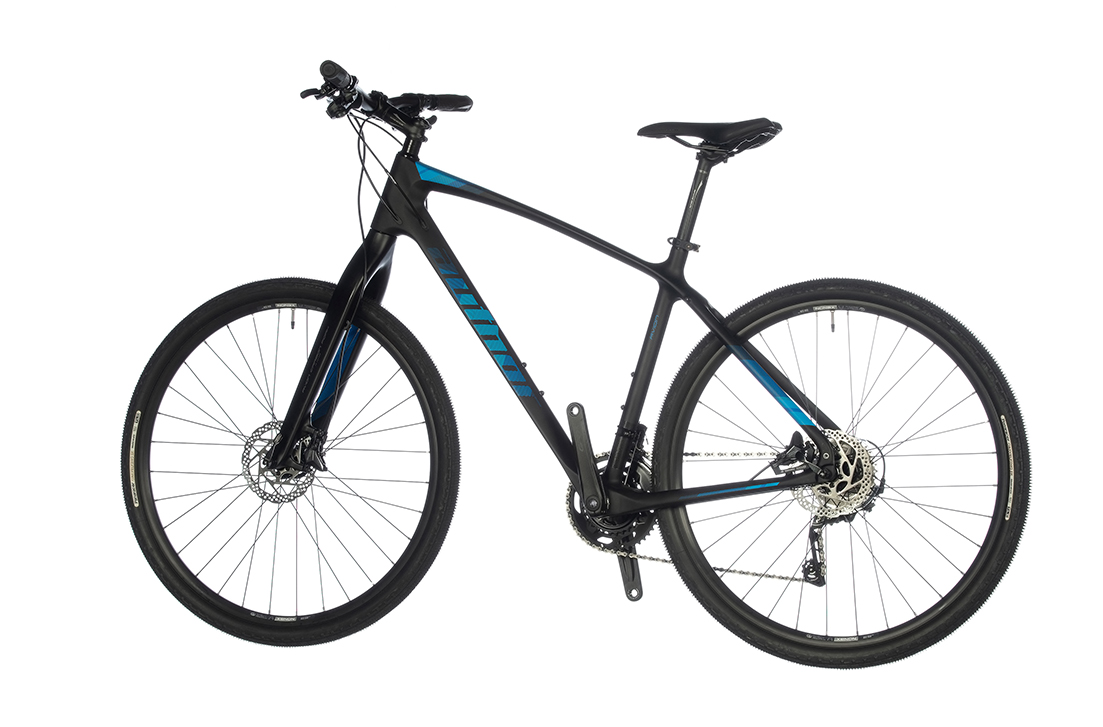

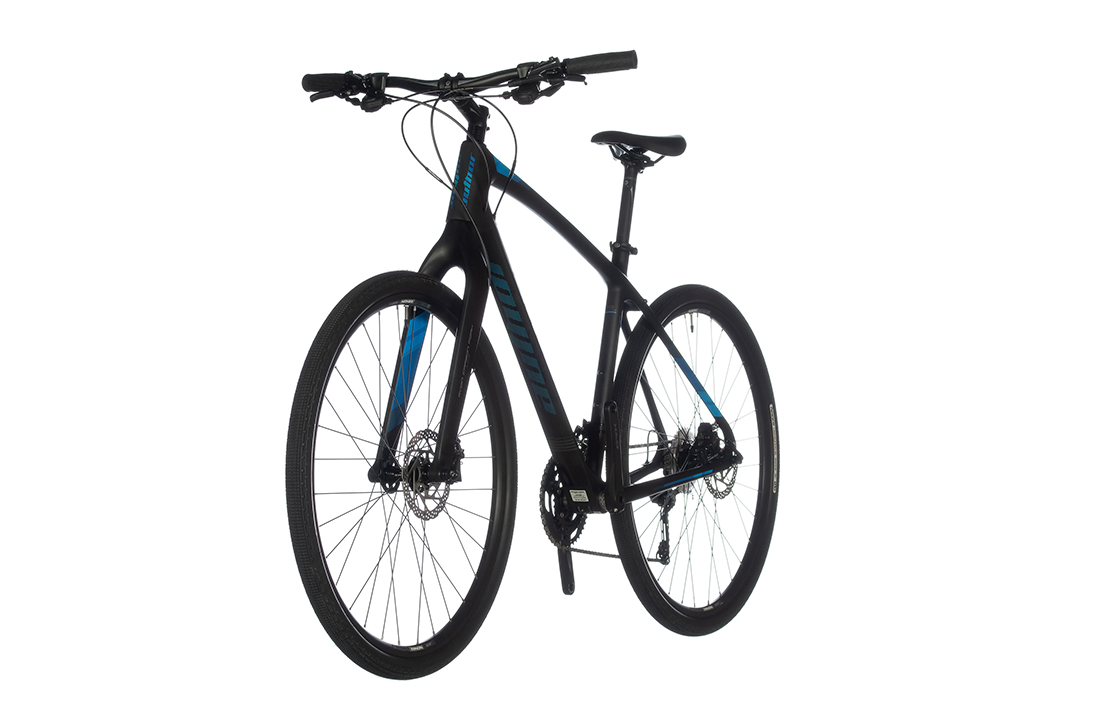

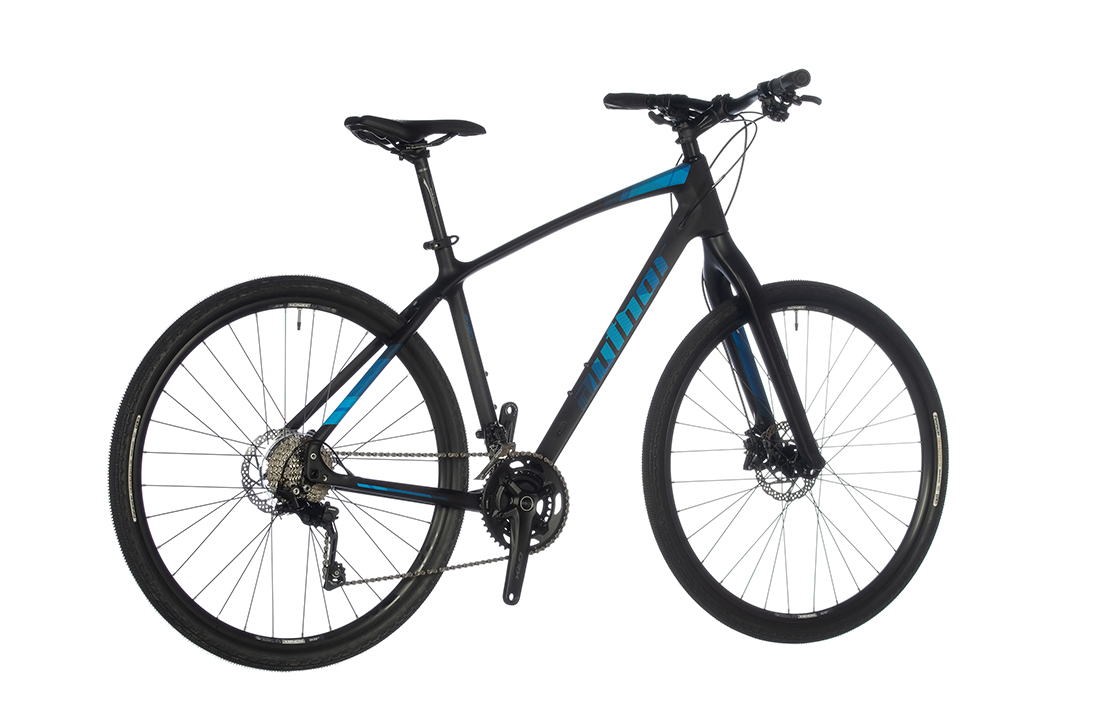

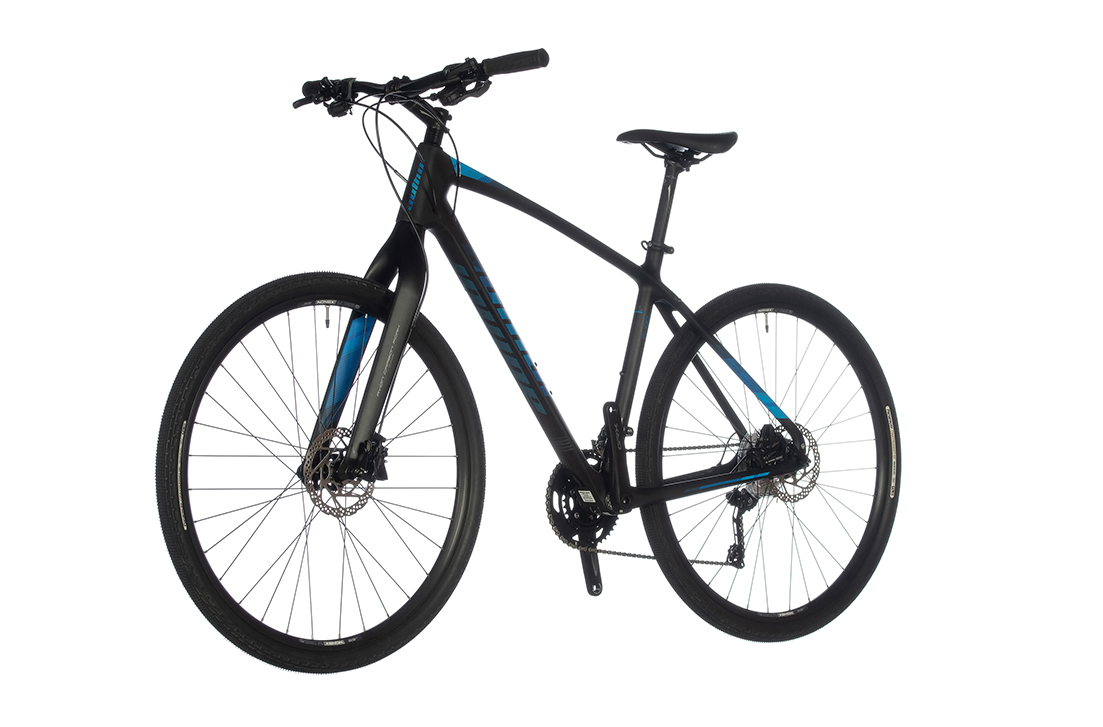

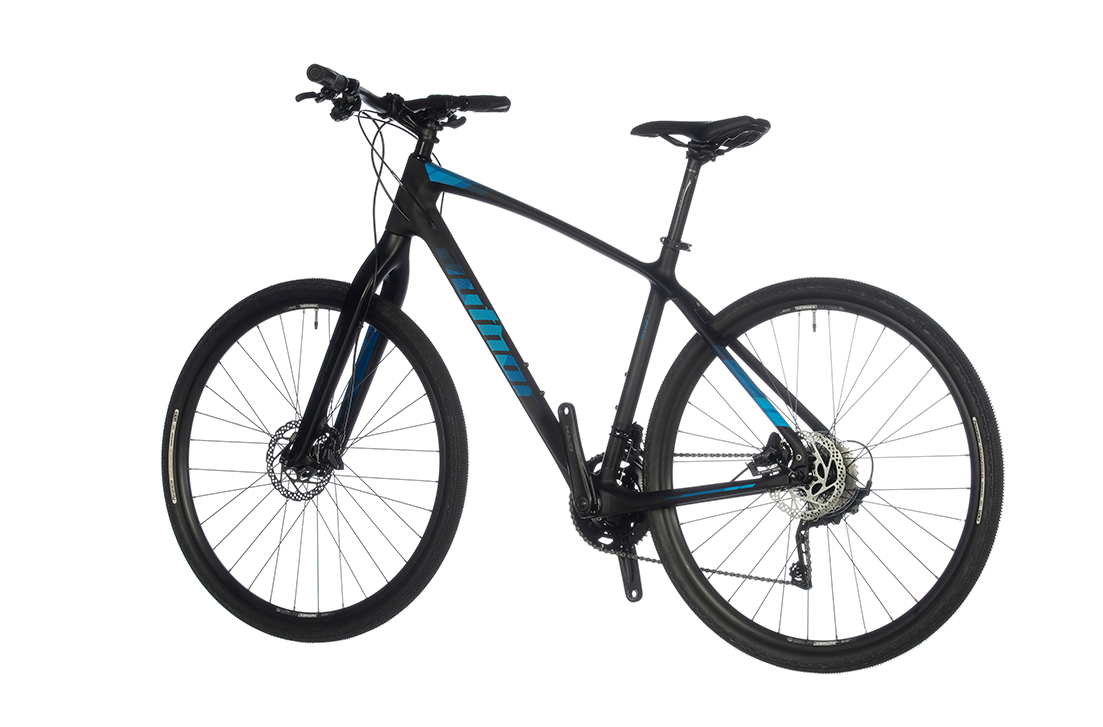

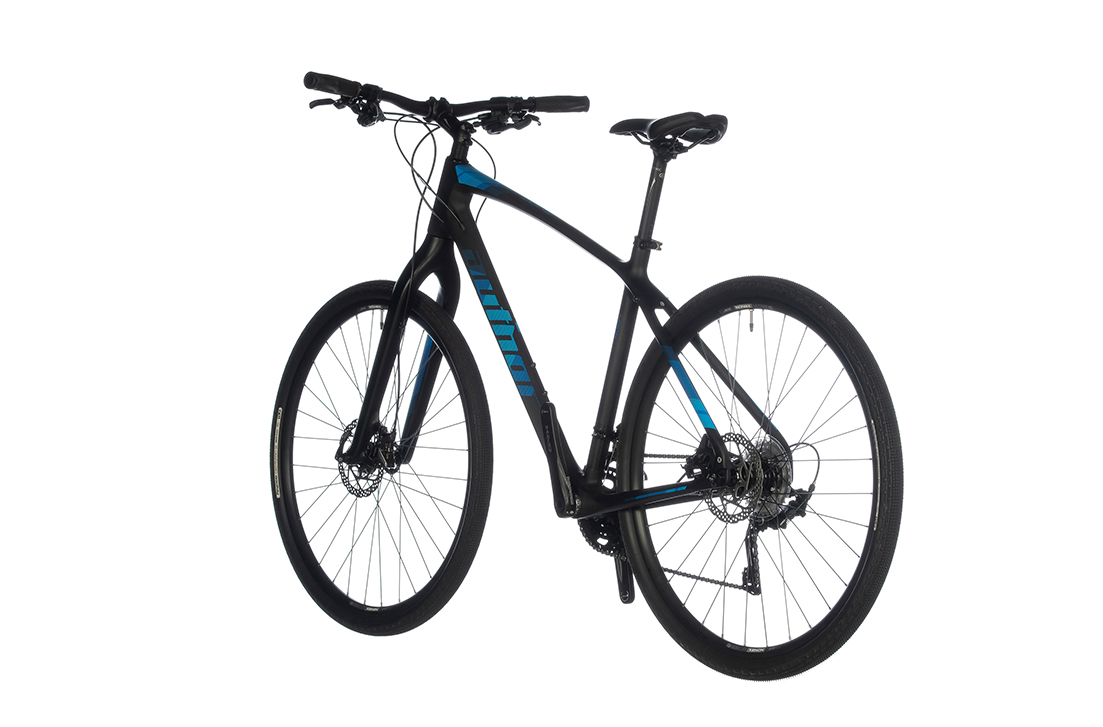

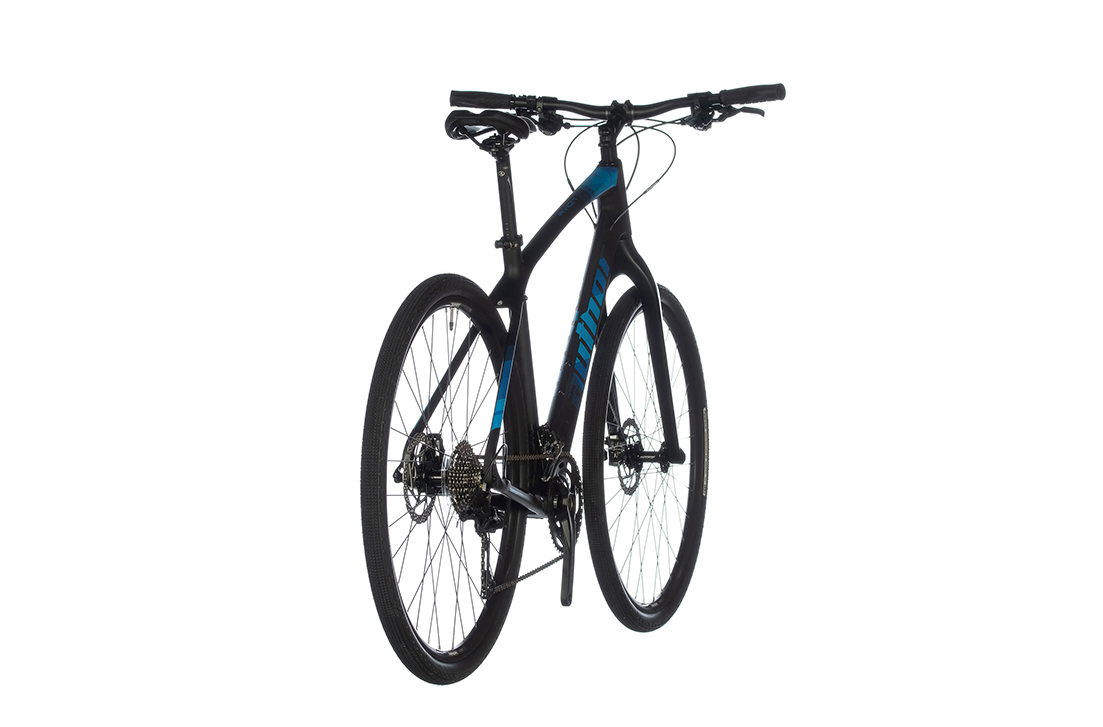

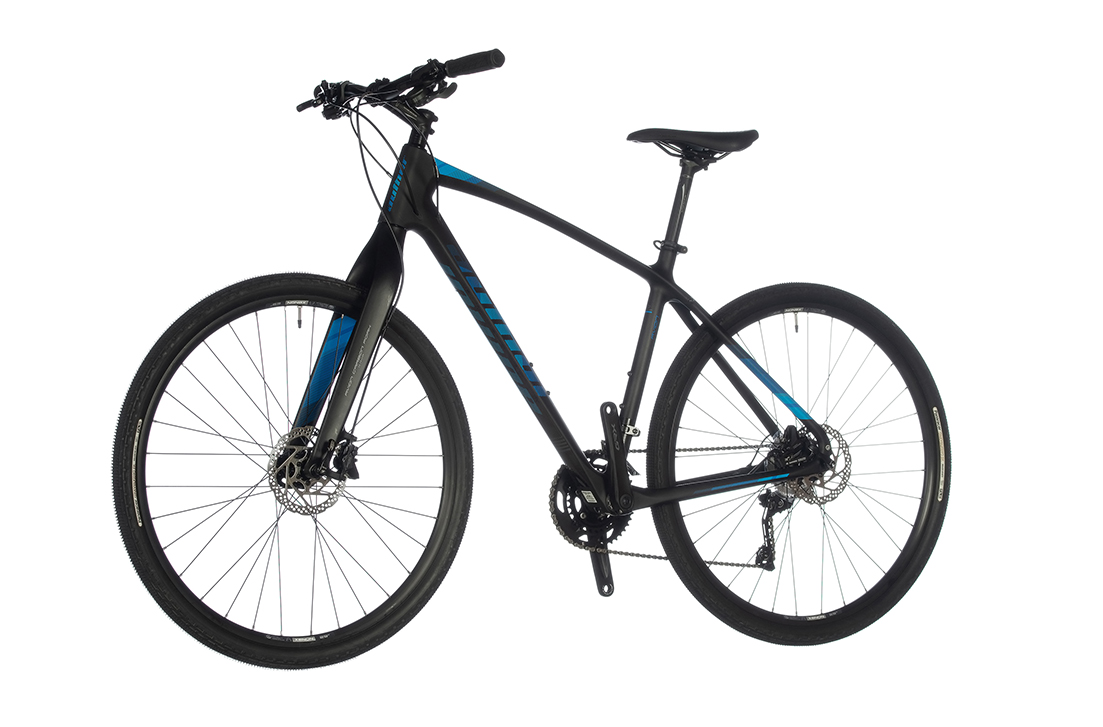

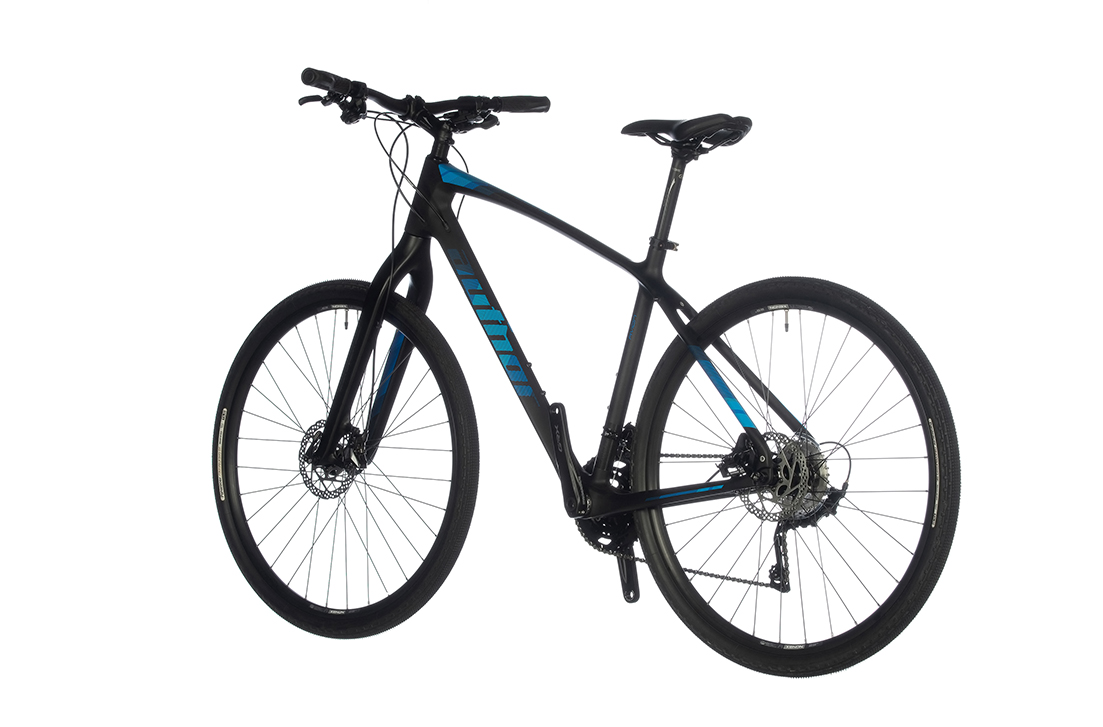

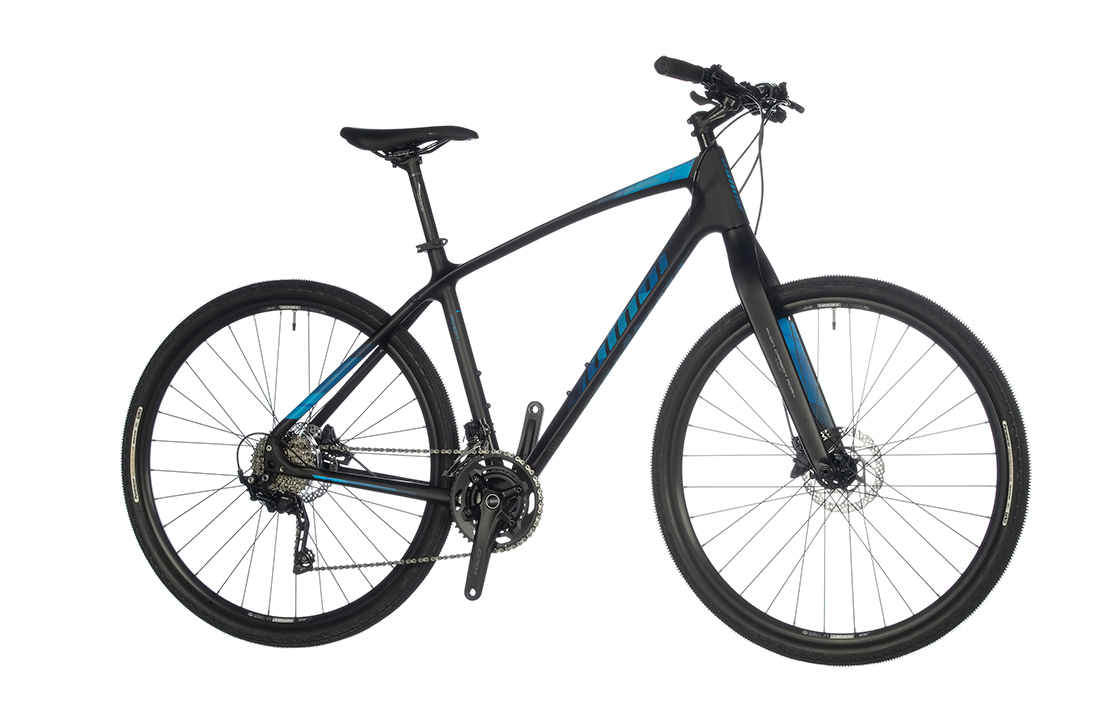

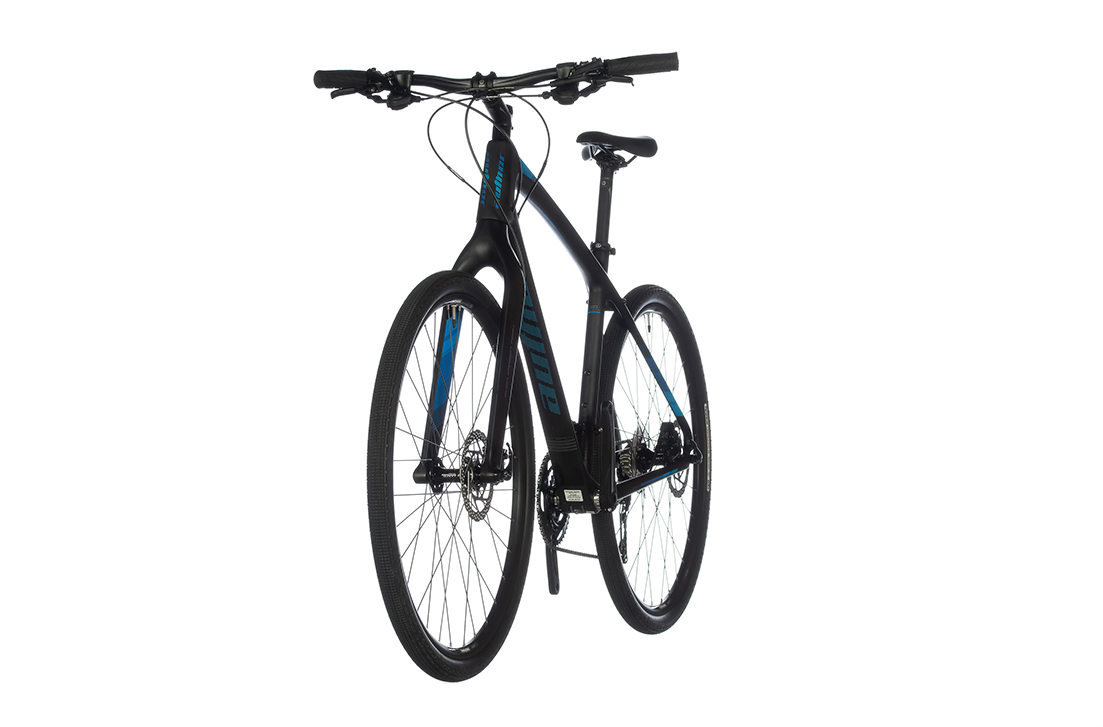

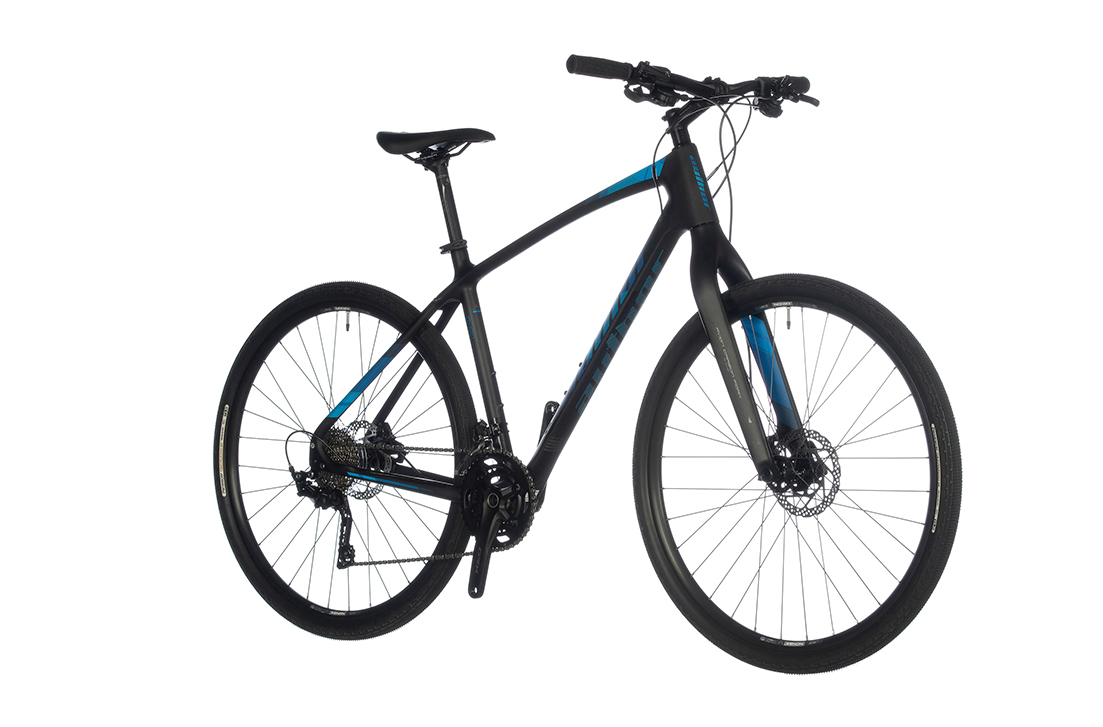

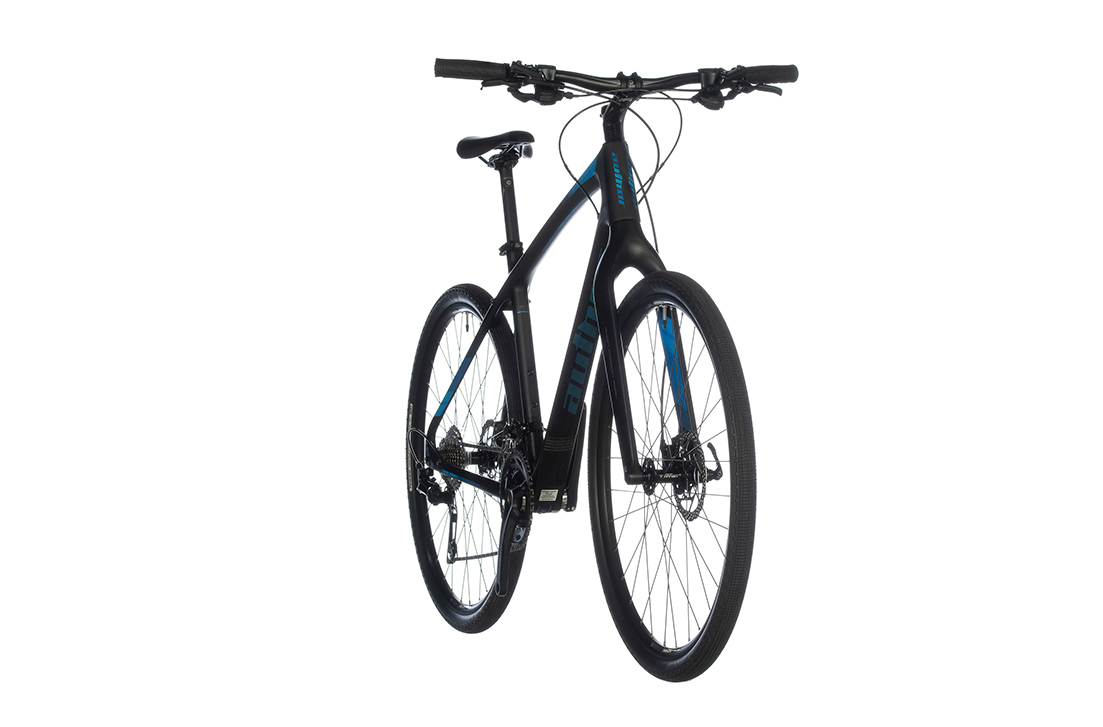

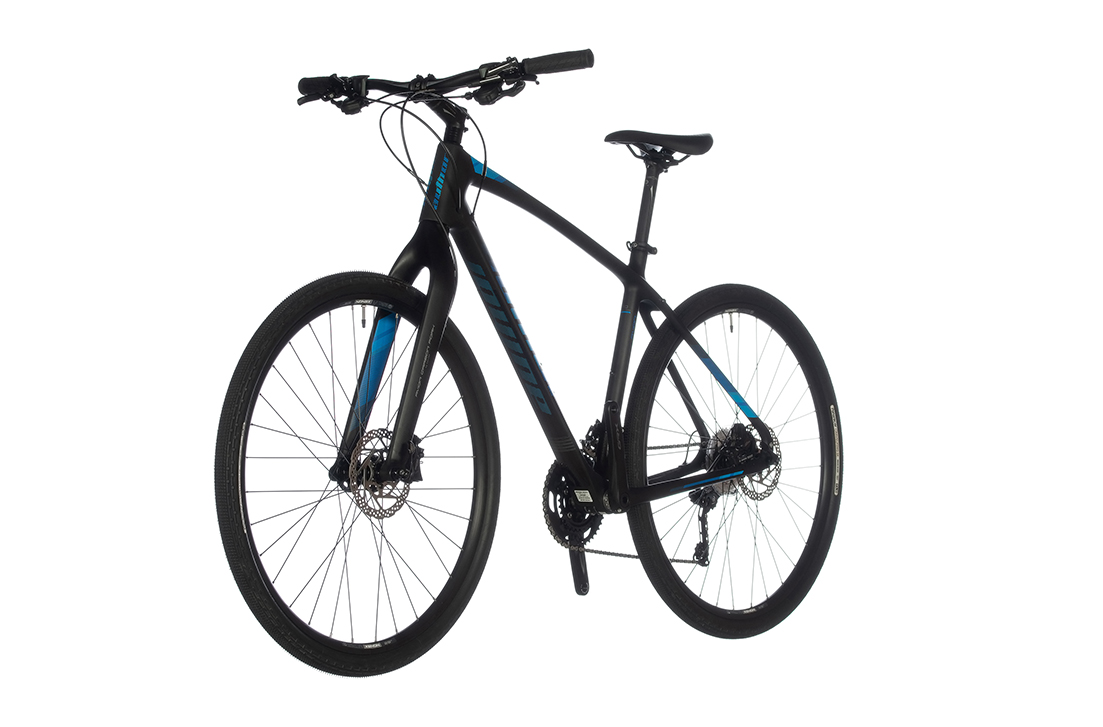

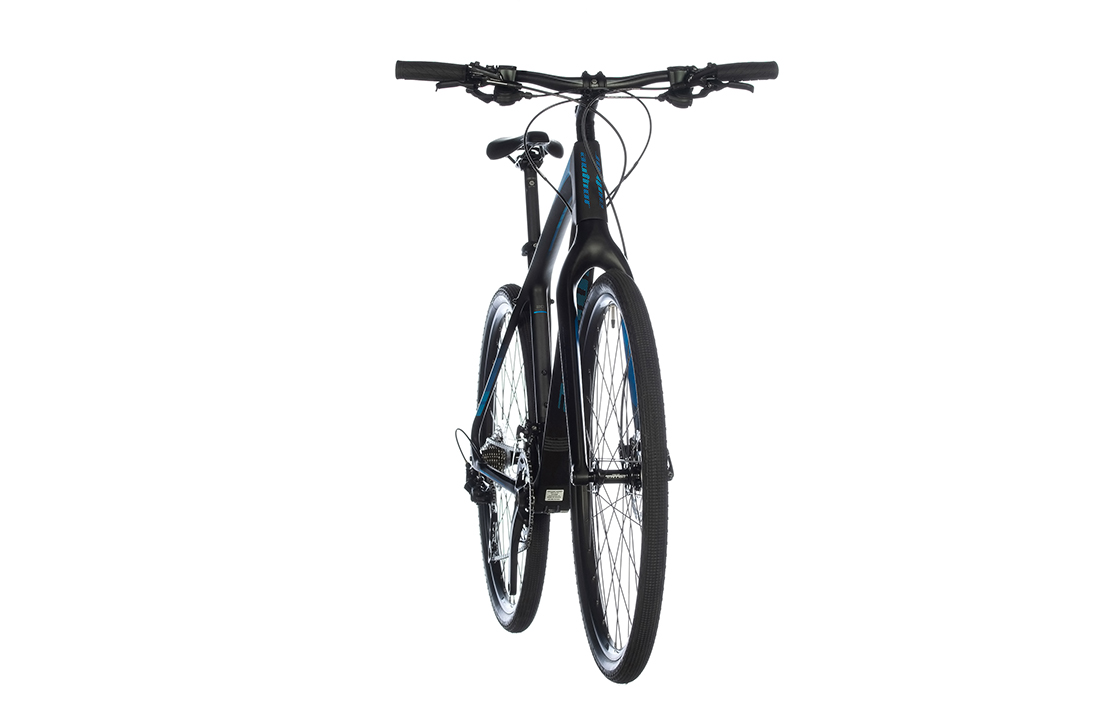

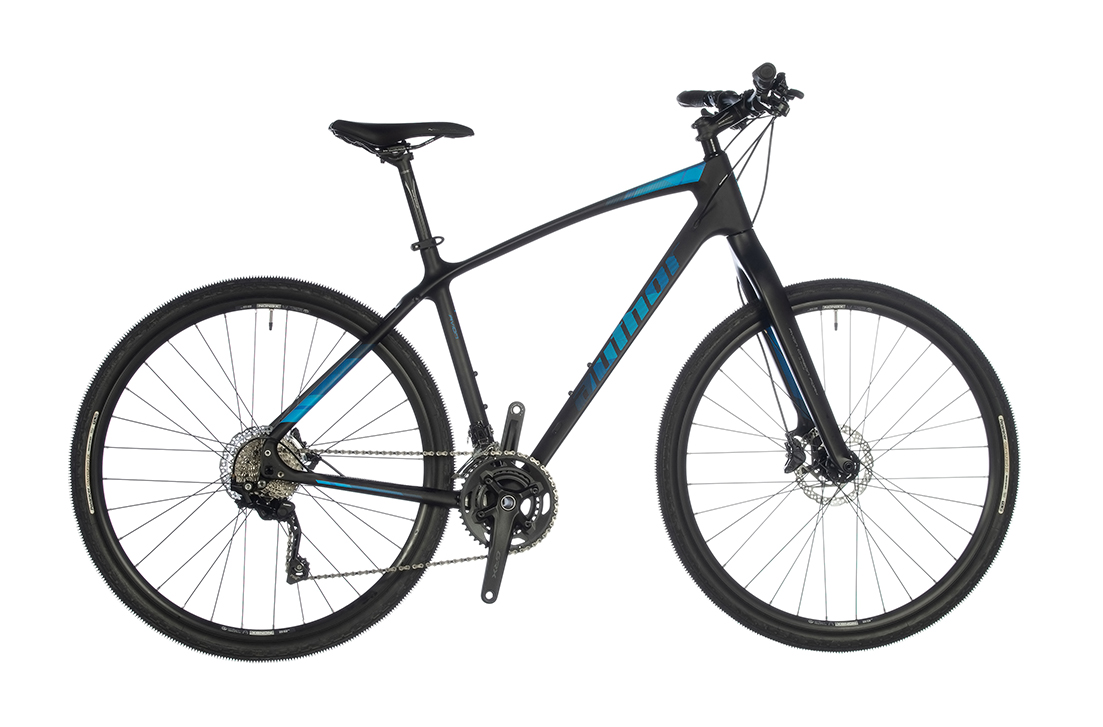

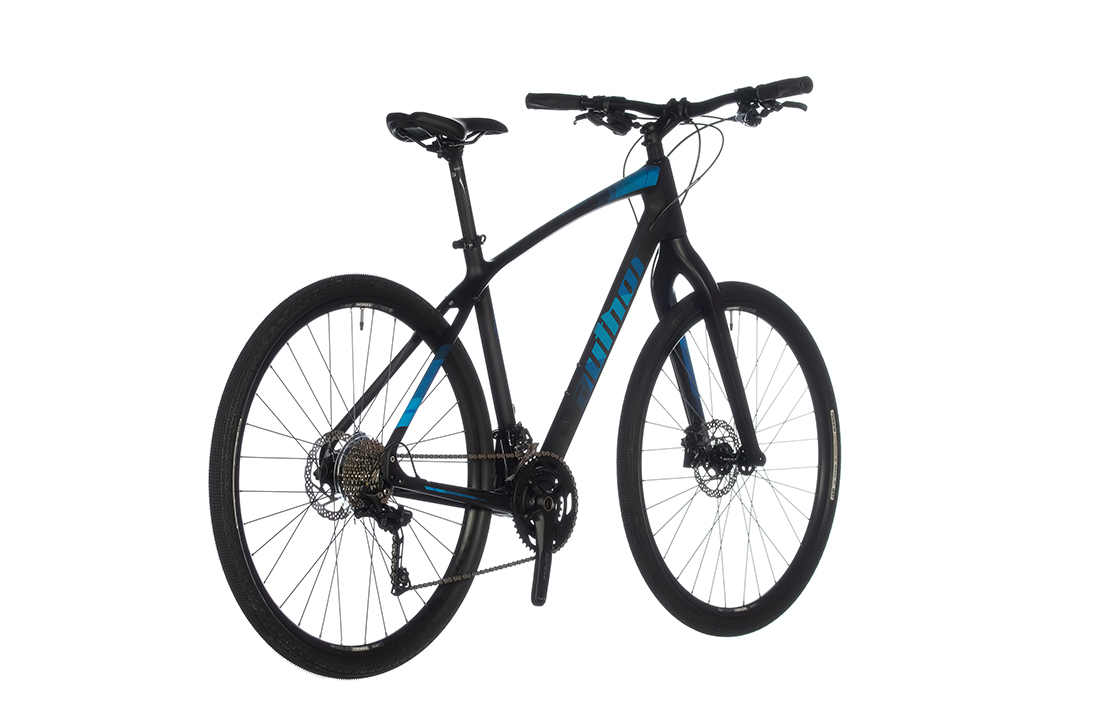

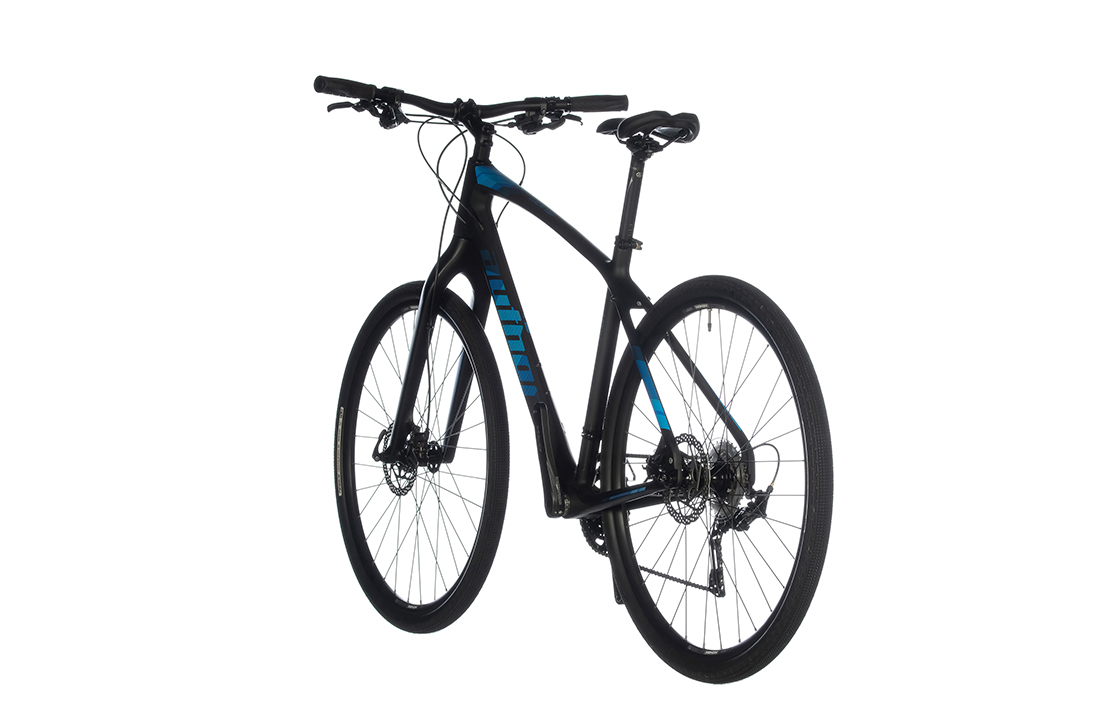

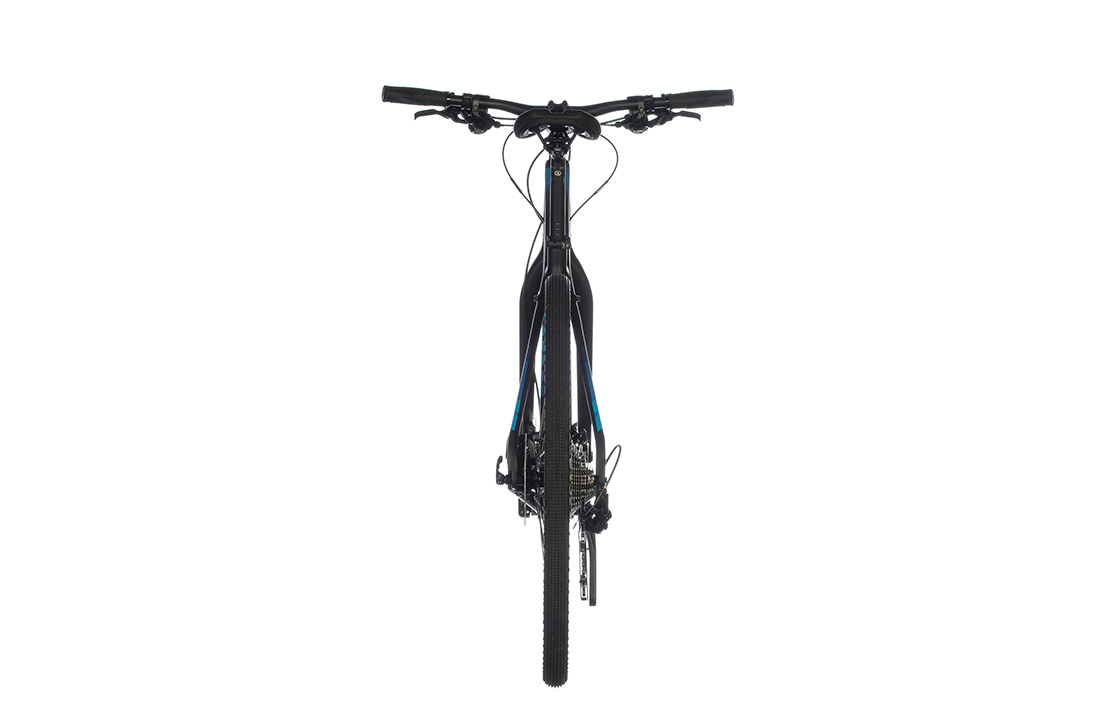

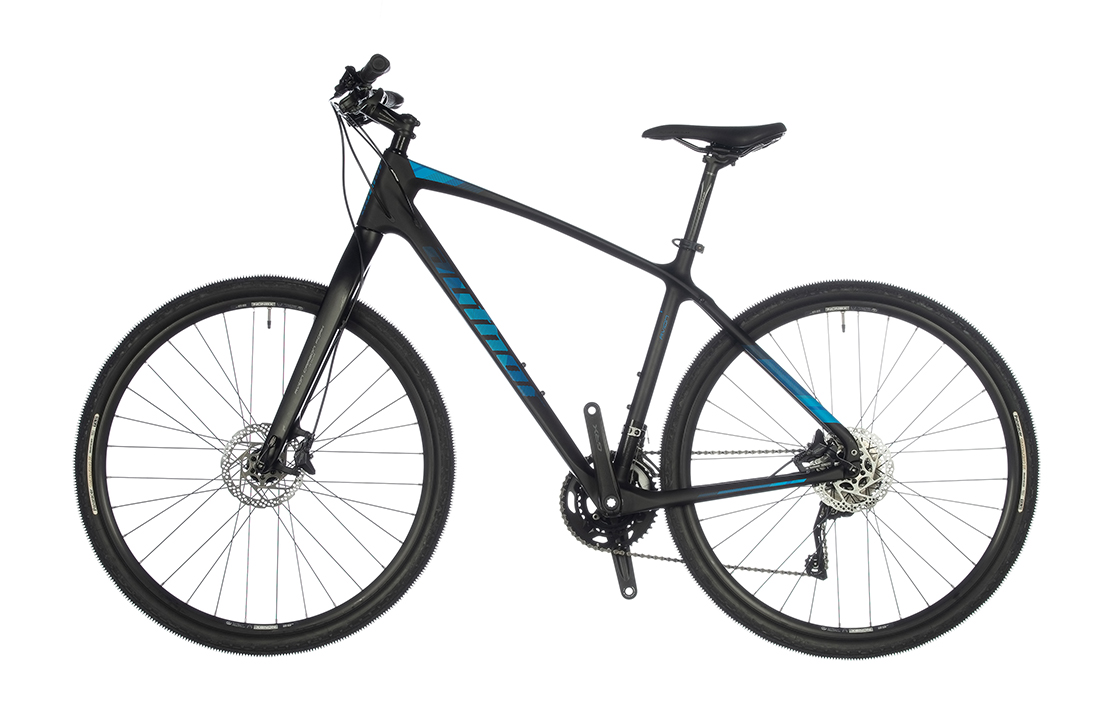

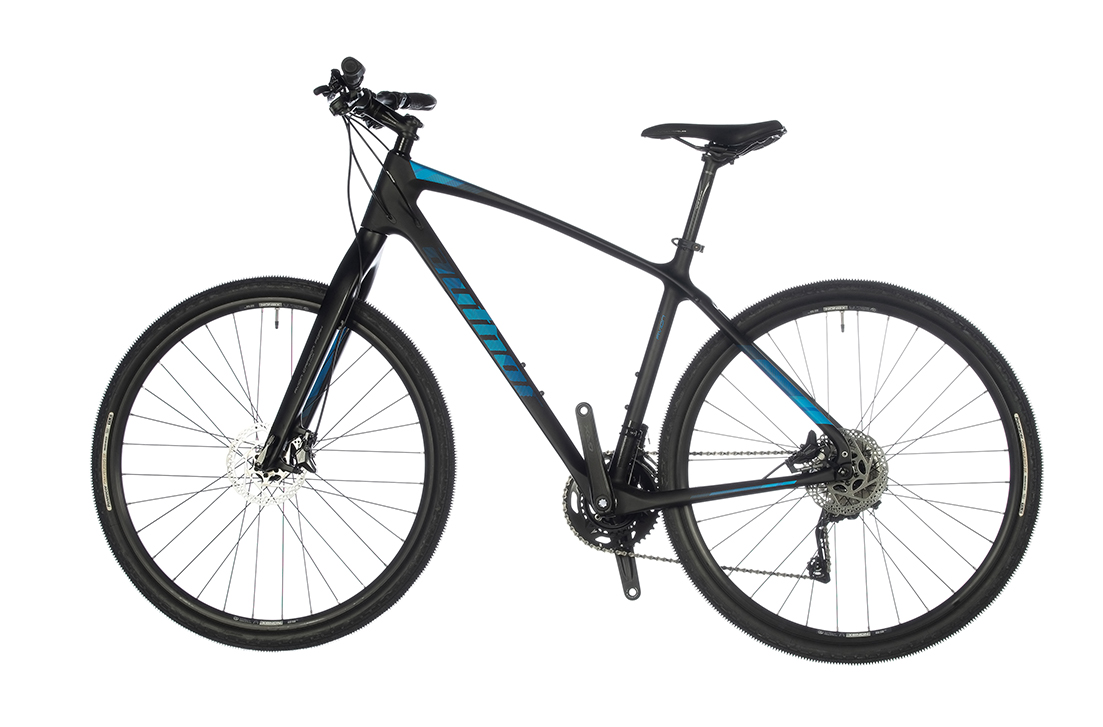

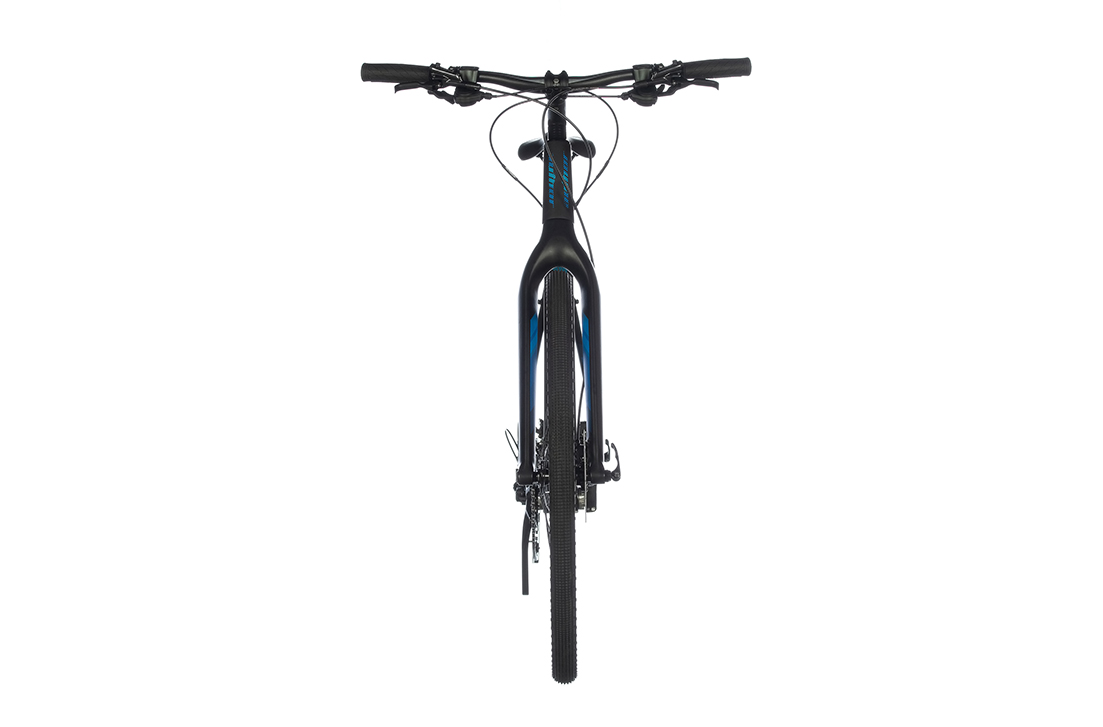

AUTHOR Avion 2021-22

Technical specification

Size	16", 18", 20", 22"
Frame	AUTHOR carbon Toray T700/800 monocoque 29"
Front fork	AUTHOR carbon 1.5" tapered
Head parts	AUTHOR Integrated 1.5" tapered
Chain Wheel	SHIMANO GRX 600 46-30 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-RS500 BB unit
Front derailleur	SHIMANO GRX 400 (34.9)
Rear derailleur	SHIMANO GRX 400
Shifters	SHIMANO Tiagra (20)
Free wheel	SHIMANO HG500-10 11-34 (10)
Chain	KMC X10
Hubs	AUTHOR Helium / Xenon 15 × 100 mm thru front axle 12 × 142 mm thru rear axle 32 holes
Brakes	SHIMANO Deore disc hydraulic (6" rotors)

Brakes levers	SHIMANO Deore
Rims	AUTHOR Xenon 29 32 holes
Spokes	black stainless steel 2.0 mm
Tires	PANARACER Gravel King SK aramid 700 × 43c
Handlebar	AUTHOR 15 mm 660 / 680 mm
Grips	AUTHOR Microtech ErgoGrip
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Navigator CR
Speed	20
Weight	10,0 kg / 20"

Geometry and sizes

Size	16"	18"	20"	22"
Min. figure ~~[cm]~~	150	164	174	184
Max. figure ~~[cm]~~	166	176	186	200
S/T c-t ~~[mm]~~	406	457	508	559
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	560	580	600	620
T/T a ~~[mm]~~	540	556	574	595
H/T ~~[mm]~~	110	130	150	160
C/S ~~[mm]~~	450	450	450	450
W/B ~~[mm]~~	1055	1076	1097	1117
S/T ang. ~~[°]~~	73	73	73	73
H/T ang. ~~[°]~~	71	71	71	71
F/L ~~[mm]~~	490	490	490	490
B/B drop ~~[mm]~~	60	60	60	60
B/B width ~~[mm]~~	68	68	68	68
Reach ~~[mm]~~	0	0	0	0
Stack ~~[mm]~~	0	0	0	0
F/R ~~[mm]~~	44	44	44	44
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
