Synergy 2023-24

~~Colour variants~~

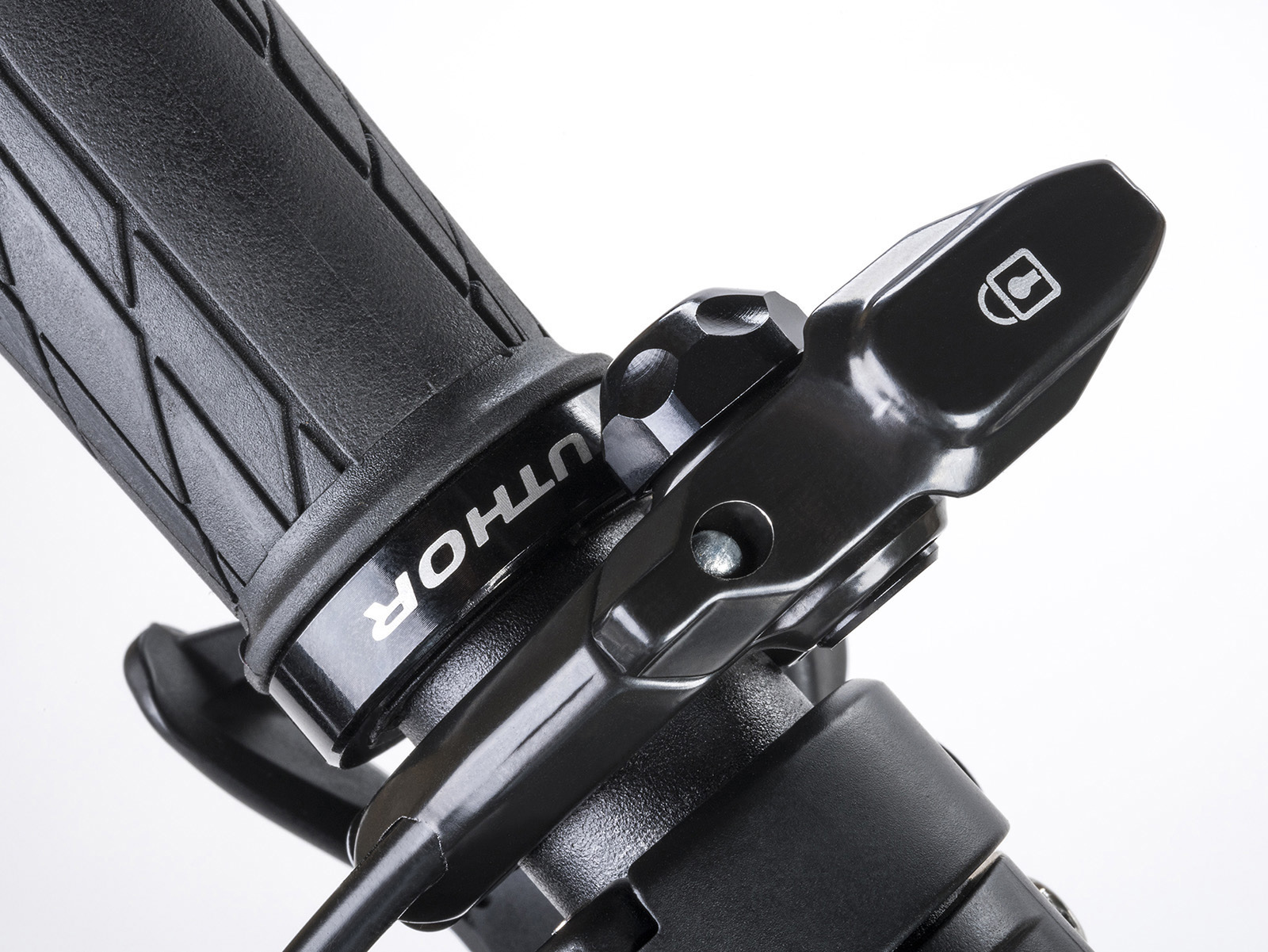

Carbon frameLock out air fork RST Vogue, remote lock outHydraulic disc brakes TEKTROSHIMANO Deore / XT components, 30 speedPANARACER Gravel King SK SPORT 700 × 43c foldable tiresAUTHOR Microtech ErgoGrip comfortable gripsAUTHOR Area Gel saddle

~~Buy now~~price 52 990 Kč

Technical specification

Size	16", 18", 20", 22"

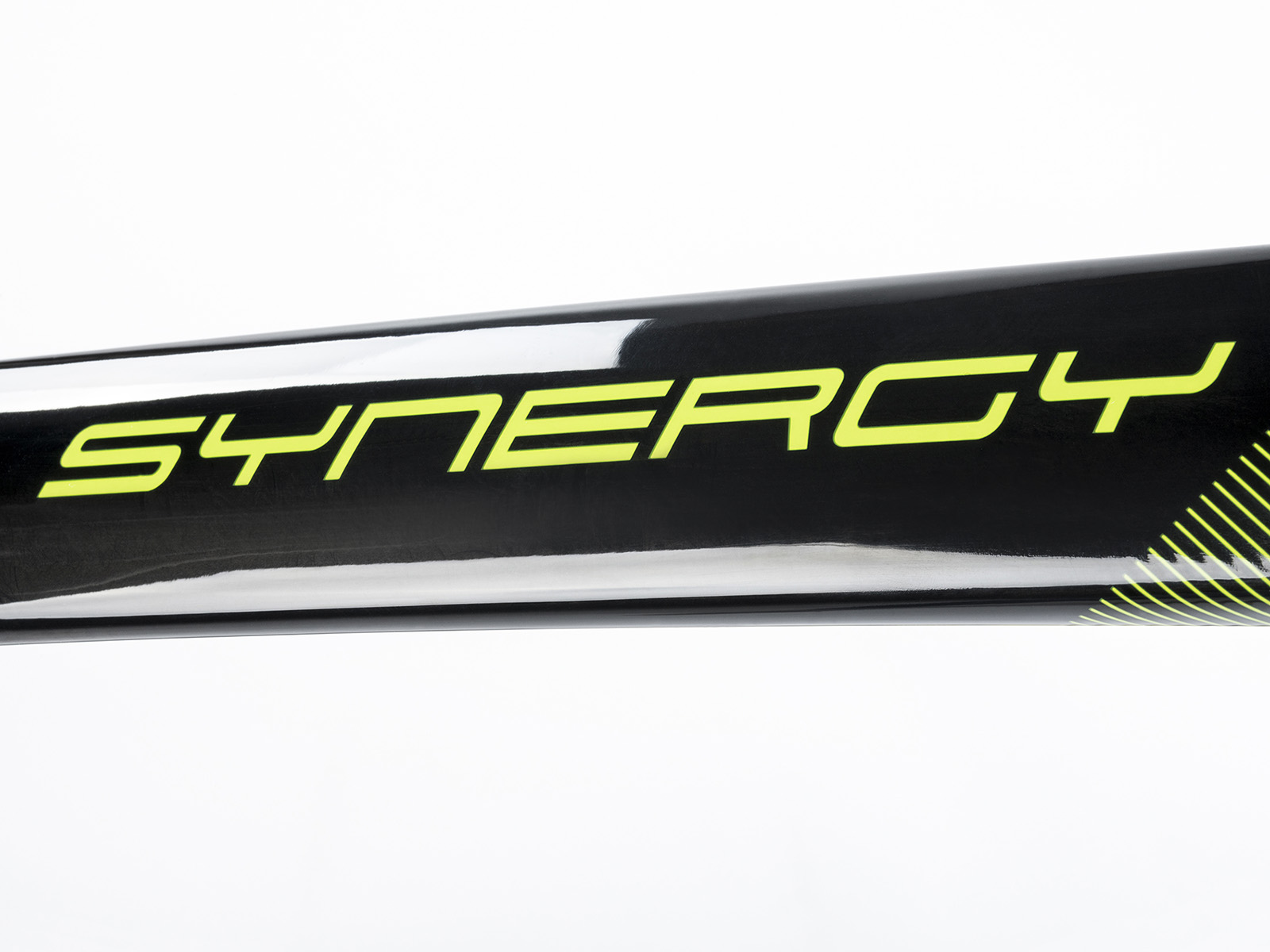

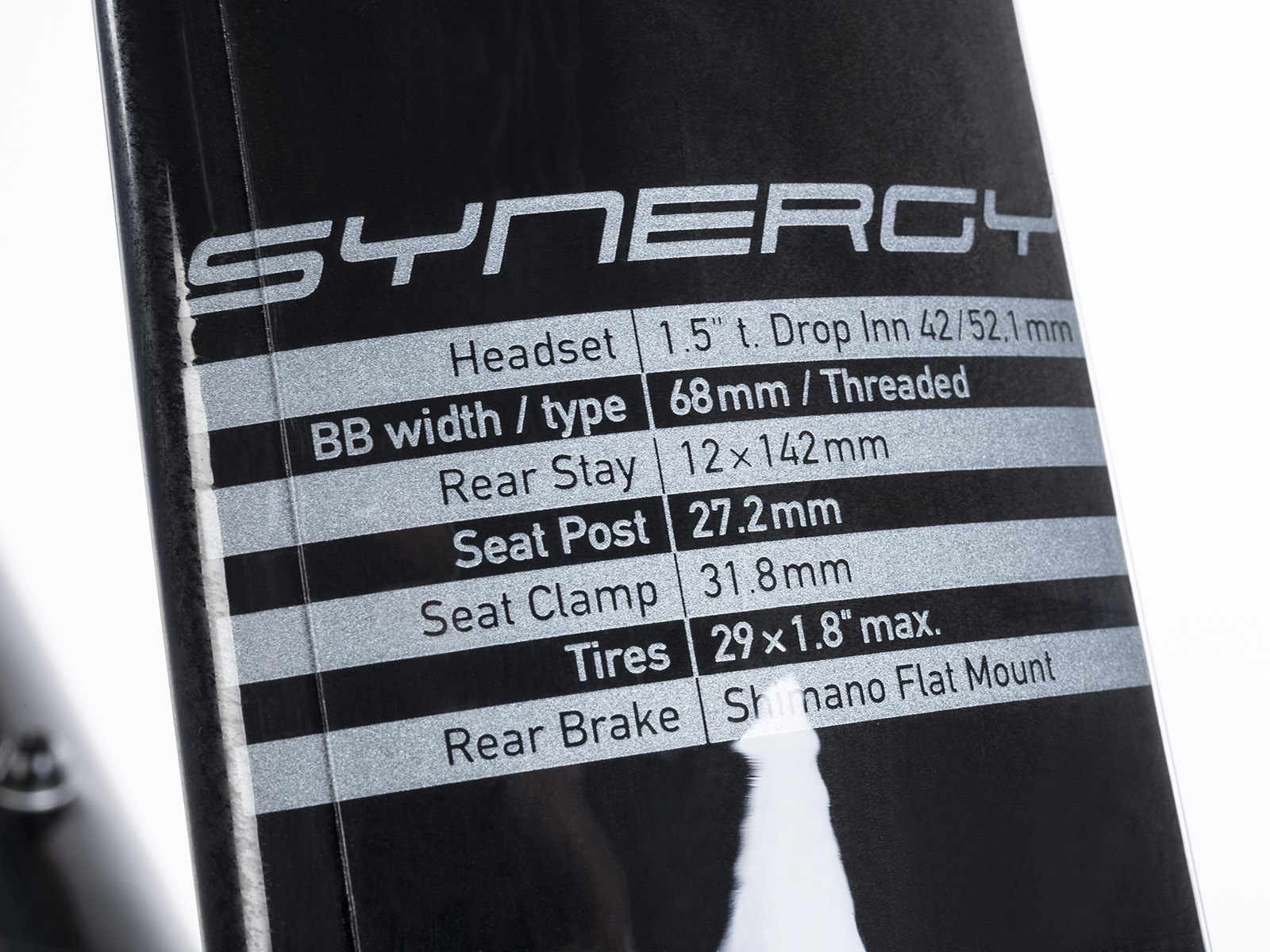

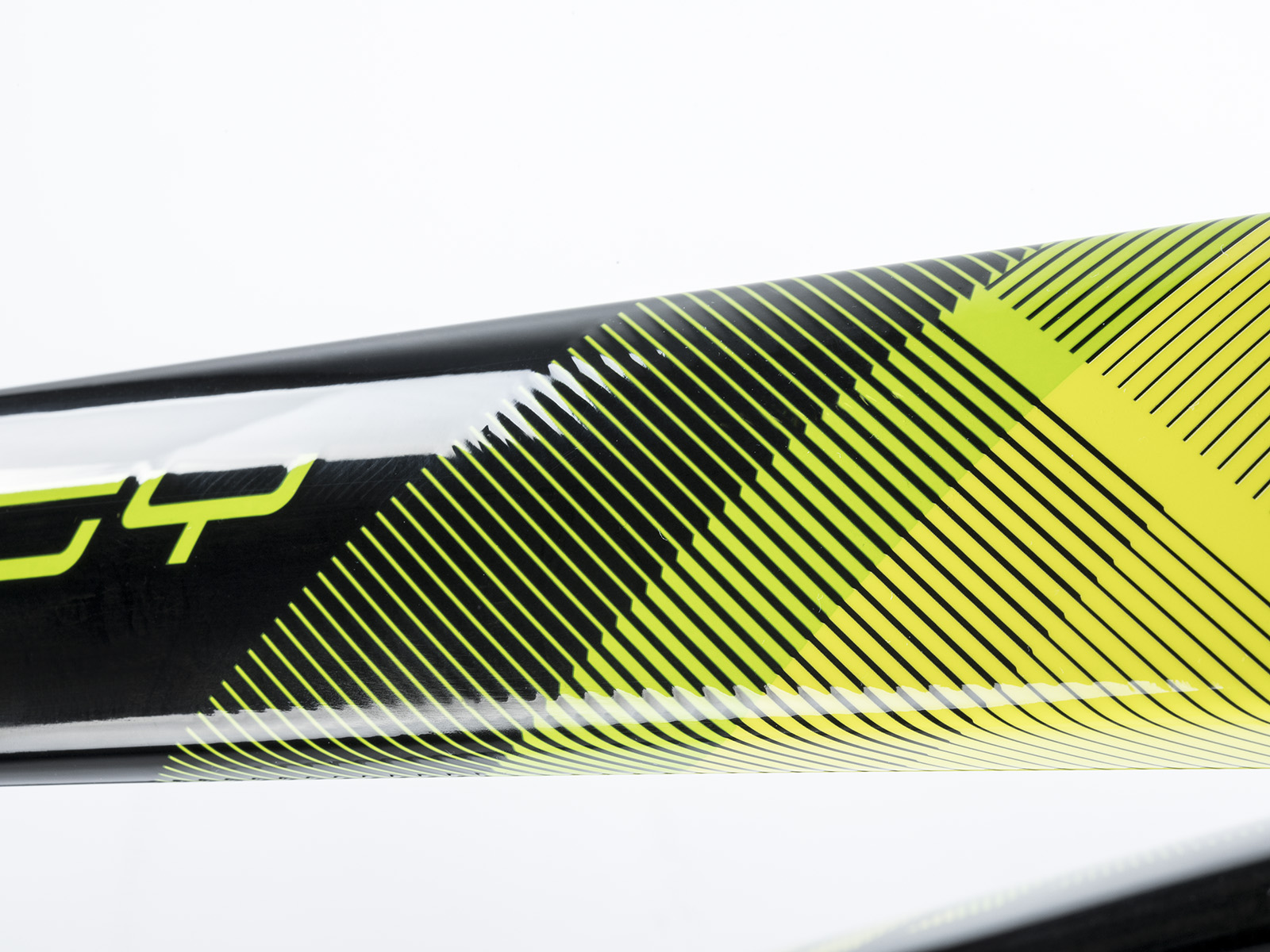

Frame	AUTHOR carbon Toray T700/800 monocoque 29"

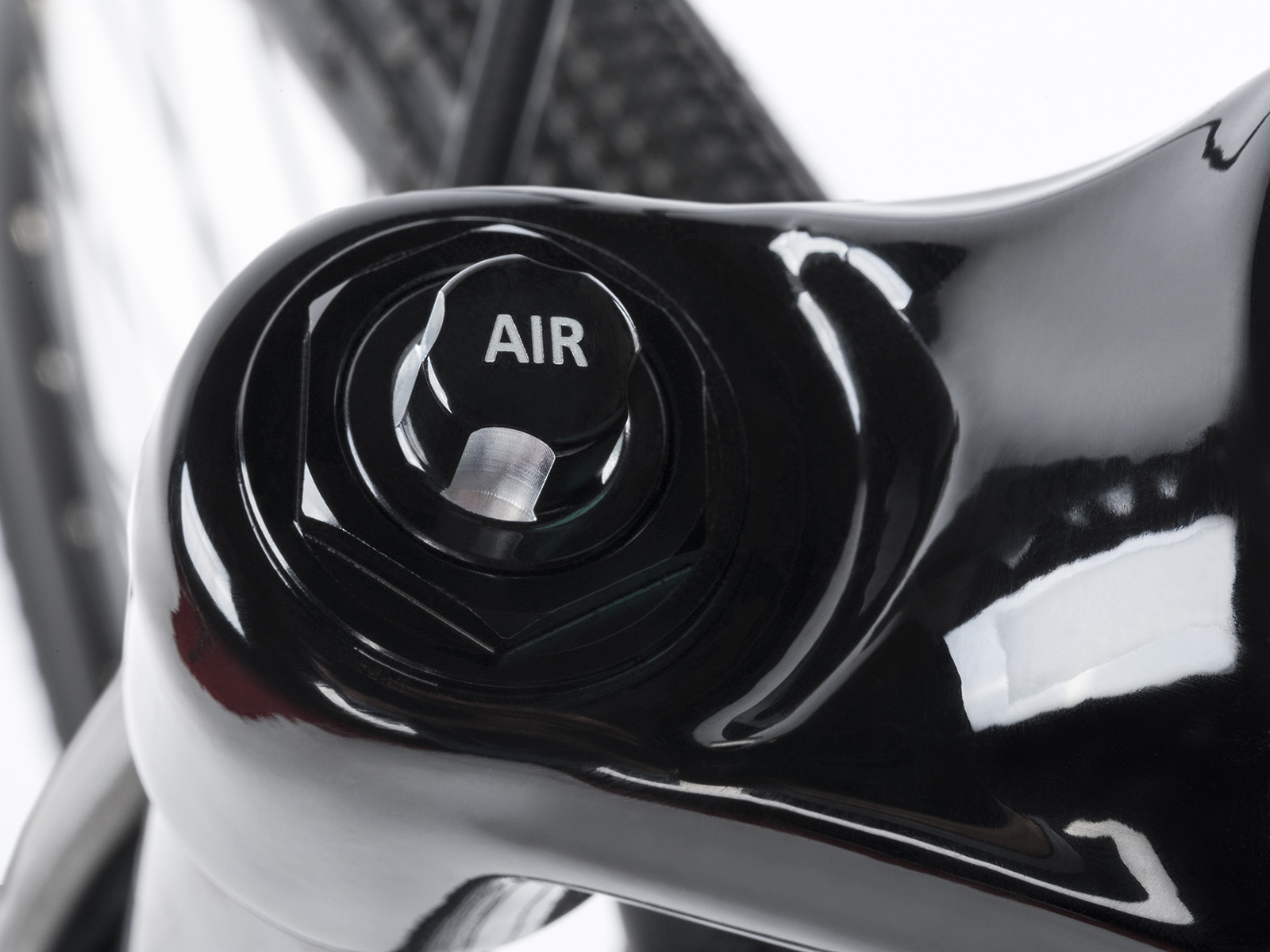

Front fork	RST Vogue Air TRL air, remote lock out, 1.5" tapered (80 mm)
Head parts	PRESTINE Integrated 1.5" tapered

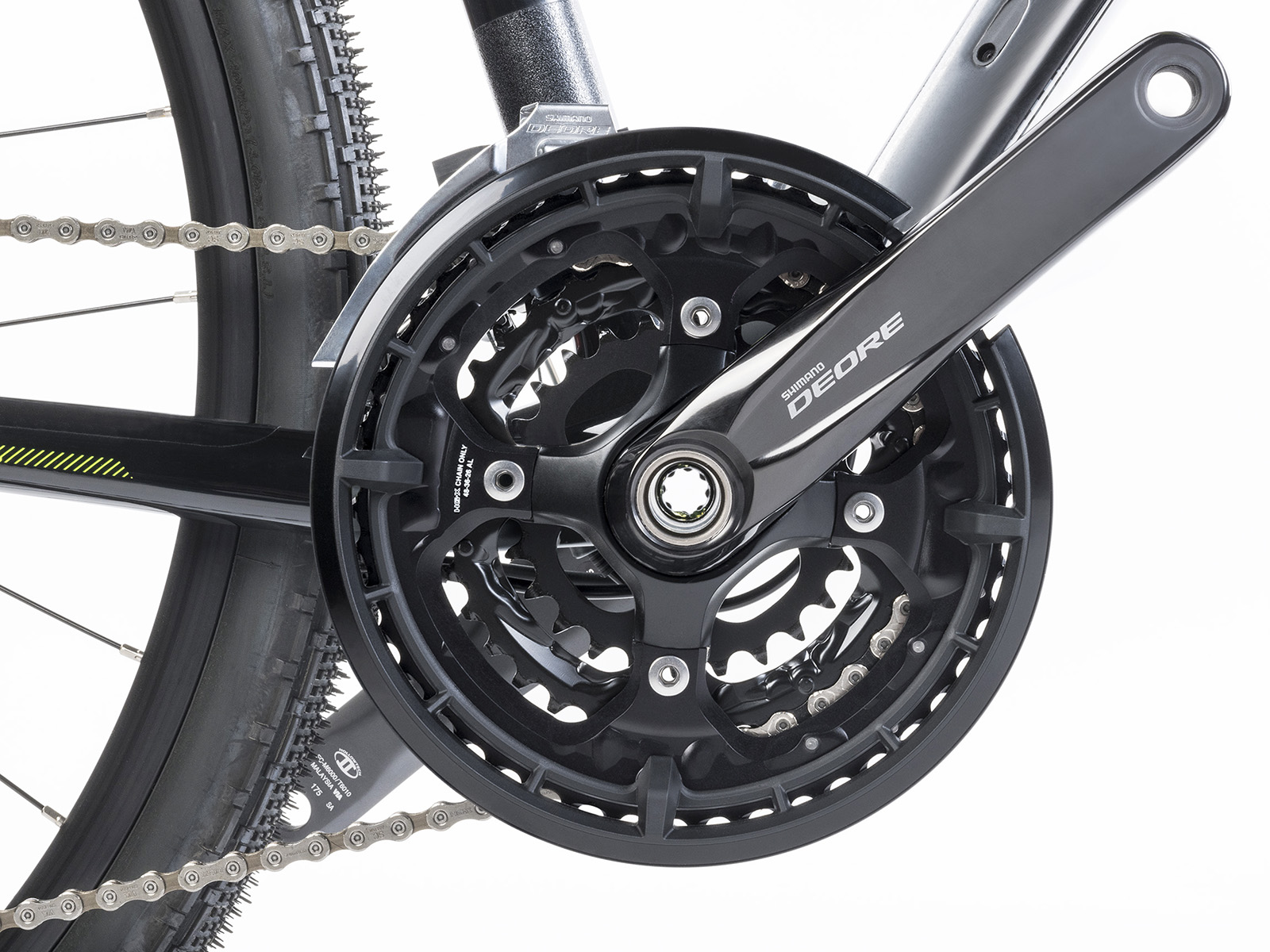

Chain Wheel	SHIMANO Deore, 48-36-26 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit
Front derailleur	SHIMANO Deore (34.9)

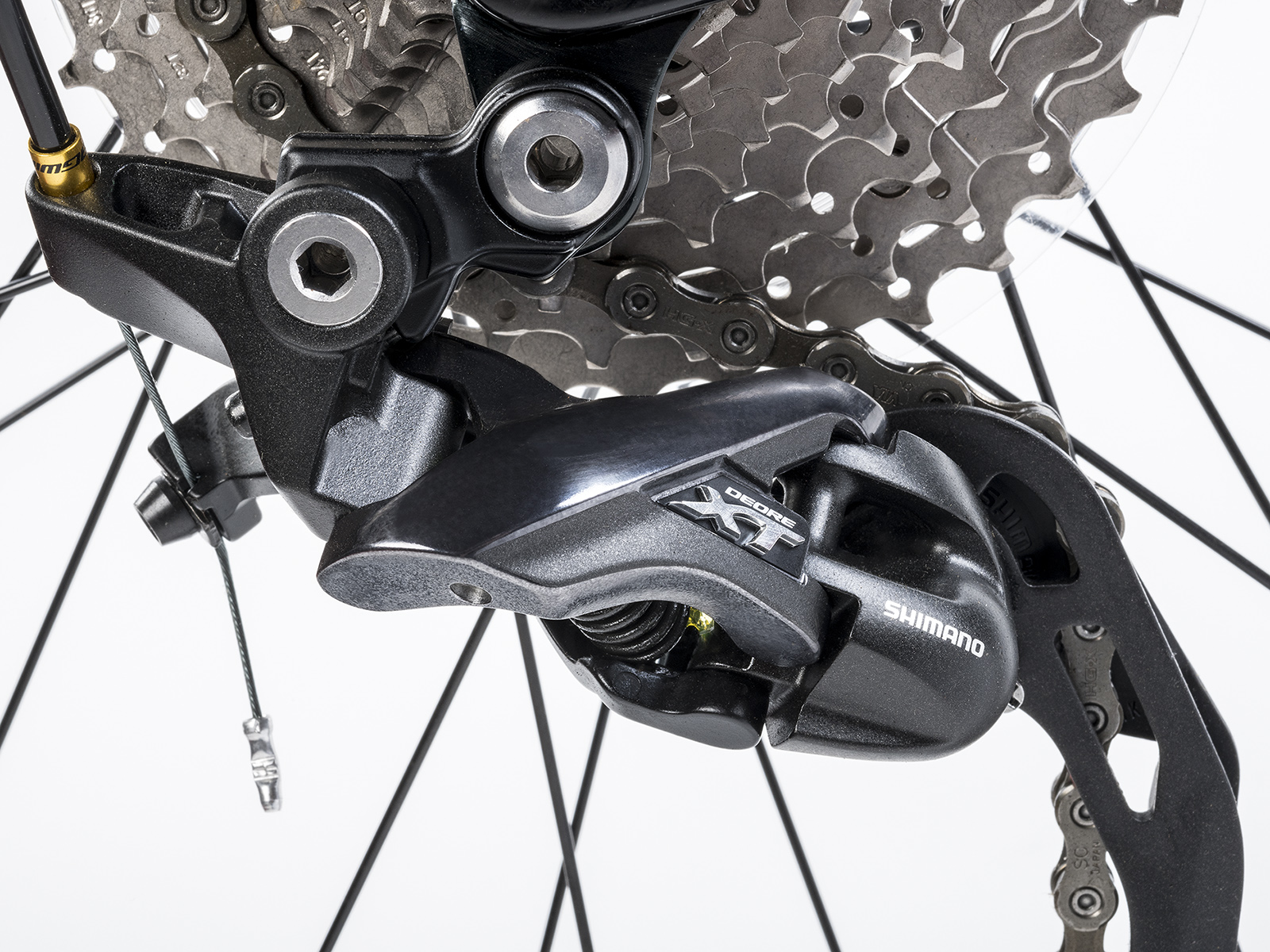

Rear derailleur	SHIMANO XT
Shifters	SHIMANO Deore (30)
Free wheel	SHIMANO HG50-10, 11-36 (10)
Chain	SHIMANO HG54
Hubs	AUTHOR Xenon, 12 × 142 mm thru rear axle, 32 holes

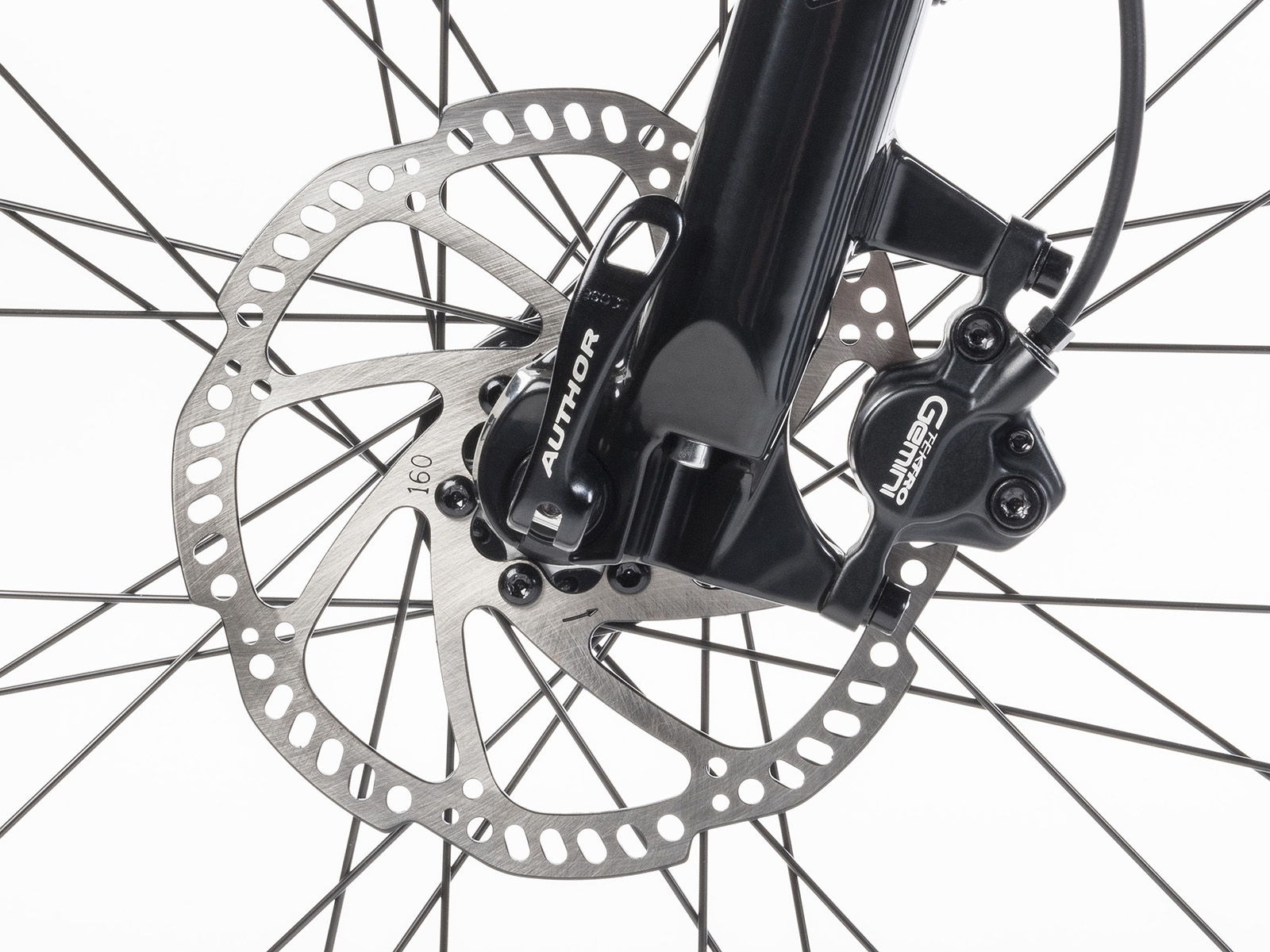

Brakes	TEKTRO HD-T530, disc hydraulic (6" rotors)

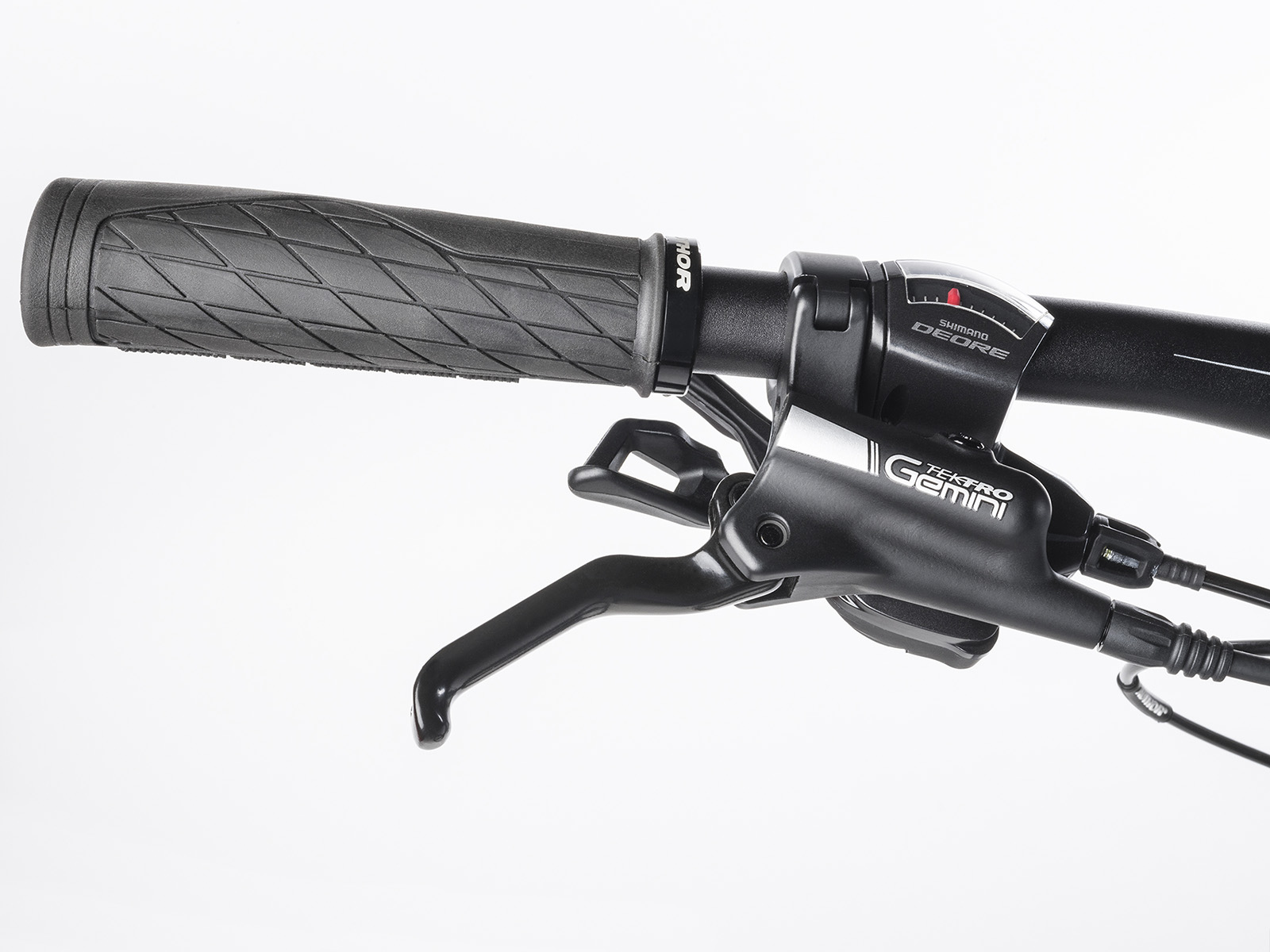

Brakes levers	TEKTRO HD-T530
Rims	AUTHOR Xenon 29, 32 holes
Spokes	black stainless steel 2.0 mm

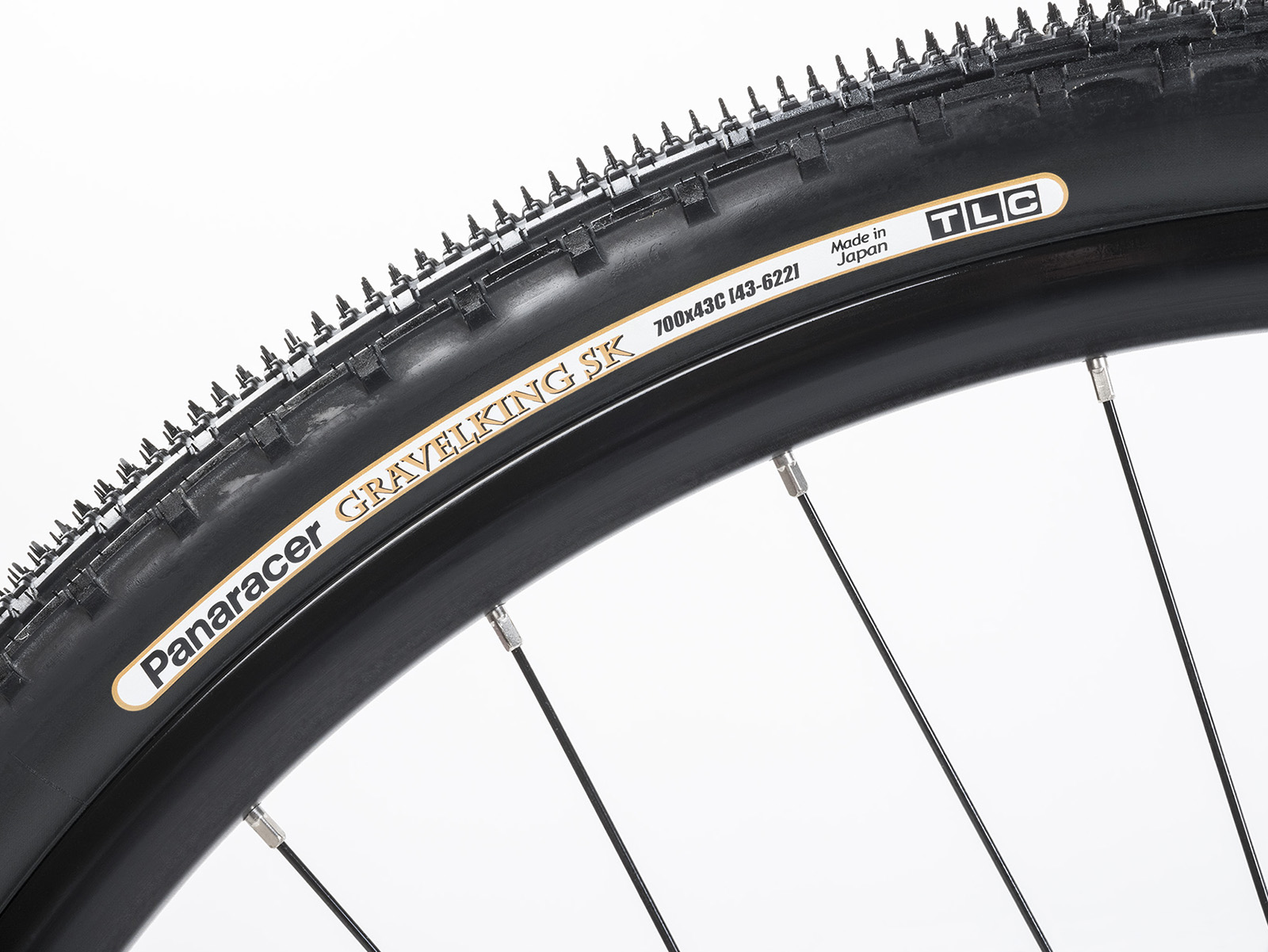

Tires	PANARACER Gravel King SK aramid 700 × 43c
Handlebar	AUTHOR 15 mm, 660 / 680 mm
Grips	AUTHOR Microtech ErgoGrip
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)

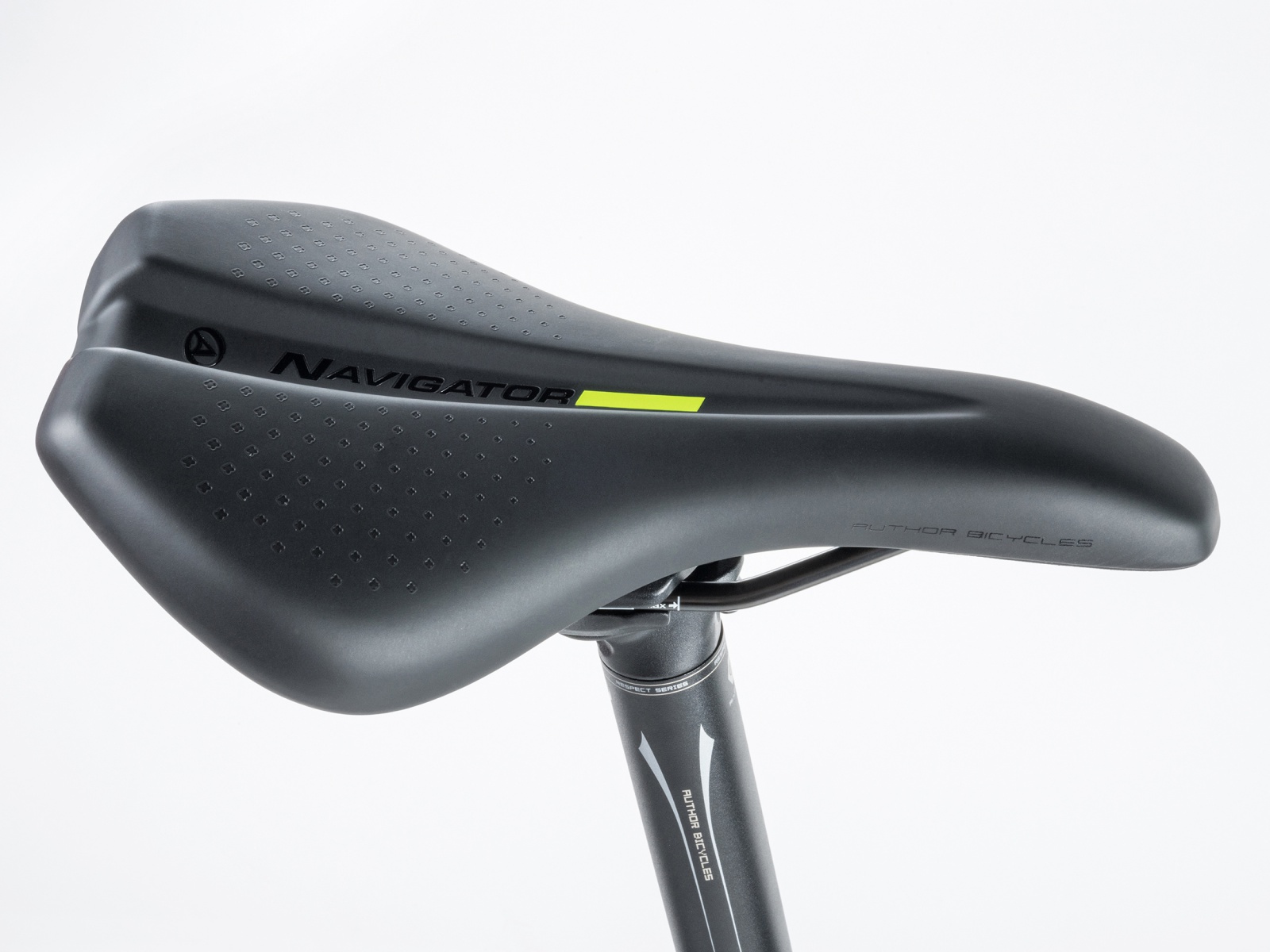

Saddle	AUTHOR Navigator CR
Speed	30
Weight	11,6 kg / 20"

Geometry and sizes

Size	16"	18"	20"	22"
Min. figure ~~[cm]~~	150	164	174	184
Max. figure ~~[cm]~~	166	176	186	200
S/T c-t ~~[mm]~~	406	457	508	559
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	560	580	600	620
T/T a ~~[mm]~~	540	556	574	595
H/T ~~[mm]~~	110	130	150	160
C/S ~~[mm]~~	450	450	450	450
W/B ~~[mm]~~	1055	1076	1097	1117
S/T ang. ~~[°]~~	73	73	73	73
H/T ang. ~~[°]~~	71	71	71	71
F/L ~~[mm]~~	490	490	490	490
B/B drop ~~[mm]~~	60	60	60	60
B/B width ~~[mm]~~	68	68	68	68
Reach ~~[mm]~~	372	386	401	418
Stack ~~[mm]~~	614	633	652	661
F/R ~~[mm]~~	44	44	44	44
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		16"	14 stores				4294950125
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		18"	20 stores				4294950225
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Sedláček s.r.o.		order	order now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	▪ Jan Janíček		in stock	buy now	Velké Meziříčí	725 553 263, info@cyklo-janicek.cz	map
	⟲ In other stores		in 2 days				dealers
		20"	22 stores				4294950325
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ DOMINO STORE CZ,s.r.o.		in stock	buy now	Český Těšín	602 546 780, dominosport@dominosport.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CYKLO ADAM s.r.o.		in stock	buy now	Praha 6	775 085 151, info@cykloadam.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		22"	5 stores				4294950425
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.
