Impulse ASL 2026

Technical specification

Size	29" – 16", 18"
Frame	alloy 29" (ASL)

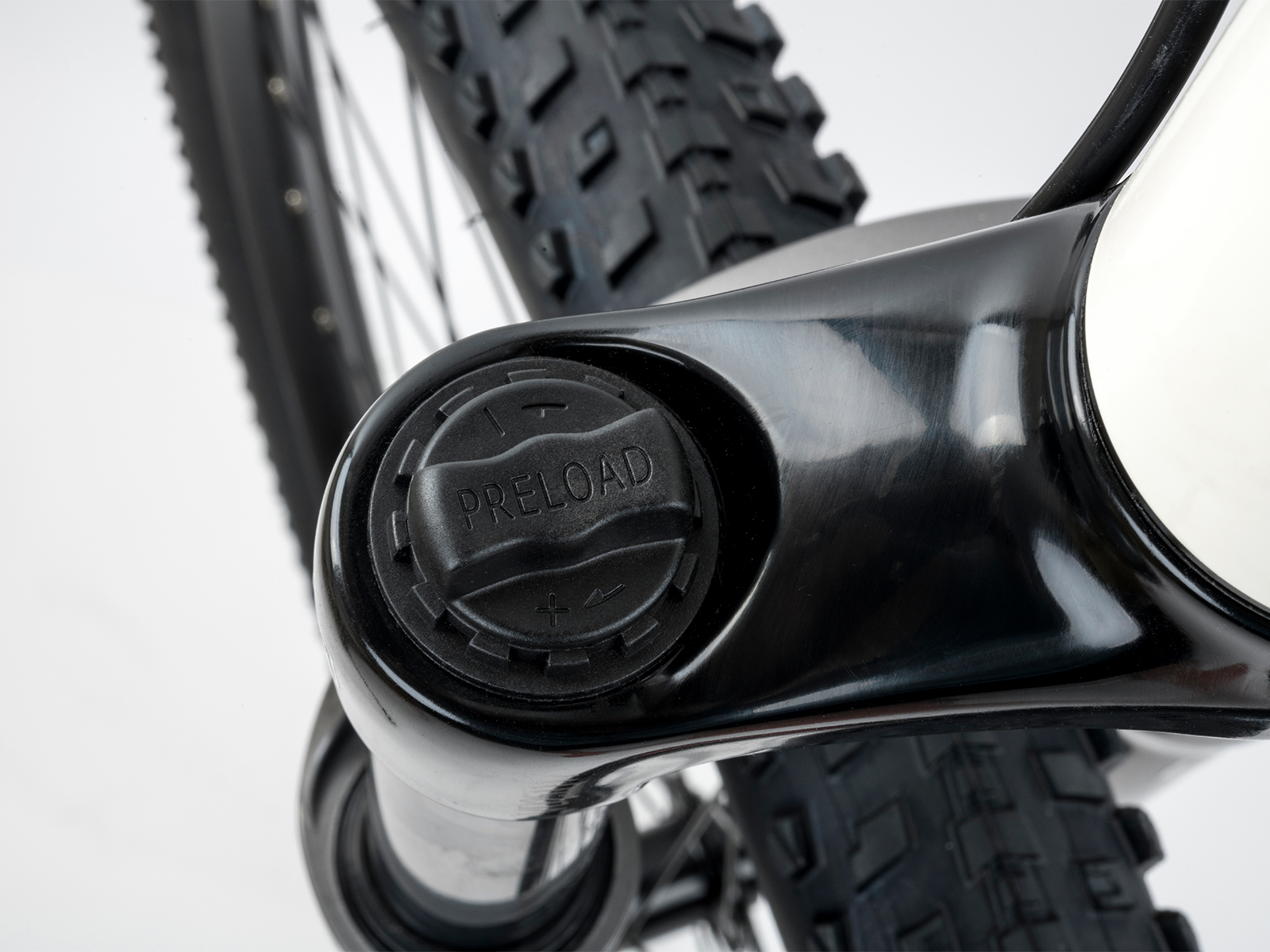

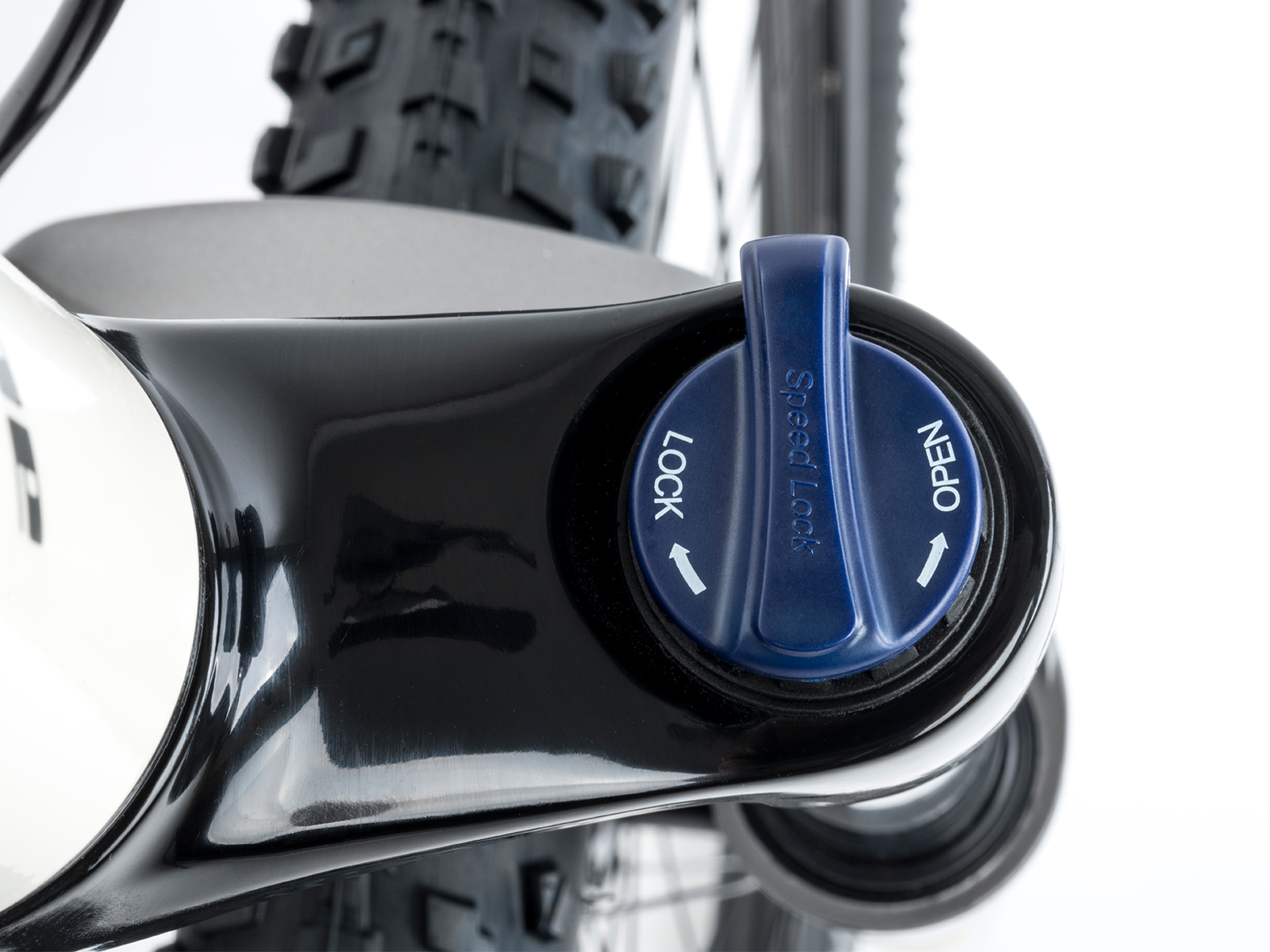

Front fork	SUNTOUR XCM32 LO 29, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"

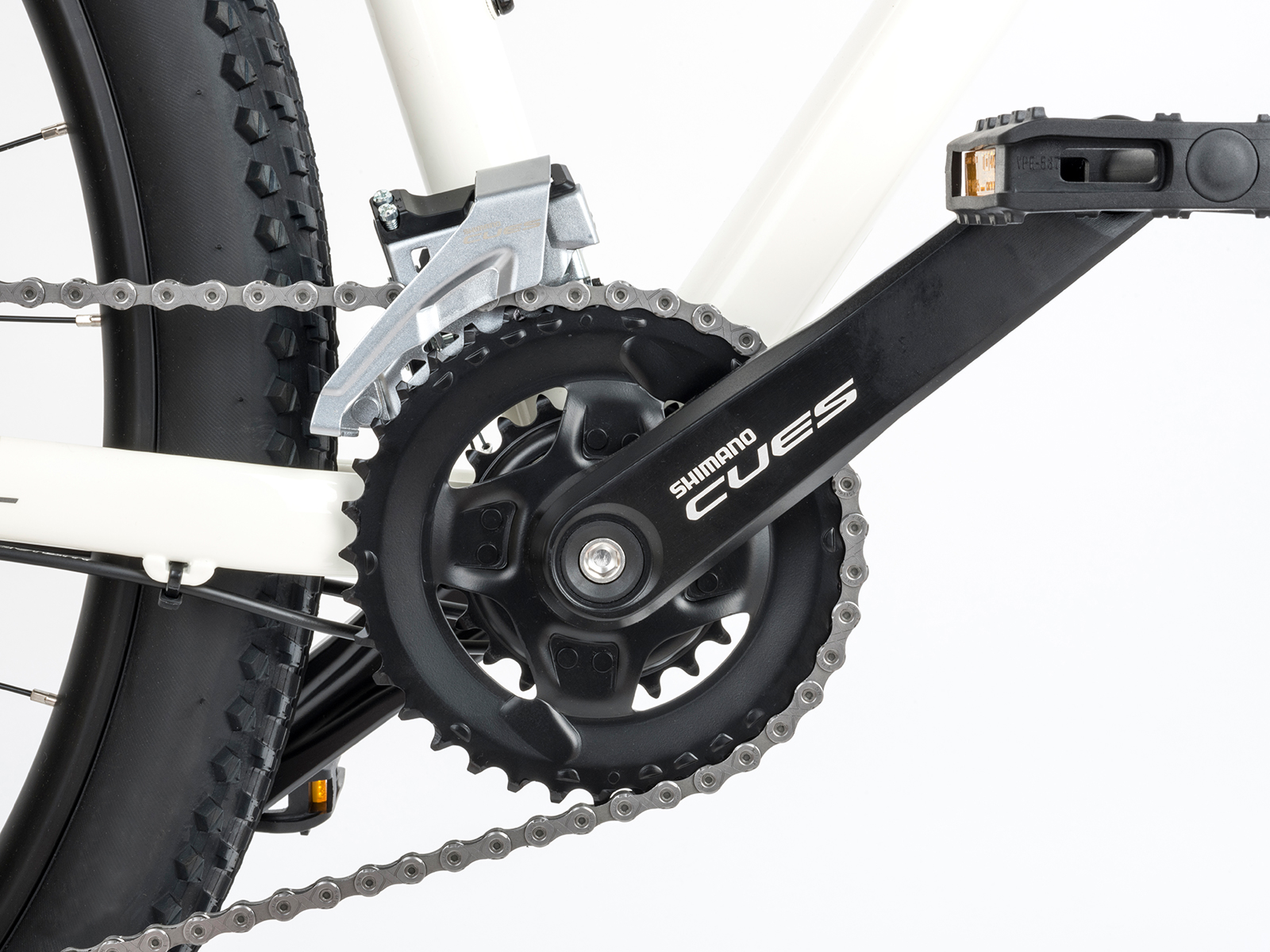

Chain Wheel	SHIMANO Cues 4000-2, 36-22 teeth, 170/175 mm cranks
BBParts	SHIMANO BB-UN101, BB unit

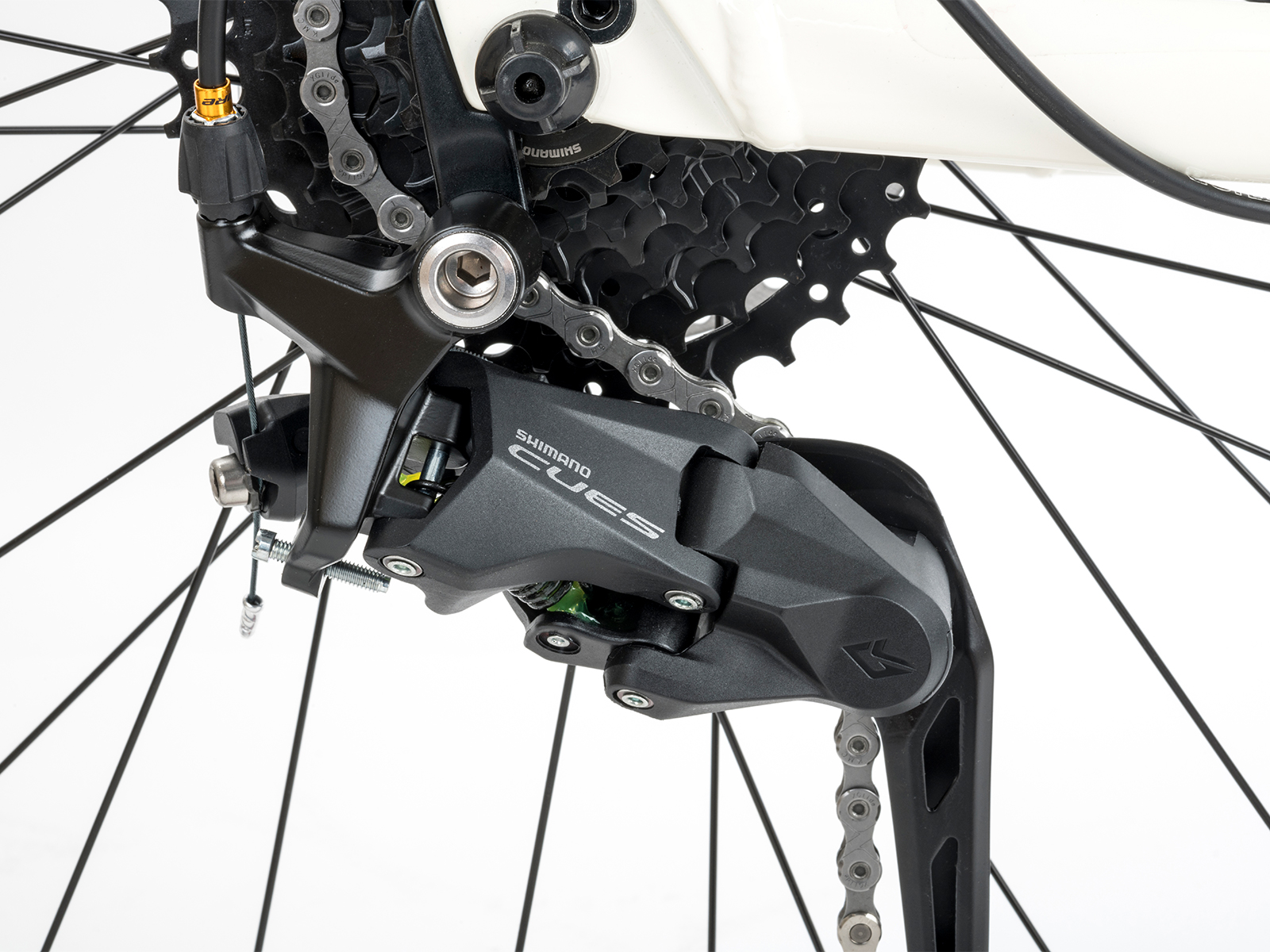

Rear derailleur	SHIMANO Cues 3020

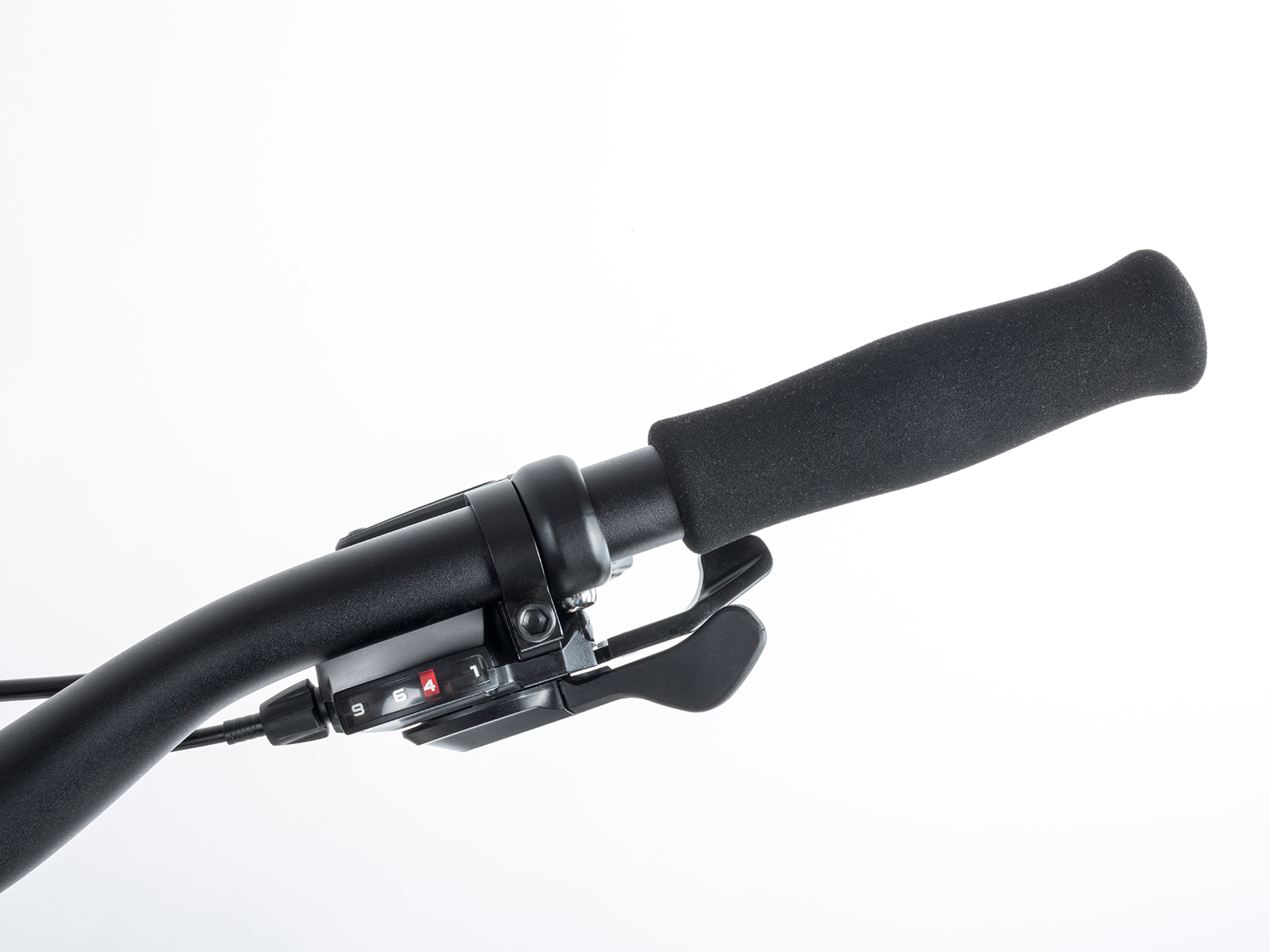

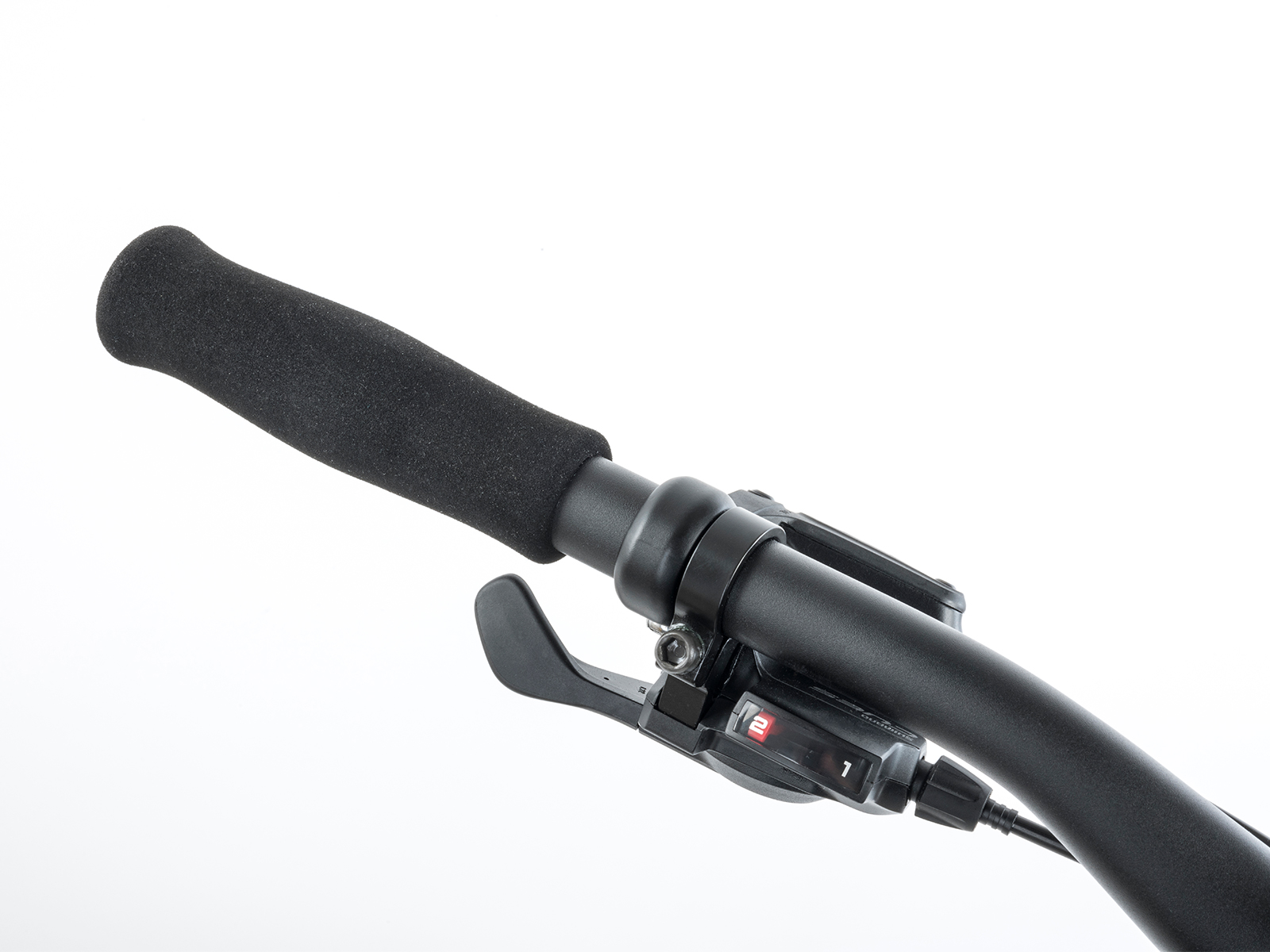

Shifters	SHIMANO Cues 4000 (18)
Free wheel	SHIMANO CS-LG300-9, 11-36 teeth (9)
Chain	KMC XGlide
Hubs	QUANDO Disc, 32 holes

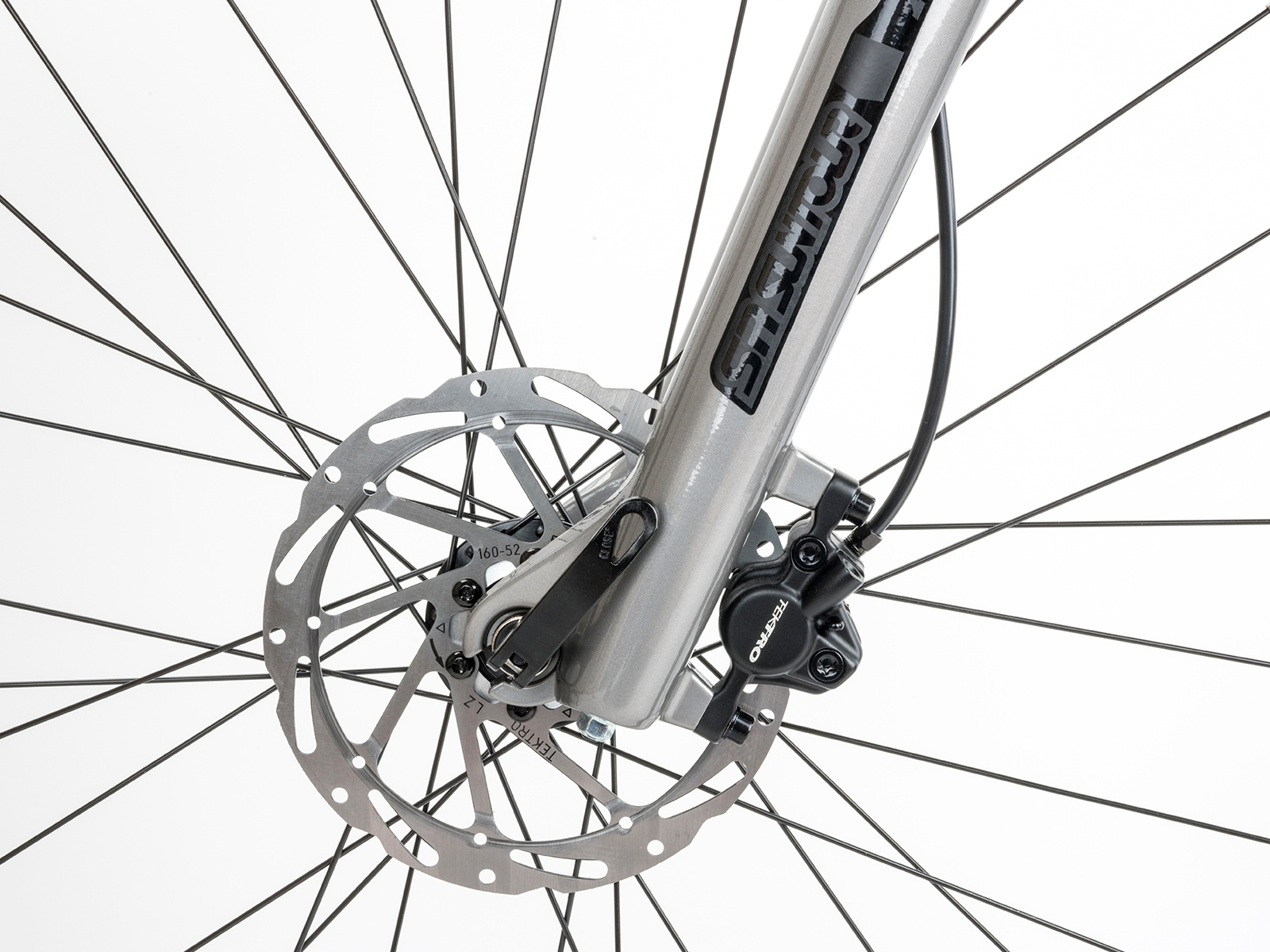

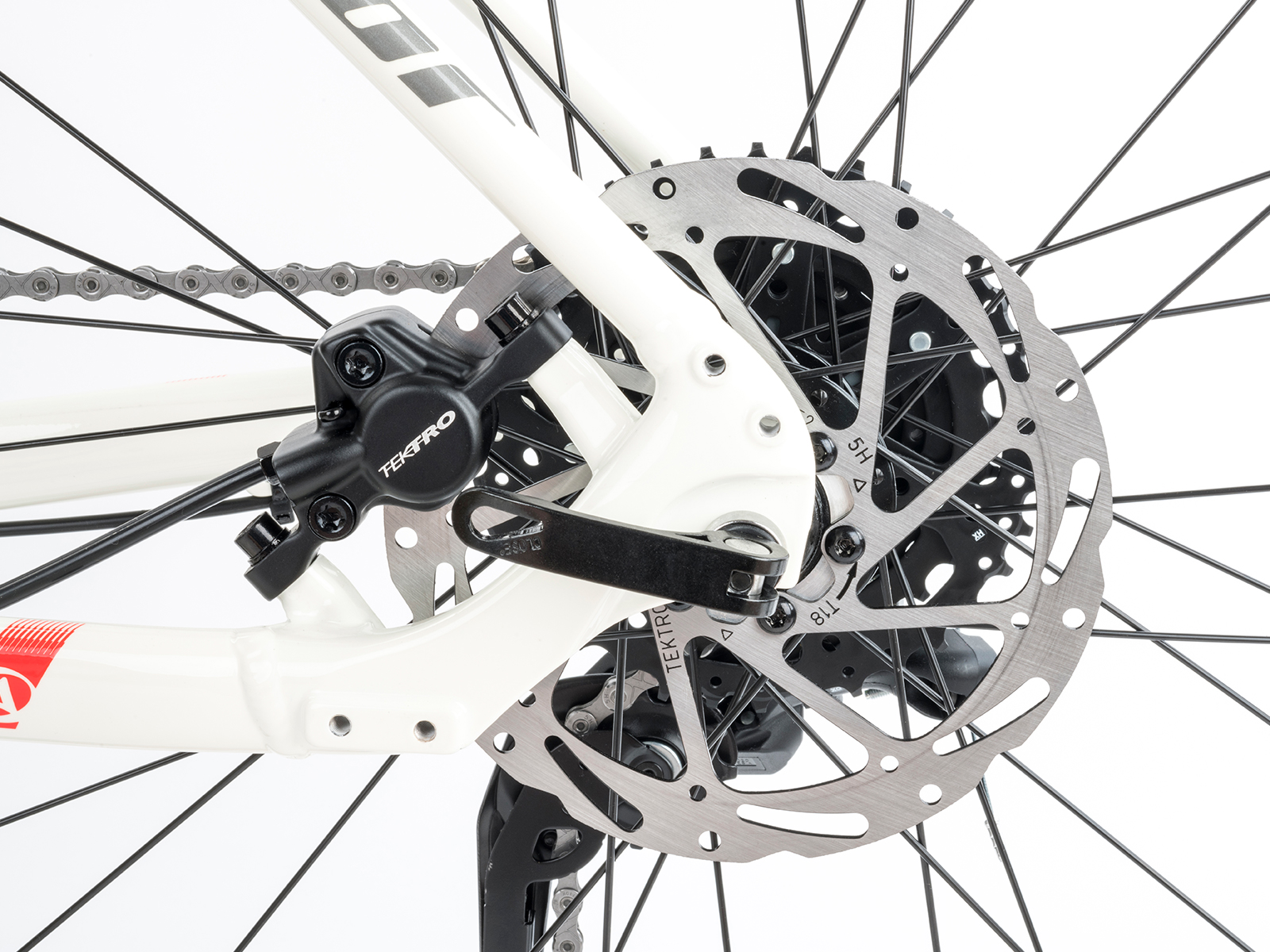

Brakes	TEKTRO HD-M276, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M276 WS

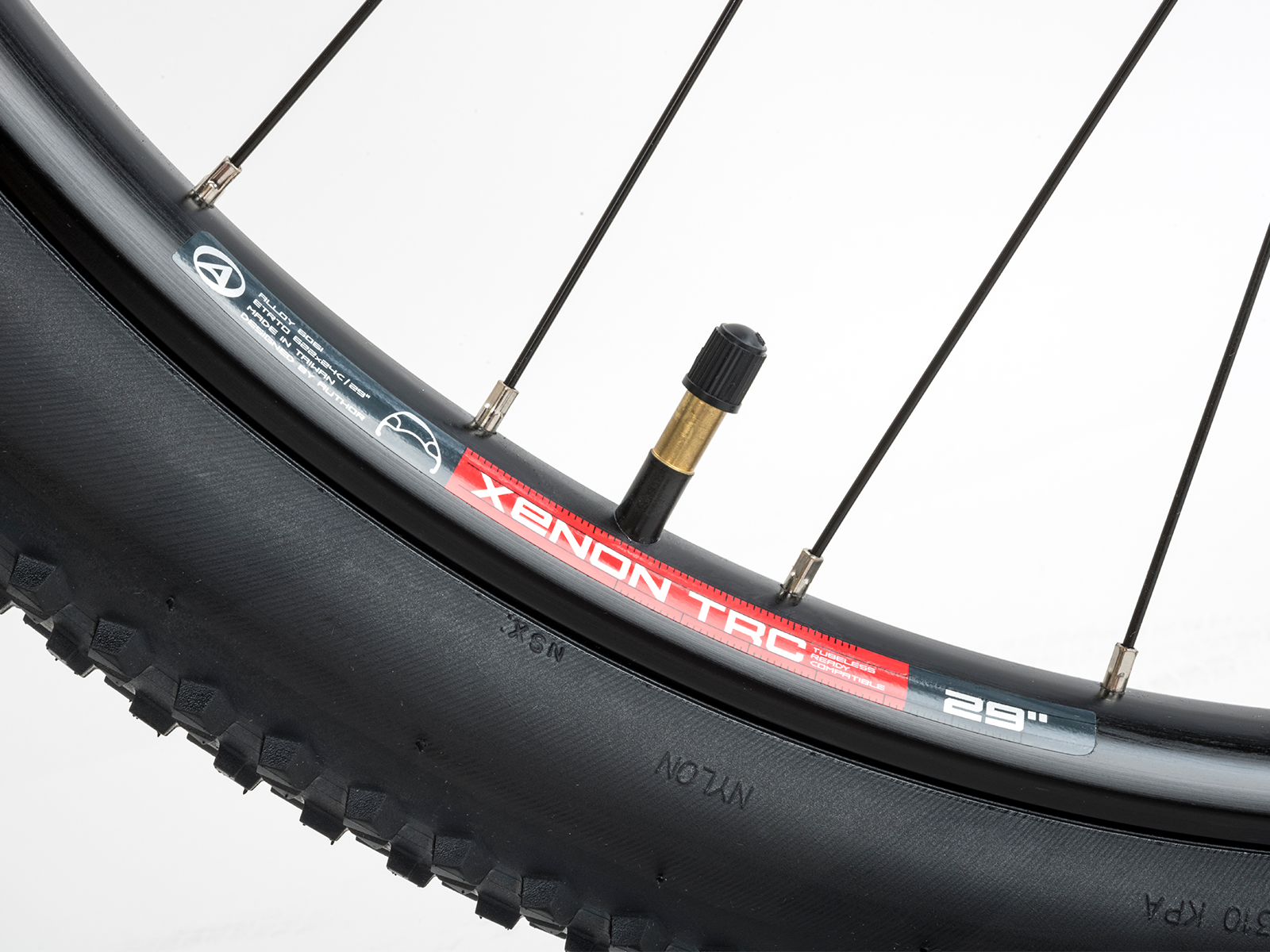

Rims	AUTHOR Xenon 29 TRC, 32 holes
Spokes	black stainless steel 1.8 mm

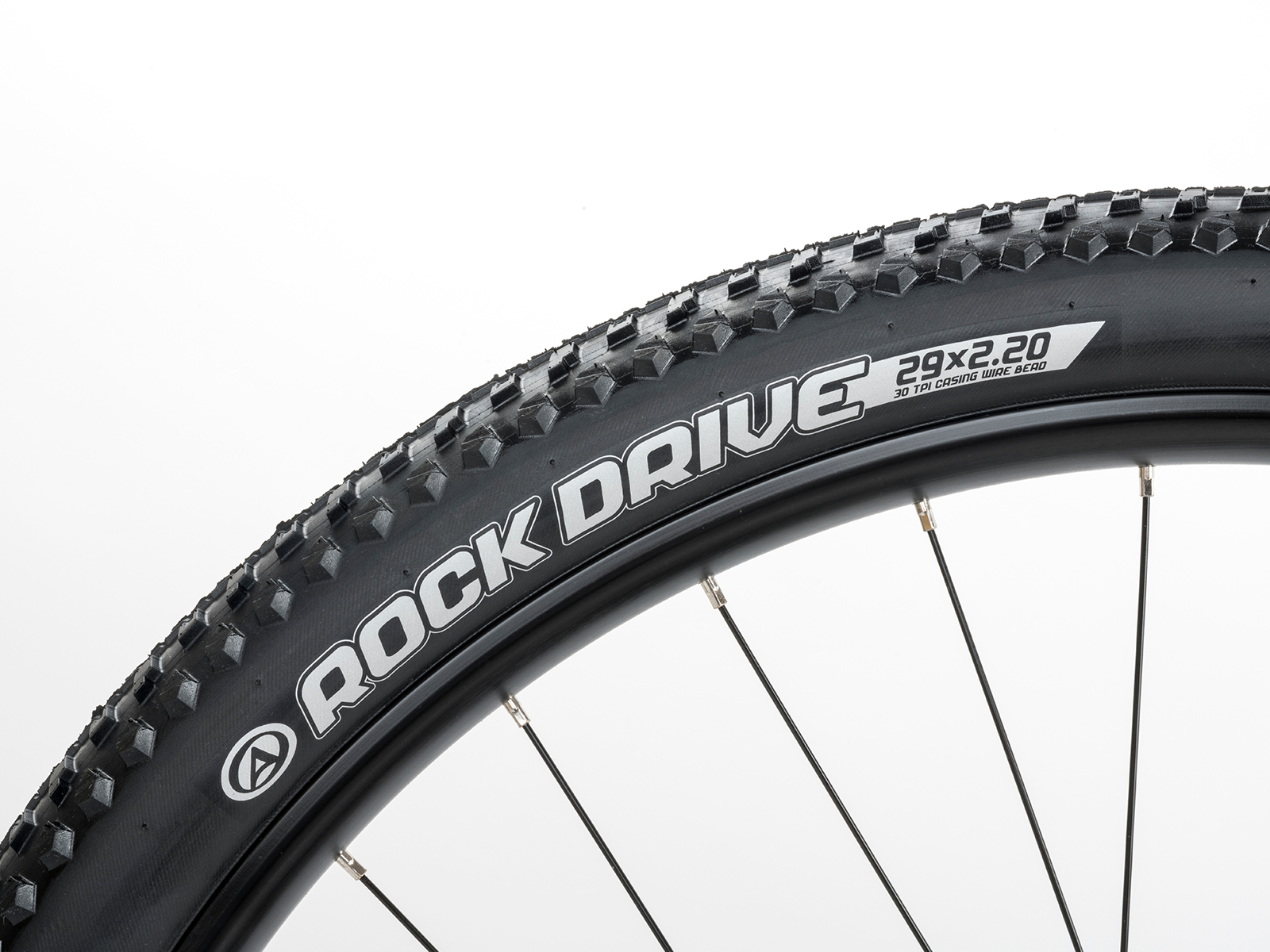

Tires	AUTHOR Rock Drive, 29" x 2.20"
Pedals	plastic

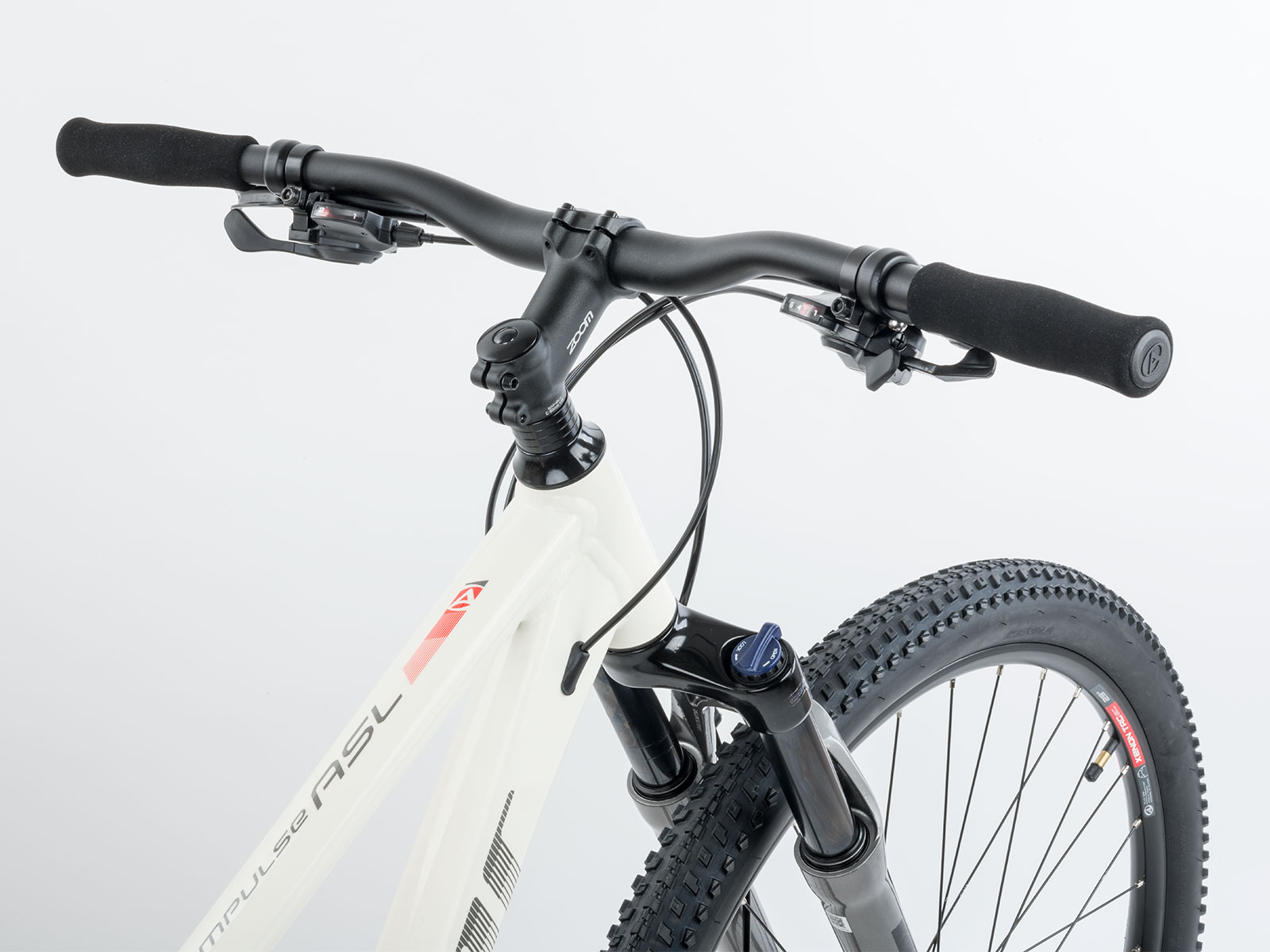

Handlebar	AUTHOR alloy, rise 25 mm, 660/680 mm
Grips/Bar tapes	high density foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

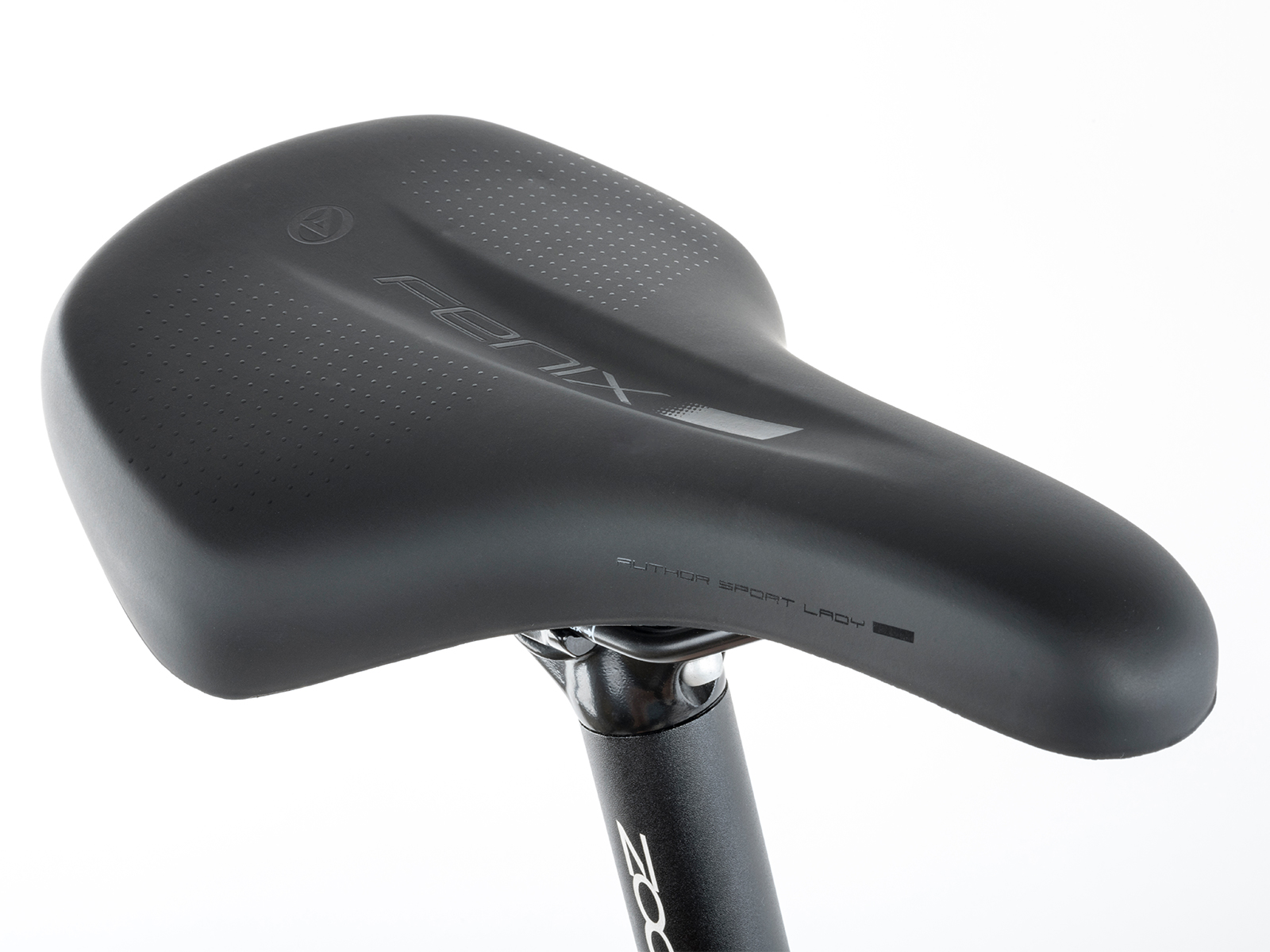

Saddle	AUTHOR Fenix
Speed	18

Geometry and sizes

Size	29"/16"	29"/18"
Min. figure ~~[cm]~~	155	166
Max. figure ~~[cm]~~	168	182
S/T c-t ~~[mm]~~	406	457
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	580	600
T/T a ~~[mm]~~	0	0
H/T ~~[mm]~~	115	120
C/S ~~[mm]~~	450	450
W/B ~~[mm]~~	1119	1139
S/T ang. ~~[°]~~	74	74
H/T ang. ~~[°]~~	69	69
F/L ~~[mm]~~	510	510
B/B drop ~~[mm]~~	60	60
B/B width ~~[mm]~~	73	73
Reach ~~[mm]~~	400	418
Stack ~~[mm]~~	629	634
F/R ~~[mm]~~	51	51
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
