Solution 27,5 2023-24

Technical specification

Size	15", 17", 19"

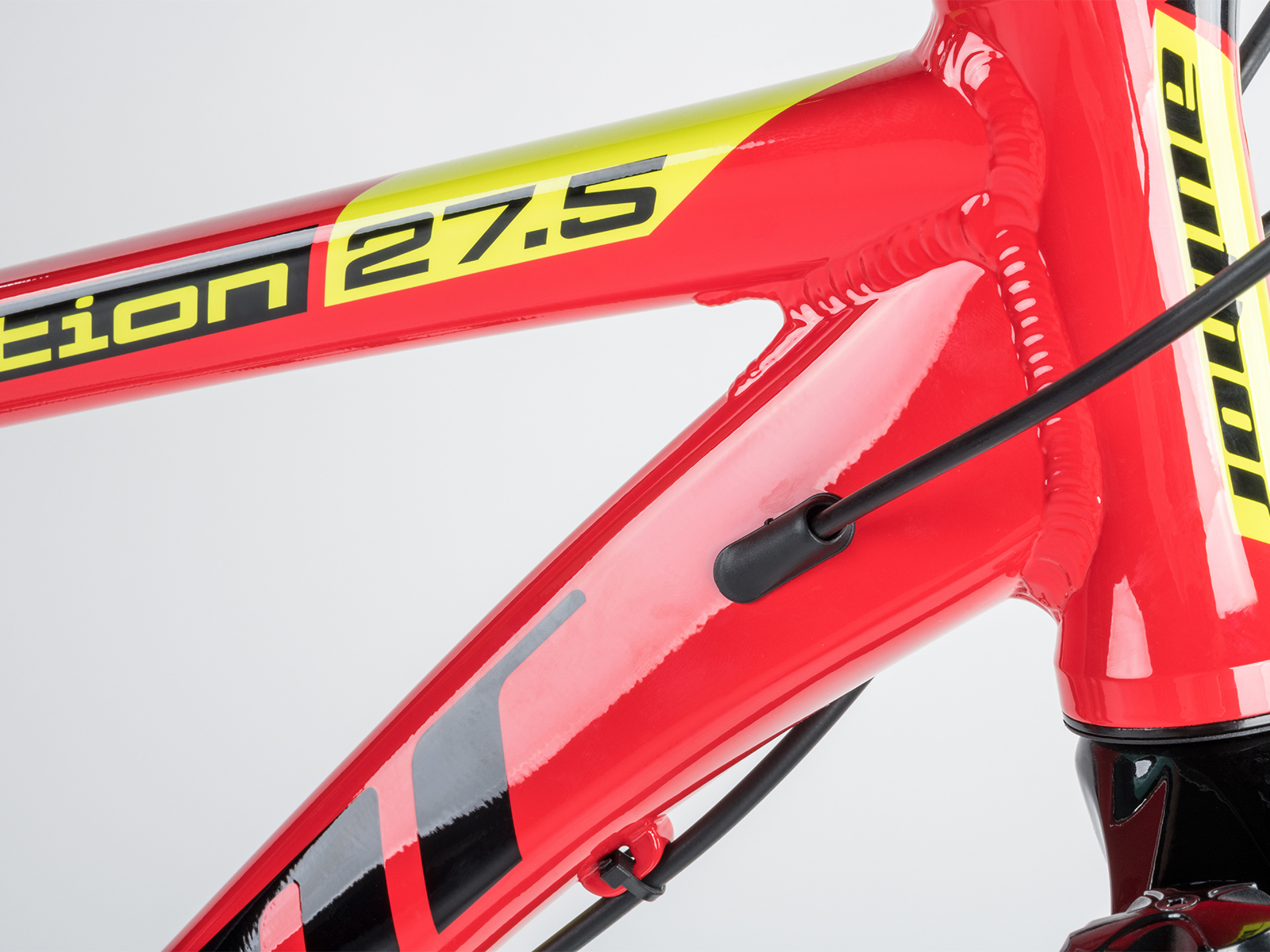

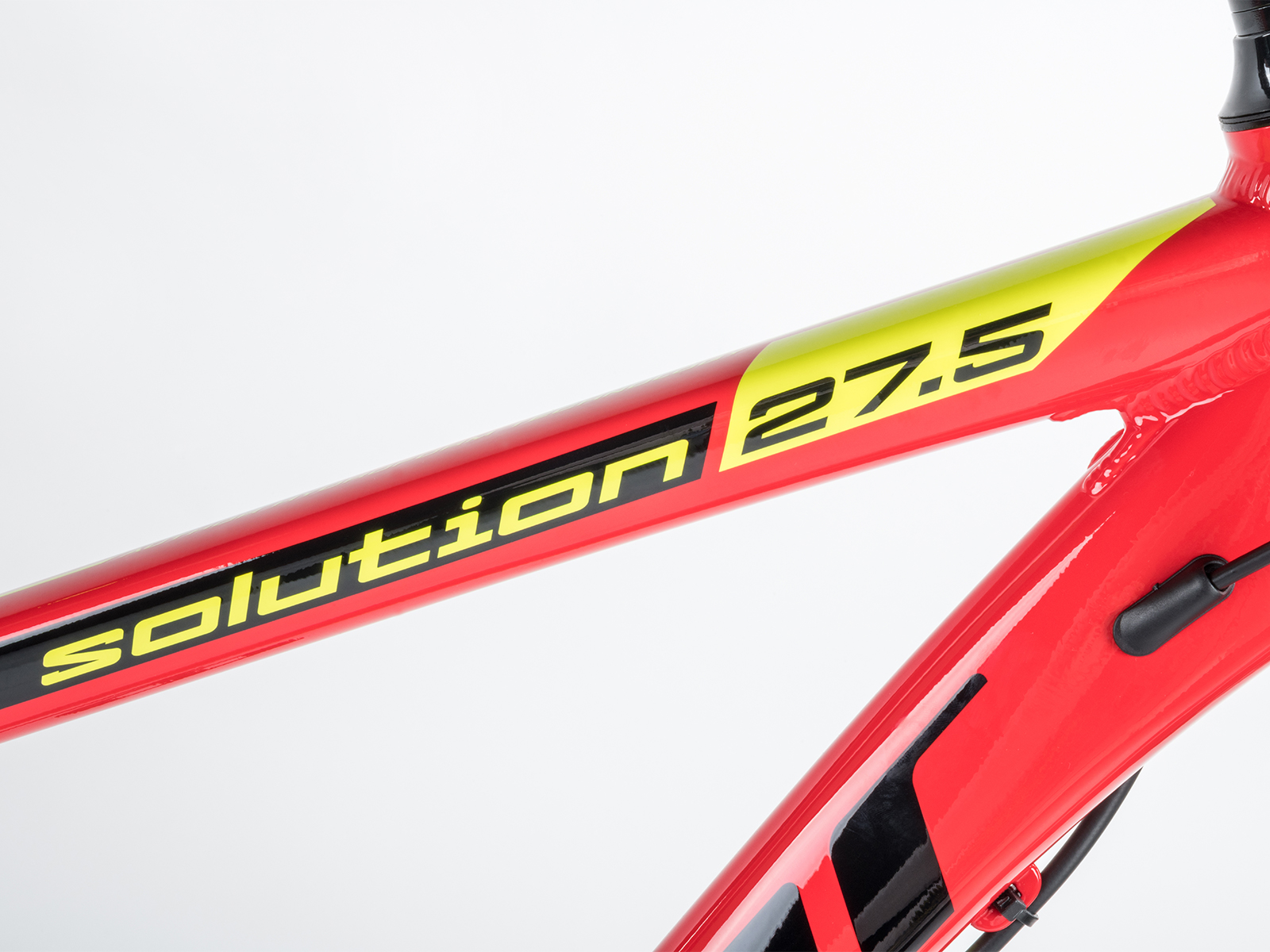

Frame	alloy 6061 27.5"
Front fork	RST Blaze 27.5 ML, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"

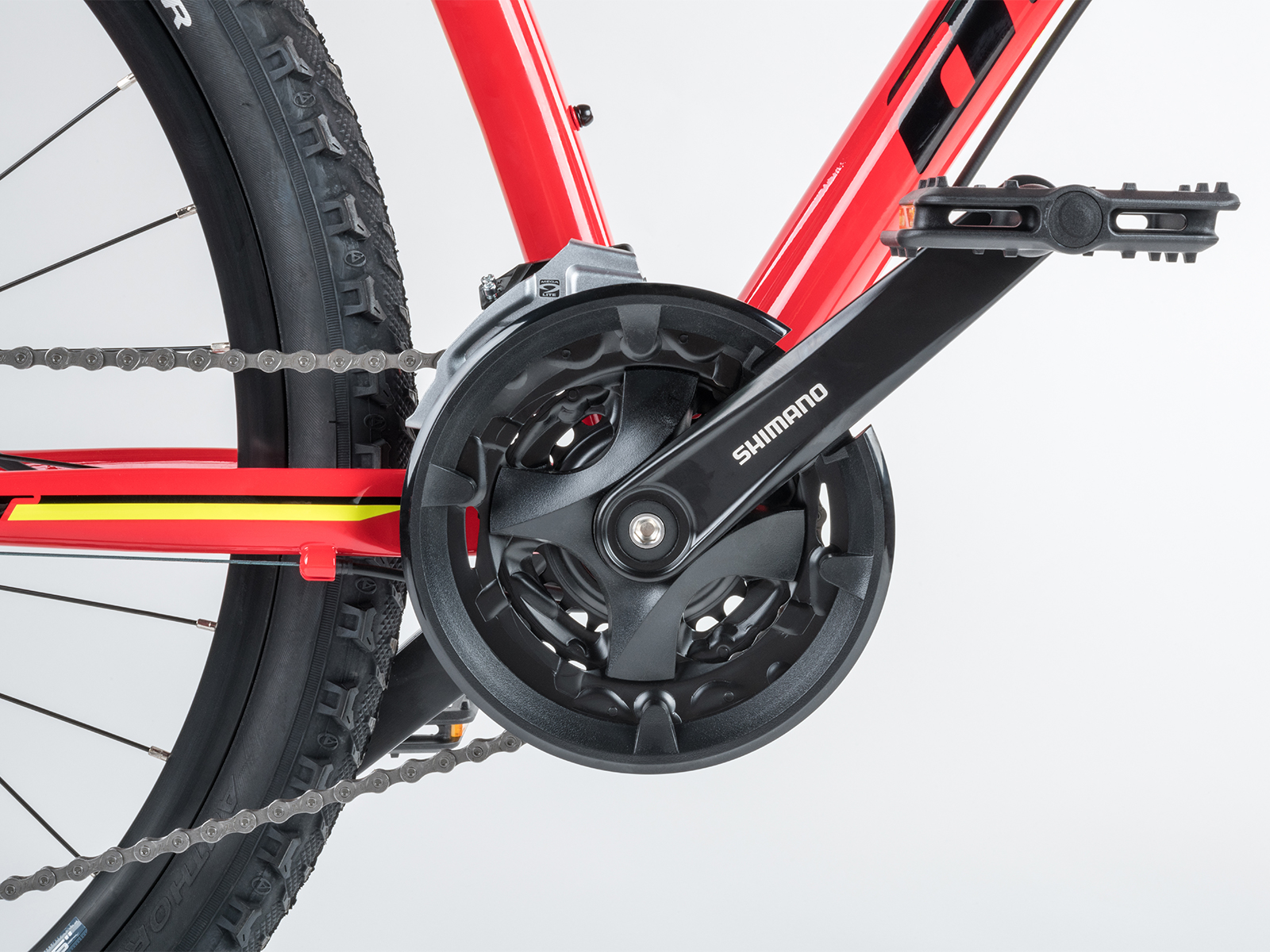

Chain Wheel	SHIMANO MT101, 40-30-22 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-UN101, cartridge
Front derailleur	SHIMANO Altus (34.9)

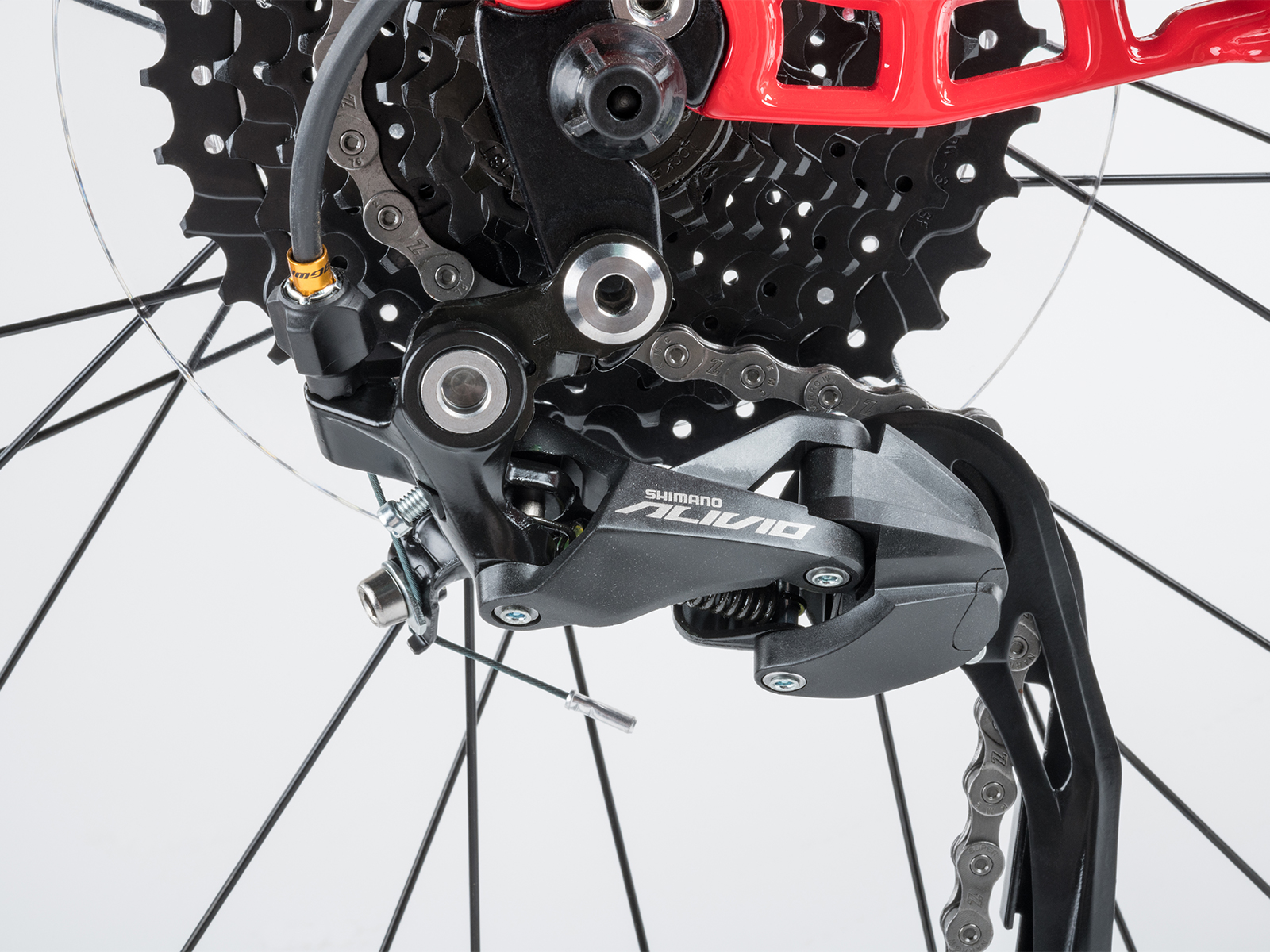

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (27)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

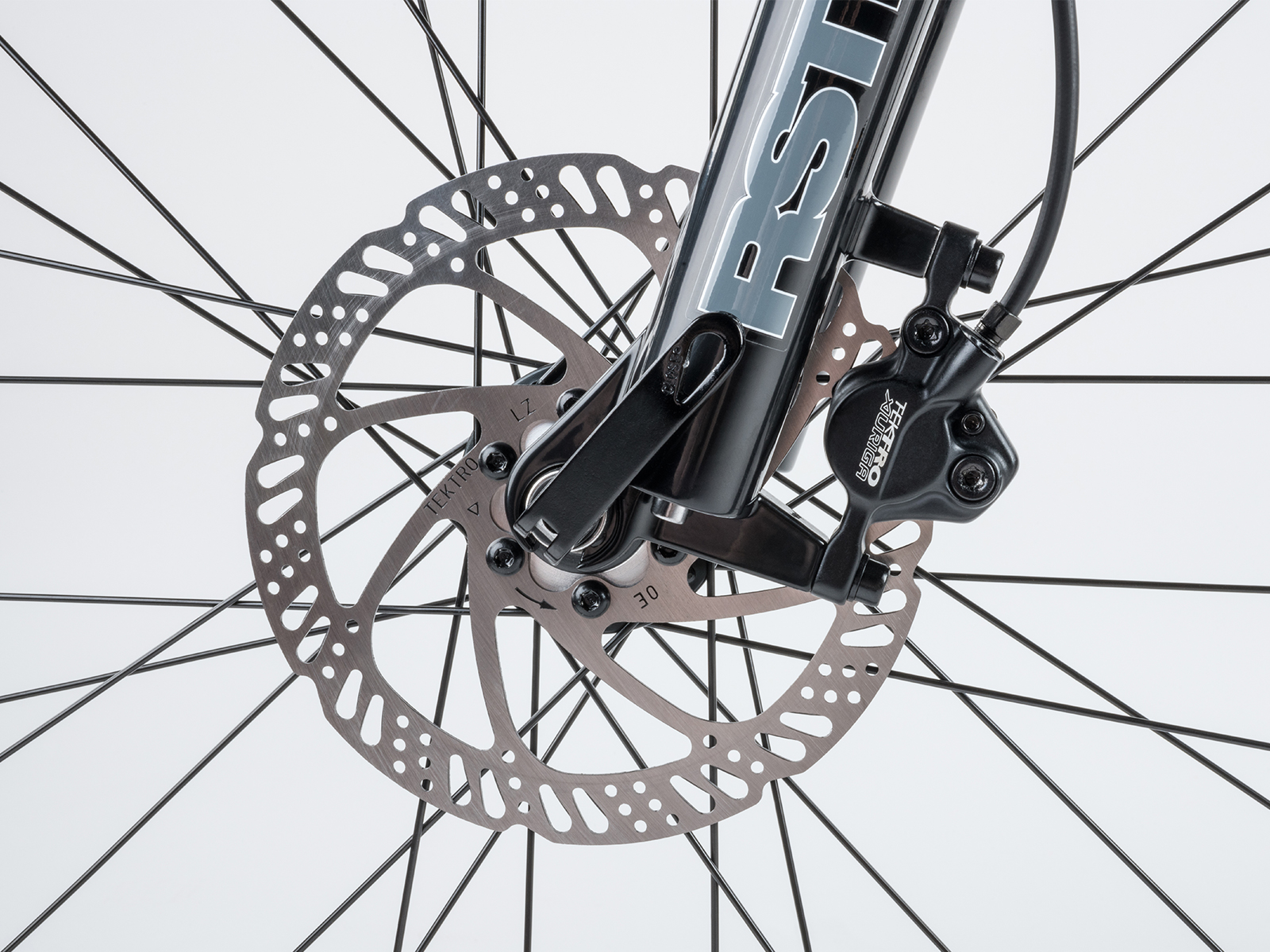

Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M280

Rims	AUTHOR Xenon 27.5, 32 holes
Spokes	black steel
Tires	AUTHOR Rocket 27.5" × 2.10"
Pedals	plastic
Handlebar	AUTHOR rise 15 mm, 9°, 680 / 700 mm
Grips	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

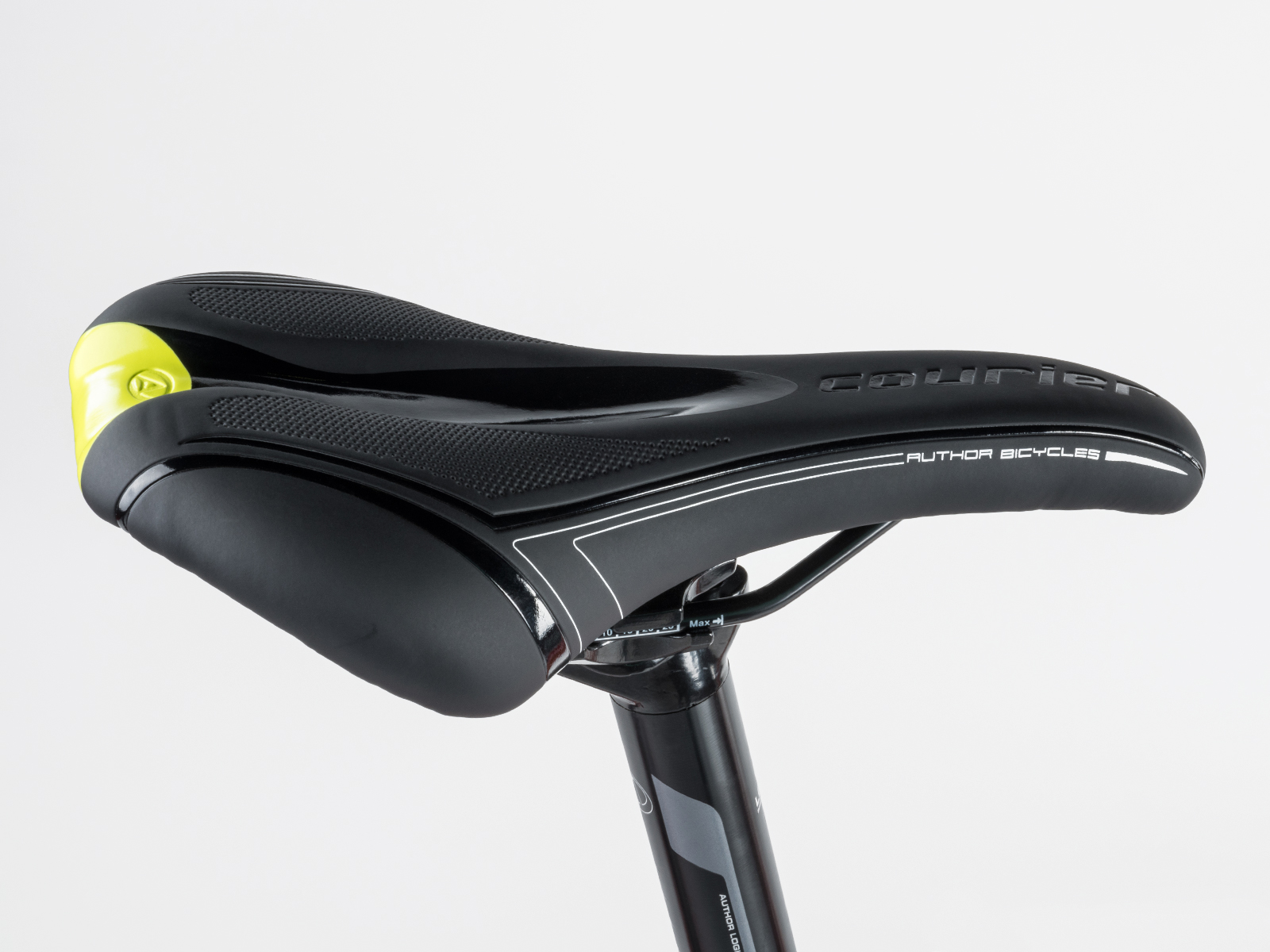

Saddle	AUTHOR Courier
Speed	27
Weight	14,4 kg / 17"

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	570	590	615
T/T a ~~[mm]~~	540	554	577
H/T ~~[mm]~~	115	125	130
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1050	1076	1101
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	495	495	495
B/B drop ~~[mm]~~	35	35	35
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	358	378	401
Stack ~~[mm]~~	593	602	607
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
