Size | 15" (27.5") / 17", 19", 21" (29") |
---|---|
Frame | alloy 6061 27.5" / 29" |
Front fork | RST Blaze 27.5 / 29 TnL, lock out (100 mm) |
Head parts | PRESTINE Integrated, 1.5" tapered |
Chain Wheel | SHIMANO M510-1, 34 teeth, 170 / 175 mm cranks |
BBParts | SHIMANO BB-52, BB unit |
Rear derailleur | SHIMANO Deore |
Shifters | SHIMANO Deore (12) |
Free wheel | SHIMANO CS-M6100-12, 10-51 (12) |
Chain | KMC X12 |
Hubs | QUANDO Disc / SHIMANO, 32 holes |
Brakes | TEKTRO HD-M280, disc hydraulic (6" rotors) |
Brakes levers | TEKTRO HD-M280 |
---|---|
Rims | AUTHOR Xenon TRC 27.5/29, 32 holes |
Spokes | black steel |
Tires | AUTHOR Rocket 27.5" × 2.10" / VITTORIA Barzo 29" × 2.10" |
Pedals | AUTHOR alloy |
Handlebar | AUTHOR rise 25 mm, 9°, 660 mm / AUTHOR Flatbar, 10°, 680 / 700 mm |
Stem | AUTHOR alloy |
Seat post | AUTHOR alloy (31.6) |
Seat clamp | AUTHOR (34.9) |
Saddle | AUTHOR Navigator |
Speed | 12 |
Size | 27,5"/15" | 29"/17" | 29"/19" | 29"/21" |
---|---|---|---|---|
Min. figure | 145 | 168 | 178 | 188 |
Max. figure | 158 | 179 | 189 | 202 |
S/T c-t | 381 | 432 | 483 | 535 |
S/T c-c | 0 | 0 | 0 | 0 |
T/T h | 570 | 600 | 625 | 645 |
T/T a | 537 | 591 | 610 | 623 |
H/T | 90 | 100 | 115 | 130 |
C/S | 435 | 450 | 450 | 450 |
W/B | 1050 | 1135 | 1161 | 1183 |
S/T ang. | 73 | 74 | 74 | 74 |
H/T ang. | 69 | 69 | 69 | 69 |
F/L | 495 | 510 | 510 | 510 |
B/B drop | 35 | 65 | 65 | 65 |
B/B width | 73 | 73 | 73 | 73 |
Reach | 367 | 422 | 443 | 459 |
Stack | 593 | 620 | 630 | 648 |
F/R | 44 | 51 | 51 | 51 |
Handlebars | 0 | 0 | 0 | 0 |
Stem | 0 | 0 | 0 | 0 |
Cranks | 0 | 0 | 0 | 0 |
The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.
grey / red / black | 15" = UA#42956421 17" = UA#42956422 19" = UA#42956423 21" = UA#42956424 | |

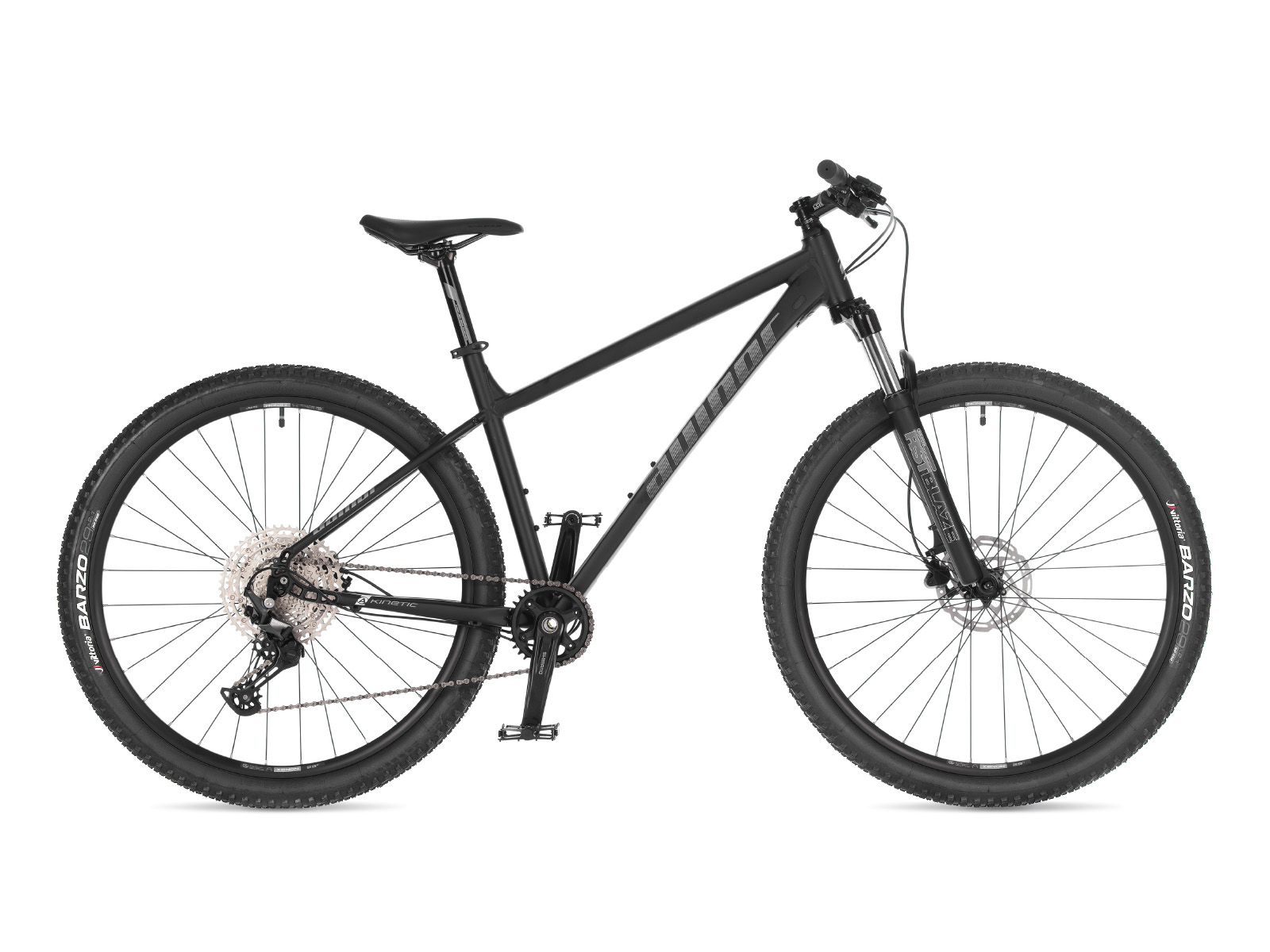

black-matt / silver / white | 17" = UA#42956432 19" = UA#42956433 21" = UA#42956434 |
