AUTHOR Solution 2018

Technical specification

Size	15', 17', 19', 21'
Frame	alloy 6061 27.5'
Front fork	RST Gila 27.5 ML lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8'
Chain Wheel	SUNTOUR XCM 40-30-22 teeth 170 / 175 mm cranks
BBParts	SUNTOUR XCT cartridge
Front derailleur	SHIMANO Altus (34.9)
Rear derailleur	SHIMANO Altus
Shifters	SHIMANO Altus (27)
Free wheel	SHIMANO HG200-9 11-34 (9)
Chain	KMC Z99
Hubs	QUANDO Disc 32 holes
Brakes	TEKTRO Auriga disc hydraulic (6' rotors)
Brakes levers	TEKTRO Auriga

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/2

AKS-500 RKick Stand Author for rear fork fixation. Adjustable for wheel diameter 24"-29". Material AL606 ... more »

1/2

AKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 25mm), recomend ... more »

1/3

ACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »

ACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/2

AXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

X-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

1/5

ACR-F14-AluA tough tubular aluminium front rack. Designed specifically for front suspension fork with brake piv ... more »

AXP-04Modern plastic mudguards suitable for "V" brakes, for sizes 24"-27,5" with universal attachment. Th ... more »

1/2

AXP-07Author AXP-07 mudguards especially developed for Author Cross 700C, Author Mtb 29” and Author Mtb ... more »

1/2

AXP-60High quality AUTHOR AXP full length mudguard set. Fenders are constructed from PET plastic and carry ... more »

	silver-matt / blue / orange	15" = UA#42893001 17" = UA#42893002 19" = UA#42893003

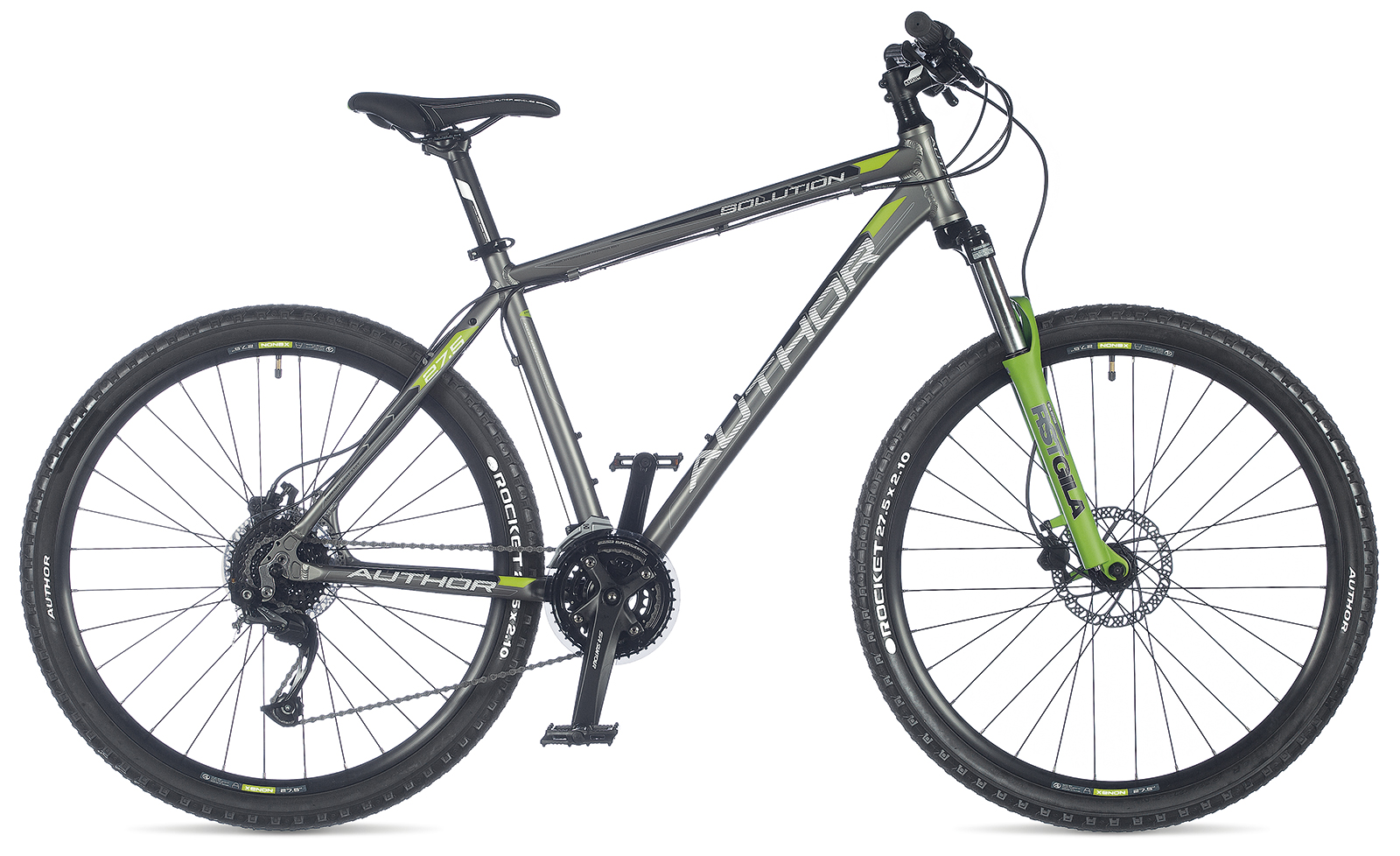

	silver-matt / green	17" = UA#42893012 19" = UA#42893013 21" = UA#42893014
