Instinct 27,5 ASL 2023-24

~~Colour variants~~

Double butted alloy ASL frame with Inner Cable RoutingRST F1RST 27.5 AIR TRL fork, remote lock out controlHydraulic disc brakes SHIMANO BR-MT410SHIMANO Deore rear derailleuer and shifting, 11 speedVITTORIA Barzo 27.5" × 2.25" foldable tiresAUTHOR GripLock foam comfortable ASL gripsAUTHOR Fenix ASL comfortable saddle

~~Buy now~~special price 26 990 Kč

original price ~~31 990 Kč~~

Technical specification

Size	16", 18"

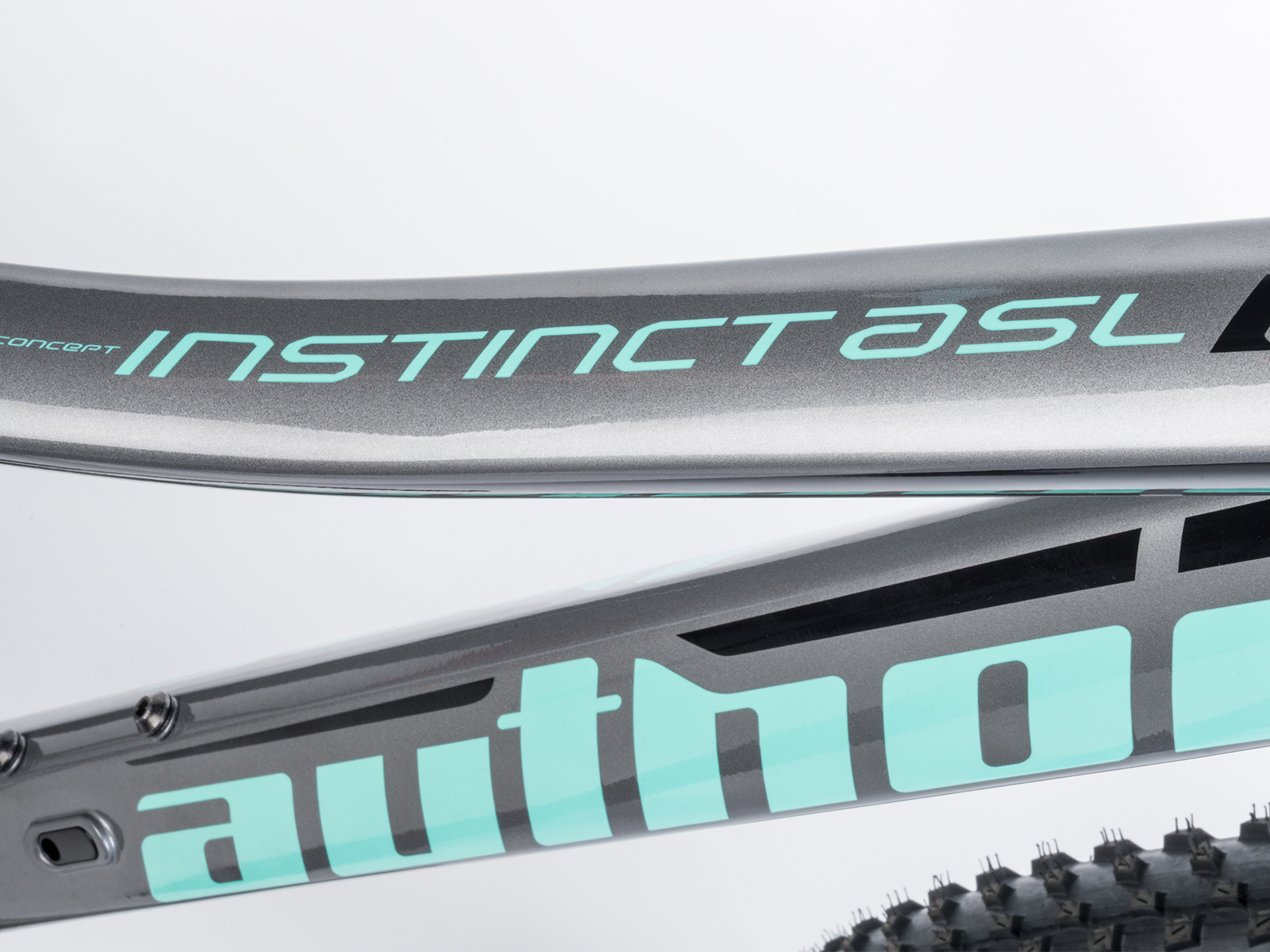

Frame	double butted hydroformed alloy 6061 27.5" (ASL)

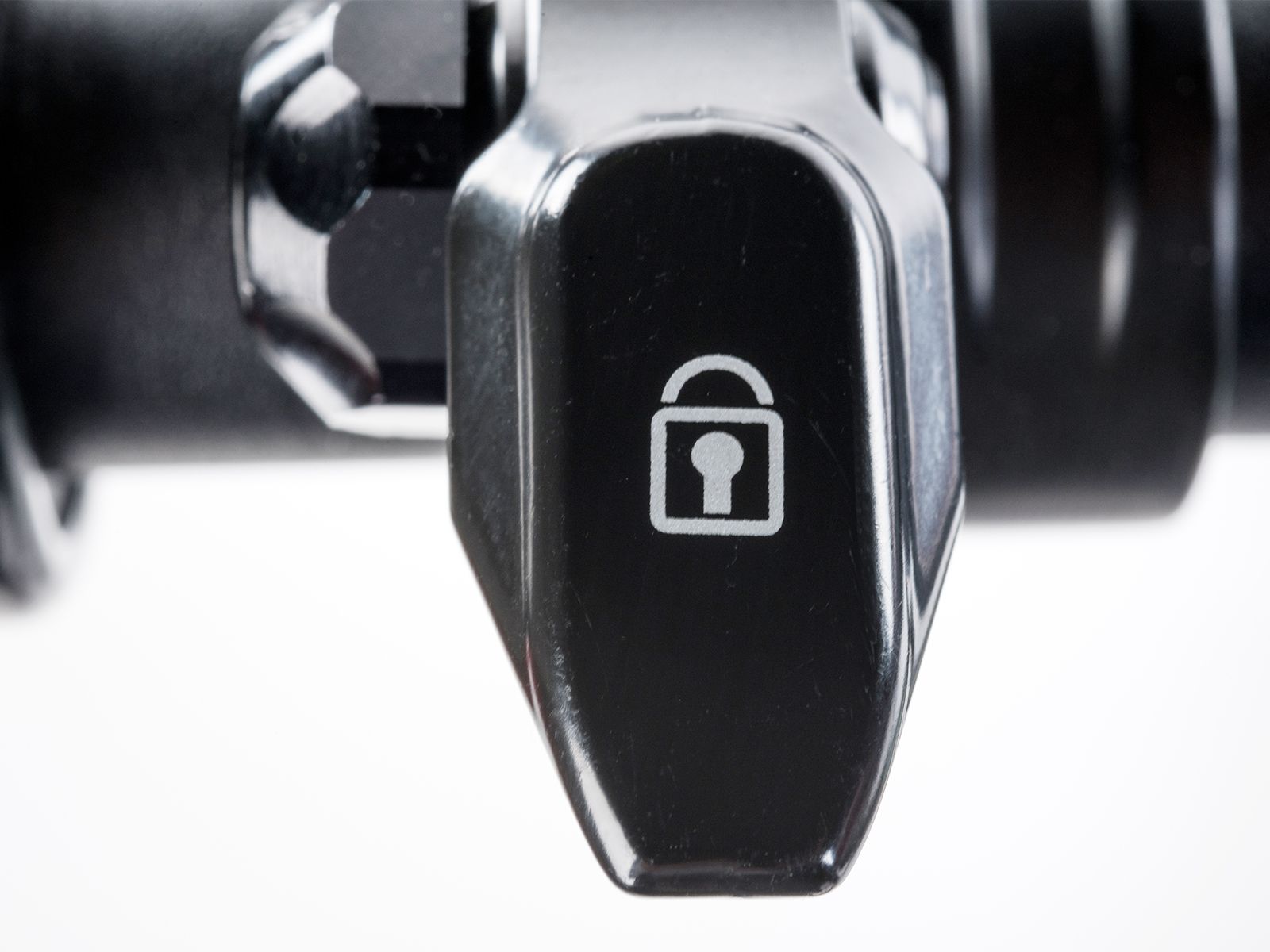

Front fork	RST F1RST 27.5 15 TRL air, remote lock out (100 mm)
Head parts	PRESTINE Integrated 1.5" tapered

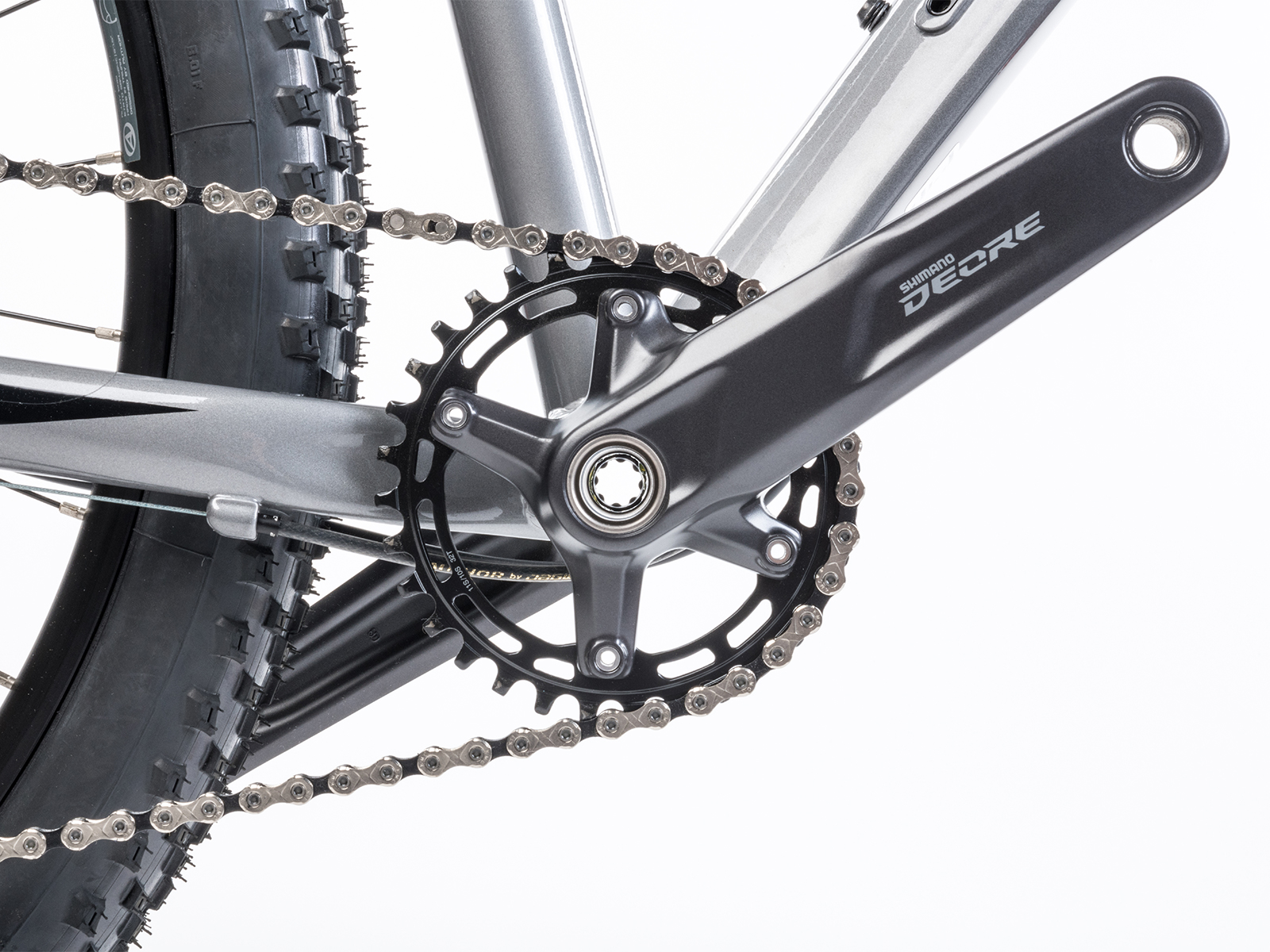

Chain Wheel	SHIMANO M5100-1, 32 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit

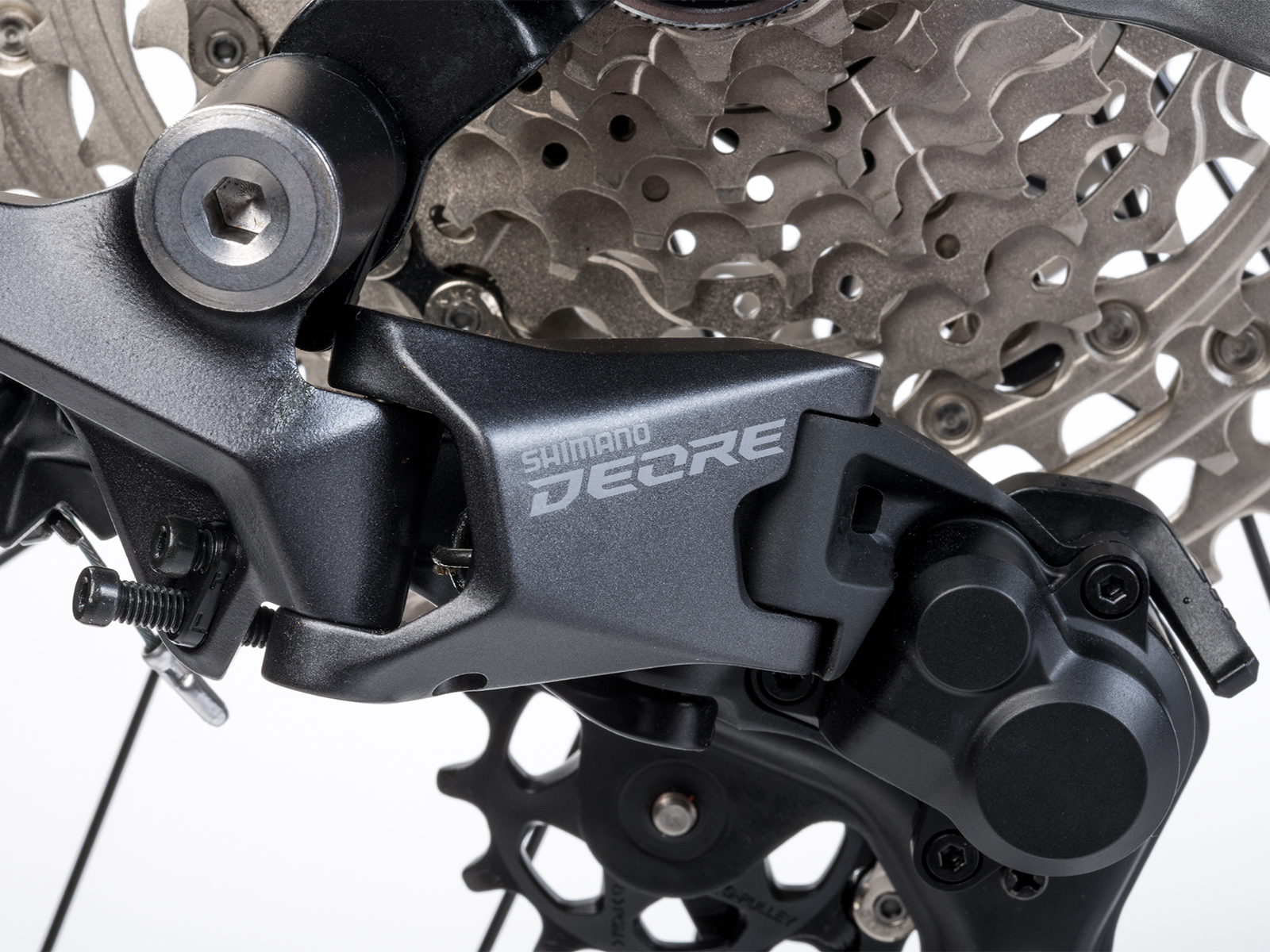

Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (11)

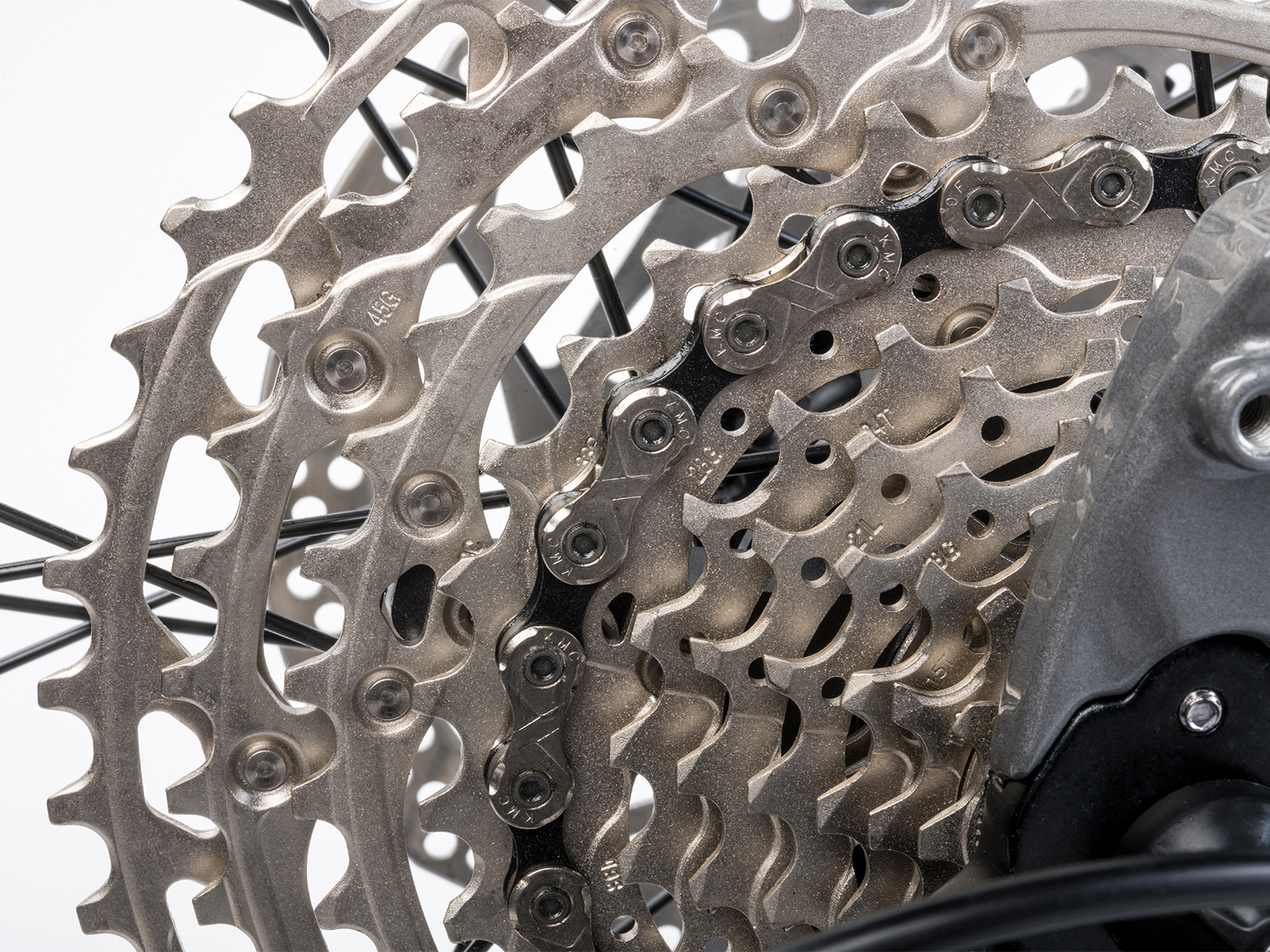

Free wheel	SHIMANO CS-M5100-11, 11-51 (11)
Chain	KMC X11
Hubs	AUTHOR Xenon, 32 holes

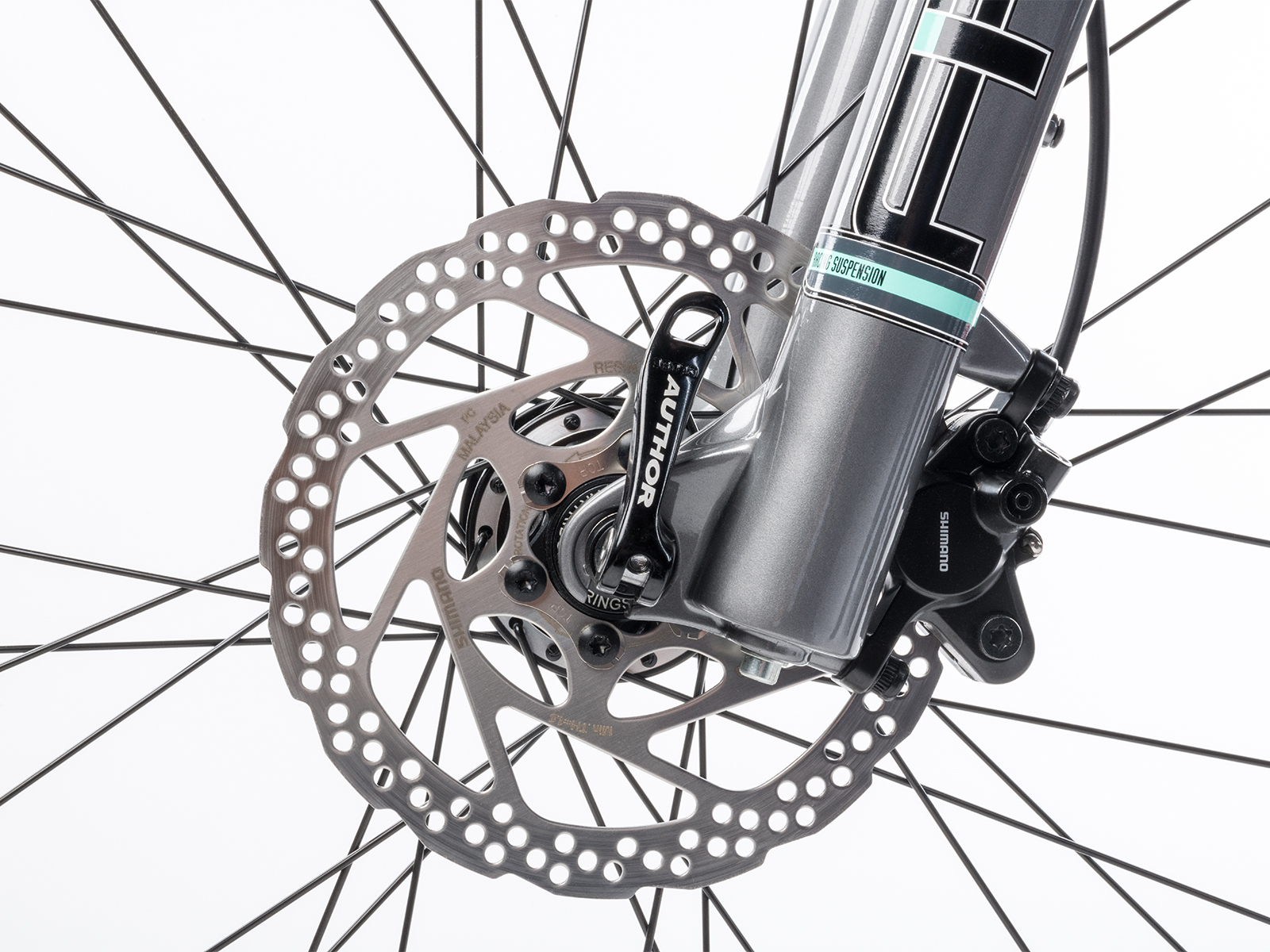

Brakes	SHIMANO BR-MT410, disc hydraulic (6" rotors)

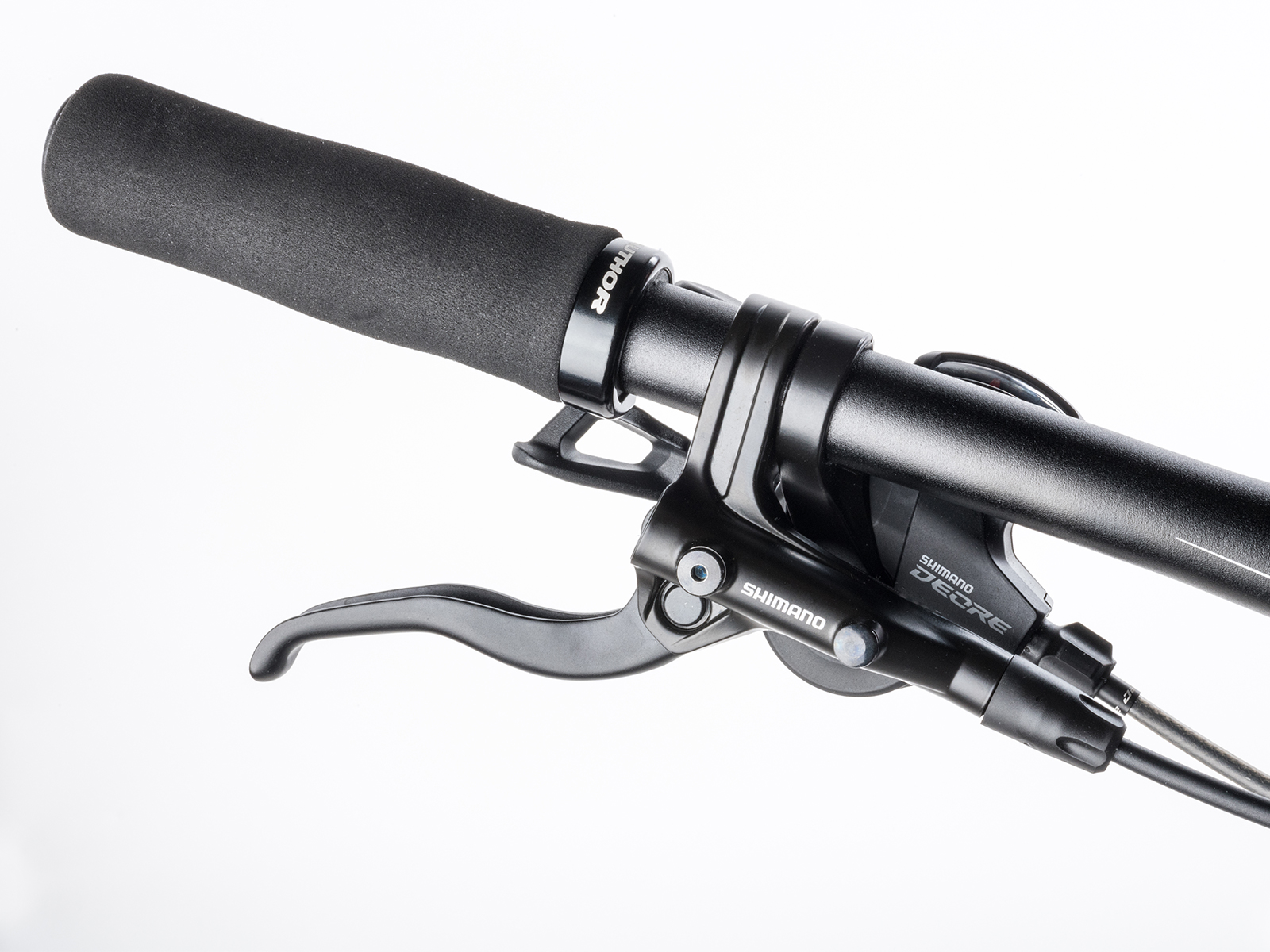

Brakes levers	SHIMANO BL MT401

Rims	AUTHOR Xenon TRC 27.5, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	VITTORIA Barzo aramid 27.5" × 2.25"
Handlebar	AUTHOR rise 15 mm, 9°, 660 / 680 mm
Grips	AUTHOR GripLock foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

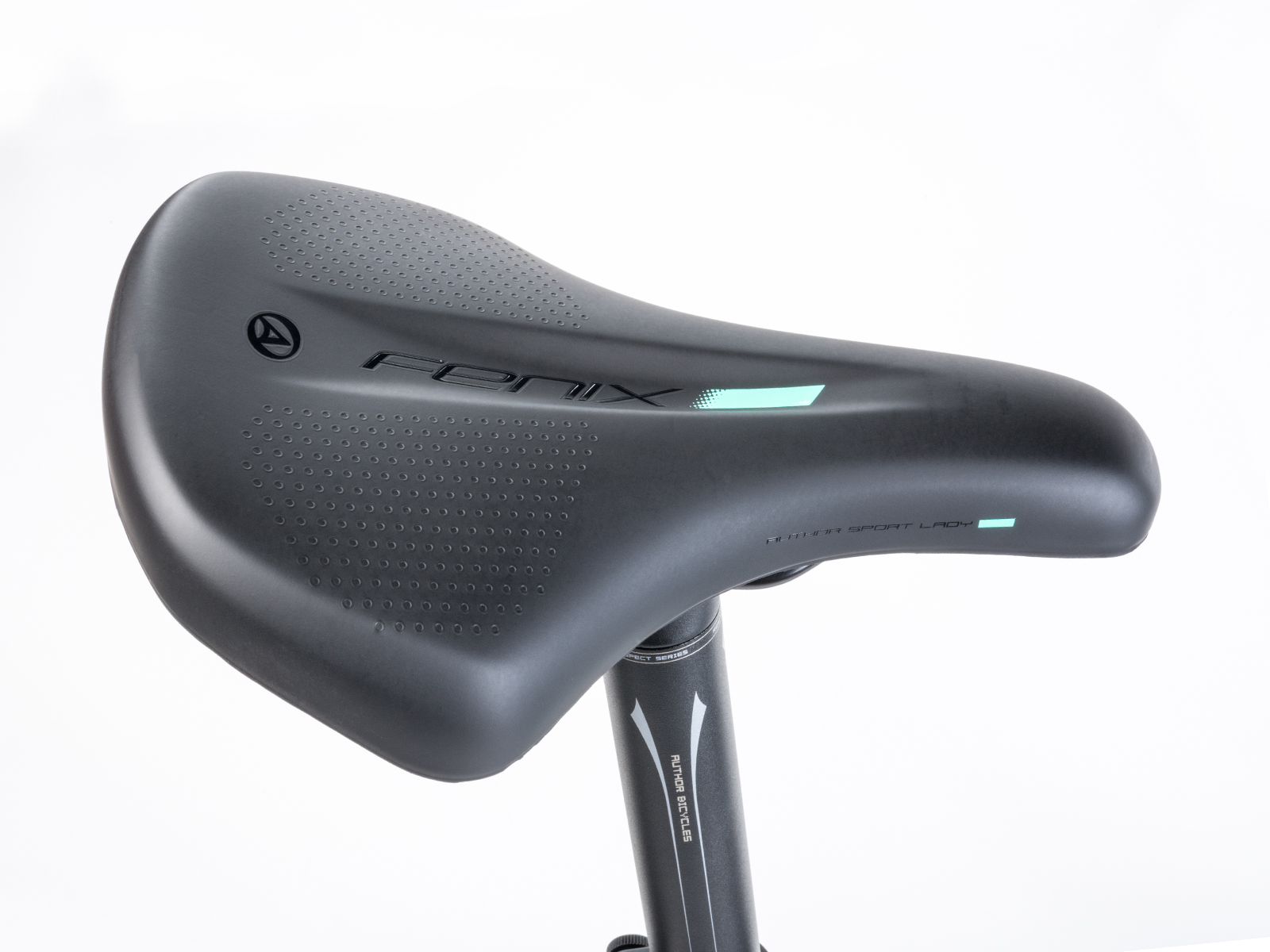

Saddle	AUTHOR Fenix
Speed	11
Weight	11,9 kg / 16"

Geometry and sizes

Size	16"	18"
Min. figure ~~[cm]~~	155	168
Max. figure ~~[cm]~~	170	185
S/T c-t ~~[mm]~~	406	457
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	560	585
T/T a ~~[mm]~~	545	563
H/T ~~[mm]~~	120	130
C/S ~~[mm]~~	435	435
W/B ~~[mm]~~	1064	1090
S/T ang. ~~[°]~~	73	73
H/T ang. ~~[°]~~	69.5	69.5
F/L ~~[mm]~~	495	495
B/B drop ~~[mm]~~	45	45
B/B width ~~[mm]~~	68	68
Reach ~~[mm]~~	375	397
Stack ~~[mm]~~	606	615
F/R ~~[mm]~~	44	44
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
