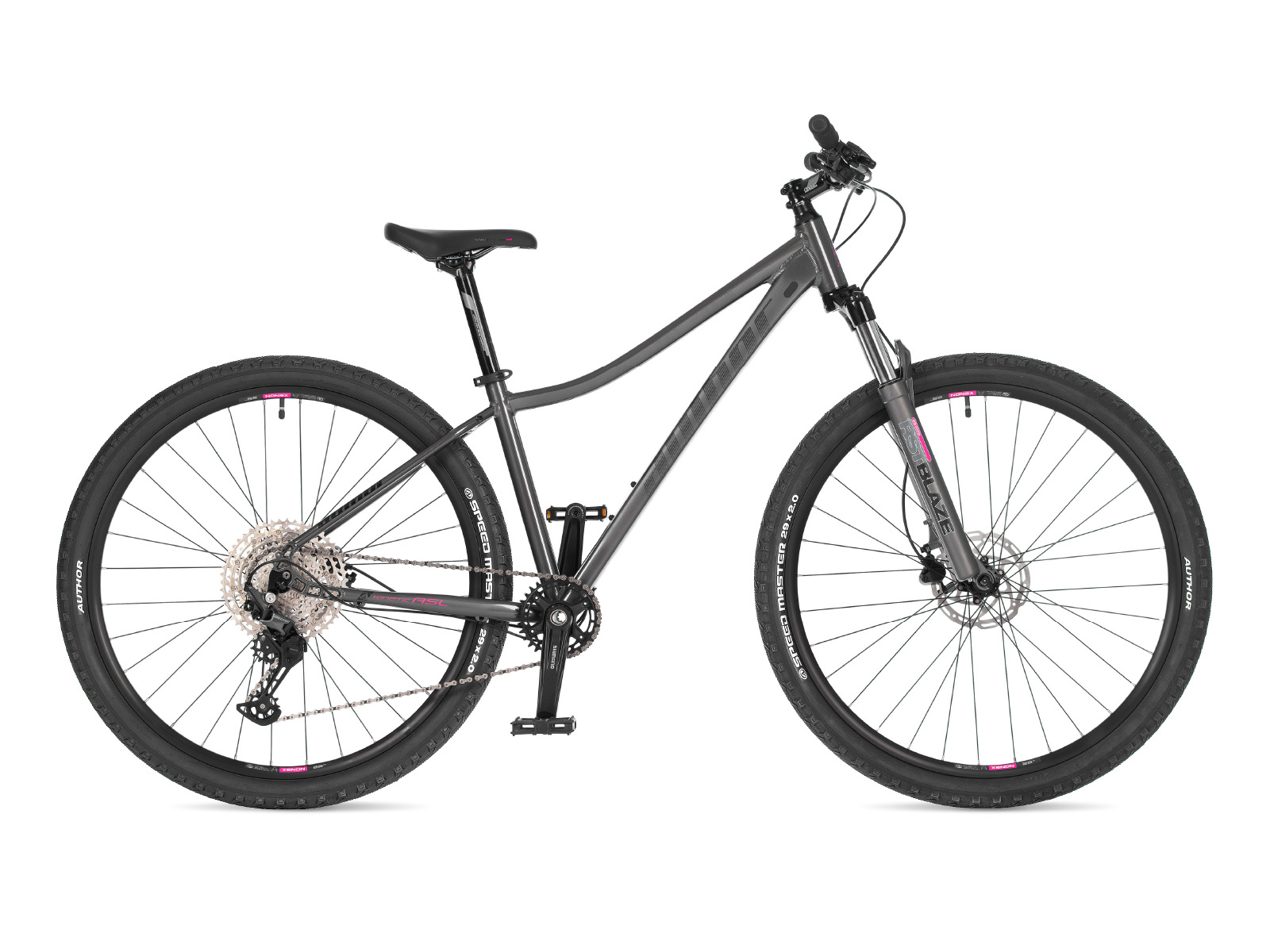

Kinetic ASL 2025

~~Colour variants~~

14" frame on 27,5"16" and 18" size frame on 29"SHIMANO Deore components, 12 speedAlloy with integ. routingChainwheel Shimano with 32 T.Cassete CS-M6100, 12 speed, 10-51Hydraulic disc brake TEKTRO

~~Buy now~~price 23 990 Kč

# 14"# 16"# 18"# pink # silver # white

other models

Interested in other model`s year?

2008 2009 2010 2011 2012 2025

Technical specification

Size	14" (27.5") / 16", 18" (29")
Frame	alloy 6061 27.5" / 29" (ASL)
Front fork	RST Blaze 27.5 / 29 TnL, lock out (100 mm)
Head parts	PRESTINE Integrated, 1.5" tapered
Chain Wheel	SHIMANO M510-1, 32 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (12)
Free wheel	SHIMANO CS-M6100-12, 10-51 (12)
Chain	KMC X12
Hubs	QUANDO Disc / SHIMANO, 32 holes
Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)

Brakes levers	TEKTRO HD-M280
Rims	AUTHOR Xenon 27.5/29, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master, 27.5"/29" × 2.00"
Pedals	plastic
Handlebar	AUTHOR rise 25 mm, 9°, 640 / 660 / 680 mm
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Fenix
Speed	12

Geometry and sizes

Size	27,5"/14"	29"/16"	29"/18"
Min. figure ~~[cm]~~	140	155	166
Max. figure ~~[cm]~~	158	168	182
S/T c-t ~~[mm]~~	356	406	457
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	555	580	600
T/T a ~~[mm]~~	550	565	582
H/T ~~[mm]~~	110	115	120
C/S ~~[mm]~~	435	450	450
W/B ~~[mm]~~	1063	1119	1139
S/T ang. ~~[°]~~	73	74	74
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	495	510	510
B/B drop ~~[mm]~~	45	60	60
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	372	400	418
Stack ~~[mm]~~	598	629	634
F/R ~~[mm]~~	43	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		18"	1 shop				42956453
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

	white / silver	14" = UA#42956441 16" = UA#42956442 18" = UA#42956443
	silver / pink	16" = UA#42956452 18" = UA#42956453
