AUTHOR Impulse 29 2019
AUTHOR Impulse 29 2019
AUTHOR Impulse 29 2019AUTHOR Impulse 29 2019
  » Bicycles » mountain bike » mtb 29

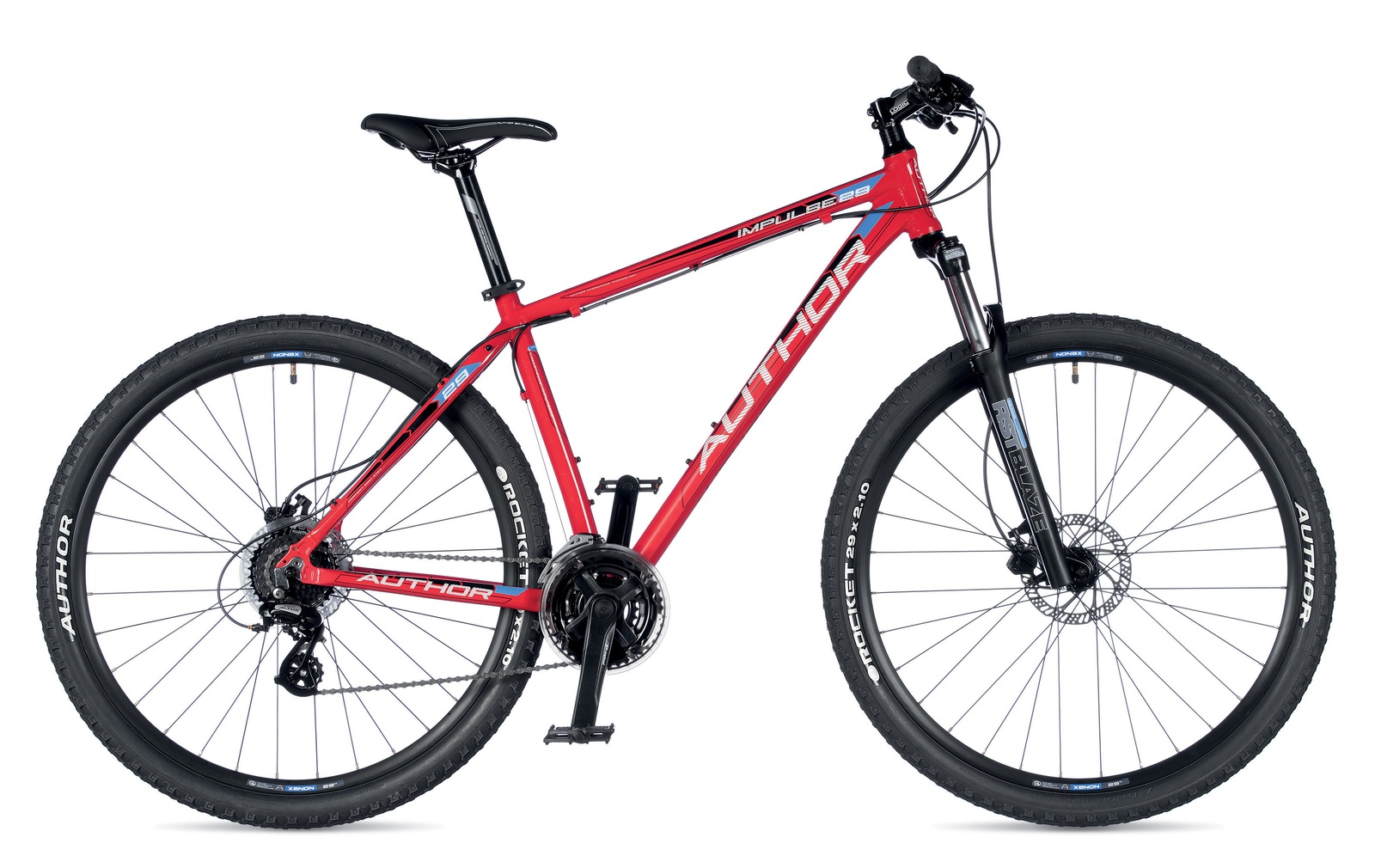

AUTHOR Impulse 29 2019Archivní model 2019

Colour variants
Alloy frameRST Blaze 29 ML forkDisc hydraulic TEKTRO brakes
special price 12 990 Kč
original price  14 390 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size17", 19", 21"
Framealloy 6061 29"
Front forkRST Blaze 29 ML oil, lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 / 175 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO TY700 (34.9)
Rear derailleurSHIMANO Altus
ShiftersSHIMANO Altus (24)
Free wheelSHIMANO HG200-8 12-32 (8)
ChainKMC Z8.1
HubsQUANDO Disc 32 holes
BrakesTEKTRO disc hydraulic (6" rotors)
Brakes leversTEKTRO
RimsAUTHOR Xenon 29 32 holes
Spokesblack steel
TiresAUTHOR Rocket 29" x 2.10"
Pedalsresin
HandlebarAUTHOR Flatbar 10° 700 mm
GripsAUTHOR kratton rubber
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Courier
Speed24
Weight14,8kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 600 620 640
T/T a [mm] 581 596 614
H/T [mm] 115 130 140
C/S [mm] 445 445 445
W/B [mm] 1120 1141 1162
S/T ang. [°] 73 73 73
H/T ang. [°] 69 69 69
F/L [mm] 510 510 510
B/B drop [mm] 63 63 63
B/B width [mm] 68 68 68
Reach [mm] 407 423 440
Stack [mm] 632 646 655
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Impulse 29 2019

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
