AUTHOR Impulse 29 2017

AUTHOR Impulse 29 2017Archivní model 2017

~~Colour variants~~

Alloy frameLock out fork RST BlazeDisc hydraulic TEKTRO brakes

price 13 990 Kč

SOLD OUT

Mountain bike Author Impulse 29 is an introductory model in category MTB 29. It is built on a strong alloy frame and lockout fork RST Blaze ML 29 (100 mm travel). Components like Shimano Altus and disc hydraulic TEKTRO brakes will ensure the smooth running of your machine. For 2017 this model offers 24 speed and especially so called "Off centre" rear rim for perfect balance and stiffness. Whether you are a hobby rider or beginning biker, this bike for would be a good Impulse for you to find out a new paths and trails.

Mountain bike Author Impulse 29 is an introductory model category MTB 29. It is built on a solid duralumin frame and lockable fork RST Blaze ML 29 (100 mm stroke). Component installation in the form of a set of Shimano Altus and disc hydraulic brakes TEKTRO will ensure the smooth running. Newly this model offers 24 speeds and especially so. "Off center" rear rim for perfect balance and rigidity. Whether you are a hobby rider or novice biker bike for you would be a good impetus to the search for new paths and trail.

Technical specification

Size	17", 19", 21"
Frame	alloy 6061 29"
Front fork	RST Blaze 29 ML lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL 42-32-22 teeth 170 / 175 mm cranks
BBParts	VP COMP cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO Altus
Shifters	SHIMANO Altus (24)
Free wheel	SHIMANO HG200-8 12-32 (8)
Chain	KMC Z72
Hubs	QUANDO Disc 32 holes
Brakes	TEKTRO disc hydraulic (6" rotors)
Brakes levers	TEKTRO

Rims	AUTHOR Xenon 29 32 holes
Spokes	black steel
Tires	AUTHOR Rocket 29" x 2.10"
Pedals	resin
Handlebar	AUTHOR Flatbar 10° 700 mm
Grips	AUTHOR high density foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Courier
Speed	24
Weight	14,5 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	205
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	606	630	651
T/T a ~~[mm]~~	580	600	618
H/T ~~[mm]~~	110	120	120
C/S ~~[mm]~~	445	445	445
W/B ~~[mm]~~	1099	1123	1138
S/T ang. ~~[°]~~	71.7	71.7	71
H/T ang. ~~[°]~~	71	71	71
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	61	61	61
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	0	0	0
Stack ~~[mm]~~	0	0	0
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/3

695 KčACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »

750 KčACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/2

325 KčAXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

1/5

1 195 KčACR-F14-AluA tough tubular aluminium front rack. Designed specifically for front suspension fork with brake piv ... more »

150 KčX-MudyFront mudguard AUTHOR, for down tube mounting, fabric plastic. more »

1/2

399 KčAXP-60High quality AUTHOR AXP full length mudguard set. Fenders are constructed from PET plastic and carry ... more »

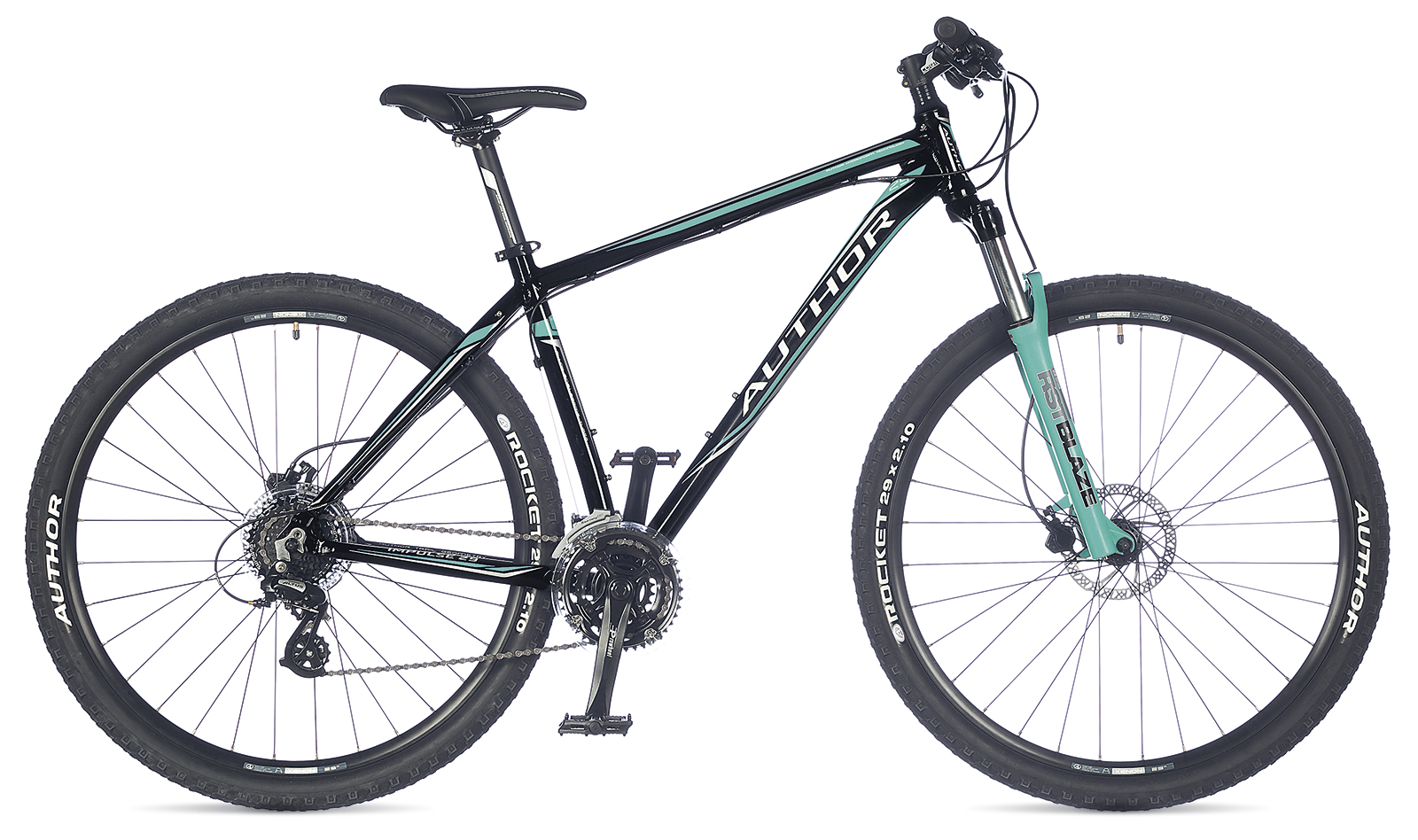

	black / green	17" = UA#42874302 19" = UA#42874303 21" = UA#42874304

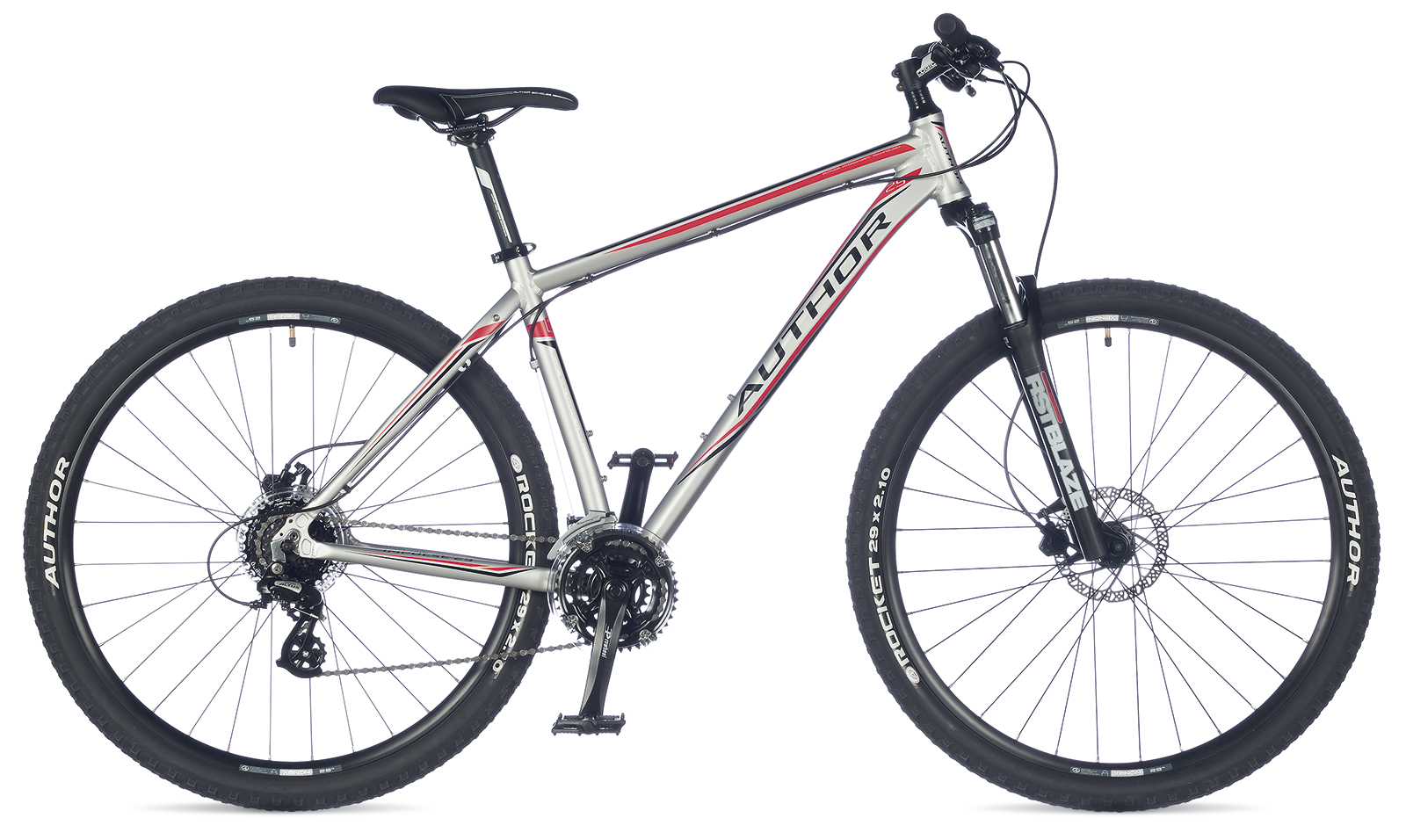

	silver / red / black	17" = UA#42874312 19" = UA#42874313 21" = UA#42874314
