AUTHOR Impulse 29 2016

AUTHOR Impulse 29 2016Archivní model 2016

~~Colour variants~~

Lock out fork RST BlazeSHIMANO Altus components, 21 speedDisc hydraulic TEKTRO brakes

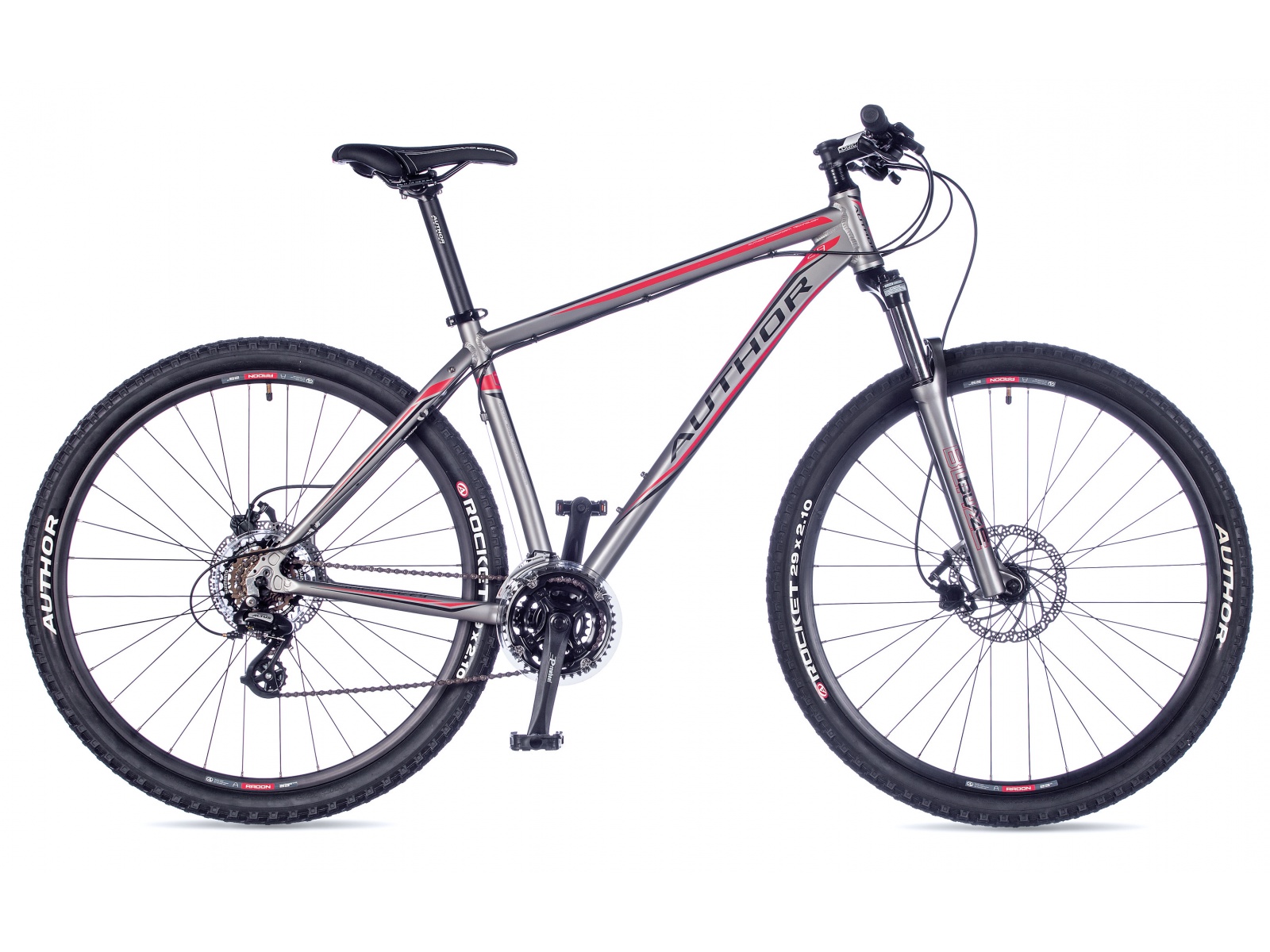

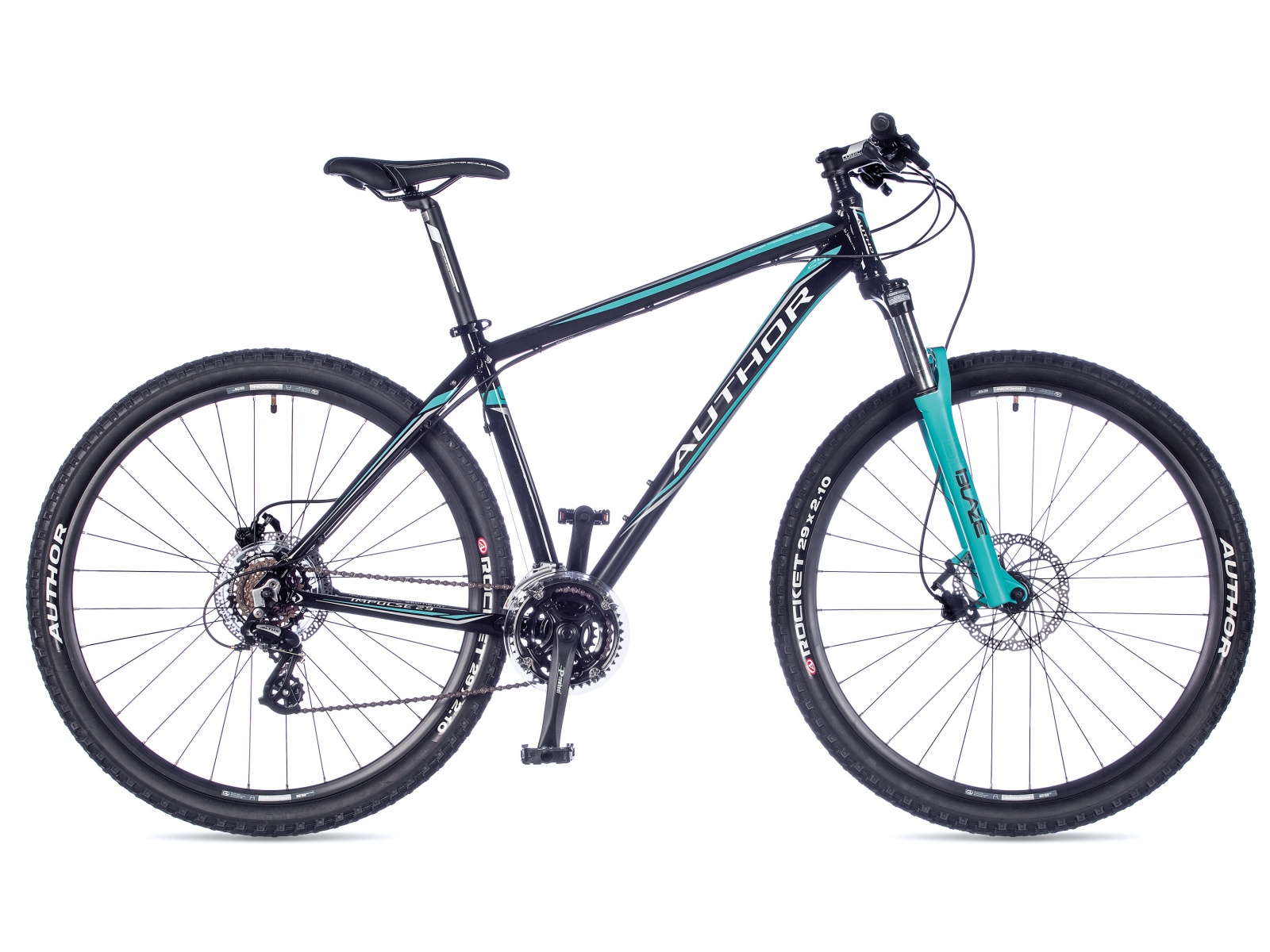

Mountain bike Author Impulse 29 is an introductory model in category MTB 29. Bike is based on solid alloy frame and lockable fork RST Blaze ML 29 (100 mm). Due to the larger wheels, the machine has better driving stability. This model will satisfy both hobby riders and anyone interested in sportier riding not only in the off-road conditions. Disc brakes, 21 speed and comfortable high density foam grips take care of the rider's comfort. You can choose from two colour variants.

Technical specification

Size	17", 19", 21"

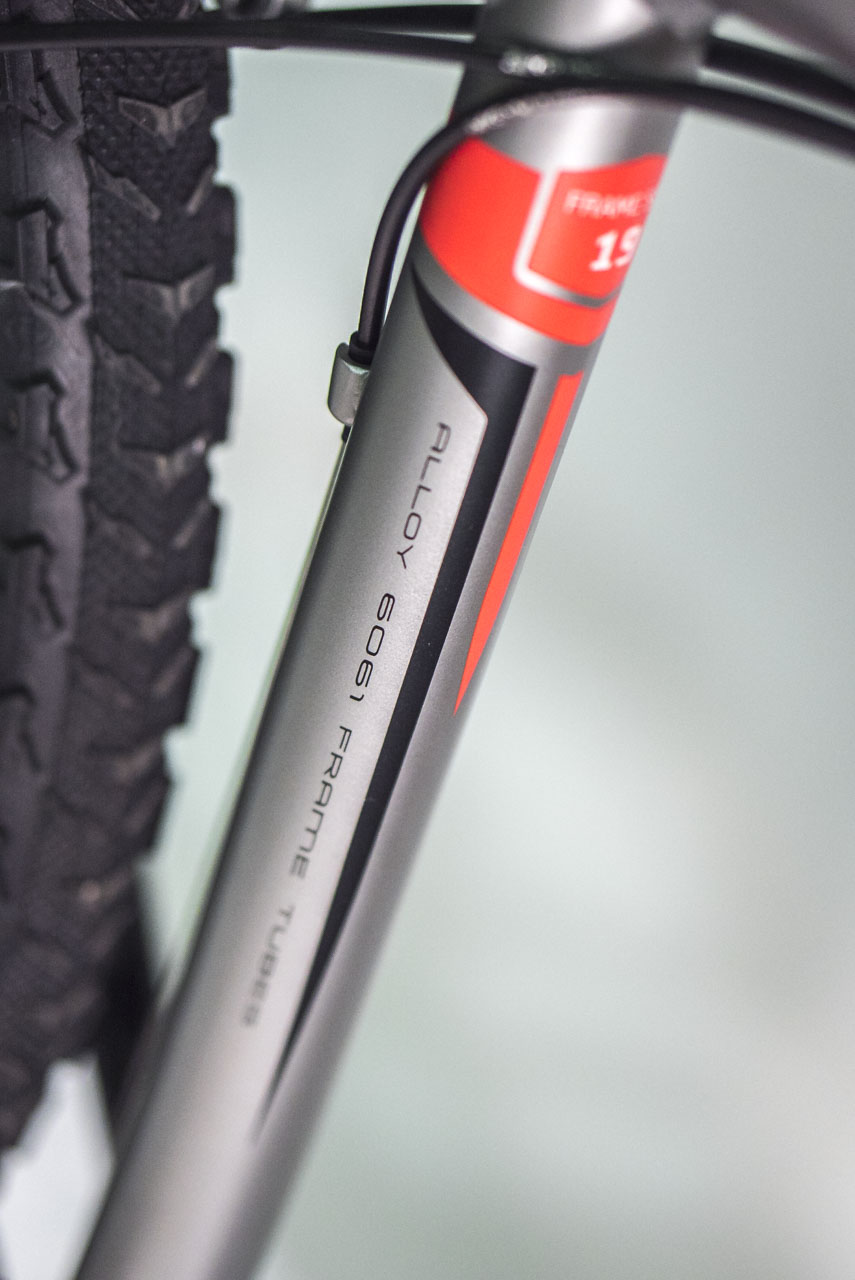

Frame	alloy 6061 29"

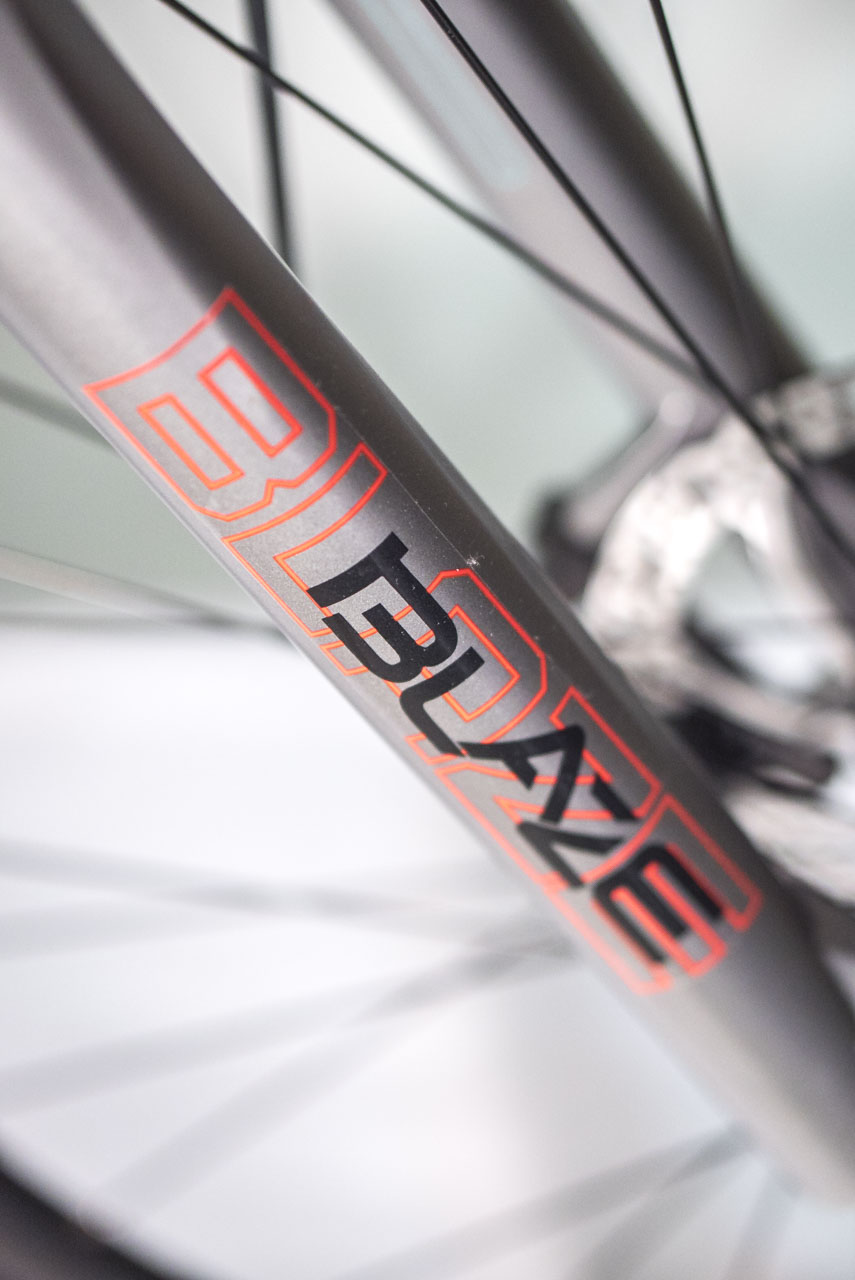

Front fork	RST Blaze 29 ML lock out (100 mm)

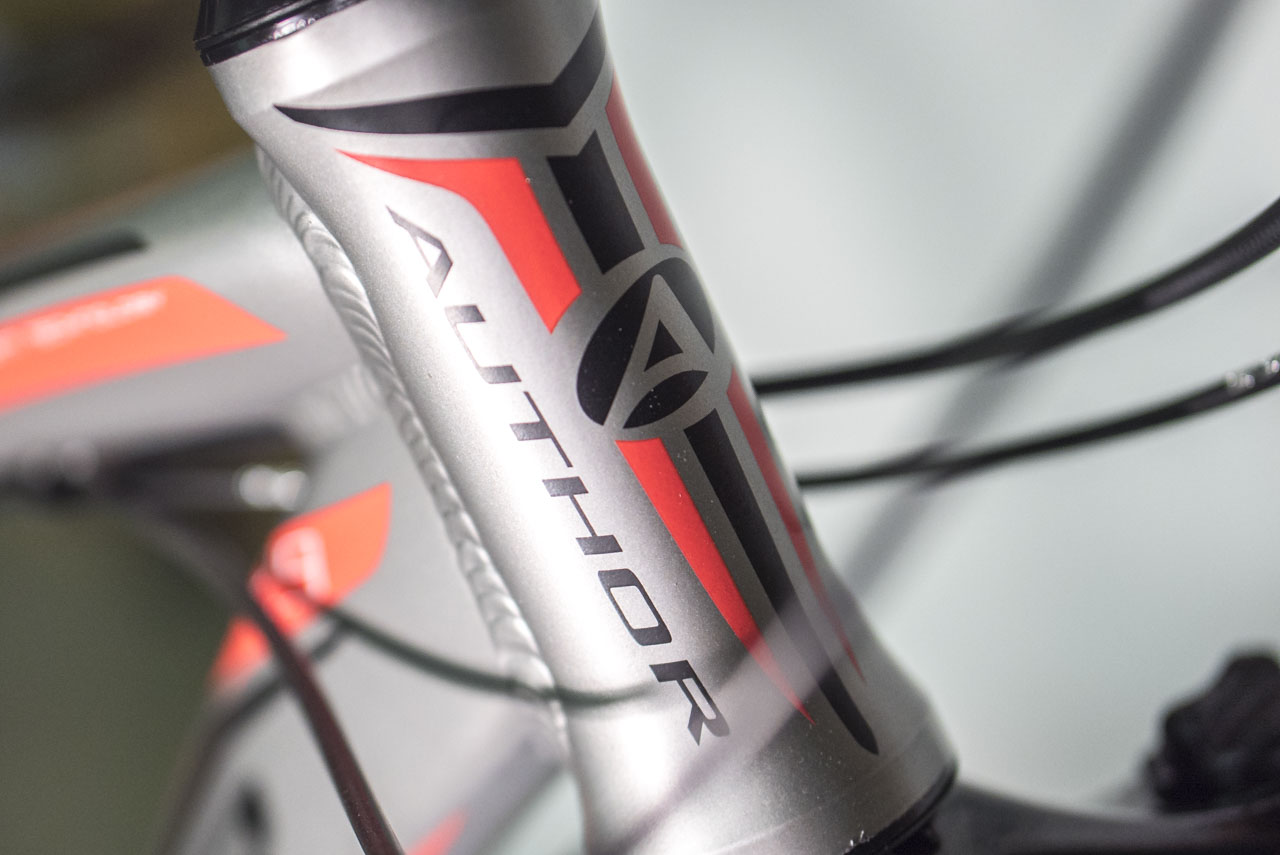

Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL 42-32-22 teeth 170 / 175 mm cranks
BBParts	VP COMP cartridge

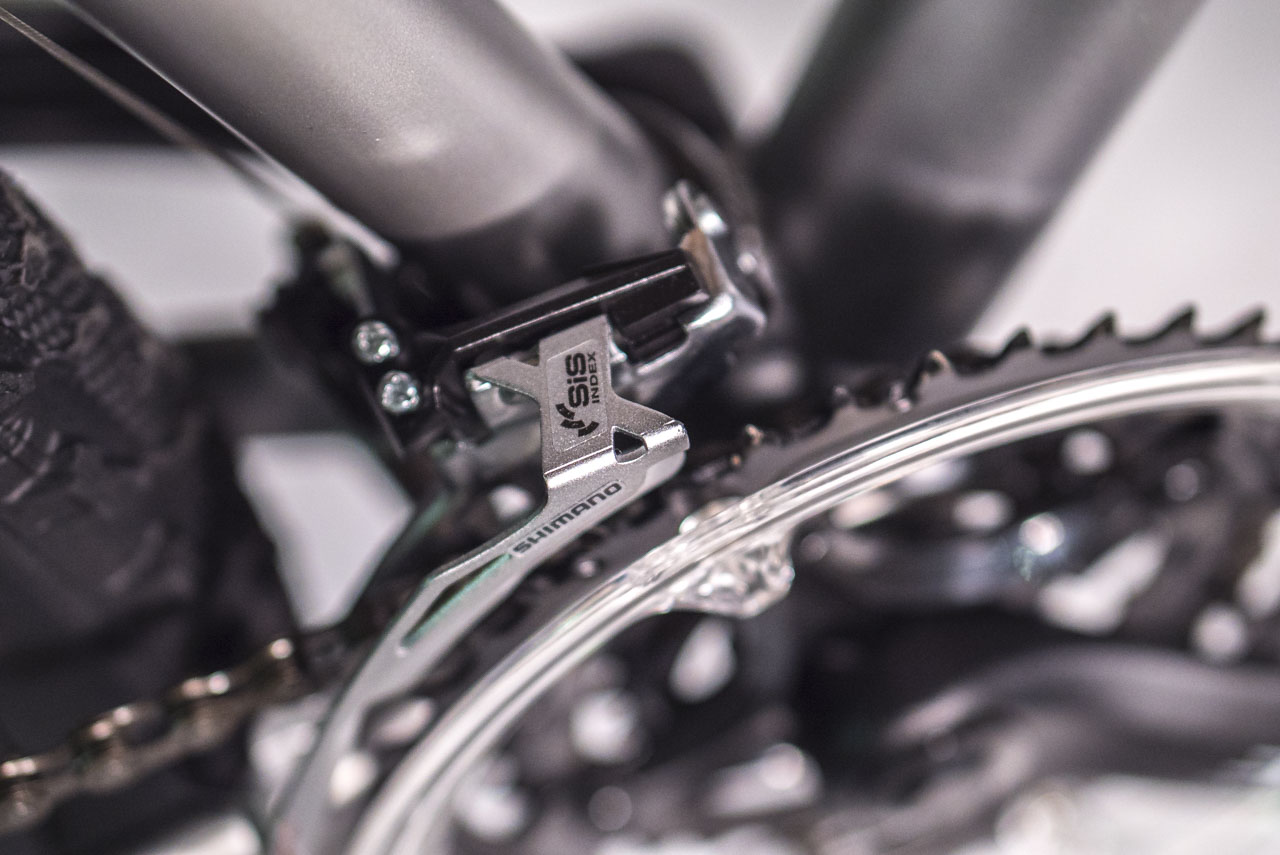

Front derailleur	SHIMANO M190 (34.9)

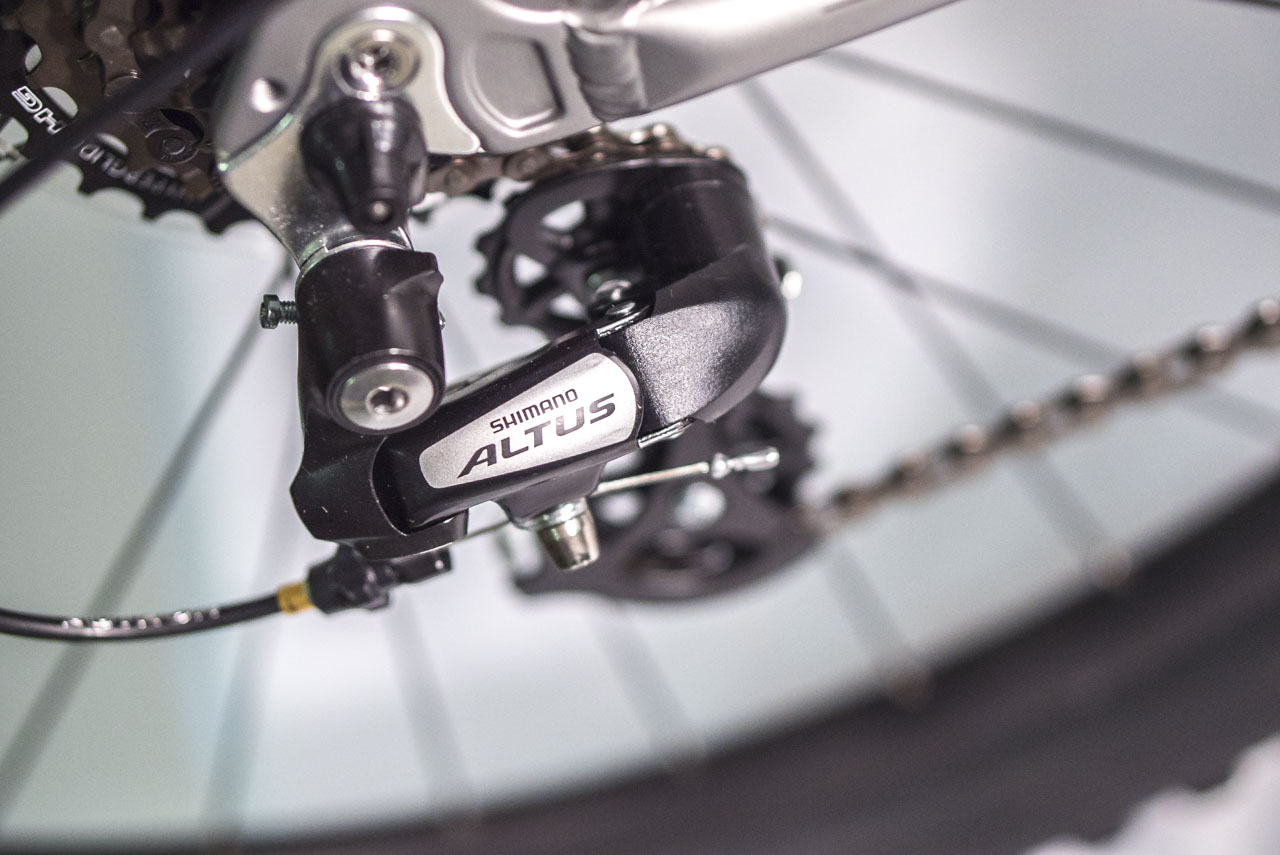

Rear derailleur	SHIMANO Altus
Shifters	SHIMANO Altus (21)

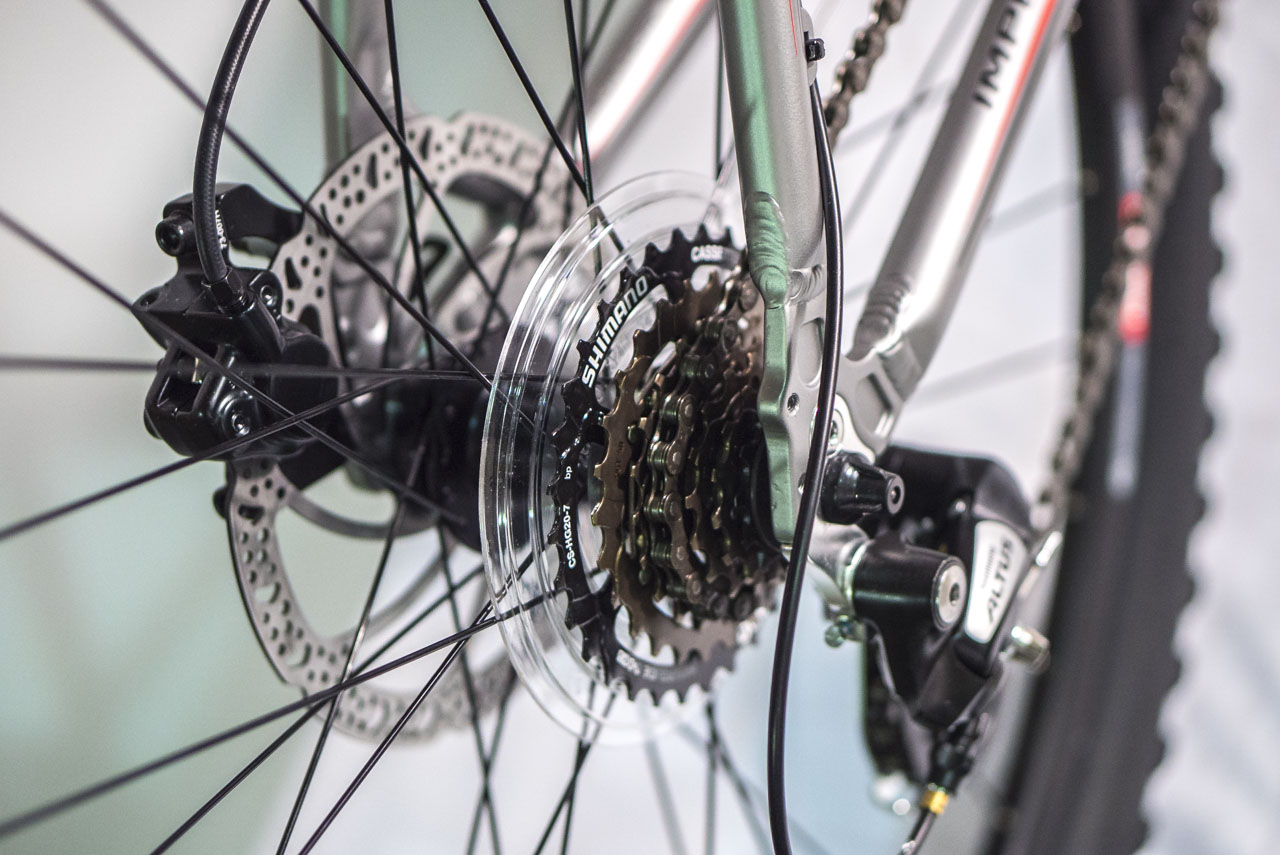

Free wheel	SHIMANO HG20-7 12-32 (7)

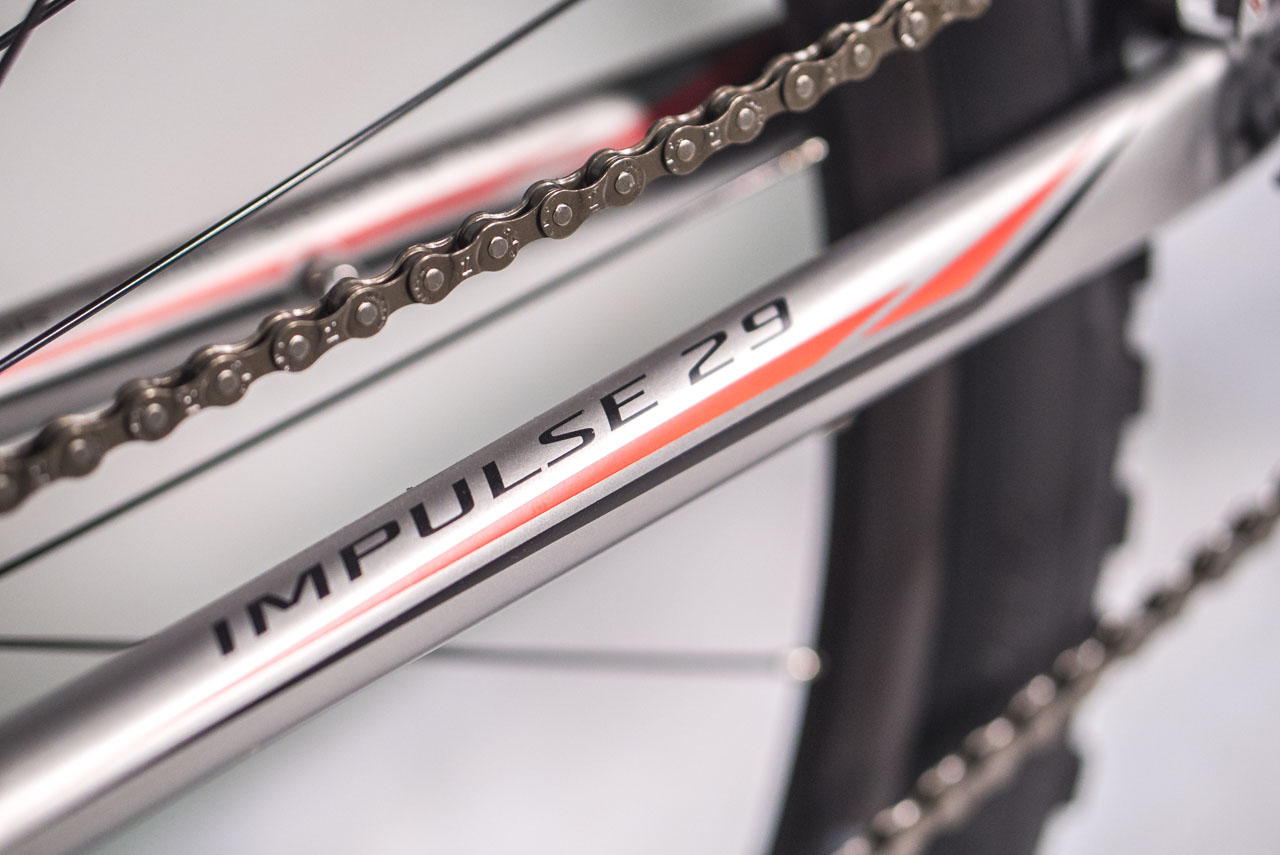

Chain	KMC Z51
Hubs	QUANDO Disc 32 holes

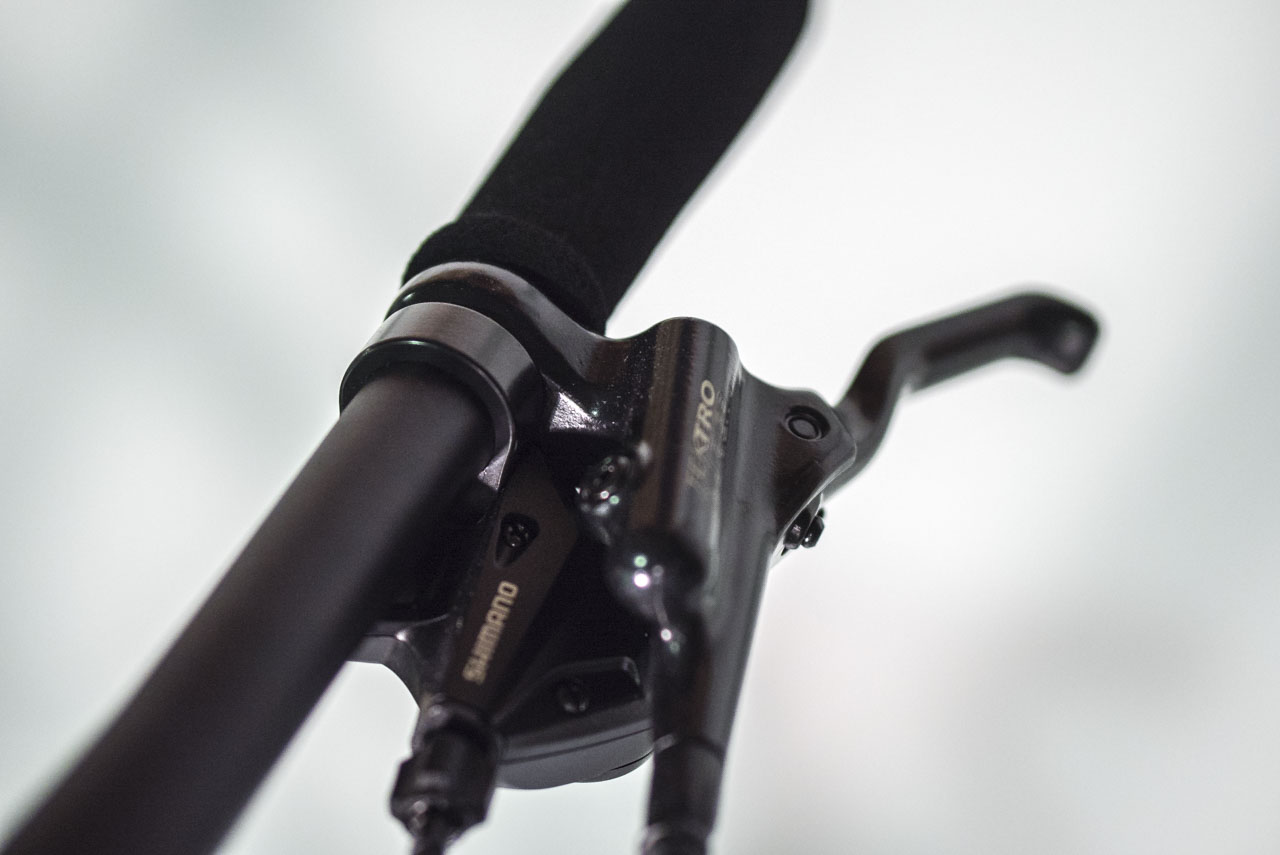

Brakes	TEKTRO Auriga disc hydraulic (7" rotors)

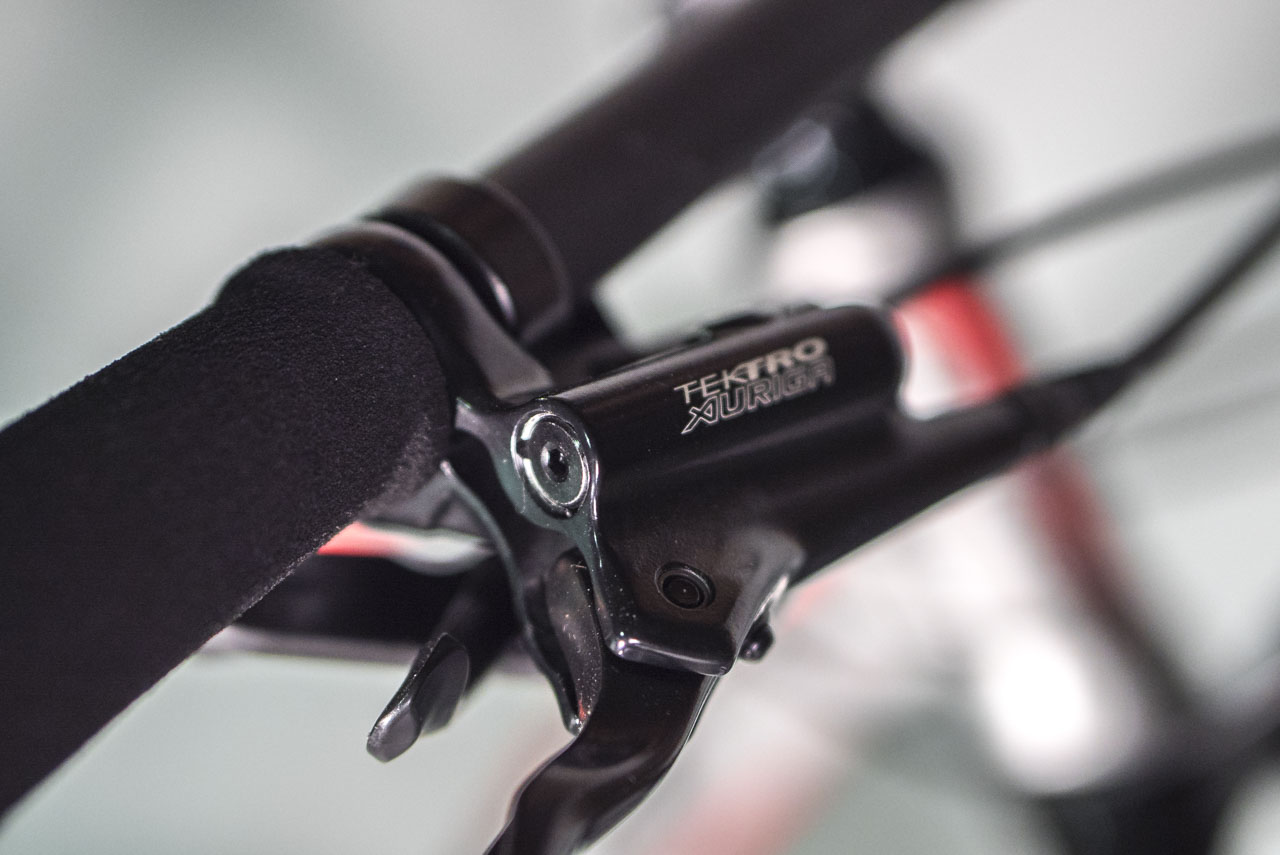

Brakes levers	TEKTRO Auriga

Rims	AUTHOR Radon 29 32 holes
Spokes	black steel
Tires	AUTHOR Rocket 29" x 2.10"
Pedals	resin
Handlebar	AUTHOR Flatbar 0 mm 700 mm
Grips	AUTHOR high density foam

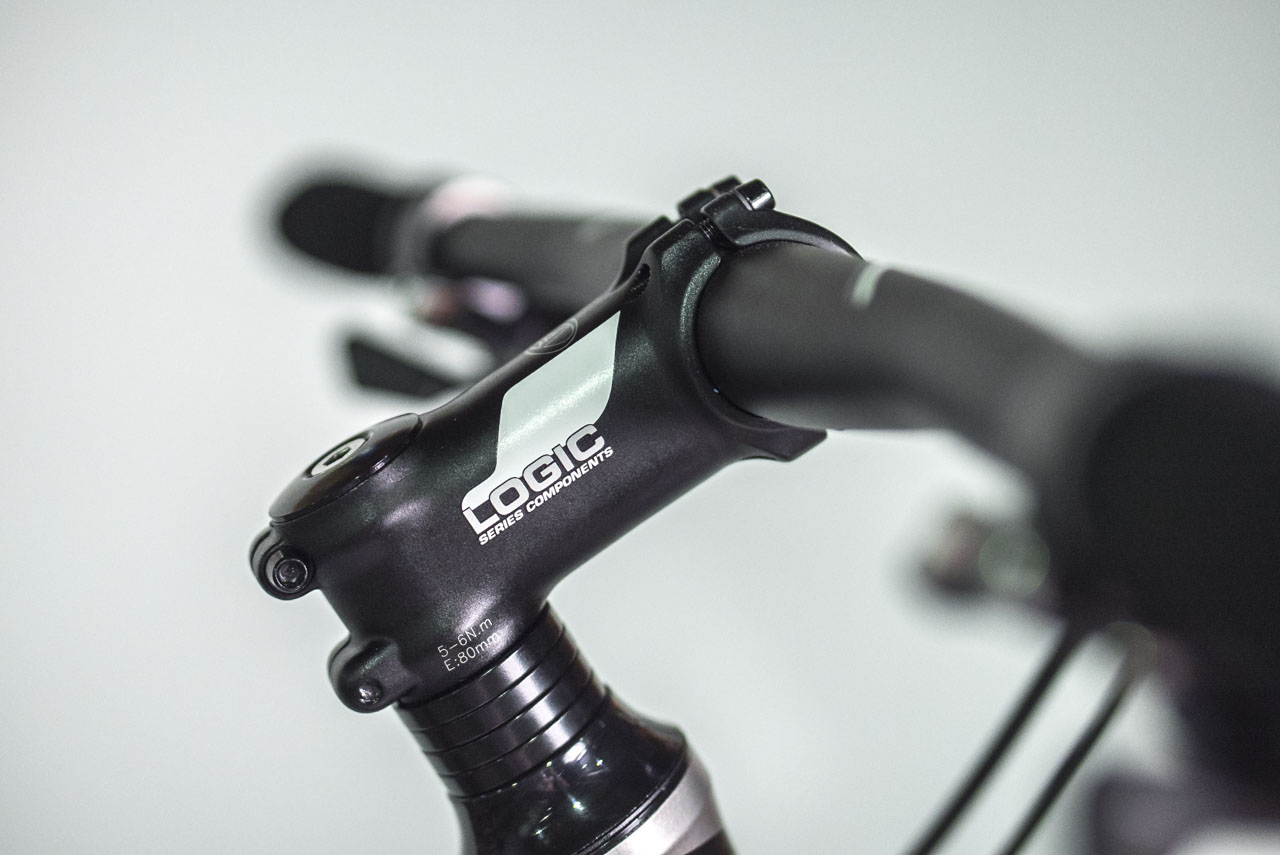

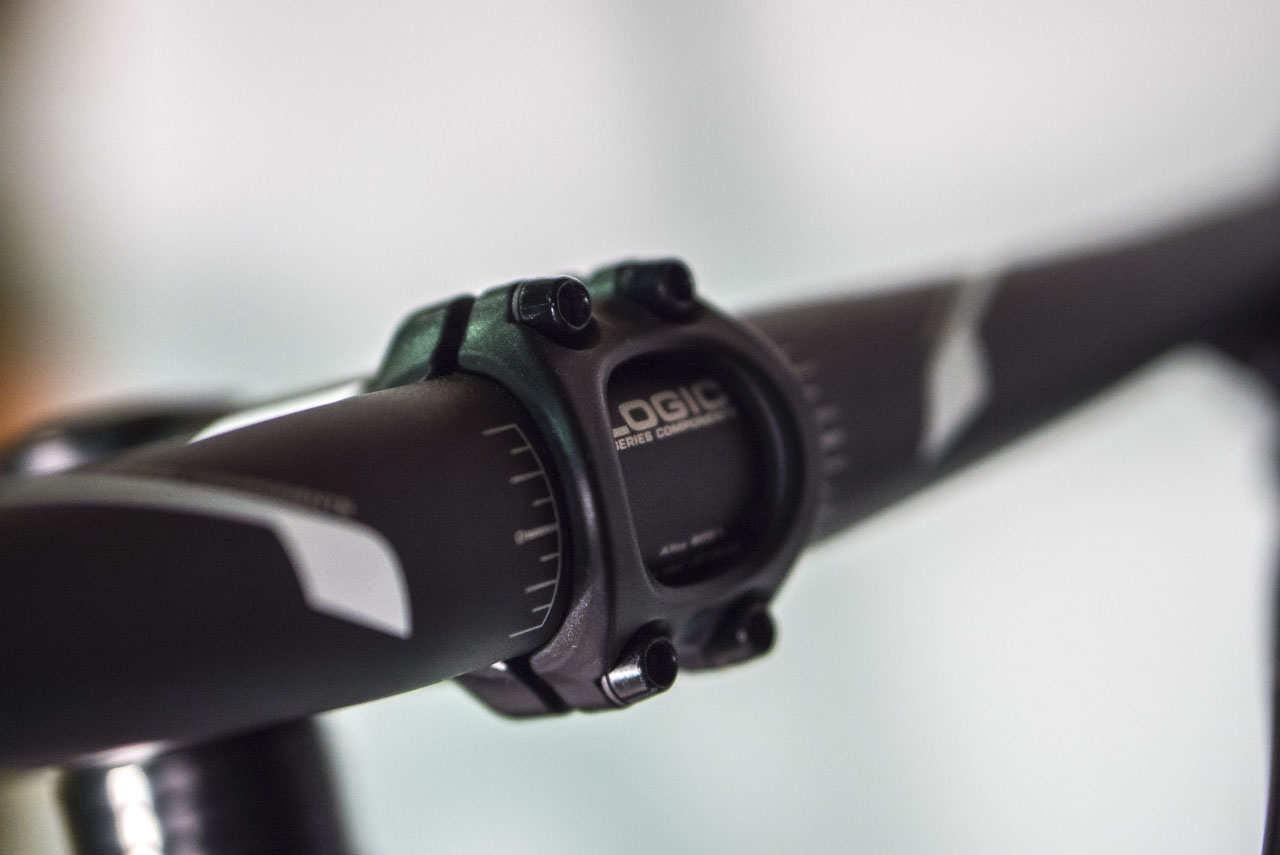

Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Courier
Speed	21
Weight	14.5 kg / 19"

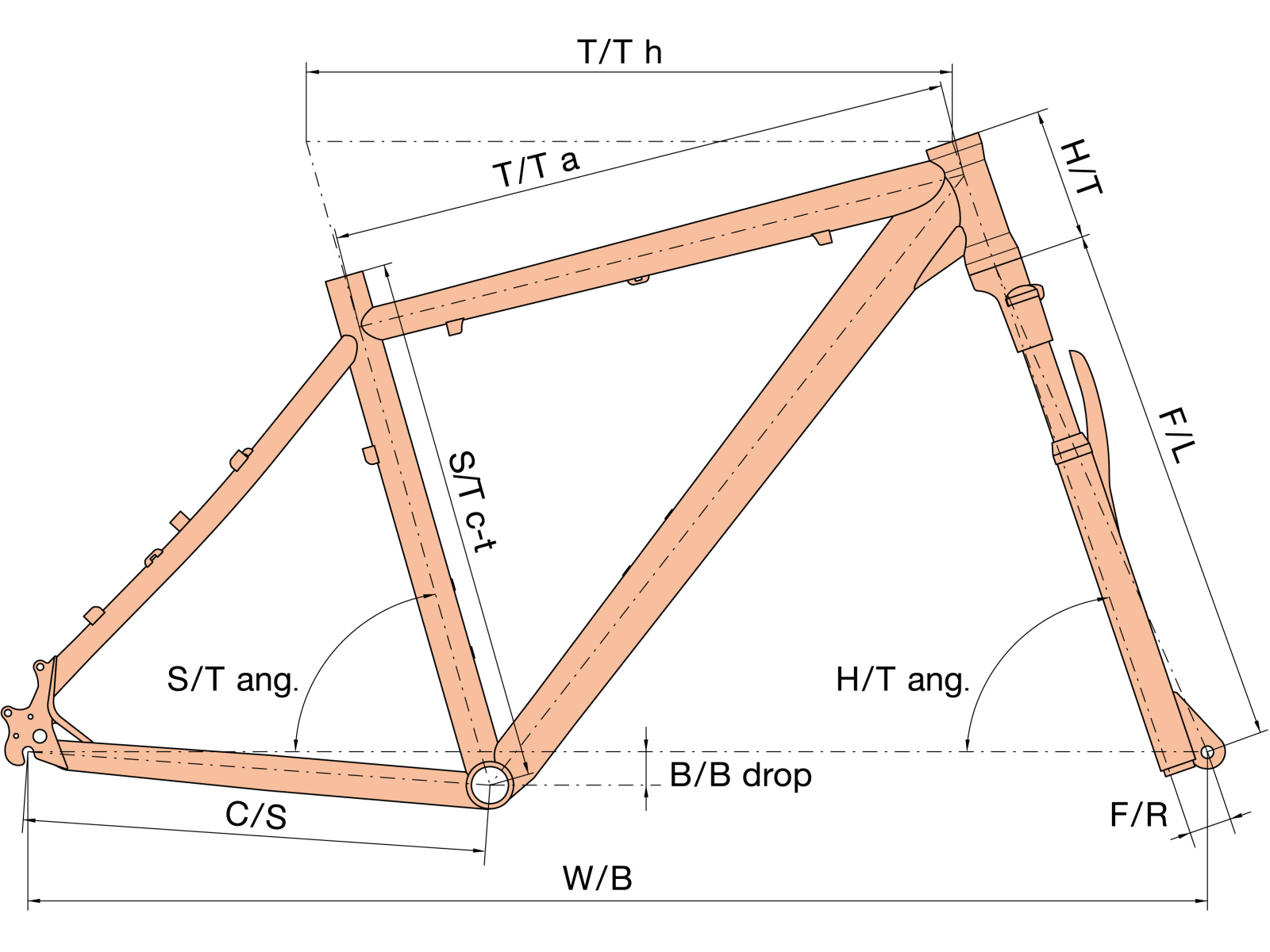

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	165	180	195
Max. figure ~~[cm]~~	180	195	205
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	606	630	651
T/T a ~~[mm]~~	580	600	618
H/T ~~[mm]~~	110	120	120
C/S ~~[mm]~~	445	445	445
W/B ~~[mm]~~	1099	1123	1138
S/T ang. ~~[°]~~	71.7	71.7	71
H/T ang. ~~[°]~~	71	71	71
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	61	61	61
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	0	0	0
Stack ~~[mm]~~	0	0	0
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/2

AKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 25mm), recomend ... more »

ACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/2

AXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

X-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

1/5

ACR-F14-AluA tough tubular aluminium front rack. Designed specifically for front suspension fork with brake piv ... more »

X-MudyFront mudguard AUTHOR, for down tube mounting, fabric plastic. more »

1/2

AXP-60High quality AUTHOR AXP full length mudguard set. Fenders are constructed from PET plastic and carry ... more »

	black / green	17" = UA#42862802 19" = UA#42862803 21" = UA#42862804
	silver-matt / red	17" = UA#42862812 19" = UA#42862813 21" = UA#42862814
