  » Bicycles » mountain bike » mtb 29

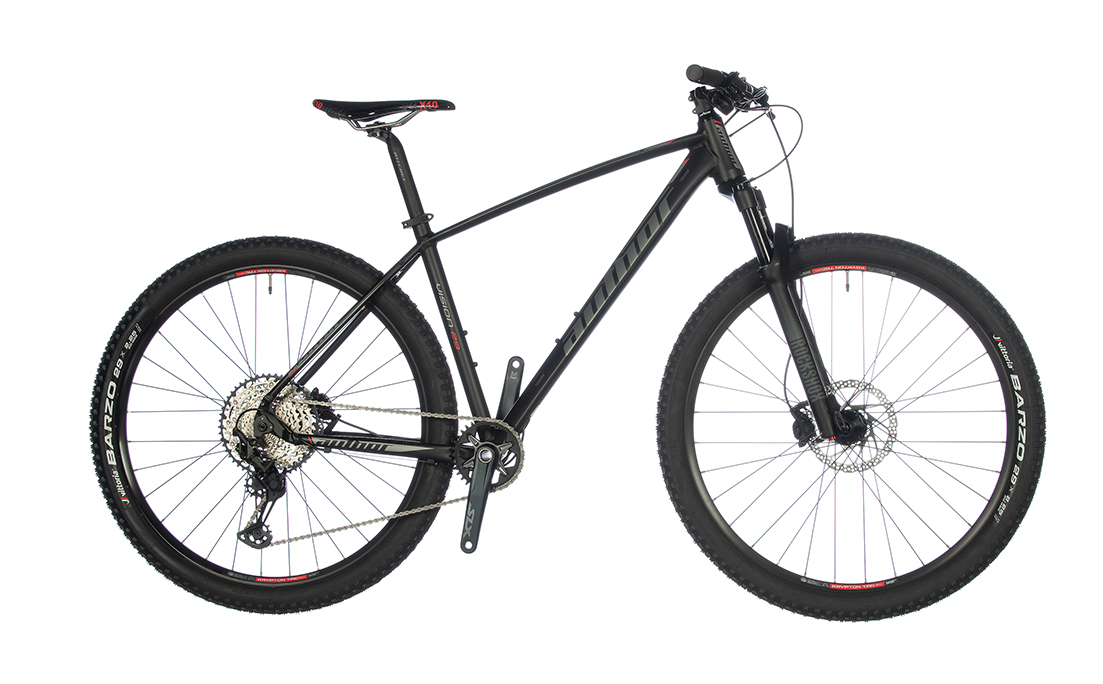

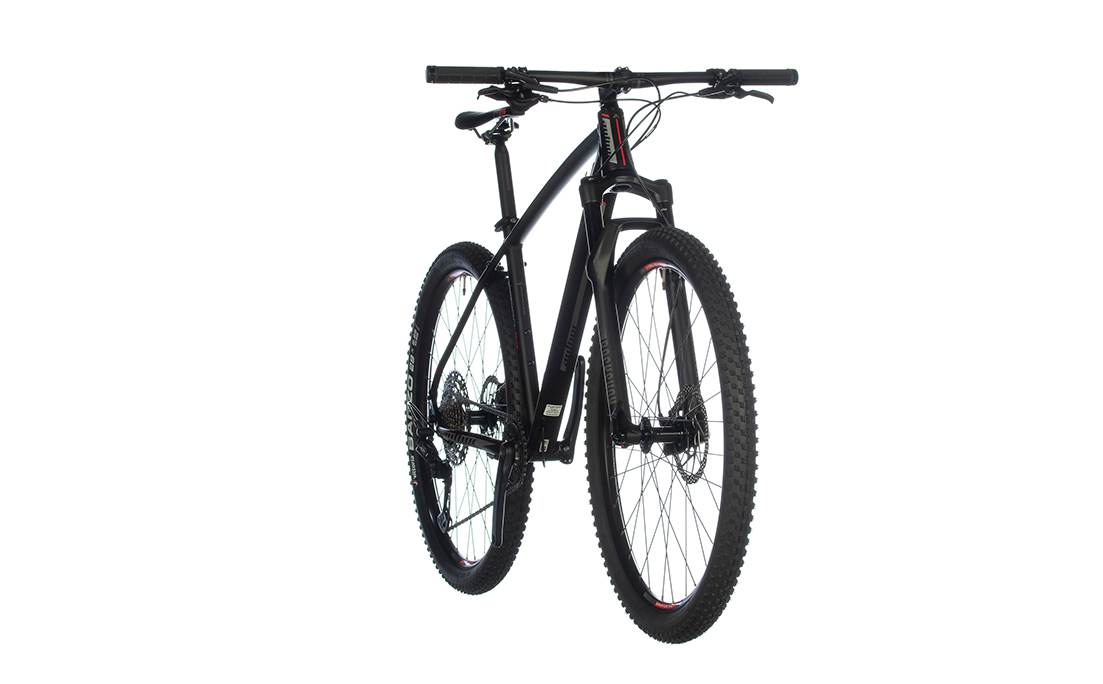

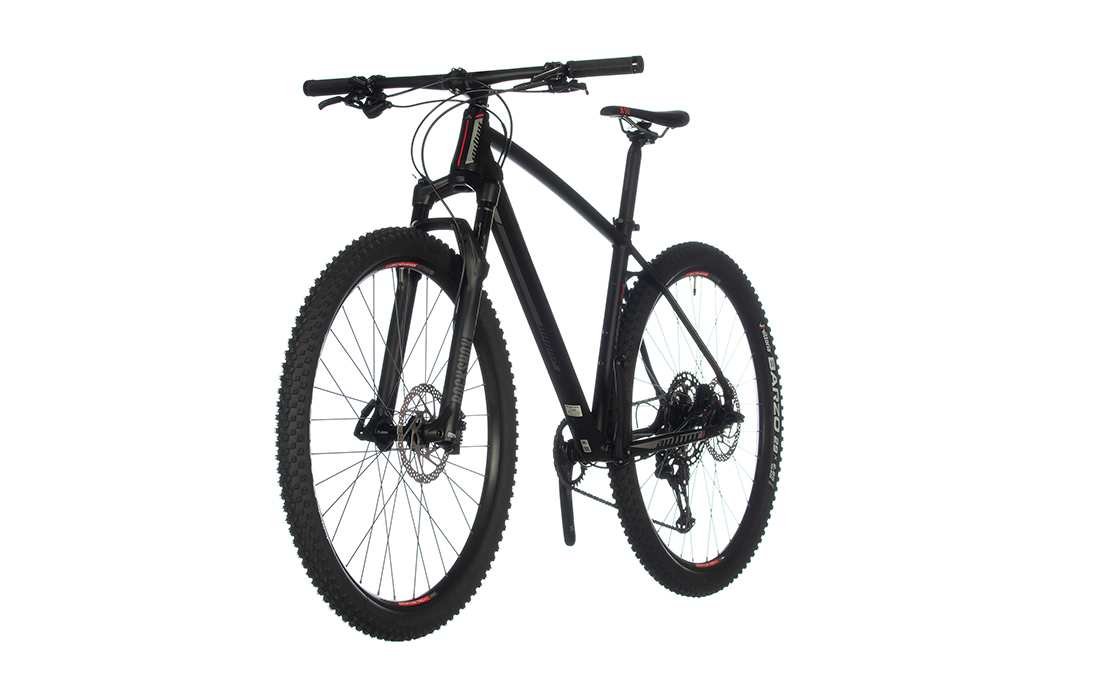

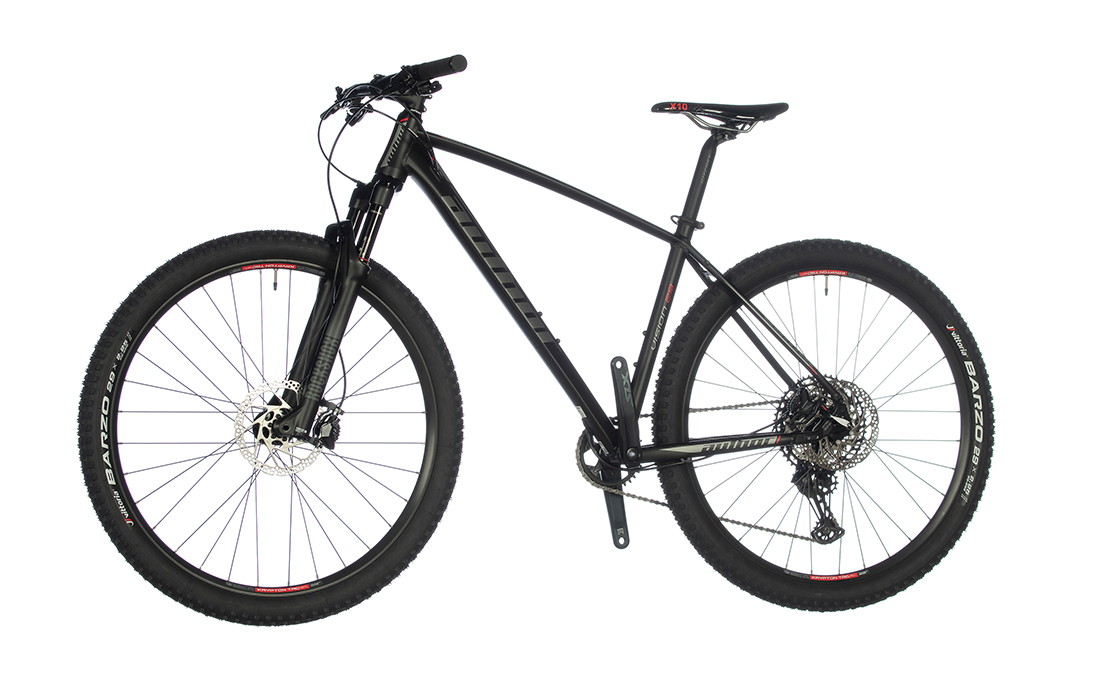

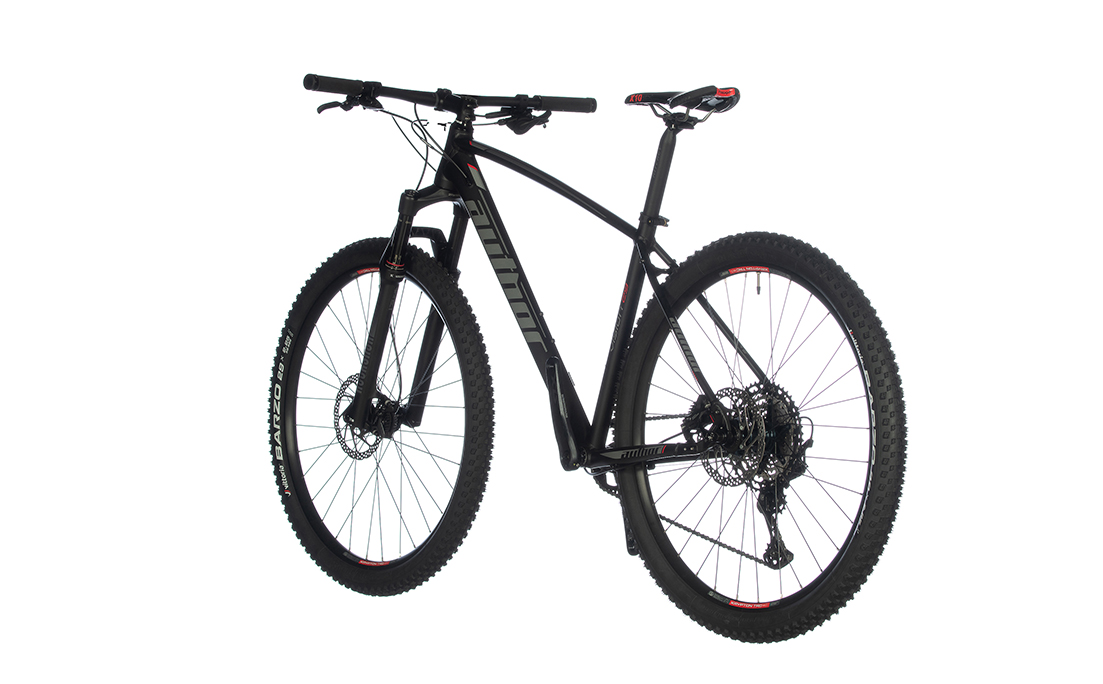

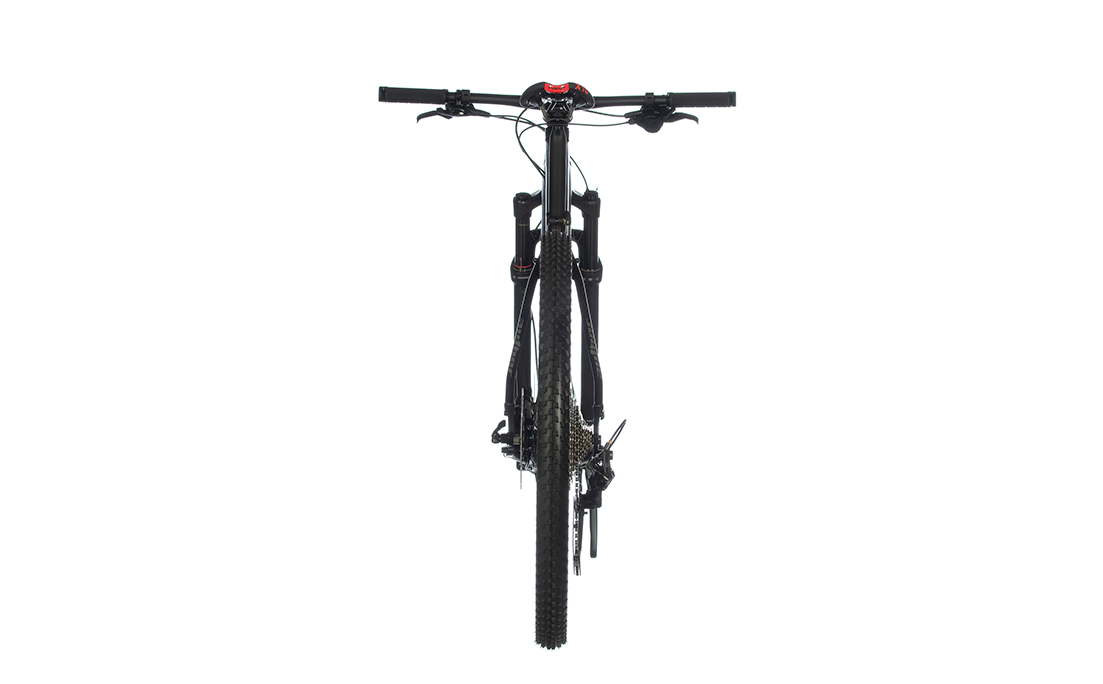

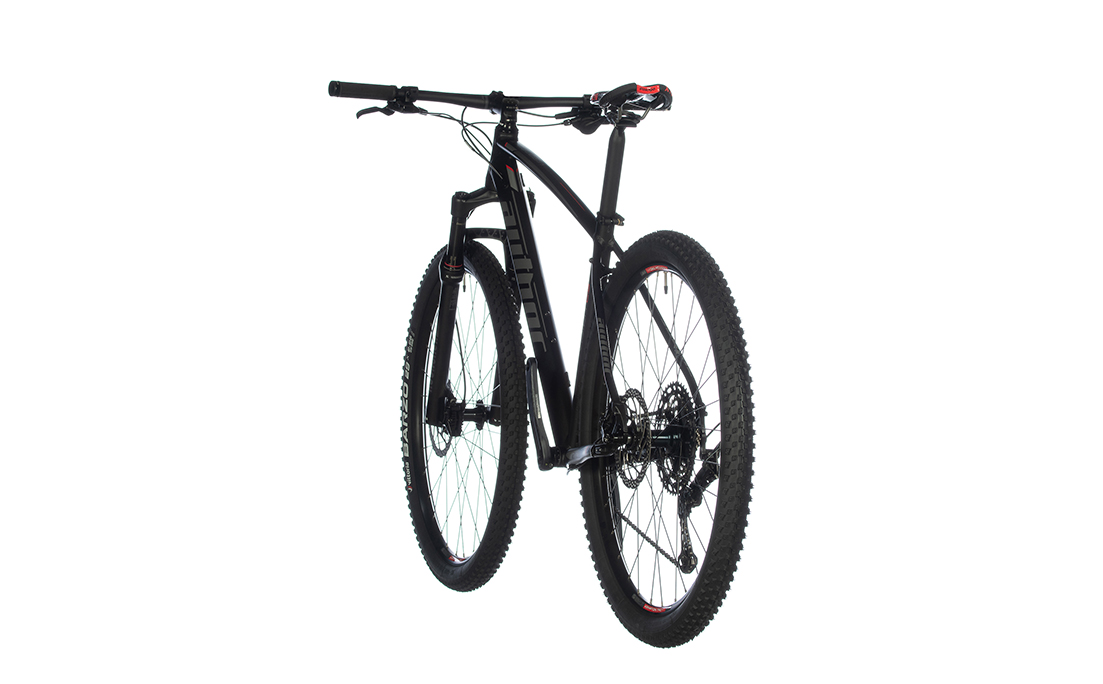

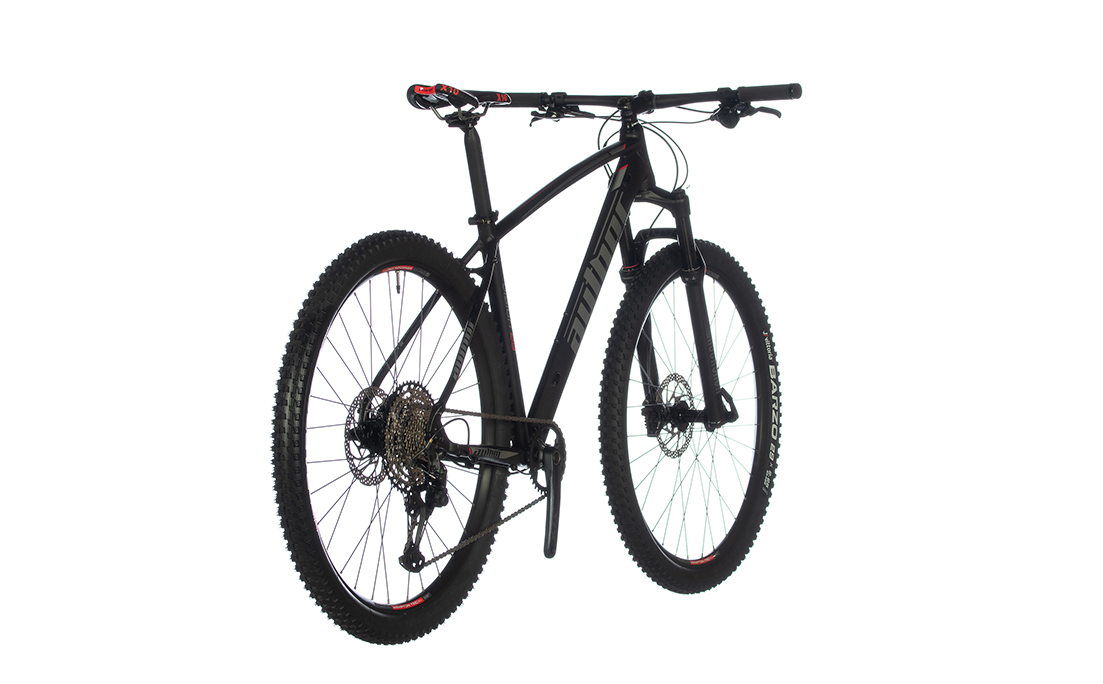

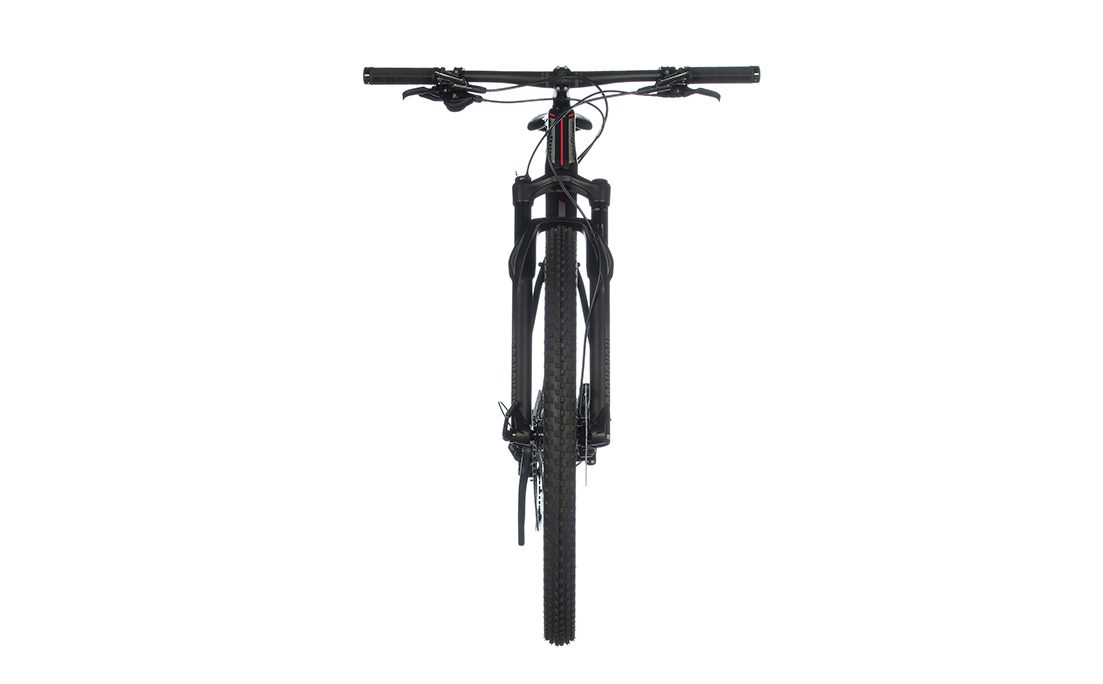

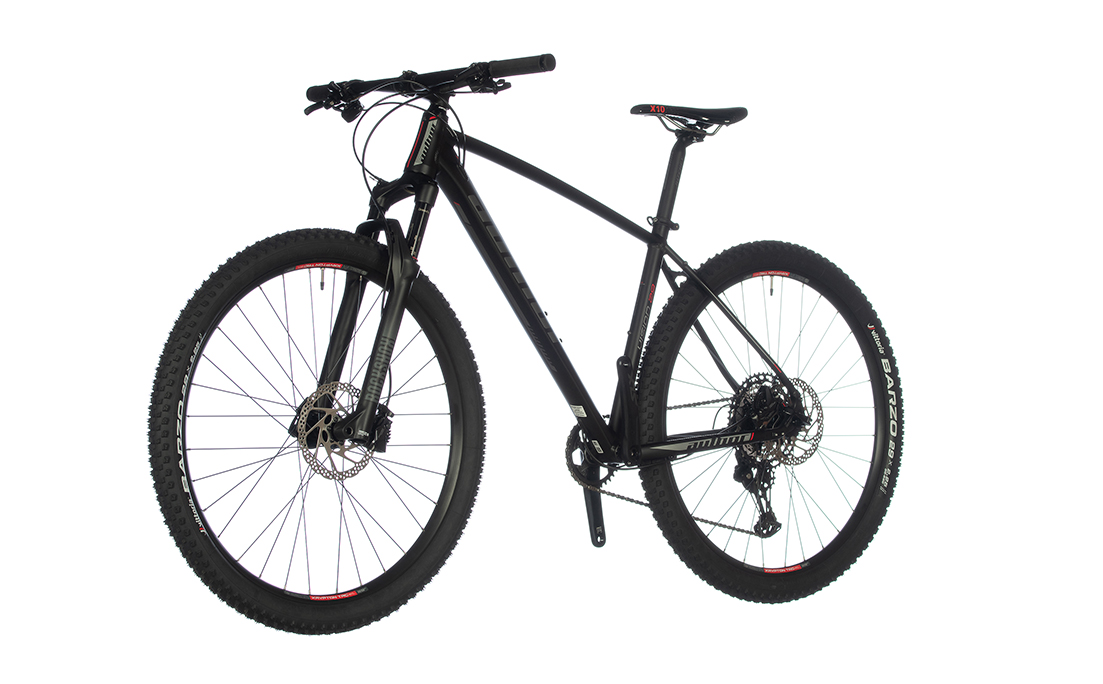

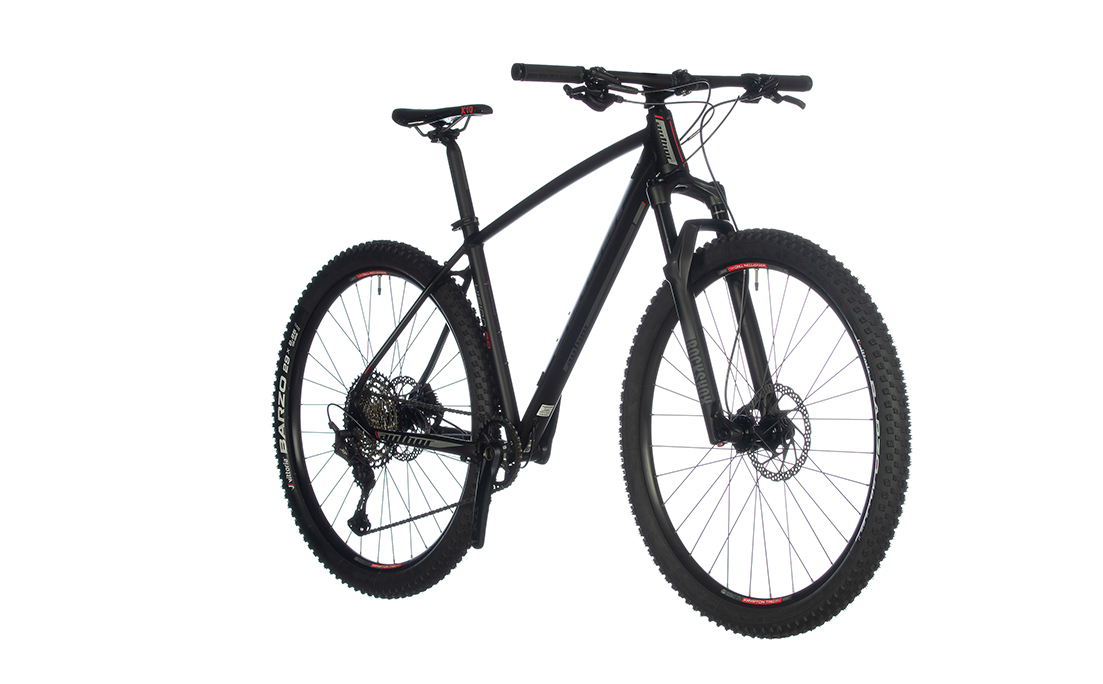

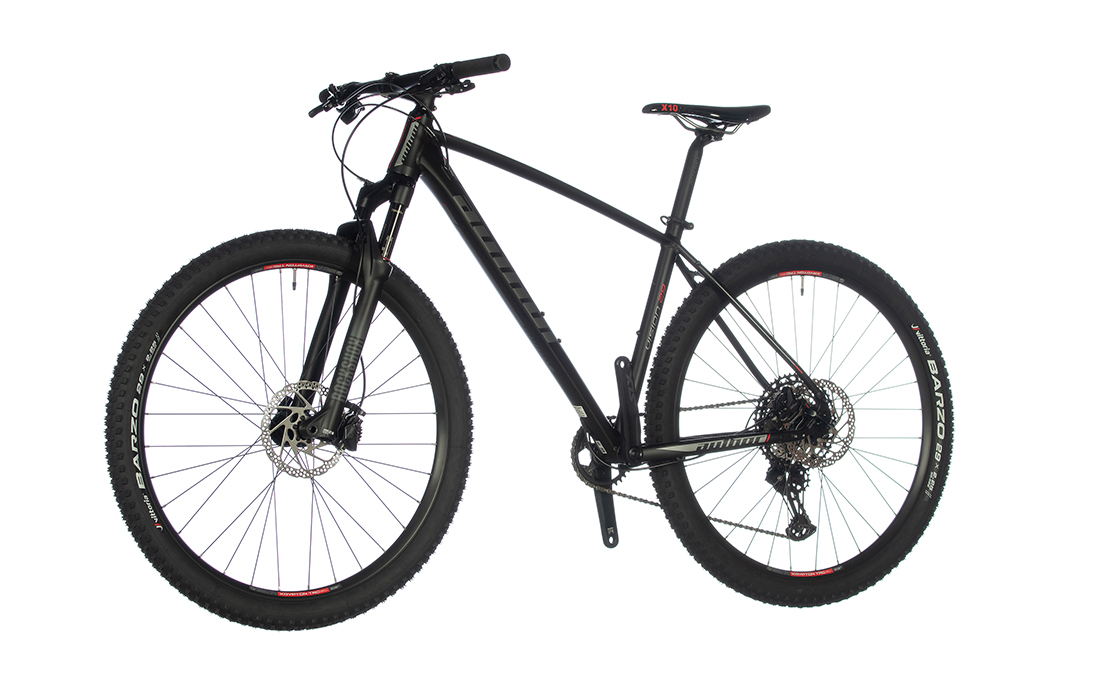

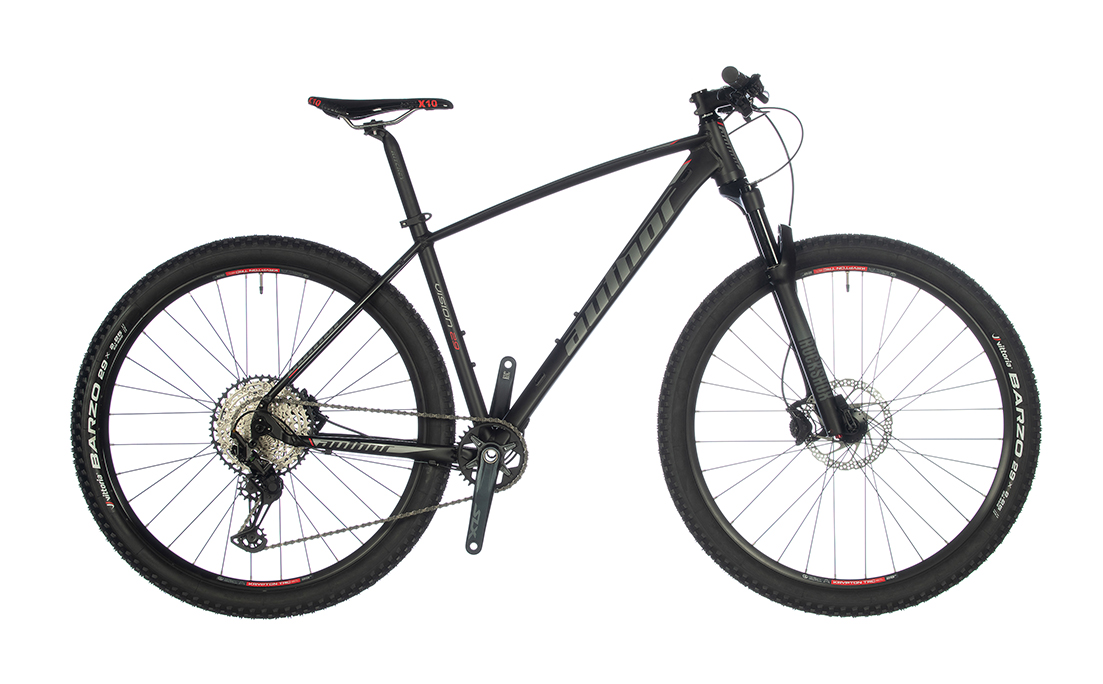

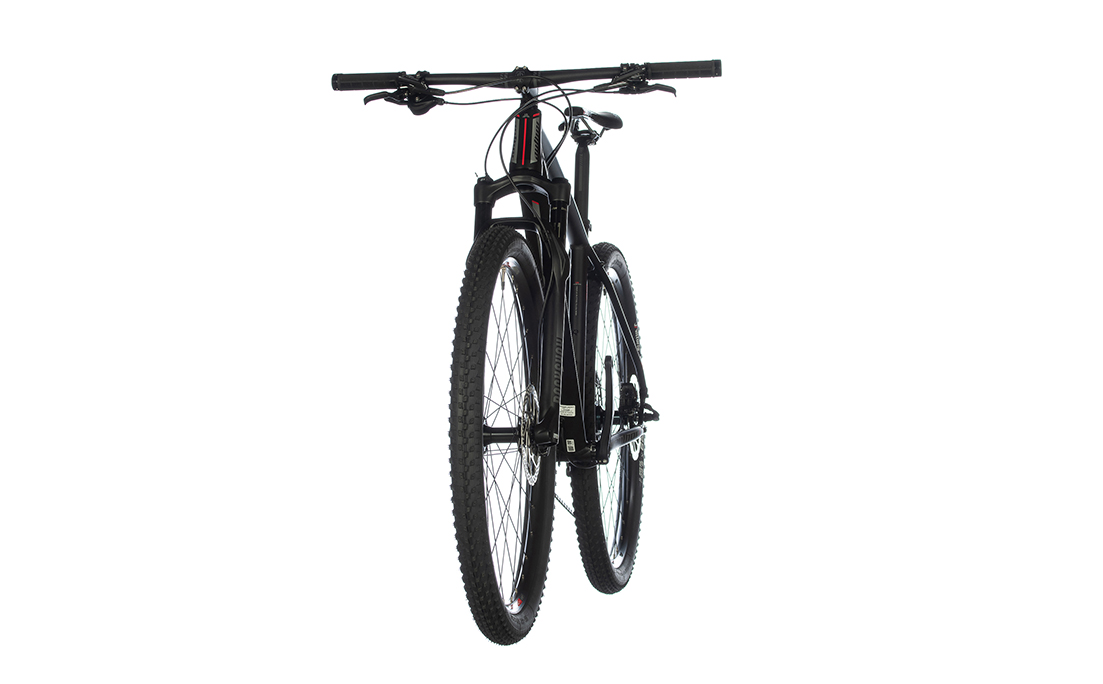

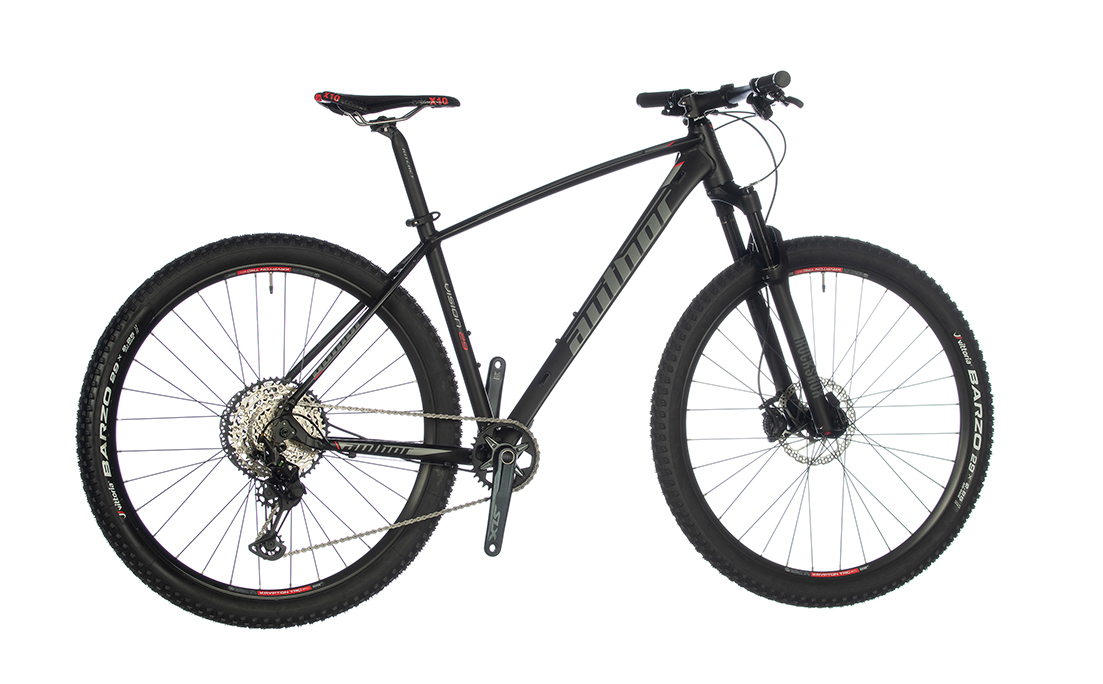

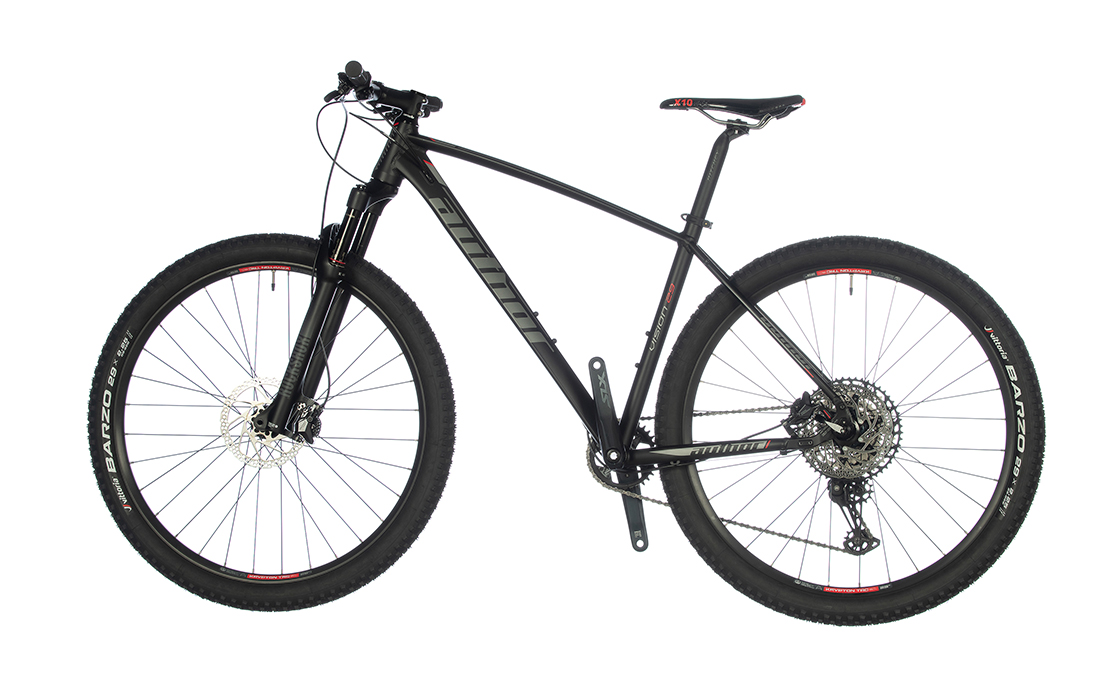

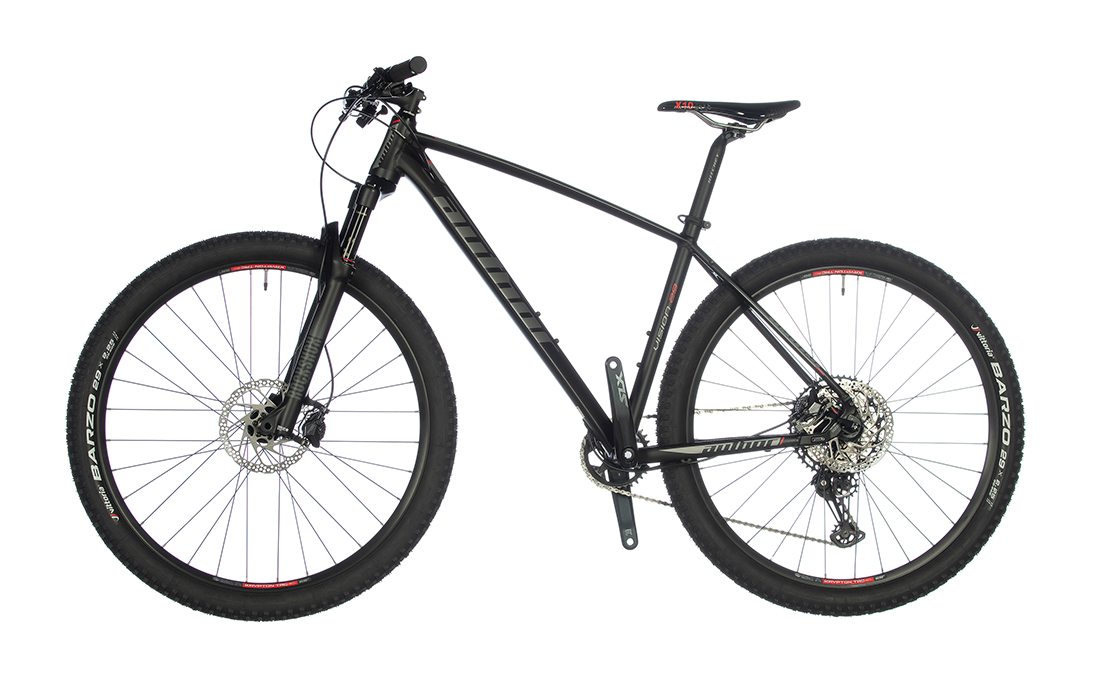

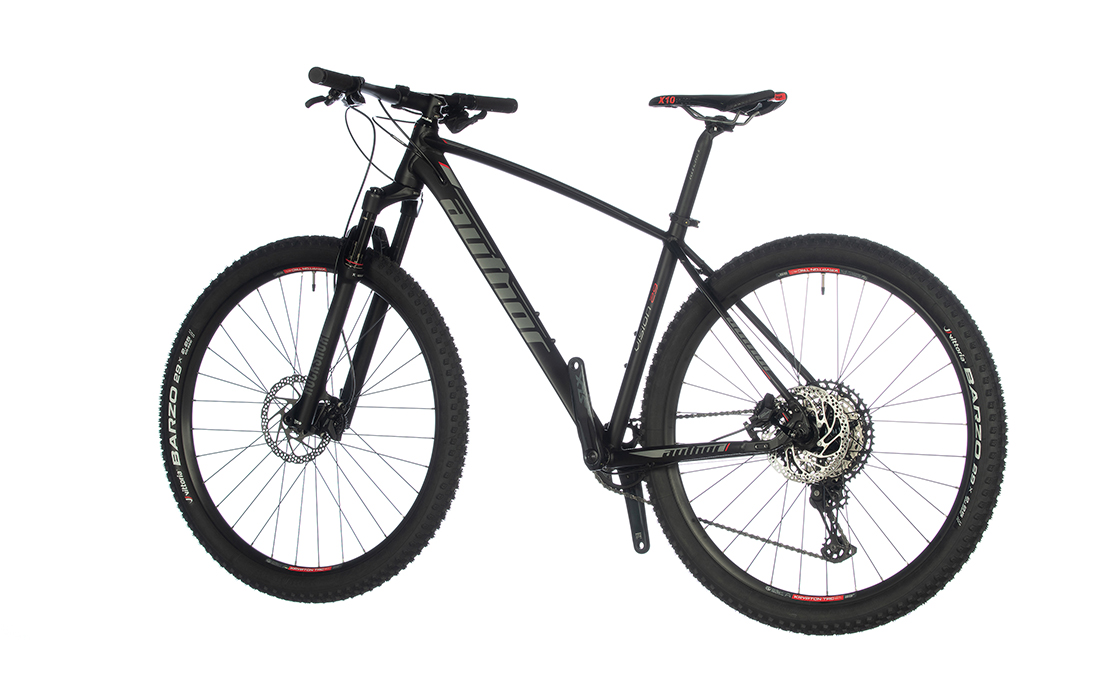

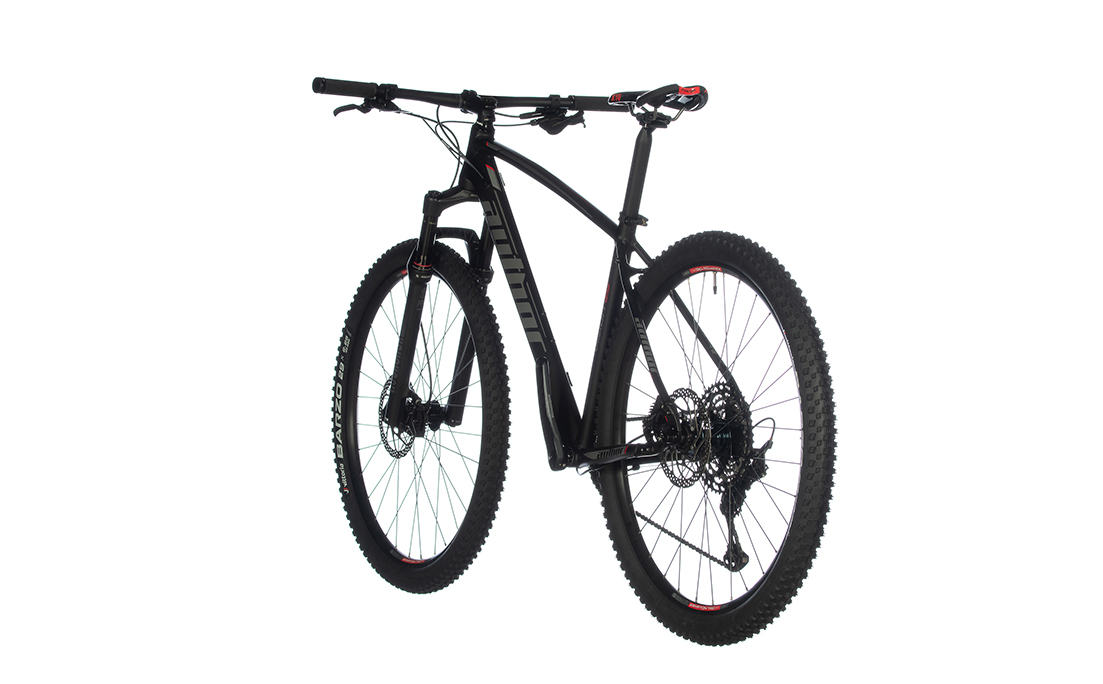

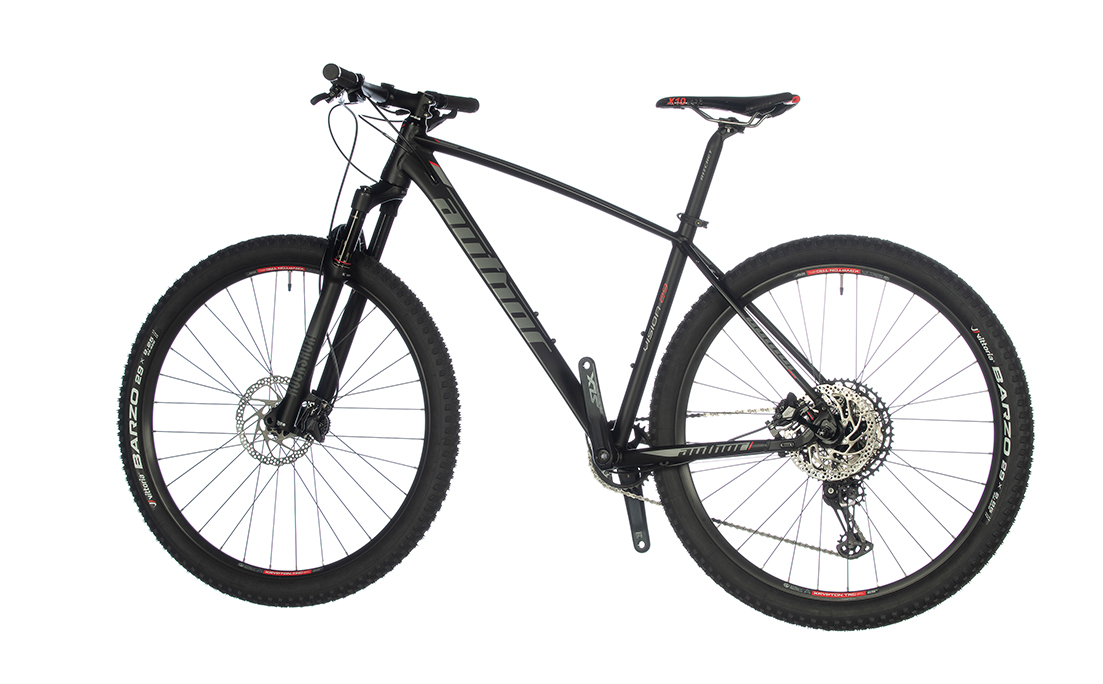

AUTHOR Vision 29 2021-22Archivní model 2021-22

Colour variants
Tripple butted alloy frameROCK SHOX Recon Gold air forkHydraulic brakes SHIMANO Deore
other models
Interested in other model`s year?

Technical specification

Size17", 19", 21"
Frametriple butted hydroformed alloy 6061 29"
Front forkROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out, 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSHIMANO SLX 34 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-MT800 BB unit
Rear derailleurSHIMANO XT
ShiftersSHIMANO SLX (12)
Free wheelSHIMANO CS-M7100 10-51 (12)
ChainSHIMANO M7100
HubsAUTHOR / SHIMANO SLX 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
BrakesSHIMANO Deore disc hydraulic (7" rotors)
Brakes leversSHIMANO Deore
RimsAUTHOR Krypton TRC 29 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo foldable 29" × 2.25"
HandlebarRITCHEY MTN Comp 2×9 9° 700 / 720 mm
GripsAUTHOR Pro Lock
StemRITCHEY Comp 4-Axis
Seat postRITCHEY Comp (31.6)
Seat clampAUTHOR (34.9)
SaddlePROLOGO Nago Evo X10
Speed12
Weight11,8 kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 171 179 188
Max. figure [cm] 181 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 605 625 645
T/T a [mm] 584 600 619
H/T [mm] 110 120 130
C/S [mm] 443 443 443
W/B [mm] 1113 1133 1154
S/T ang. [°] 73 73 73
H/T ang. [°] 70 70 70
F/L [mm] 510 510 510
B/B drop [mm] 61 61 61
B/B width [mm] 73 73 73
Reach [mm] 413 430 447
Stack [mm] 629 638 648
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Vision 29 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

black-matt17" = UA#42936402   19" = UA#42936403   21" = UA#42936404
