  » Bicycles » mountain bike » mtb 29

AUTHOR Vision 29 2018Archivní model 2018

Colour variants
Tripple butted alloy frameROCK SHOX Recon GoldSHIMANO SLX groupset
other models
Interested in other model`s year?

Technical specification

Size17', 19', 21'
Frametriple butted hydroformed alloy 6061 29'

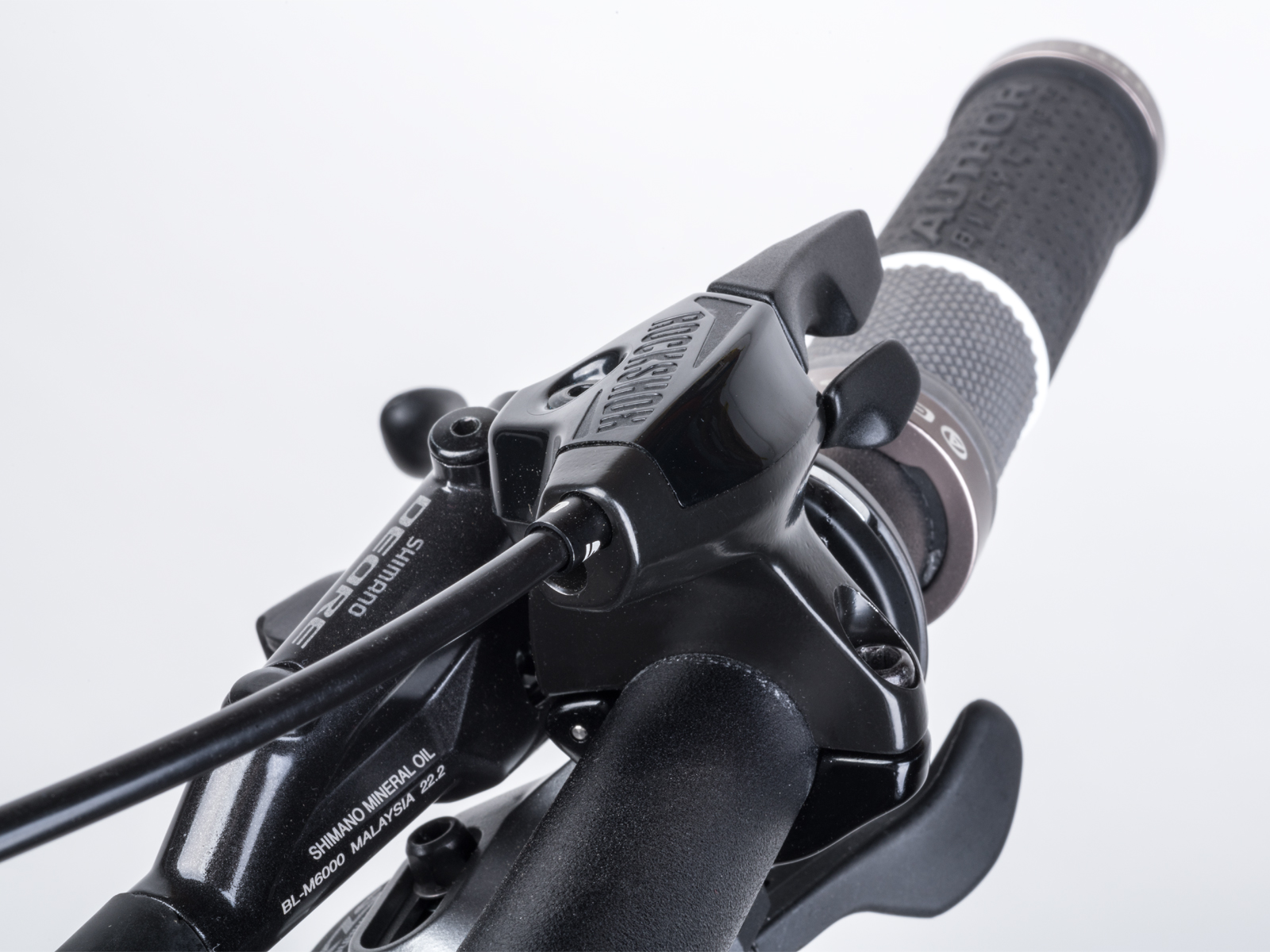

Front forkROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out 15 mm thru axle 1.5' tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5' tapered
Chain WheelSHIMANO SLX 38-28 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-MT800 BB unit

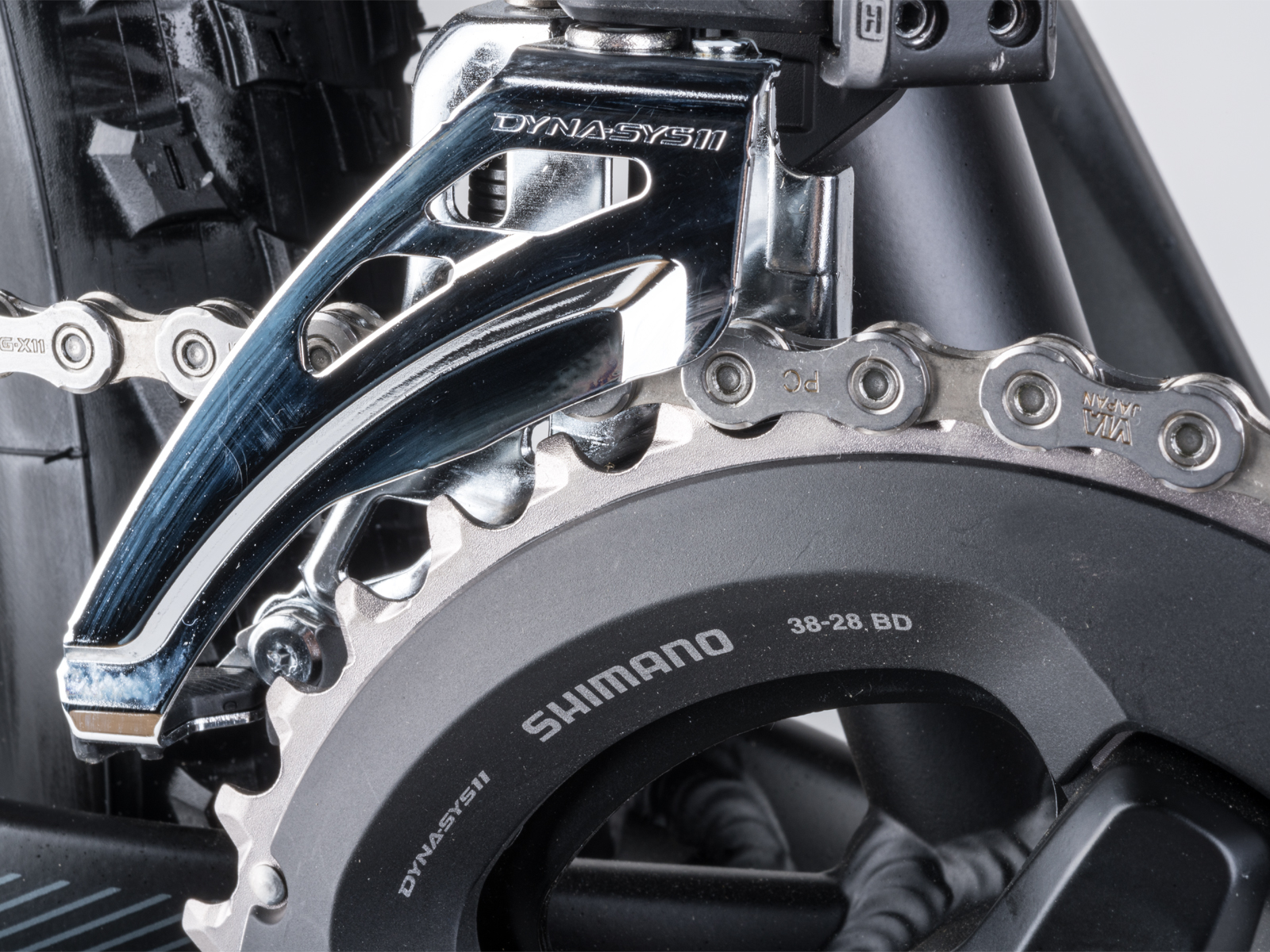

Front derailleurSHIMANO SLX (34.9)

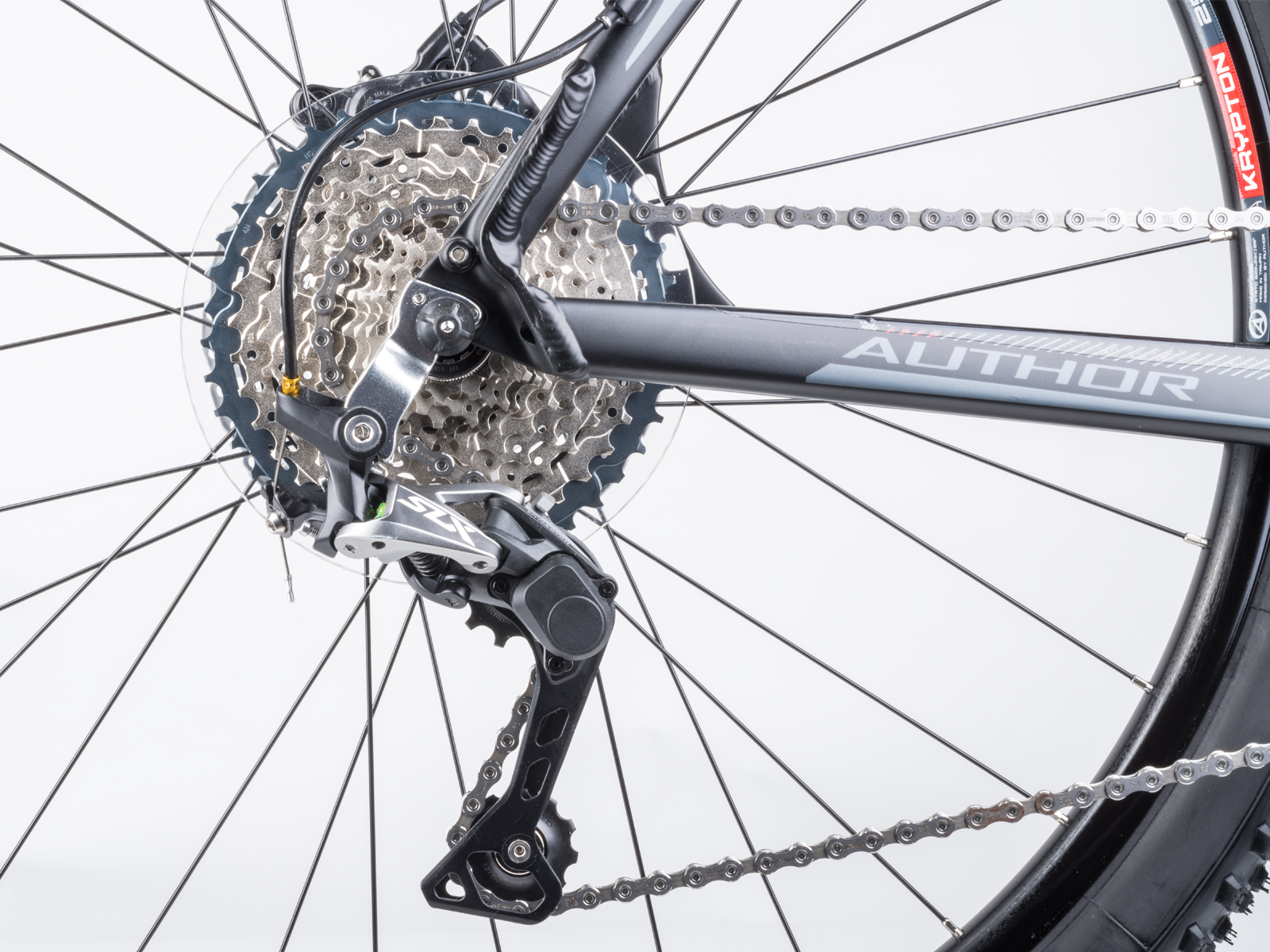

Rear derailleurSHIMANO SLX
ShiftersSHIMANO SLX (22)
Free wheelSHIMANO M7000-11 11-42 (11)
ChainSHIMANO HG601
HubsAUTHOR Helium 15 / Xenon 15 x 100mm thru axle 32 holes

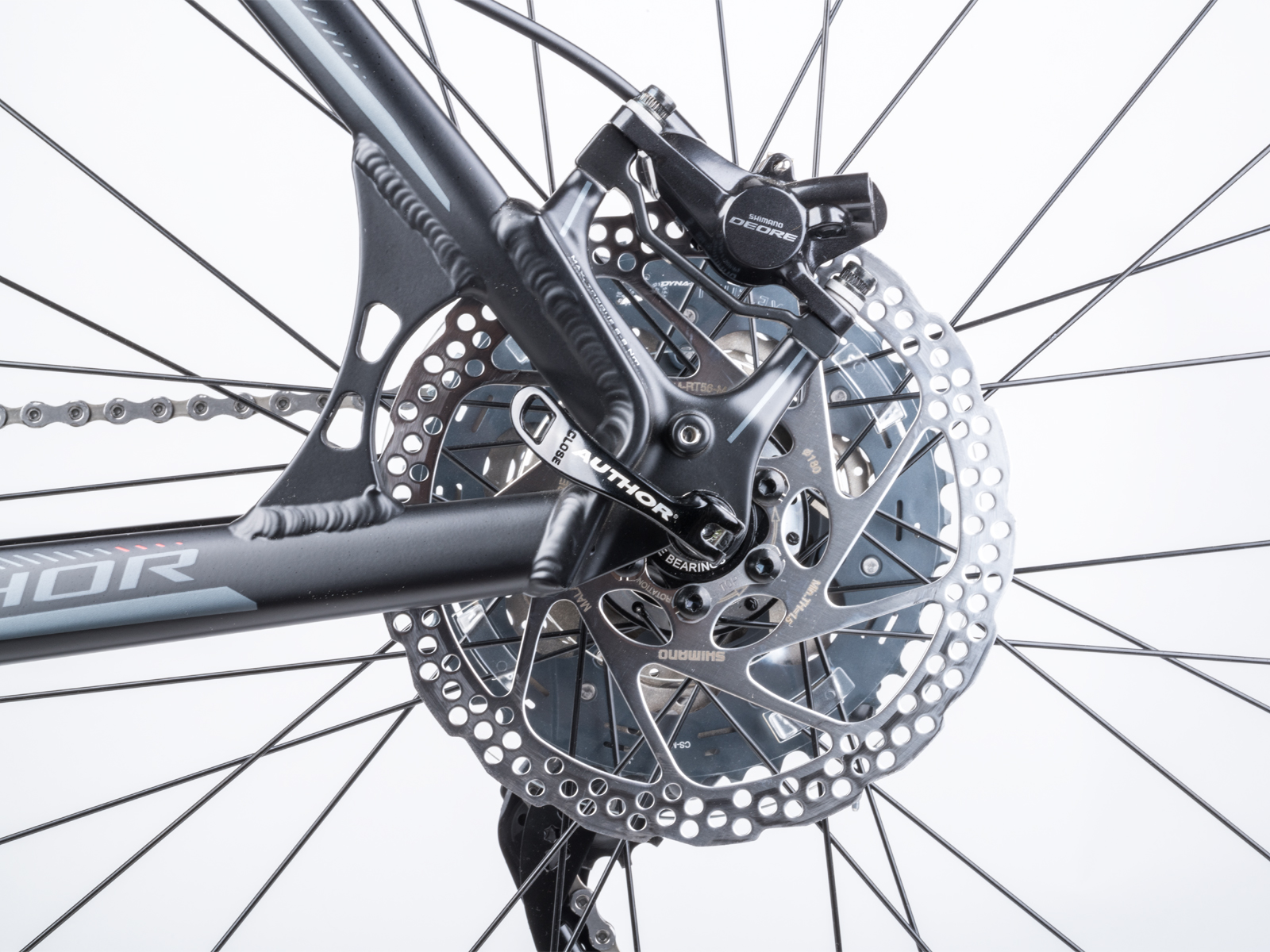

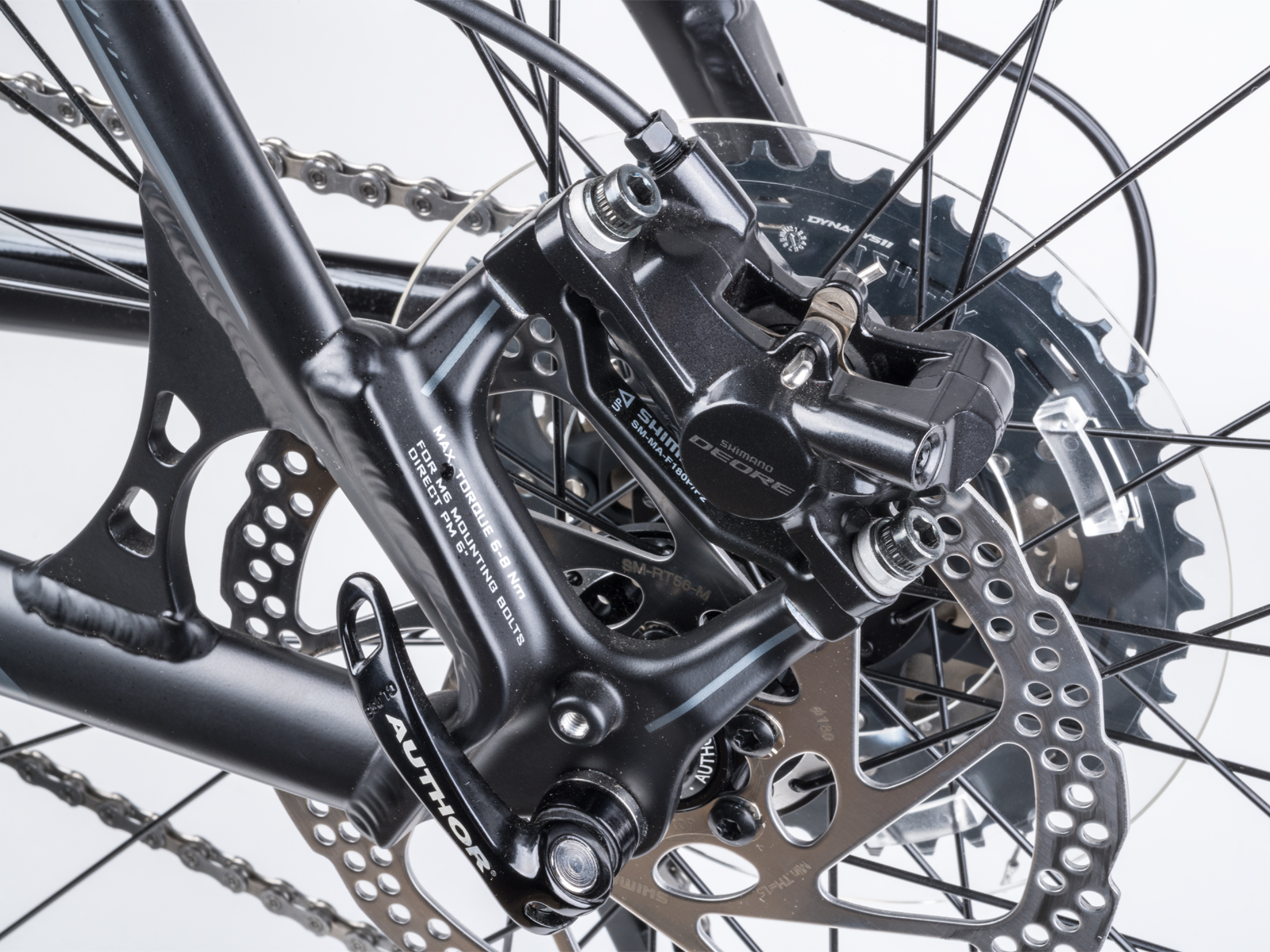

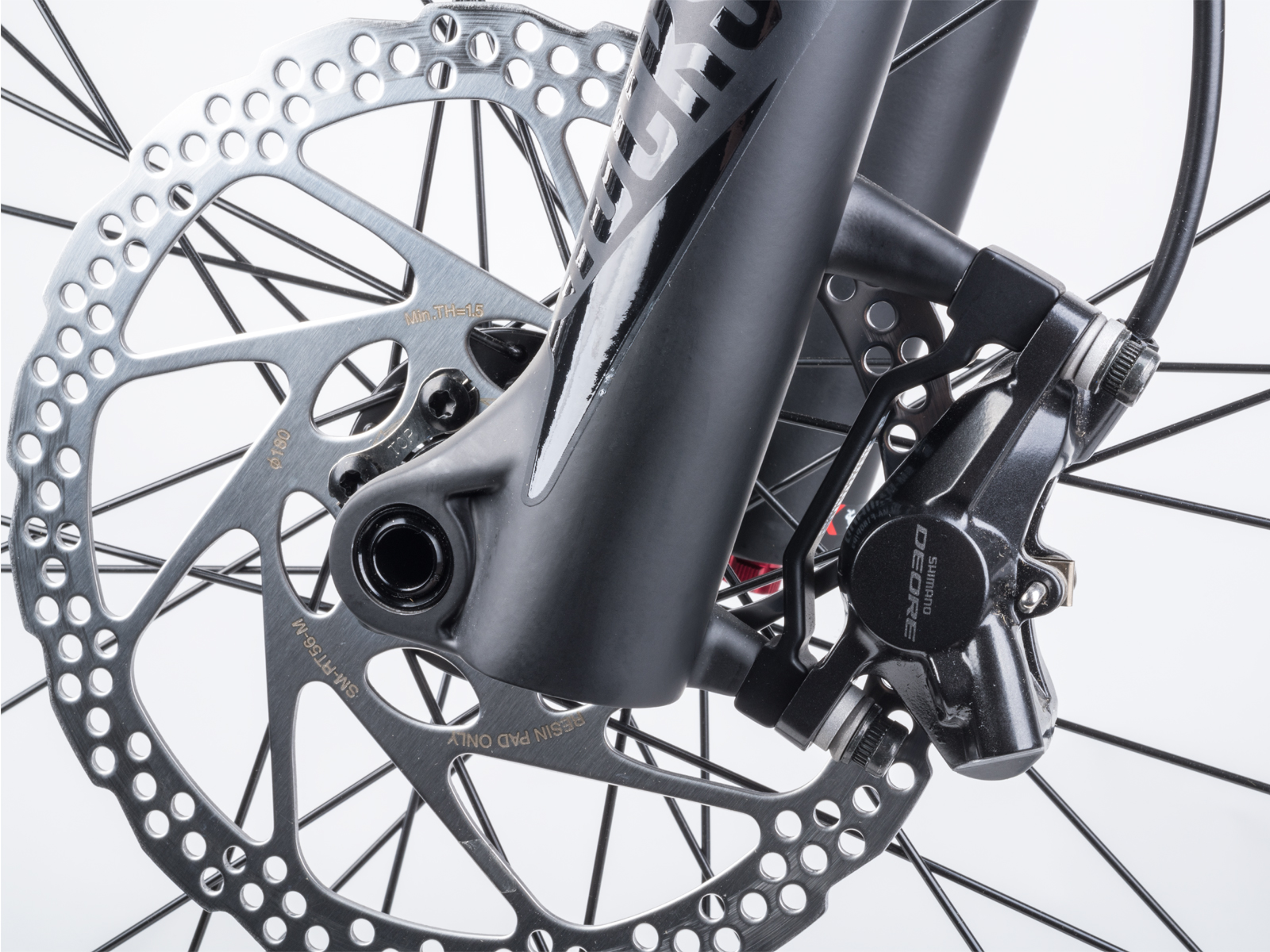

BrakesSHIMANO Deore disc hydraulic (7' rotors)

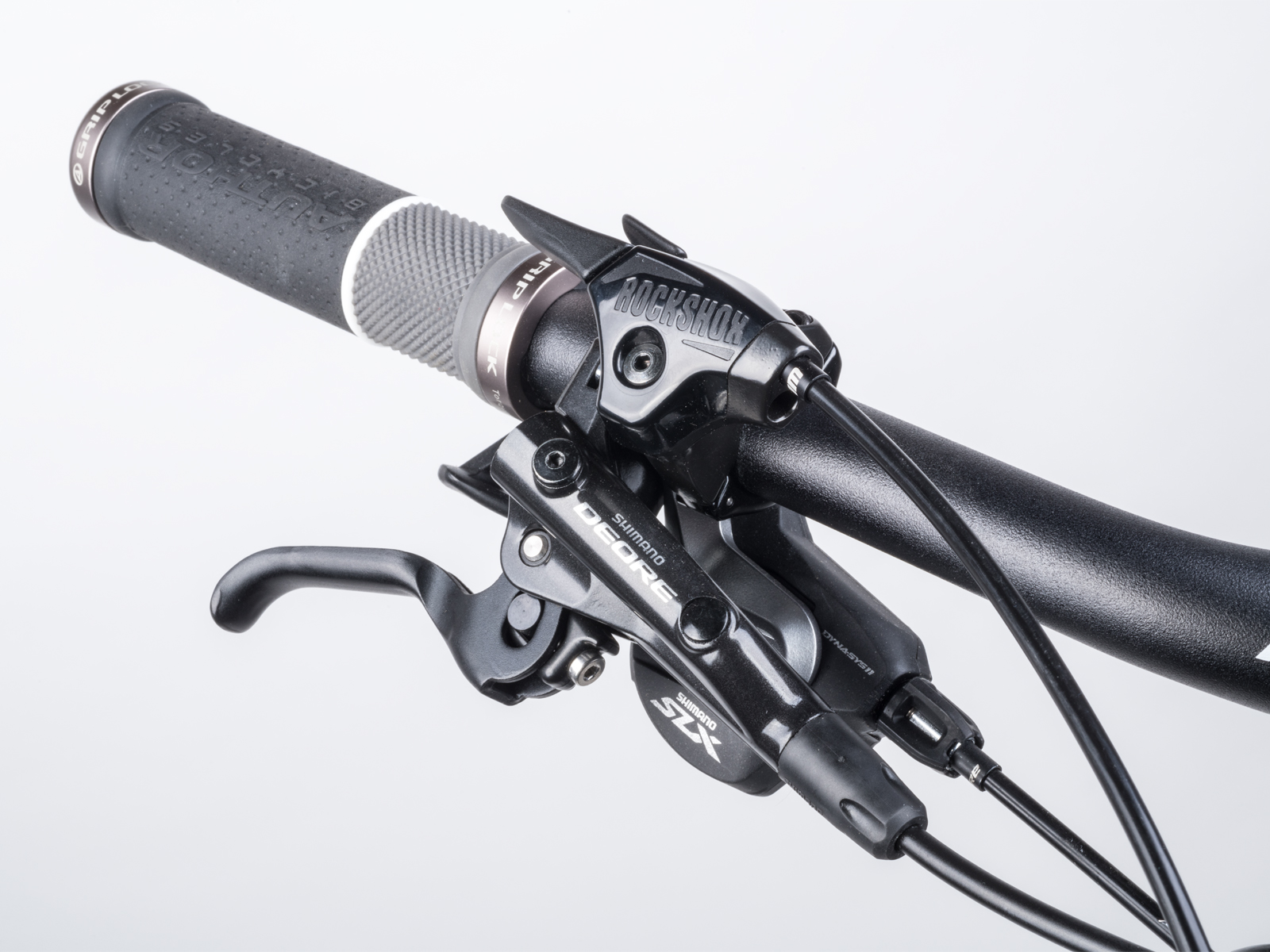

Brakes leversSHIMANO Deore
RimsAUTHOR Krypton 29 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo kevlar 29' x 2.25'
HandlebarRITCHEY Comp Flat 10° 660 / 700 mm
GripsAUTHOR Pro Lock
StemRITCHEY Comp 4-Axis

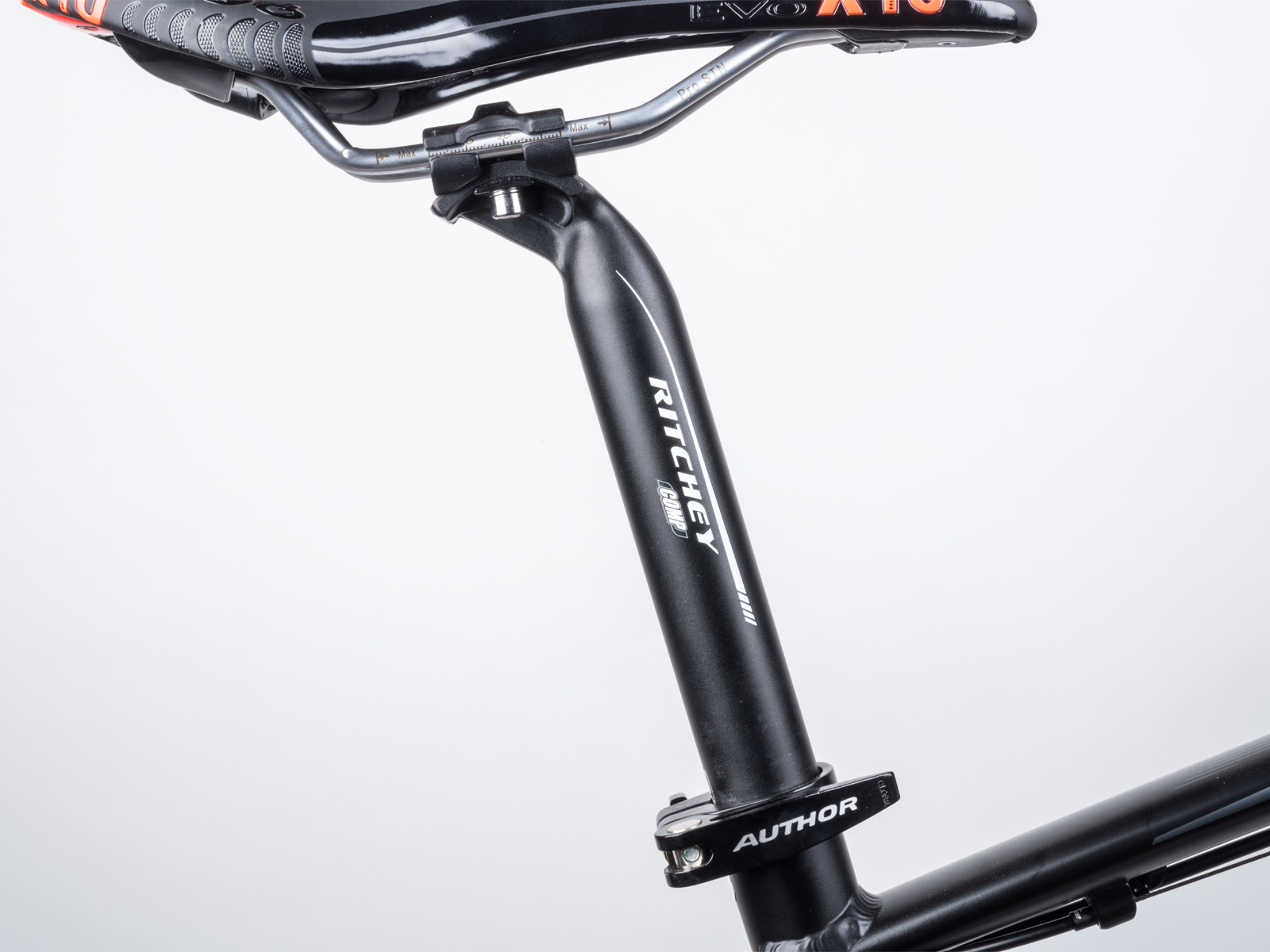

Seat postRITCHEY Comp (31.6)
Seat clampAUTHOR (34.9)

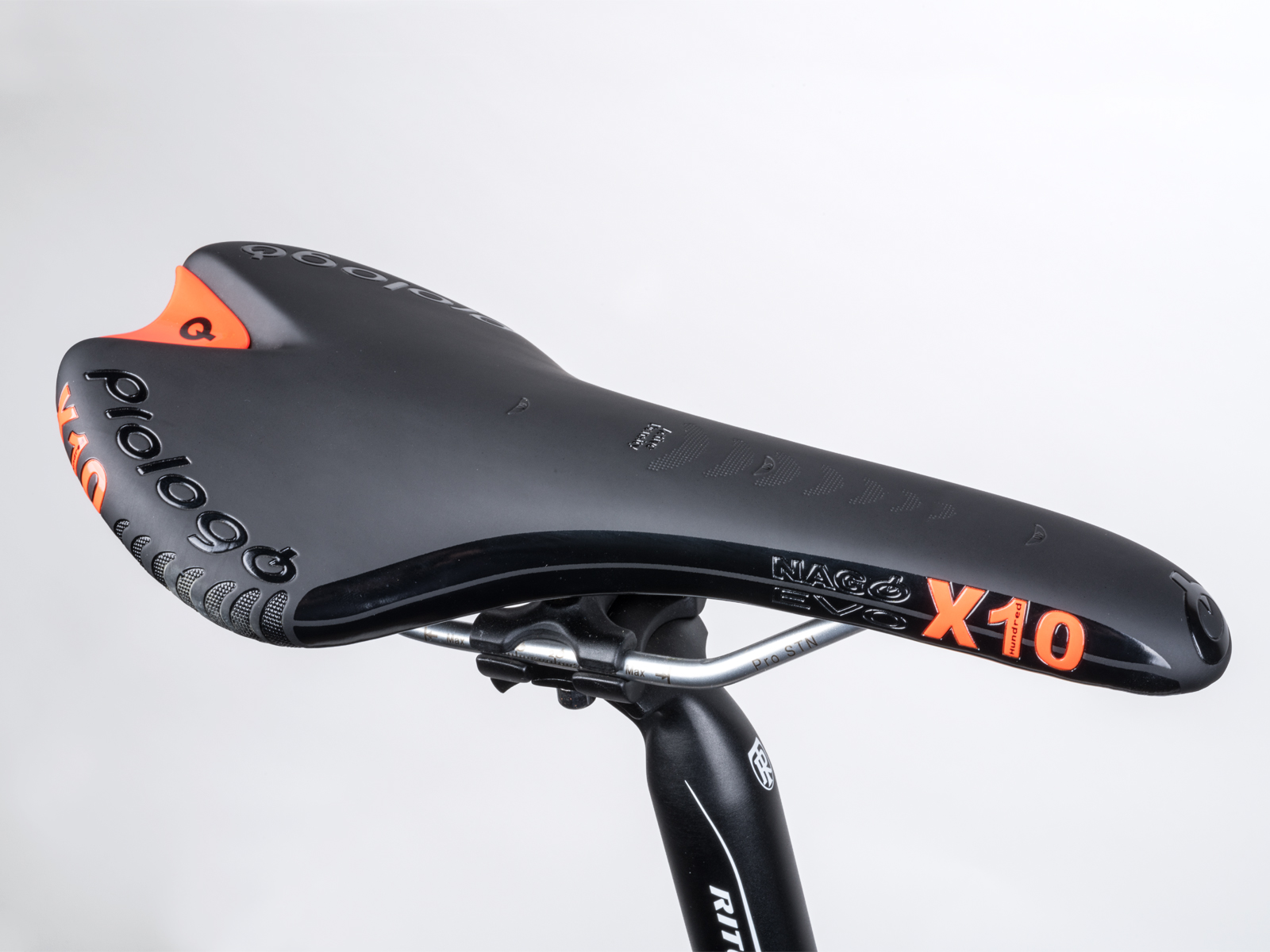

SaddlePROLOGO Nago Evo X10
Speed22
Weight12,1 kg / 19'

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 606 631 651
T/T a [mm] 585 605 623
H/T [mm] 115 120 125
C/S [mm] 445 445 445
W/B [mm] 1117 1137 1151
S/T ang. [°] 73 73 72.5
H/T ang. [°] 70 70.5 70.5
F/L [mm] 510 510 510
B/B drop [mm] 58 58 58
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 51 51 51
Handlebars [mm] 760 700 720
Stem [mm] 45 60 60
Cranks [mm] 175 170 175
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Vision 29 2018

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

black-matt17" = UA#42894702   19" = UA#42894703   21" = UA#42894704
