  » Bicycles » mountain bike » mtb 29

AUTHOR Traction 29 2016Archivní model 2016

Colour variants
Hydroformed double butted frameAir lock out fork RST AerialDisc hydraulic TEKTRO brakes
Mountain bike Author Traction 29 is being for a long time one of the most popular MTB model. It offers an ideal combination for both leisure hobby riders and training focused on performance. Thanks to the larger wheels help to better "smooth" the terrain and affords biker greater stability. Equipped with tires Vittoria Barzo, hydraulic disc brakes, components Shimano Deore / Alivio and details as alloy pedals or saddle Author Summit will take care of the rider's comfort.
Add to compareadditional accessories
other models
Magnum 29Sector 29Egoist 29Master 29Modus 29Vision 29Orion 29more models »
Interested in other model`s year?

Technical specification

Size17", 19", 21"

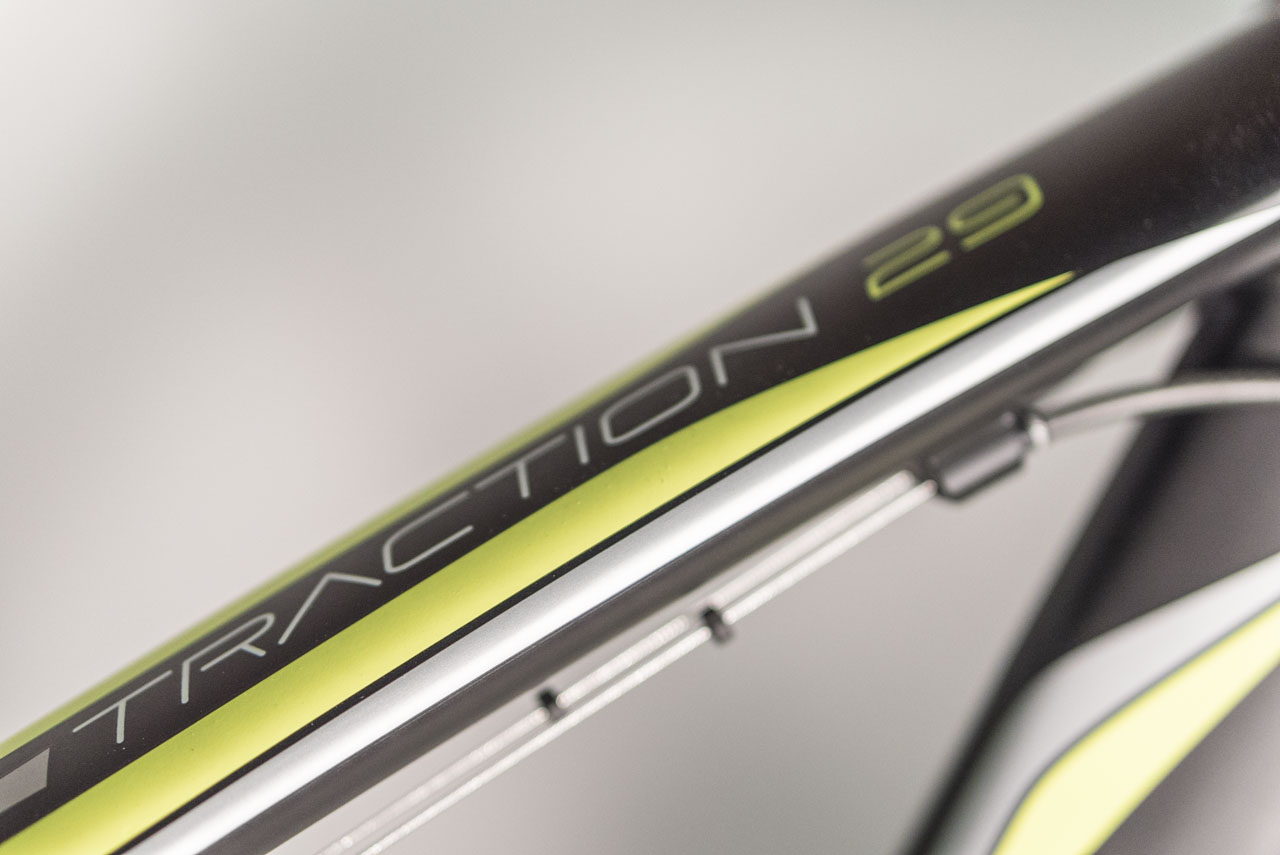

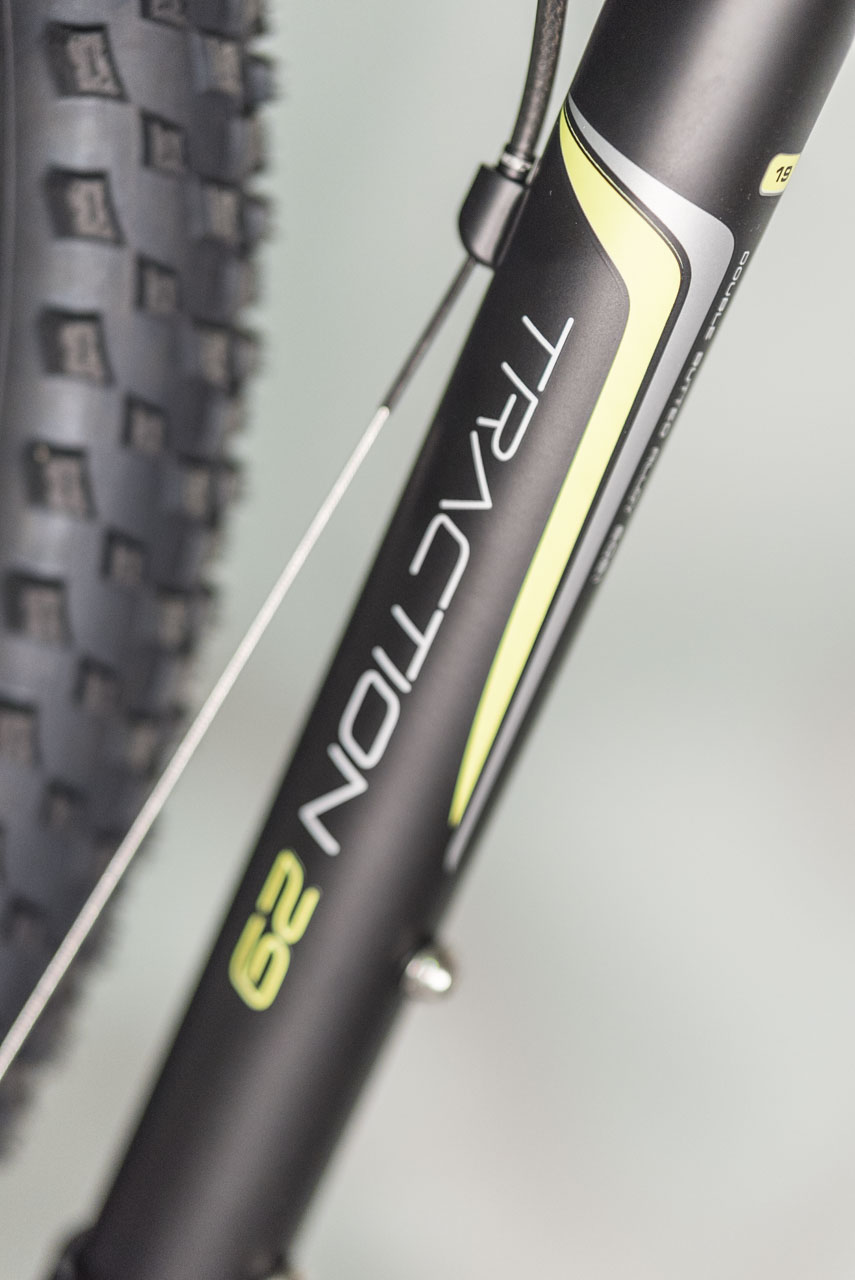

Framedouble butted hydroformed alloy 6061 29"
Front forkRST Aerial 29 TnL air, lock out (100 mm)

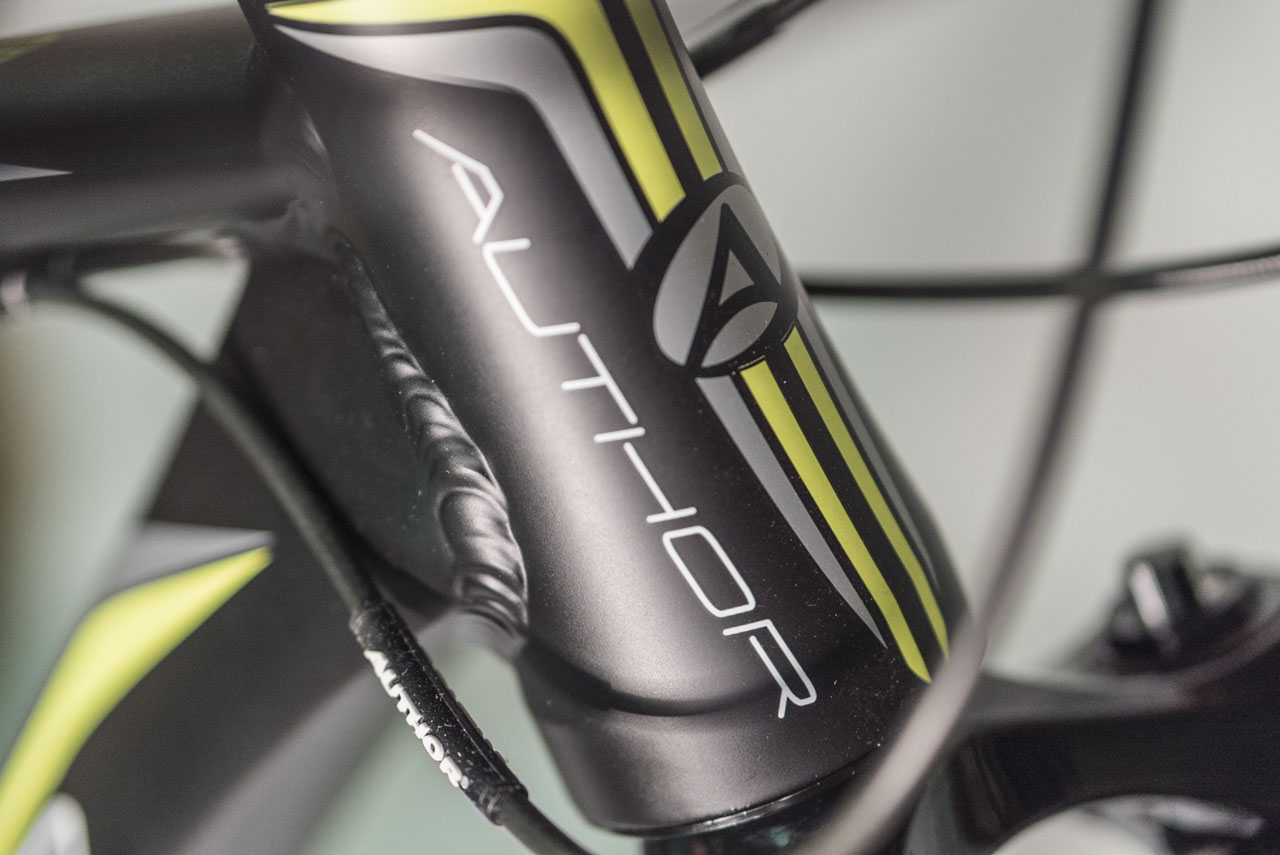

Head partsAUTHOR Integrated 1.5" tapered

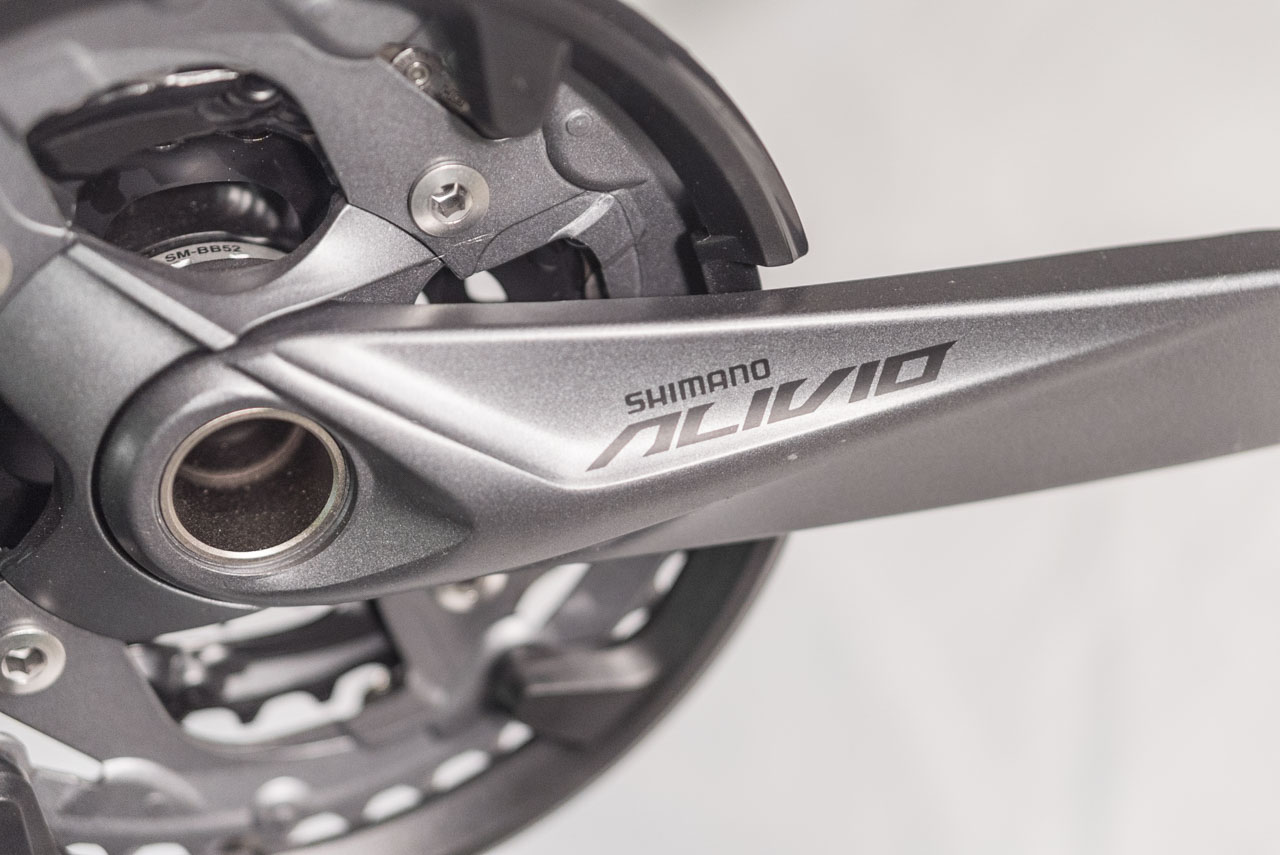

Chain WheelSHIMANO Alivio 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB52 BB unit
Front derailleurSHIMANO Alivio (34.9)
Rear derailleurSHIMANO Deore

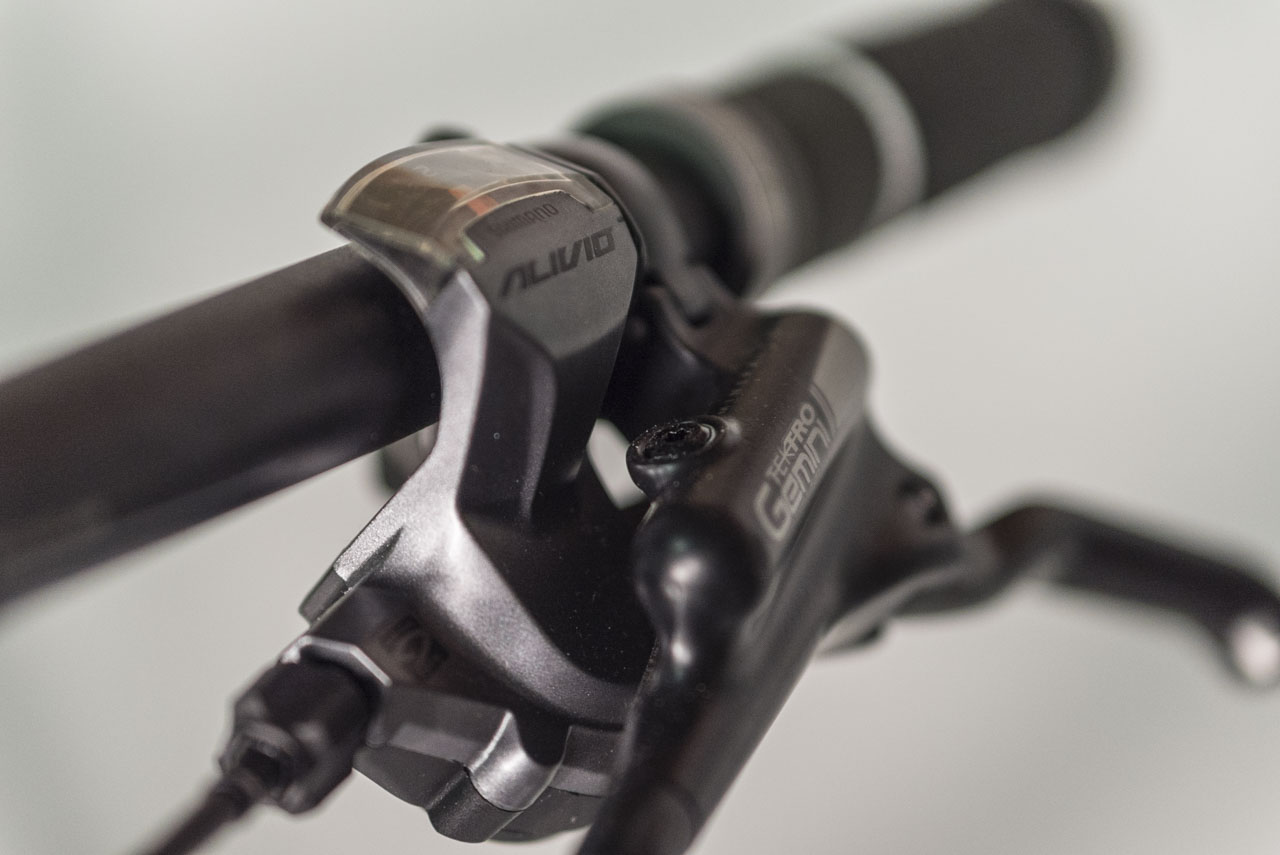

ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG400-9 11-34 (9)
ChainSHIMANO HG53
HubsAUTHOR Radon 32 holes

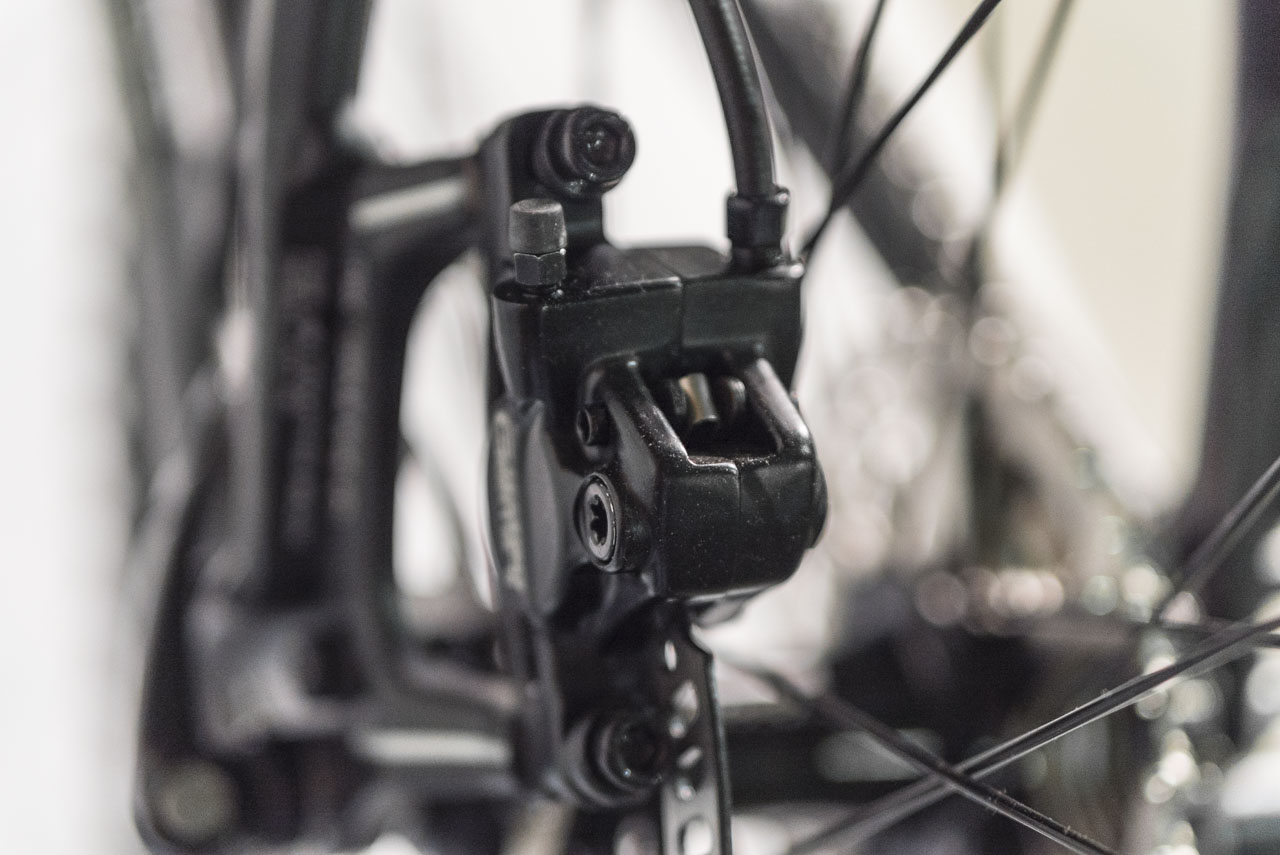

BrakesTEKTRO Gemini disc hydraulic (7" rotors)

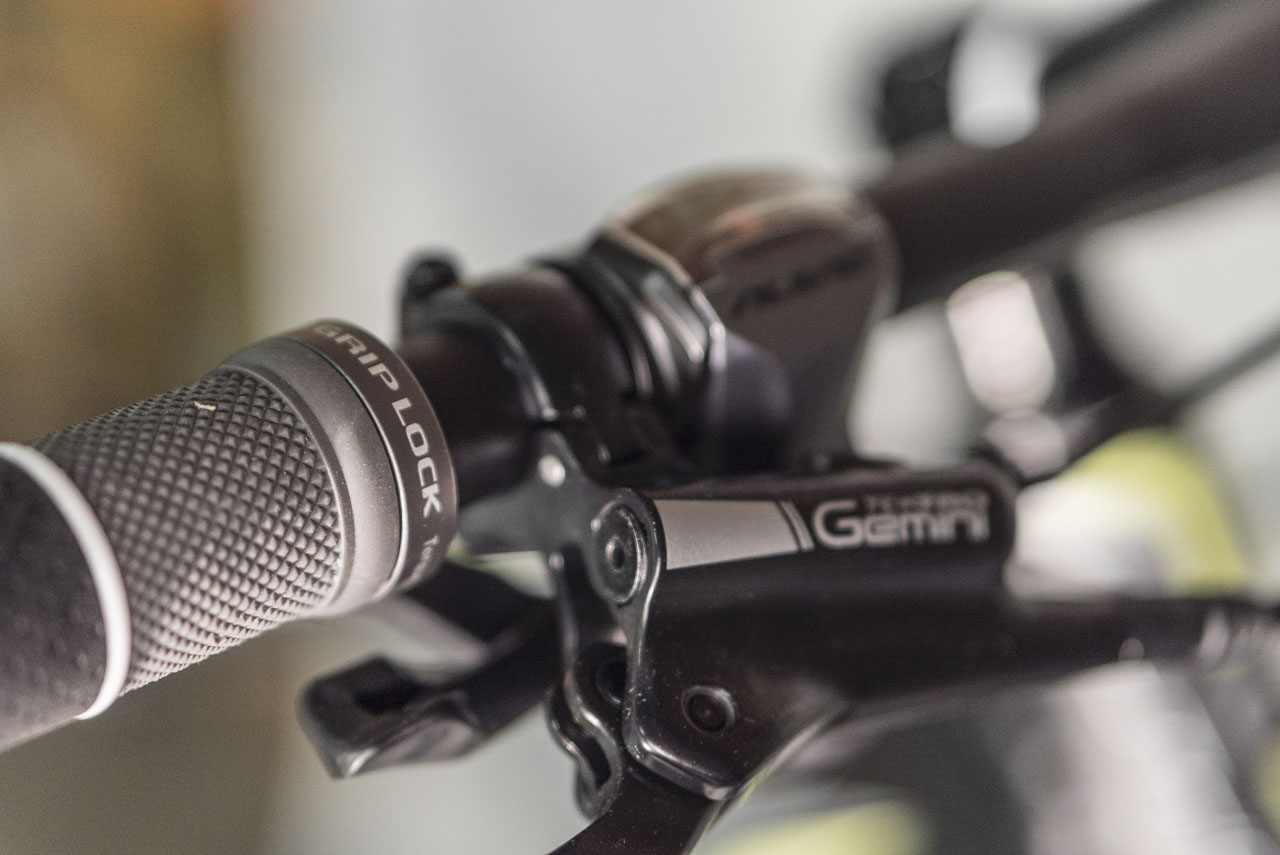

Brakes leversTEKTRO Gemini
RimsAUTHOR Radon Pro 29 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo 29" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR Flatbar 0 mm 700 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Summit
Speed27
Weight13.9 kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 606 631 651
T/T a [mm] 585 605 623
H/T [mm] 115 120 125
C/S [mm] 445 445 445
W/B [mm] 1117 1137 1151
S/T ang. [°] 73 73 72.5
H/T ang. [°] 70 70.5 70.5
F/L [mm] 510 510 510
B/B drop [mm] 58 58 58
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Traction 29 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
