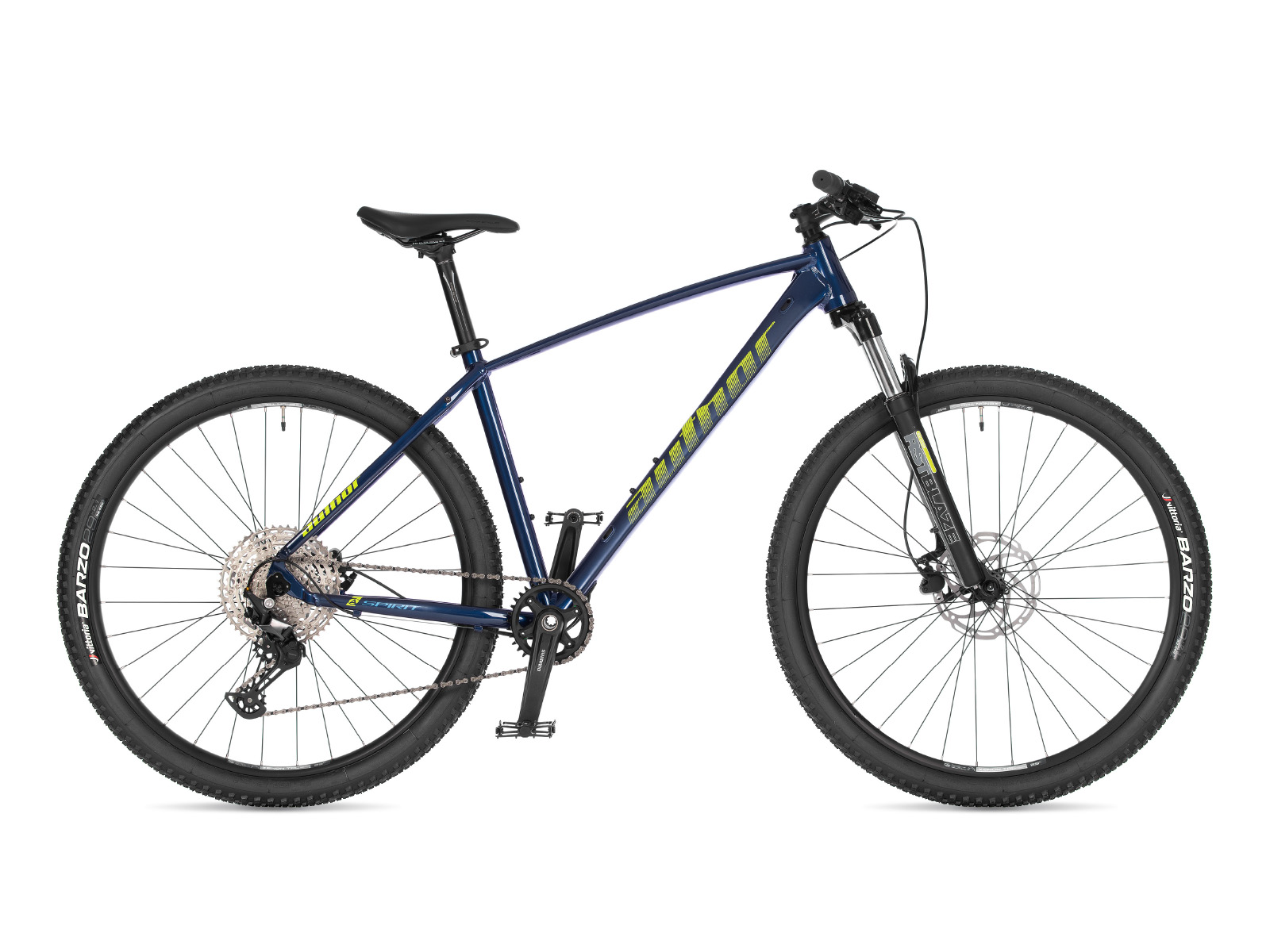

Spirit 2025

~~Colour variants~~

Alloy hydroformed frame with Inner Cable RoutingSHIMANO Deore components, 12 speedSingle chainring SHIMANO with 34t.Hydraulic disc brakes TEKTROVITTORIA Barzo 29" × 2.10" tiresAUTHOR cockpitAUTHOR Navigator comfortable saddle

price 26 990 Kč

# 17"# 19"# 21"# black # blue # green # red

other models

Interested in other model`s year?

2015 2016 2017 2018 2019 2020 2021-22 2023-24 2025

Technical specification

Size	17", 19", 21"
Frame	hydroformed alloy 6061 29"
Front fork	RST Blaze 29 TnL, lock out (100 mm)
Head parts	PRESTINE Integrated, 1.5" tapered
Chain Wheel	SHIMANO M510-1, 34 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (12)
Free wheel	SHIMANO CS-M6100-12, 10-51 (12)
Chain	KMC X12
Hubs	QUANDO Disc / SHIMANO, 32 holes
Brakes	TEKTRO HD-M280, disc hydraulic (7" rotors)

Brakes levers	TEKTRO HD-M280
Rims	AUTHOR Xenon TRC 29, 32 holes
Spokes	black steel
Tires	VITTORIA Barzo, 29" × 2.10"
Pedals	AUTHOR alloy
Handlebar	AUTHOR Flatbar, 9°, 700 / 720 mm
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Navigator
Speed	12

Geometry and sizes

Size	27,5"/15"	29"/17"	29"/19"	29"/21"
Min. figure ~~[cm]~~	152	168	178	188
Max. figure ~~[cm]~~	168	179	189	202
S/T c-t ~~[mm]~~	381	432	483	535
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	570	600	625	645
T/T a ~~[mm]~~	555	583	604	623
H/T ~~[mm]~~	90	100	115	130
C/S ~~[mm]~~	435	450	450	450
W/B ~~[mm]~~	1082	1135	1161	1183
S/T ang. ~~[°]~~	73	74	74	74
H/T ang. ~~[°]~~	69	69	69	69
F/L ~~[mm]~~	495	510	510	510
B/B drop ~~[mm]~~	35	65	65	65
B/B width ~~[mm]~~	73	73	73	73
Reach ~~[mm]~~	397	423	444	460
Stack ~~[mm]~~	566	616	630	644
F/R ~~[mm]~~	44	51	51	51
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

	red / black / lime	17" = UA#42956702 19" = UA#42956703
	blue / lime / black	17" = UA#42956712 19" = UA#42956713 21" = UA#42956714
