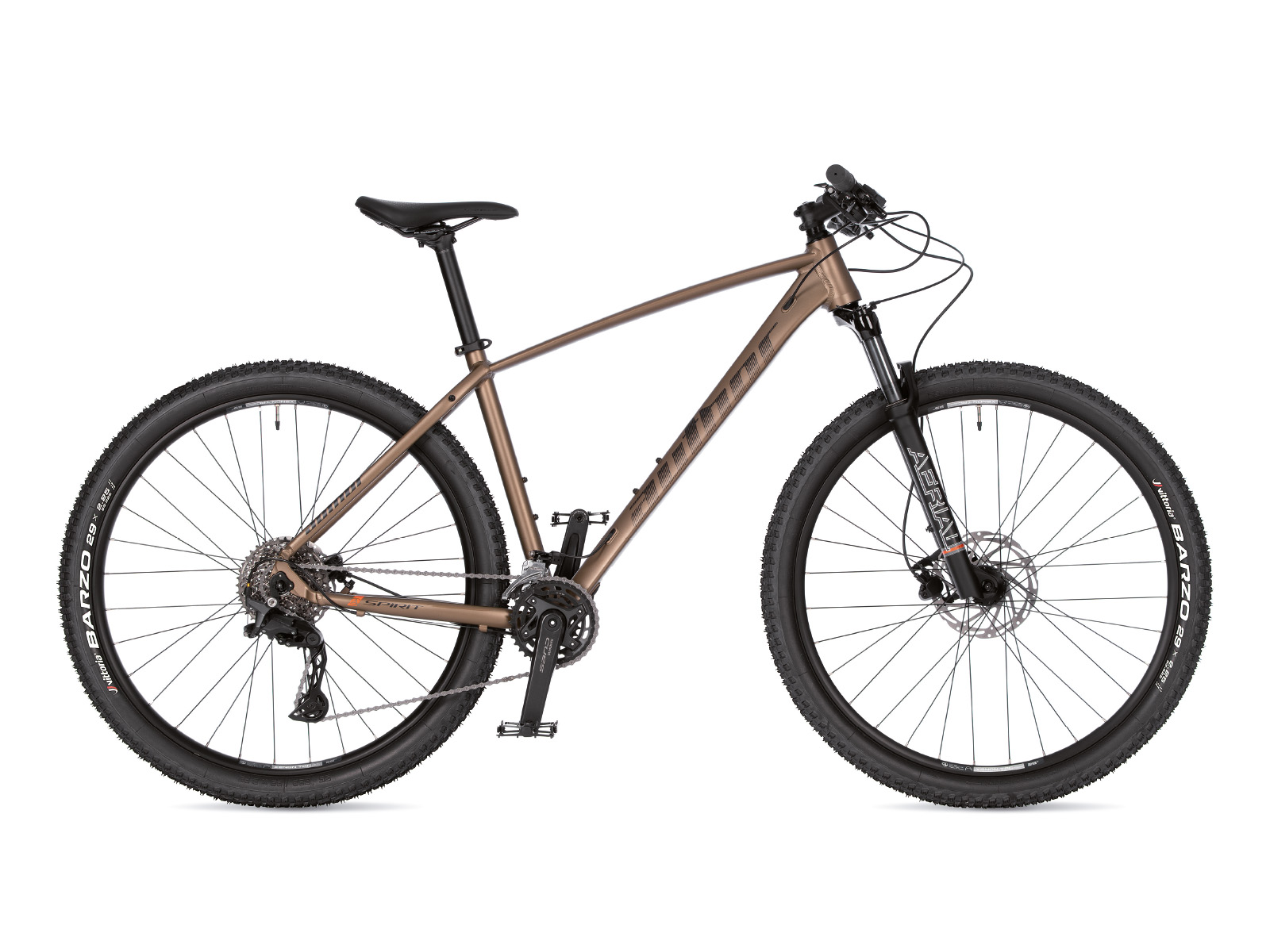

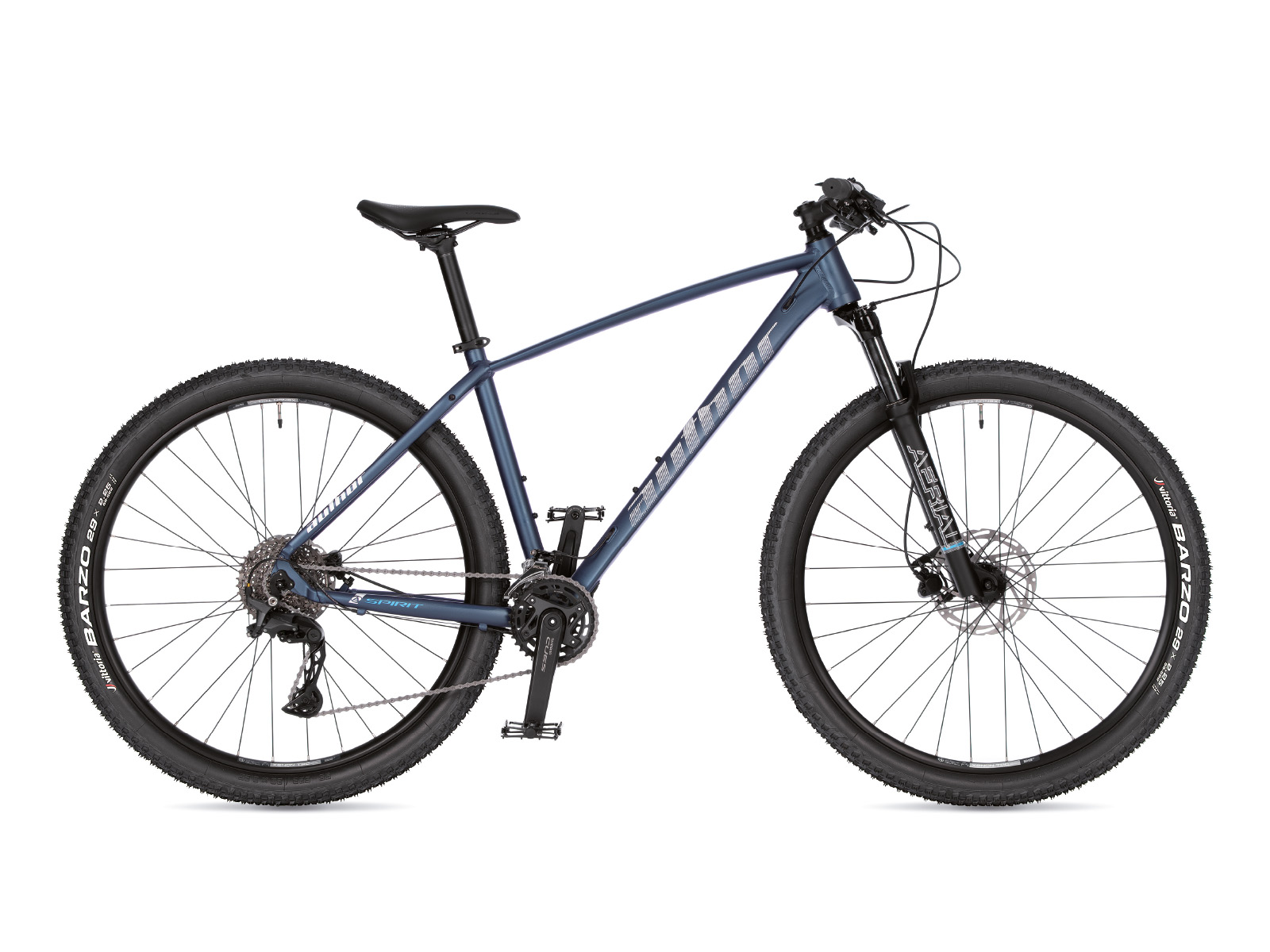

Spirit 2026

Technical specification

Size	29" – 17", 19", 21"
Frame	hydroformed alloy 29"
Front fork	RST Aerial 29 TRL, air, remote lock out (100 mm)
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SHIMANO Cues 6000-2, 36-22 teeth, 170/175 mm cranks
BBParts	SHIMANO BB-MT501, BB unit
Front derailleur	SHIMANO Cues 6000 (34.9)
Rear derailleur	SHIMANO Cues 6020
Shifters	SHIMANO Cues 6000 (20)
Free wheel	SHIMANO CS-LG400-10, 11-39 teeth (10)
Chain	KMC XGlide
Hubs	QUANDO Disc, 32 holes
Brakes	TEKTRO HD-M280, disc hydraulic (7"/6" rotors)
Brakes levers	TEKTRO HD-M280

Rims	AUTHOR Xenon 29 TRC, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	VITTORIA Barzo, foldable, 29" x 2.25"
Pedals	AUTHOR alloy
Handlebar	AUTHOR Flatbar alloy, rise 0 mm, 700/720 mm
Grips/Bar tapes	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Navigator
Speed	20
Weight	14,4 kg / 19"

Geometry and sizes

Size	29"/17"	29"/19"	29"/21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	625	645
T/T a ~~[mm]~~	0	0	0
H/T ~~[mm]~~	100	115	130
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1135	1161	1183
S/T ang. ~~[°]~~	74	74	74
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	423	444	460
Stack ~~[mm]~~	616	630	644
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
