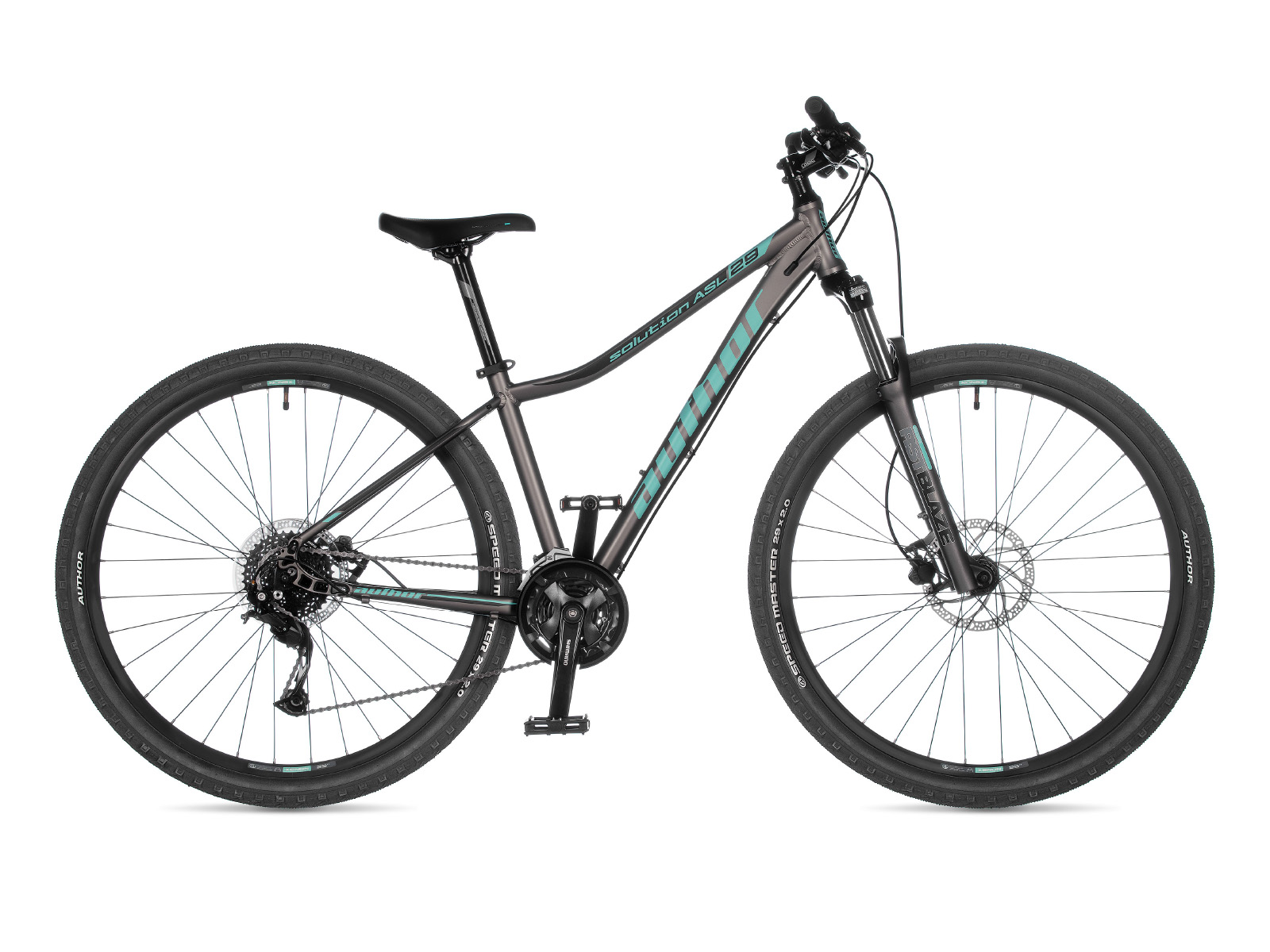

Solution 29 ASL 2023-24

~~Colour variants~~

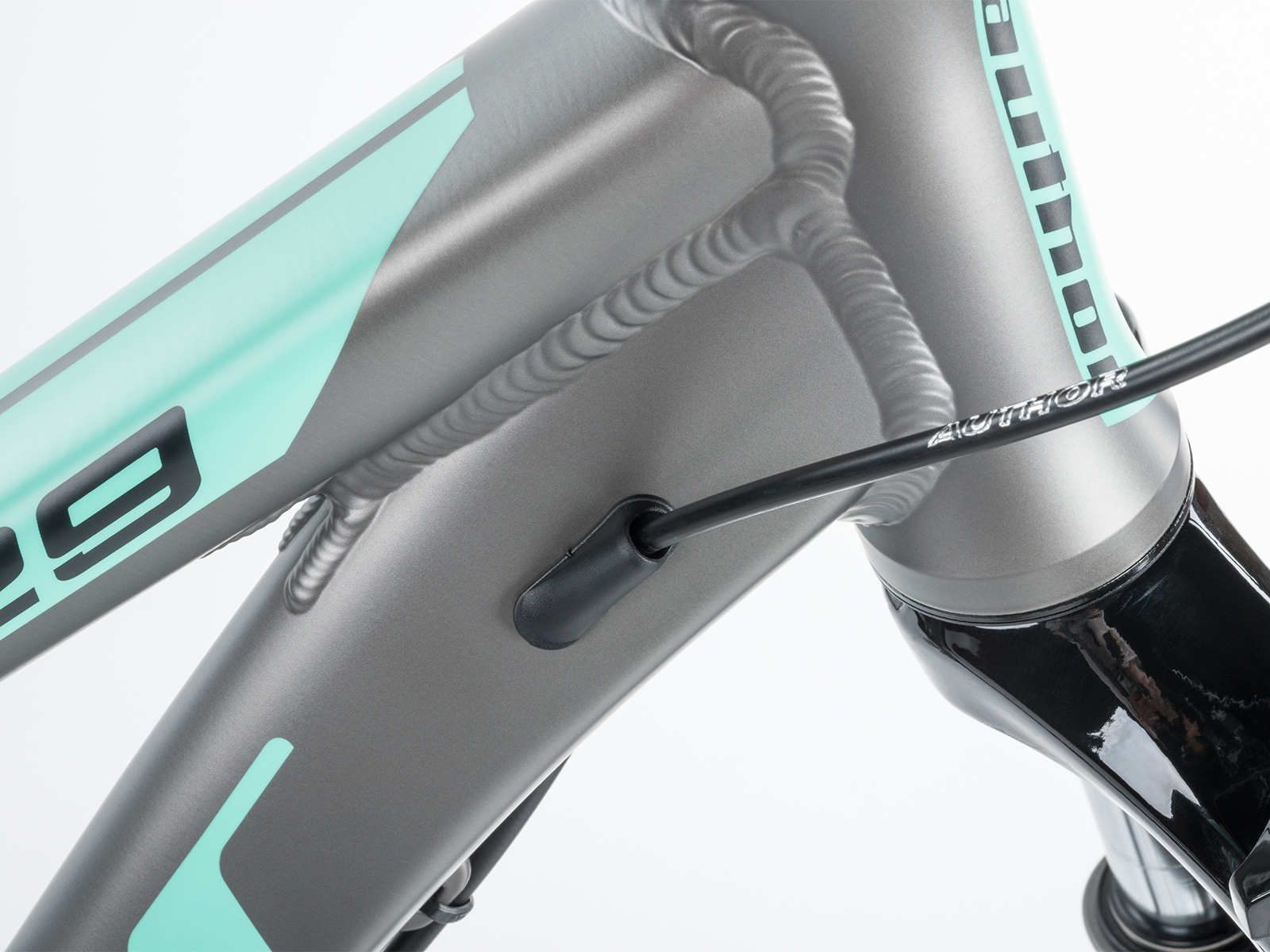

Wheel size 29"Alloy frame with internal cable routingNew SHIMANO components ALIVIO, 27 speedSuspension fork RST Blaze 29 with lockQuality tire AUTHOR Speed Master 29" × 2.00"TEKTRO disc hydraulic brakeComfort saddle AUTHOR Fenix

~~Buy now~~special price 15 990 Kč

original price ~~19 290 Kč~~

Technical specification

Size	16", 18"

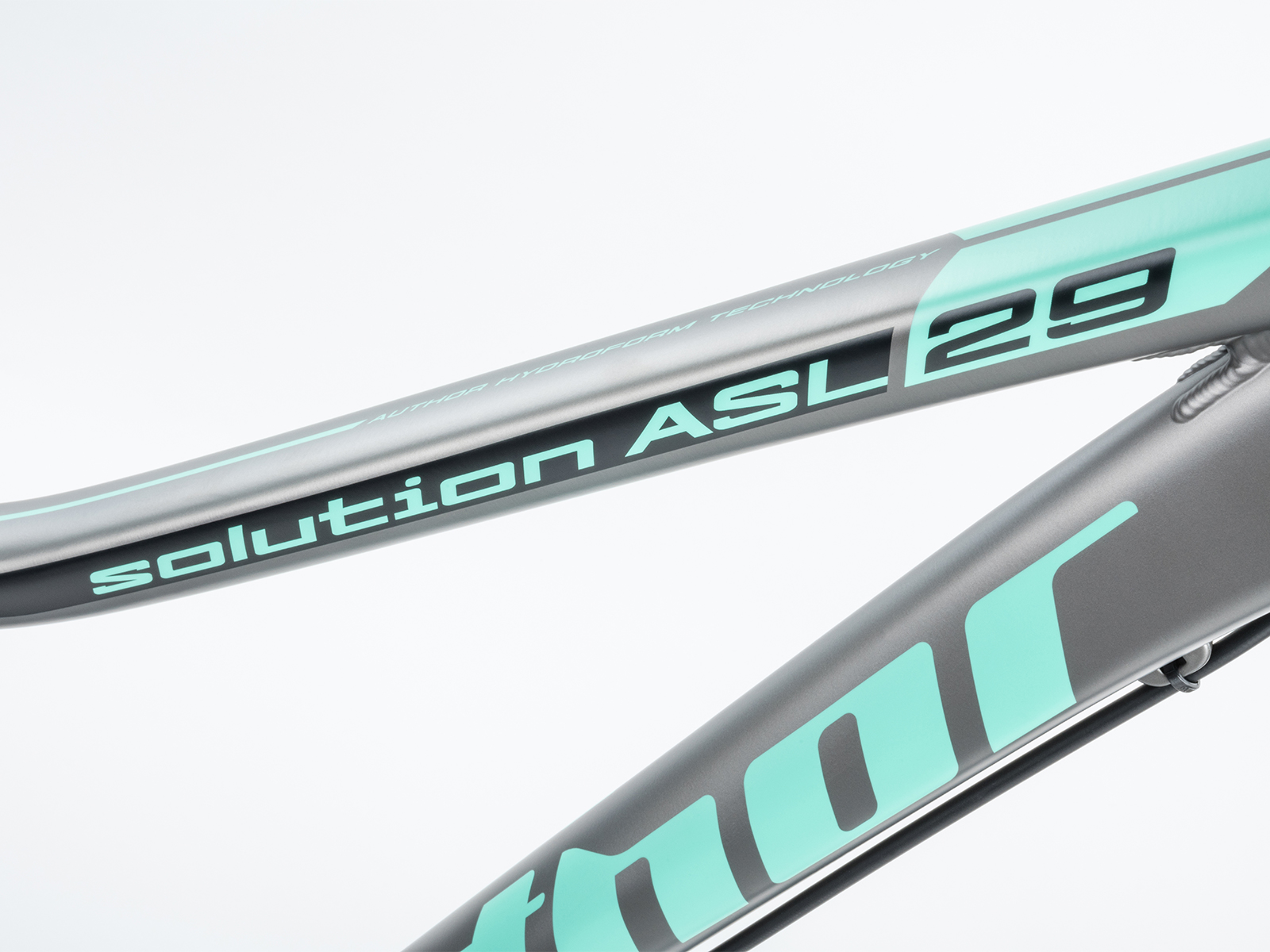

Frame	alloy 6061 29" (ASL)
Front fork	RST Blaze 29 ML, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	SHIMANO MT101, 40-30-22 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-UN101, cartridge

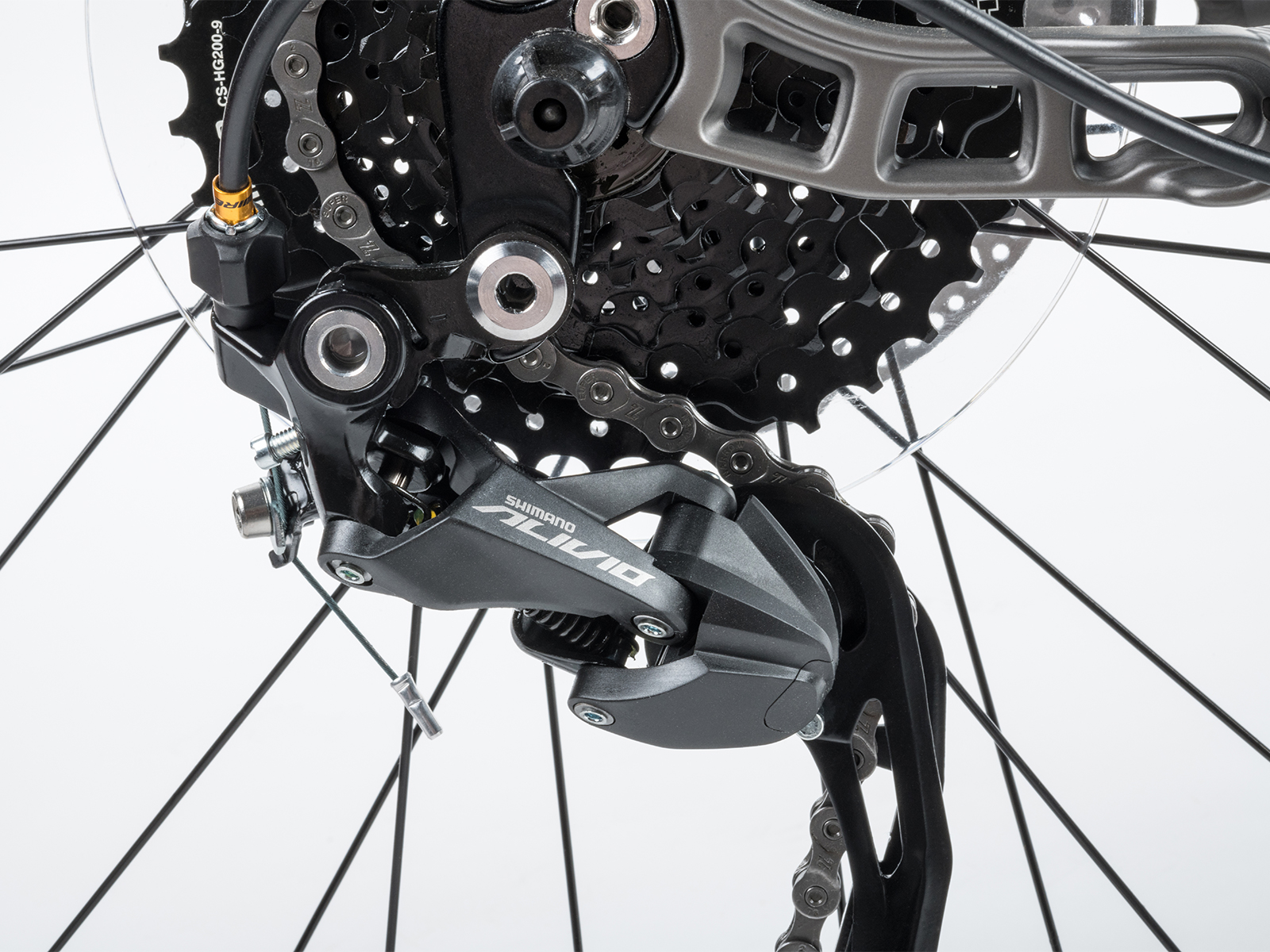

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (27)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

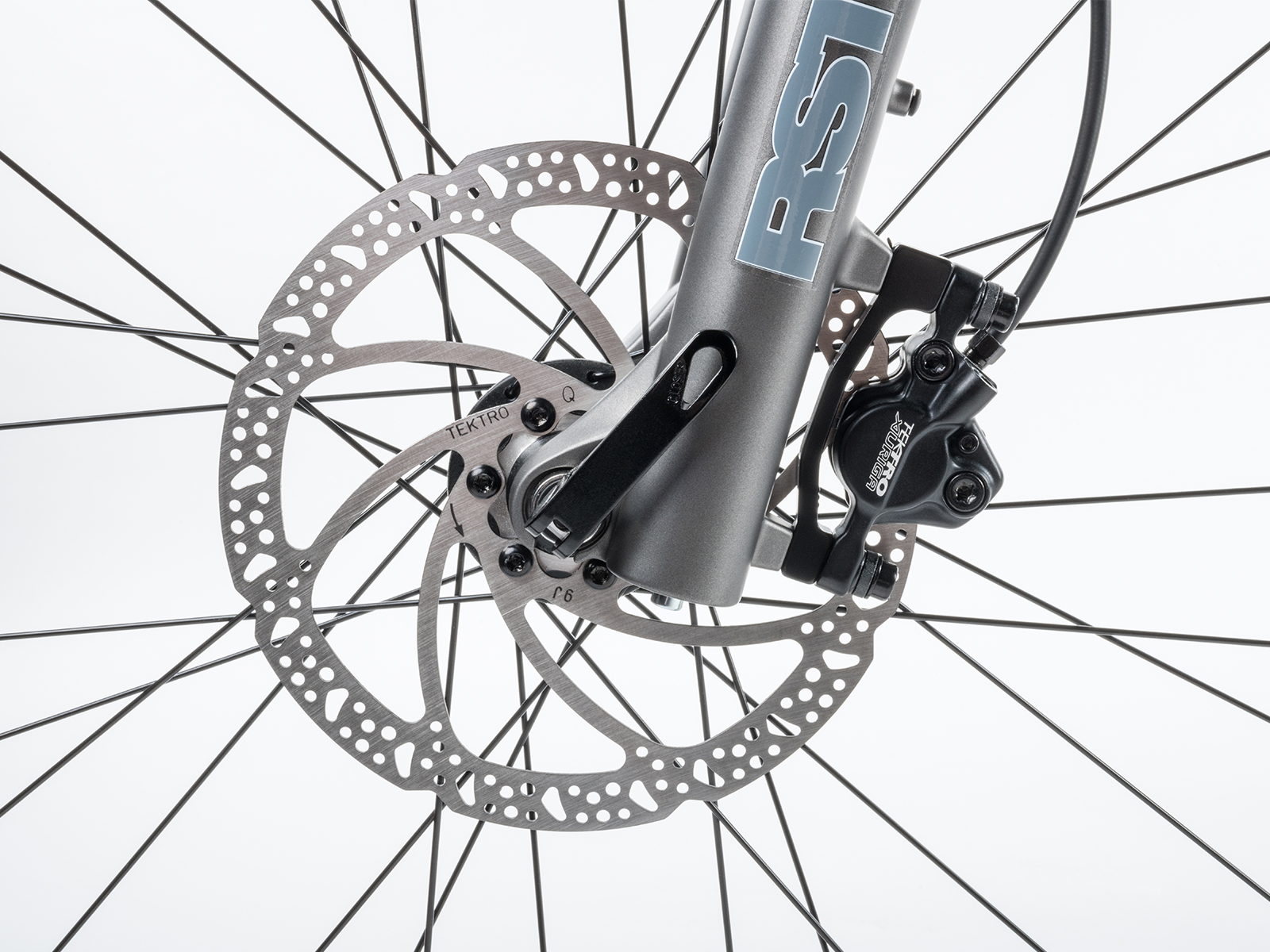

Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M280

Rims	AUTHOR Xenon 29, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master 29" × 2.00"
Pedals	plastic
Handlebar	AUTHOR rise, 15 mm, 9°, 660 / 680 mm
Grips	AUTHOR high density foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

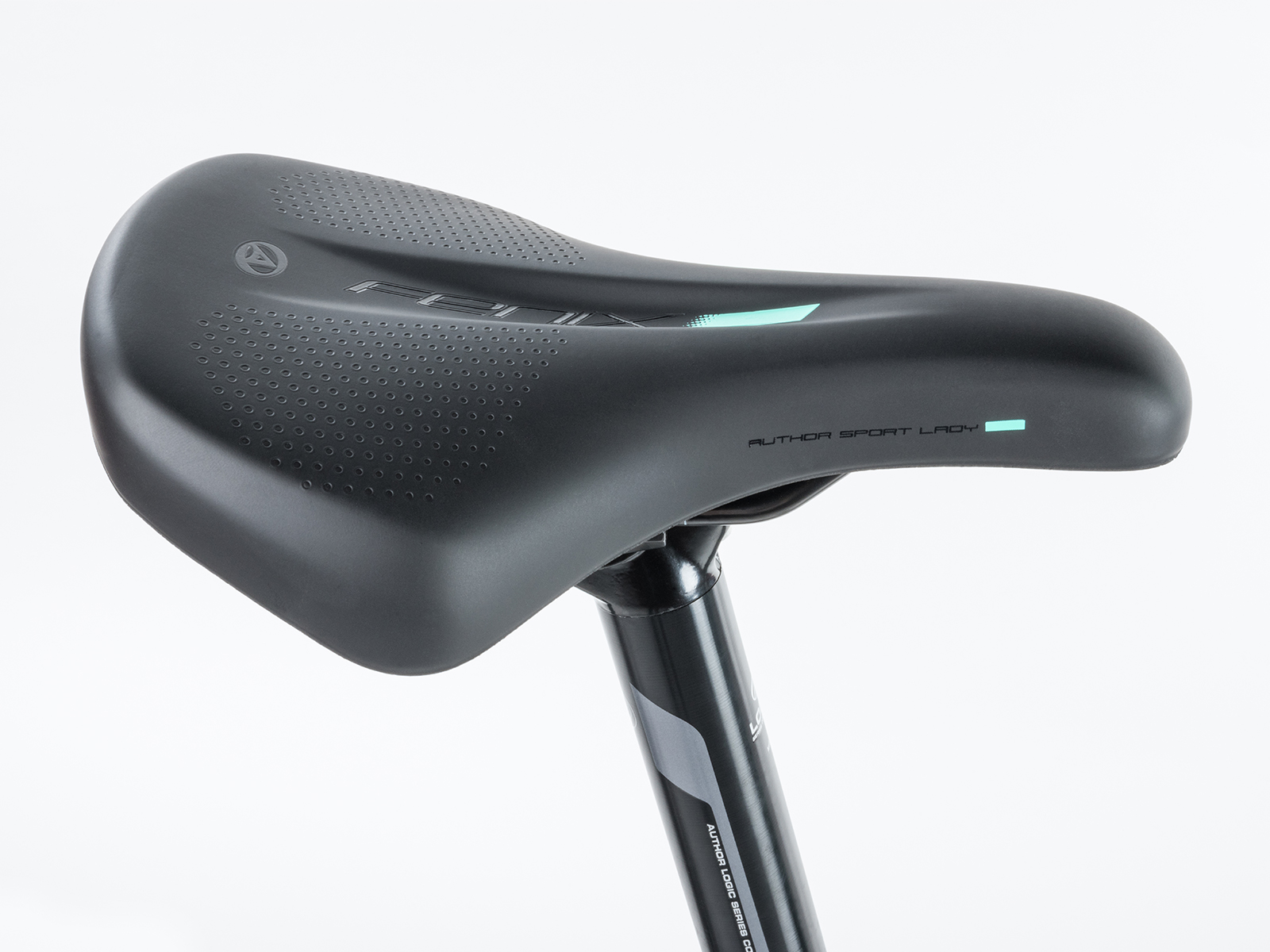

Saddle	AUTHOR Fenix
Speed	27
Weight	14,8 kg / 16"

Geometry and sizes

Size	16"	18"
Min. figure ~~[cm]~~	155	166
Max. figure ~~[cm]~~	168	182
S/T c-t ~~[mm]~~	406	457
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	570	590
T/T a ~~[mm]~~	559	569
H/T ~~[mm]~~	115	120
C/S ~~[mm]~~	450	450
W/B ~~[mm]~~	1091	1111
S/T ang. ~~[°]~~	73	73
H/T ang. ~~[°]~~	69.5	69.5
F/L ~~[mm]~~	510	510
B/B drop ~~[mm]~~	60	60
B/B width ~~[mm]~~	68	68
Reach ~~[mm]~~	377	396
Stack ~~[mm]~~	631	636
F/R ~~[mm]~~	51	51
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
