AUTHOR Solution 29 ASL 2021-22
AUTHOR Solution 29 ASL 2021-22AUTHOR Solution 29 ASL 2021-22solutionasl29 aut4943 viewdesolutionasl29 aut4944 viewdesolutionasl29 aut4945 viewdesolutionasl29 aut4946 viewdesolutionasl29 aut4947 viewdesolutionasl29 aut4948 viewde
  » Bicycles » ladies » mtb 29 ladies
  » Bicycles » mountain bike » mtb 29

AUTHOR Solution 29 ASL 2021-22Archivní model 2021-22

Colour variants

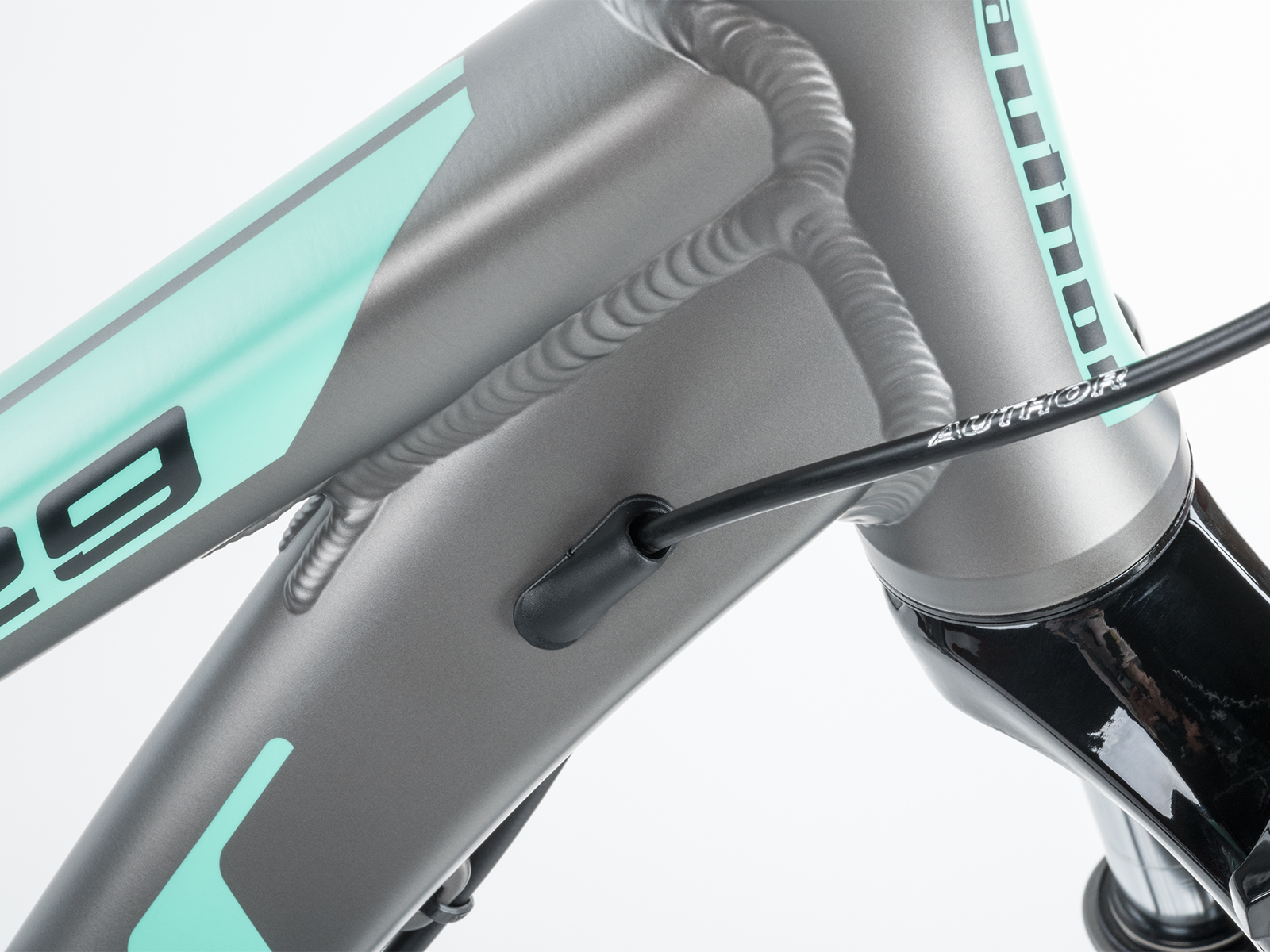

Remade alloy frame with semi integrated cable routingNew SHIMANO ALIVIO rear derailleuer and shifting, 27 speedNew AUTHOR FENIX saddle
Buy nowspecial price 16 990 Kč
original price  19 990 Kč
other models
Interested in other model`s year?

Technical specification

Size16", 18"

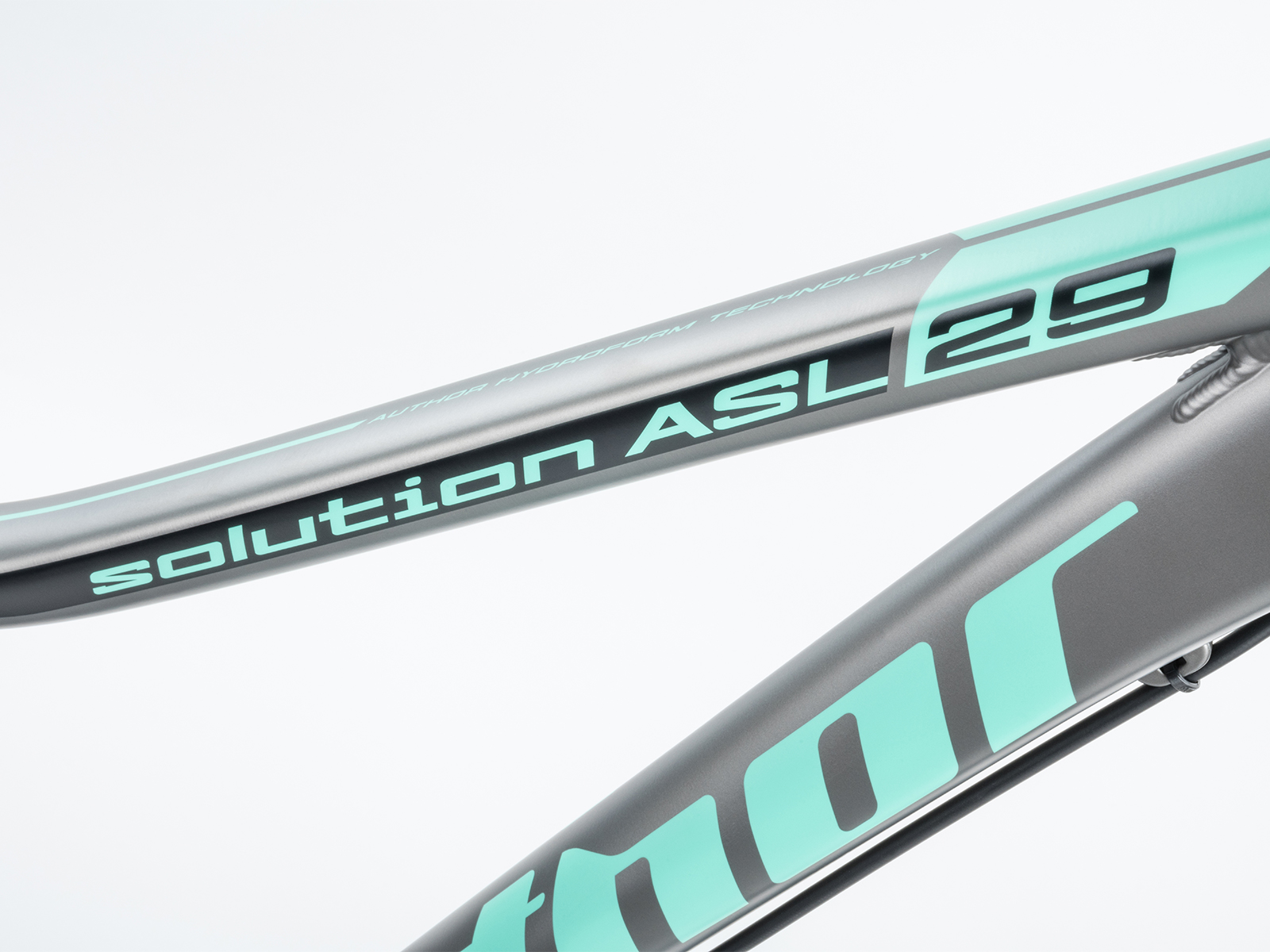

Framealloy 6061 29" (ASL)
Front forkRST Blaze 29 ML, lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"

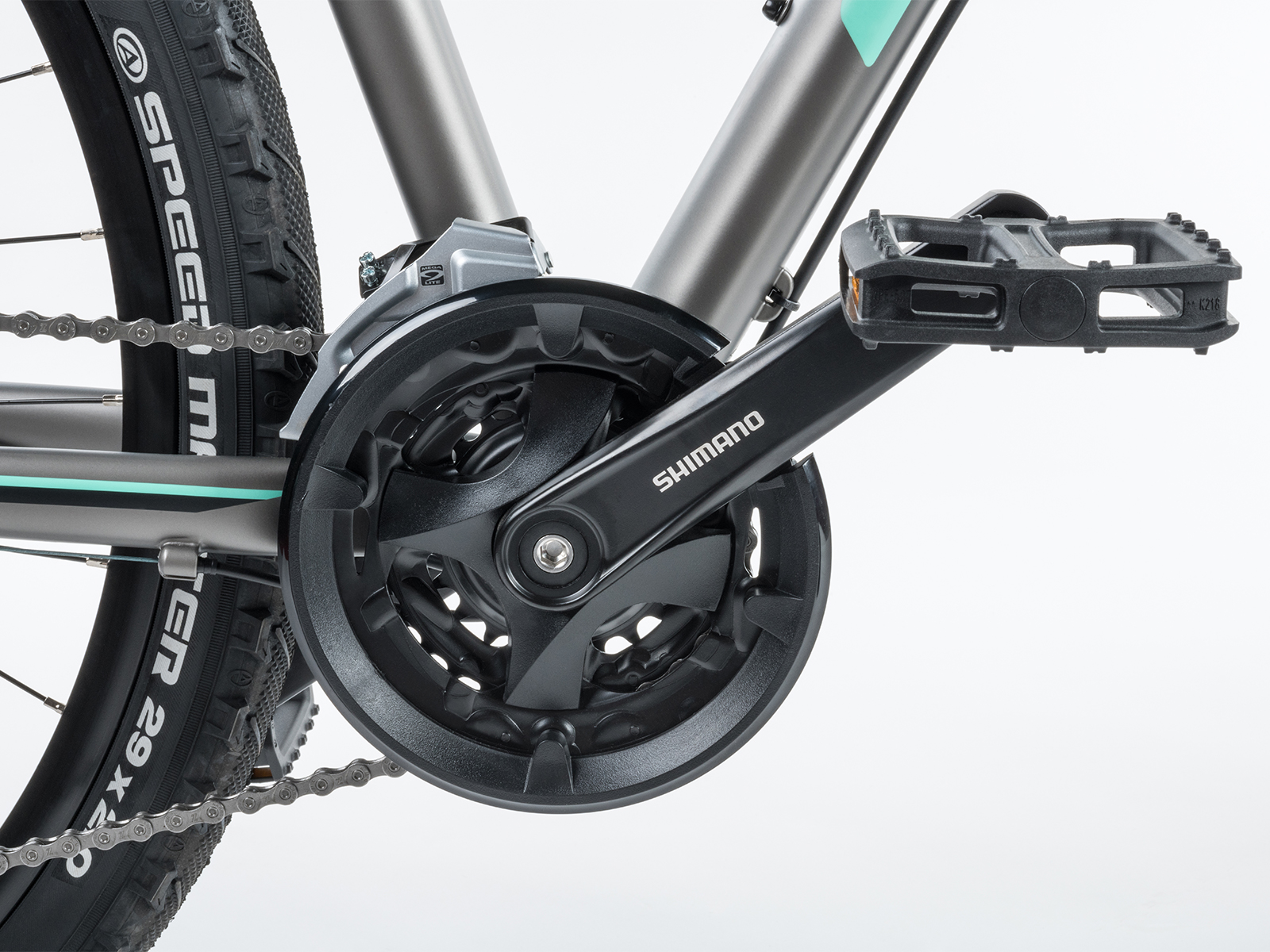

Chain WheelSHIMANO MT101 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-UN101 cartridge

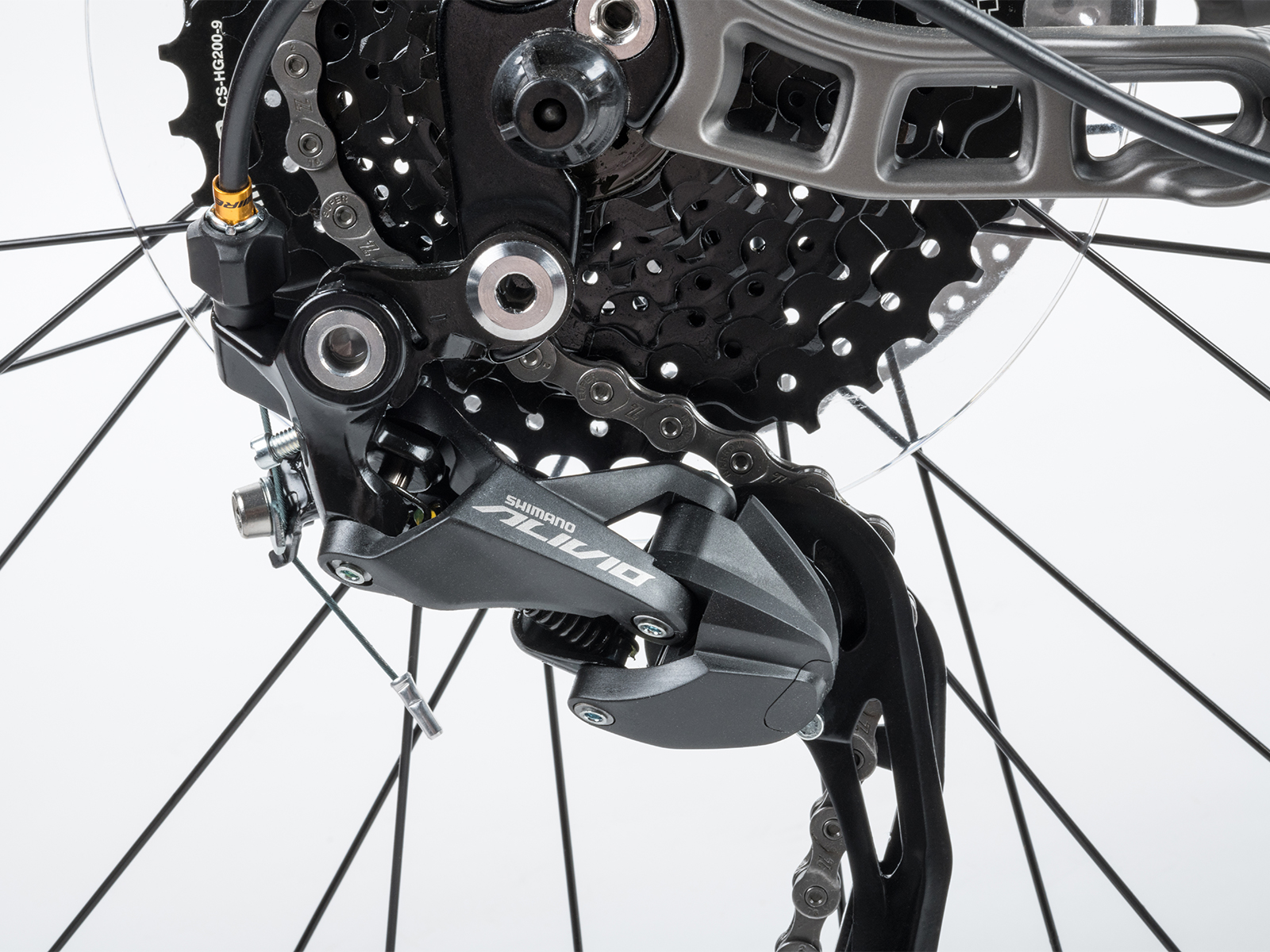

Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG200-9 11-36 (9)
ChainKMC Z9
HubsQUANDO Disc 32 holes

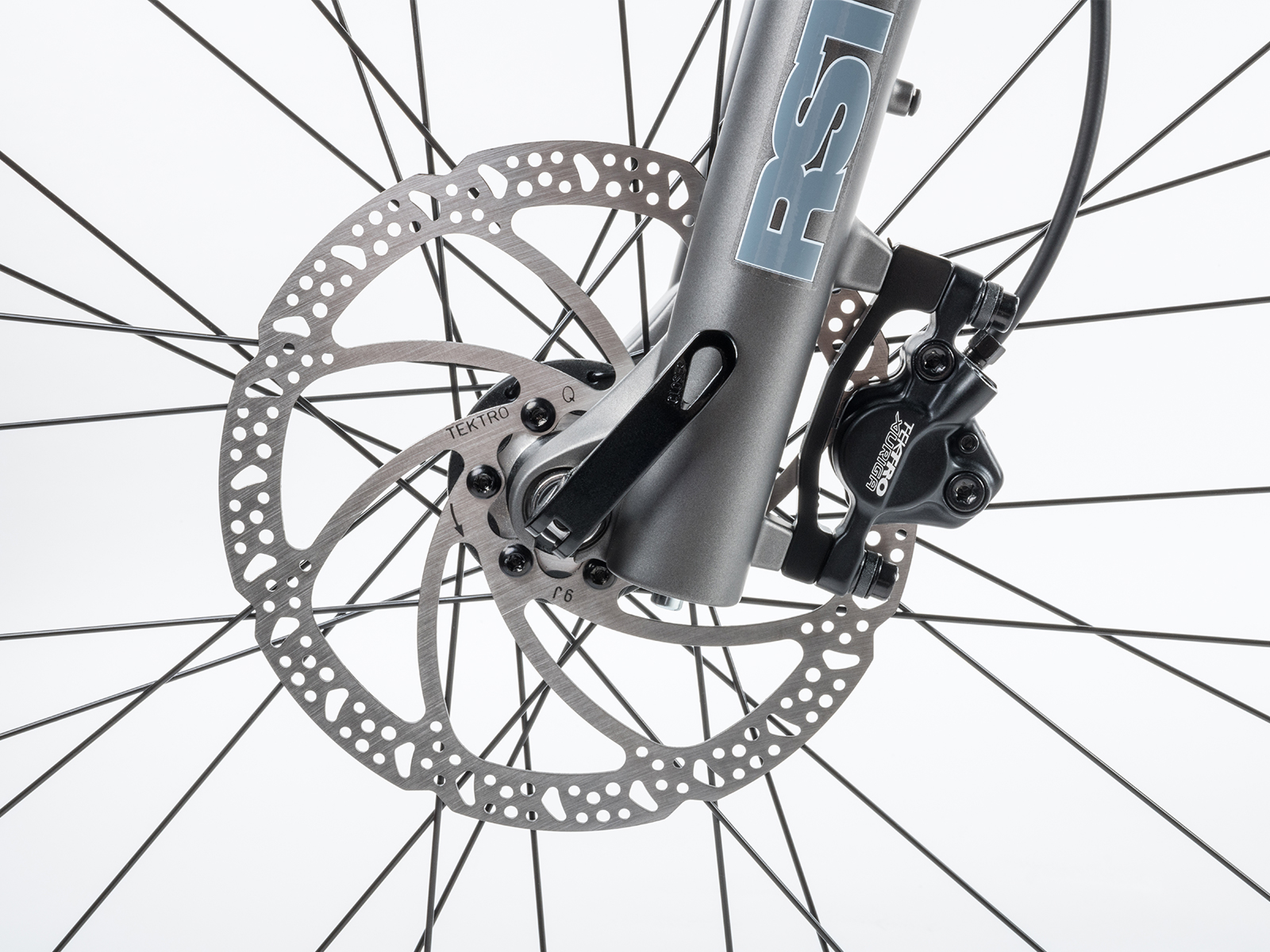

BrakesTEKTRO Auriga disc hydraulic (7" rotors)
Brakes leversTEKTRO Auriga WS
RimsAUTHOR Xenon 29 32 holes
Spokesblack steel
TiresAUTHOR Speed Master 29" × 2.00"
Pedalsresin
HandlebarAUTHOR 8° 660 / 680 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)

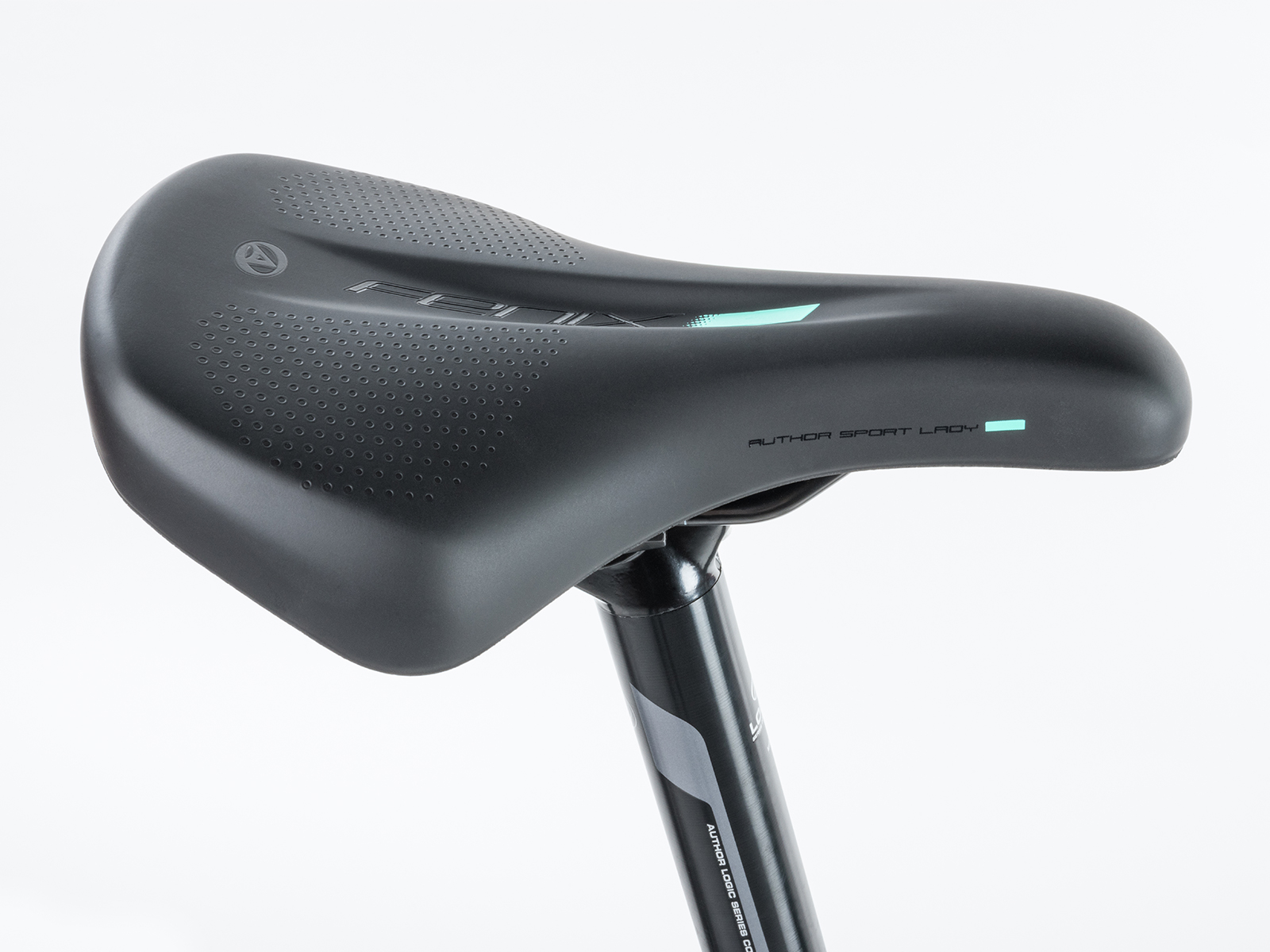

SaddleAUTHOR Fenix
Speed27
Weight14,8 kg / 16"

Geometry and sizes

Size 16" 18"
Min. figure [cm] 155 166
Max. figure [cm] 168 182
S/T c-t [mm] 406 457
S/T c-c [mm] 0 0
T/T h [mm] 570 590
T/T a [mm] 559 569
H/T [mm] 115 120
C/S [mm] 450 450
W/B [mm] 1091 1111
S/T ang. [°] 73 73
H/T ang. [°] 69.5 69.5
F/L [mm] 510 510
B/B drop [mm] 60 60
B/B width [mm] 68 68
Reach [mm] 377 396
Stack [mm] 631 636
F/R [mm] 51 51
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
182 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Solution 29 ASL 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
16"6 stores42934501
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   Intersport Klatovy - LIPEMA s.r.o.in stockbuy nowKlatovy376 382 969map
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Kola Pešekin stockbuy nowPardubice - Staré Čívice733 706 797, info@kolapesek.czmap
⟲  In other storesin 2 daysdealers
18"5 stores42934502
 ▪   SPORT CYKLO s.r.o.in stockbuy nowHolešov603 373 886, sportcyklo@gmail.commap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   Cyklosport Kerdain stockbuy nowLiberec 10602 411 149 , cyklosport@kerda.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.in stockbuy nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
⟲  In other storesin 2 daysdealers
16"4 stores42934511
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   Intersport Klatovy - LIPEMA s.r.o.in stockbuy nowKlatovy376 382 969map
 ▪   Cyklo IK Petr Krejčíin stockbuy nowNeratovice603 832 059, p-krejci@volny.czmap
⟲  In other storesin 2 daysdealers
18"5 stores42934512
 ▪   DOMINO STORE CZ,s.r.o.in stockbuy nowČeský Těšín602 546 780, dominosport@dominosport.czmap
 ▪   SPORT CYKLO s.r.o.in stockbuy nowHolešov603 373 886, sportcyklo@gmail.commap
 ▪   Intersport Klatovy - LIPEMA s.r.o.in stockbuy nowKlatovy376 382 969map
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Cyklo IK Petr Krejčíin stockbuy nowNeratovice603 832 059, p-krejci@volny.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

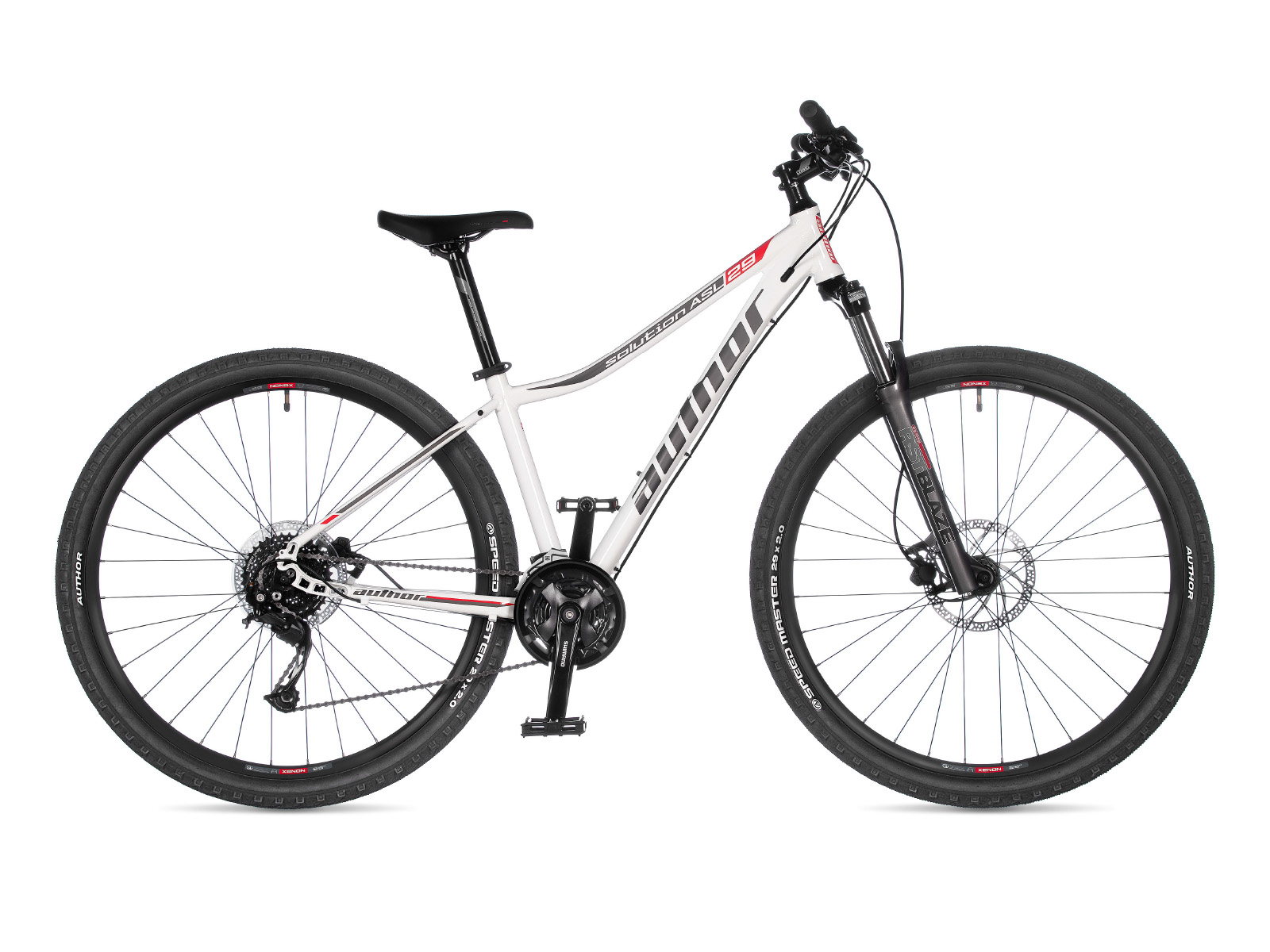

white / silver / red16" = UA#42934501   18" = UA#42934502

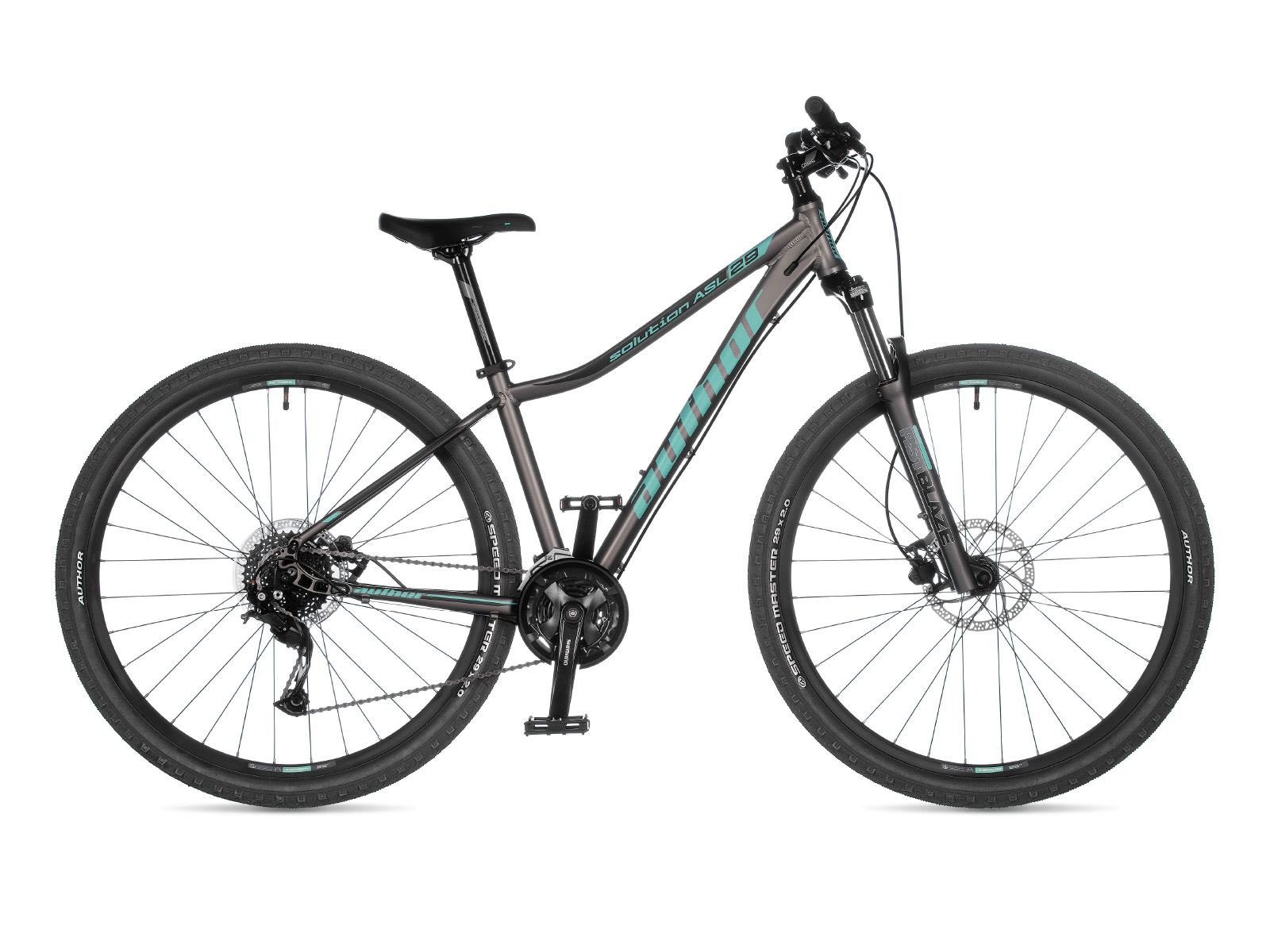

silver-matt / green16" = UA#42934511   18" = UA#42934512
