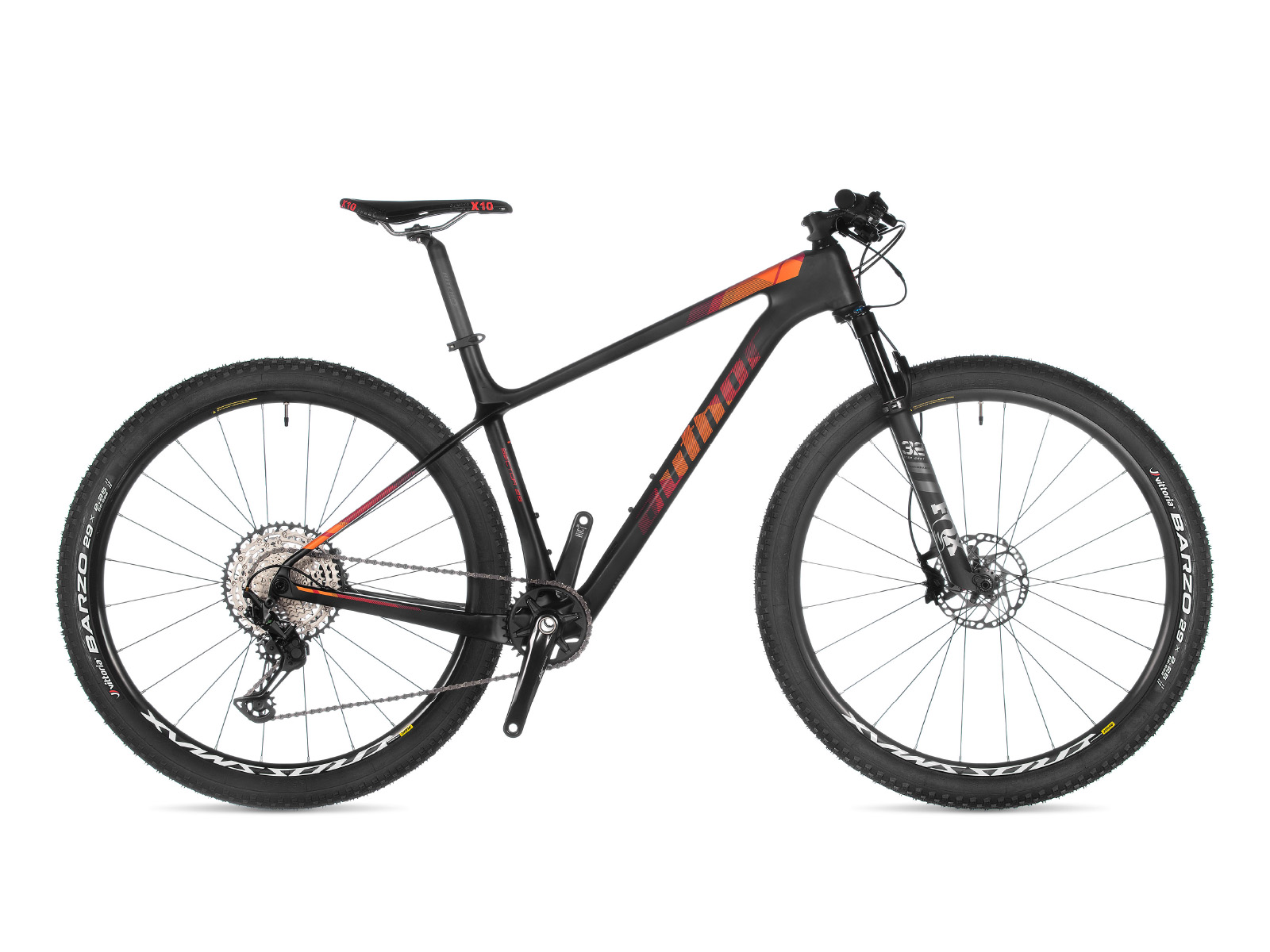

Sector 29 2023-24

~~Colour variants~~

AUTHOR High Modulus Carbon monocoque frameFOX 32 Float 110-15 air fork, remote lock outMAVIC Crossmax 29 CL UST wheel setSHIMANO XT drive train, 12 speedHydraulic disc brakes SHIMANO SLXRITCHEY WCS cockpitPrologo Nago Evo X10 saddle

~~Buy now~~special price 79 990 Kč

original price ~~89 990 Kč~~

Technical specification

Size	17", 19", 21"

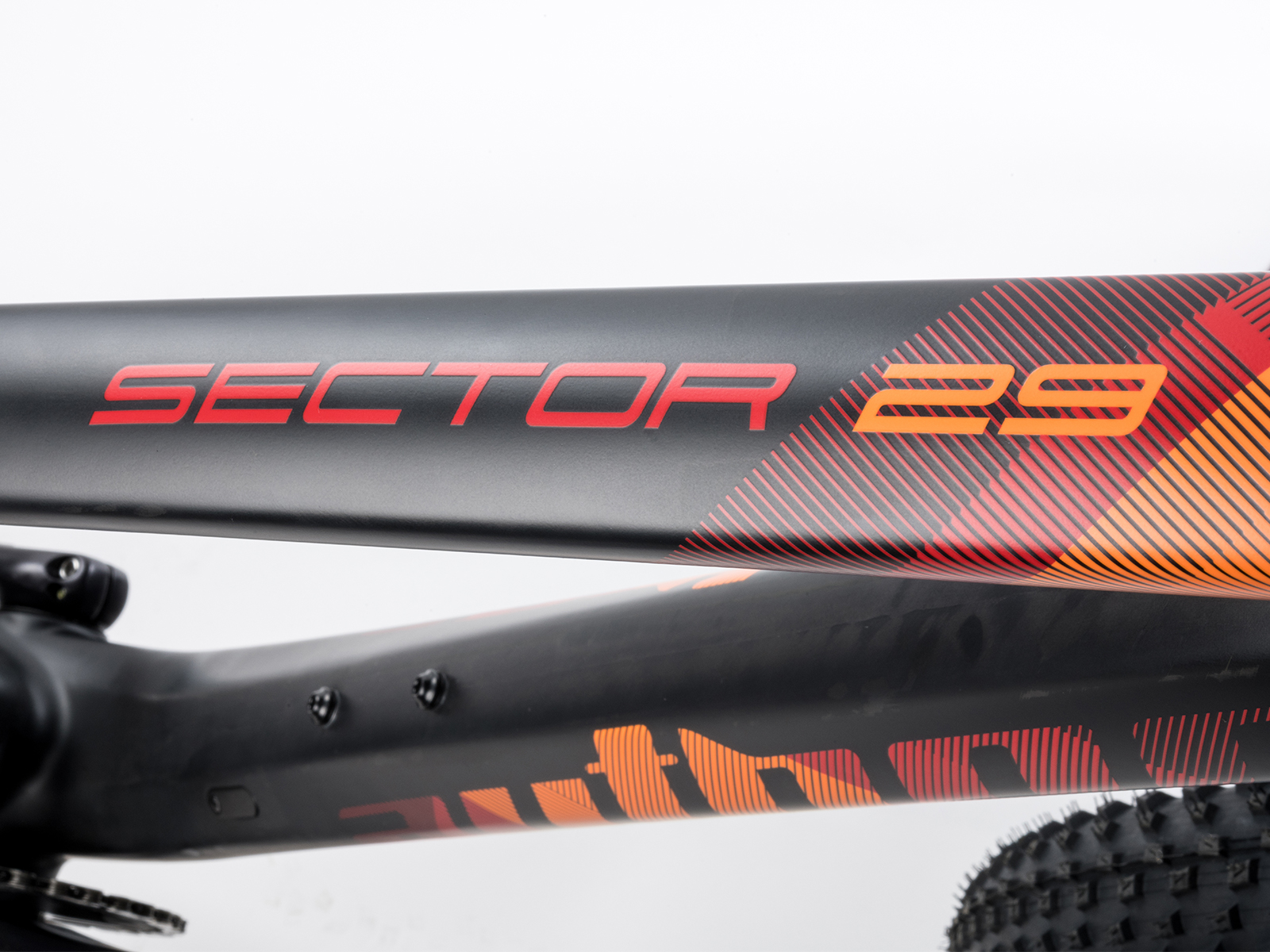

Frame	AUTHOR carbon Toray T700/800 monocoque 29"

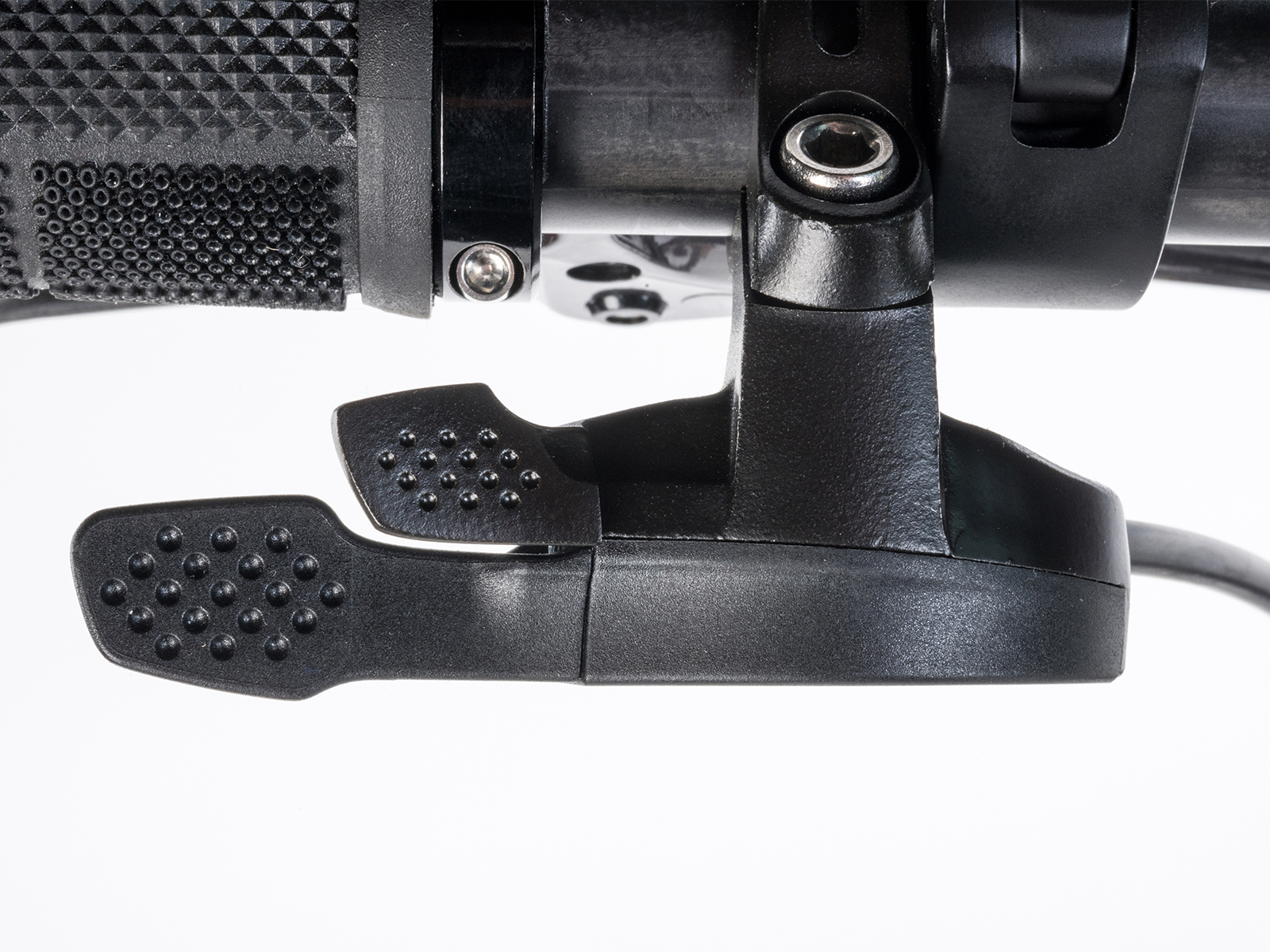

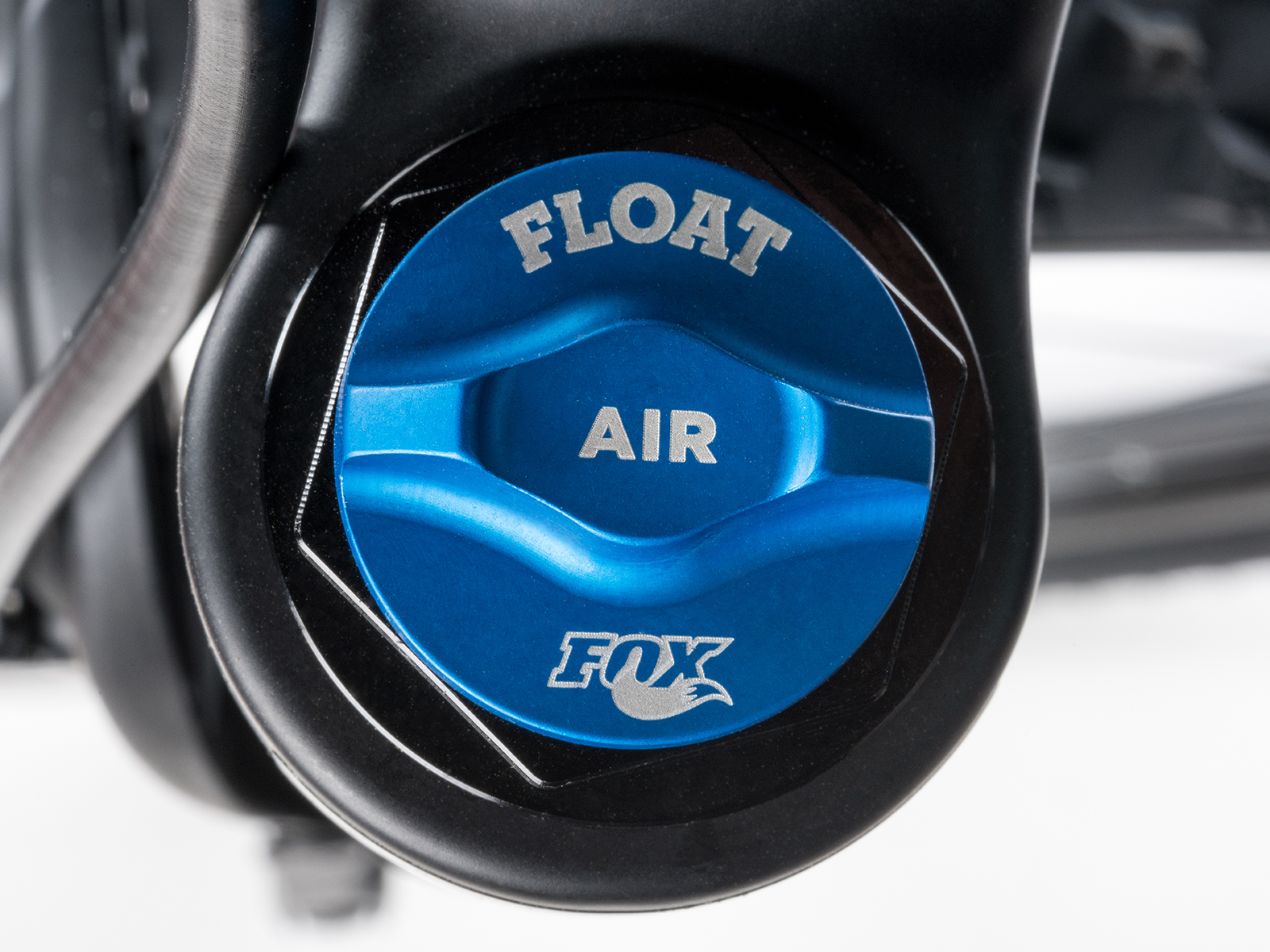

Front fork	FOX 32 Float 29 SC 100 Remote air, remote lock out, Boost 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Head parts	PRESTINE Integrated 1.5" tapered

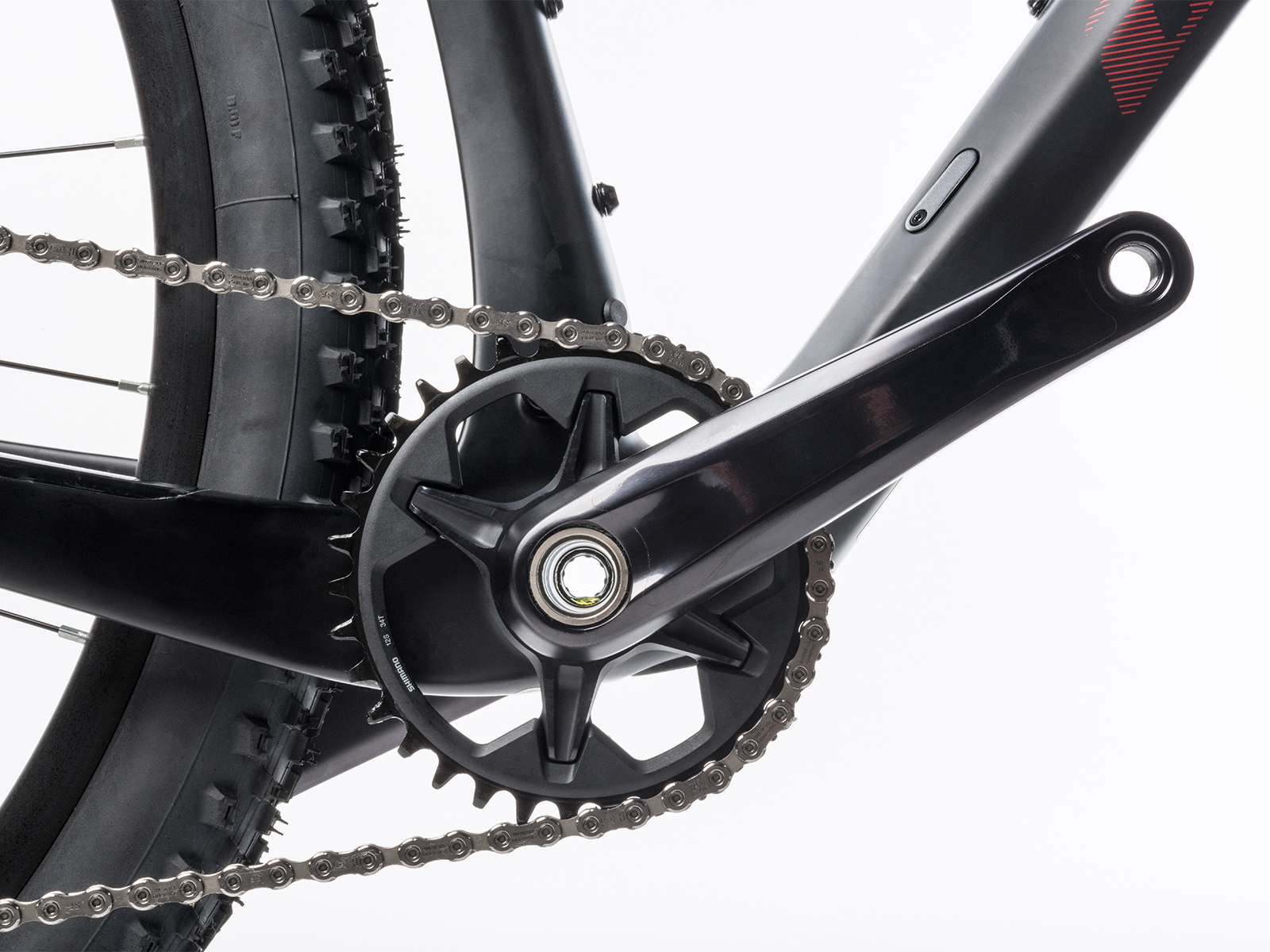

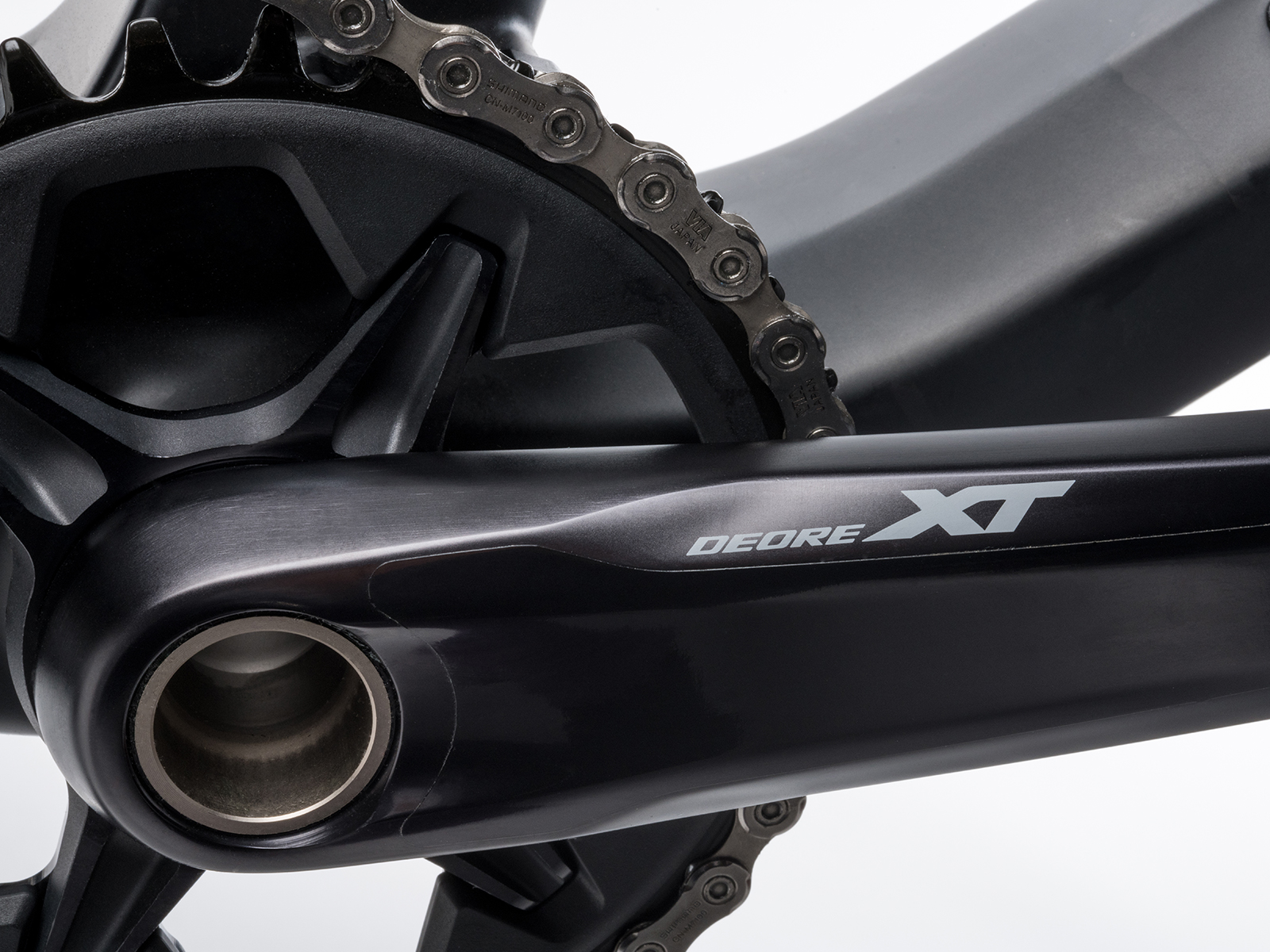

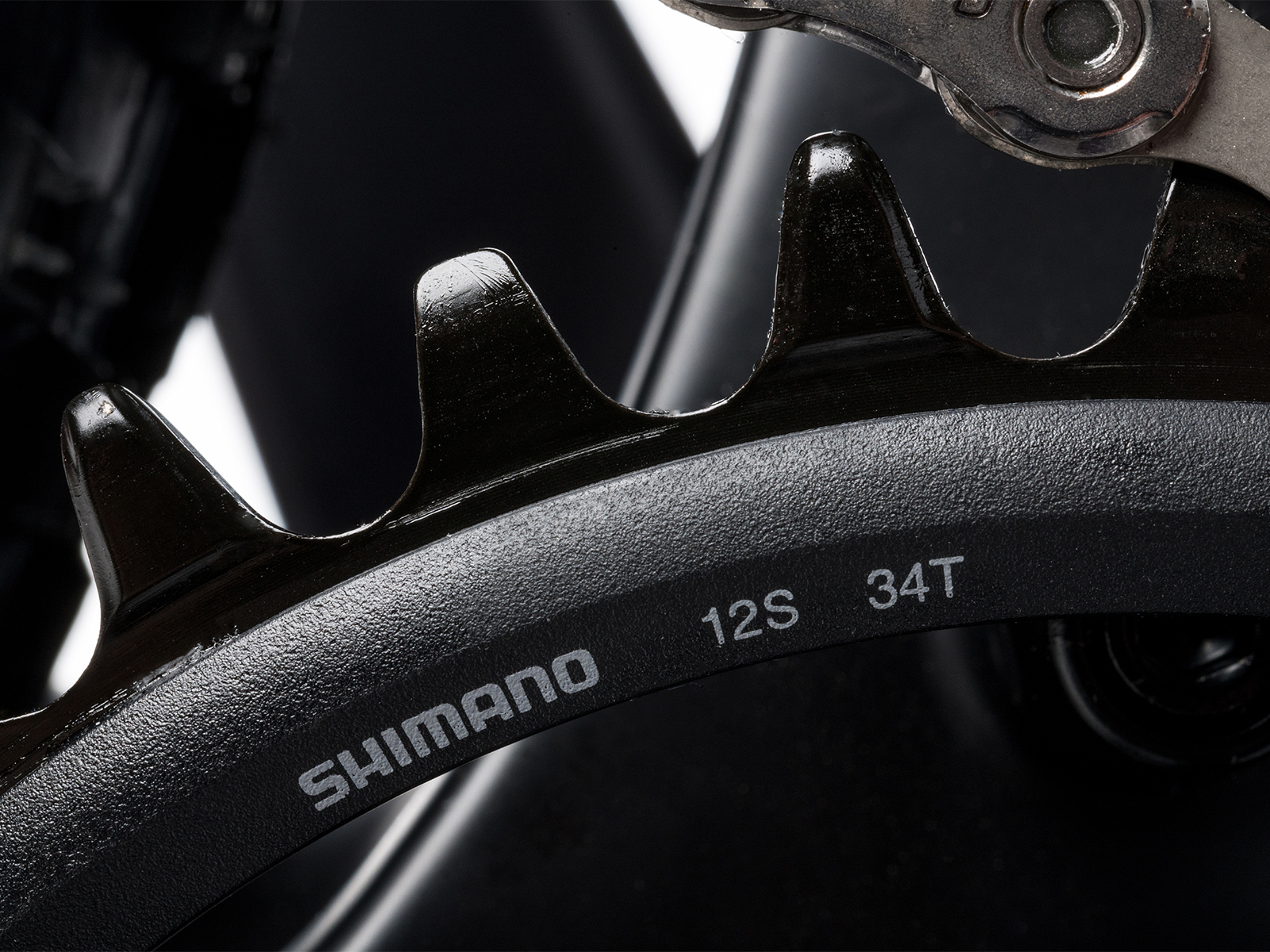

Chain Wheel	SHIMANO XT, 34 teeth, 170 / 175 mm cranks

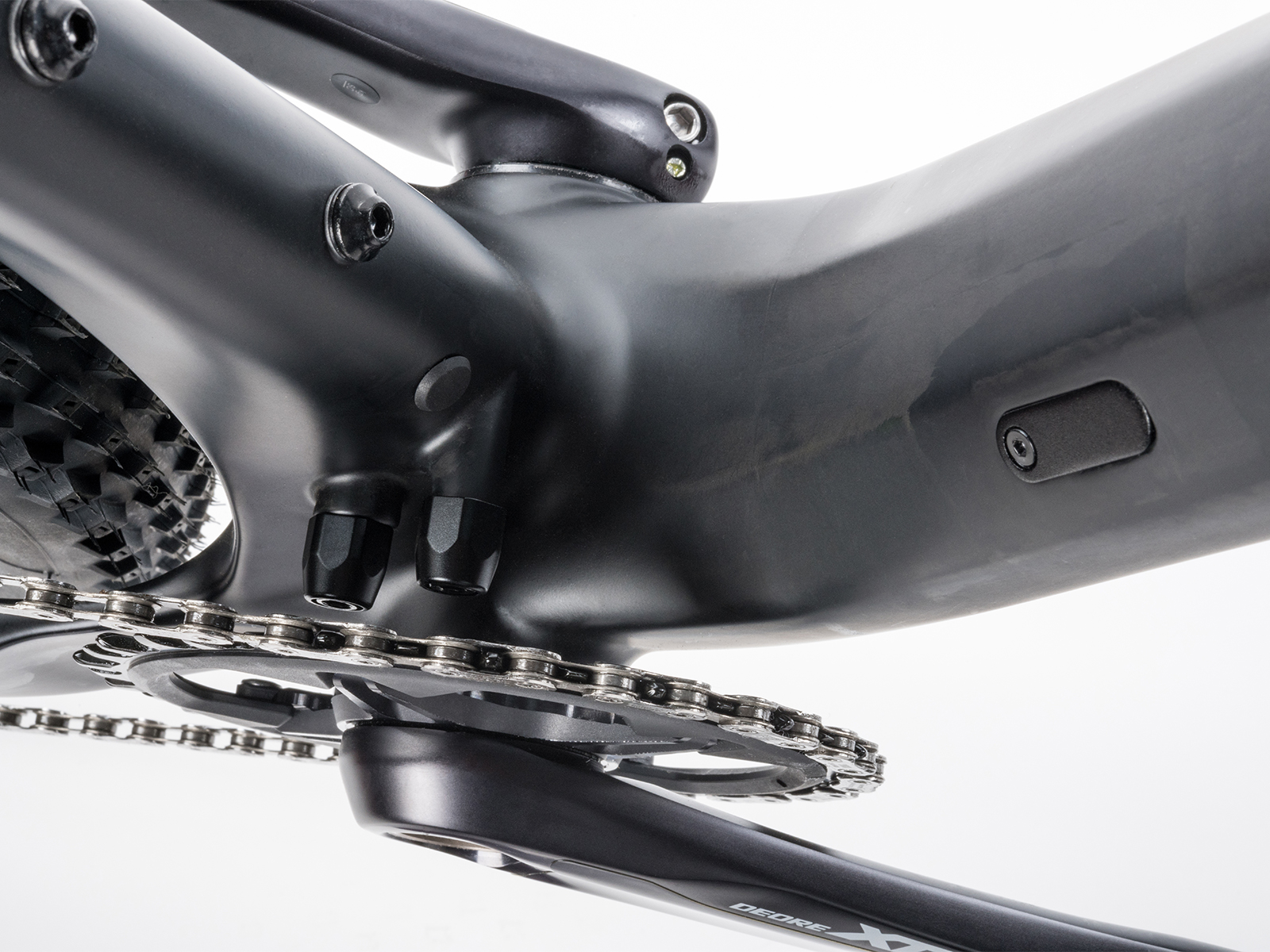

BBParts	SHIMANO BB-MT800 PF

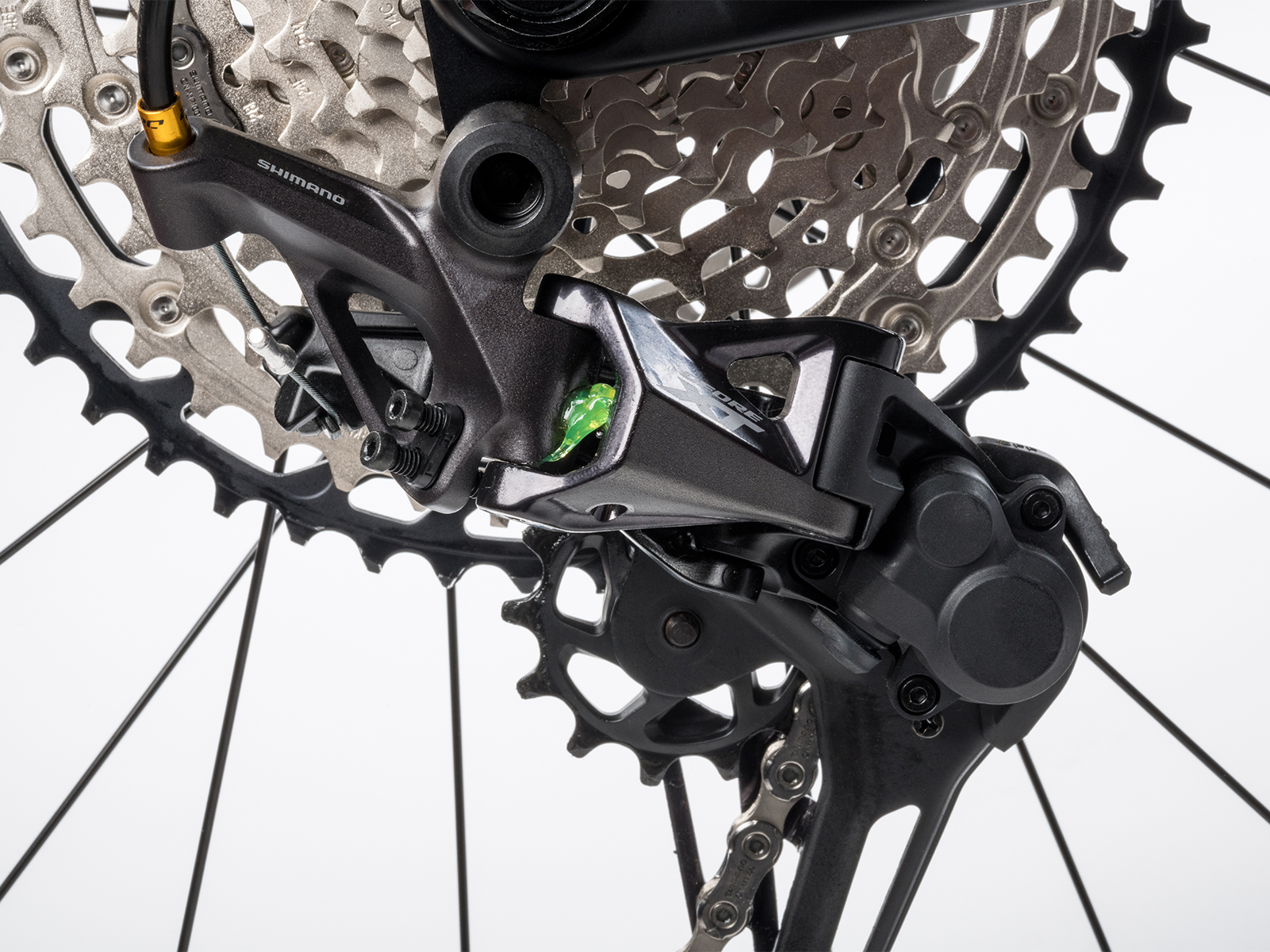

Rear derailleur	SHIMANO XT
Shifters	SHIMANO XT (12)

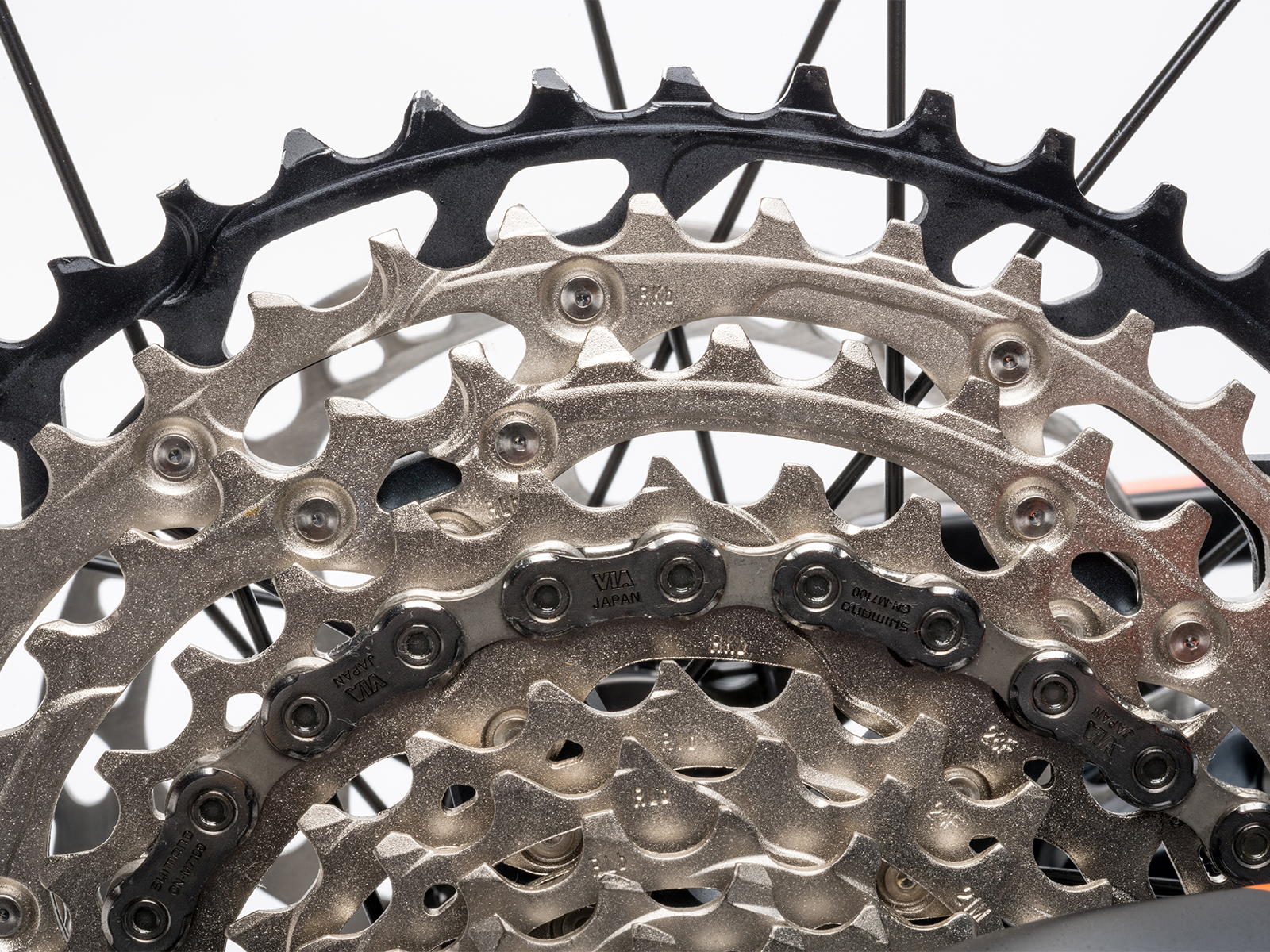

Free wheel	SHIMANO CS-M7100, 10-51 (12)
Chain	SHIMANO M7100

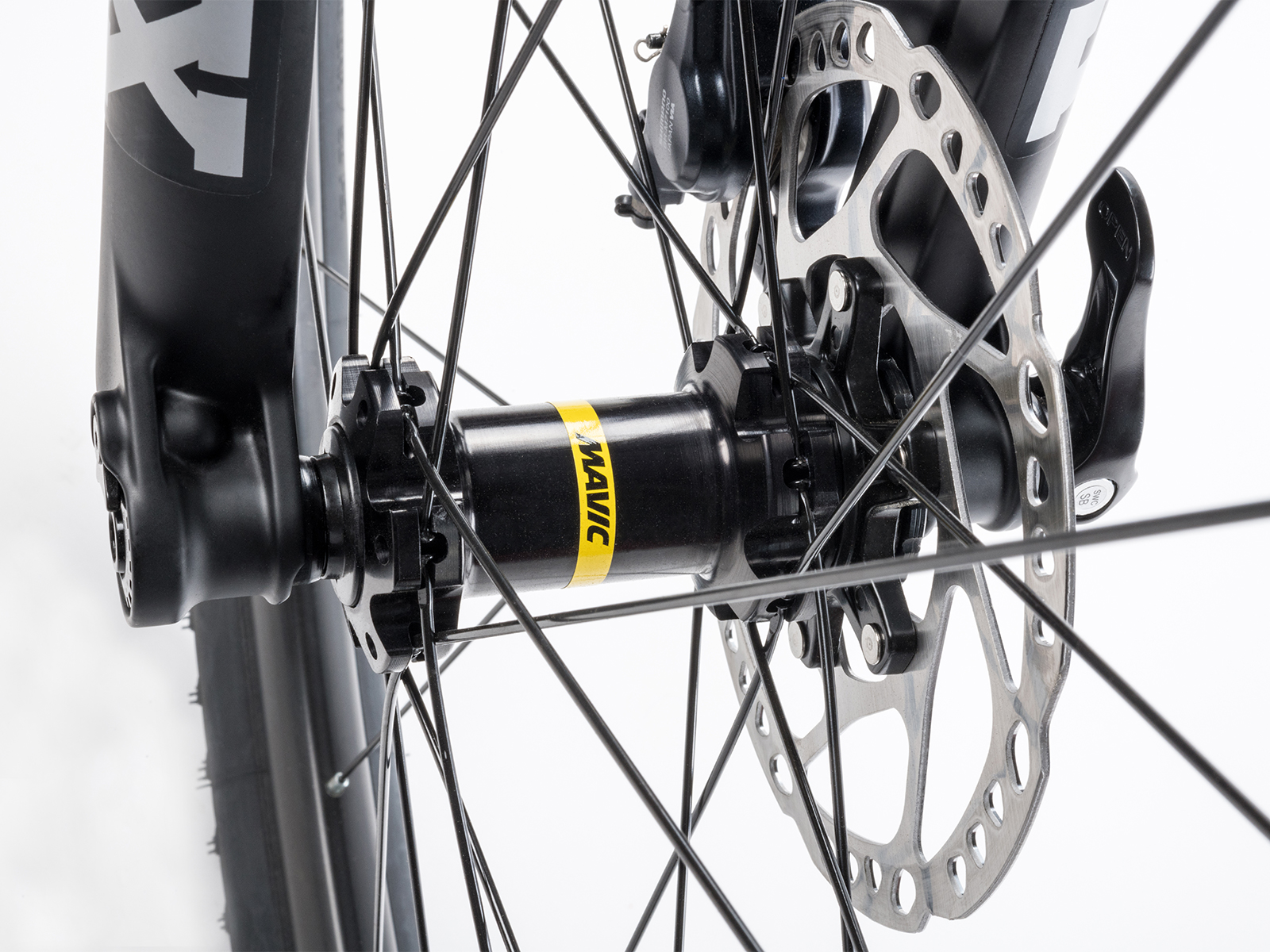

Hubs	MAVIC Crossmax 29 CL wheel set, 24 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle

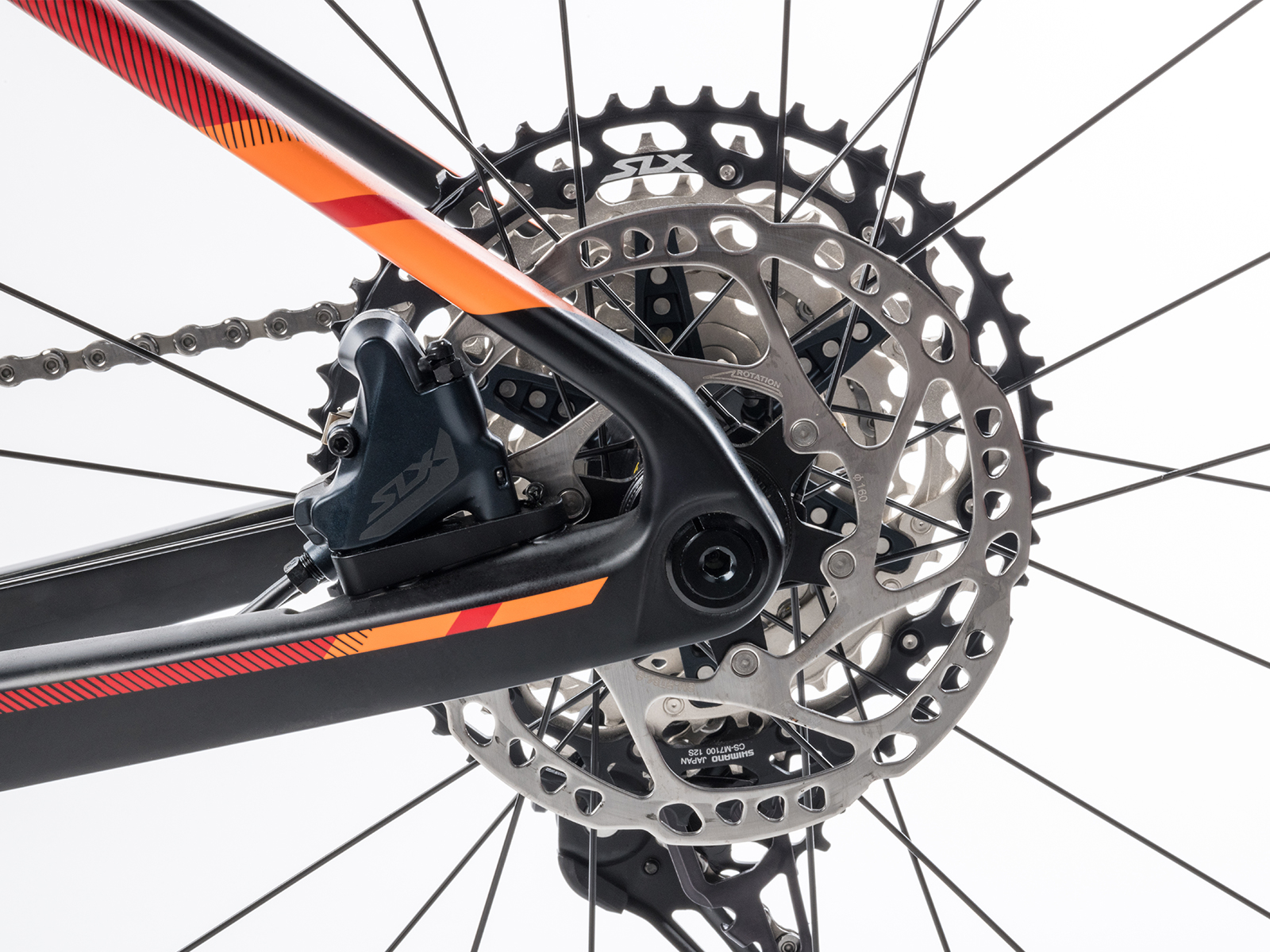

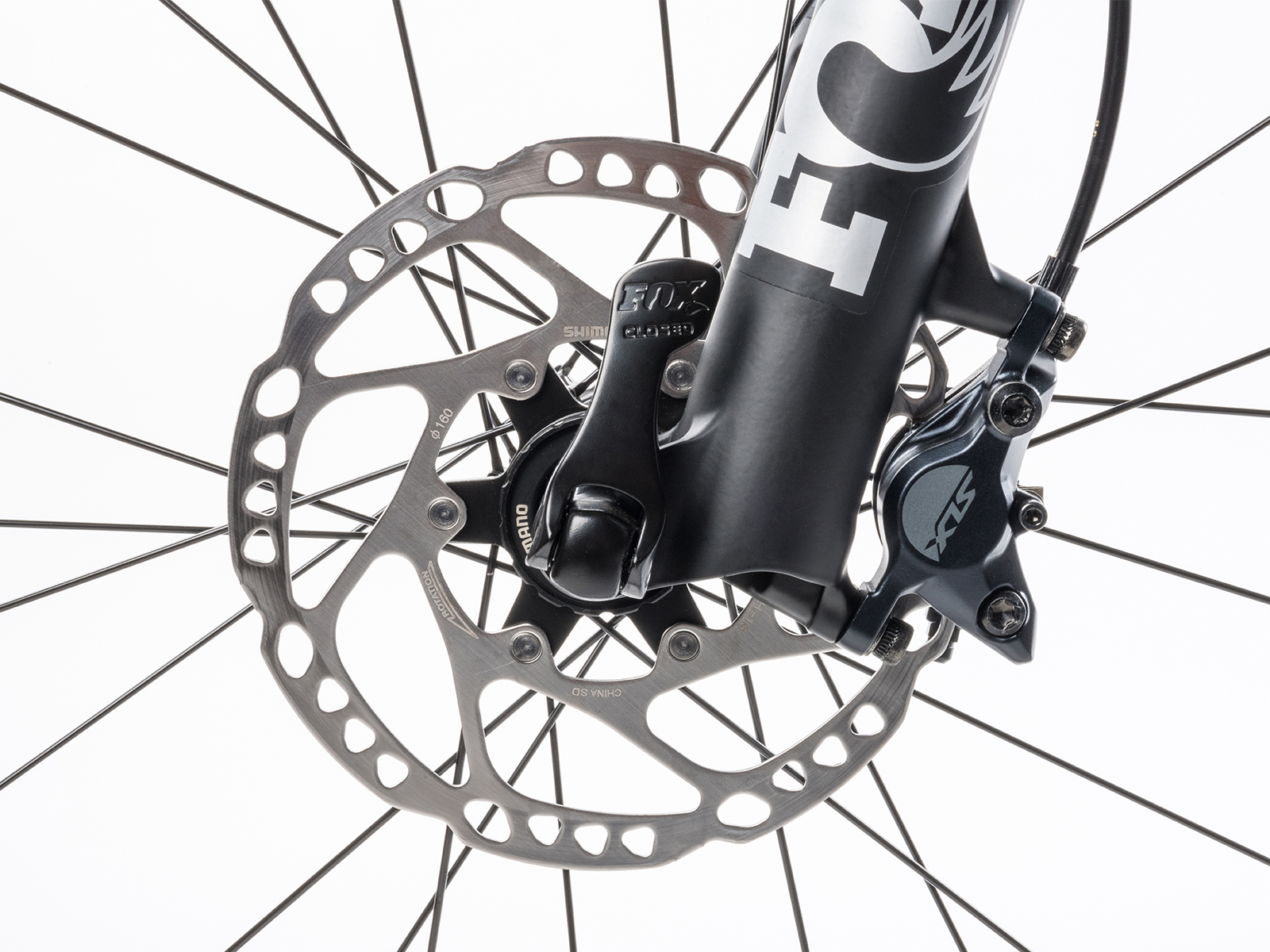

Brakes	SHIMANO SLX, disc hydraulic (6" rotors)

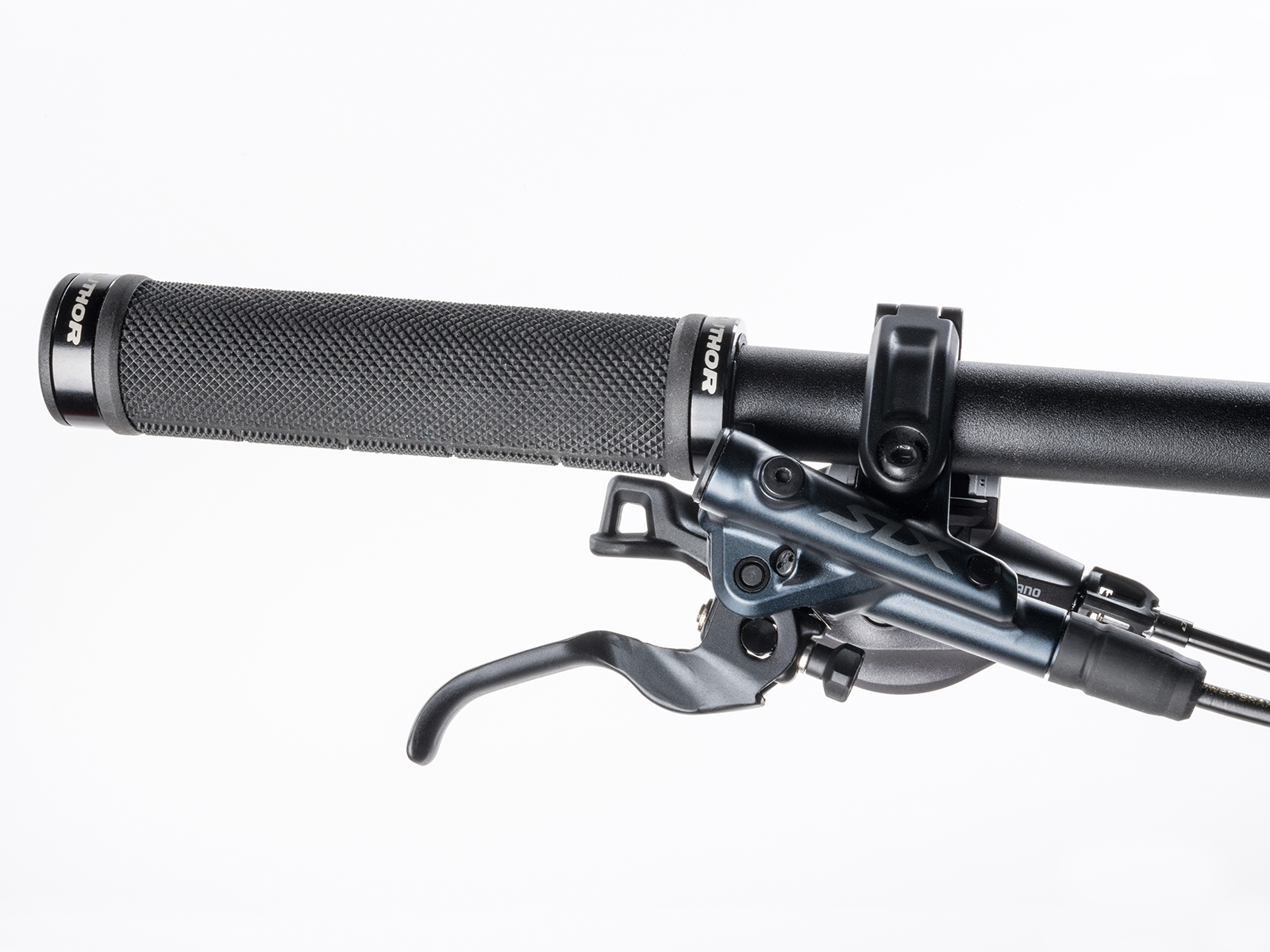

Brakes levers	SHIMANO SLX

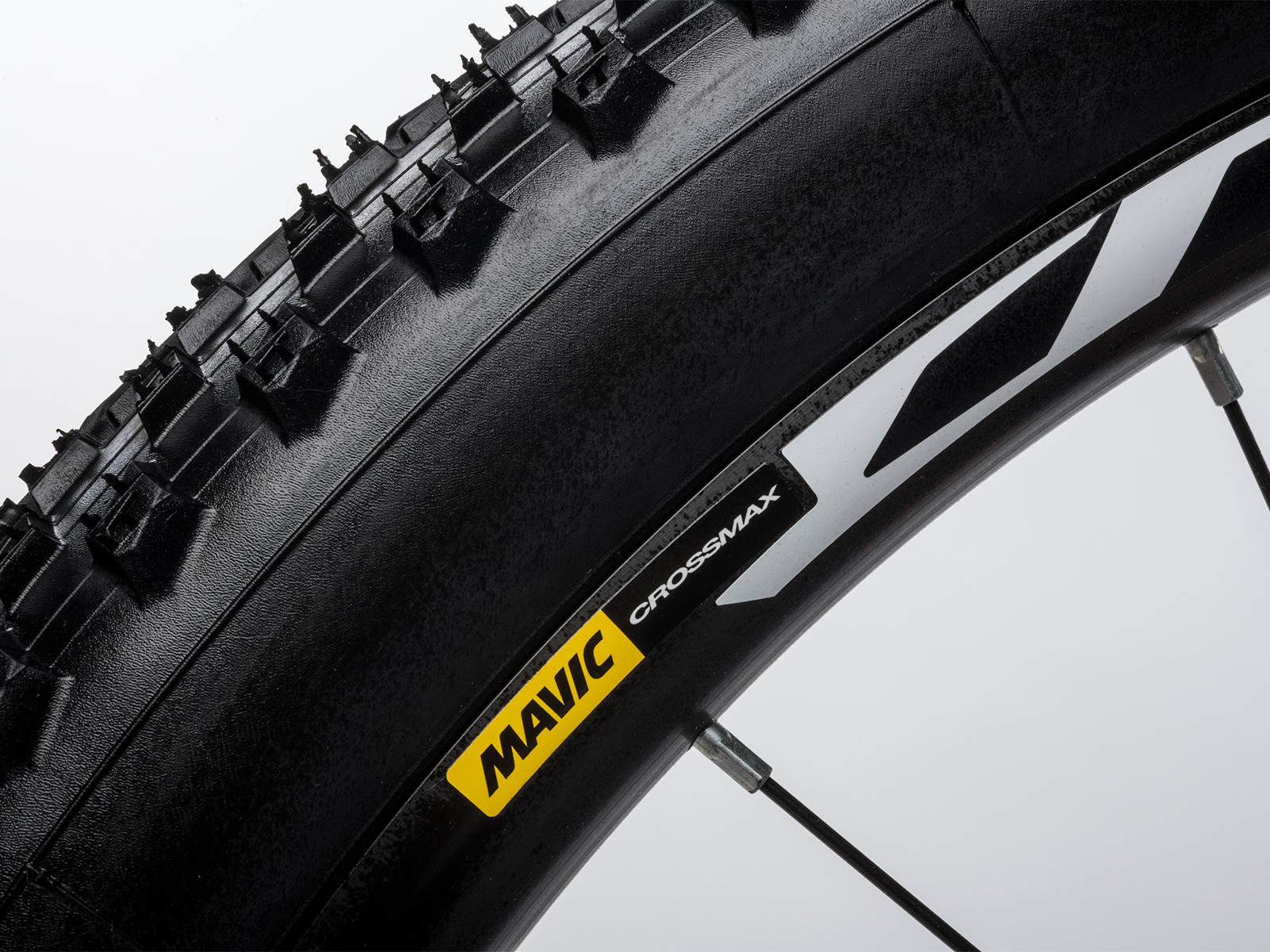

Rims	MAVIC Crossmax 29 CL wheel set, 24 holes
Wheel set	MAVIC Crossmax 29 wheel set 24 holes
Spokes	MAVIC

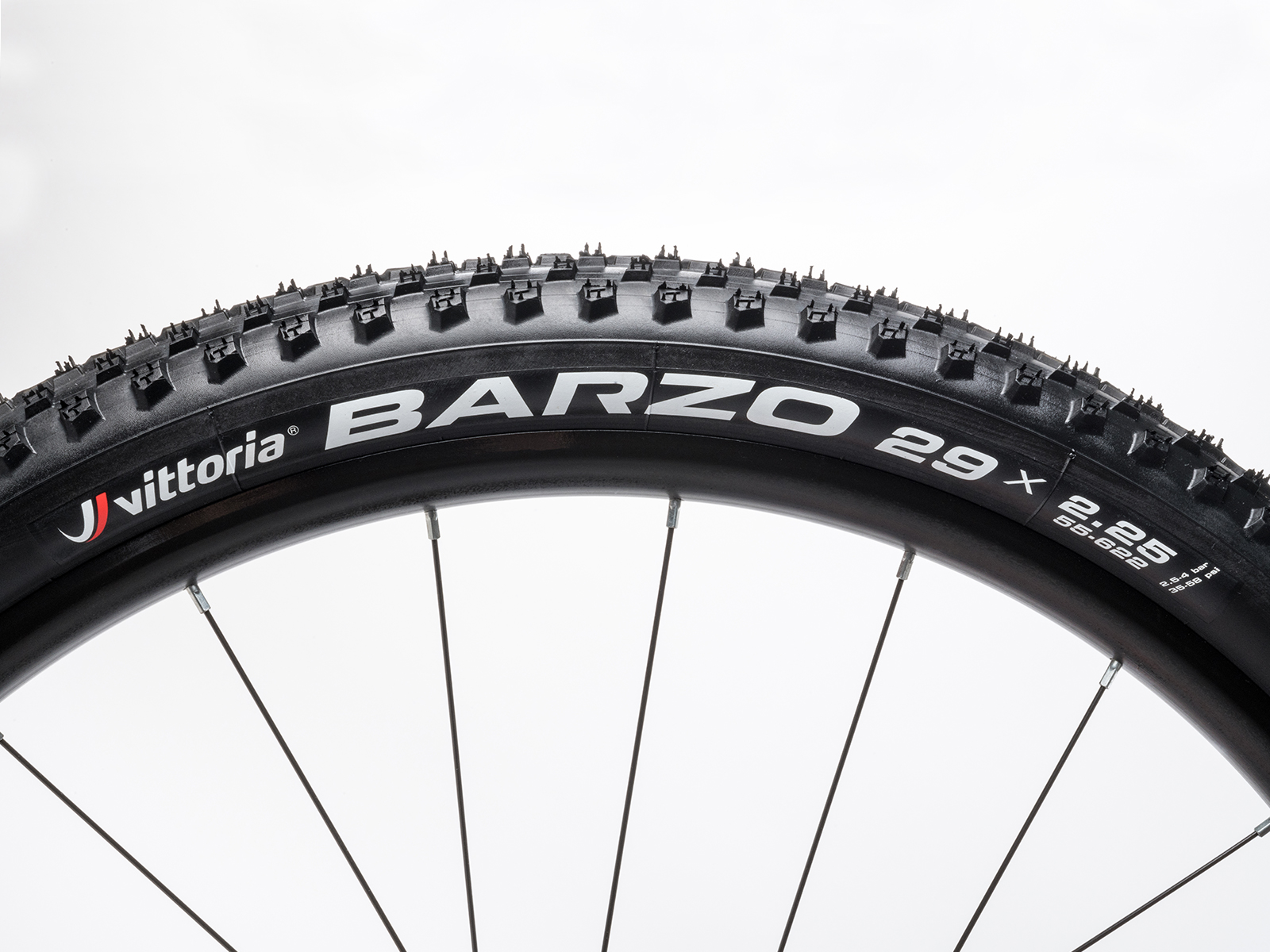

Tires	VITTORIA Barzo aramid 29" × 2.25"
Handlebar	RITCHEY MTN WCS 2 × 9, 9°, 700 / 720 mm
Grips	AUTHOR Pro Lock

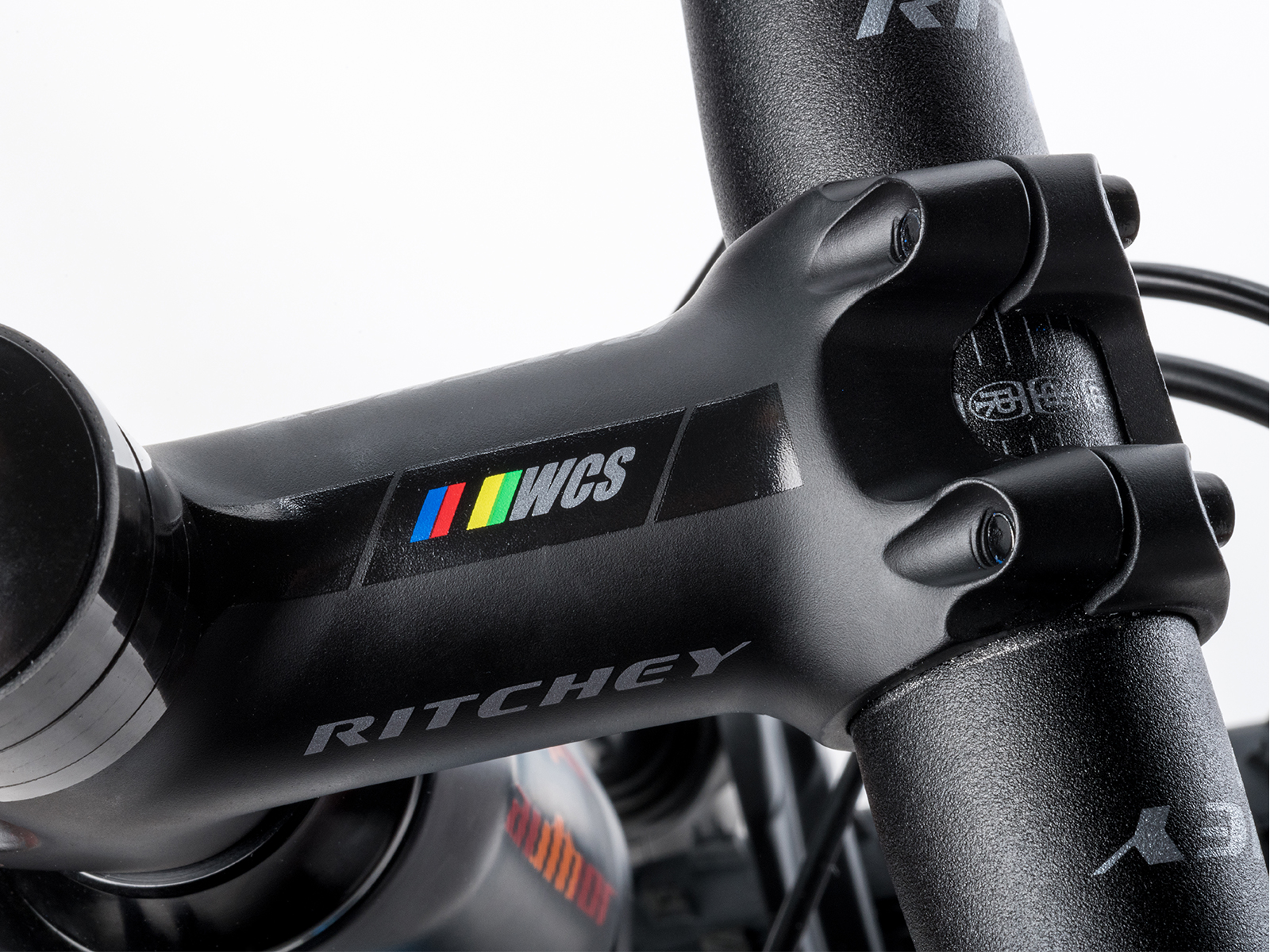

Stem	RITCHEY WCS C220
Seat post	RITCHEY Comp Carbon (31.6)
Seat clamp	AUTHOR (34.9)

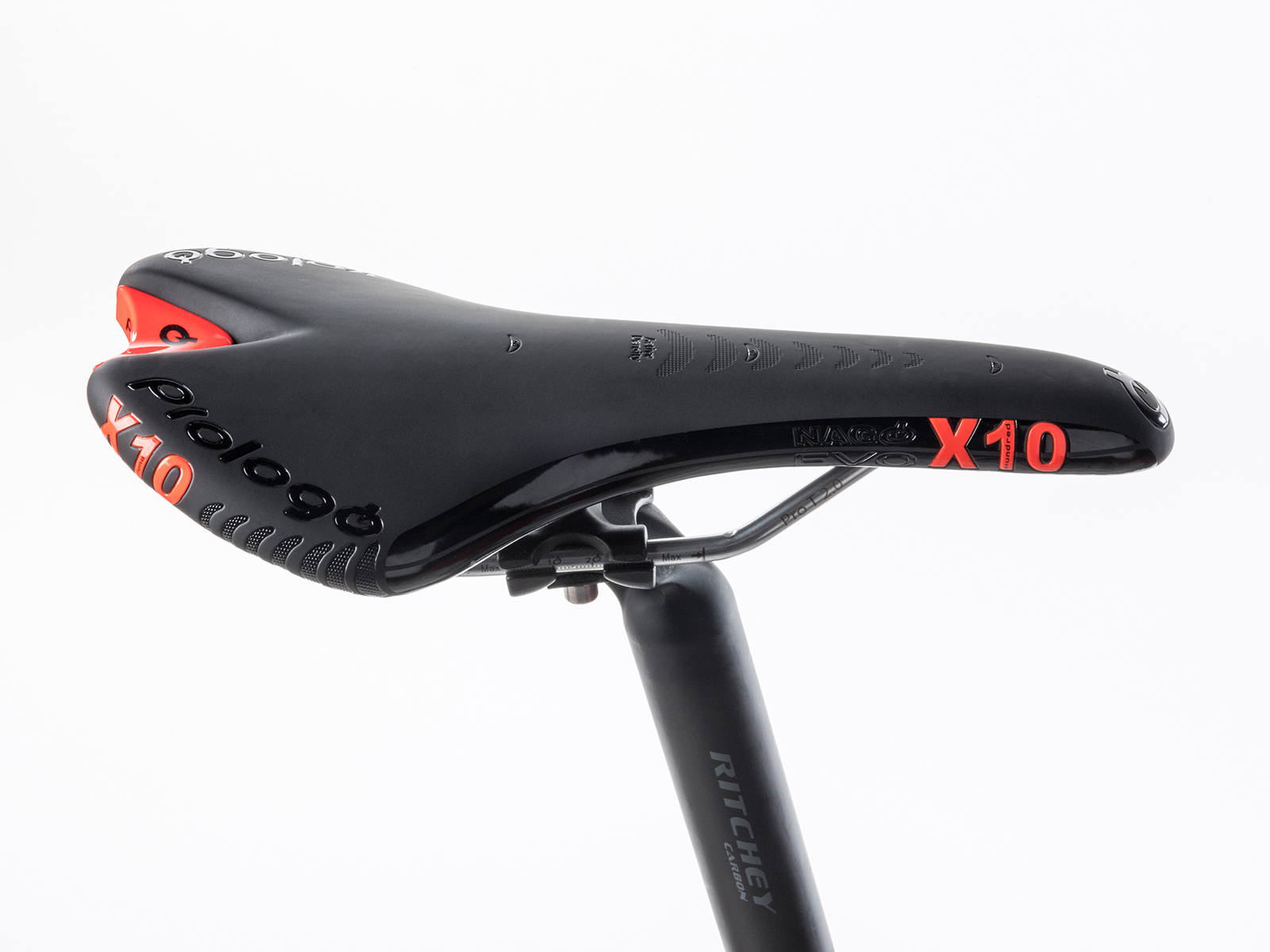

Saddle	PROLOGO Nago Evo X10
Speed	12
Weight	10,3 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	171	179	188
Max. figure ~~[cm]~~	181	189	202
S/T c-t ~~[mm]~~	435	485	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	611	638	668
T/T a ~~[mm]~~	589	607	641
H/T ~~[mm]~~	95	100	120
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1118	1145	1177
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	506	506	506
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	92	92	92
Reach ~~[mm]~~	425	450	475
Stack ~~[mm]~~	609	613	632
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
