  » Bicycles » mountain bike » mtb 29

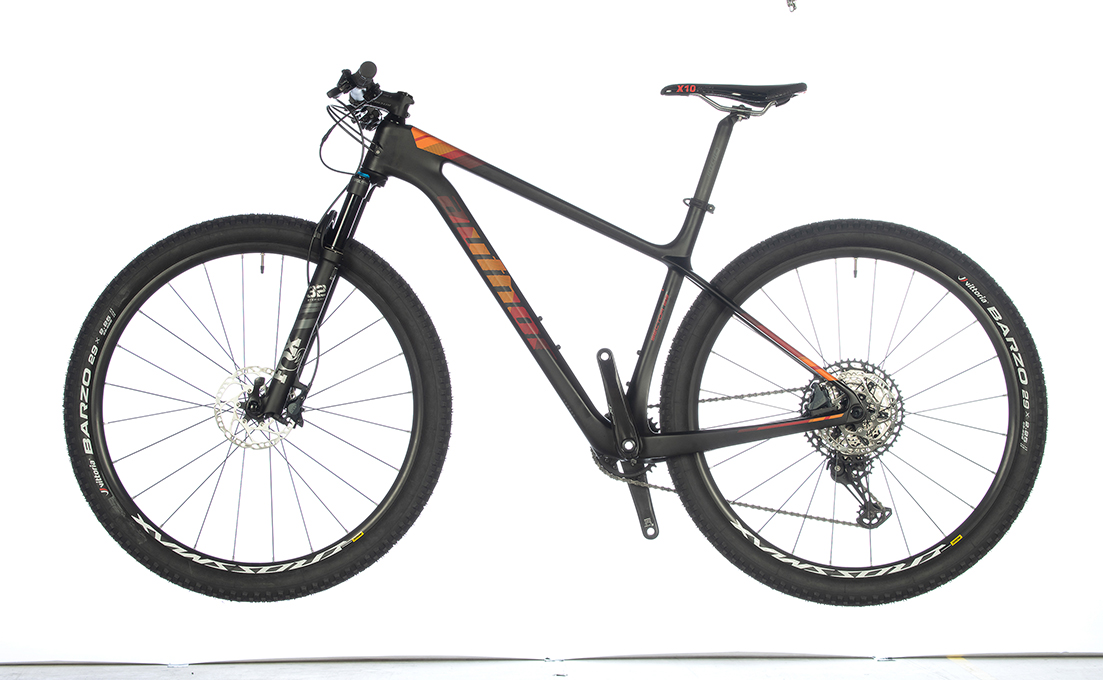

AUTHOR Sector 29 2021-22Archivní model 2021-22

Colour variants
Carbon frameAir remote lock out fork FOX 32 FloatSHIMANO XT groupset
price 85 990 Kč
SOLD OUT
other models

Technical specification

Size17", 19", 21"
FrameAUTHOR carbon Toray T700/800 monocoque 29"
Front forkFOX 32 Float SC 29 100 Remote air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsAUTHOR Integrated 1.5" tapered
Chain WheelSHIMANO XT 34 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-MT800 BB unit
Rear derailleurSHIMANO XT
ShiftersSHIMANO XT (12)
Free wheelSHIMANO CS-M7100 10-51 (12)
ChainSHIMANO M7100
HubsMAVIC Crossmax 29 wheel set 24 holes 15 × 110 mm thru front axle 12 × 148 mm thru rear axle
BrakesSHIMANO SLX disc hydraulic (6" rotors)
Brakes leversSHIMANO SLX
Wheel setMAVIC Crossmax 29 wheel set 24 holes
SpokesMAVIC
TiresVITTORIA Barzo foldable 29" × 2.25"
HandlebarRITCHEY MTN WCS 2x9 9° 700 / 720 mm
GripsAUTHOR Pro Lock
StemRITCHEY WCS C220
Seat postRITCHEY Comp Carbon (31.6)
Seat clampAUTHOR (34.9)
SaddlePROLOGO Nago Evo X10
Speed12
Weight10,3 kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 171 179 188
Max. figure [cm] 181 189 202
S/T c-t [mm] 435 485 535
S/T c-c [mm] 0 0 0
T/T h [mm] 611 638 668
T/T a [mm] 589 607 641
H/T [mm] 95 100 120
C/S [mm] 435 435 435
W/B [mm] 1118 1145 1177
S/T ang. [°] 73 73 73
H/T ang. [°] 69 69 69
F/L [mm] 506 506 506
B/B drop [mm] 65 65 65
B/B width [mm] 92 92 92
Reach [mm] 425 450 475
Stack [mm] 609 613 632
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Sector 29 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
