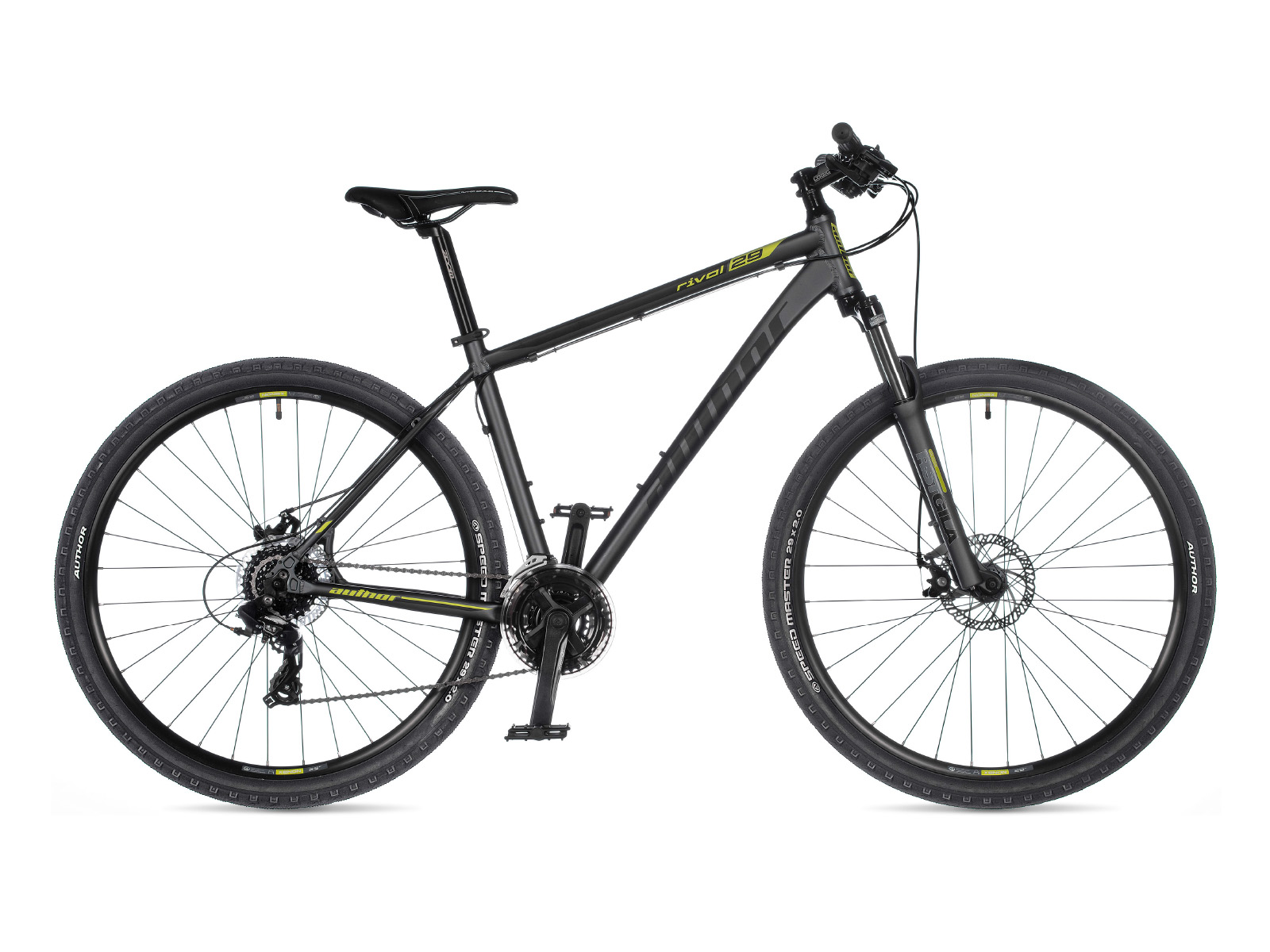

Rival 29 2023-24 | Author.eu

Rival 29 2023-24Archivní model 2025

~~Colour variants~~

Wheel size 29"Lightweight alloy frameSHIMANO componentsSuspension fork RST Gila 29 with lockQuality tire AUTHOR Speed Master 29" × 2.00"TEKTRO disc mechanical BrakeComfort saddle AUTHOR Courier

~~Buy now~~special price 9 990 Kč

original price ~~15 990 Kč~~

Technical specification

Size	17", 19", 21"
Frame	alloy 6061 29"
Front fork	RST Gila 29 ML, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO TX800 (24)
Free wheel	SHIMANO HG200-8, 12-32 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes
Brakes	TEKTRO, disc mechanical (6" rotors)
Brakes levers	SHIMANO TX800

Rims	AUTHOR Xenon 29, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master 29" × 2.00"
Pedals	plastic
Handlebar	AUTHOR Flatbar, 10°, 700 mm
Grips	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

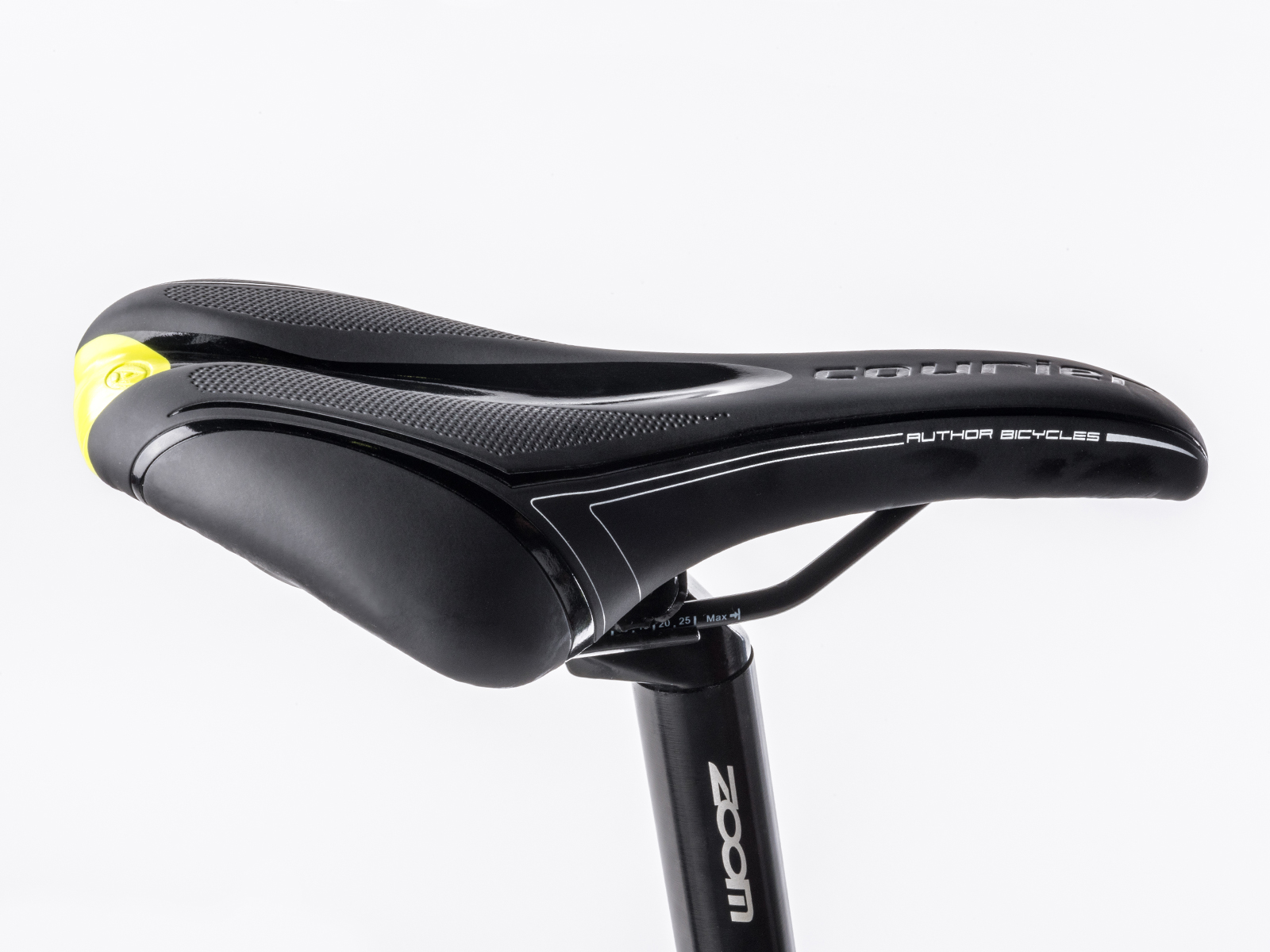

Saddle	AUTHOR Courier
Speed	24
Weight	14,9 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	581	596	614
H/T ~~[mm]~~	115	130	140
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1125	1147	1167
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	63	63	63
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	407	423	440
Stack ~~[mm]~~	632	646	655
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
