AUTHOR Rival 29 2018

Technical specification

Size	17', 19', 21'
Frame	alloy 6061 29'
Front fork	RST Blaze 29 ML uzamykatelná (100 mm)
Head parts	PRESTINE Integrated 1-1/8'
Chain Wheel	PROWHEEL 42-34-24 teeth 170 / 175 mm cranks
BBParts	VP COMP cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO TX800 (24)
Free wheel	SHIMANO HG200-8 12-32 (8)
Chain	KMC Z72
Hubs	QUANDO Disc 32 holesr
Brakes	TEKTRO disc mechanical (6' rotors)
Brakes levers	SHIMANO TX800

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/6

425 Kč ~~499 Kč~~ R260 ProLongThe Author saddle bag A-R260 ProLong is the universal bag with the one main compartment and one flat ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/3

695 KčACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »

750 KčACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/2

325 KčAXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

1/5

1 195 KčACR-F14-AluA tough tubular aluminium front rack. Designed specifically for front suspension fork with brake piv ... more »

1/3

350 KčX-Bow QRMudguard Author X-BOW QR with aerodynamic flow design is perfect for XC ride. Fits suspension or ... more »

150 KčX-MudyFront mudguard AUTHOR, for down tube mounting, fabric plastic. more »

1/2

399 KčAXP-60High quality AUTHOR AXP full length mudguard set. Fenders are constructed from PET plastic and carry ... more »

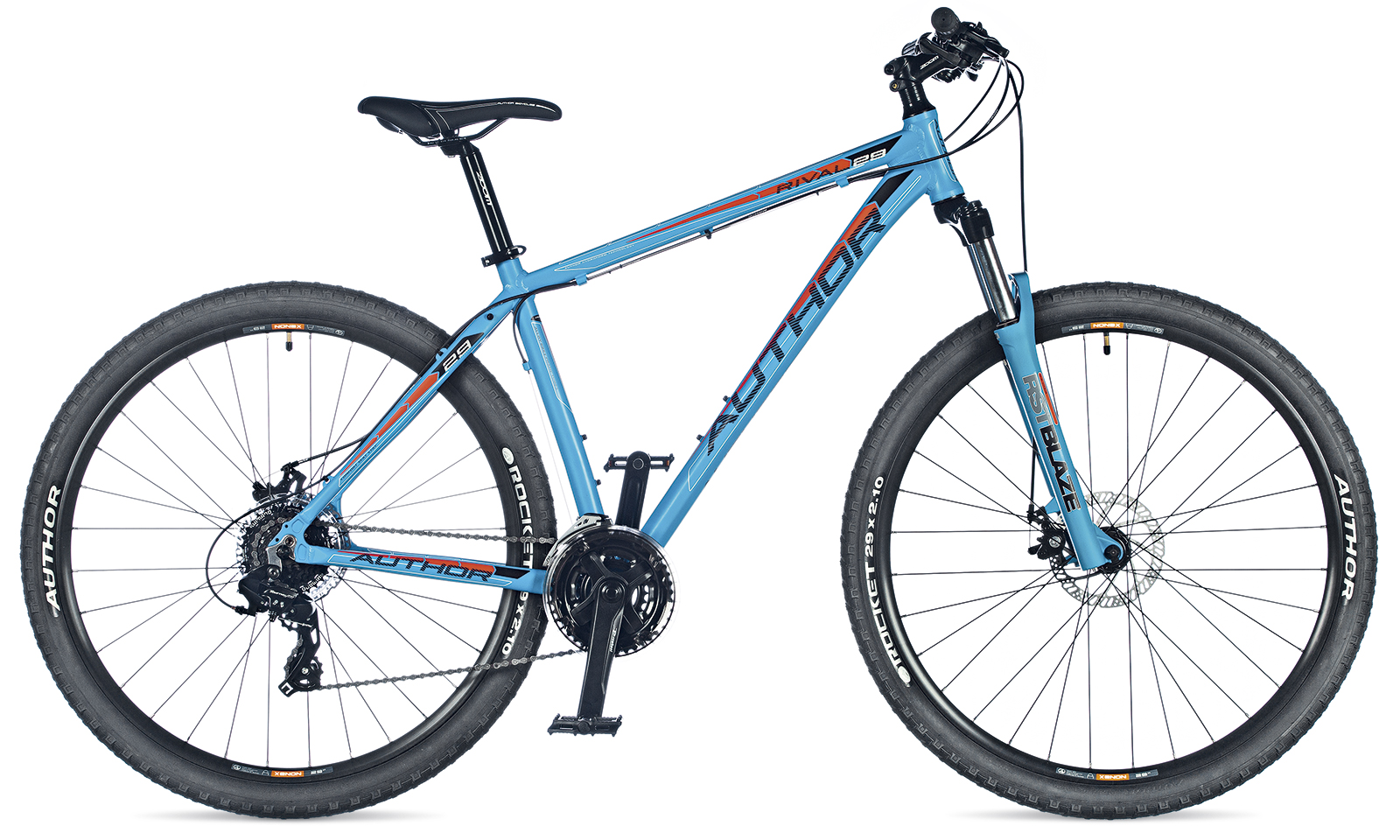

	blue-matt / orange	17" = UA#42892622 19" = UA#42892623 21" = UA#42892624

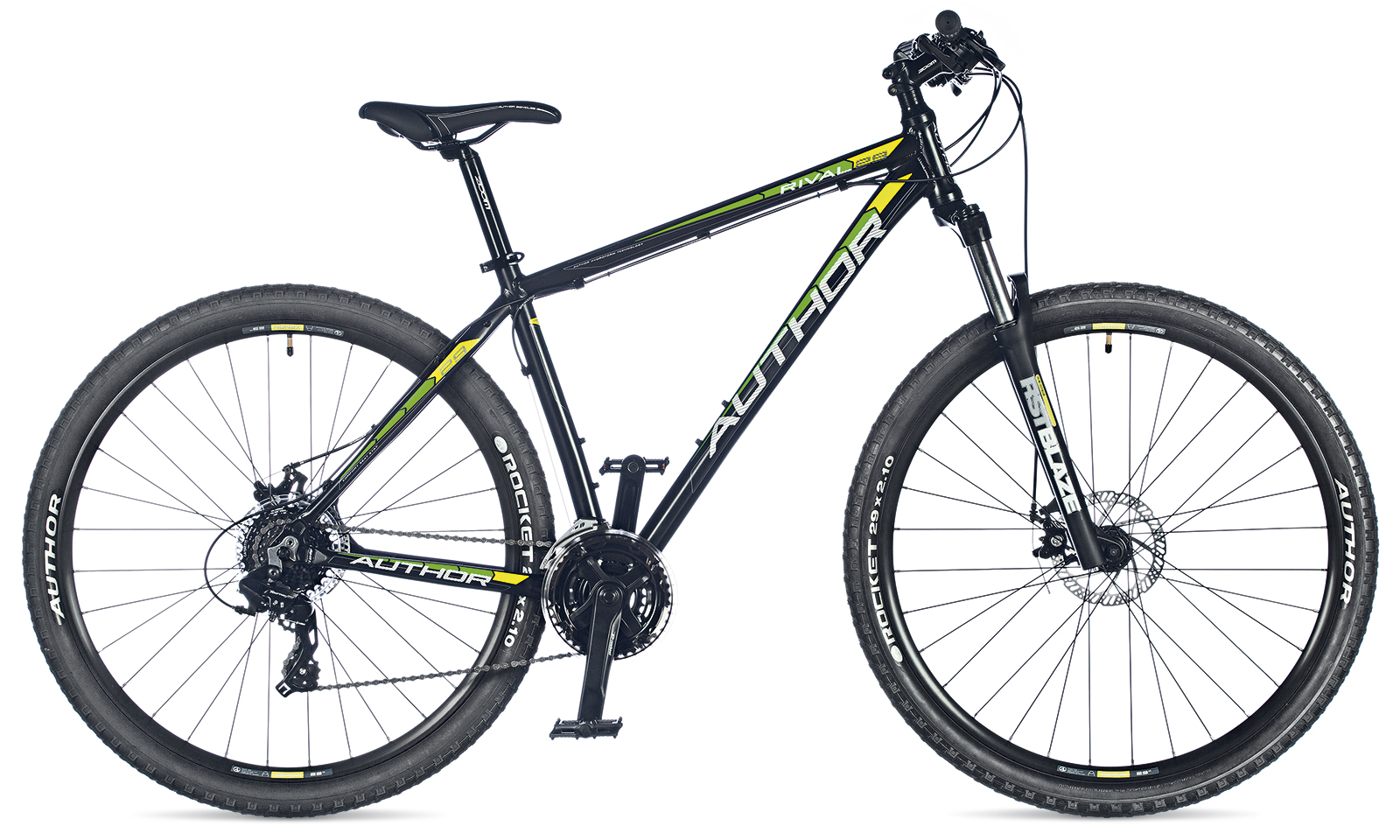

	black-matt / green-neon / yellow-neon	17" = UA#42892632 19" = UA#42892633 21" = UA#42892634

AUTHOR Rival 29 2018Archivní model 2018
