Technical specification

Size17", 19", 21"
FrameAUTHOR C carbon monocoque 29"
Front forkROCK SHOX Recon Gold TK 29 15 Solo Air air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSHIMANO M552-10 42-32-24 teeth 170 / 175 mm cranks
BBPartsSHIMANO M552-10 BB unit
Front derailleurSHIMANO SLX (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG-81-10 11-36 (10)
ChainSHIMANO HG-74
HubsAUTHOR Helium / Xenon Disc 15 mm thru axle 32 holes
BrakesSHIMANO M575 disc hydraulic (7" rotors)
Brakes leversSHIMANO M575
RimsAUTHOR Helium Pro 29 32 holes
Spokesblack stainless steel 2.0 mm
TiresGEAX Mezcal Kevlar 29" x 2.10"
PedalsSHIMANO M520 clipless
HandlebarEASTON EA70 XC 0 mm 685 mm
GripsAUTHOR GripLock
StemEASTON EA90
Seat postEASTON EA70 Zero (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Gobi XM
Speed30
Weight11,8 Kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 482 535
S/T c-c [mm] 0 0 0
T/T h [mm] 606 630 651
T/T a [mm] 584 604 625
H/T [mm] 115 120 125
C/S [mm] 450 450 450
W/B [mm] 1112 1130 1146
S/T ang. [°] 73 73 72.5
H/T ang. [°] 70 70.5 70.5
F/L [mm] 490 490 490
B/B drop [mm] 58 58 58
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 42 42 42
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

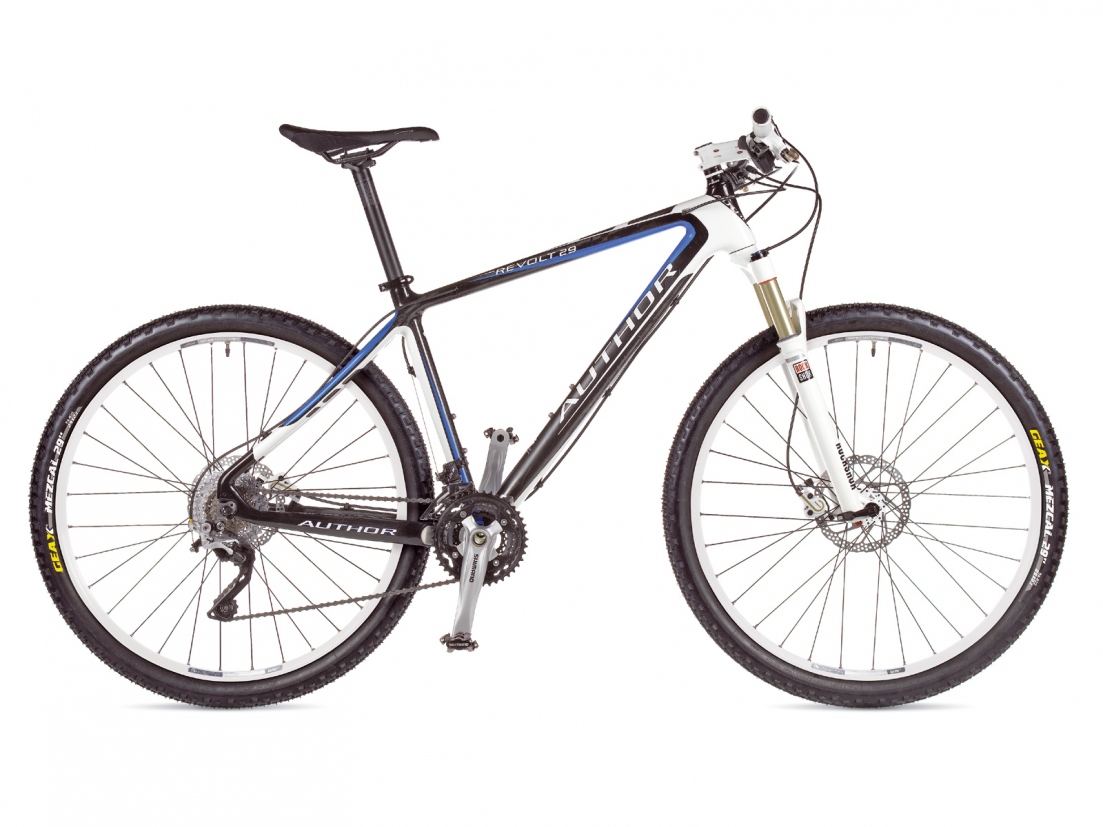

AUTHOR Revolt 29 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
