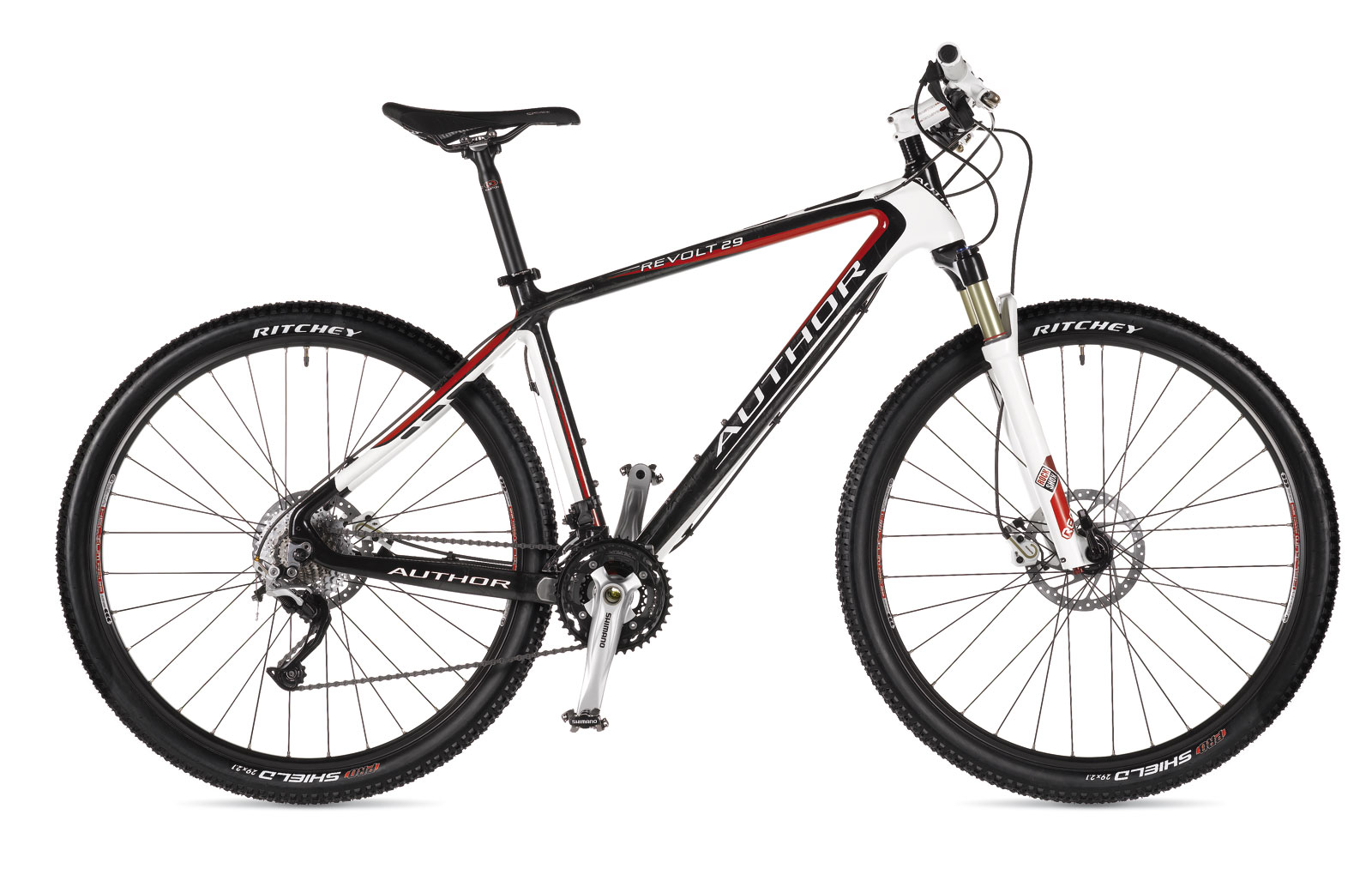

AUTHOR Revolt 29 2012Archivní model 2012

SOLD OUT

other models

Interested in other model`s year?

2011 2012 2013 2014 2015 2017 2018 2019

Technical specification

Size	17", 19", 21"
Frame	AUTHOR carbon monocoque 29"
Front fork	ROCK SHOX Recon Gold TK 29 air, remote lock out 20 mm thru axle 1.5" taper steerer (80 mm)
Head parts	FSA Orbit C-40 1.5" taper
Chain Wheel	SHIMANO M552-10 42-32-24 teeth 170 / 175 mm cranks
BBParts	SHIMANO M552-10 BB unit
Front derailleur	SHIMANO SLX (34.9)
Rear derailleur	SHIMANO XT
Shifters	SHIMANO SLX (30)
Free wheel	SHIMANO HG-81-10 11-36 (10)
Chain	SHIMANO HG-74
Hubs	AUTHOR Xenon Disc 20 mm thru axle 32 holes
Brakes	SHIMANO M575 disc hydraulic (7" rotors)
Brakes levers	SHIMANO M575

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
