  » Bicycles » mountain bike » mtb 29

AUTHOR Modus 29 2018Archivní model 2018

Colour variants
Carbon frameRST F1RST forkSHIMANO Deore groupset
Add to compareadditional accessories
other models
Magnum 29Sector 29Egoist 29Master 29Modus 29Vision 29Orion 29more models »
Interested in other model`s year?

Technical specification

Size17.5', 19', 21'
FrameAUTHOR C carbon monocoque 29'

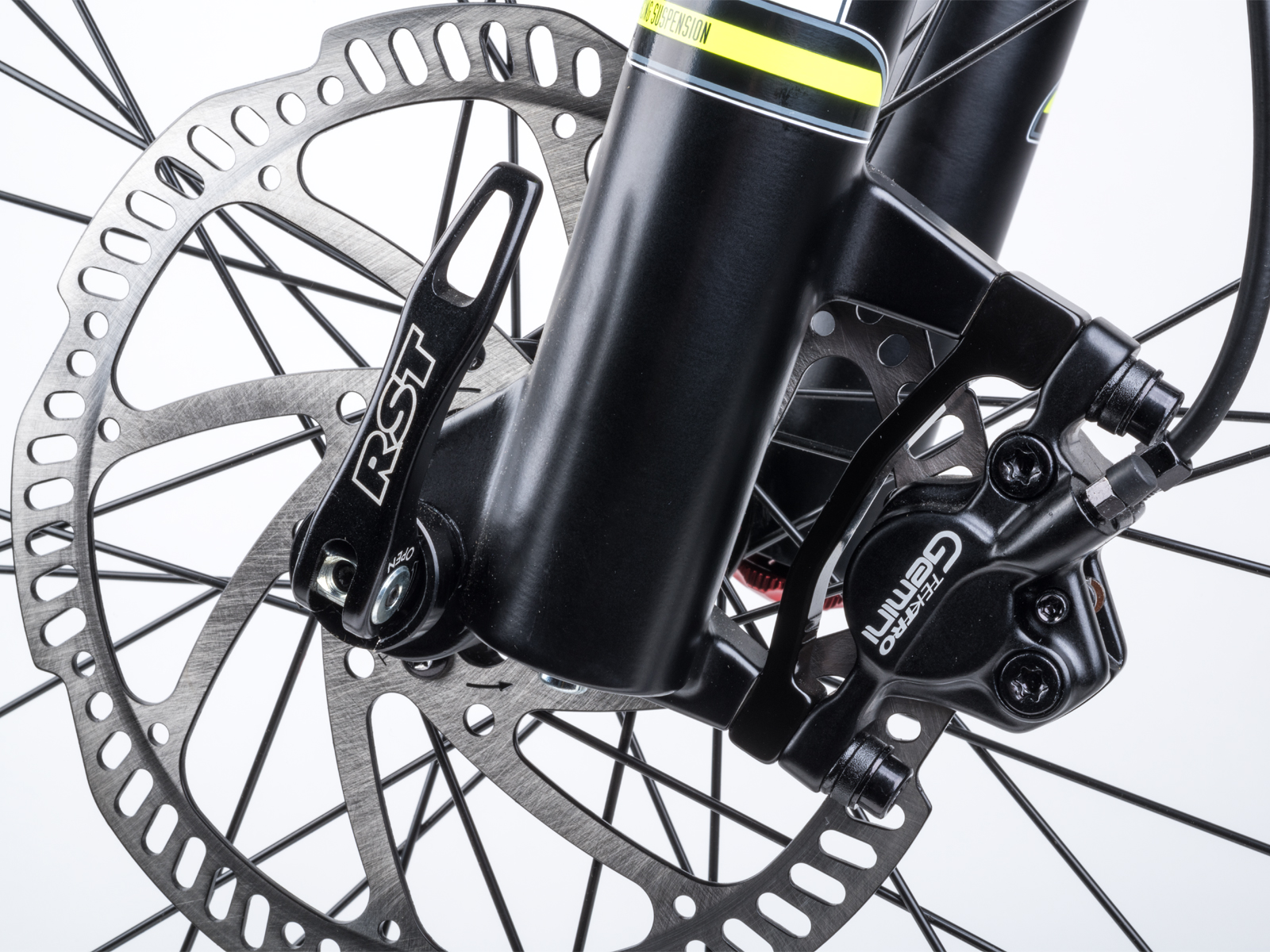

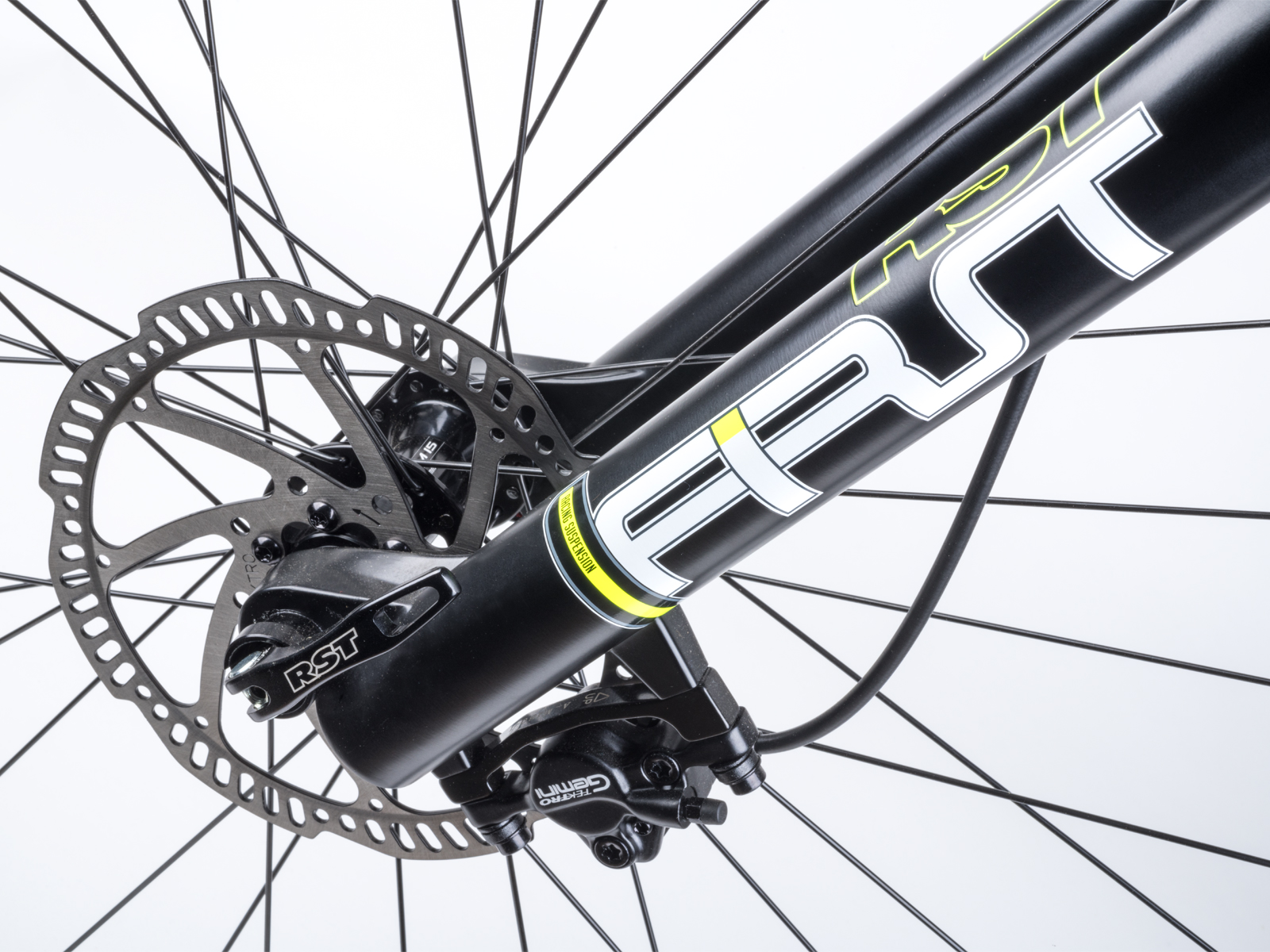

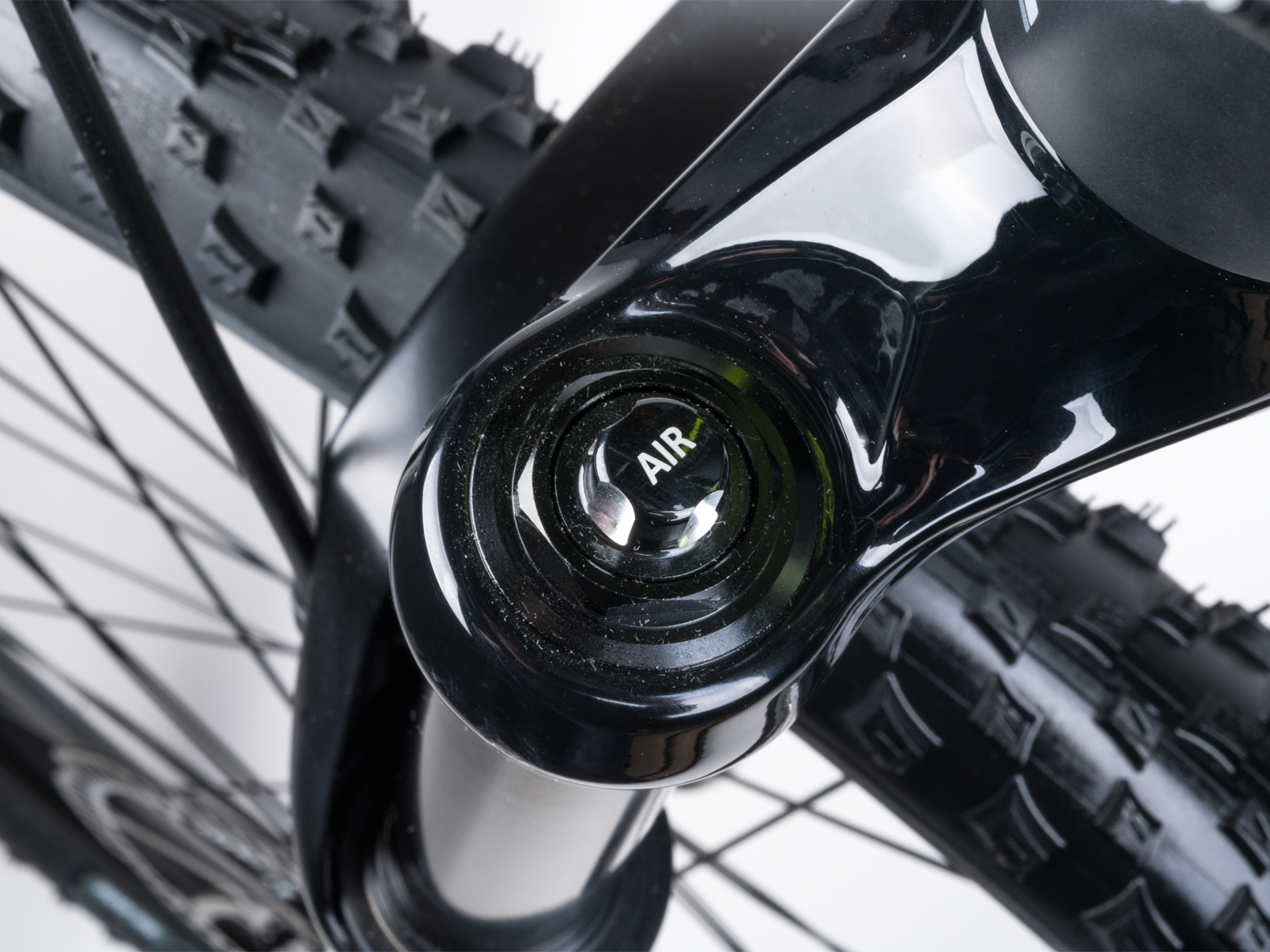

Front forkRST F1RST 29 15 TRL air, remote lock out 15 mm thru axle 1.5' tapered steerer (100 mm)
Head partsAUTHOR Integrated 1.5' tapered

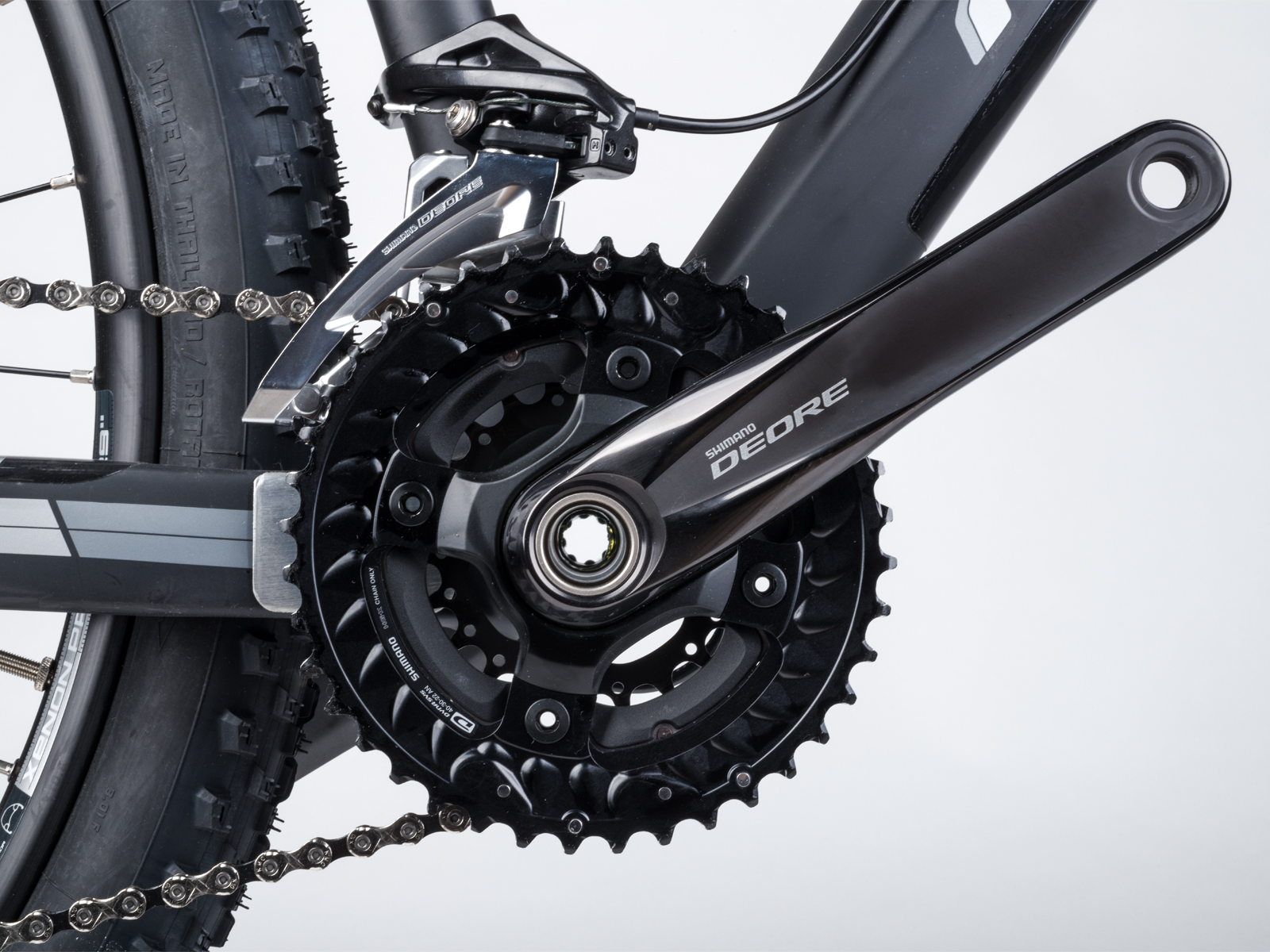

Chain WheelSHIMANO Deore 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-52 BB unit

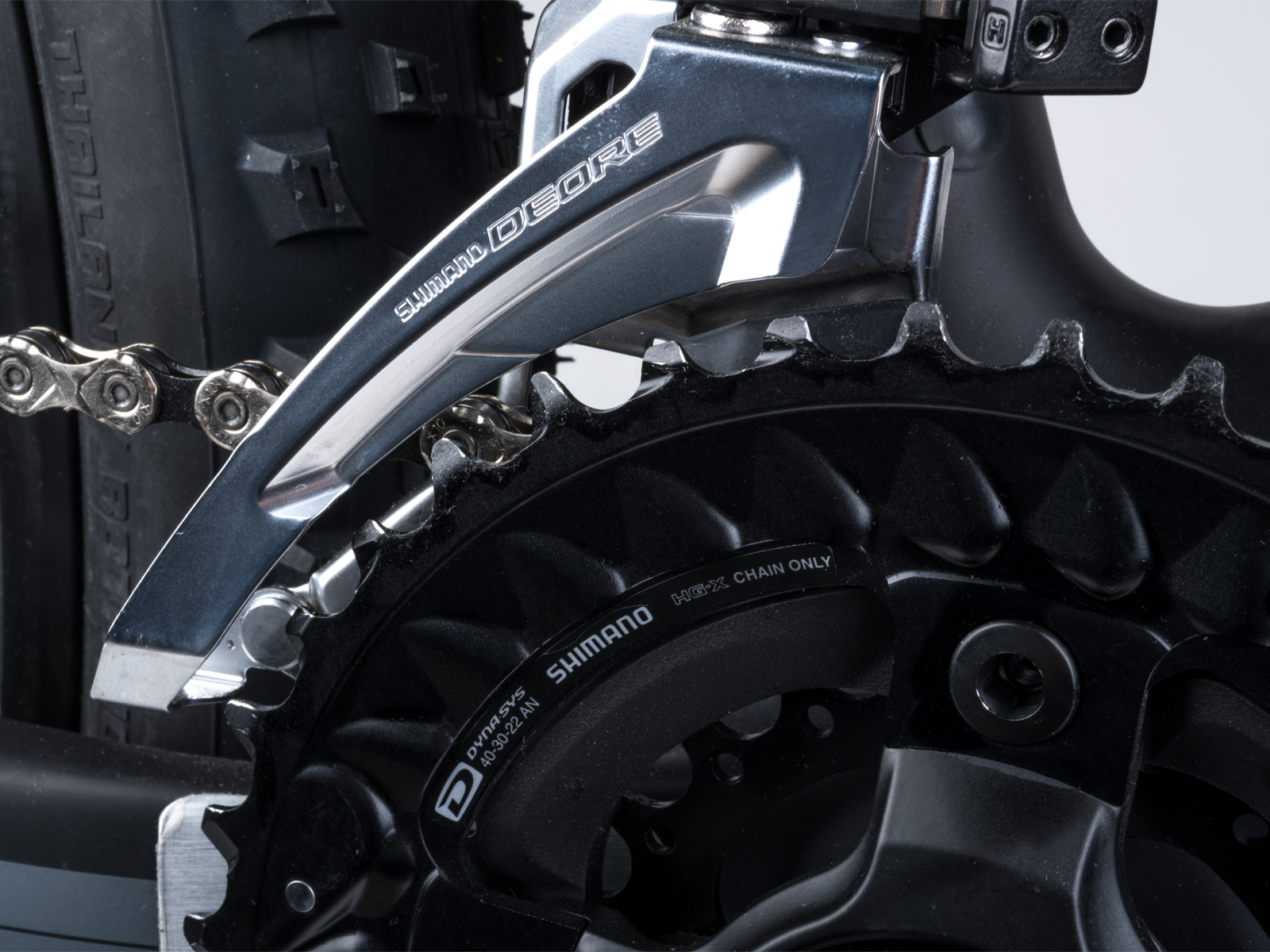

Front derailleurSHIMANO Deore (34.9)

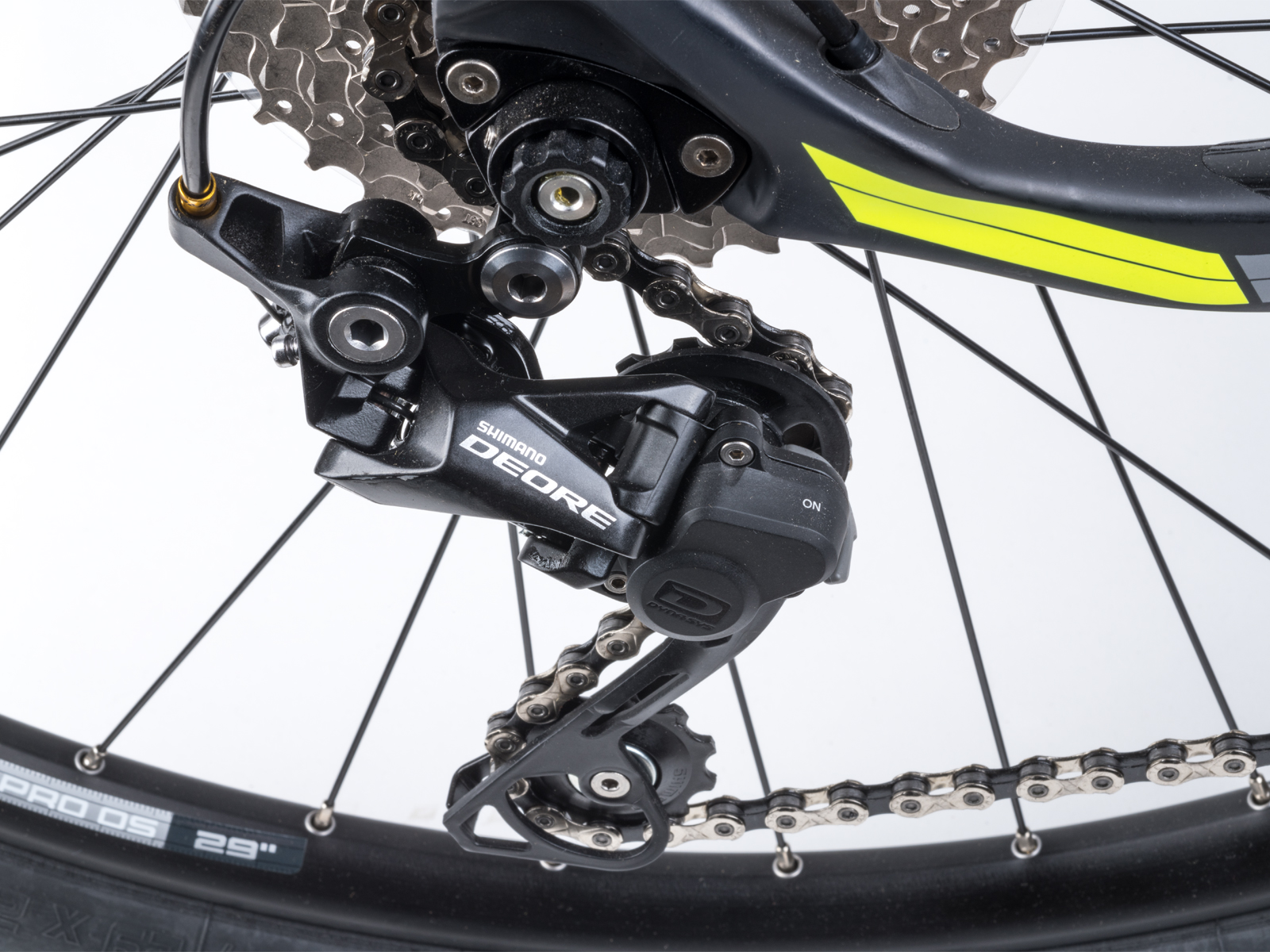

Rear derailleurSHIMANO Deore

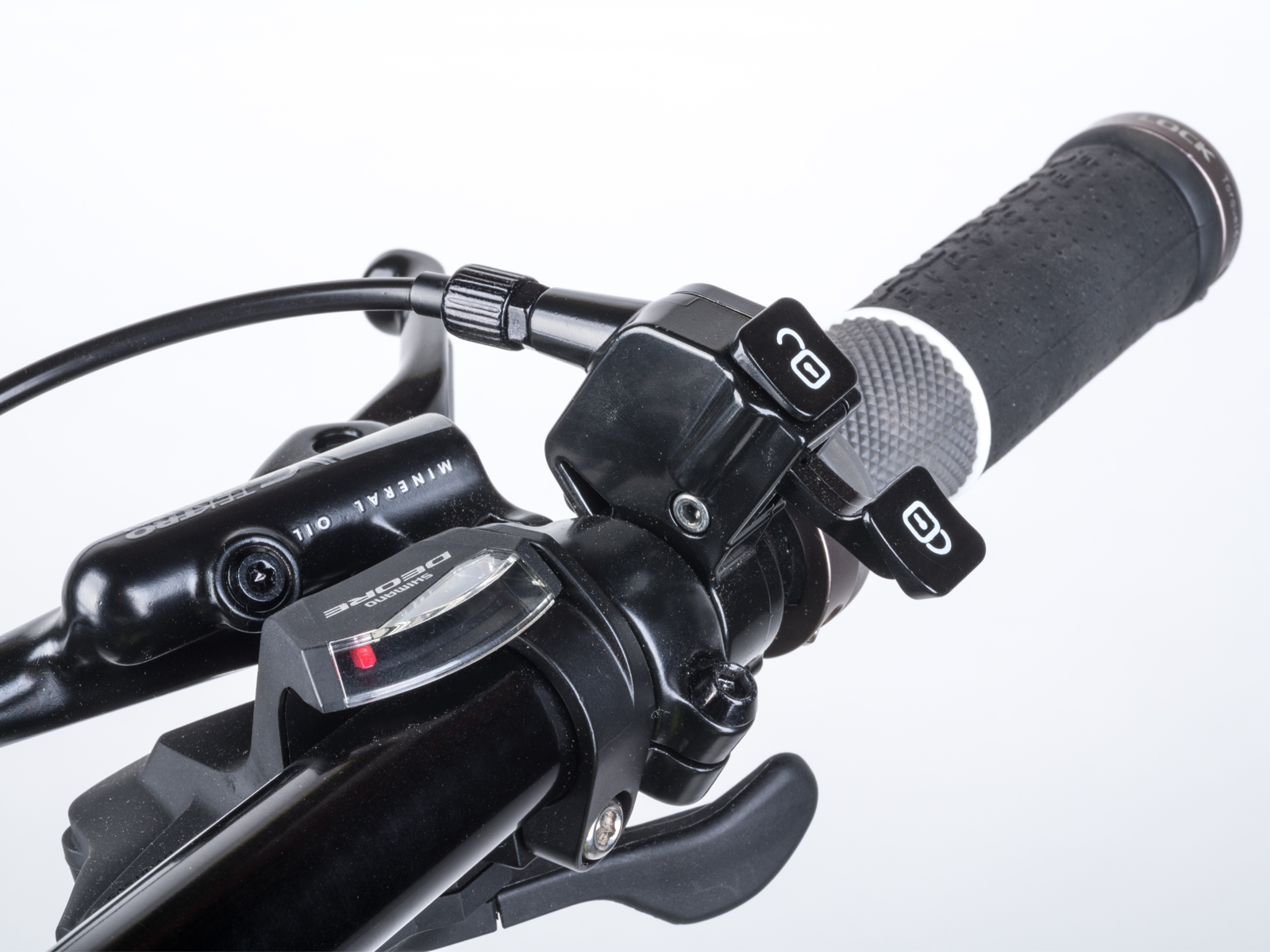

ShiftersSHIMANO Deore (30)
Free wheelSHIMANO HG50-10 11-36 (10)
ChainKMC X10-1
HubsAUTHOR Helium 15 / Xenon 12 15 x 100 mm thru front axle 12 x 142 mm thru rear axle 32 holes

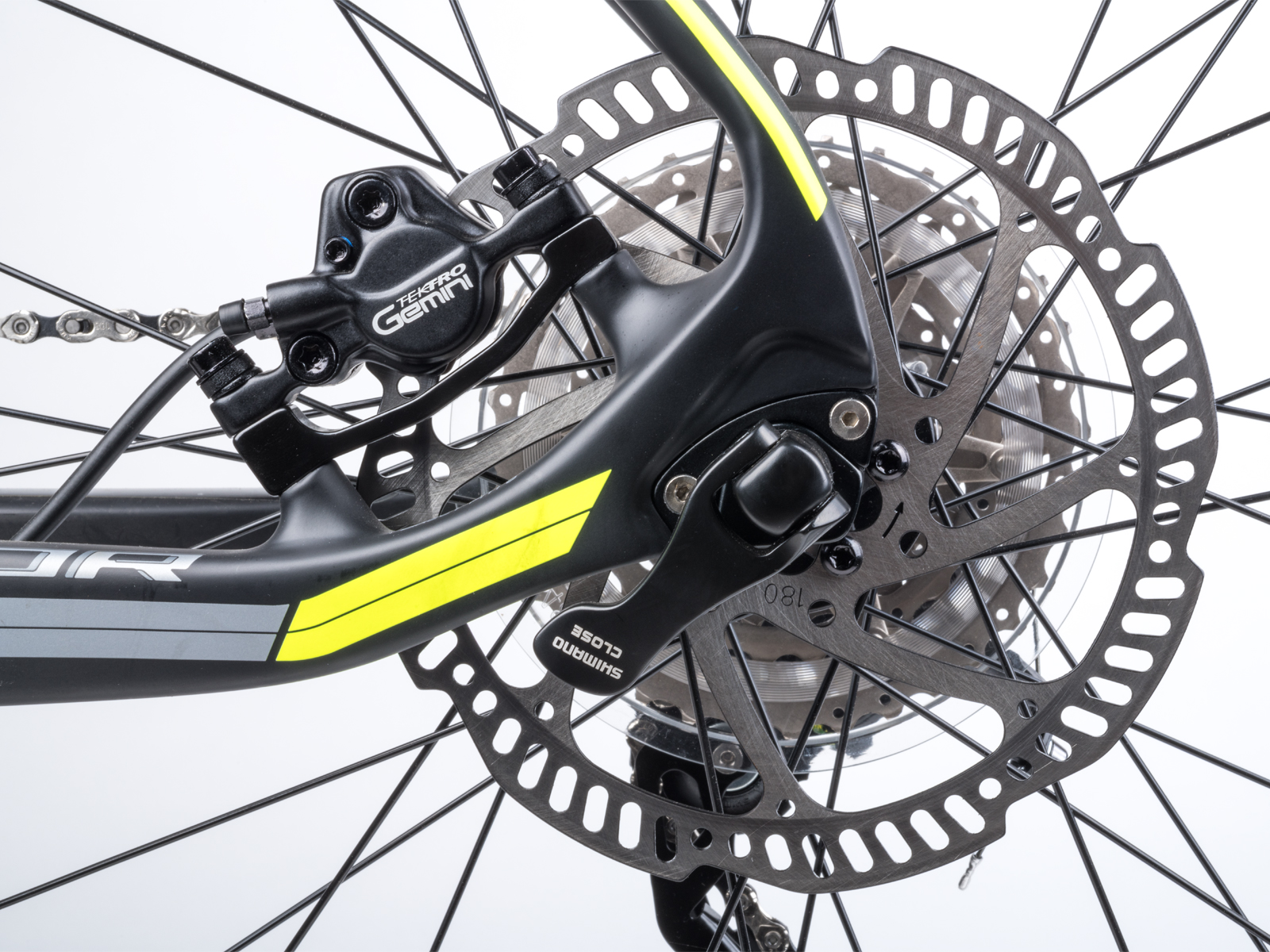

BrakesTEKTRO Gemini disc hydraulic (7' rotors)

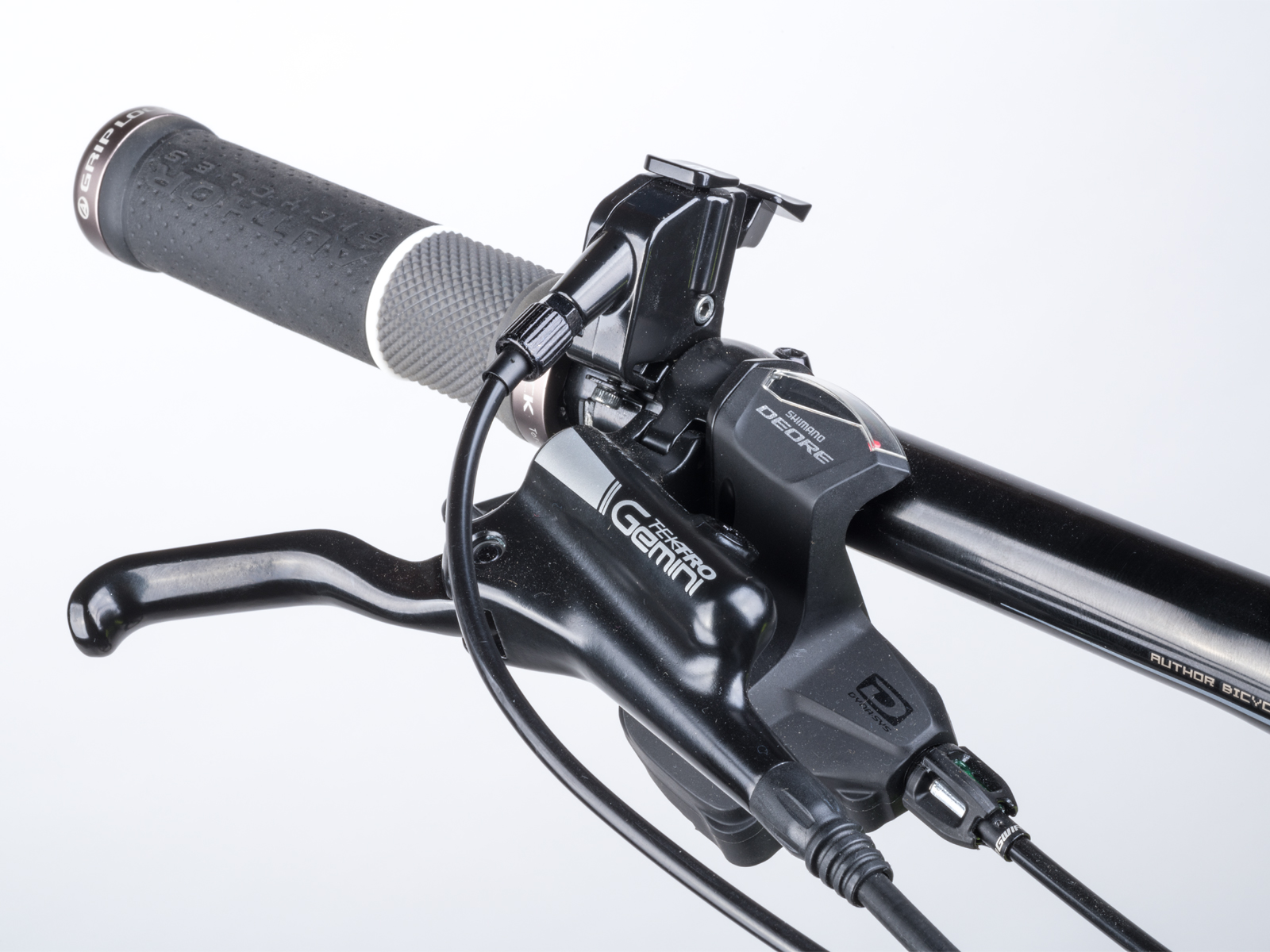

Brakes leversTEKTRO Gemini
RimsAUTHOR Xenon Pro 29 32 holes
Spokesblack stainless steel 2.0 mm

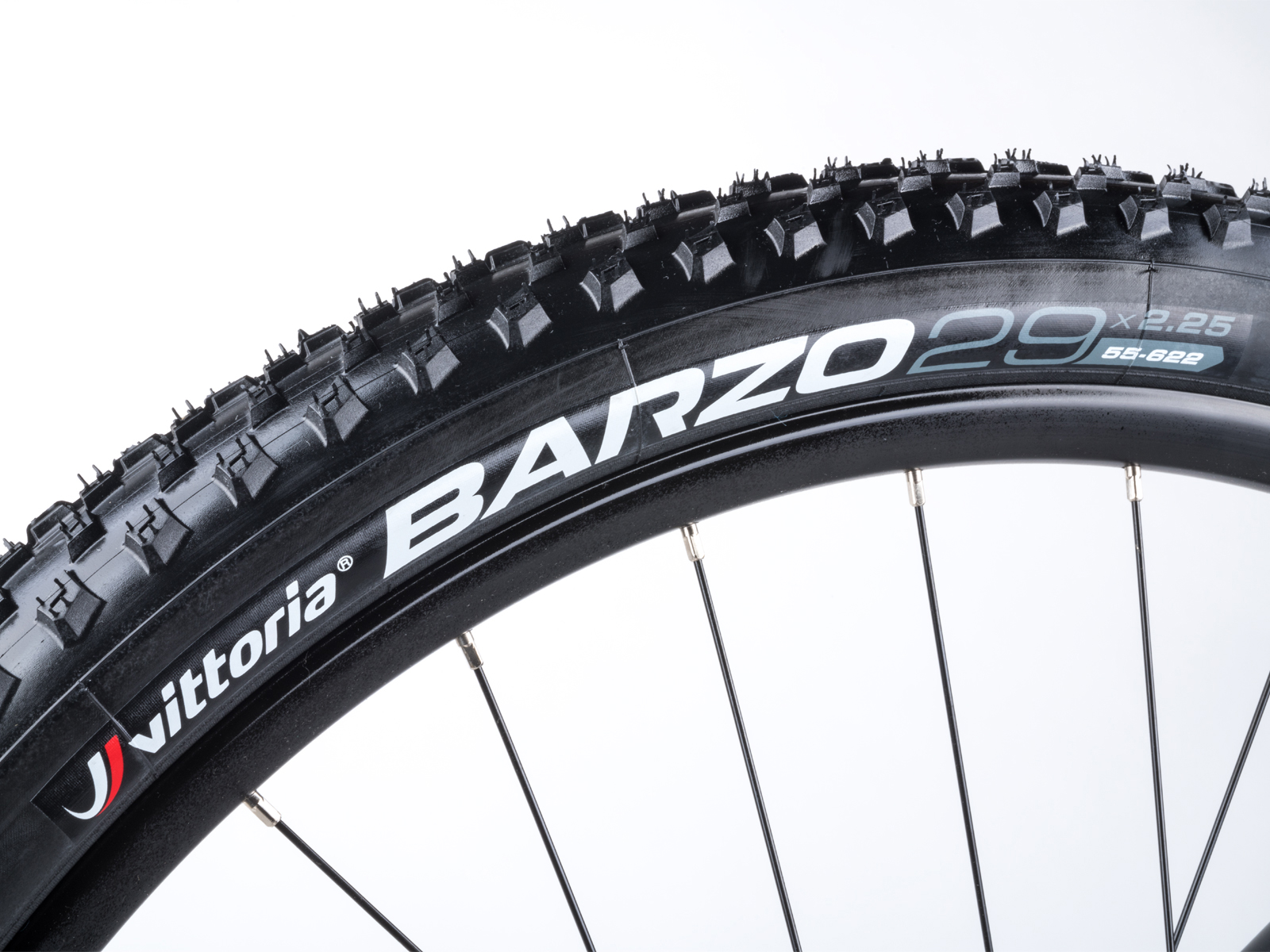

TiresVITTORIA Barzo kevlar 29' x 2.25'

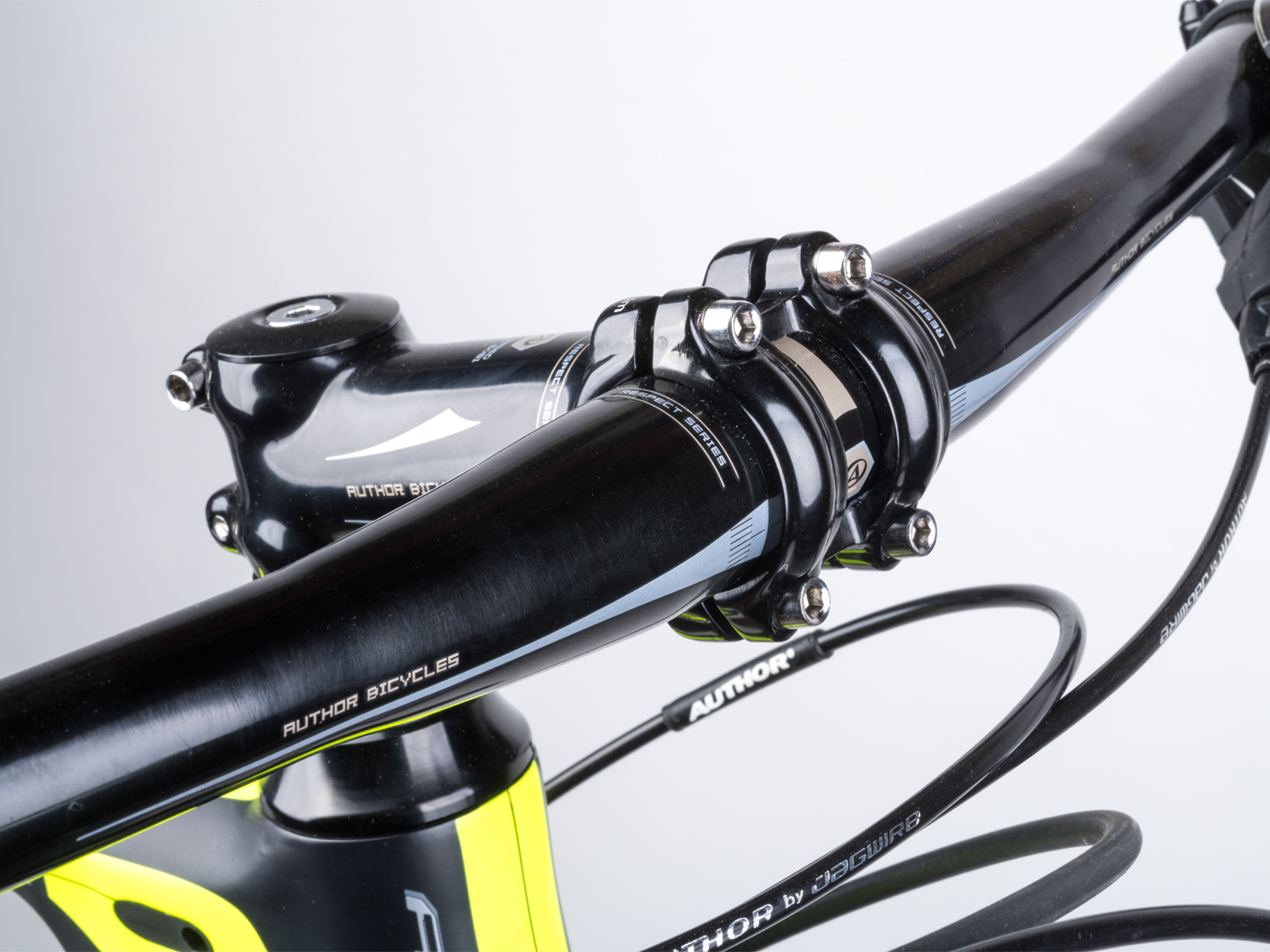

HandlebarAUTHOR Flatbar 9° 700 mm
GripsAUTHOR Pro Lock
StemAUTHOR dural
Seat postAUTHOR dural (31.6)
Seat clampAUTHOR (34.9)

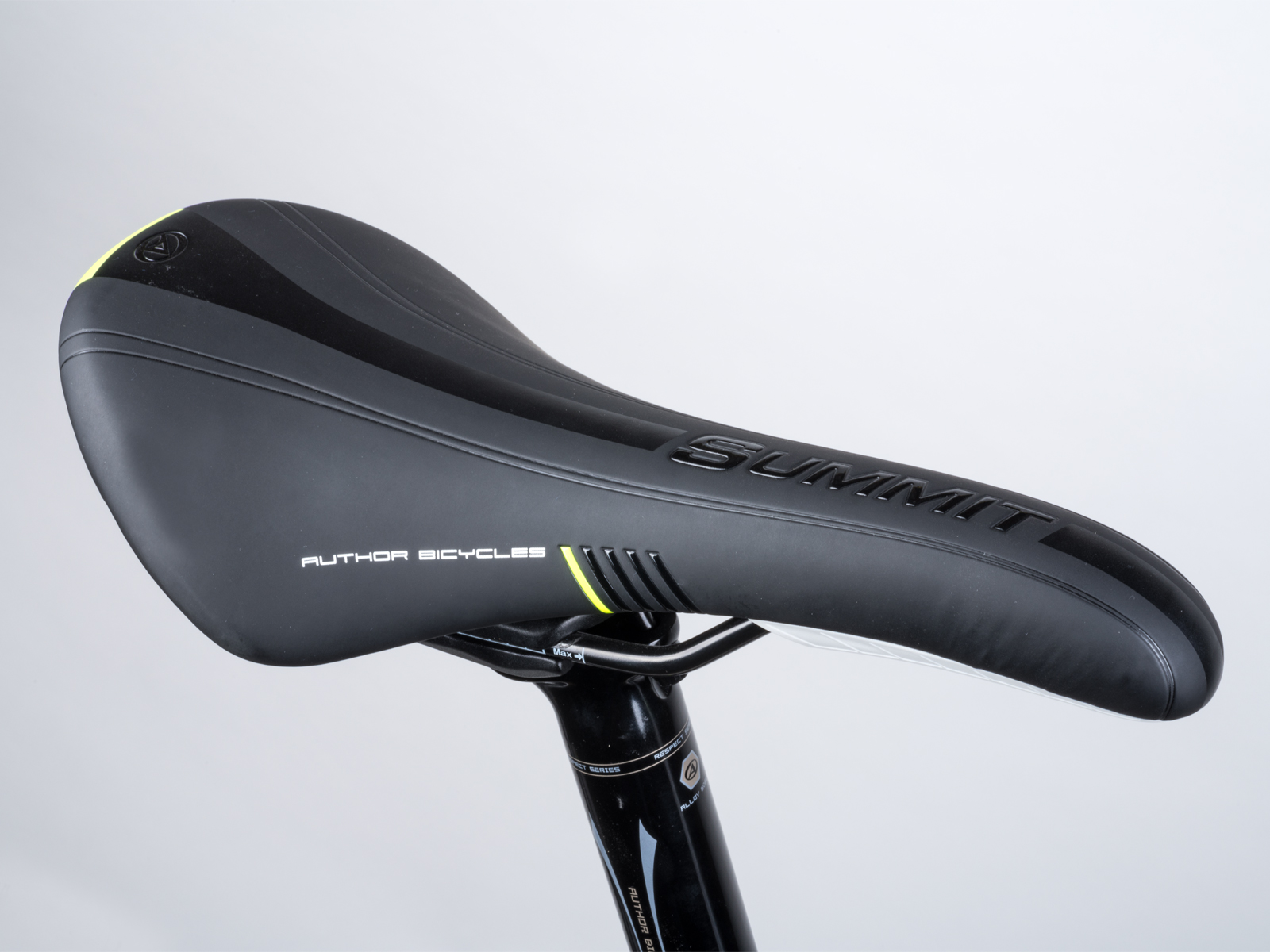

SaddleAUTHOR Summit
Speed30
Weight12,2 kg / 19'

Geometry and sizes

Size 17,5" 19" 21"
Min. figure [cm] 171 179 188
Max. figure [cm] 181 189 202
S/T c-t [mm] 454 480 530
S/T c-c [mm] 0 0 0
T/T h [mm] 609 620 640
T/T a [mm] 586 594 612
H/T [mm] 110 120 130
C/S [mm] 438 438 438
W/B [mm] 1084 1095 1122
S/T ang. [°] 73 73 73
H/T ang. [°] 72 72 72
F/L [mm] 490 490 490
B/B drop [mm] 60 60 60
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 44 44 44
Handlebars [mm] 640 640 640
Stem [mm] 70 75 75
Cranks [mm] 170 170 170
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Modus 29 2018

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
