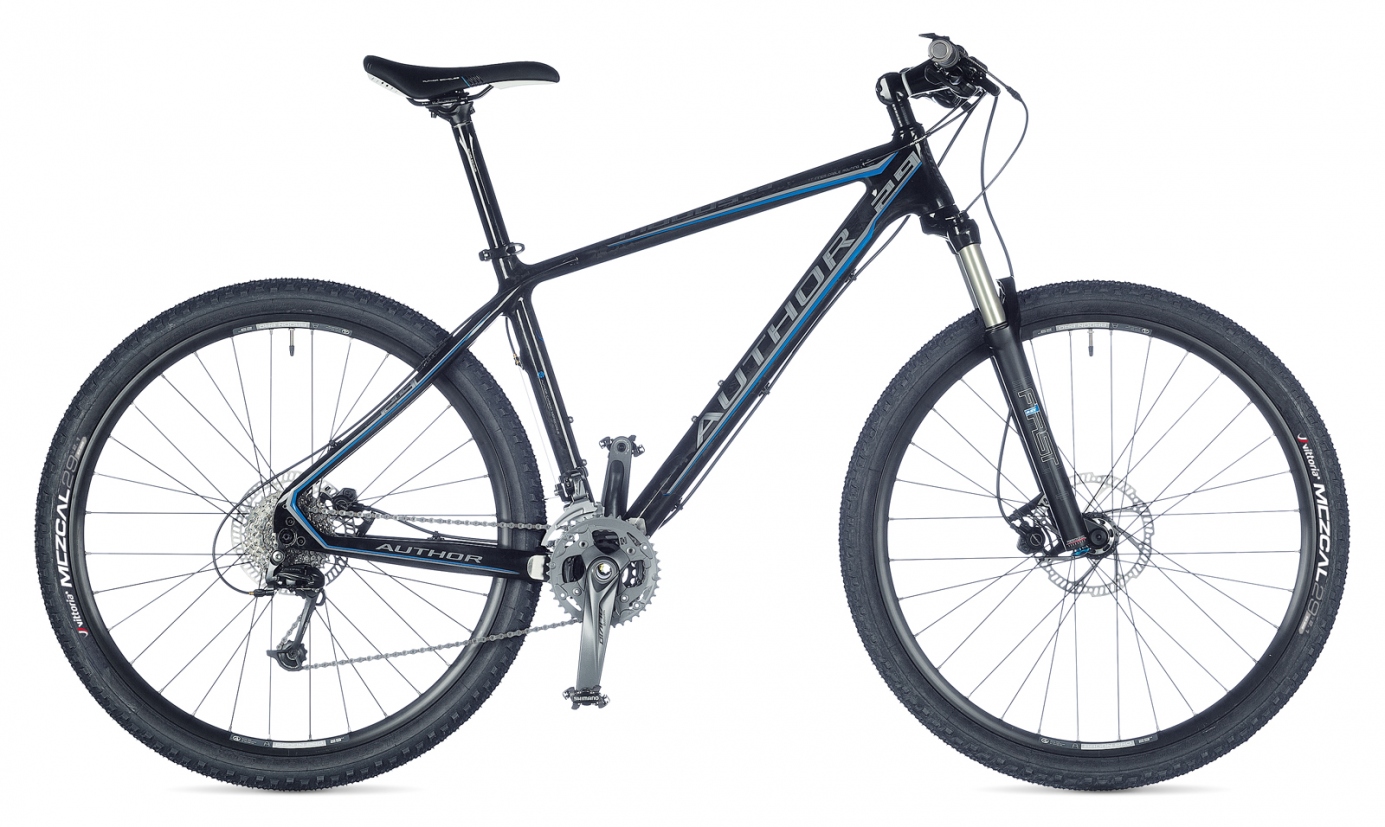

Mountain bike Author MODUS 29 on hi-tech carbon frame and air, RST F1RST fork with lock out unit.
More details about cranks, handlebars and stem sizes are now available in TECHNOLOGIES.
| Size | 17", 19", 21" |
|---|---|
| Frame | AUTHOR C carbon monocoque 29" |
| Front fork | RST F1RST 29 15 TRL air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm) |
| Head parts | AUTHOR Integrated 1.5" tapered |
| Chain Wheel | SHIMANO Alivio 40-30-22 teeth 170 / 175 mm cranks |
| BBParts | SHIMANO Alivio BB unit |
| Front derailleur | SHIMANO Alivio (34.9) |
| Rear derailleur | SHIMANO Deore |
| Shifters | SHIMANO Alivio (27) |
| Free wheel | SHIMANO HG400-9 11-34 (9) |
| Chain | SHIMANO HG53 |
| Hubs | AUTHOR Xenon Disc 15 mm thru front axle 142 x 12 mm thru rear axle 32 holes |
| Brakes | TEKTRO Gemini disc hydraulic (7" rotors) |
| Brakes levers | TEKTRO Gemini |
| Rims | AUTHOR Radon Pro 29 32 holes |
|---|---|
| Spokes | black stainless steel 2.0 mm |
| Tires | VITTORIA Mezcal kevlar 29" x 2.10" |
| Pedals | SHIMANO M520 clipless |
| Handlebar | AUTHOR Flatbar 0 mm 700 mm |
| Grips | AUTHOR Pro Lock |
| Stem | AUTHOR alloy |
| Seat post | AUTHOR alloy (31.6) |
| Seat clamp | AUTHOR (34.9) |
| Saddle | AUTHOR Summit |
| Speed | 27 |
| Weight | 12.5 kg / 19" |
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Min. figure | 168 | 178 | 188 |
| Max. figure | 179 | 189 | 202 |
| S/T c-t | 432 | 482 | 535 |
| S/T c-c | 0 | 0 | 0 |
| T/T h | 606 | 630 | 651 |
| T/T a | 584 | 604 | 625 |
| H/T | 115 | 120 | 125 |
| C/S | 450 | 450 | 450 |
| W/B | 1112 | 1130 | 1146 |
| S/T ang. | 73 | 73 | 72.5 |
| H/T ang. | 70 | 70.5 | 70.5 |
| F/L | 490 | 490 | 490 |
| B/B drop | 58 | 58 | 58 |
| B/B width | 73 | 73 | 73 |
| Reach | 0 | 0 | 0 |
| Stack | 0 | 0 | 0 |
| F/R | 42 | 42 | 42 |
| Handlebars | 0 | 0 | 0 |
| Stem | 0 | 0 | 0 |
| Cranks | 0 | 0 | 0 |
The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.
