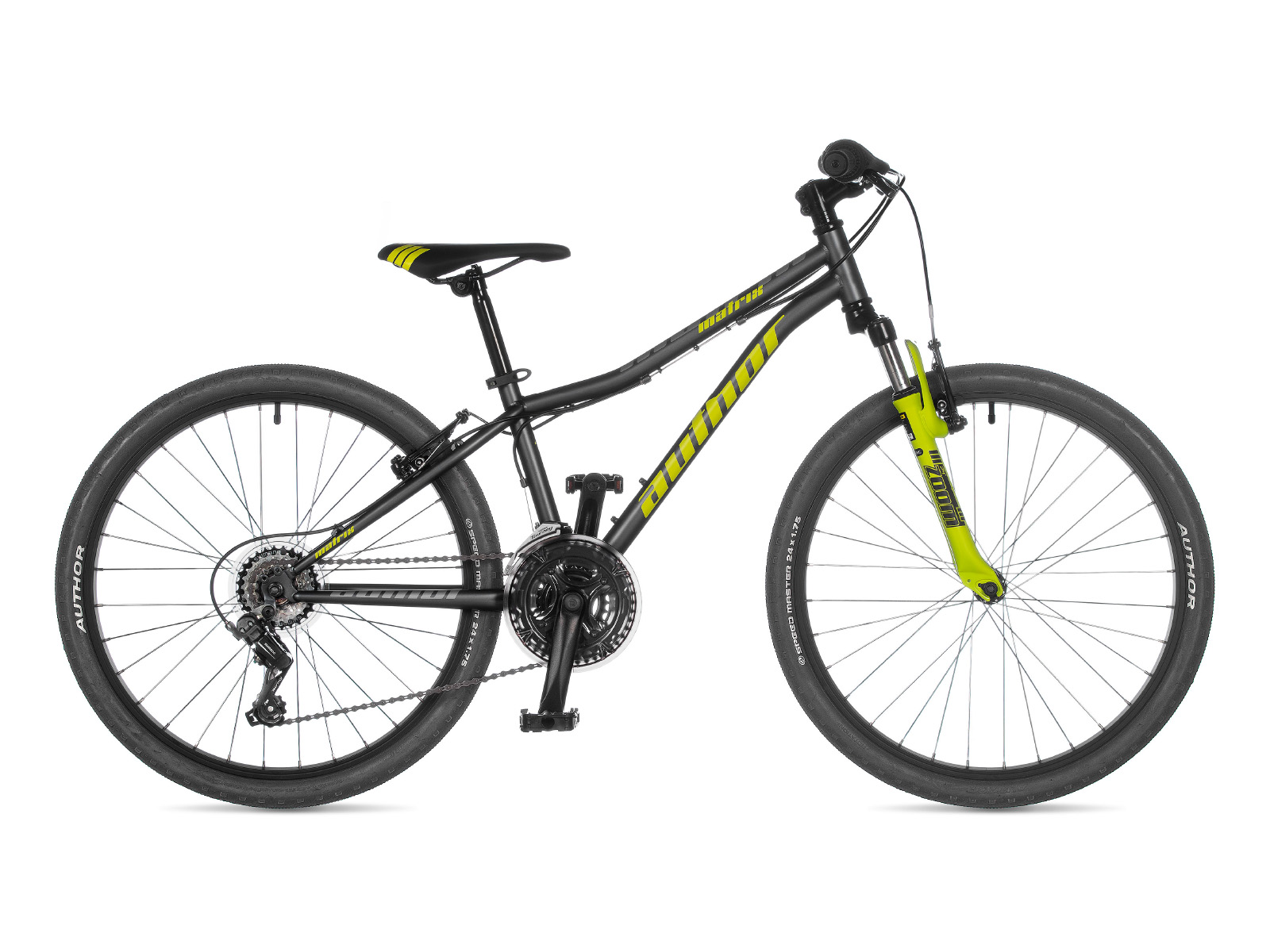

Matrix 24 2023-24

~~Colour variants~~

Wheel size 24"Recommended for height 125-140 cmWeight 13,1 kgComponents SHIMANO, 18 speedQuality tire AUTHOR Speed Master 24" × 1.75"V brake TEKTROCartridge BB berings VP

~~Buy now~~special price 7 990 Kč

original price ~~9 590 Kč~~

Are you looking for a comfortable bike for your growing rider that will not disappoint even in more difficult conditions and at the same time will be affordable? AUTHOR Matrix in size 24 has a solid steel frame, a suspension fork with a 40 mm travel, ergonomic Shimano Revoshift shifting and 18 speeds for sufficient range. Two color combinations offer a choice of the right desing.

Technical specification

Size	12.5"
Frame	hi-ten 24"
Front fork	ZOOM (40 mm)
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY500 (28.6)
Rear derailleur	SHIMANO TY200
Shifters	SHIMANO Revoshift (18)
Free wheel	SHIMANO MF-TZ510-6, 14-28 (6)
Chain	KMC Z6
Hubs	steel 32 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	steel
Tires	AUTHOR Speed Master 24" × 1.75"
Pedals	plastic
Handlebar	steel, 20 mm, 580 mm
Grips	AUTHOR kratton rubber
Stem	alloy
Seat post	alloy (25.4)
Seat clamp	AUTHOR (28.6)
Saddle	AUTHOR
Speed	18
Weight	13,1 kg / 12.5"

Geometry and sizes

Size	12,5"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	318
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	492
T/T a ~~[mm]~~	480
H/T ~~[mm]~~	100
C/S ~~[mm]~~	395
W/B ~~[mm]~~	956
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	410
B/B drop ~~[mm]~~	20
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	0
Stack ~~[mm]~~	0
F/R ~~[mm]~~	42
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
