Mirage 24 2023-24

~~Colour variants~~

Wheel size 24"Recommended for height 125-140 cmWeight 11,6 kgSuper lightweight alloy frame with sport geometry and single chainwheelSuspension fork RST Capa and disc brake TektroLightweight tire KENDA Small Block EightShimano Alivio components 9 speed

~~Buy now~~special price 15 990 Kč

original price ~~16 990 Kč~~

What are your expectations and your growing cyclist? If it is one of the top models in its category, an ultralight, powerful and uncompromising machine, so Author Mirage is the right choice. Alloy frame with triple butted tubes, RST fork with a stroke of 50 mm, SHIMANO Alivio components, very light aramid tires and Champion saddle. Author Mirage will not disappoint its demanding owner!

Technical specification

Size	12"

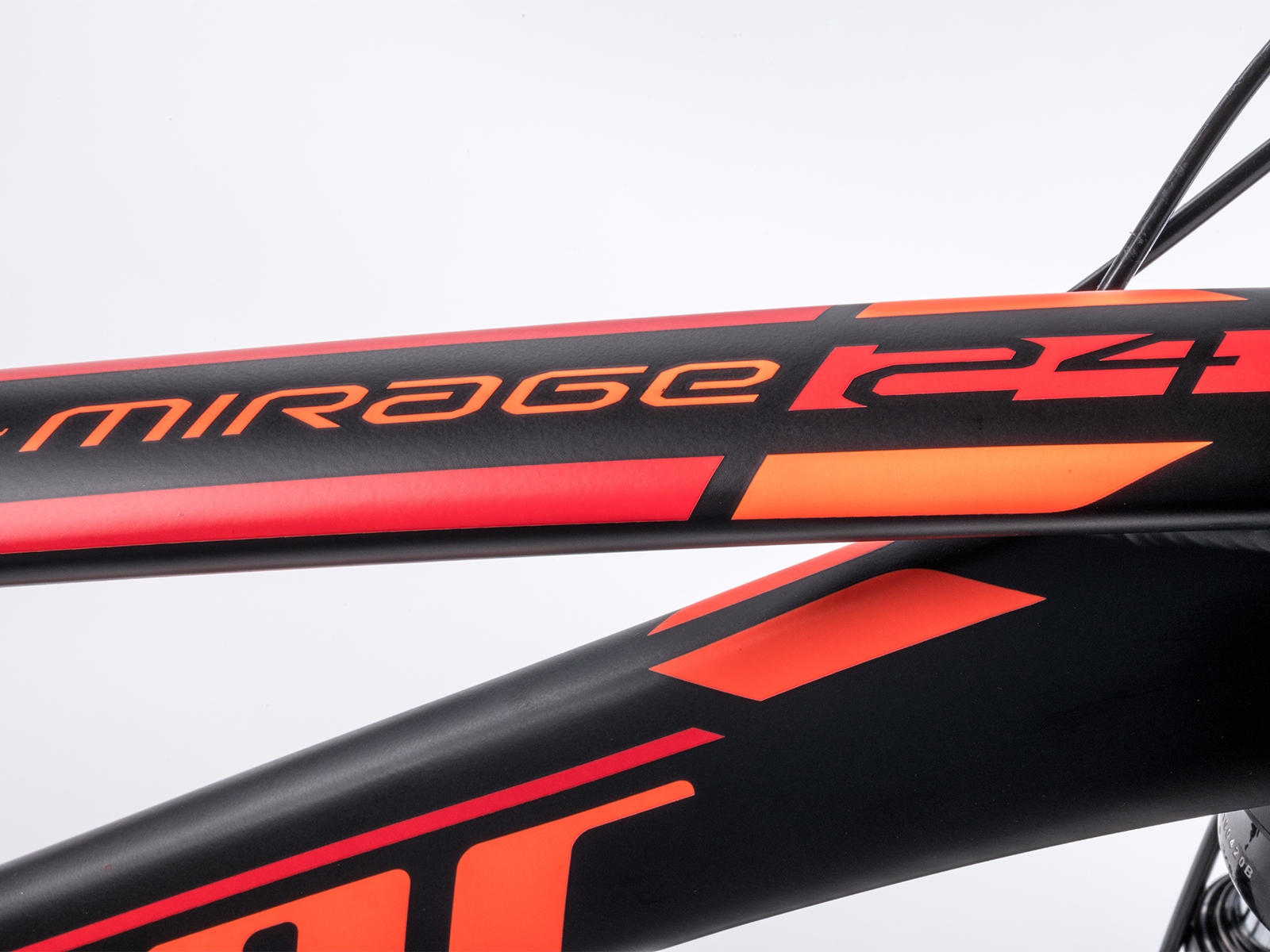

Frame	triple butted hydroformed alloy 6061 24"
Front fork	RST Capa T 24 (50 mm)
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	LASCO, 32 teeth, 150 mm cranks
BBParts	VP COMP, cartridge

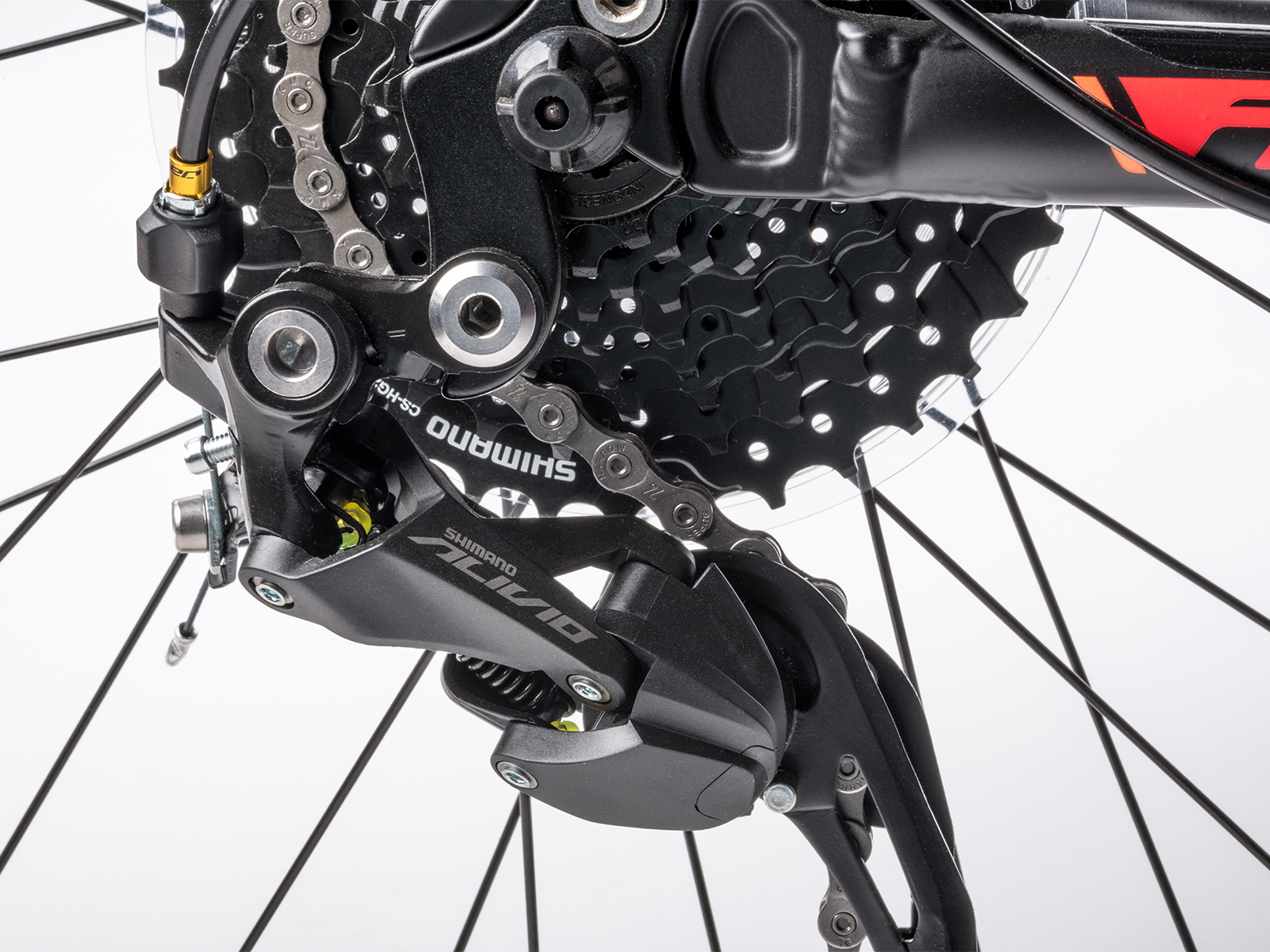

Rear derailleur	SHIMANO Alivio

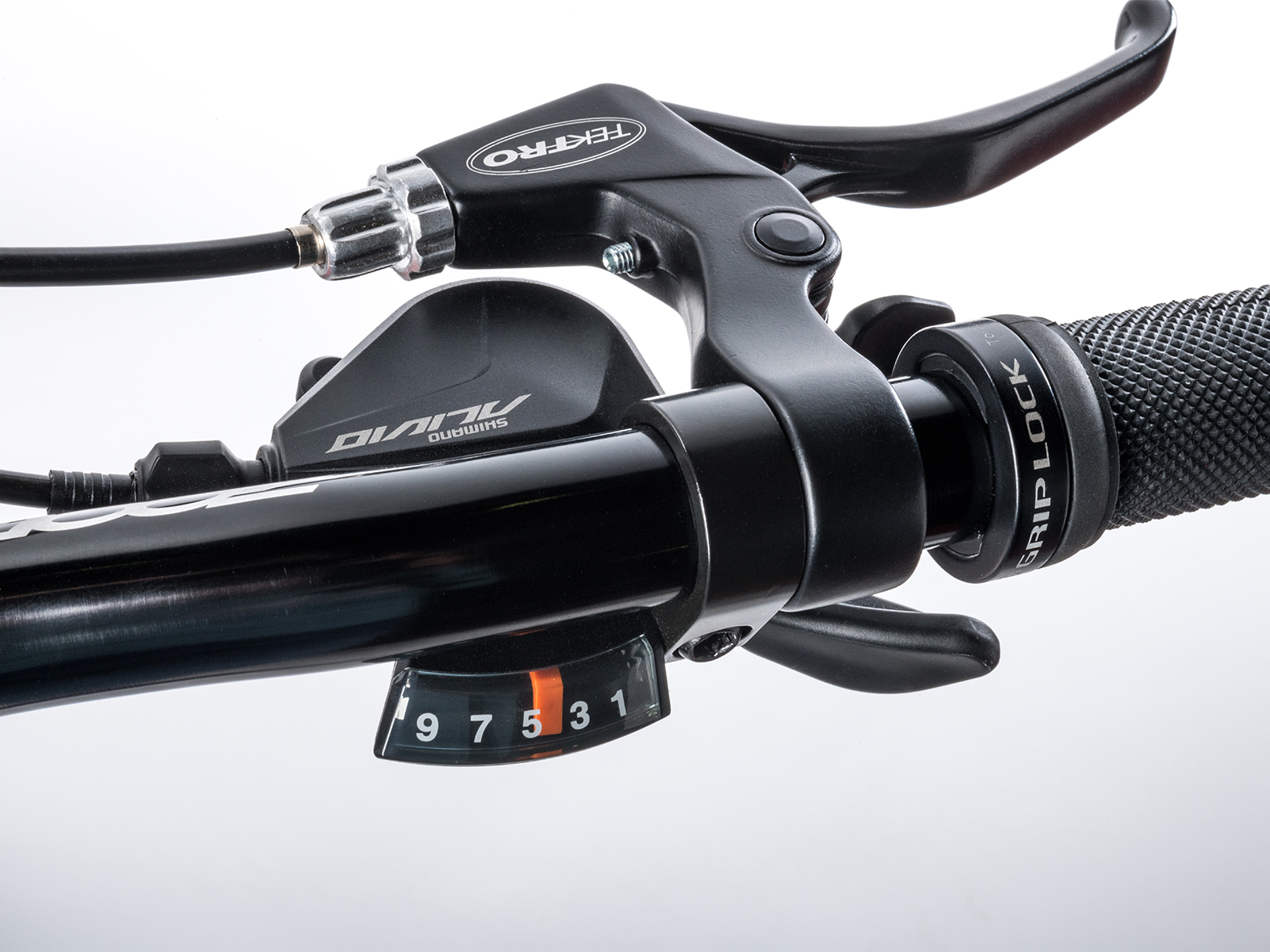

Shifters	SHIMANO Alivio (9)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

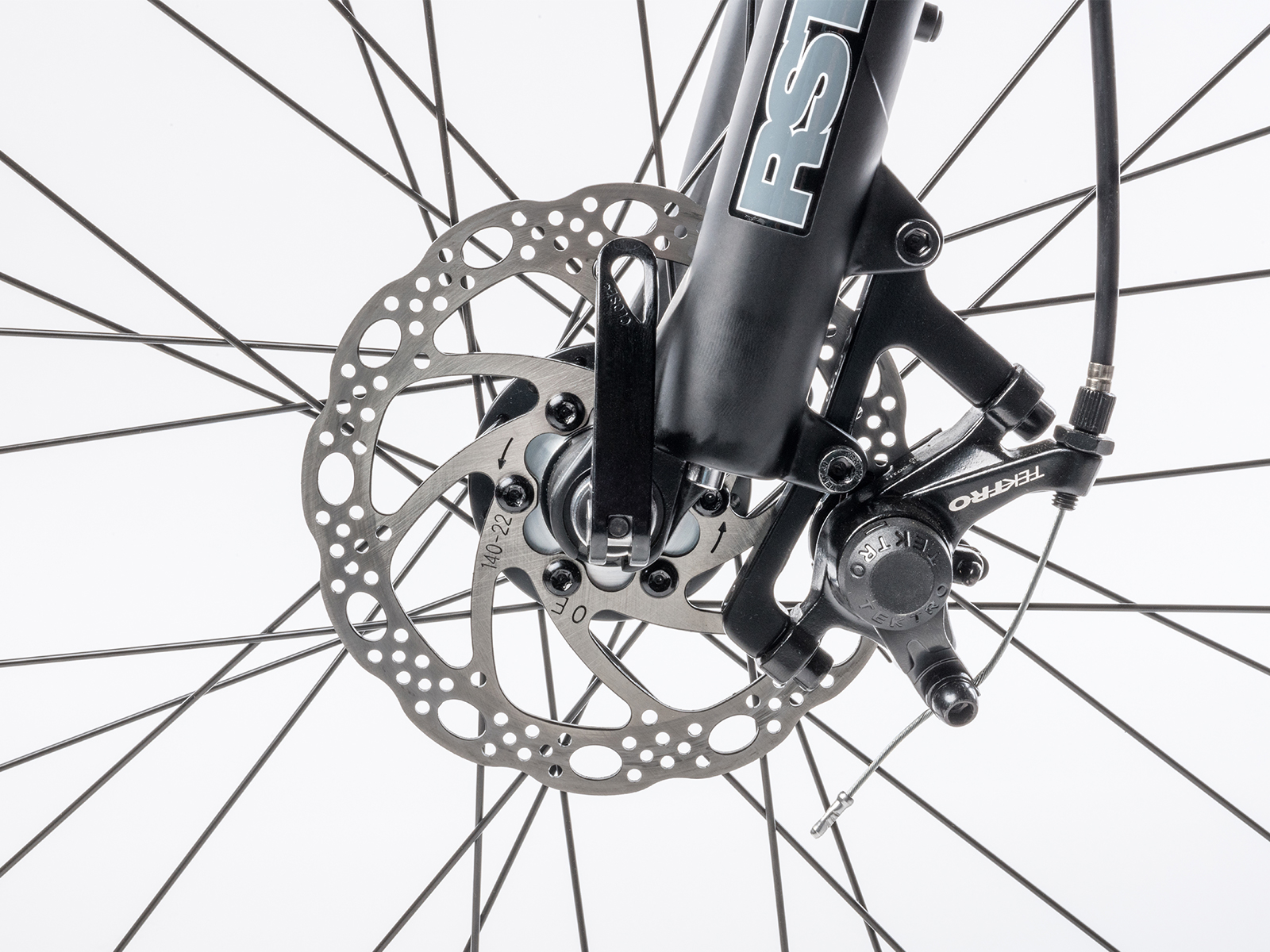

Brakes	TEKTRO, disc mechanical (5" rotors)

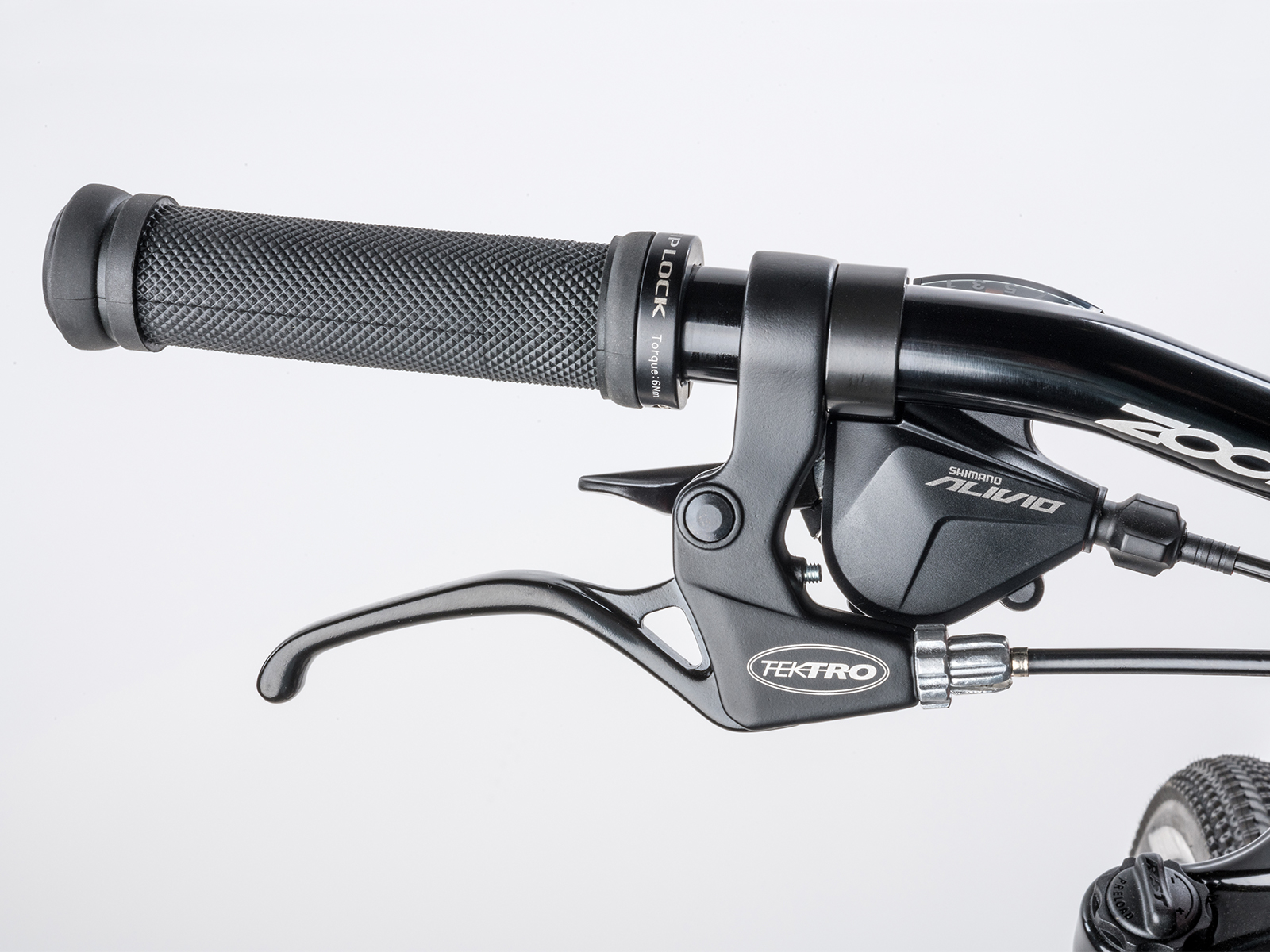

Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	black steel

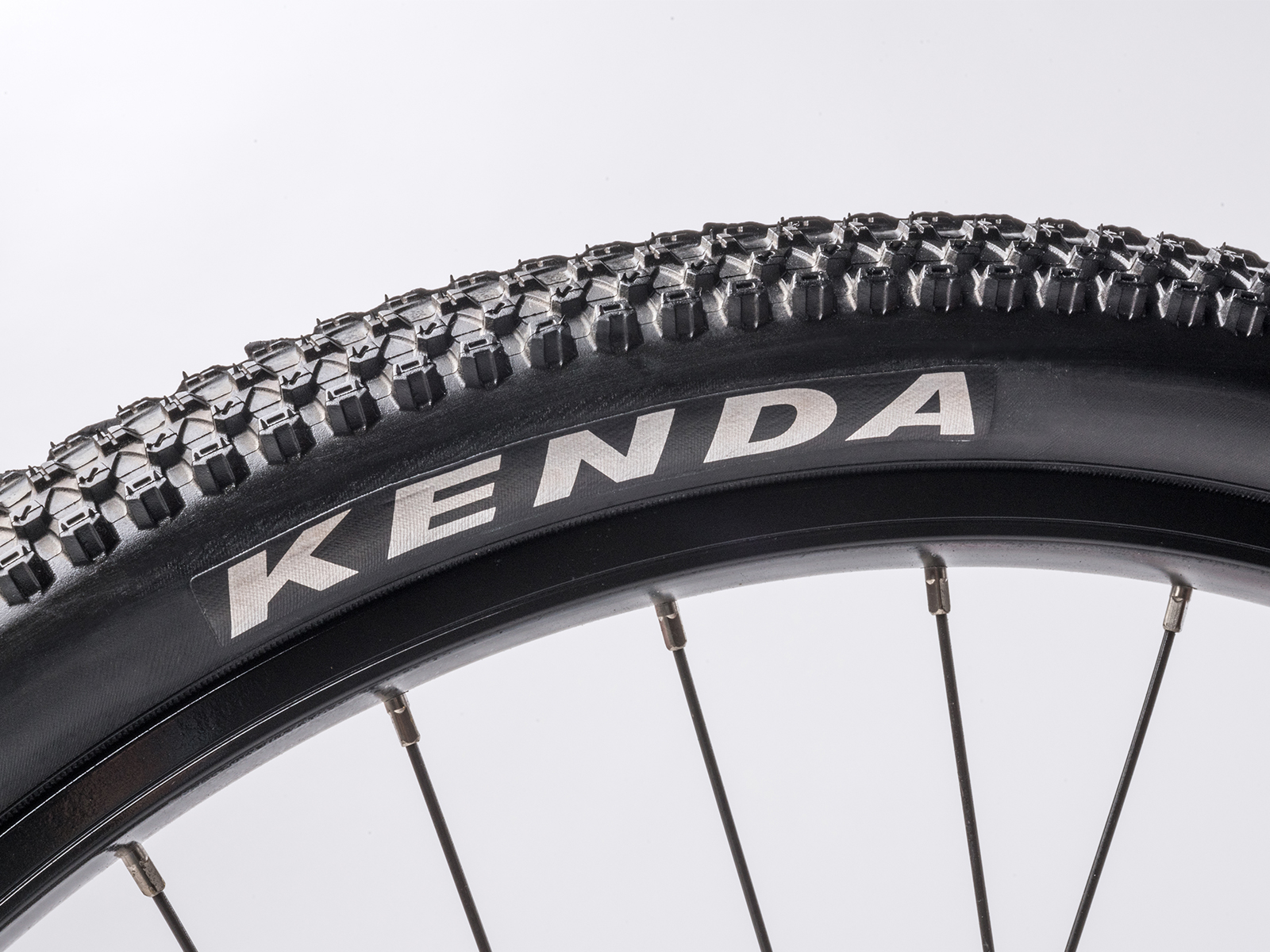

Tires	KENDA Small Block Eight aramid 24" × 1.95"
Pedals	plastic
Handlebar	ZOOM alloy, 20 mm, 580 mm
Grips	AUTHOR kratton rubber
Stem	ZOOM alloy
Seat post	ZOOM alloy (31.6)
Seat clamp	AUTHOR (34.9)

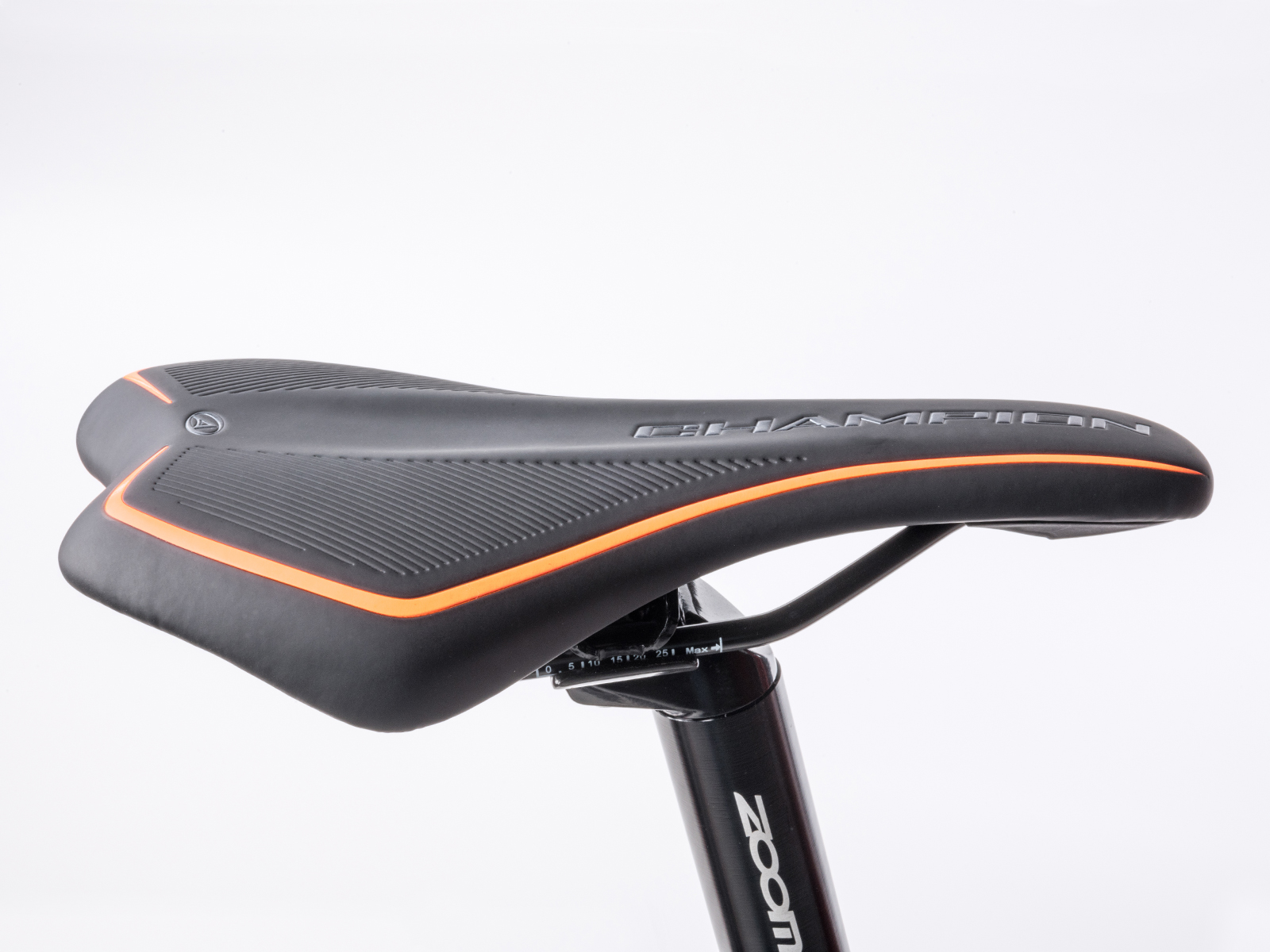

Saddle	AUTHOR Champion
Speed	9
Weight	11,6 kg / 12"

Geometry and sizes

Size	12"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	305
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	500
T/T a ~~[mm]~~	489
H/T ~~[mm]~~	110
C/S ~~[mm]~~	400
W/B ~~[mm]~~	960
S/T ang. ~~[°]~~	73
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	413
B/B drop ~~[mm]~~	25
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	0
Stack ~~[mm]~~	0
F/R ~~[mm]~~	38
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
