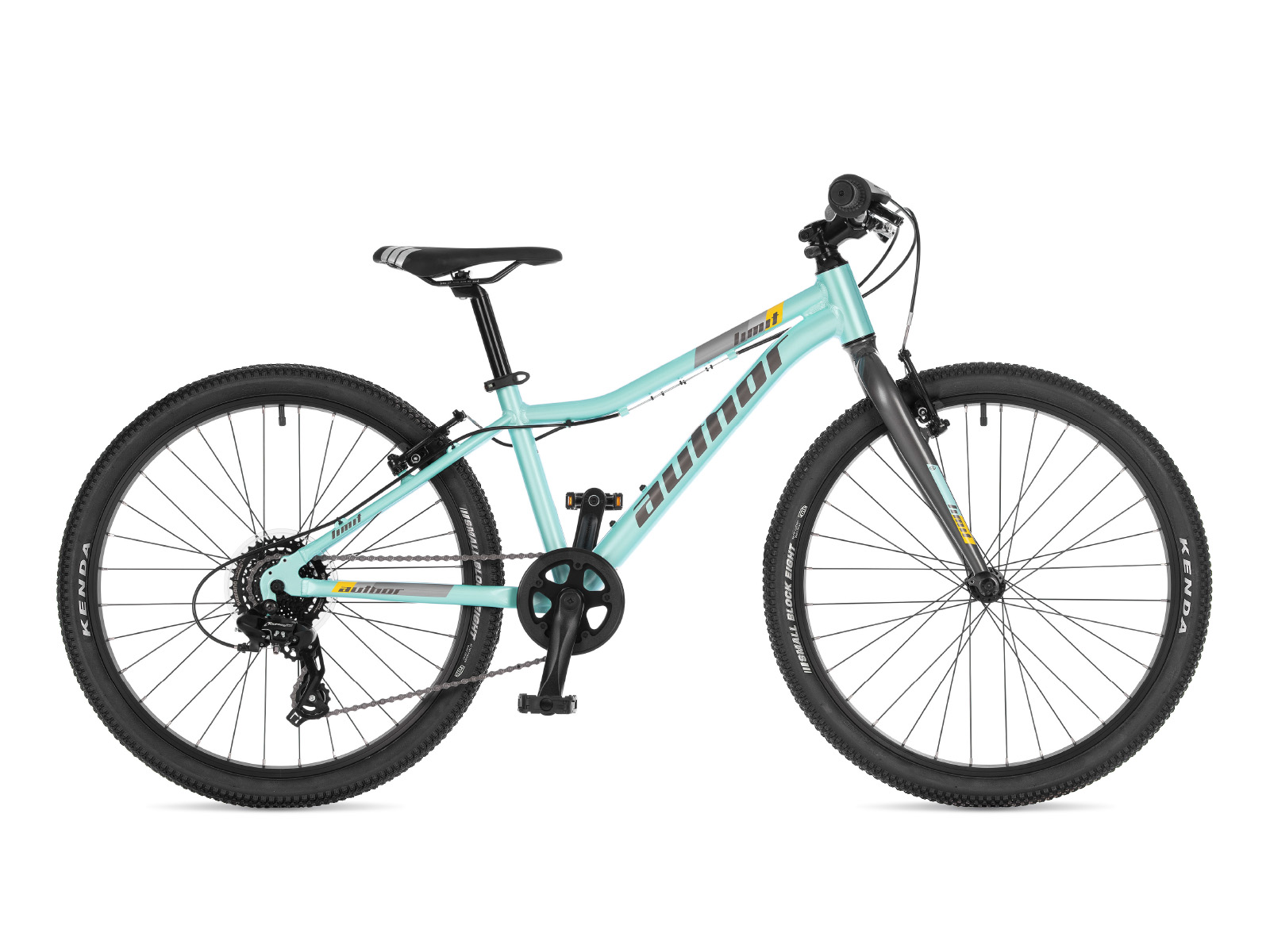

Limit 24 2025

Technical specification

Size	12.5"
Frame	alloy 6061 24"
Front fork	alloy 6061 24"
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Revoshift (8)
Free wheel	SHIMANO CS-HG31-8, 11-34 (8)
Chain	KMC Z8.3
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V

Brakes levers	TEKTRO alloy
Rims	alloy, 32 holes
Spokes	steel
Tires	KENDA Small Block Eight, 24" × 1.95"
Pedals	plastic
Handlebar	steel, 20 mm, 580 mm
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8

Geometry and sizes

Size	12,5"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	318
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	492
T/T a ~~[mm]~~	476
H/T ~~[mm]~~	100
C/S ~~[mm]~~	395
W/B ~~[mm]~~	958
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	372
B/B drop ~~[mm]~~	20
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	0
Stack ~~[mm]~~	0
F/R ~~[mm]~~	45
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		12,5"	14 stores				42954401
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		12,5"	14 stores				42954411
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		in stock	buy now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

1/3

250 KčABC-37Bottle cage, Light AL 6061T bottle cage, strong construction with universal mount, bottle removing f ... more »

1/2

199 KčL&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

425 KčR281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/4

299 KčS381 TPN X7The Author saddle bag A-S381 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/2

175 KčAKS-06S CKick Stand Author for direct frame fixation. Adjustable for size 14"- 29", Material AL6061-T6 / ... more »

450 KčAKS-09A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

375 KčAKS-550A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

	grey / lime / green	12,5" = UA#42954401
	green / silver / yellow	12,5" = UA#42954411
