A-Matrix 24 2025

~~Colour variants~~

Wheel size 24"Recommended for height 125-140 cmWeight 11,7 kgLightweight alloy frameComponents SHIMANO, 18 speedSuspension fork RST CapaCartridge BB berings VP

~~Buy now~~price 11 590 Kč

# 12,5"# black # blue # green # orange # pink # silver

other models

Interested in other model`s year?

2016 2017 2018 2019 2020 2021-22 2023-24 2025

Technical specification

Size	12.5"
Frame	alloy 6061 24"
Front fork	RST Capa T 24 (50 mm)
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Revoshift (8)
Free wheel	SHIMANO CS-HG31-8, 11-34 (8)
Chain	KMC Z8.3
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V

Brakes levers	TEKTRO alloy
Rims	alloy, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master, 24" × 1.75"
Pedals	plastic
Handlebar	steel, 20 mm, 580 mm
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8

Geometry and sizes

Size	12,5"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	318
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	492
T/T a ~~[mm]~~	480
H/T ~~[mm]~~	100
C/S ~~[mm]~~	395
W/B ~~[mm]~~	956
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	410
B/B drop ~~[mm]~~	20
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	0
Stack ~~[mm]~~	0
F/R ~~[mm]~~	42
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		12,5"	1 shop				42954001
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
		12,5"	1 shop				42954011
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
		12,5"	1 shop				42954021
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

	blue / black / lime	12,5" = UA#42954001

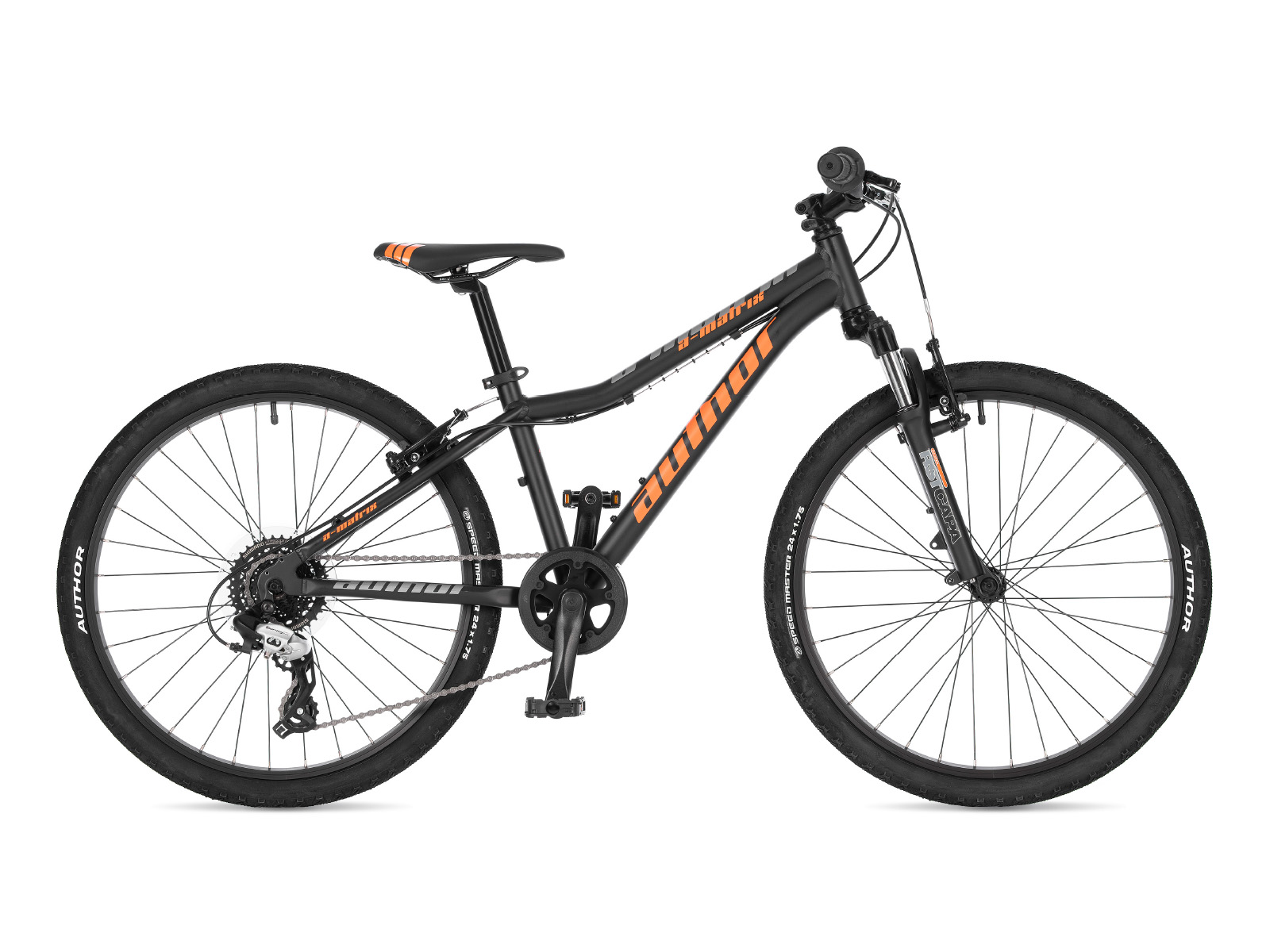

	black-matt / orange	12,5" = UA#42954011

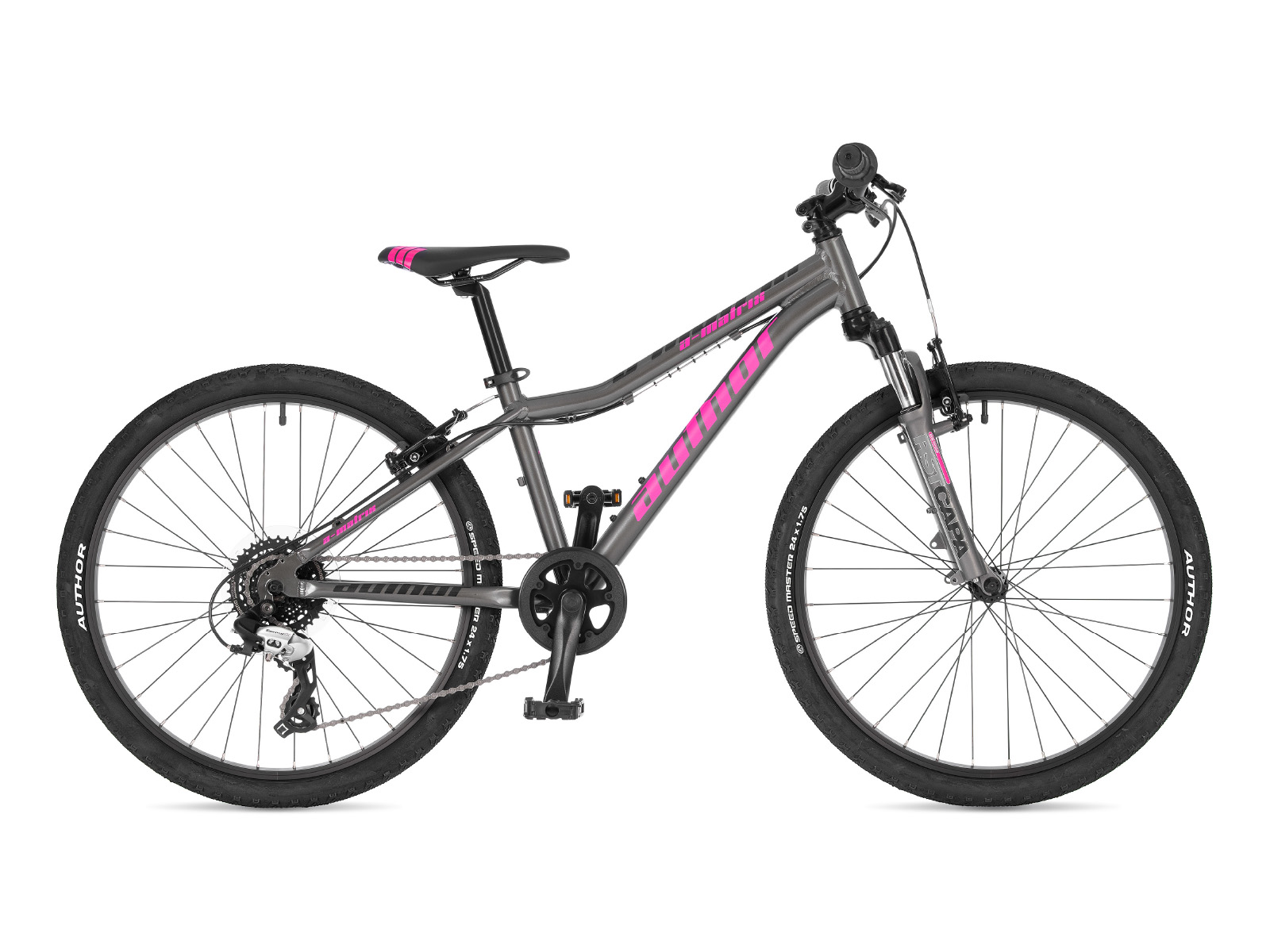

	silver / pink	12,5" = UA#42954021

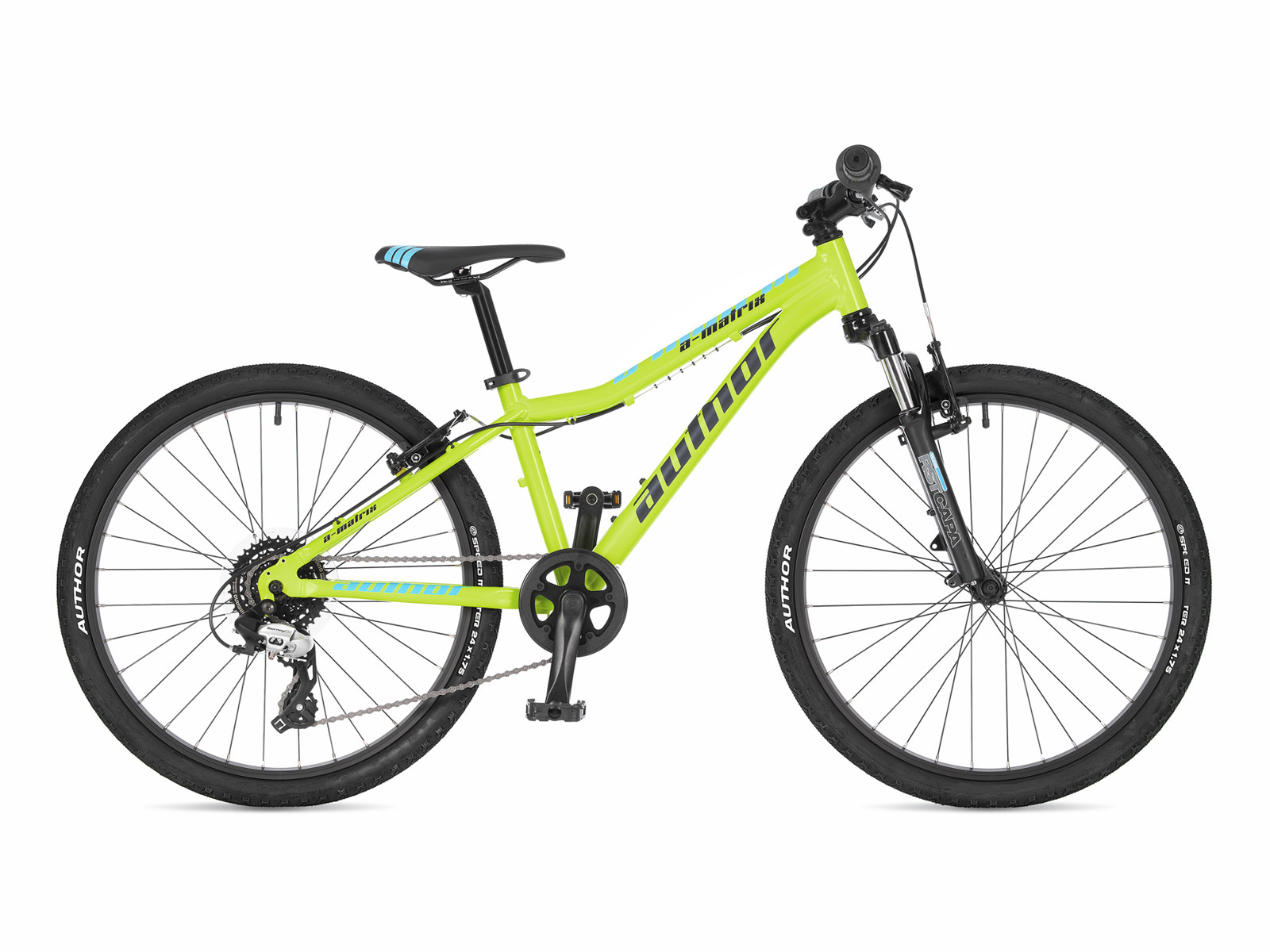

	lime / black / blue	12,5" = UA#42954031
