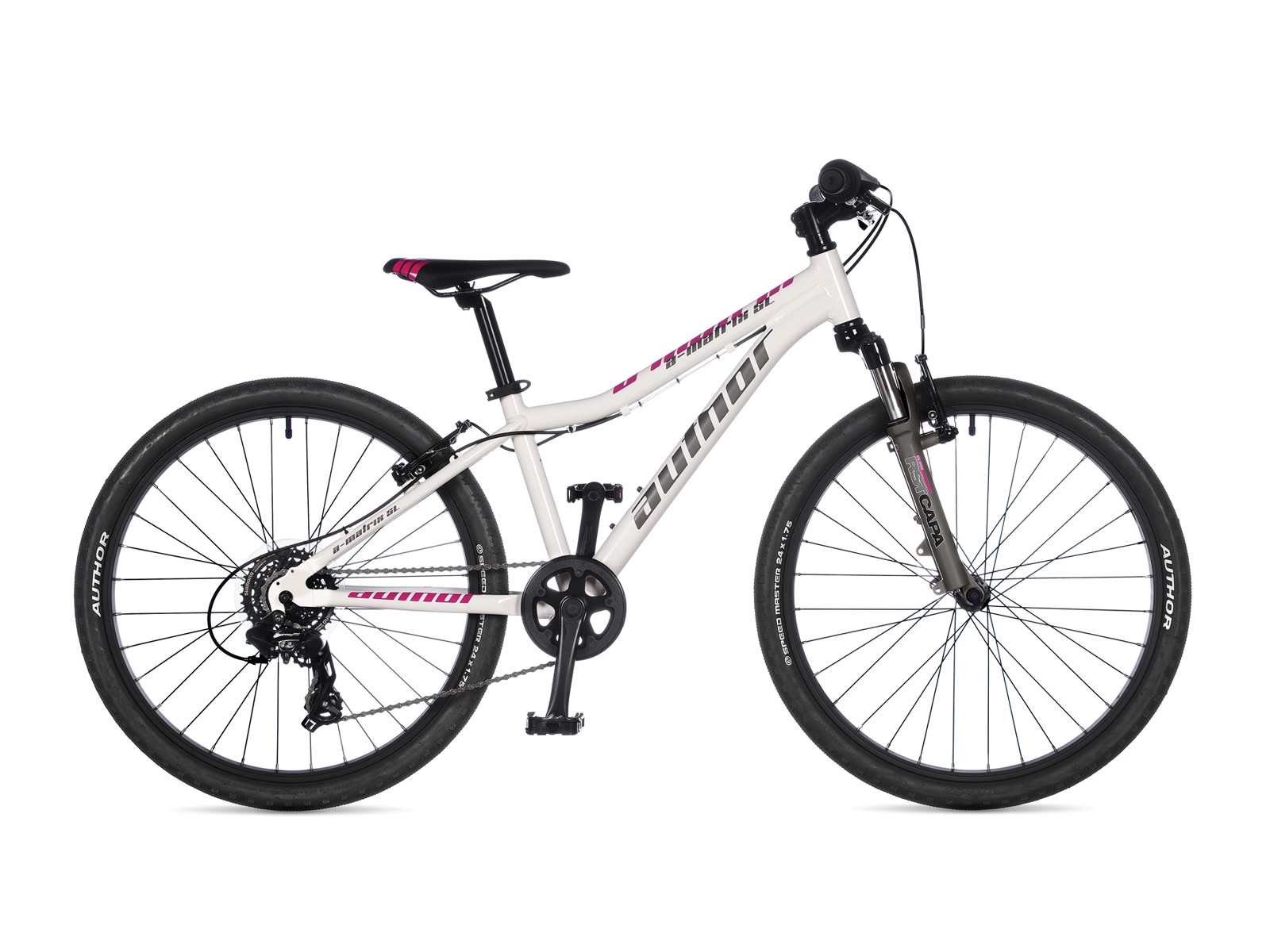

A-Matrix 24 SL 2023-24

Colour variants
Wheel size 24"Recommended for height 125-140 cmWeight 11,4 kgLightweight alloy frameSingle chainwheel ProwheelSHIMANO Revoshift components, 8 speedSuspension fork RST Capa
Buy nowspecial price 9 990 Kč
original price  10 990 Kč
The lightweight 24-inch Author A-matrix 24 SL bike is the lightest of the Matrix family in a given size. The bike is not only comfortable, but also offers sufficient support when handling the first rides on field roads or more demanding terrain. Alloy frame, RST suspension fork, easy-to-operate Shimano Revoshift shift. Two color combinations offer a choice for both boys and girls.
Add to compareadditional accessories
other models
Ultrasonic 2417 990Mirage 2415 990Limit 2411 990A-Matrix 2411 590Ultima 2410 990A-Matrix 24 SL9 990Matrix 247 990more models »
Interested in other model`s year?

Technical specification

Size12.5"
Framealloy 6061 24" (ASL)
Front forkRST Capa T 24 (50 mm)
Head partsPRESTINE 1-1/8"

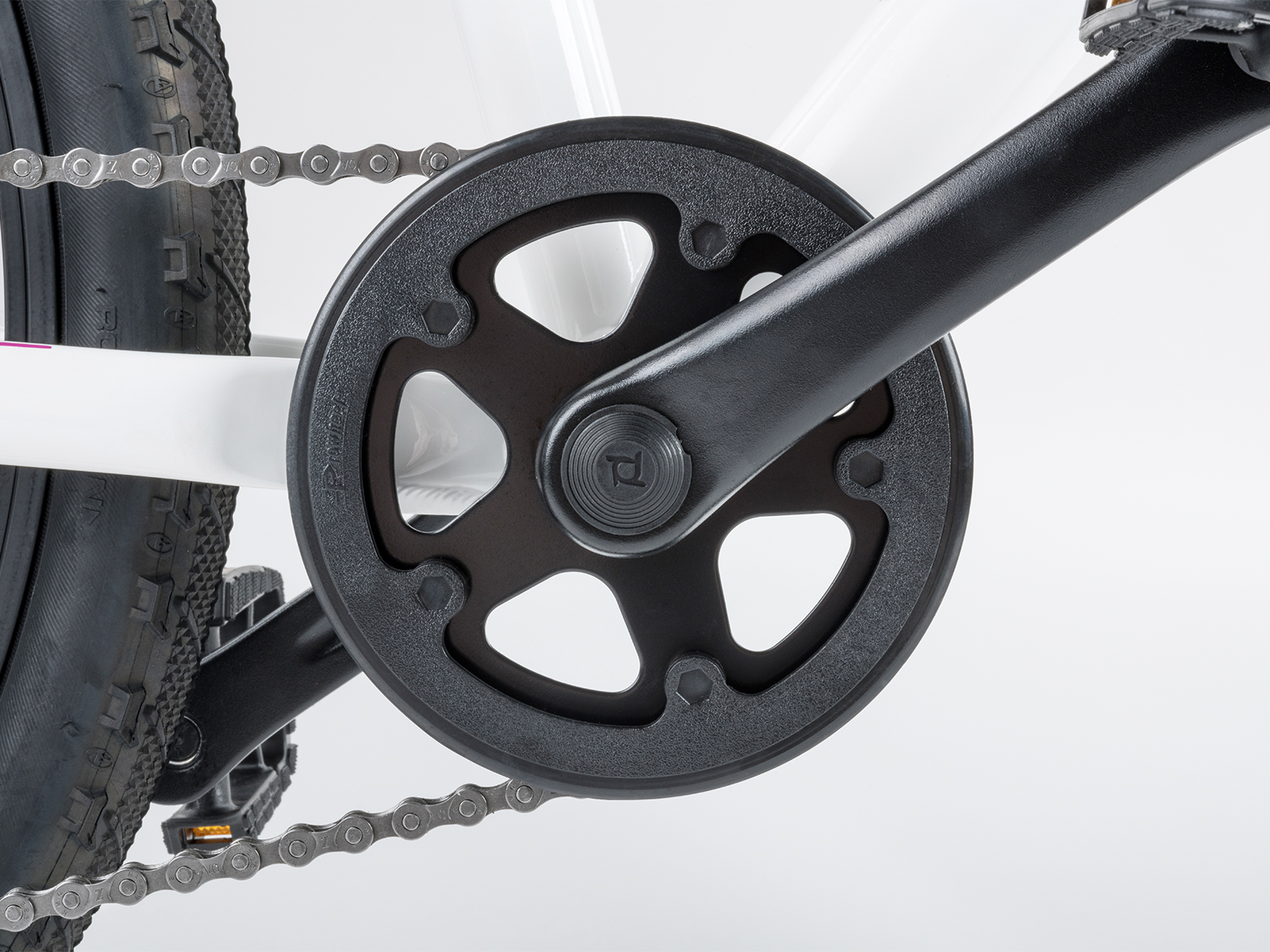

Chain WheelPROWHEEL, 32 teeth, 152 mm cranks
BBPartsVP COMP, cartridge
Rear derailleurSHIMANO TX800
ShiftersSHIMANO Revoshift (8)
Free wheelSHIMANO HG31-8, 11-34 (8)
ChainKMC Z8.3
HubsQUANDO, 32 holes
BrakesTEKTRO V
Brakes leversTEKTRO alloy
Rimsalloy, 32 holes
Spokessteel

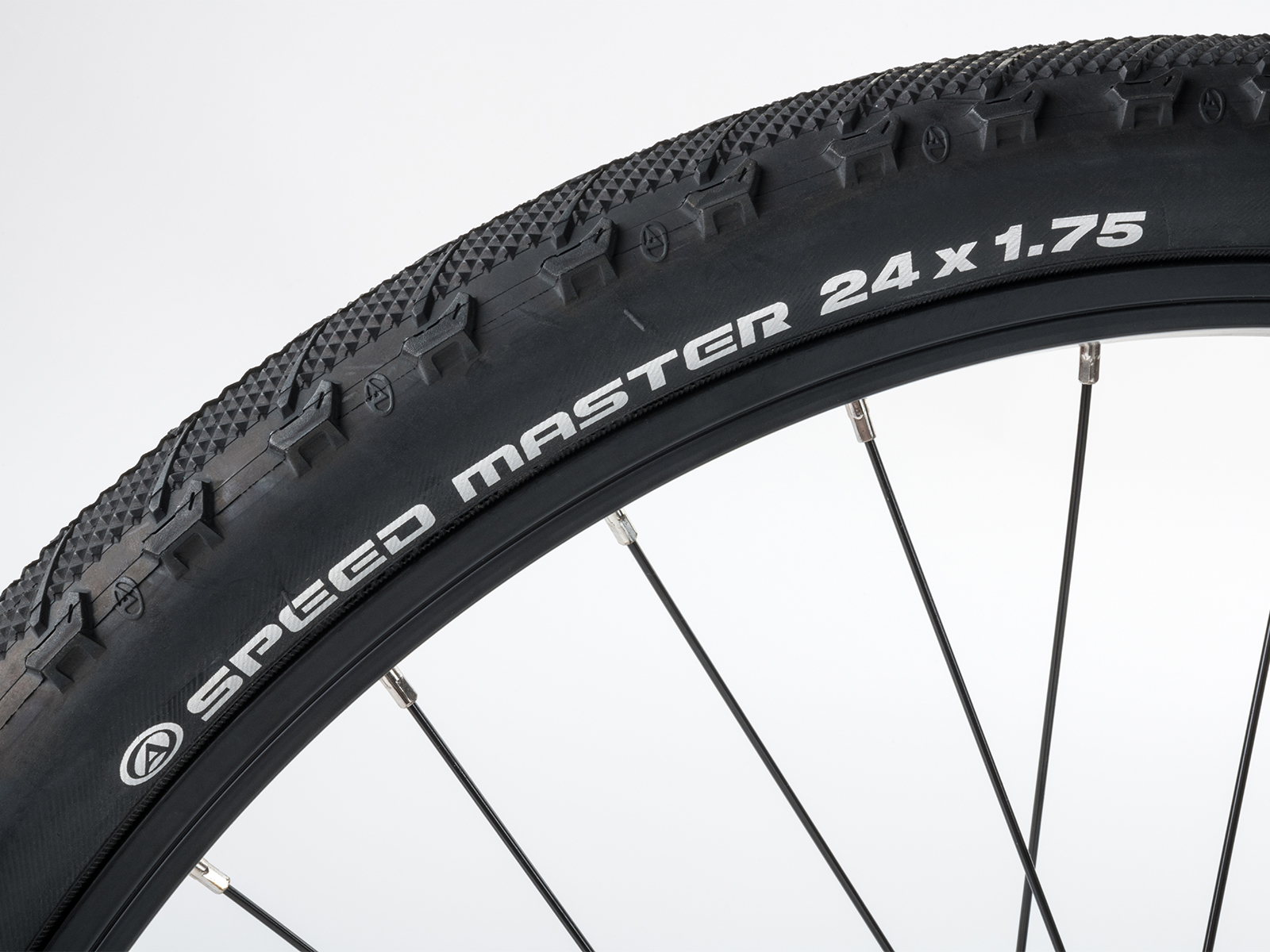

TiresAUTHOR Speed Master 24" × 1.75"
Pedalsplastic
Handlebarsteel, 20 mm, 580 mm
GripsAUTHOR kratton rubber
Stemalloy
Seat postalloy (27.2)
Seat clampAUTHOR (31.8)

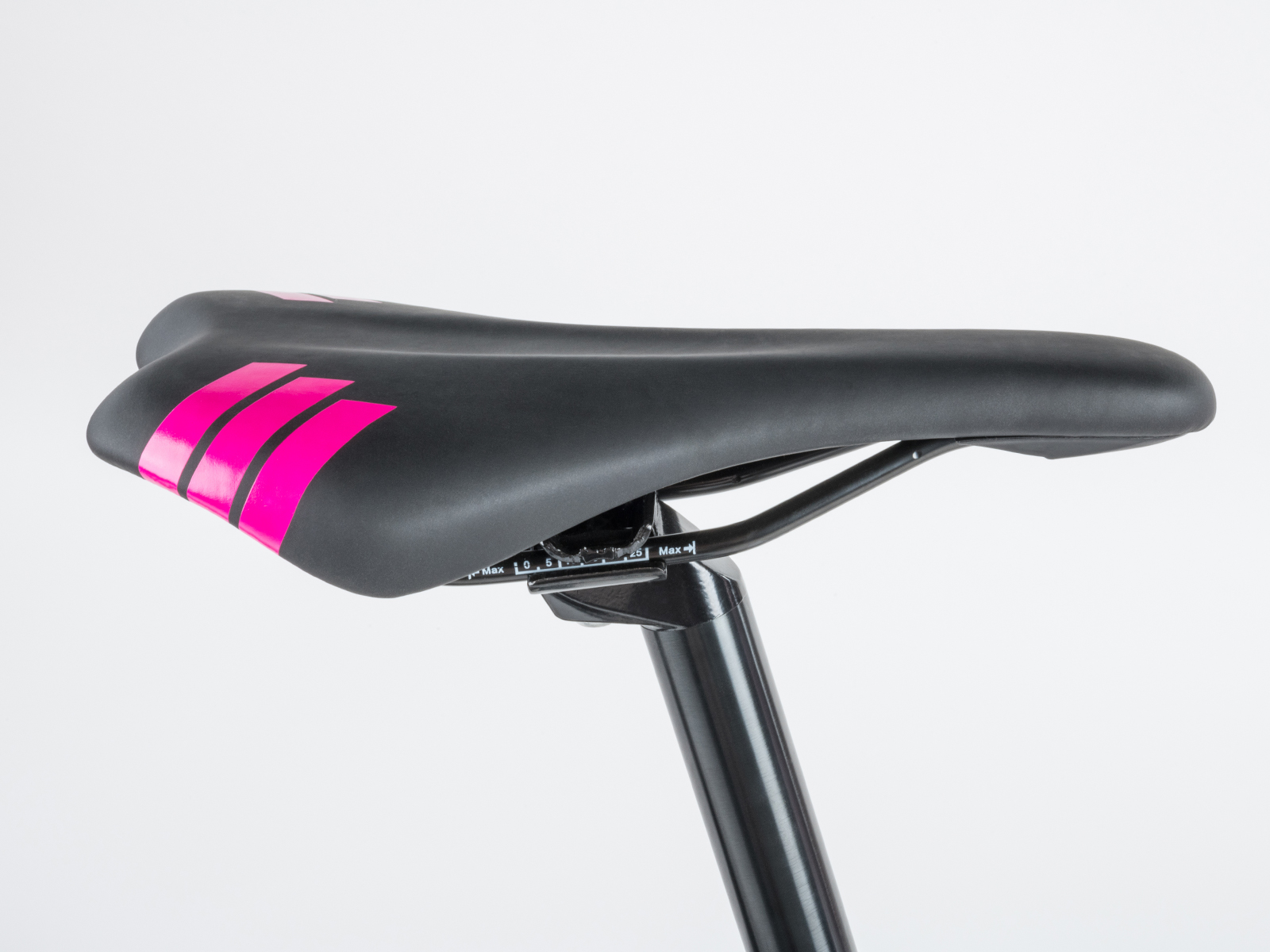

SaddleAUTHOR
Speed8
Weight11,4 kg / 12.5"

Geometry and sizes

Size 12,5"
Min. figure [cm] 125
Max. figure [cm] 140
S/T c-t [mm] 318
S/T c-c [mm] 0
T/T h [mm] 492
T/T a [mm] 480
H/T [mm] 100
C/S [mm] 395
W/B [mm] 956
S/T ang. [°] 73.5
H/T ang. [°] 70
F/L [mm] 410
B/B drop [mm] 20
B/B width [mm] 68
Reach [mm] 0
Stack [mm] 0
F/R [mm] 42
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
A-Matrix 24 SL 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
