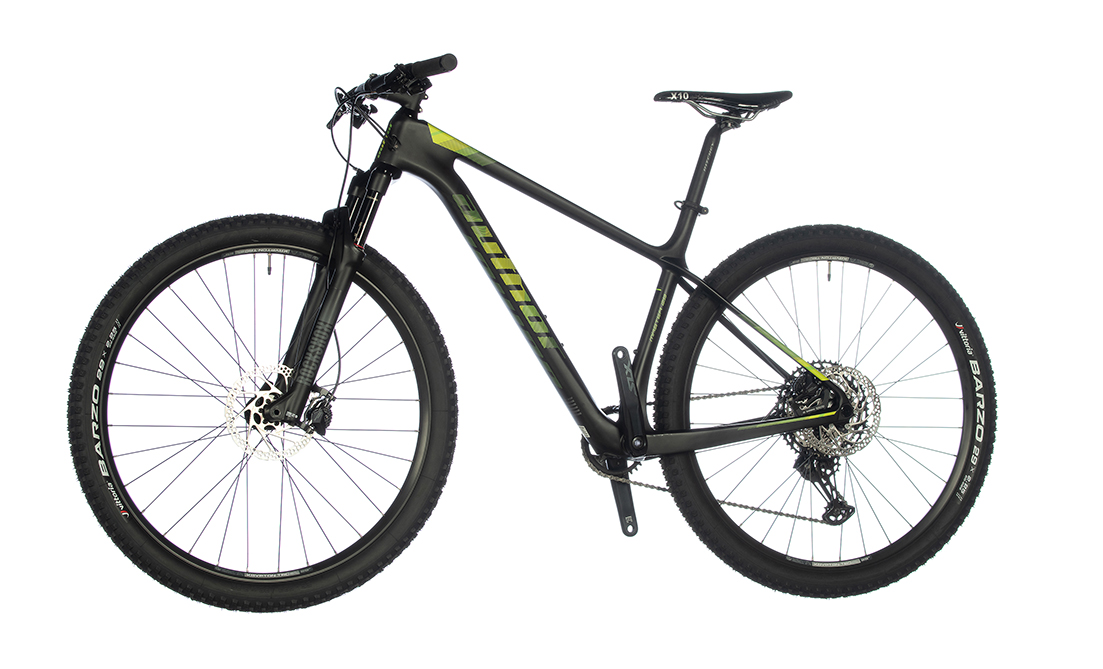

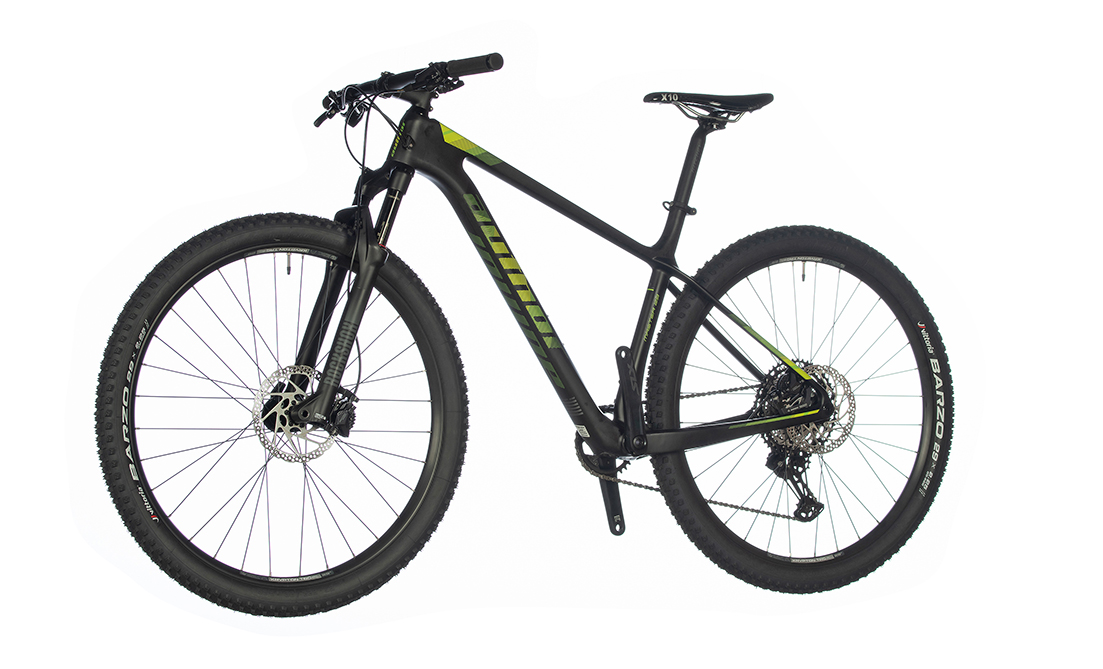

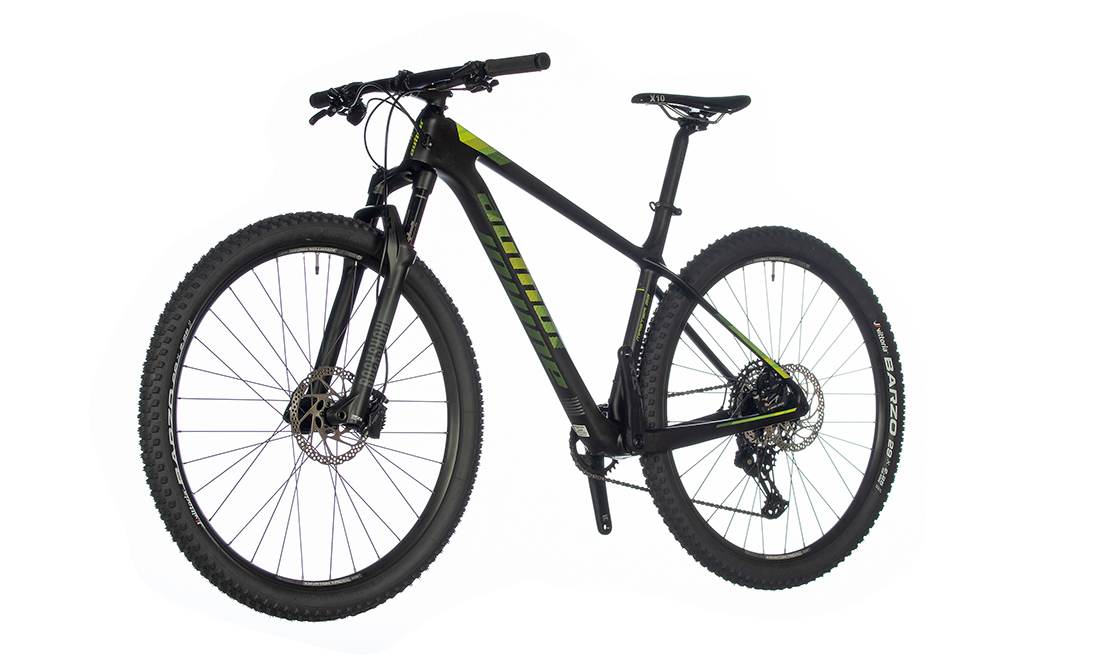

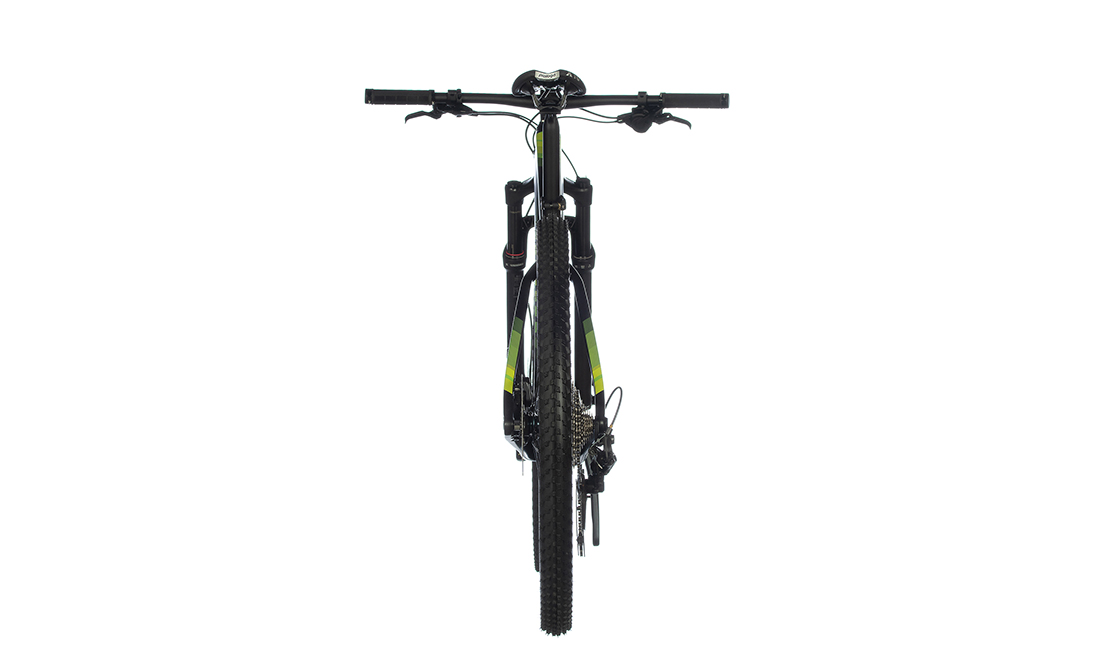

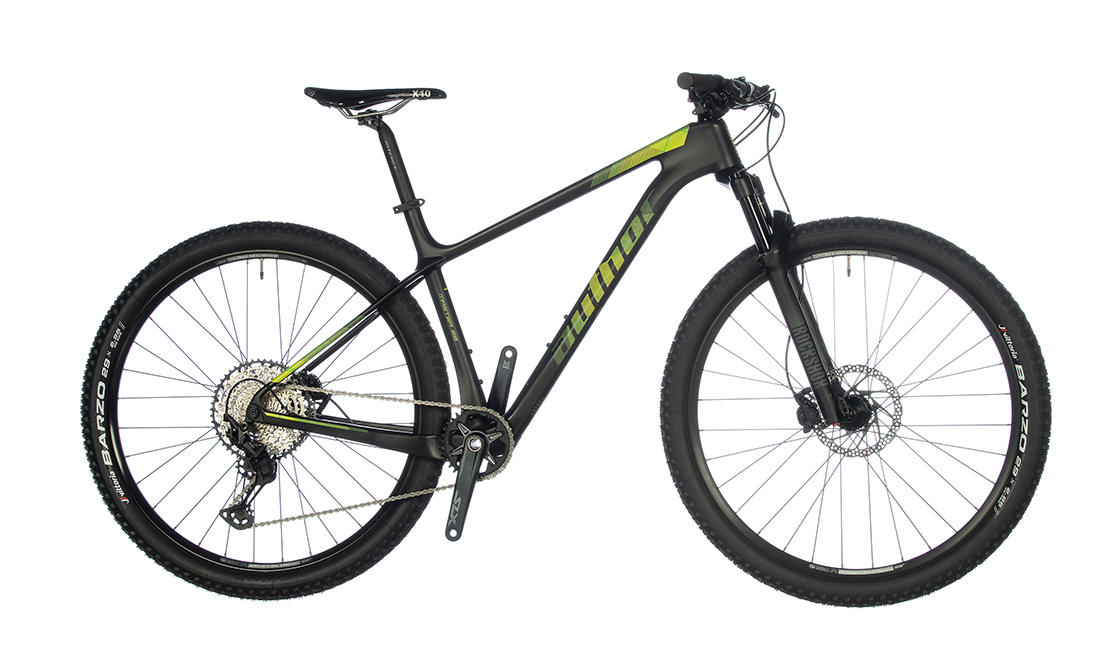

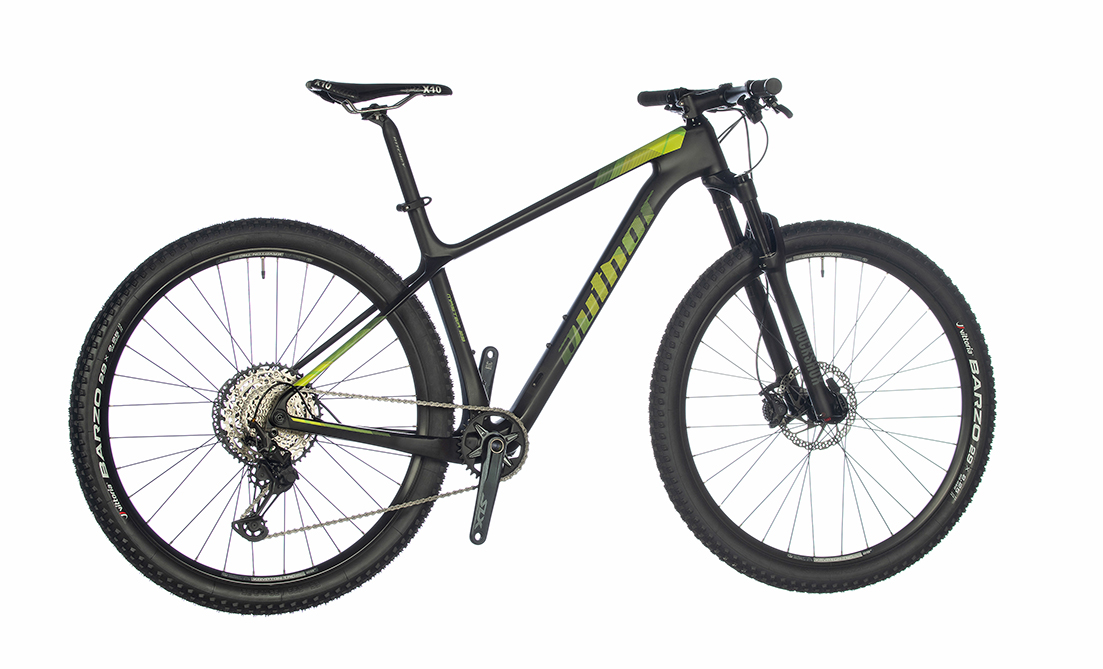

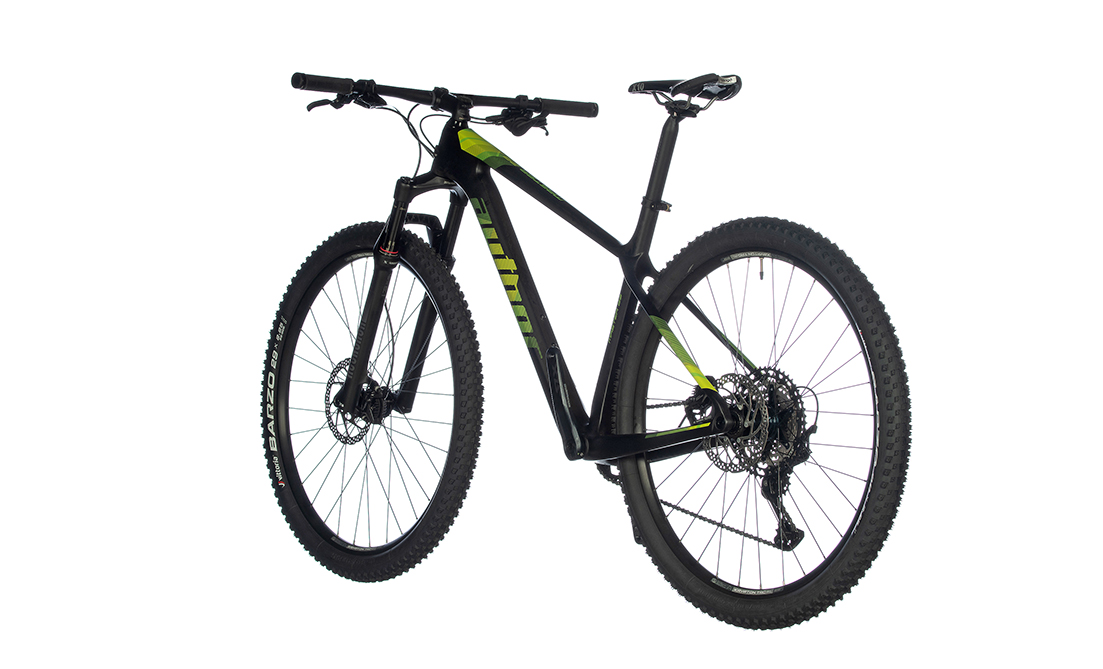

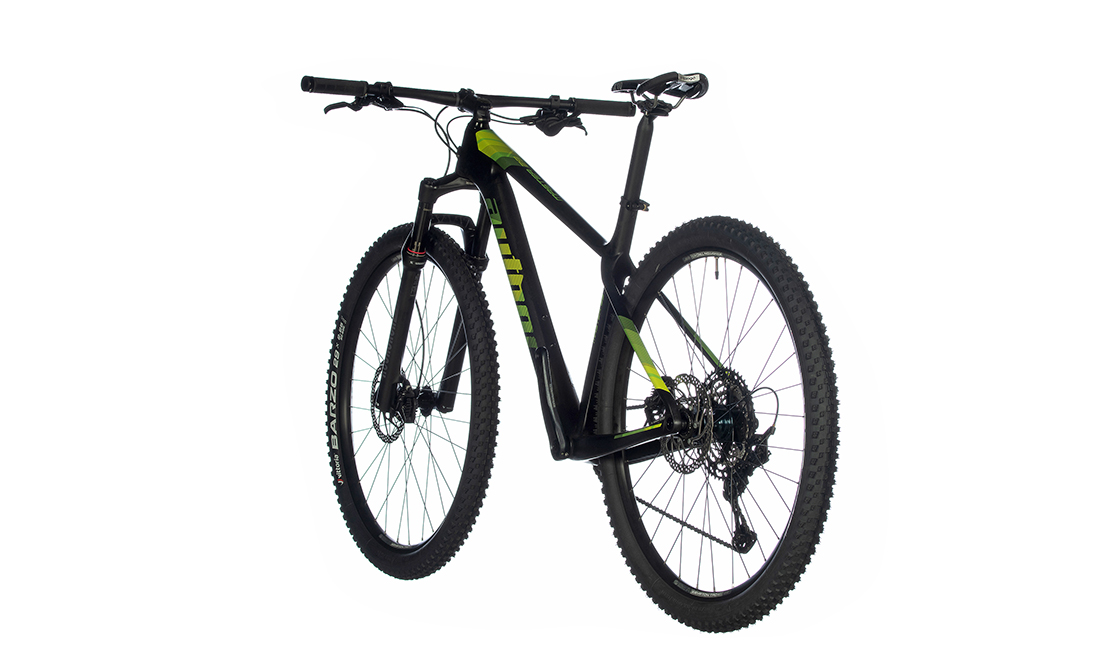

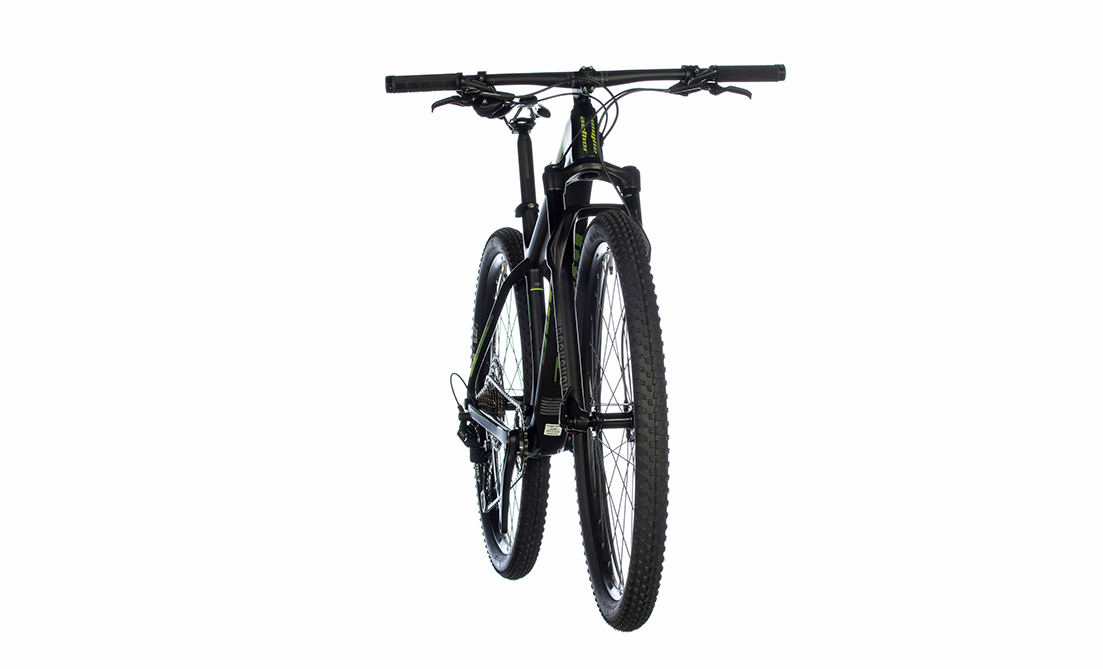

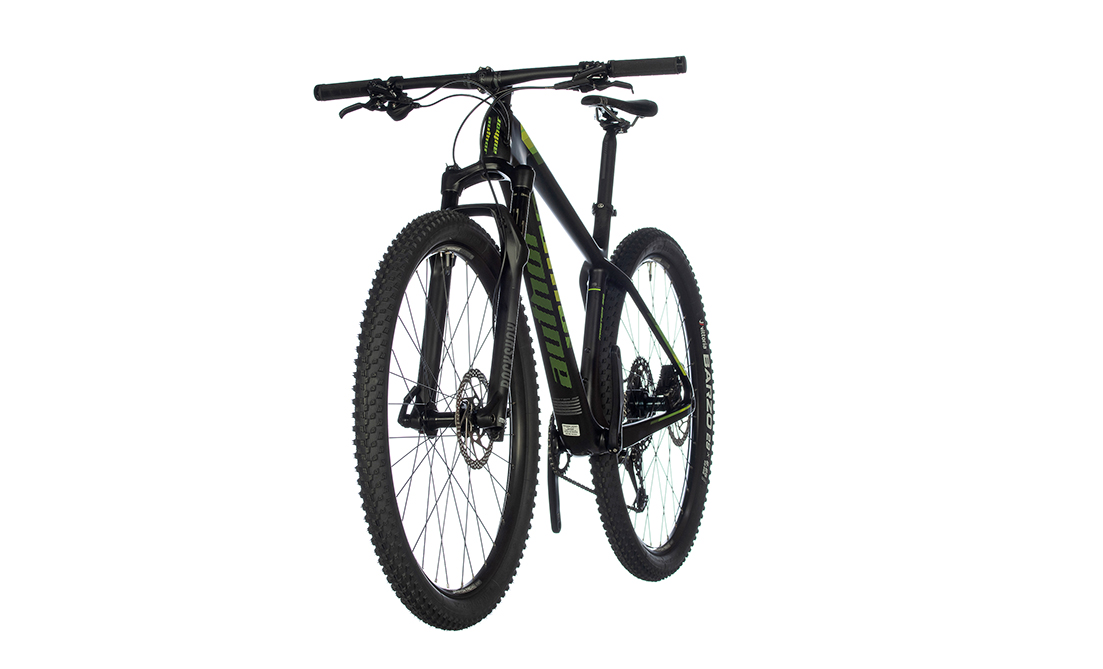

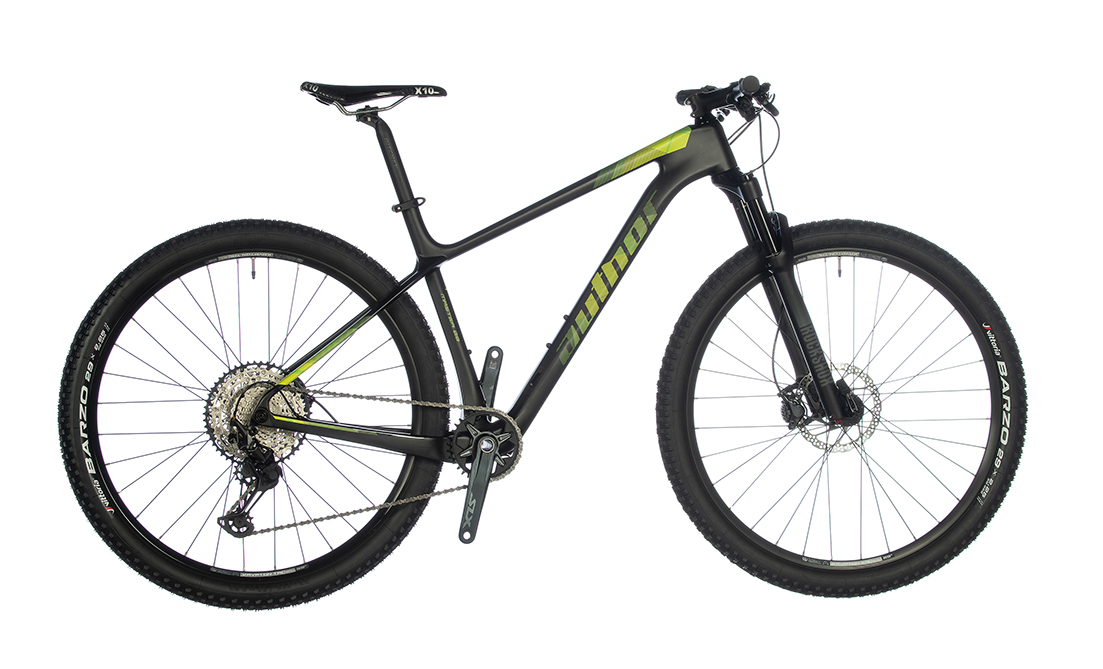

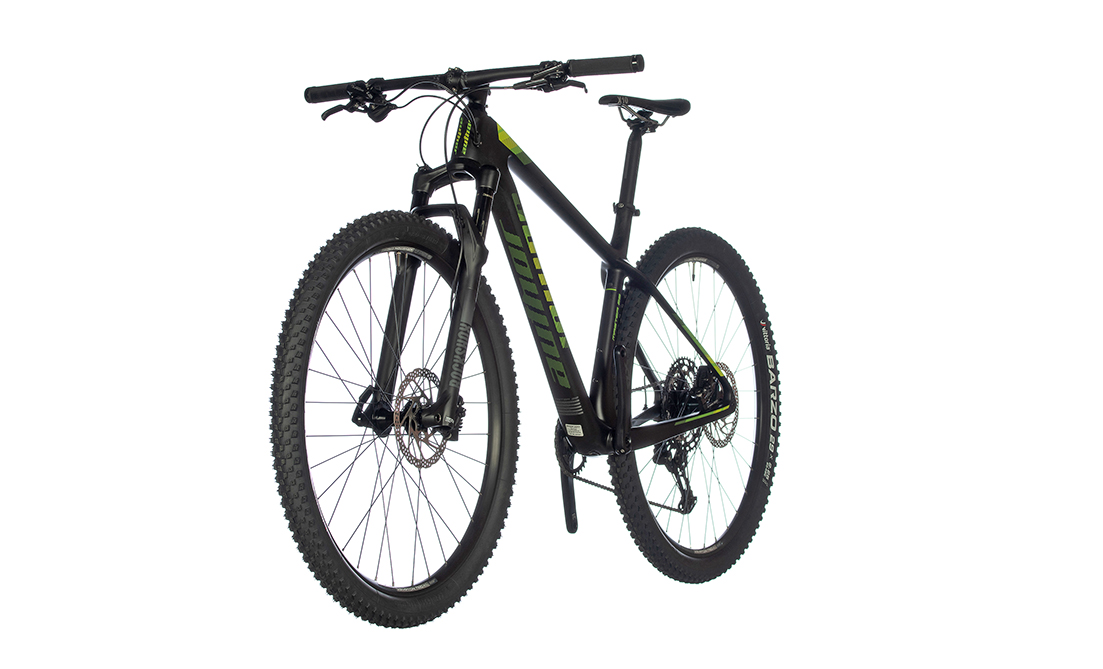

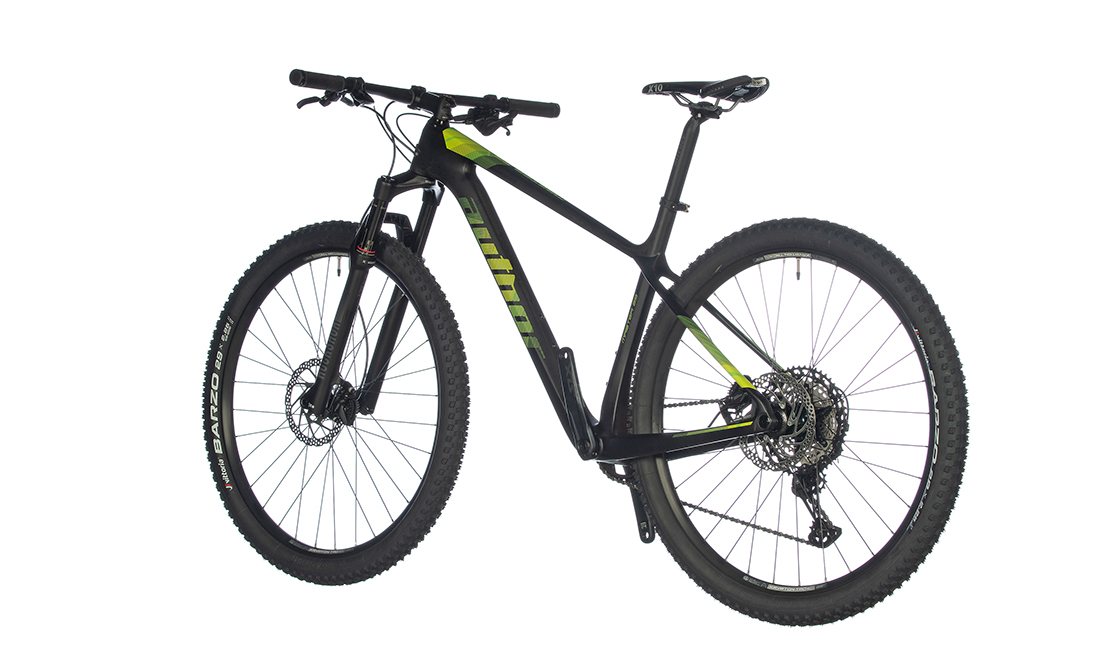

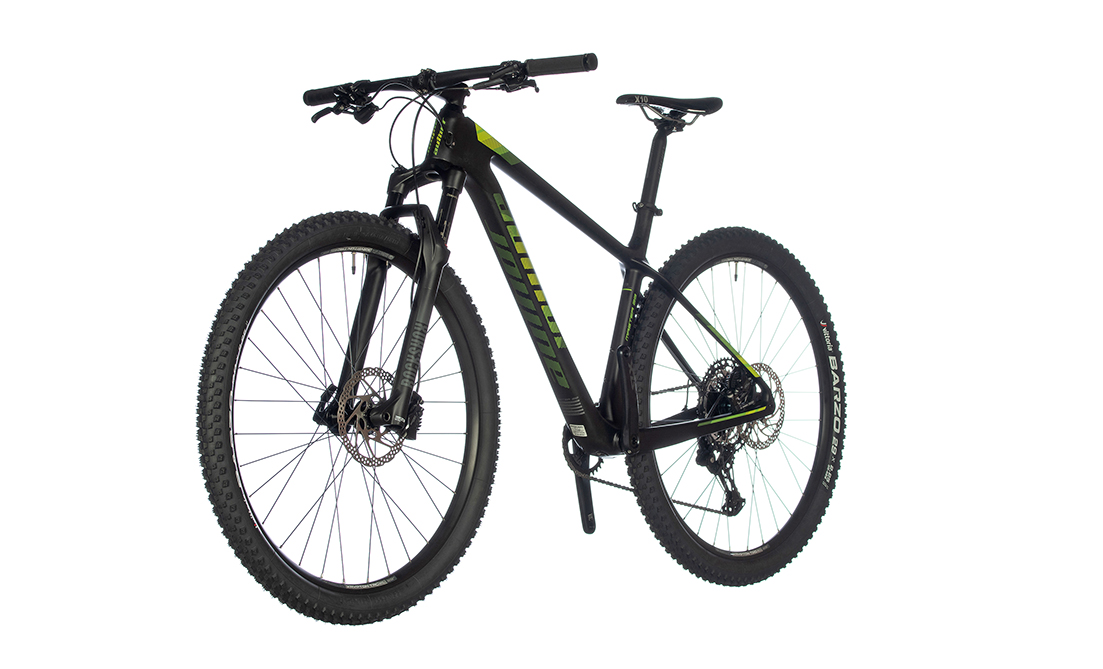

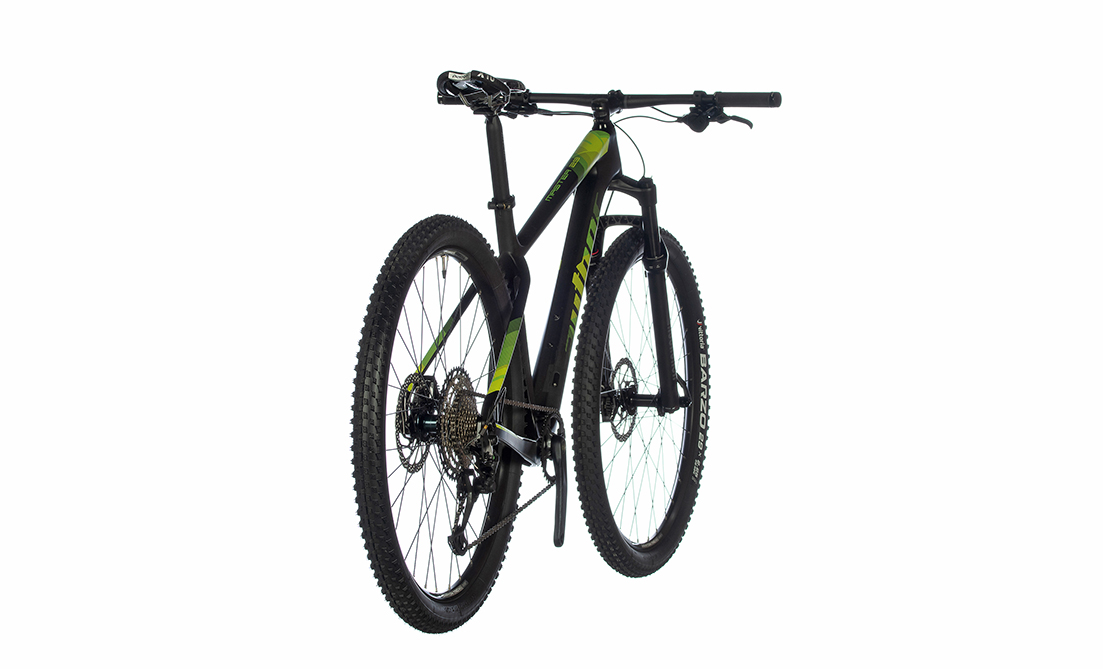

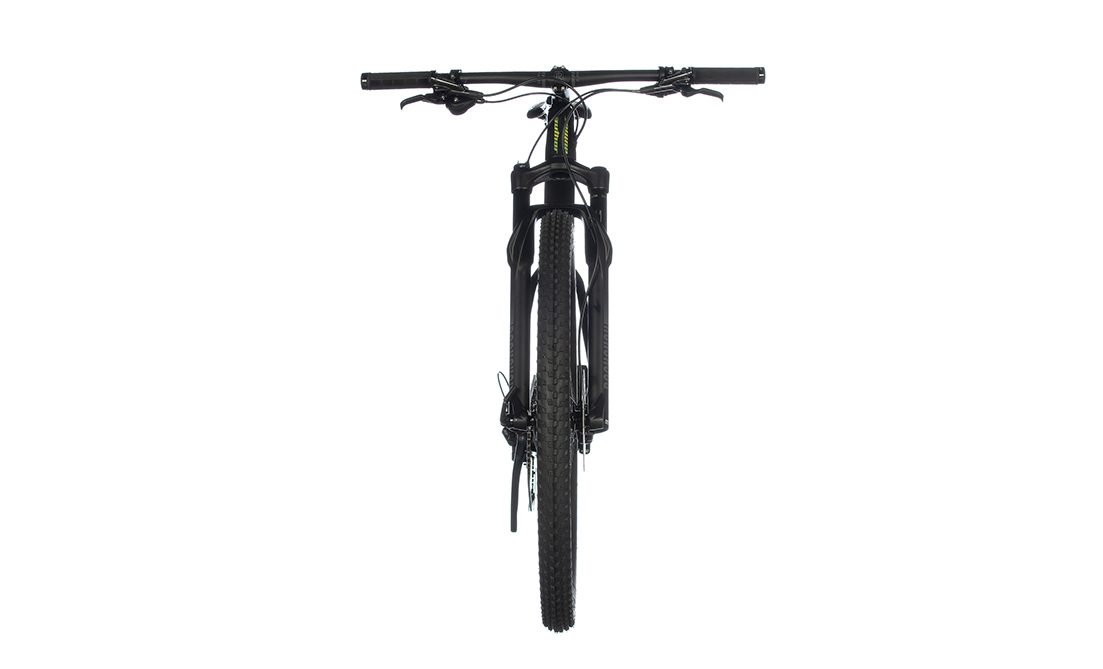

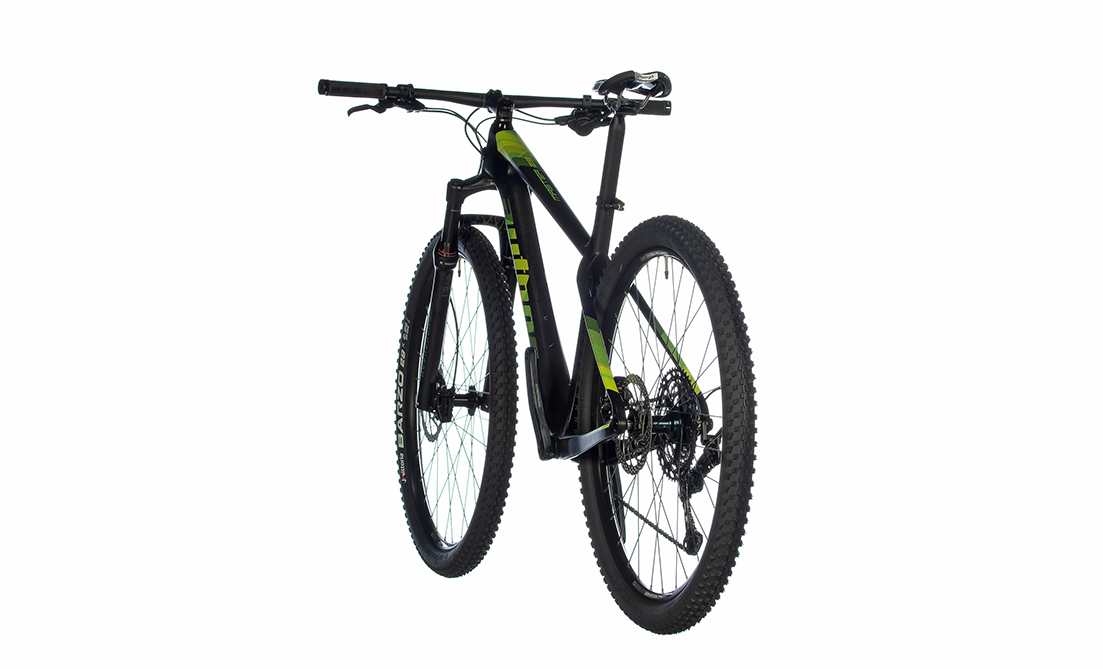

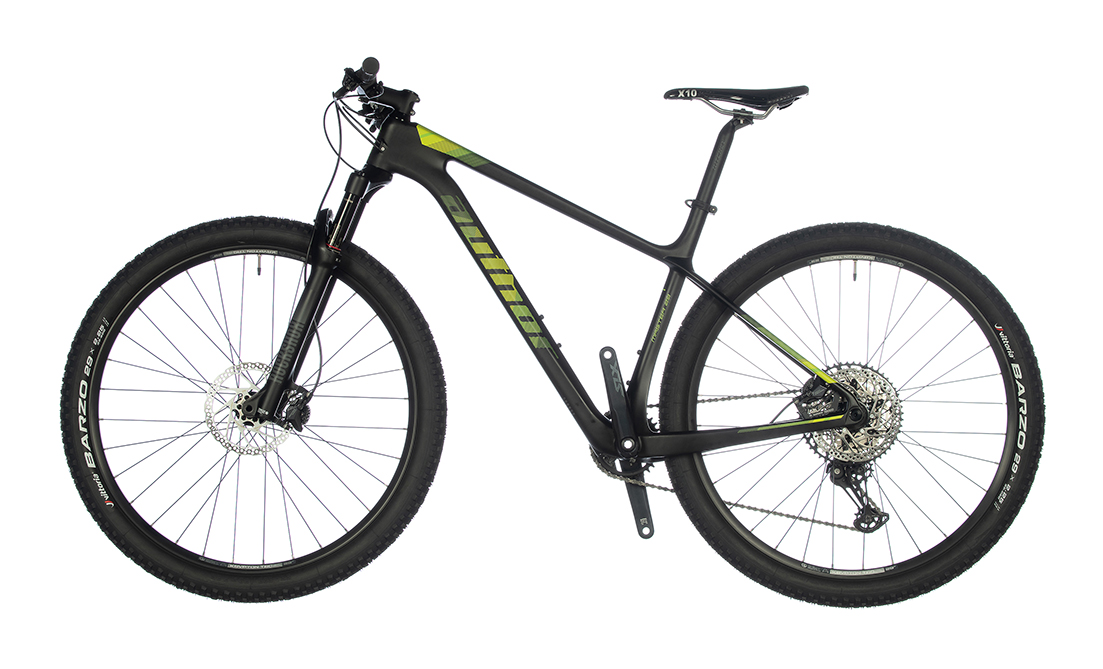

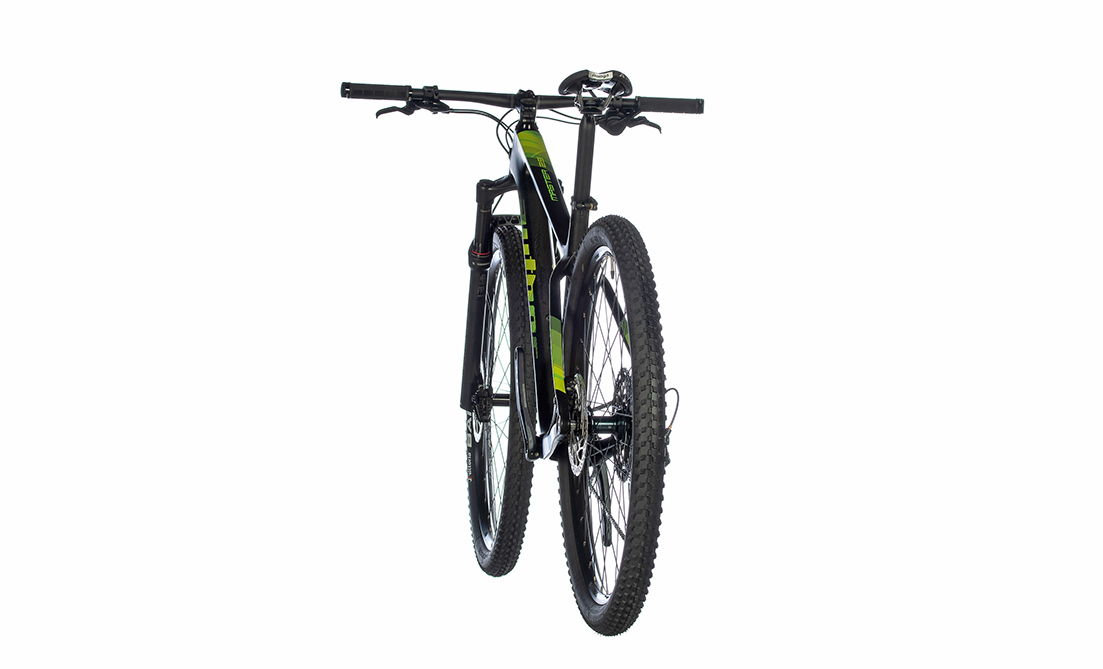

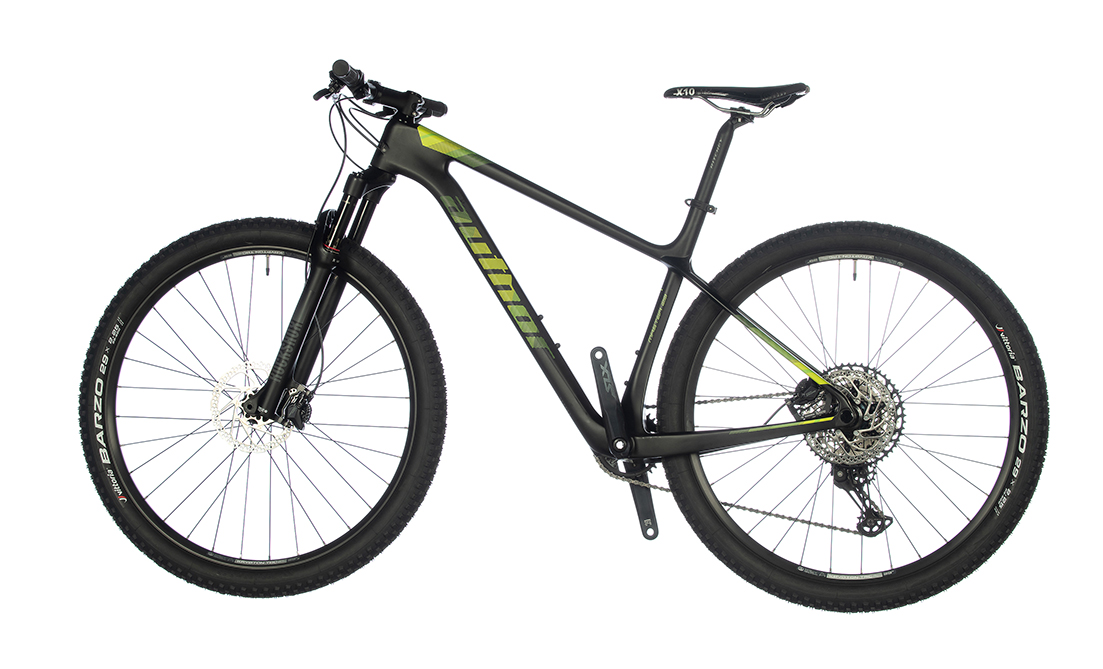

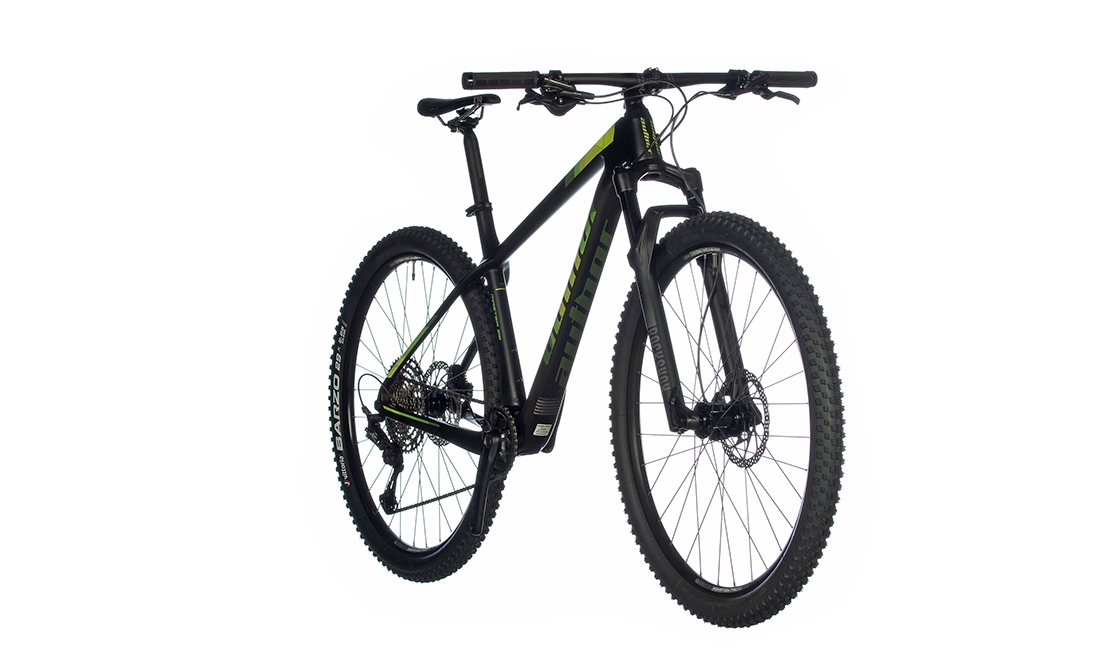

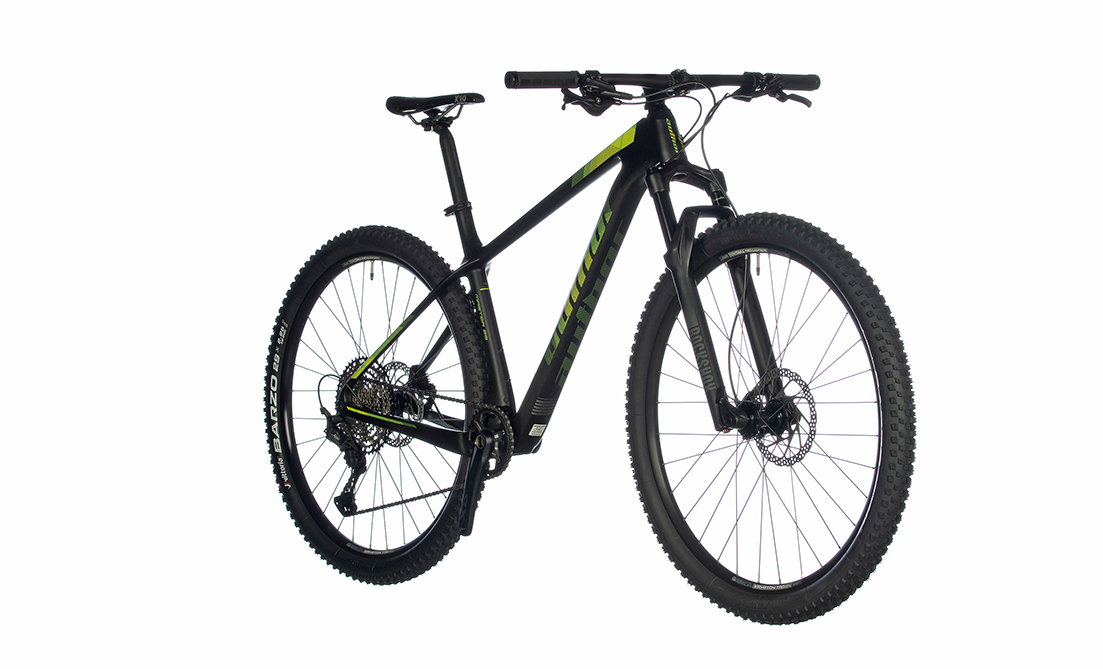

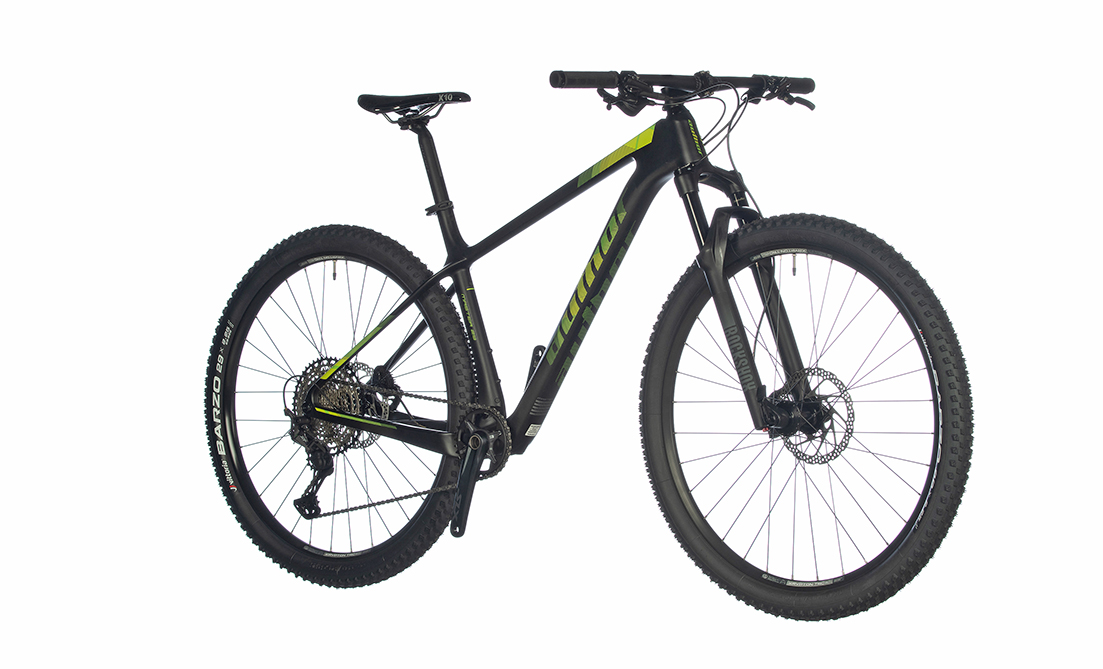

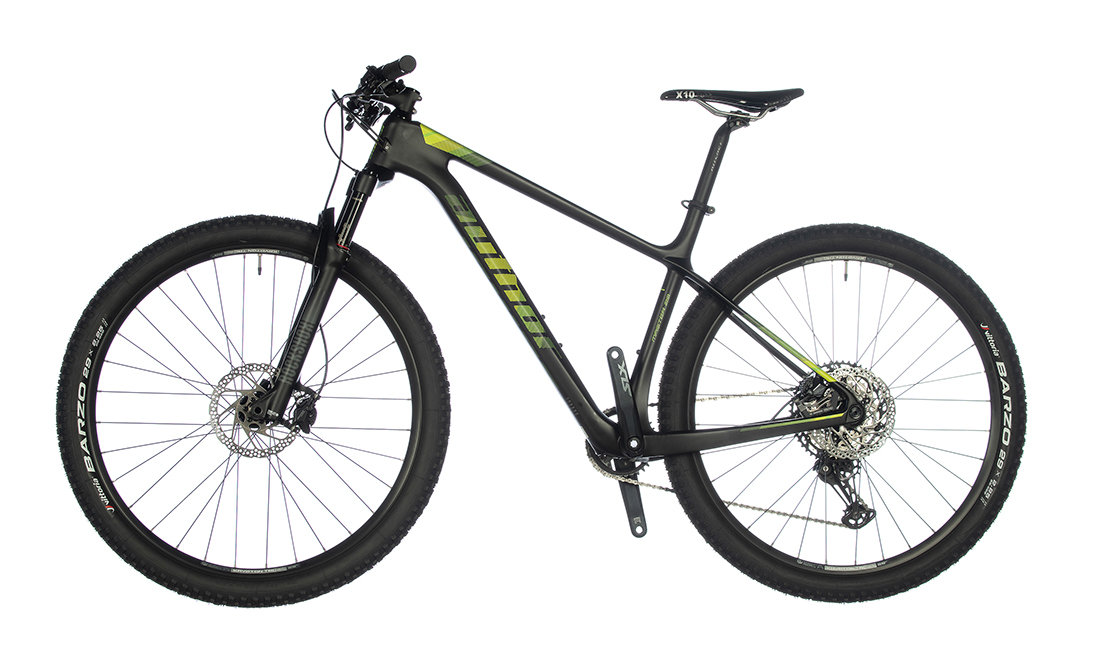

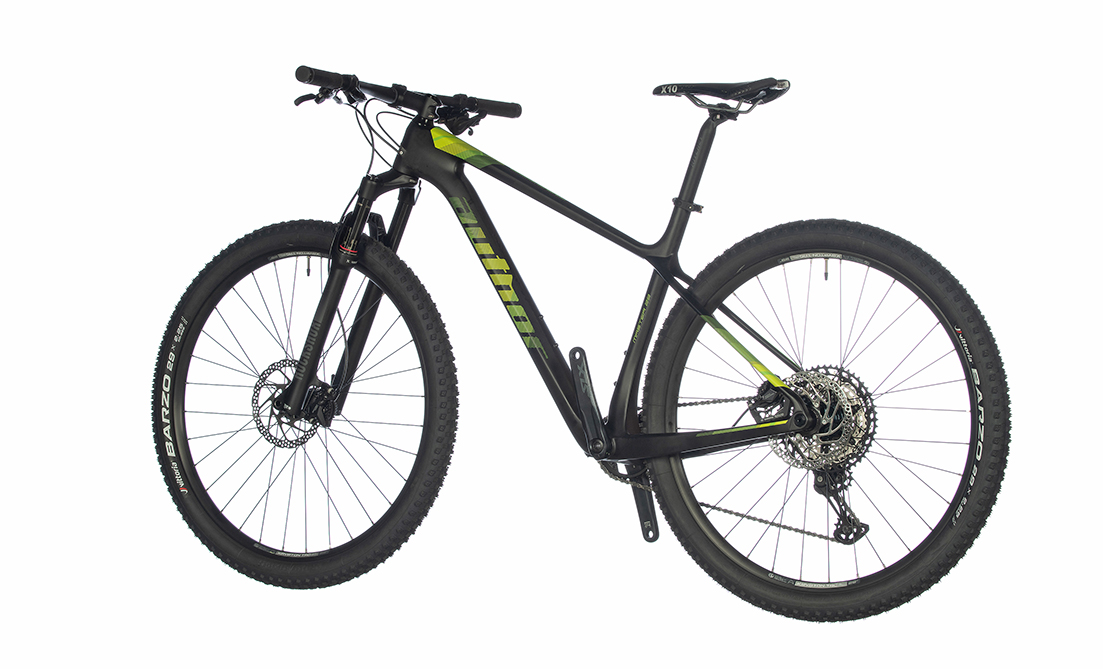

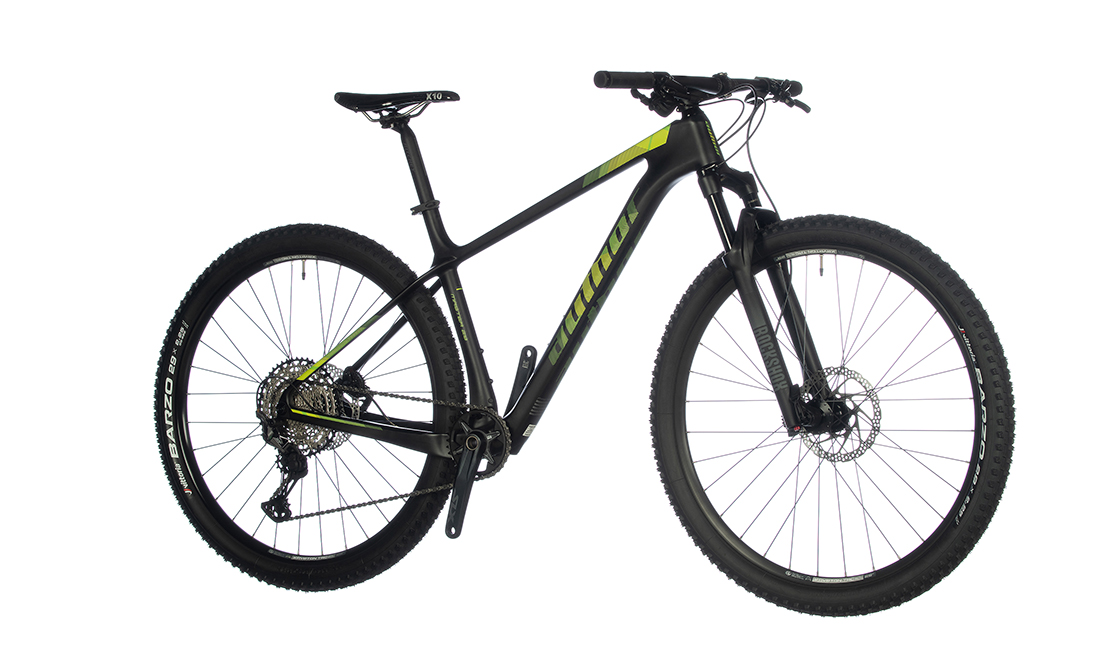

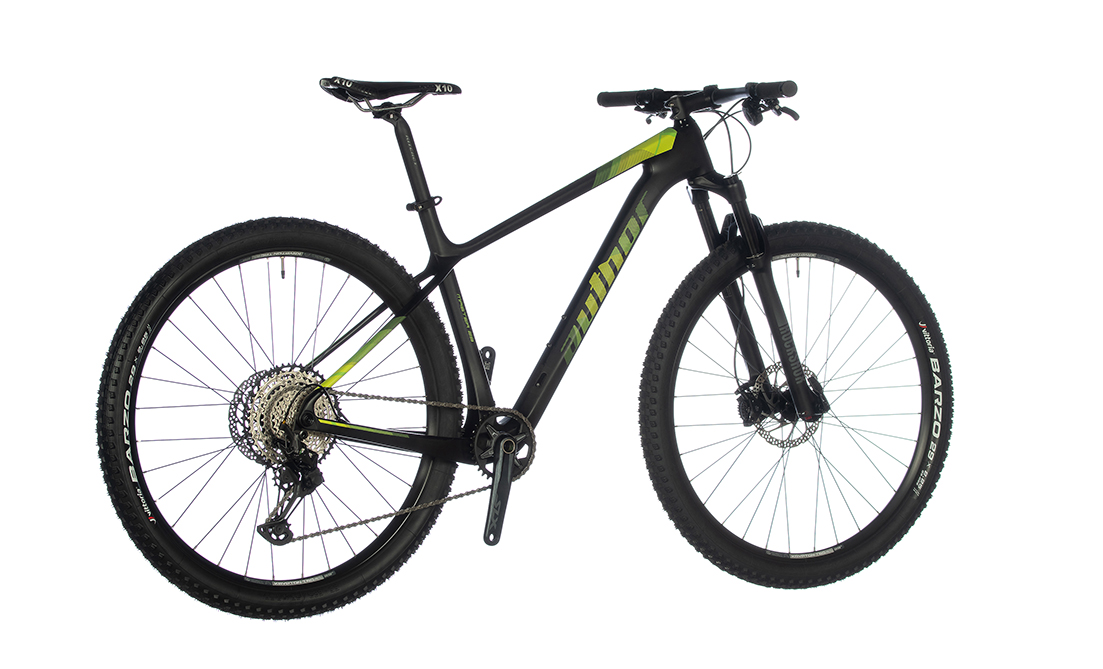

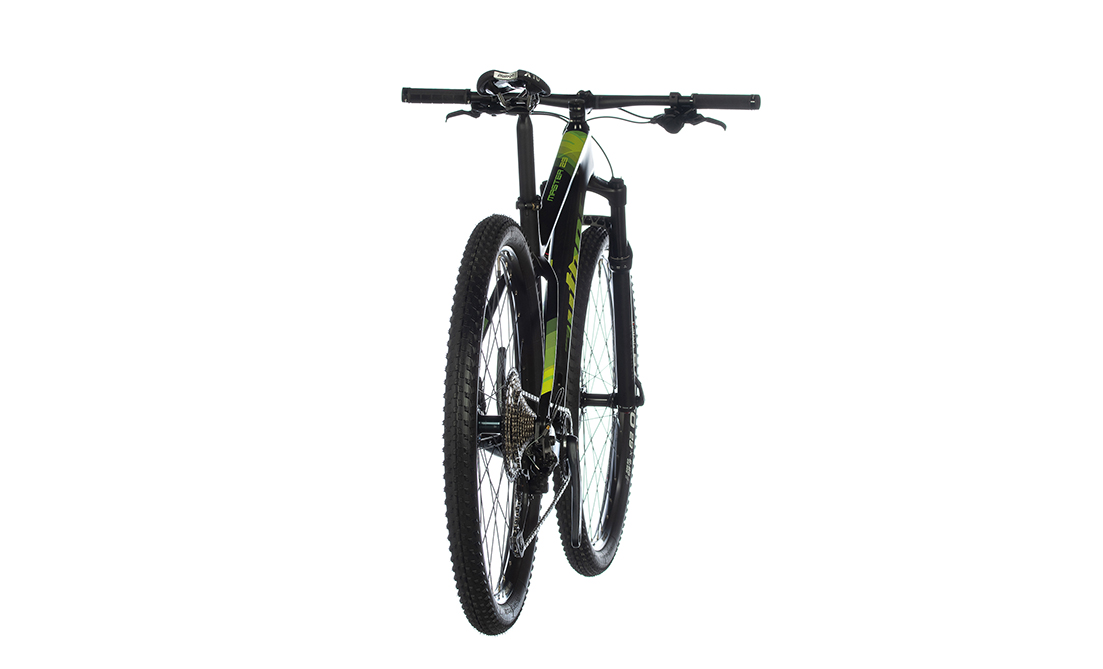

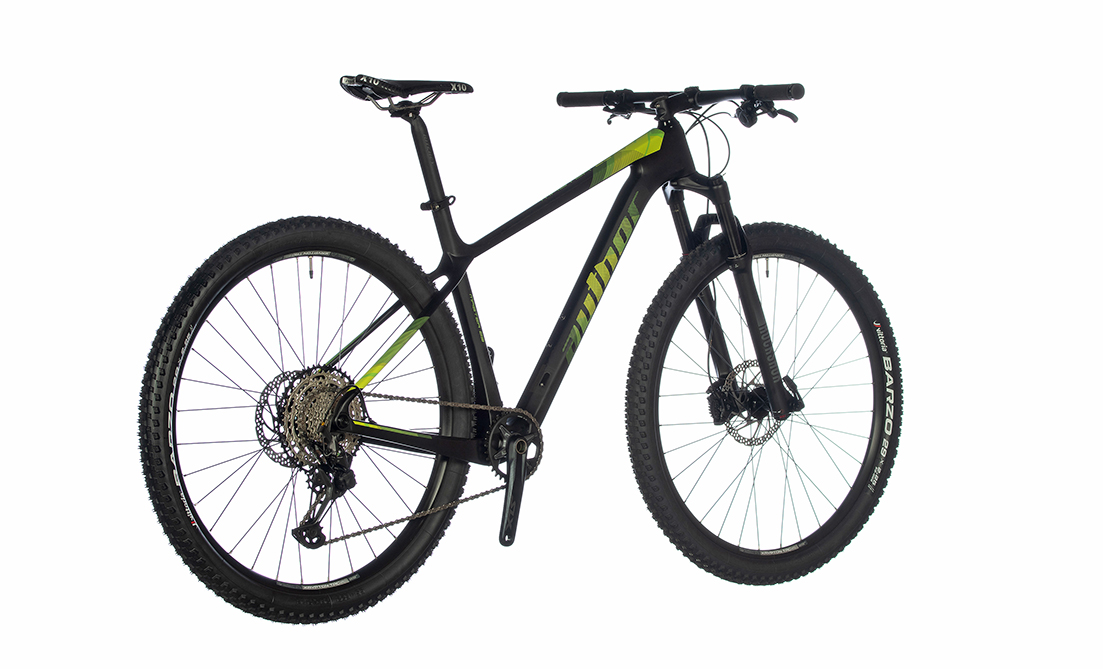

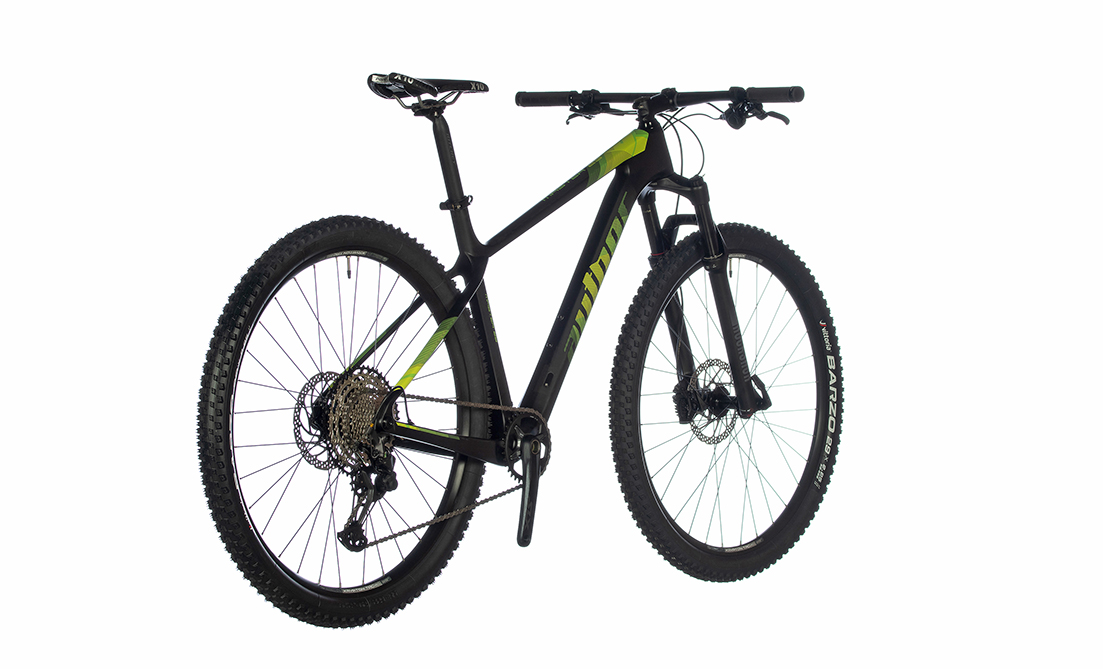

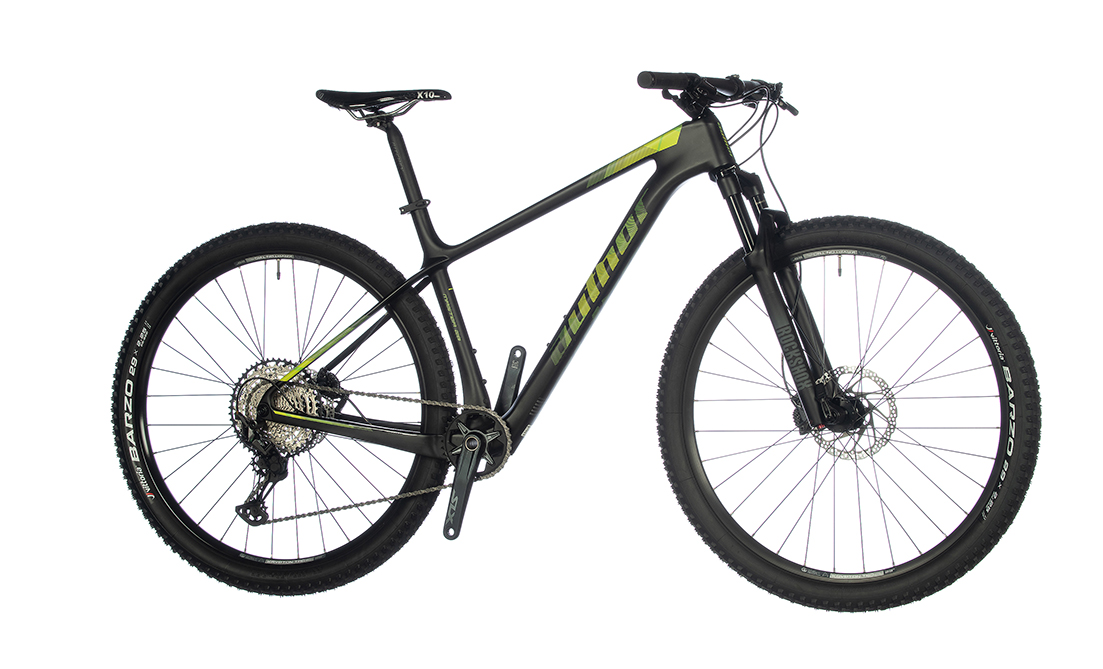

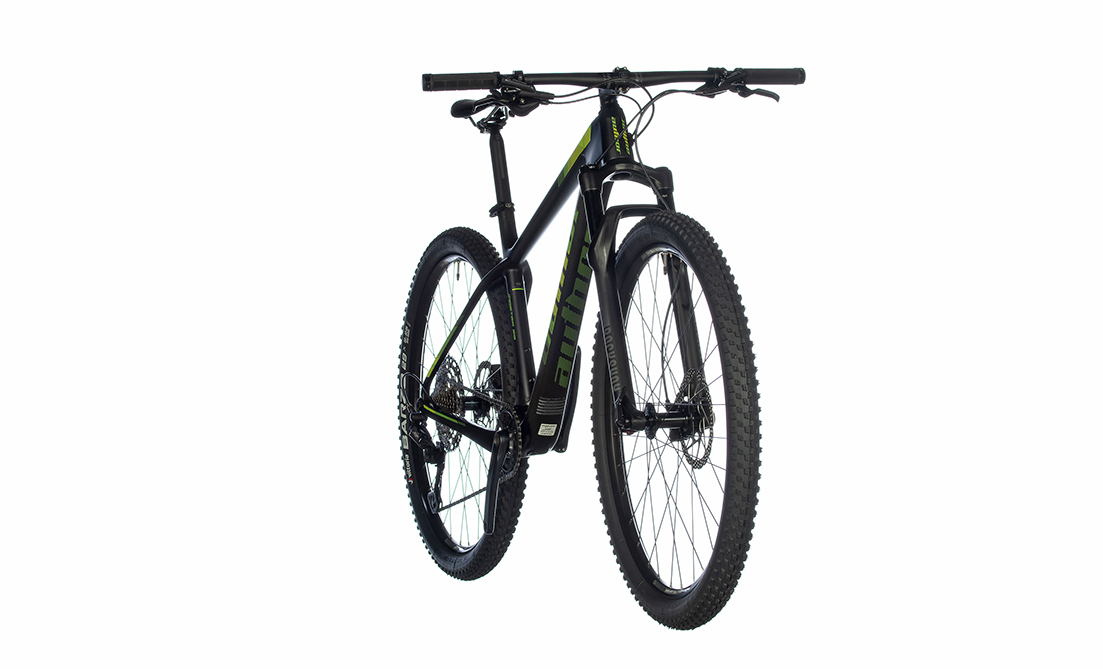

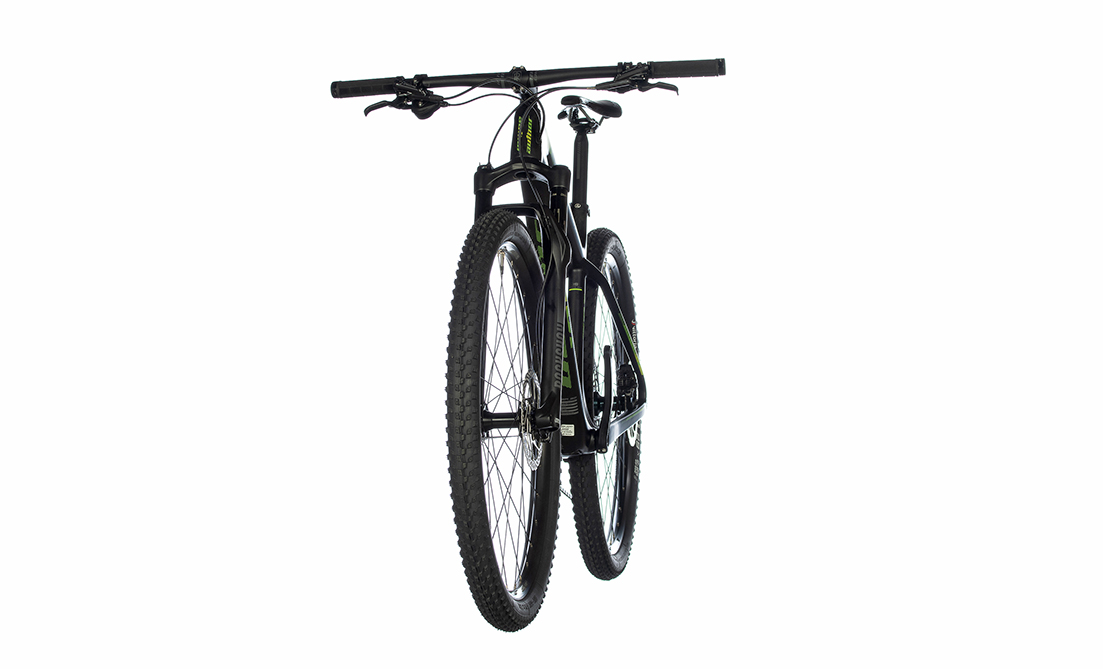

AUTHOR Master 29 2021-22

Technical specification

Size	17", 19", 21"
Frame	AUTHOR carbon Toray T700/800 monocoque 29"
Front fork	ROCK SHOX Recon Gold RL Remote 29 15 Solo Air air, remote lock out 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Head parts	AUTHOR Integrated 1.5" tapered
Chain Wheel	SHIMANO SLX 34 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-MT800 BB unit
Rear derailleur	SHIMANO XT
Shifters	SHIMANO SLX (12)
Free wheel	SHIMANO CS-M7100 10-51 (12)
Chain	SHIMANO M7100
Hubs	AUTHOR / SHIMANO SLX 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	SHIMANO Deore disc hydraulic (7" rotors)
Brakes levers	SHIMANO Deore

Rims	AUTHOR Krypton TRC 29 32 holes
Spokes	black stainless steel 2.0 mm
Tires	VITTORIA Barzo foldable 29" × 2.25"
Handlebar	RITCHEY MTN Comp 2×9 9° 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY Comp 4-Axis
Seat post	RITCHEY Comp (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	PROLOGO Nago Evo X10
Speed	12
Weight	11,2 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	171	179	188
Max. figure ~~[cm]~~	181	189	202
S/T c-t ~~[mm]~~	435	485	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	611	638	668
T/T a ~~[mm]~~	589	607	641
H/T ~~[mm]~~	95	100	120
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1118	1145	1177
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	506	506	506
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	92	92	92
Reach ~~[mm]~~	425	450	475
Stack ~~[mm]~~	609	613	632
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
