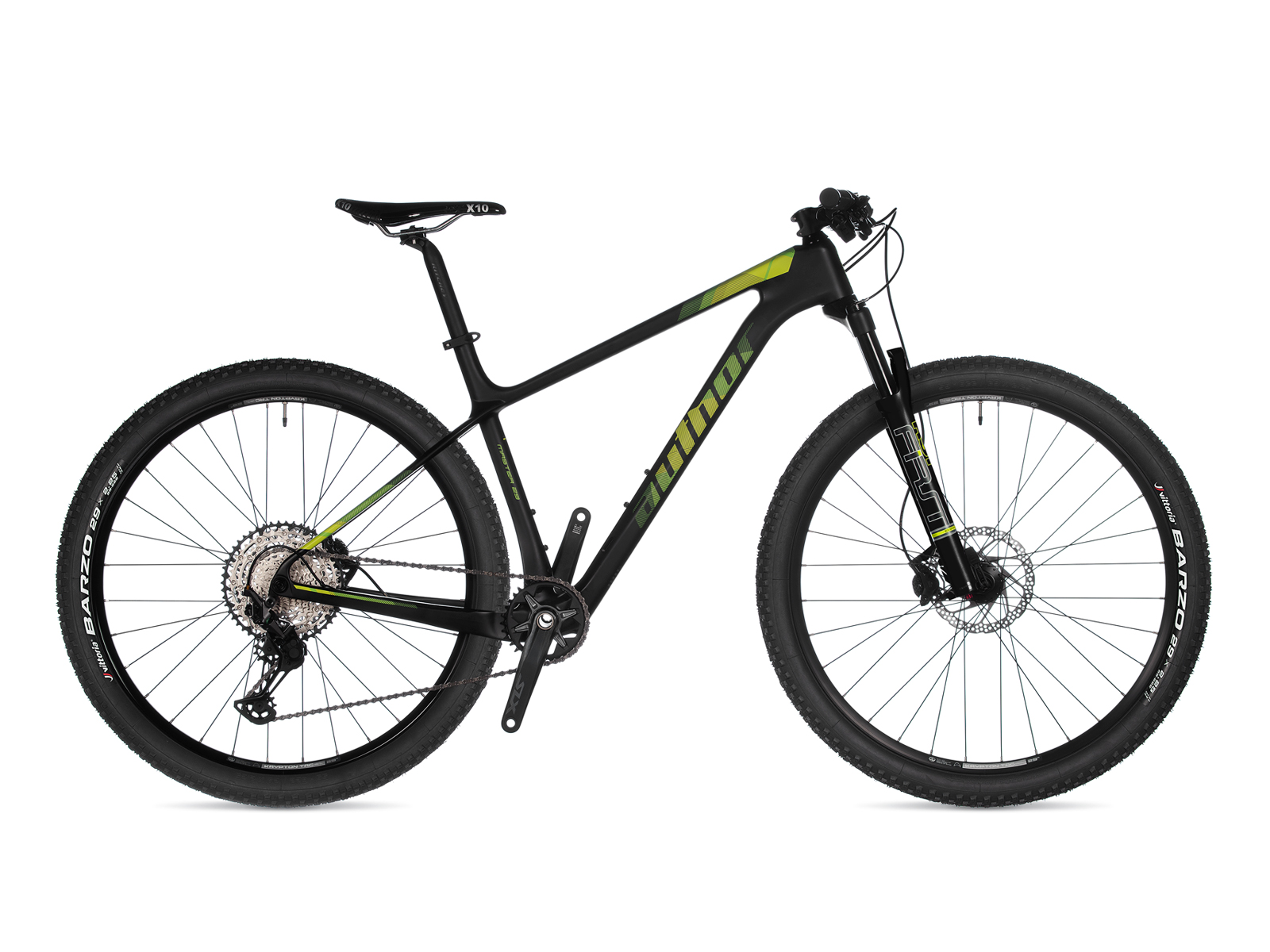

Master 29 2023-24

~~Colour variants~~

AUTHOR High Modulus Carbon monocoque frameRST F1RST 110-15 air fork, remote lock out controlHydraulic disc brakes SHIMANO DeoreSHIMANO SLX / XT rear derailleuer and shifting, 12 speedVITTORIA Barzo 29" × 2.25" foldable tiresRITCHEY Comp cockpitPrologo Nago Evo X10 saddle

~~Buy now~~special price 52 990 Kč

original price ~~65 990 Kč~~

Technical specification

Size	17", 19", 21"

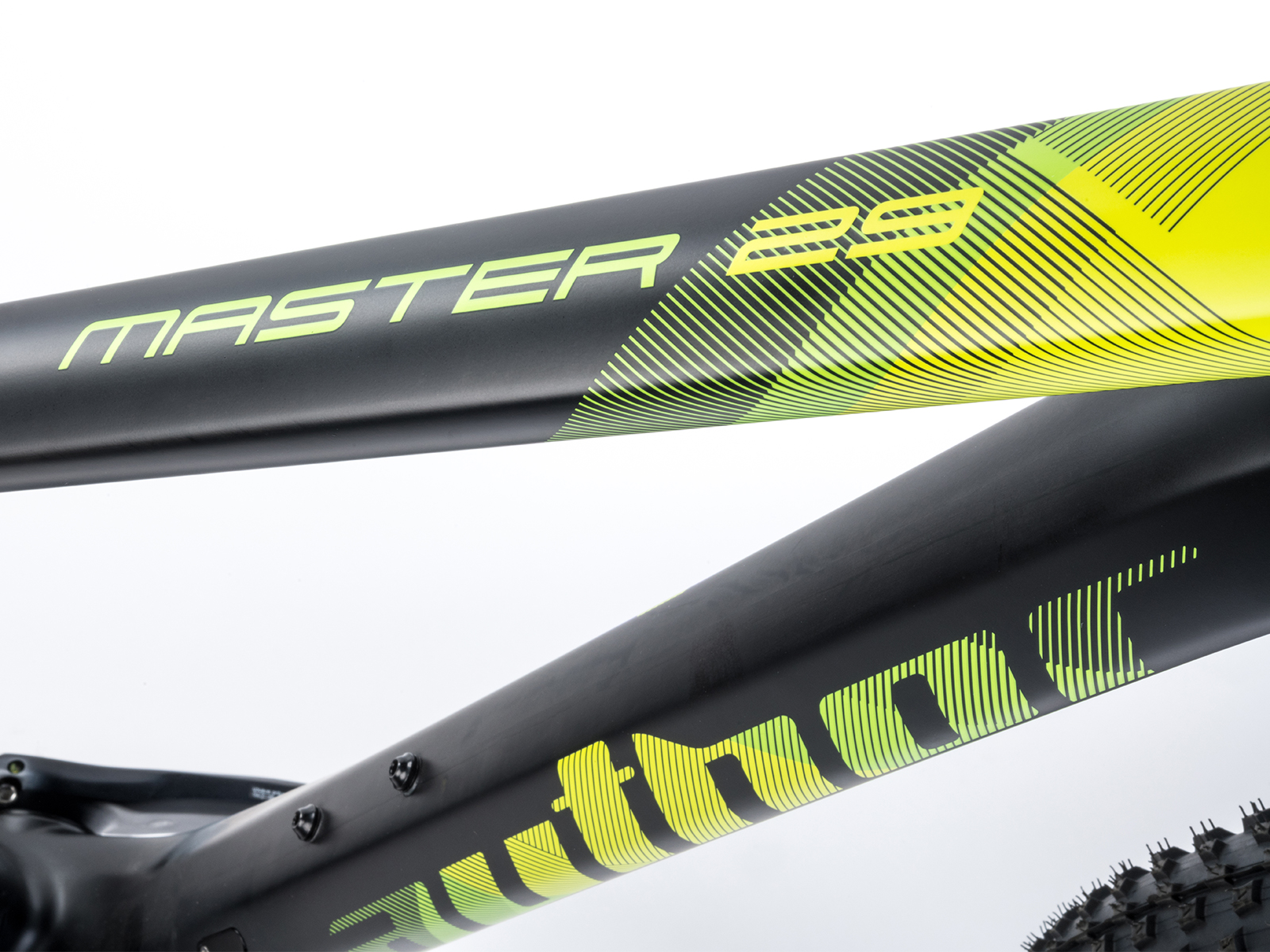

Frame	AUTHOR carbon Toray T700/800 monocoque 29"
Front fork	RST F1RST 110-15 Air TRL, air, remote lock out 15 × 110 mm thru axle, 1.5" tapered steerer (100 mm)
Head parts	PRESTINE Integrated 1.5" tapered

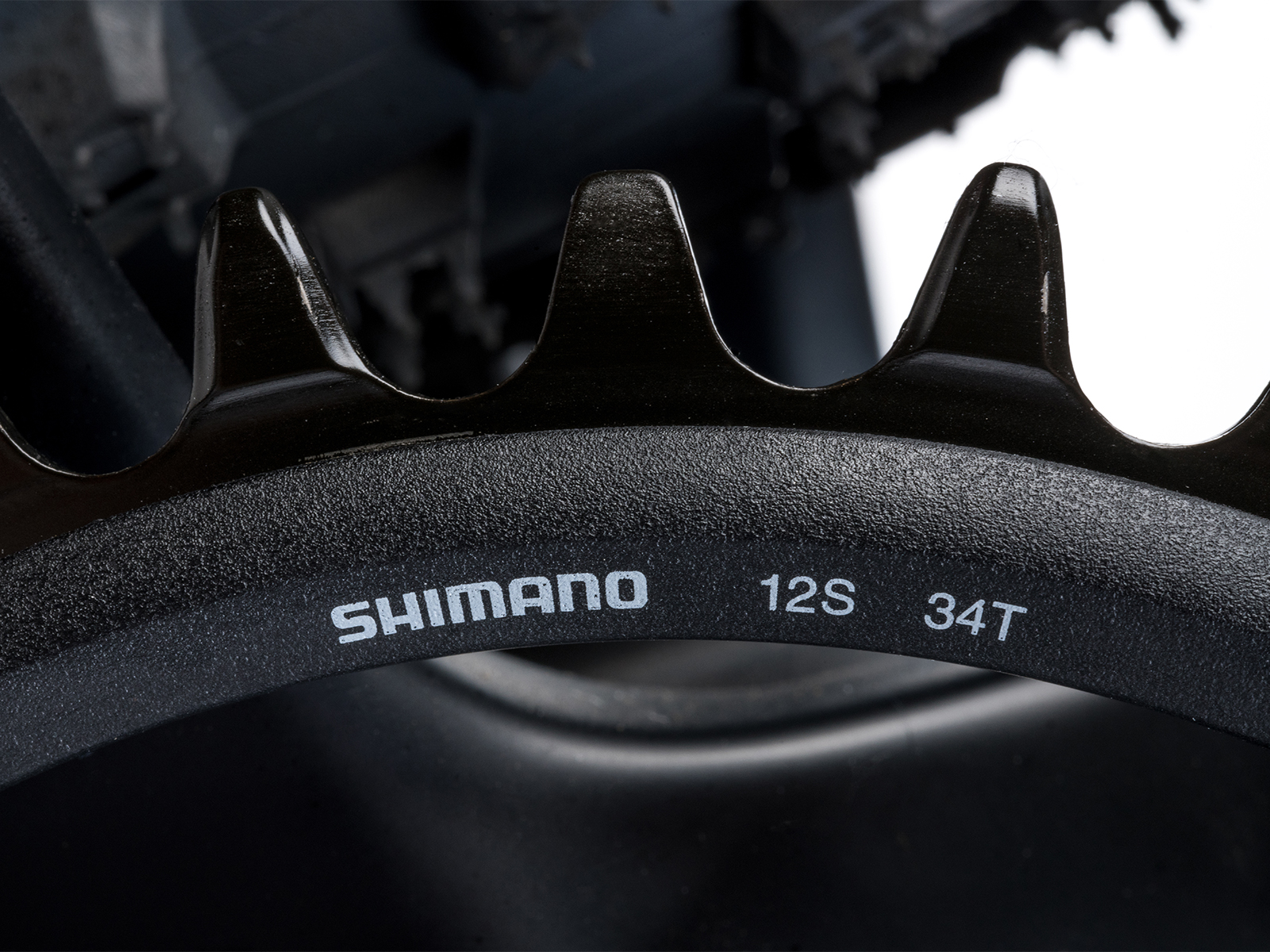

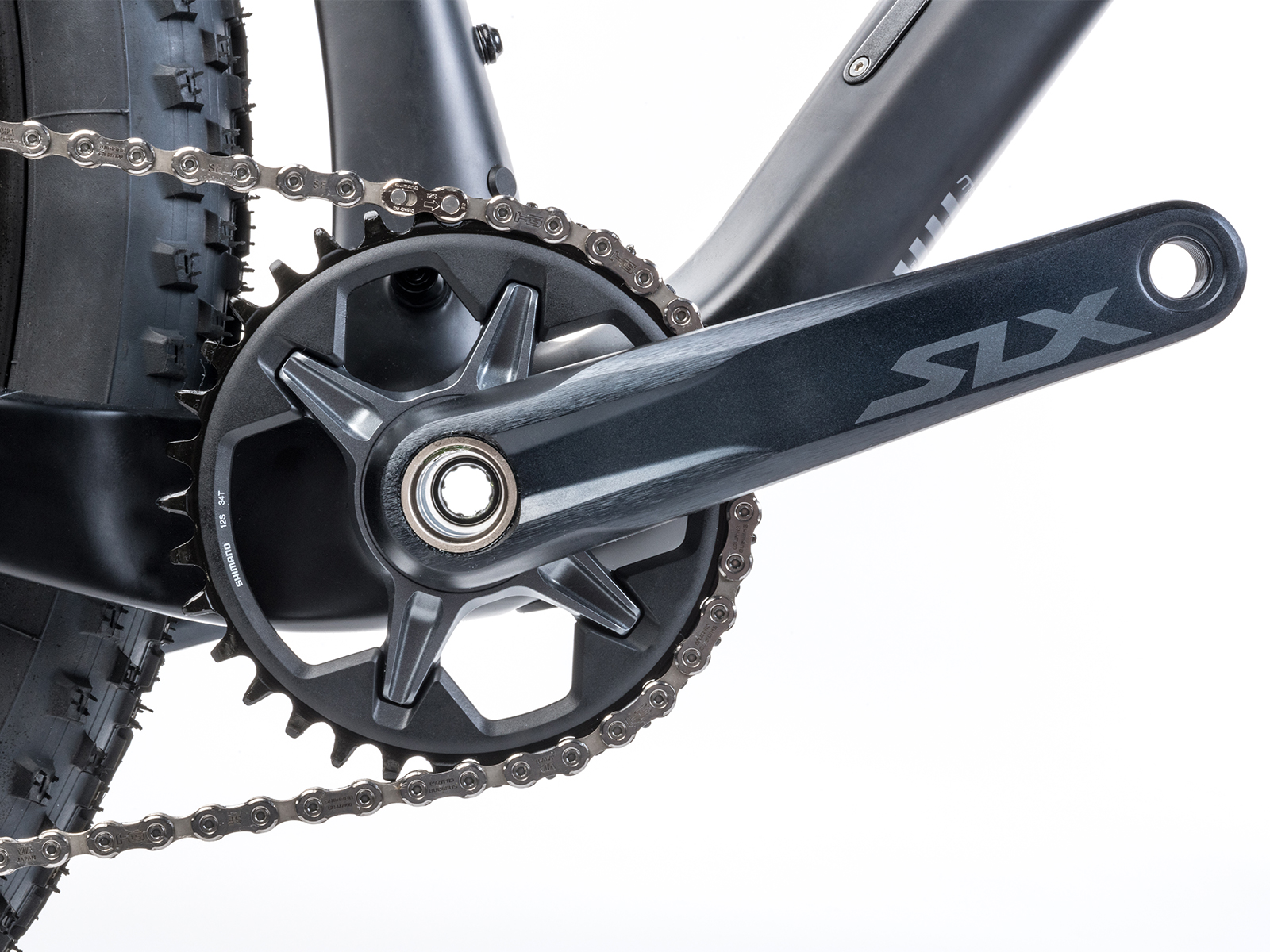

Chain Wheel	SHIMANO SLX, 34 teeth, 170 / 175 mm cranks

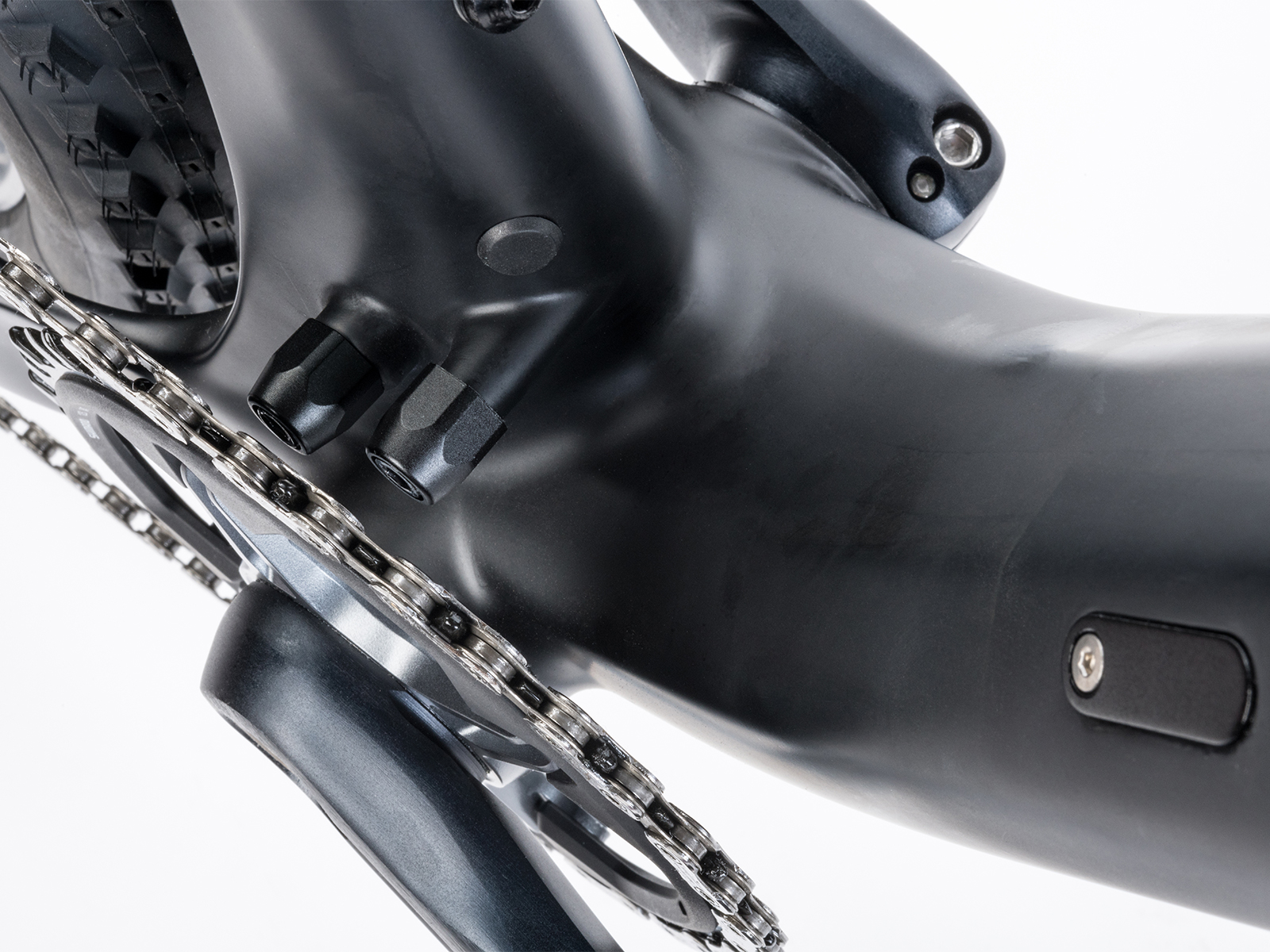

BBParts	SHIMANO BB-MT800 PF

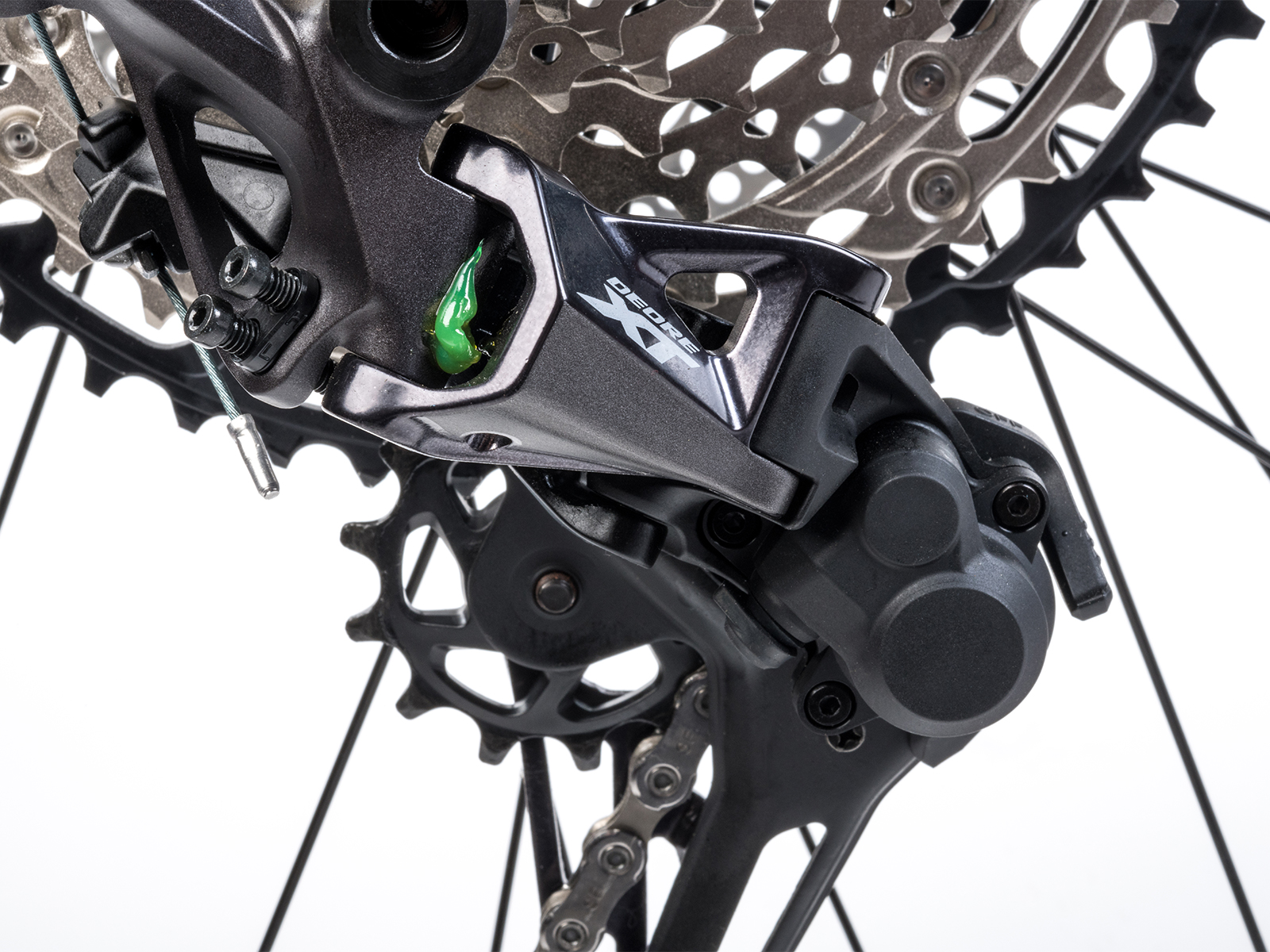

Rear derailleur	SHIMANO XT
Shifters	SHIMANO SLX (12)
Free wheel	SHIMANO CS-M7100, 10-51 (12)
Chain	SHIMANO M7100
Hubs	AUTHOR / SHIMANO SLX, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle, 32 holes
Brakes	SHIMANO Deore, disc hydraulic (7" rotors)

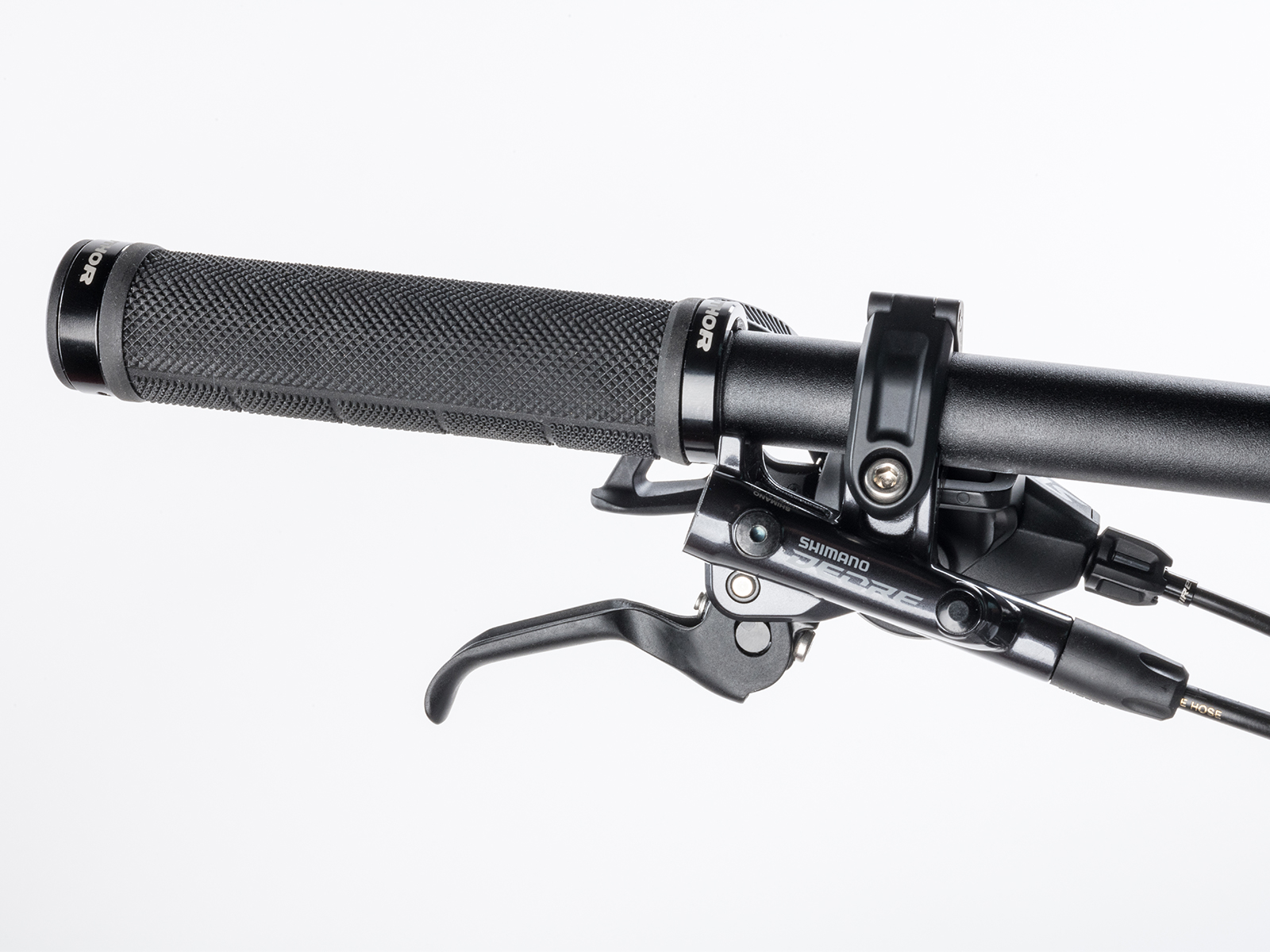

Brakes levers	SHIMANO Deore

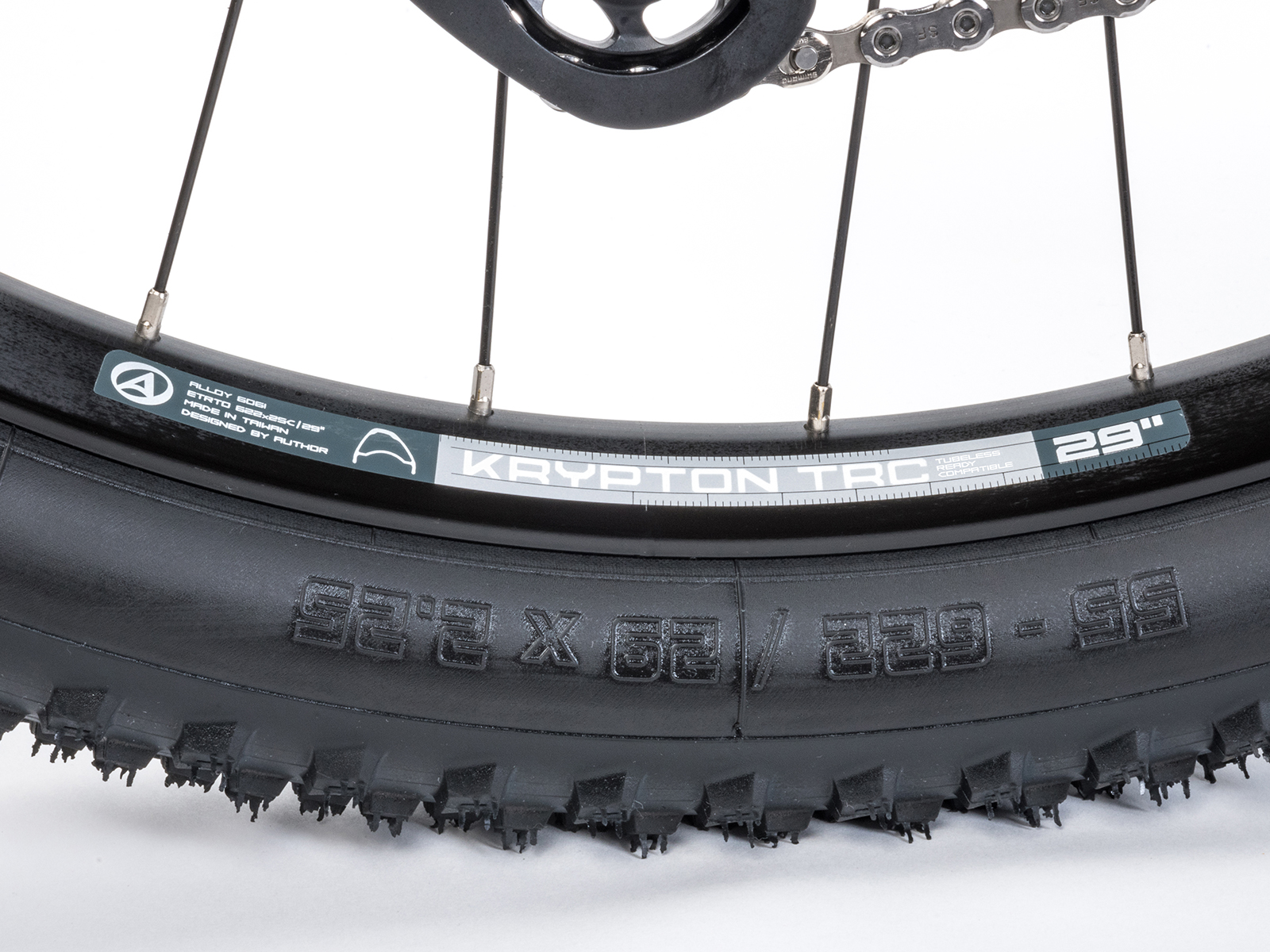

Rims	AUTHOR Krypton TRC 29, 32 holes
Spokes	black stainless steel 2.0 mm

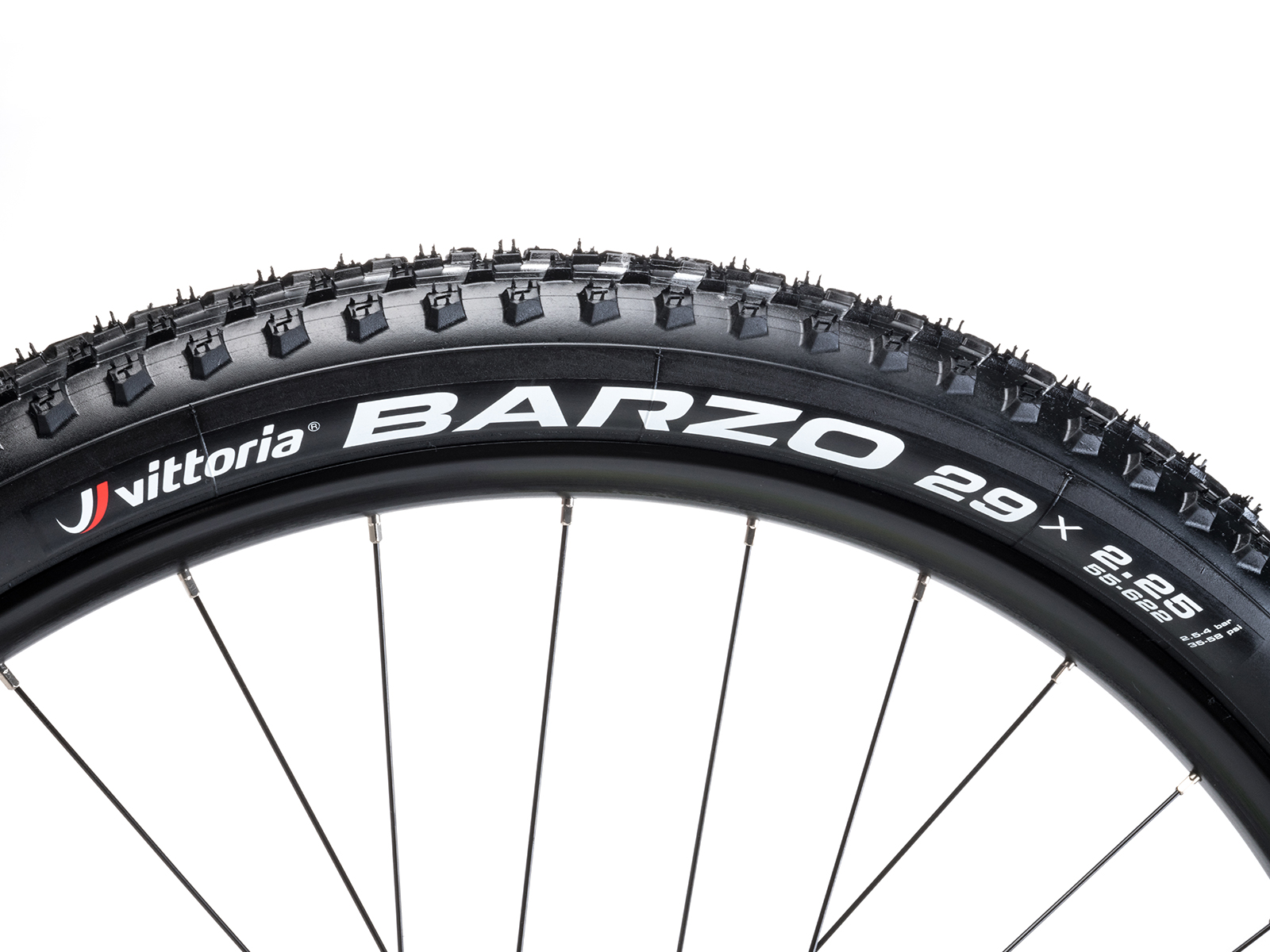

Tires	VITTORIA Barzo aramid 29" × 2.25"

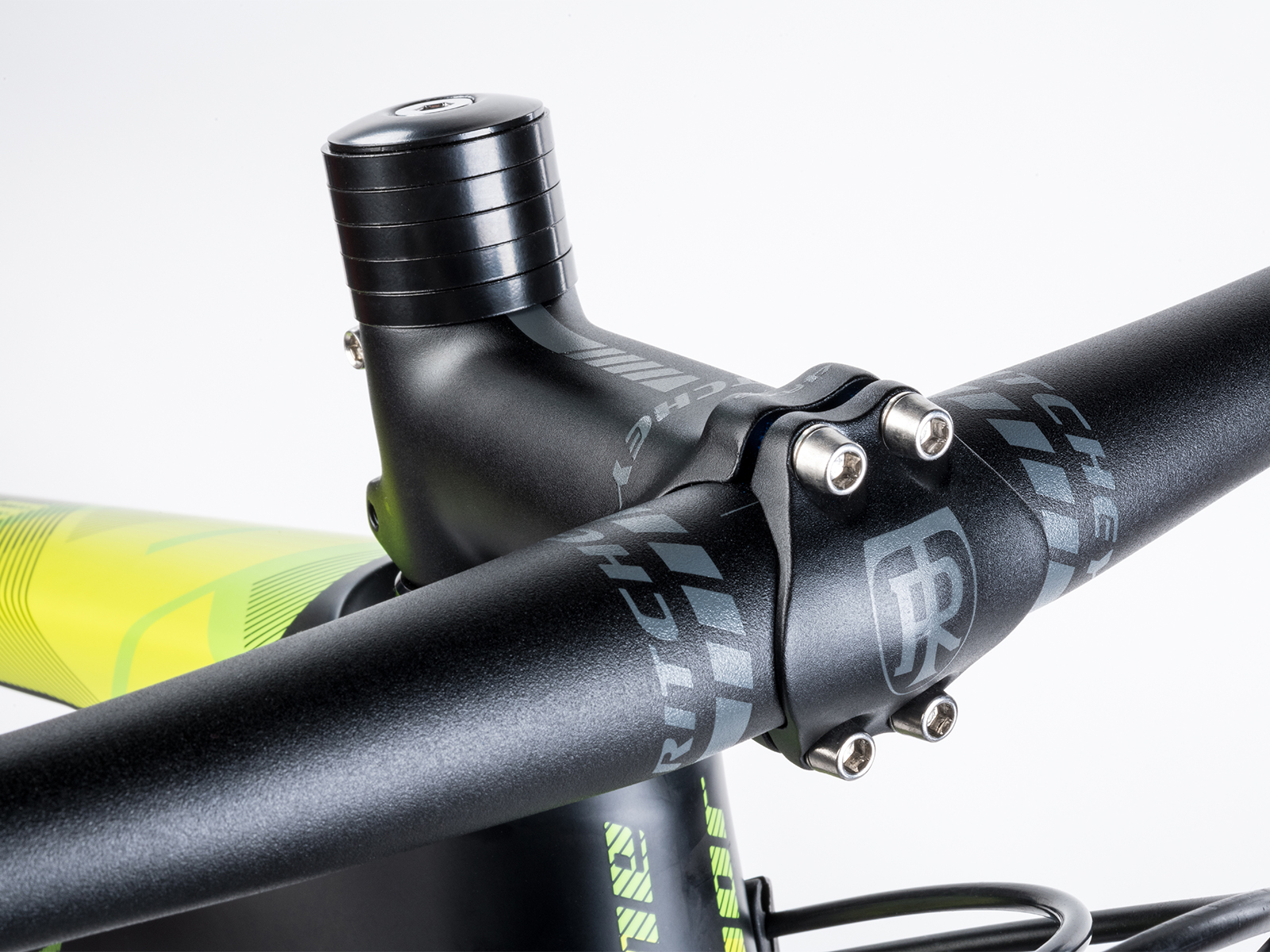

Handlebar	RITCHEY MTN Comp 2 × 9, 9°, 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY Comp 4-Axis
Seat post	RITCHEY Comp (31.6)
Seat clamp	AUTHOR (34.9)

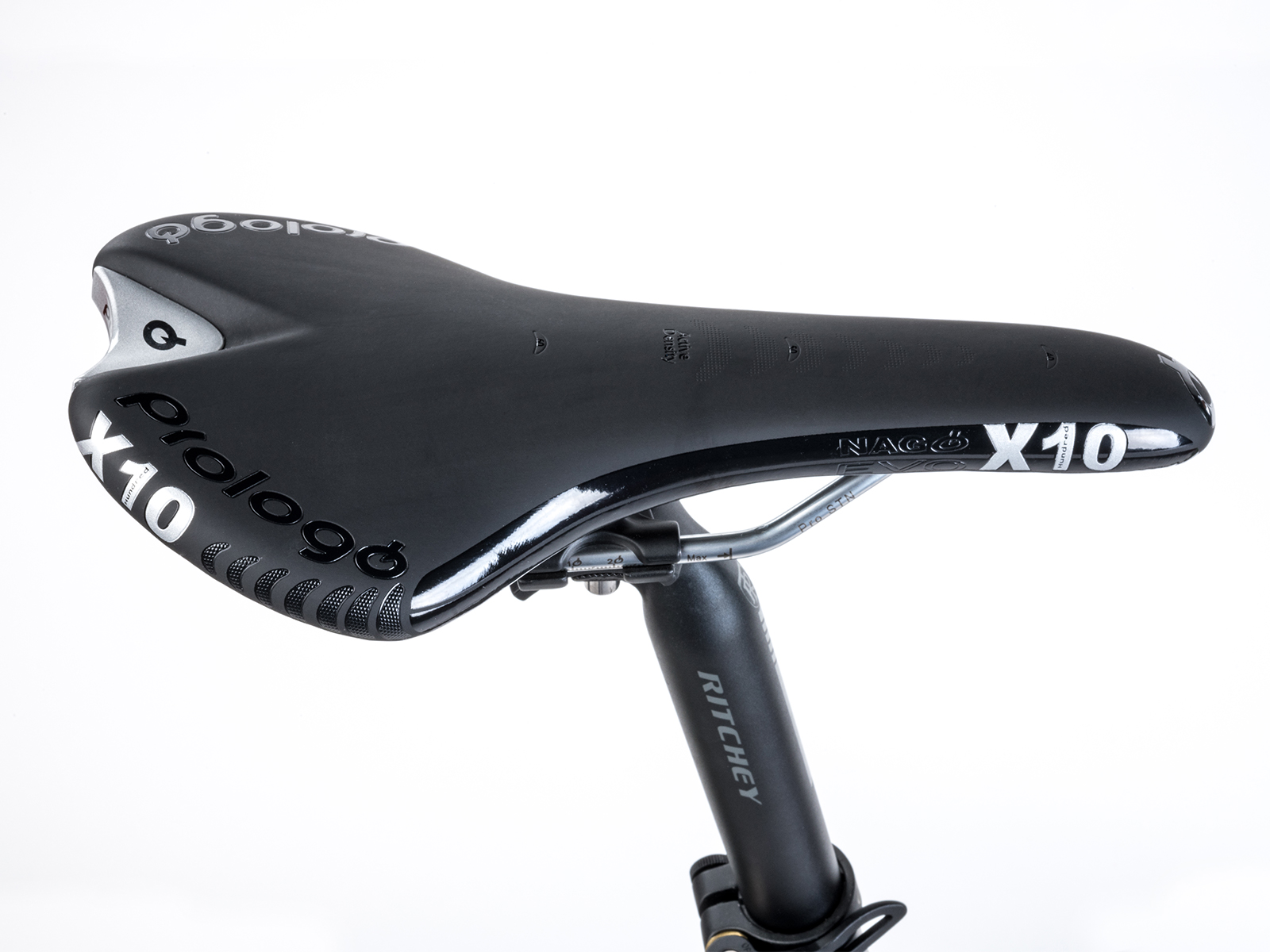

Saddle	PROLOGO Nago Evo X10
Speed	12
Weight	11,2 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	171	179	188
Max. figure ~~[cm]~~	181	189	202
S/T c-t ~~[mm]~~	435	485	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	611	638	668
T/T a ~~[mm]~~	589	607	641
H/T ~~[mm]~~	95	100	120
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1118	1145	1177
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	506	506	506
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	92	92	92
Reach ~~[mm]~~	425	450	475
Stack ~~[mm]~~	609	613	632
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	2 stores				4294740225
	▪ Viavelo		in stock	buy now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Bike sport - Tomáš Pavlovský		in stock	buy now	Vratimov	608 712 524, bsv@bsv.cz	map
		19"	8 stores				4294740325
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ Bike-Boys, s.r.o.		in stock	buy now	Pardubice - Ohrazenice	777 707 195	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jan Janíček		in stock	buy now	Velké Meziříčí	725 553 263, info@cyklo-janicek.cz	map
		21"	4 stores				4294740425
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Jiří Blažek SPORT		in stock	buy now	Velká Hleďsebe	354 624 393, info@sportblazek.cz	map
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.
