Limit 29 2025

Technical specification

Size	14", 16"
Frame	alloy 6061 29"
Front fork	alloy 6061 29"
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 165 / 170 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO Acera
Shifters	SHIMANO Acera (8)
Free wheel	SHIMANO CS-HG400-8, 11-40 (8)
Chain	KMC Z8.3
Hubs	QUANDO, 32 holes
Brakes	TEKTRO HD-M276, disc hydraulic (6" rotors)
Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	black steel
Tires	KENDA Small Block Eight, 29" × 2.10"
Pedals	plastic
Handlebar	steel, 20 mm, 660 mm
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8
Weight	11,5 kg / 16"

Geometry and sizes

Size	14"	16"
Min. figure ~~[cm]~~	143	157
Max. figure ~~[cm]~~	160	173
S/T c-t ~~[mm]~~	356	406
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	544	566
T/T a ~~[mm]~~	533	548
H/T ~~[mm]~~	90	100
C/S ~~[mm]~~	445	445
W/B ~~[mm]~~	1060	1084
S/T ang. ~~[°]~~	74	74
H/T ang. ~~[°]~~	69	69
F/L ~~[mm]~~	442	442
B/B drop ~~[mm]~~	65	65
B/B width ~~[mm]~~	73	73
Reach ~~[mm]~~	387	407
Stack ~~[mm]~~	546	556
F/R ~~[mm]~~	45	45
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		14"	14 stores				42954620
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	▪ ZAF Velo Sport		in stock	buy now	Velké Pavlovice	776 820 690, velo@zaf.cz	map
	⟲ In other stores		in 2 days				dealers
		16"	11 stores				42954621
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		14"	16 stores				42954630
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		in stock	buy now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		16"	17 stores				42954631
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Velo Vít Sport		in stock	buy now	Kostelec nad Orlicí	494 321 123, prodejna@kolakostelec.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

299 KčL&R35 X7Bottle cage Author ABC-35, easy bottle removing from side direction (left or right according the fix ... more »

1/2

199 KčL&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

1/5

595 Kč ~~695 Kč~~ R282 MPPThe AUTHOR A-R282 MPP ensures your camera is at hand in any situation. It provides easy, hassle-free ... more »

1/4

299 KčS381 TPN X7The Author saddle bag A-S381 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/2

399 KčS381 QF9 X7The Author saddle bag A-S381 is the easy bag with the Quick Fix 9 bracket for easy click ON/OFF and ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

250 KčX-FlapX-Flap is the new rear mudguard . The mounting system features a big plastic clamp, that can be easi ... more »

1/4

495 KčX-ShieldRear mudguard AUTHOR X-Shield features an optimized new mounting system. With QR lever you can easil ... more »

	red / black / lime	14" = UA#42954620 16" = UA#42954621

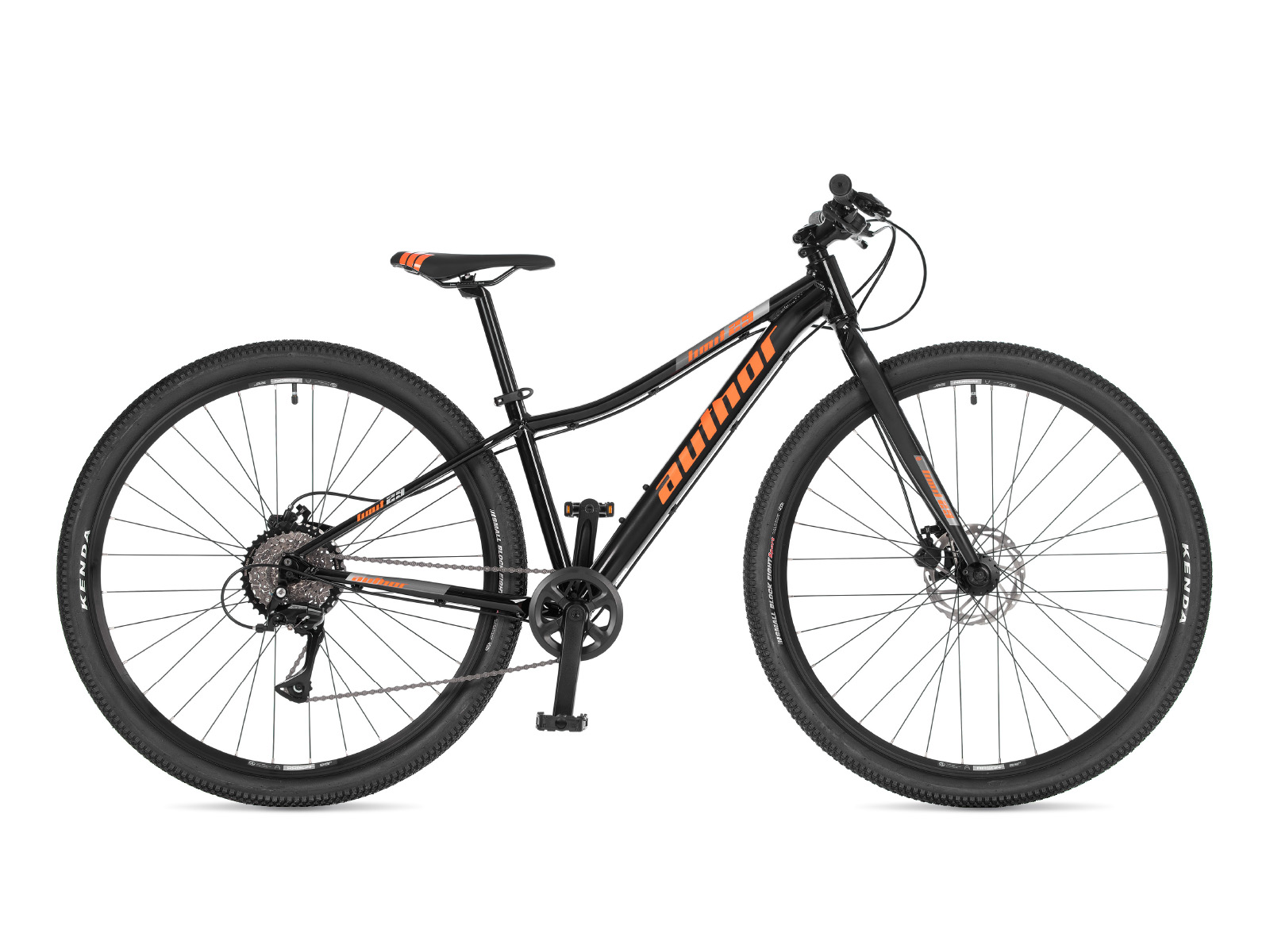

	black / orange	14" = UA#42954630 16" = UA#42954631
