Instinct 29 ASL 2023-24

~~Colour variants~~

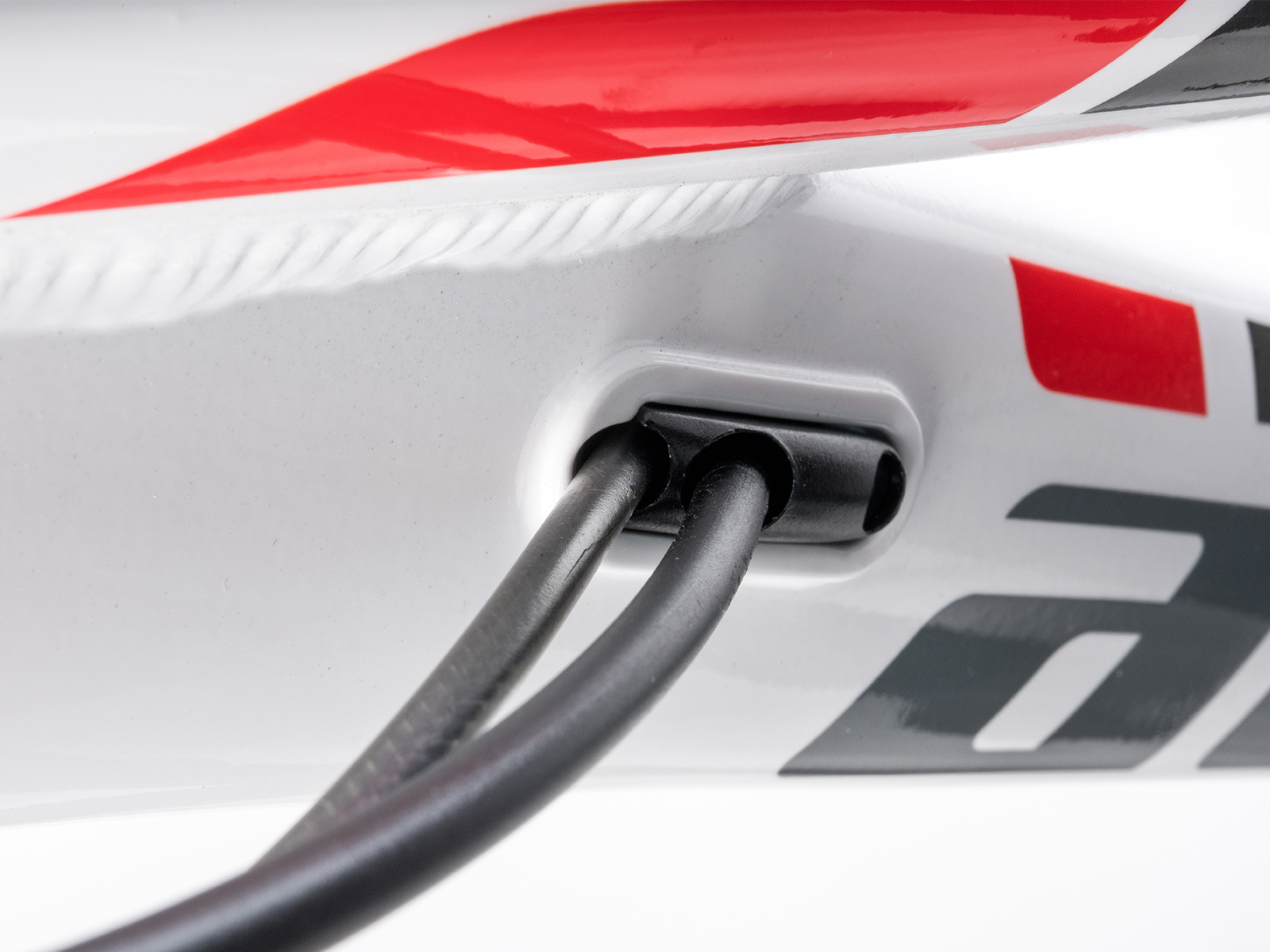

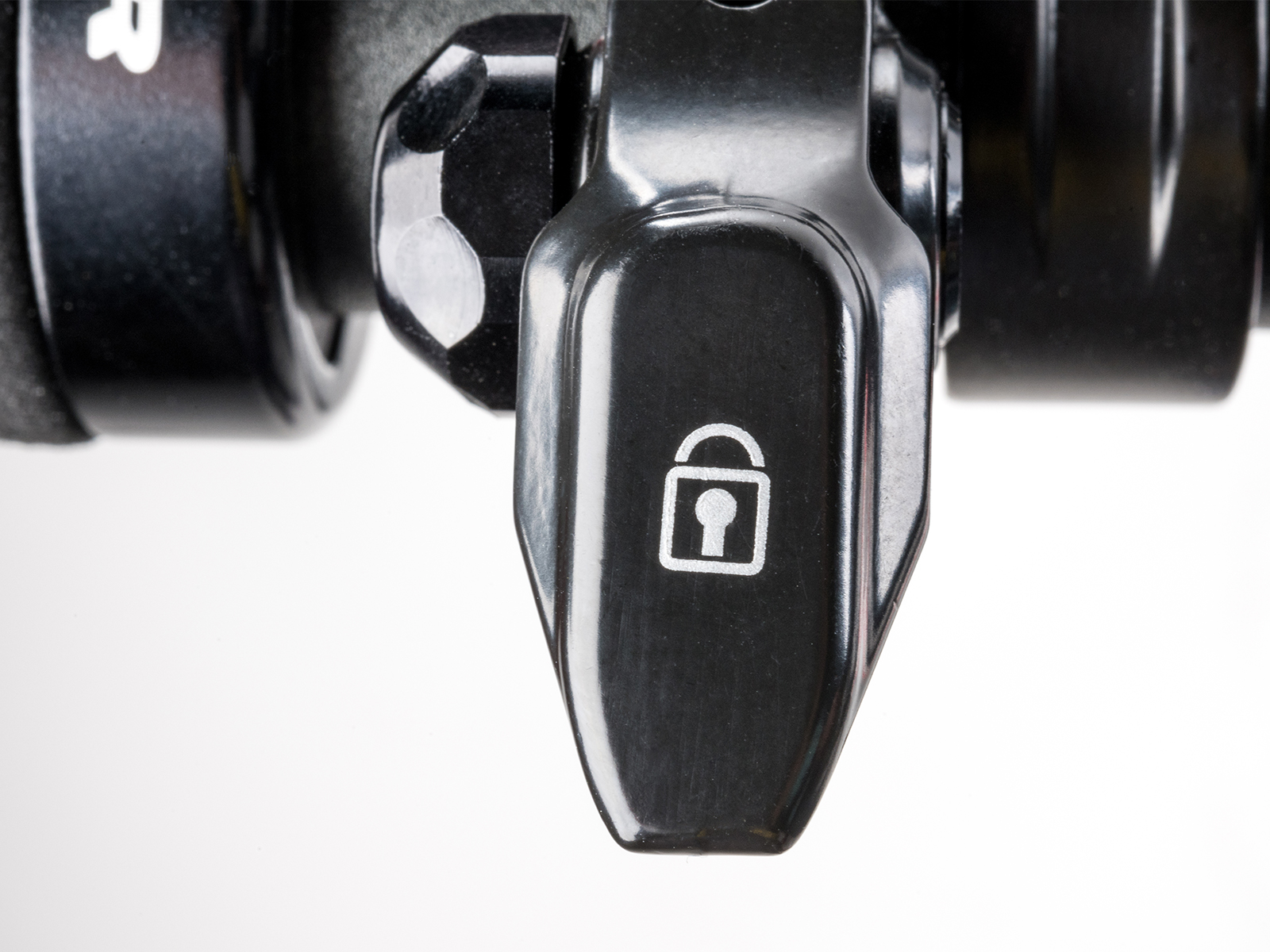

Double butted alloy ASL frame with Inner Cable RoutingRST F1RST 29 AIR TRL fork, remote lock out controlHydraulic disc brakes SHIMANO BR-MT410SHIMANO Deore rear derailleuer and shifting, 11 speedVITTORIA Barzo 29" × 2.25" foldable tiresAUTHOR GripLock foam comfortable ASL gripsAUTHOR Fenix ASL comfortable saddle

~~Buy now~~special price 23 990 Kč

original price ~~32 990 Kč~~

Technical specification

Size	16", 18"
Frame	double butted hydroformed alloy 6061 29" (ASL)
Front fork	RST F1RST 29 15 TRL air, remote lock out (100 mm)
Head parts	PRESTINE Integrated 1.5" tapered

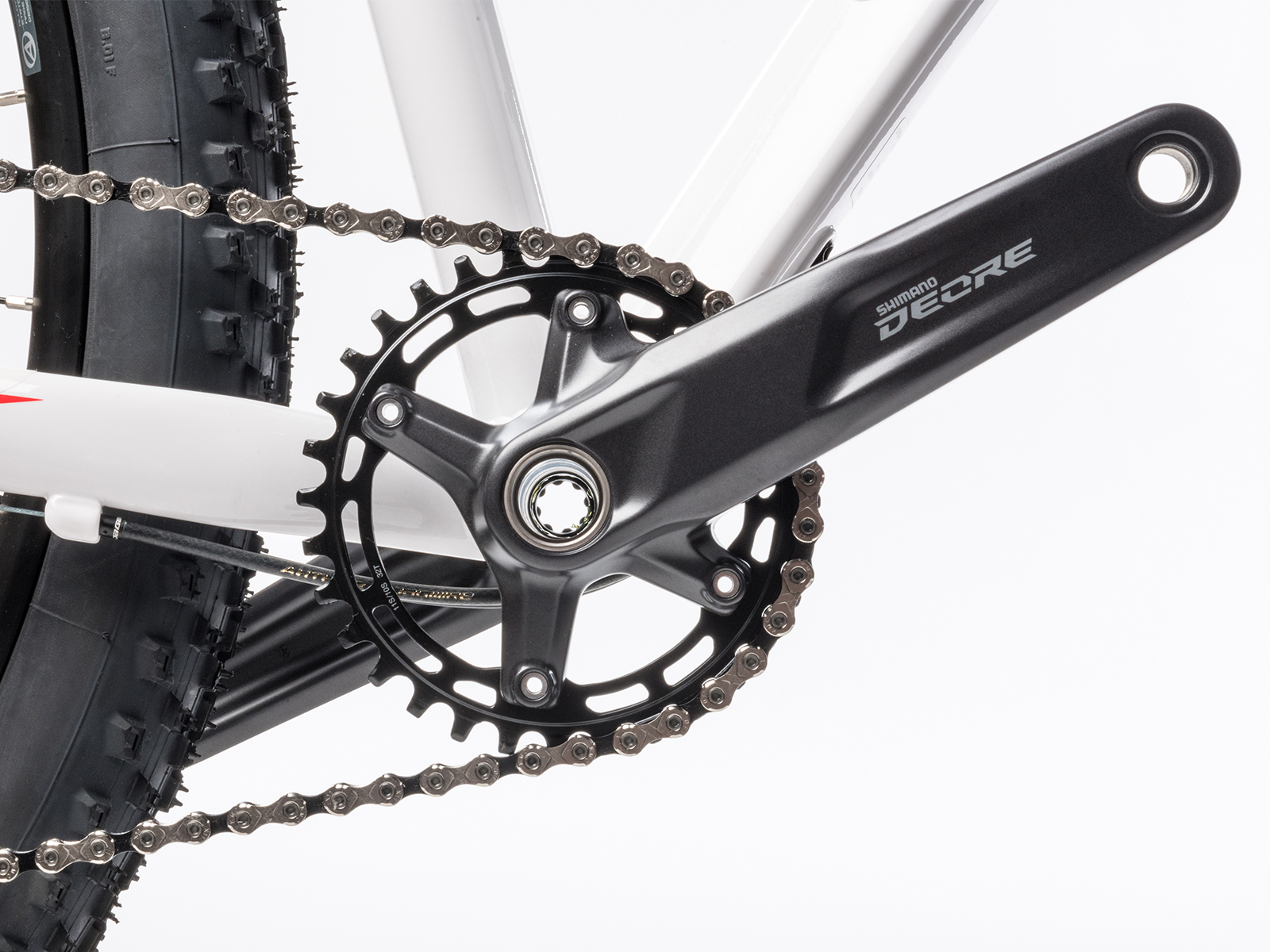

Chain Wheel	SHIMANO M5100-1, 32 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit

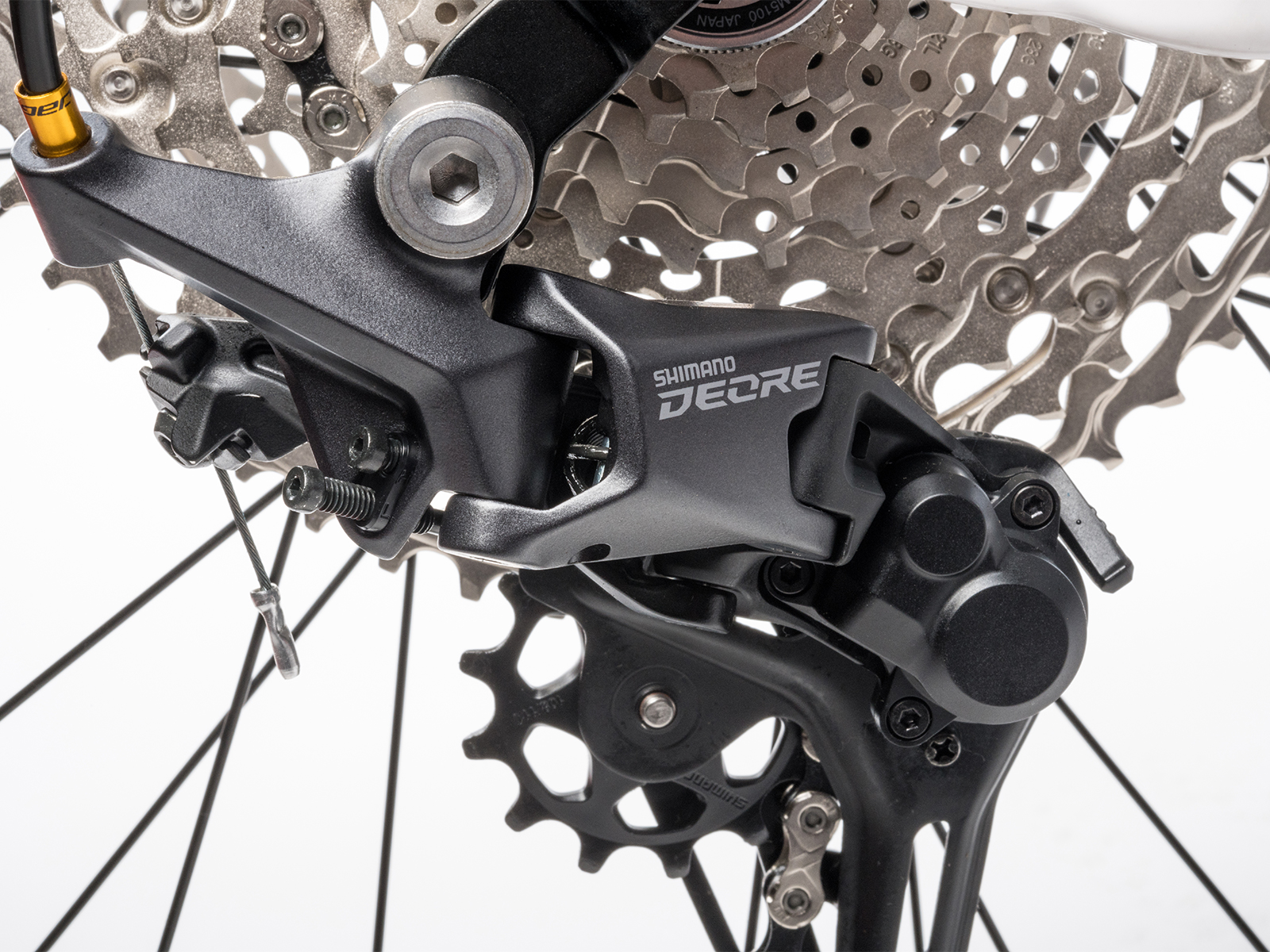

Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (11)

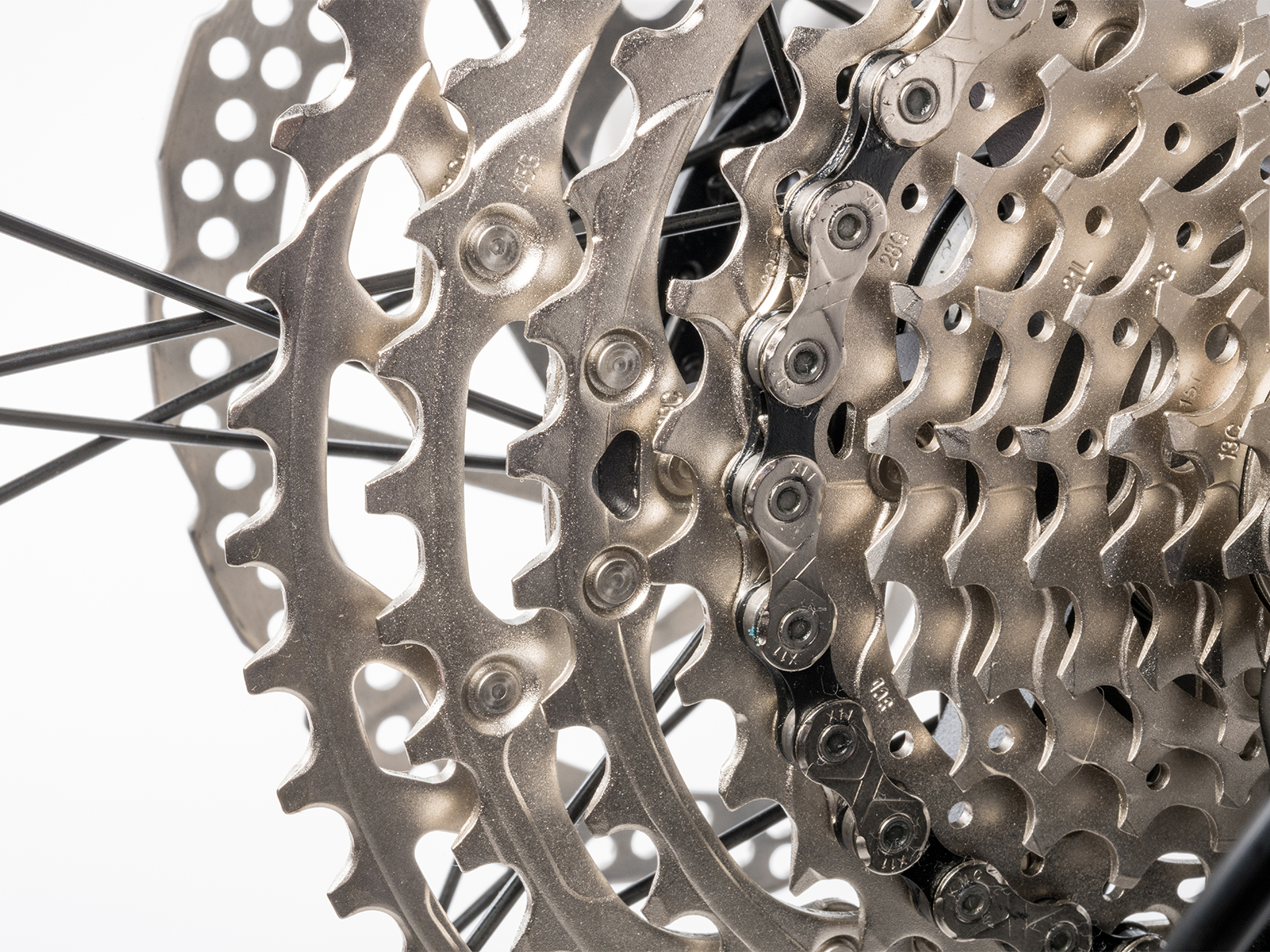

Free wheel	SHIMANO CS-M5100-11, 11-51 (11)
Chain	KMC X11
Hubs	AUTHOR Helium 15 / Xenon, 15 × 100 mm thru axle, 32 holes

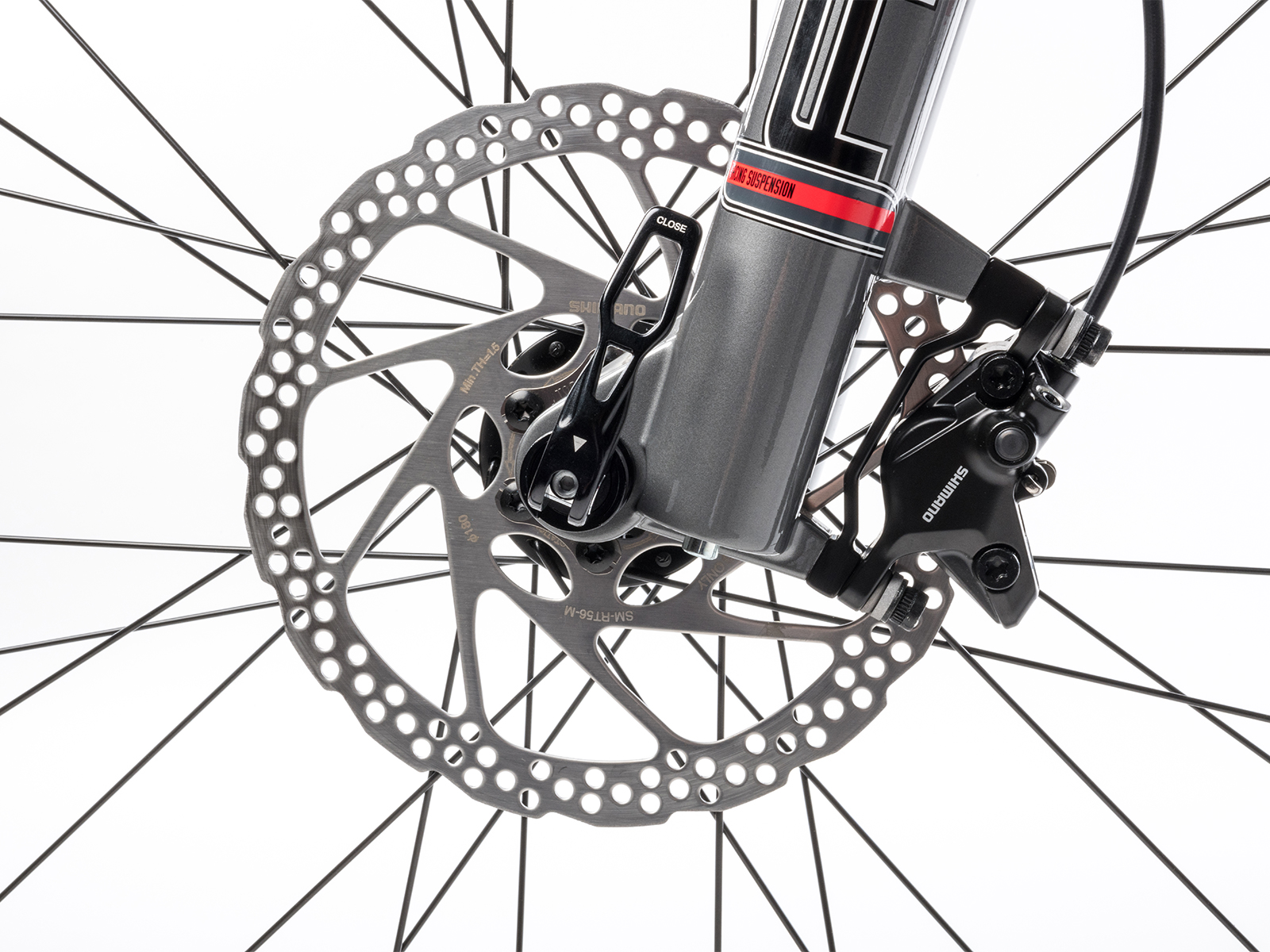

Brakes	SHIMANO BR-MT410, disc hydraulic (7" rotors)

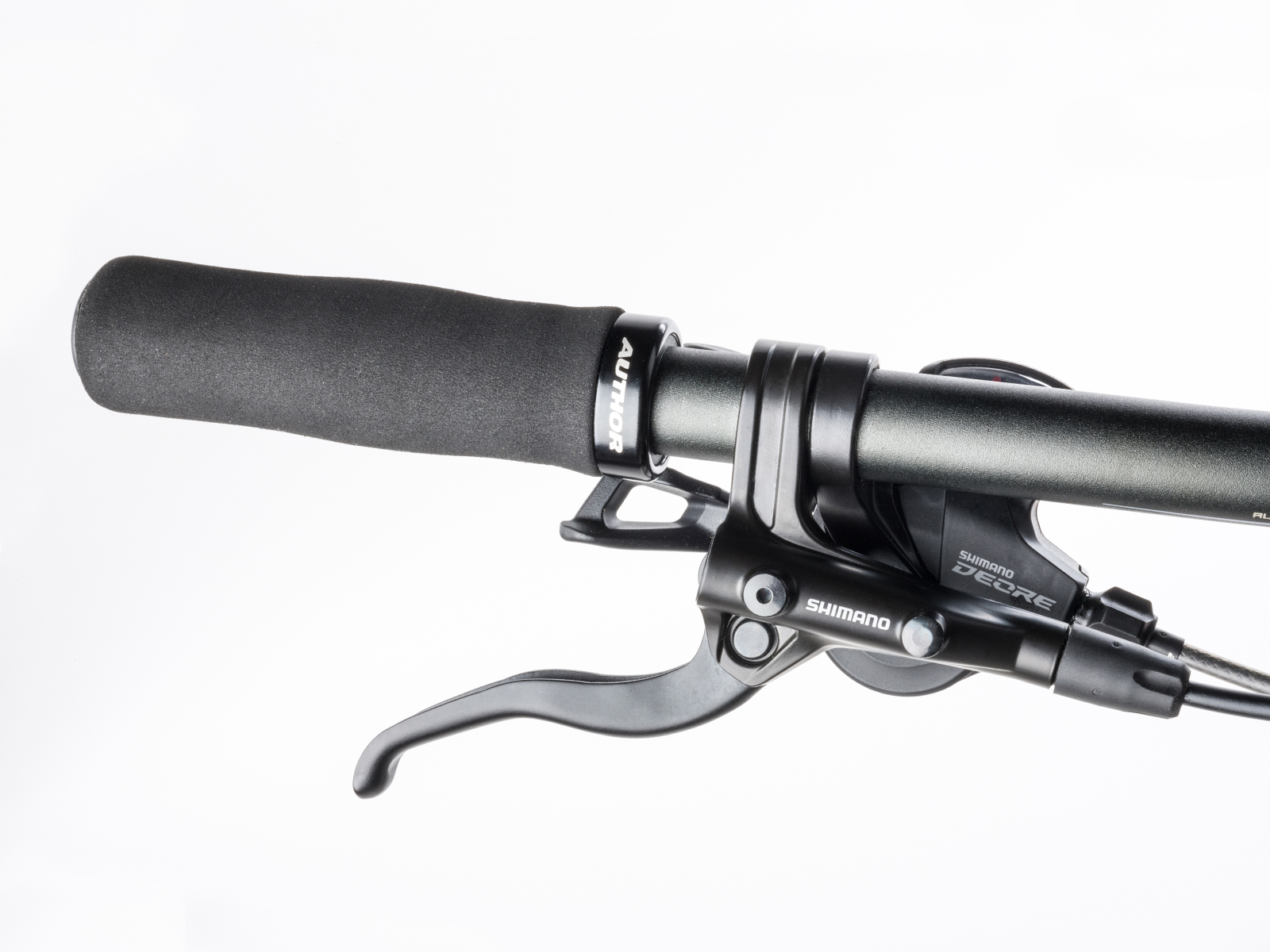

Brakes levers	SHIMANO BL MT401

Rims	AUTHOR Xenon TRC 29, 32 holes
Spokes	black stainless steel 2.0 mm

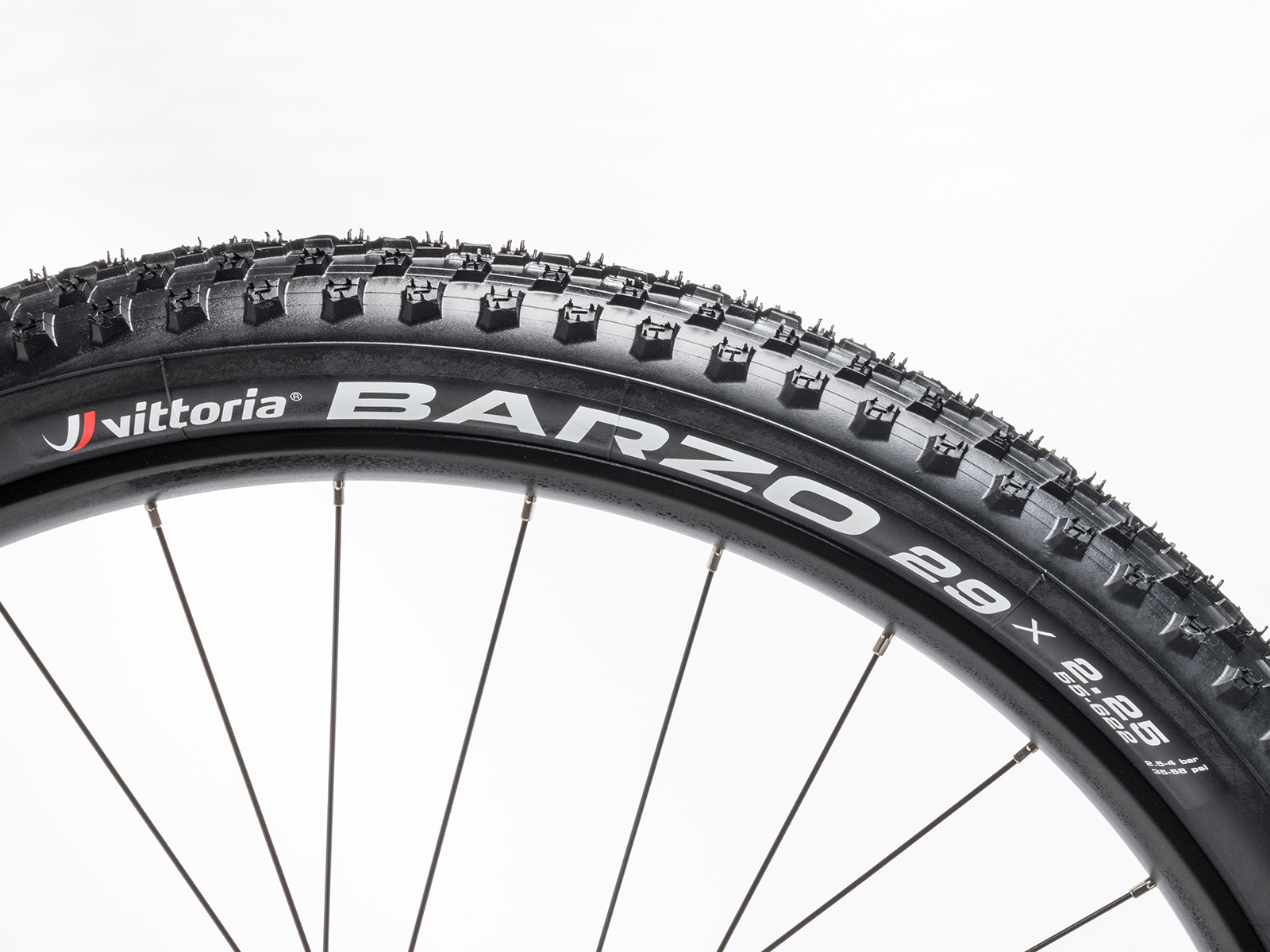

Tires	VITTORIA Barzo aramid 29" × 2.25"
Handlebar	AUTHOR Flatbar, 9°, 680 / 700 mm
Grips	AUTHOR GripLock foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

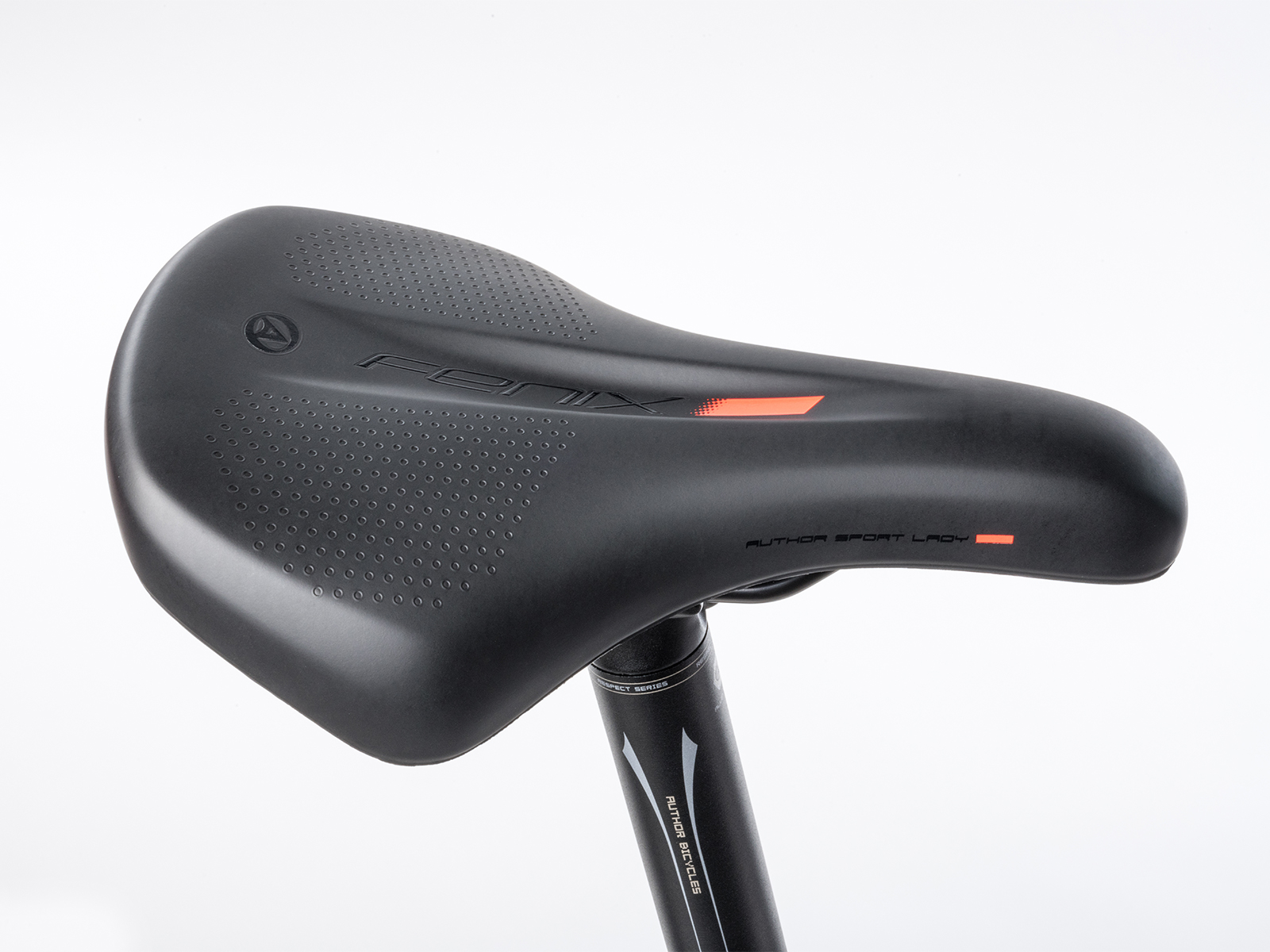

Saddle	AUTHOR Fenix
Speed	11
Weight	12,3 kg / 16"

Geometry and sizes

Size	16"	18"
Min. figure ~~[cm]~~	155	166
Max. figure ~~[cm]~~	168	182
S/T c-t ~~[mm]~~	406	457
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	570	590
T/T a ~~[mm]~~	558	569
H/T ~~[mm]~~	115	120
C/S ~~[mm]~~	450	450
W/B ~~[mm]~~	1091	1111
S/T ang. ~~[°]~~	73	73
H/T ang. ~~[°]~~	69.5	69.5
F/L ~~[mm]~~	510	510
B/B drop ~~[mm]~~	60	60
B/B width ~~[mm]~~	73	73
Reach ~~[mm]~~	378	396
Stack ~~[mm]~~	629	633
F/R ~~[mm]~~	51	51
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~182 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
