Stylo 16 2023-24

Colour variants
Wheel size 16"Recommended for height 100-125 cmWeight 7,8 kgLightweight alloy frameSimple coaster brakeIntegrated saddle handleHeight adjustable handlebar position
Buy nowspecial price 6 990 Kč
original price  7 990 Kč
Above all, the first bike must be easy to handle and comfortable for kids, so that they enjoy the ride and at the same time feel safe. The stylish 16-inch Author Stylo bike offers an easy and fast way of braking thanks to the brakes in the rear hub - just step back. At the same time, however, we see it as a necessity to test and touch the brake levers. Not only for the child, the saddle also offers comfort for parents with an ergonomically designed armrest, so that the support during the first rides is comfortable. The chain cover as a basic safety feature is a matter of course, as is the choice of two color combinations.
Add to compareadditional accessories
other models
Record 168 990Stylo 166 990Bello 166 290Orbit 165 990
Interested in other model`s year?

Technical specification

Size9"
Framealloy 6061 16"
Front forkhi-ten
Head partsVP COMP 1"
Chain WheelPROWHEEL, 32 teeth, 102 mm cranks
BBPartsVP COMP
Free wheelcoasterhub 16T
ChainKMC Z6
Hubsrear coasterhub, 16 holes
BrakesTEKTRO V / coasterhub
Brakes leversTEKTRO alloy
Rimsalloy, 16 holes
Spokesblack steel
Tires16" × 1.75"
Pedalsplastic
Handlebaralloy, 60 mm, 500 mm
GripsAUTHOR kratton rubber
Stemalloy
Seat postalloy (27.2)
Seat clampalloy (31.8)
SaddleAUTHOR
Speed1
Weight7,8 kg / 9"

Geometry and sizes

Size 9"
Min. figure [cm] 100
Max. figure [cm] 125
S/T c-t [mm] 229
S/T c-c [mm] 0
T/T h [mm] 375
T/T a [mm] 360
H/T [mm] 90
C/S [mm] 305
W/B [mm] 723
S/T ang. [°] 74
H/T ang. [°] 73
F/L [mm] 267
B/B drop [mm] -5
B/B width [mm] 68
Reach [mm] 0
Stack [mm] 0
F/R [mm] 40
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Stylo 16 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
9"21 stores4294220125
 ▪   CykloCentrum Brnoin stockbuy nowBrno702 144 752, brno@cyklocentrum.czmap
 ▪   Bike Servis FRODLorderorder nowČáslav603 510 347, mpbike@seznam.czmap
 ▪   SPORT CYKLO s.r.o.orderorder nowHolešov603 373 886, sportcyklo@gmail.commap
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   Velo Vít Sportin stockbuy nowKostelec nad Orlicí494 321 123, prodejna@kolakostelec.czmap
 ▪   bikee.czin stockbuy nowKutná Hora327 513 119, cyklo@autocombi.czmap
 ▪   Cyklosport Kerdain stockbuy nowLiberec 10602 411 149 , cyklosport@kerda.czmap
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   CYKLOSPORT H&Forderorder nowOpava 1777 330 072, info@cyklosporthf.czmap
 ▪   OtroKolo, s.r.o.in stockbuy nowOtrokovice775575822, info@otrokolo.czmap
 ▪   Kola Pešekin stockbuy nowPardubice - Staré Čívice733 706 797, info@kolapesek.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.orderorder nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
 ▪   Ramala s.r.o.orderorder nowPlzeň377 322 435, plzen@ramala.czmap
 ▪   Štěrba BIKEin stockbuy nowPraha 4241 741 961, info@sterbabike.czmap
 ▪   Velo Fialaorderorder nowPraha 6725 729 111, tomas@velofiala.czmap
 ▪   CykloCentrum ESHOPorderorder nowPraha 7725 085 309, info@cyklocentrum.czmap
 ▪   Viaveloorderorder nowPraha 8 - Kobylisy777 700 150, sipal.ivan@seznam.czmap
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
 ▪   Flystorkorderorder nowTřebíč530 513 203, obchod@flystork.czmap
⟲  In other storesin 2 daysdealers
9"20 stores4294221125
 ▪   CykloCentrum Brnoin stockbuy nowBrno702 144 752, brno@cyklocentrum.czmap
 ▪   Bike Servis FRODLin stockbuy nowČáslav603 510 347, mpbike@seznam.czmap
 ▪   Ramala s.r.o.in stockbuy nowDomažlice379 725 198, domazlice@ramala.czmap
 ▪   SPORT CYKLO s.r.o.orderorder nowHolešov603 373 886, sportcyklo@gmail.commap
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   bikee.czin stockbuy nowKutná Hora327 513 119, cyklo@autocombi.czmap
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   CYKLOSPORT H&Forderorder nowOpava 1777 330 072, info@cyklosporthf.czmap
 ▪   Kola Pešekin stockbuy nowPardubice - Staré Čívice733 706 797, info@kolapesek.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.in stockbuy nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
 ▪   Ramala s.r.o.orderorder nowPlzeň377 322 435, plzen@ramala.czmap
 ▪   Štěrba BIKEin stockbuy nowPraha 4241 741 961, info@sterbabike.czmap
 ▪   Velo Fialaorderorder nowPraha 6725 729 111, tomas@velofiala.czmap
 ▪   CykloCentrum ESHOPorderorder nowPraha 7725 085 309, info@cyklocentrum.czmap
 ▪   Viaveloorderorder nowPraha 8 - Kobylisy777 700 150, sipal.ivan@seznam.czmap
 ▪   Jízdní kola Rezek - Rezkováorderorder nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
 ▪   Ramala s.r.o.in stockbuy nowTábor731 517 476, tabor@ramala.czmap
 ▪   Flystorkorderorder nowTřebíč530 513 203, obchod@flystork.czmap
 ▪   ZAF Velo Sportin stockbuy nowVelké Pavlovice776 820 690, velo@zaf.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

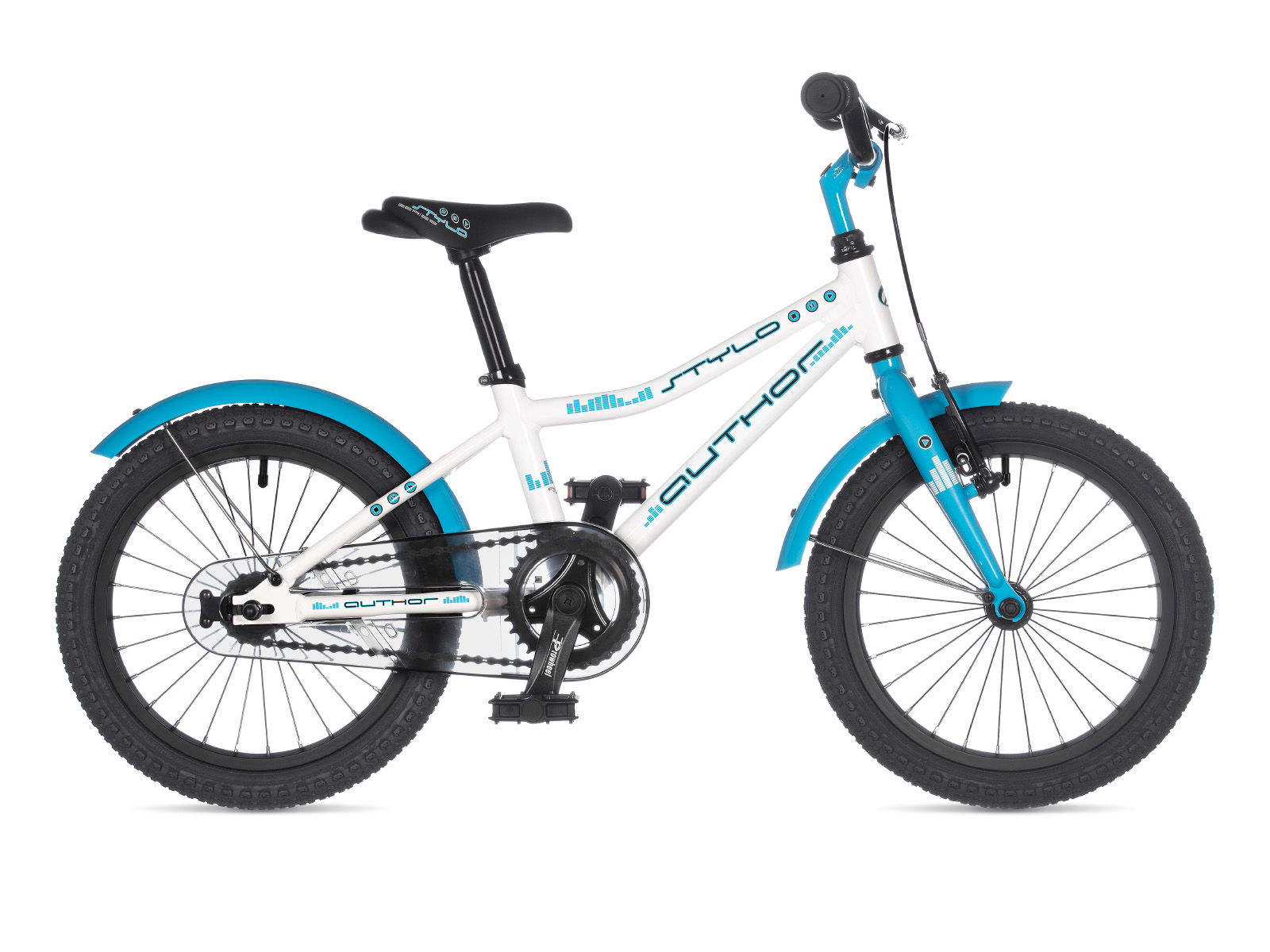

white / blue9" = UA#4294220125

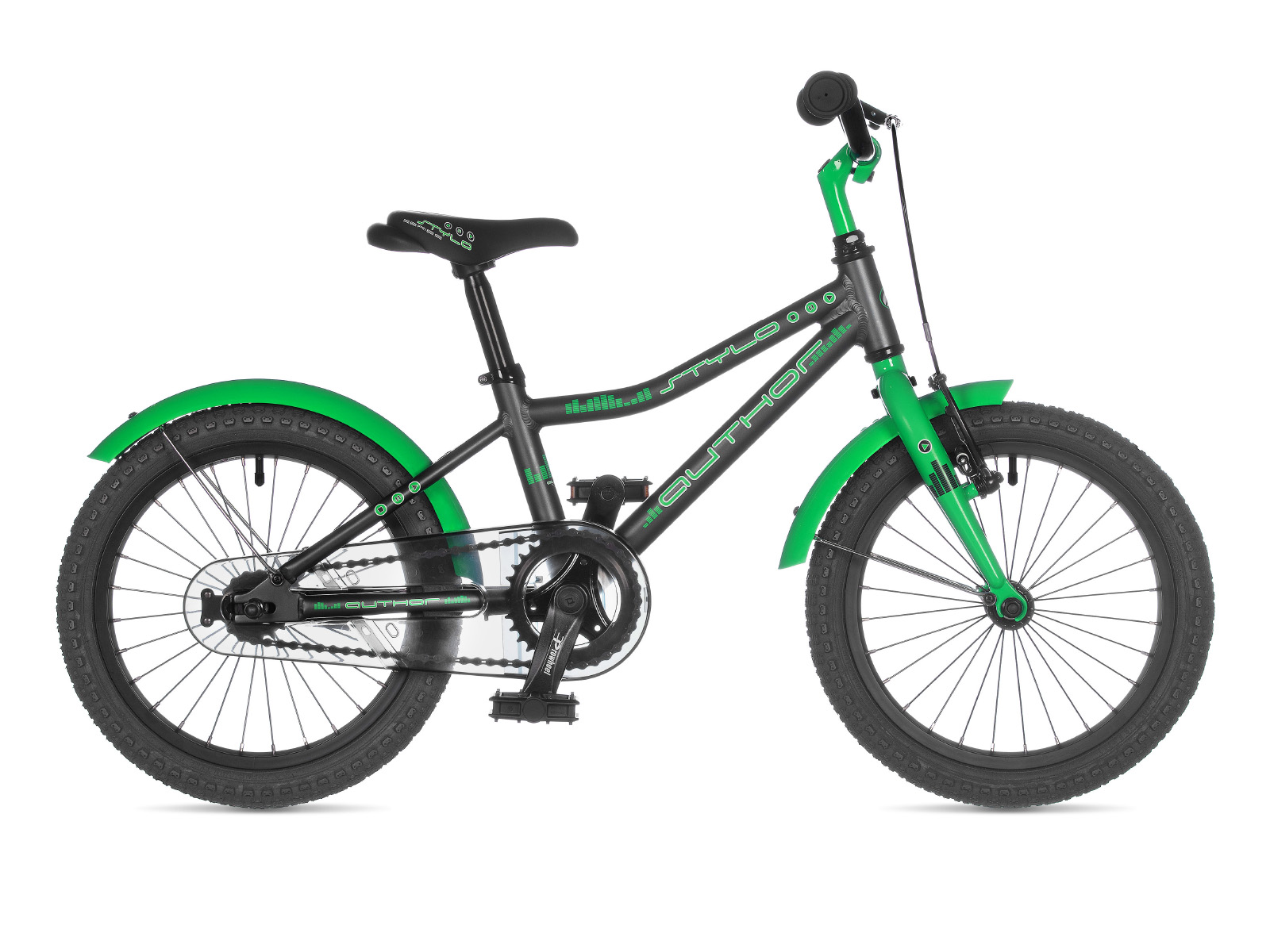

grey-matt / green9" = UA#4294221125
