Bello 16 2023-24

Colour variants
Wheel size 16"Recommended for height 100-125 cmWeight 7,9 kgLightweight alloy frameSimple coaster brakeIntegrated saddle handleHeight adjustable handlebar position
Buy nowspecial price 6 290 Kč
original price  7 690 Kč

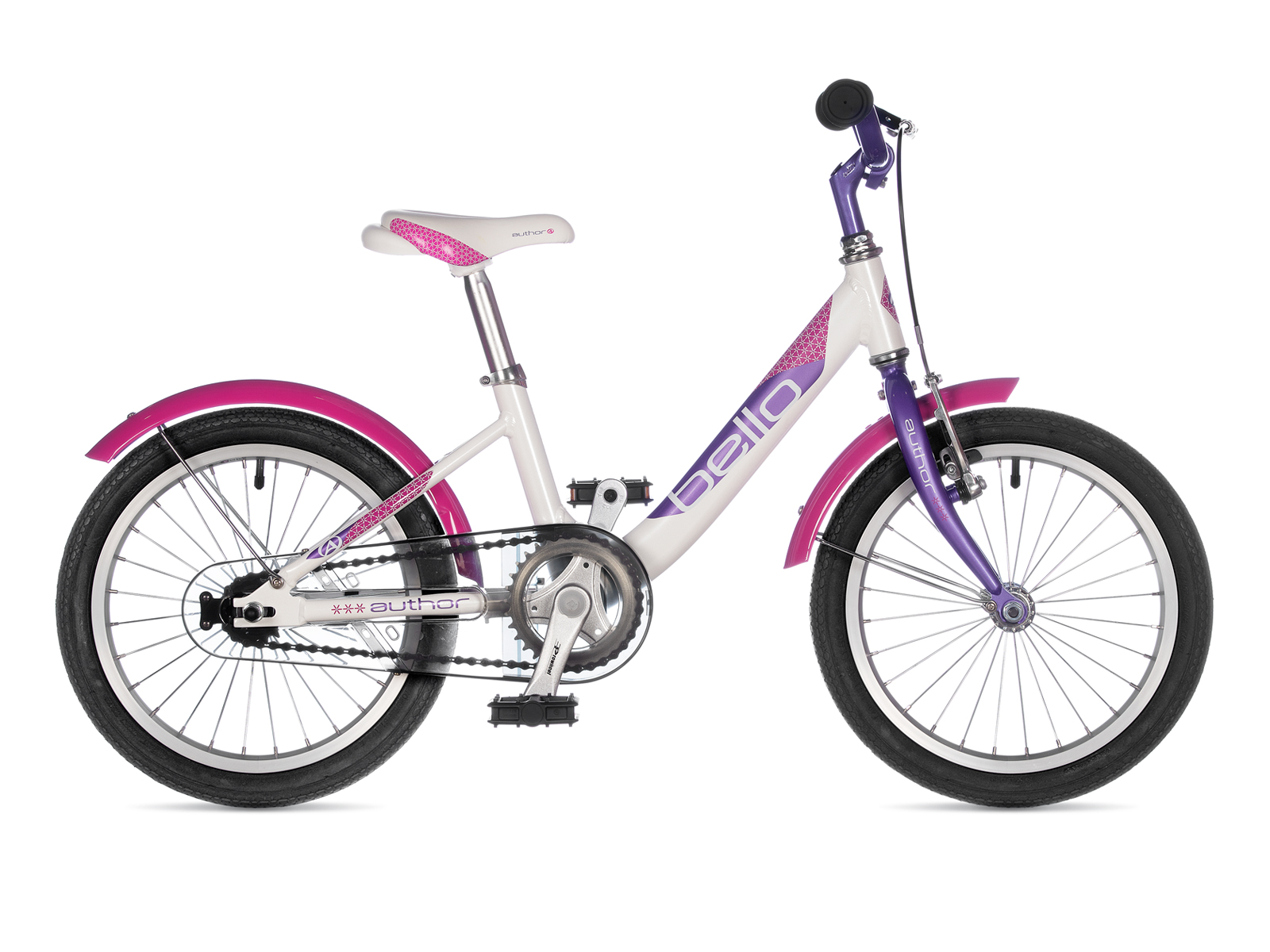

Author Bello kid's bike with a light alloy frame, geometry with, bent upper tube, which makes it very easy to control the bike when getting on and off. Low center of gravity, ergonomic grips, upright driving, chain cover, rear hub brakes and front V-lever brake all details are focused on making it easy to find balance, comfort and safety for the smallest riders. Two color combinations make the bike a universal partner for the first kilometers.
other models
Interested in other model`s year?

Technical specification

Size9"
Framealloy 6061 16" (L)
Front forkhi-ten
Head partsVP COMP 1"
Chain WheelPROWHEEL, 32 teeth, 102 mm cranks
BBPartsVP COMP
Free wheelcoasterhub 16T
ChainKMC Z6
Hubsrear coasterhub, 16 holes
BrakesTEKTRO V / coasterhub
Brakes leversTEKTRO alloy
Rimsalloy, 16 holes
Spokessteel
Tires16" × 1.50"
Pedalsplastic
Handlebarsteel, 60 mm, 500 mm
GripsAUTHOR kratton rubber
Stemalloy
Seat postalloy (27.2)
Seat clampalloy (31.8)
SaddleAUTHOR
Speed1
Weight7,9 kg / 9"

Geometry and sizes

Size 9"
Min. figure [cm] 100
Max. figure [cm] 125
S/T c-t [mm] 229
S/T c-c [mm] 0
T/T h [mm] 375
T/T a [mm] 0
H/T [mm] 90
C/S [mm] 305
W/B [mm] 717
S/T ang. [°] 74
H/T ang. [°] 73
F/L [mm] 267
B/B drop [mm] -5
B/B width [mm] 68
Reach [mm] 0
Stack [mm] 0
F/R [mm] 34
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Bello 16 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
