  » Bicycles » junior » junior 16

Record 16 2025

Colour variants
Wheel size 16"Recommended for height 100-125 cmWeight 9,2 kgSimple coaster brakeIntegrated saddle handleHeight adjustable handlebar position
Buy nowprice 8 990 Kč
other models
Interested in other model`s year?

Technical specification

Size9"
Framealloy 6061 16"
Front forkalloy
Head partsPRESTINE 1-1/8"
Chain WheelPROWHEEL, 32 teeth, 102 mm cranks
BBPartsVP COMP
Free wheelsprocket, 16 teeth
ChainKMC Z6
HubsQUANDO, 16 holes
BrakesTEKTRO V
Brakes leversTEKTRO alloy
Rimsalloy, 16 holes
Spokesblack steel
TiresKENDA Small Block Eight, 16" × 1.50"
Pedalsplastic
Handlebaralloy, 20 mm, 520 mm
Stemalloy
Seat postalloy (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR
Speed1

Geometry and sizes

Size 9"
Min. figure [cm] 100
Max. figure [cm] 125
S/T c-t [mm] 229
S/T c-c [mm] 0
T/T h [mm] 375
T/T a [mm] 362
H/T [mm] 90
C/S [mm] 305
W/B [mm] 737
S/T ang. [°] 74
H/T ang. [°] 73
F/L [mm] 265
B/B drop [mm] -5
B/B width [mm] 68
Reach [mm] 0
Stack [mm] 0
F/R [mm] 40
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Record 16 2025

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
9"8 stores42953301
 ▪   SPORT CYKLO s.r.o.orderorder nowHolešov603 373 886, sportcyklo@gmail.commap
 ▪   CykloCentrum Mladá Boleslav in stockbuy nowMladá Boleslav725 121 447, boleslav@cyklocentrum.czmap
 ▪   CYKLOSPORT H&Forderorder nowOpava 1777 330 072, info@cyklosporthf.czmap
 ▪   Ramala s.r.o.orderorder nowPlzeň377 322 435, plzen@ramala.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
 ▪   CykloCentrum ESHOPorderorder nowPraha 7725 085 309, info@cyklocentrum.czmap
 ▪   Jízdní kola Rezek - Rezkováorderorder nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
⟲  In other storesin 2 daysdealers
9"4 stores42953311
 ▪   CykloCentrum Mladá Boleslav in stockbuy nowMladá Boleslav725 121 447, boleslav@cyklocentrum.czmap
 ▪   CykloCentrum ESHOPorderorder nowPraha 7725 085 309, info@cyklocentrum.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
⟲  In other storesin 2 daysdealers
9"4 stores42953321
 ▪   CykloCentrum Mladá Boleslav in stockbuy nowMladá Boleslav725 121 447, boleslav@cyklocentrum.czmap
 ▪   CykloCentrum ESHOPorderorder nowPraha 7725 085 309, info@cyklocentrum.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

lime / blue9" = UA#42953301

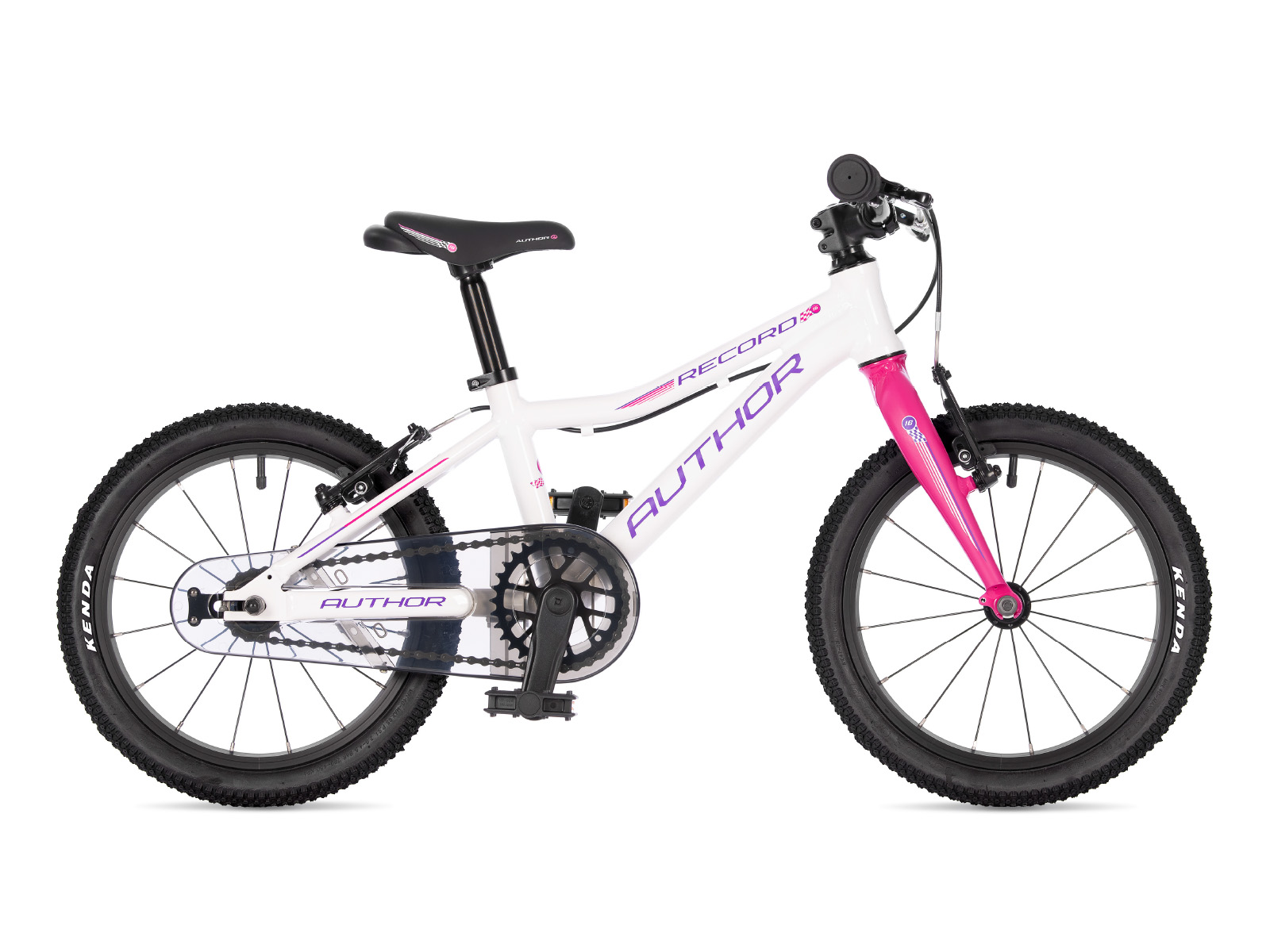

white / pink / purple9" = UA#42953311

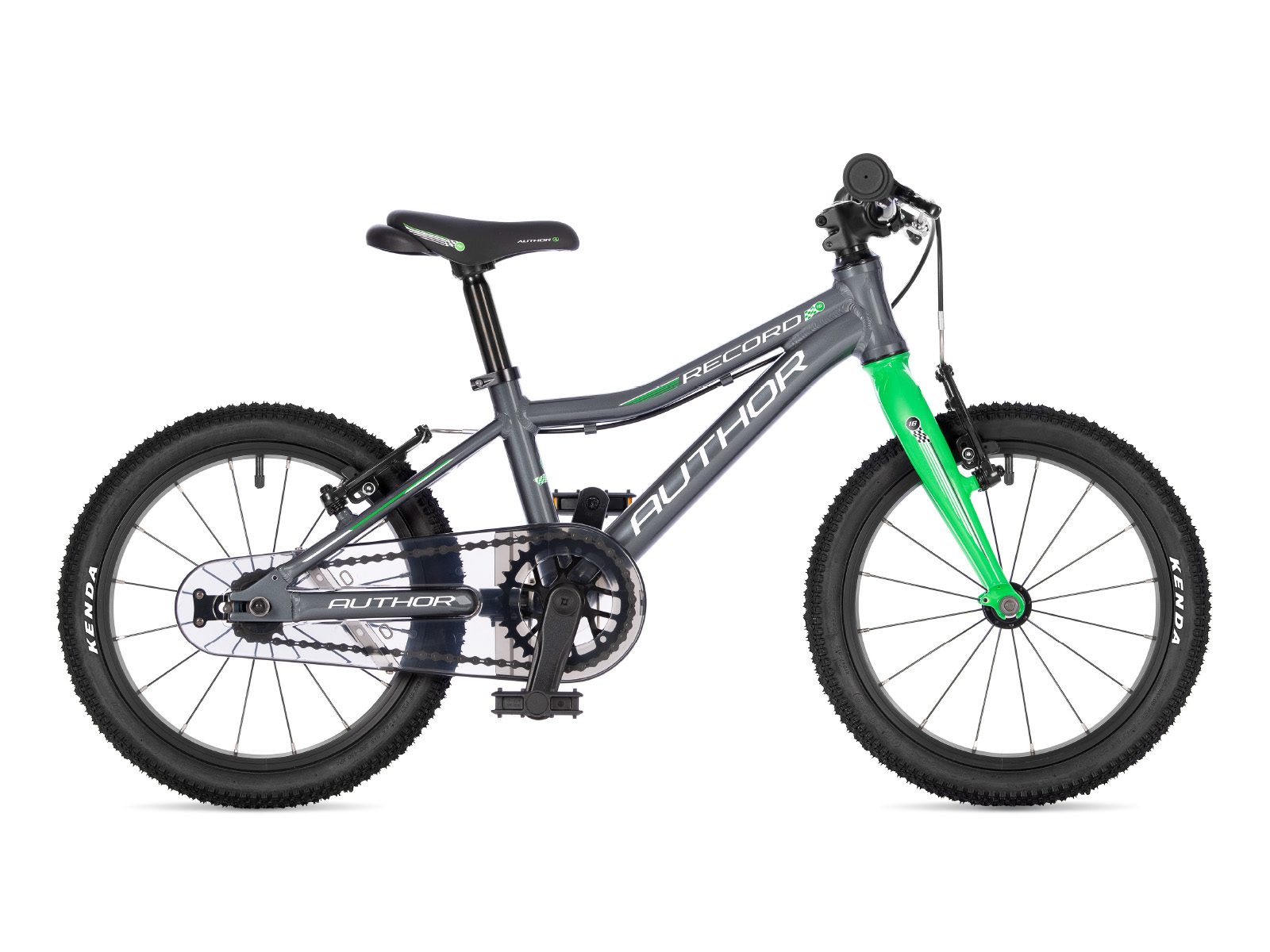

grey / green9" = UA#42953321
