AUTHOR Pegas 29 2019
AUTHOR Pegas 29 2019
AUTHOR Pegas 29 2019AUTHOR Pegas 29 2019
  » Bicycles » mountain bike » mtb 29

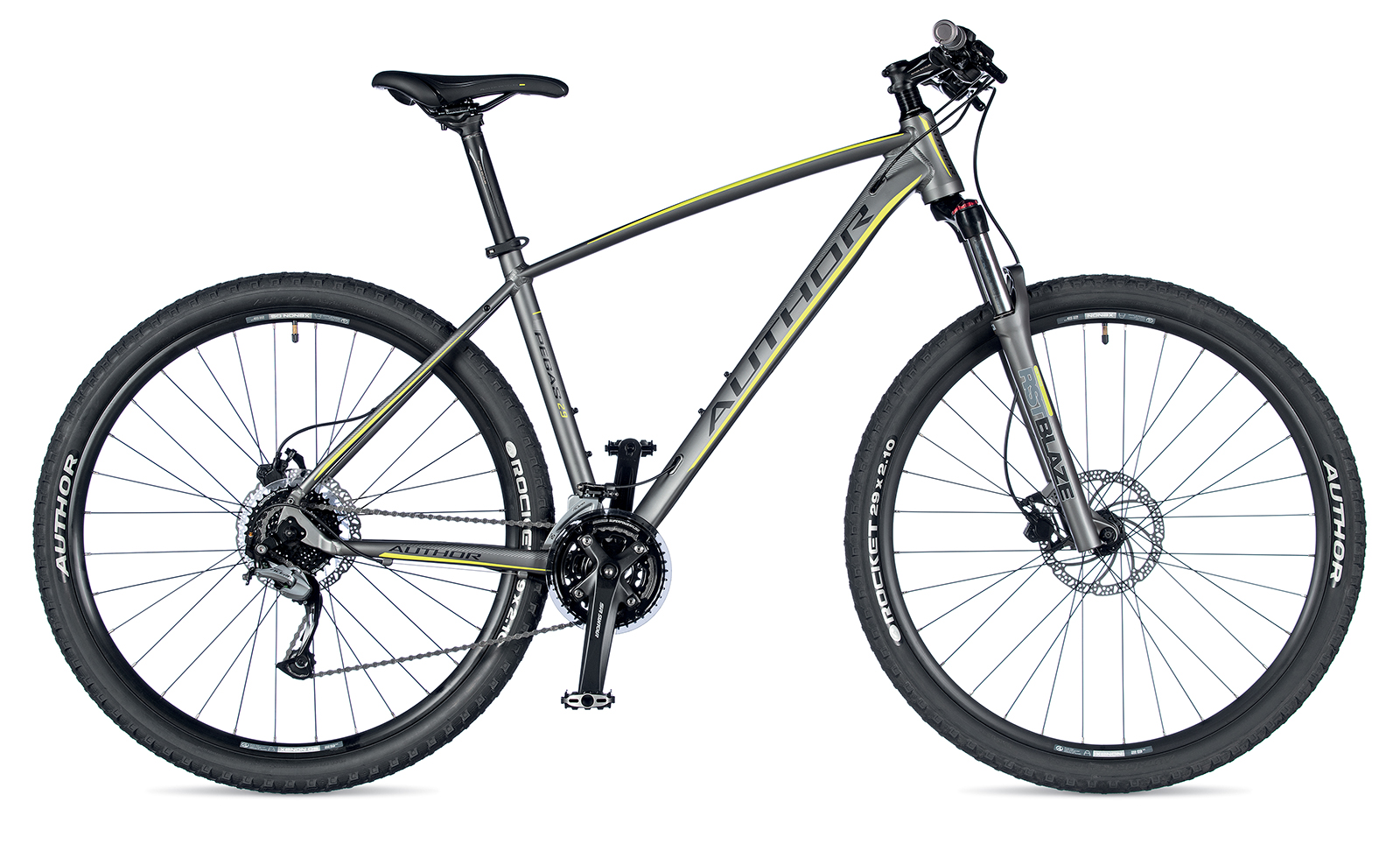

AUTHOR Pegas 29 2019Archivní model 2019

Colour variants
Hydroformed alloy frameRST Blaze 29 Tnl forkDisc hydraulic TEKTRO brakes
special price 15 990 Kč
original price  17 990 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size17", 19", 21"
Framehydroformed alloy 6061 29"
Front forkRST Blaze 29 TnL oil, lock out (100 mm)
Head partsAUTHOR Integrated 1.5" tapered
Chain WheelSUNTOUR XCM 40-30-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCT cartridge
Front derailleurSHIMANO Alivio (34.9)
Rear derailleurSHIMANO Acera
ShiftersSHIMANO Acera (27)
Free wheelSHIMANO HG200-9 11-34 (9)
ChainKMC Z9
HubsQUANDO Disc 32 holes
BrakesTEKTRO Auriga disc hydraulic (7" rotors)
Brakes leversTEKTRO Auriga
RimsAUTHOR Xenon 29 32 holes
Spokesblack steel
TiresAUTHOR Rocket 29" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR Flatbar 9° 700 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Navigator
Speed27
Weight15,3kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 600 620 640
T/T a [mm] 580 596 614
H/T [mm] 115 130 140
C/S [mm] 445 445 445
W/B [mm] 1120 1141 1162
S/T ang. [°] 73 73 73
H/T ang. [°] 69 69 69
F/L [mm] 510 510 510
B/B drop [mm] 63 63 63
B/B width [mm] 73 73 73
Reach [mm] 408 424 441
Stack [mm] 628 642 652
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Pegas 29 2019

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
